ZRF Spinning
1 / 5
| No. | Parameter Item | Specification Details |
|---|---|---|
| 1 | Main cylinder nominal force | 8MN |
| 2 | Piston / piston rod diameter | φ630/φ600mm |
| 3 | The main cylinder travel | 1100mm |
| 4 | Liquid working pressure | 25MPa |
| 5 | Inside the rack width | 7800mm |
| 6 | Height | 3000mm |
| 7 | Rack dimensions: (length × width × height) | 9560mm×1500mm×8700mm |
| 8 | Main pump motor power | 75KW |
| 9 | Pressing speed | 6.5mm/s |
| 10 | Return speed | 100mm/s |
| 11 | Empty down speed | 120 mm/s |
| 12 | Robot walking distance (left)(right) | 2235mm;3500mm |
| 13 | Robot walking speed | 50mm/s |
| 14 | Robot walking joist moving distance | 2400mm |
| 15 | Robot walking joist tilt angle | 45degree |
| 16 | Drive wheel lift height | 800mm |
| 17 | Robot outline dimensions | 8900mm×4100mm×2800mm |
| No. | Parameter Item | Specification Details |
|---|---|---|
| 1 | The largest elliptical head | φ6500×40mm (Q345) |
| 2 | The smallest elliptical head | φ2700×14mm (Q345) |
| 3 | Clamping mechanism | Stroke: 1785mm | Moving speed: 10.5mm/s | Upper cylinder: Travel 1850mm | Under cylinder: Travel 1700mm |
| 4 | Forming roller | Main motor power: 110KW | Rotating speed: 750/1500r.p.m | Reducer speed ratio: i≈25 |
| 5 | Pressure roller | Front cylinder travel: 1100mm | Back cylinder travel: 1100mm | Liquid working pressure: 25/7/3MPa |
| 6 | Locking mechanism | Motor: 2.2KW | Travel: 600mm | Speed: 11.5 mm/s | Lock cylinder: Travel 750mm |
| 7 | Maximum clearance size in the frame (Length×Height) | 7900mm×3200mm |
| 8 | Overall Dimension | ≈12920mm×2200mm×8400mm |
| 9 | Above ground level | ≈8400mm |

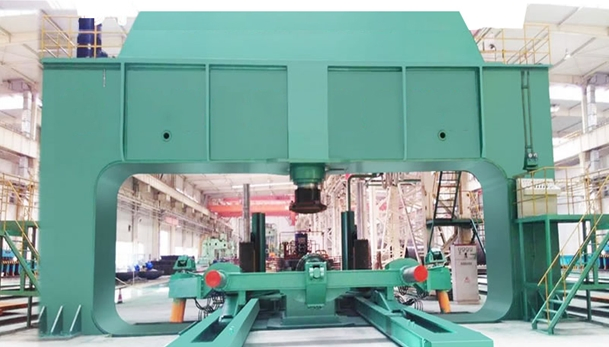

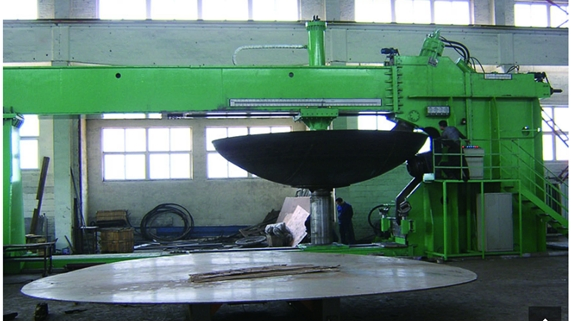

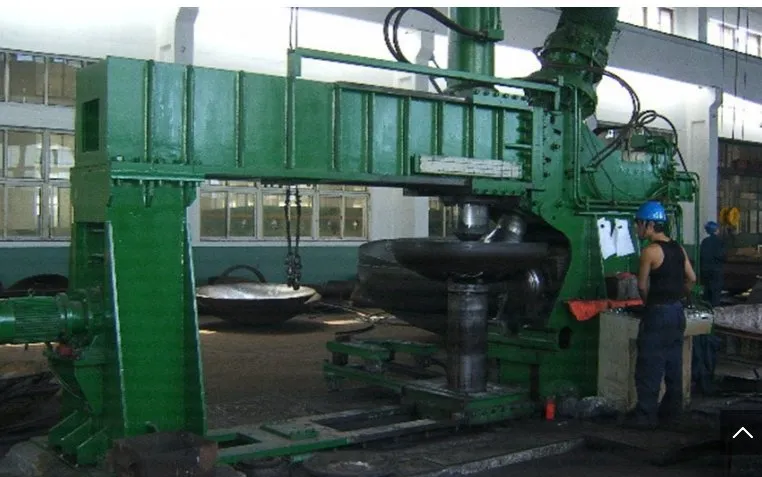

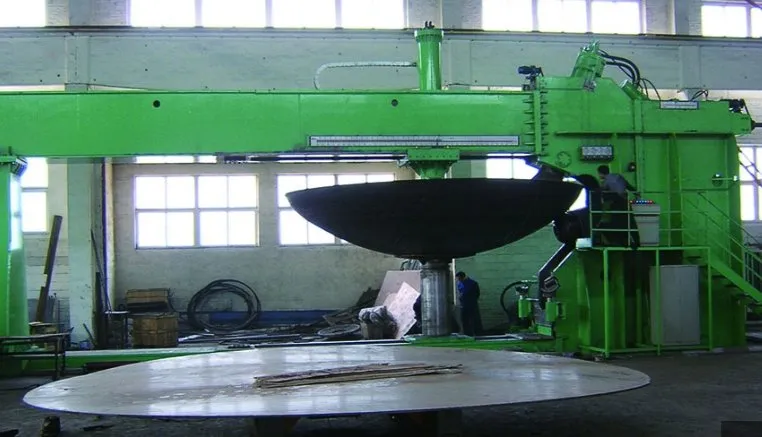

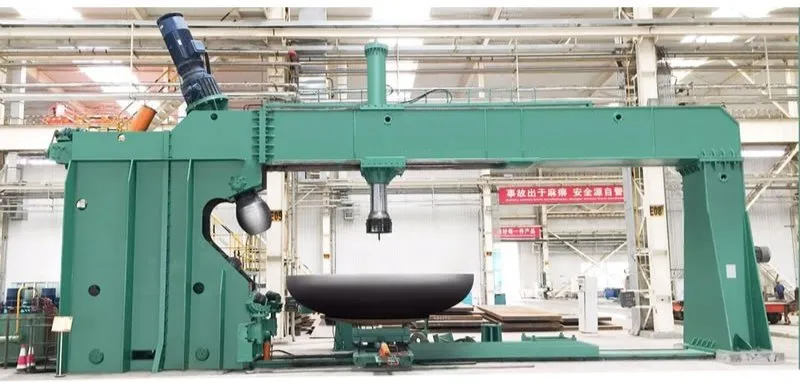

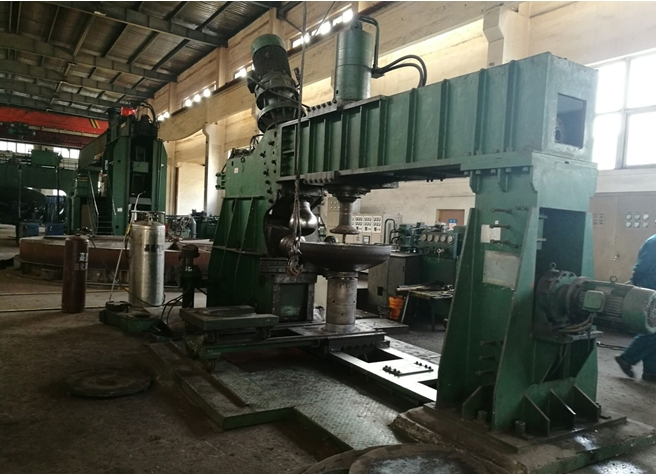

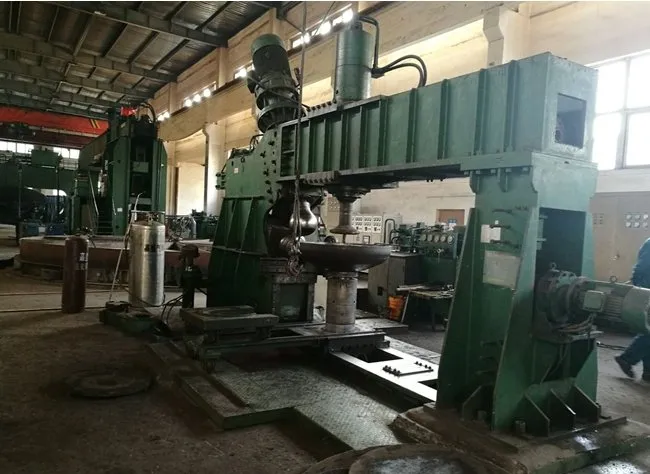

"A" type of spinning equipment is mainly used for the spinning of metal sheet forming, such as the manufacture of a variety of container head and large car cover, etc., by the spinning technology mature staff to operate, forming wheel mounted inside, the pressure Wheeled on the outside. In the spinning time, first open the molding wheel, the pressure wheel with the forming wheel at the same time rotation, when the work piece after forming, the pressure wheel back to the rear. At this point, remove the molding of the head, complete a work cycle.
The machine has an independent power system and hydraulic system and electrical system, the use of button centralized control, the machine operating position with emergency stop button. With jogging and semi-automatic function, according to product needs to achieve automatic return. There are fixed and constant pressure pressing process to choose from. The design work pressure of the machine is 31.5Mpa, the working stroke can be adjusted within a certain range to meet the needs of users of different products.
Vibration parts: It is with high-pressure hose, to fully eliminate the shock and shock, reduce the possibility of leakage.

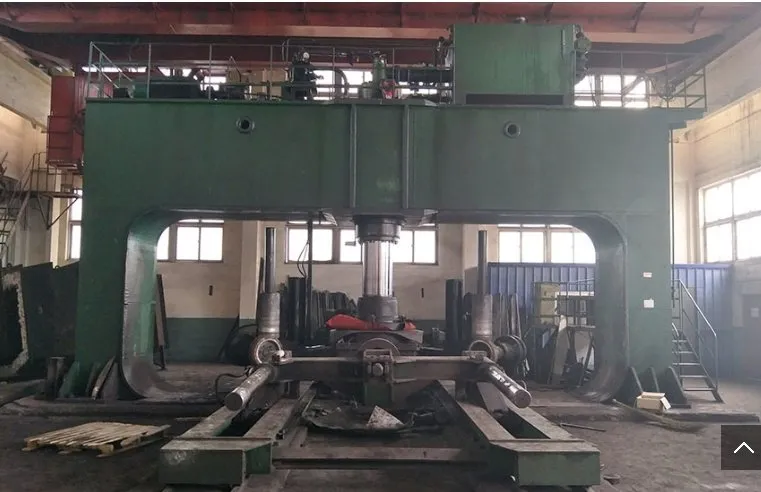

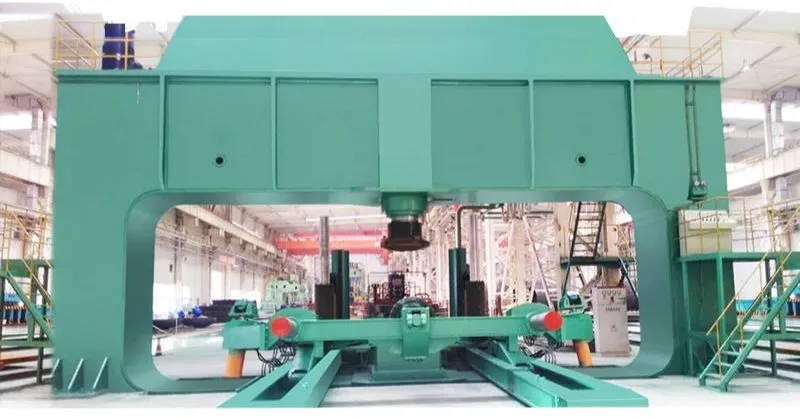

Machine structure: The host is welded with high quality steel plate and treated by vibration aging, which can eliminate the welding stress and have high strength and rigidity. Welded with a closed U-shaped structure, the upper beam with the master cylinder, the lower beam with a table, with the operating system with the work.
12 months or 2,000 operating hours (whichever comes first).
