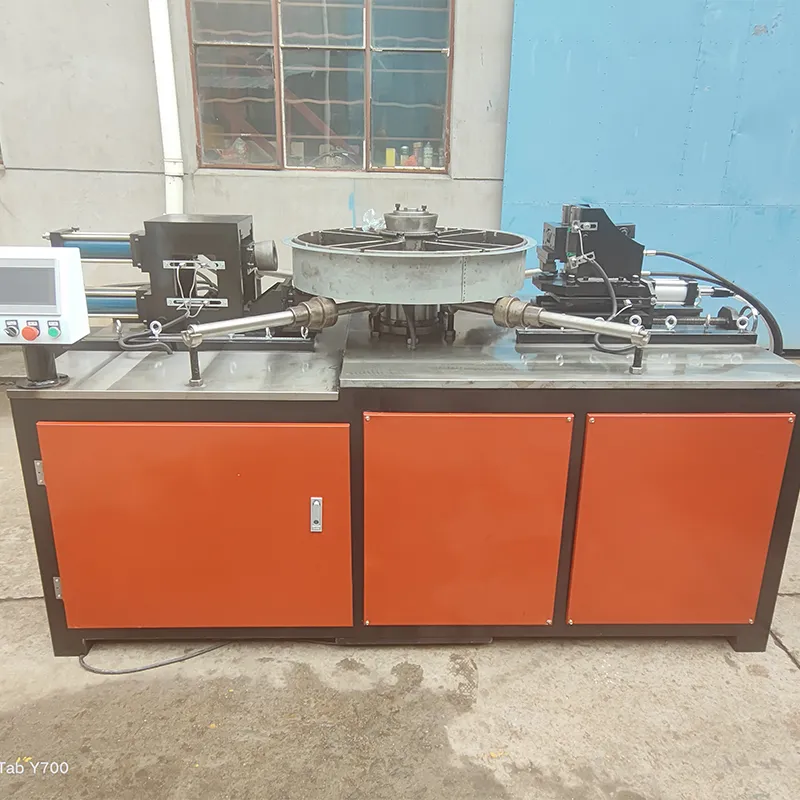

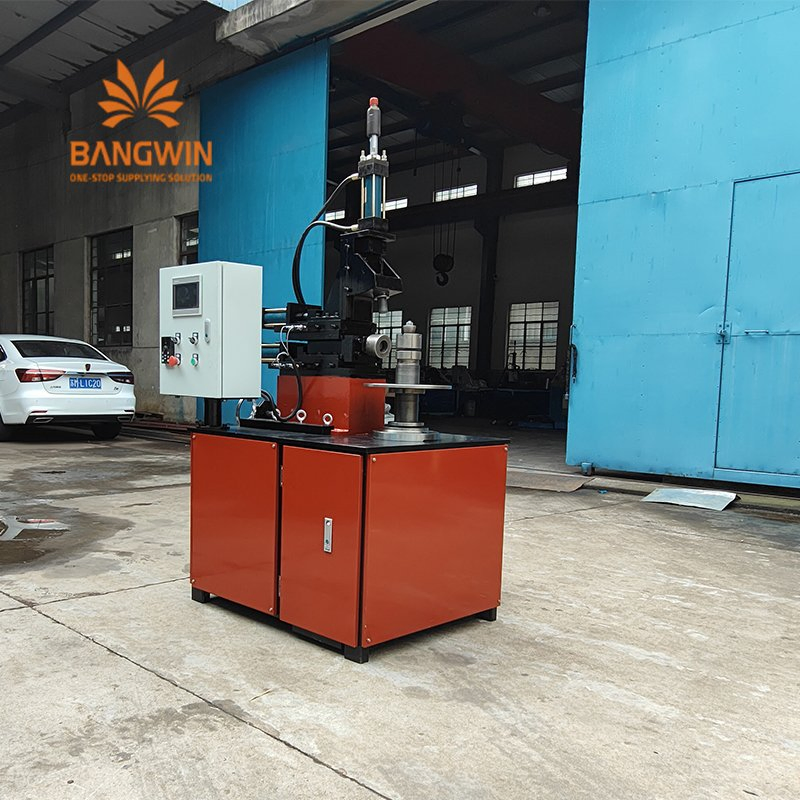

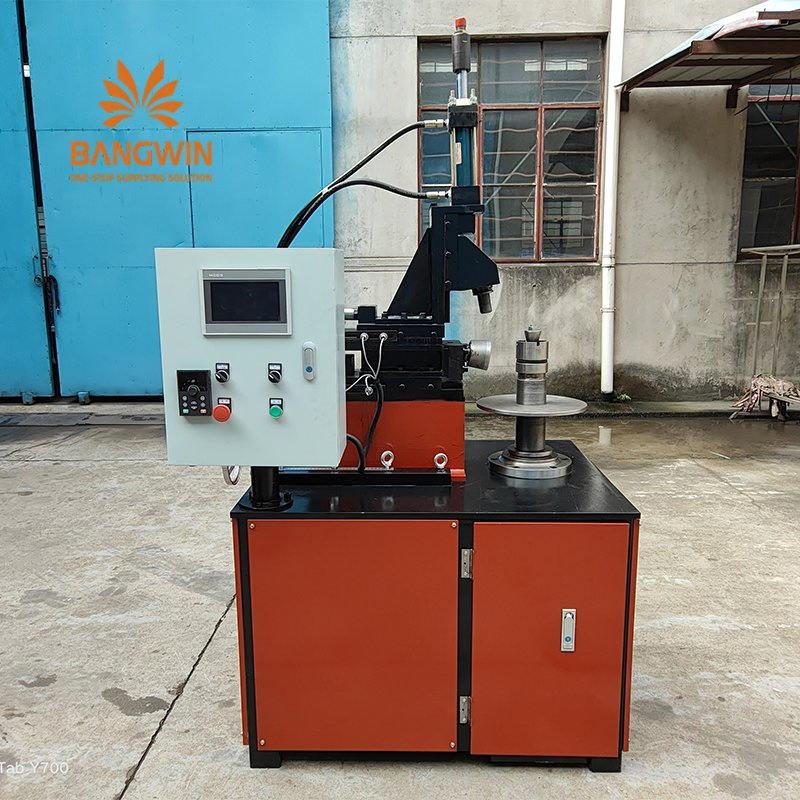

Heavy Duty Automatic Flanging Machine

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Basic Info.

Model NO.

bw

Fan Thickness

2-5mm

Diameter

300-1250mm

Flanging Height

10-50mm

Motor

3/2.2kw

Weight

1500kg

Transport Package

Custom

Specification

3200*1200*900mm

Trademark

N/A

Origin

China

Packaging & Delivery

Package Size

100.00cm * 100.00cm * 100.00cm

Package Gross Weight

100.000kg

Product Description

Features

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Specification Parameters	Details
Flanging thickness	0.8mm-3mm
Flanging width	15mm-40mm
Flanging diameter	400mm-1600mm
Upper pulley	Cylinder control
Lower pulley	Cylinder control
Total motor power	15KW
Reducer	WPO reducer
Electrical box accessories	PLC digital display control

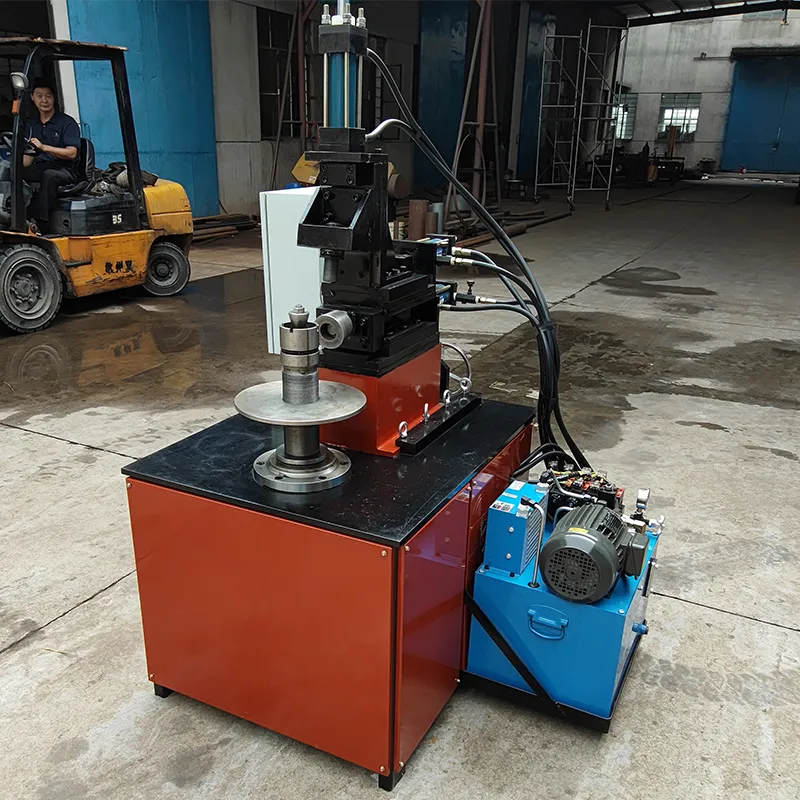

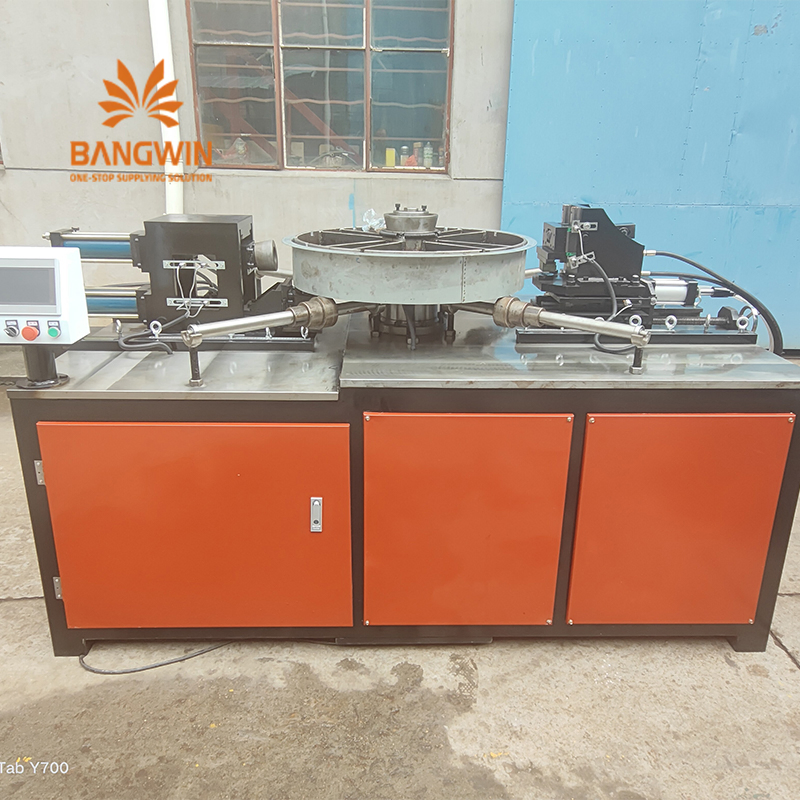

Heavy Duty Automatic Flanging Machine Detail 1

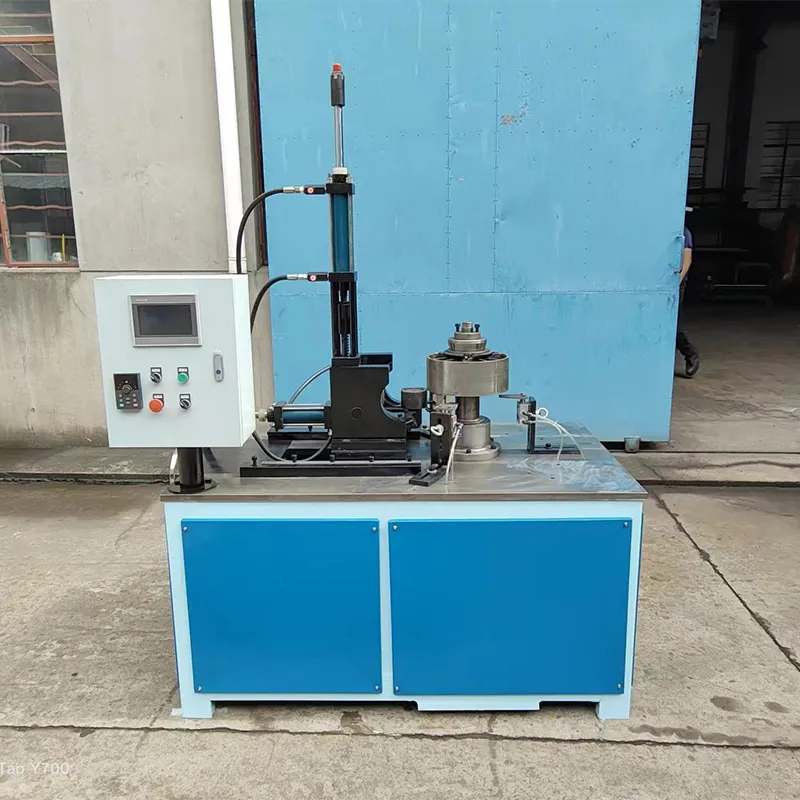

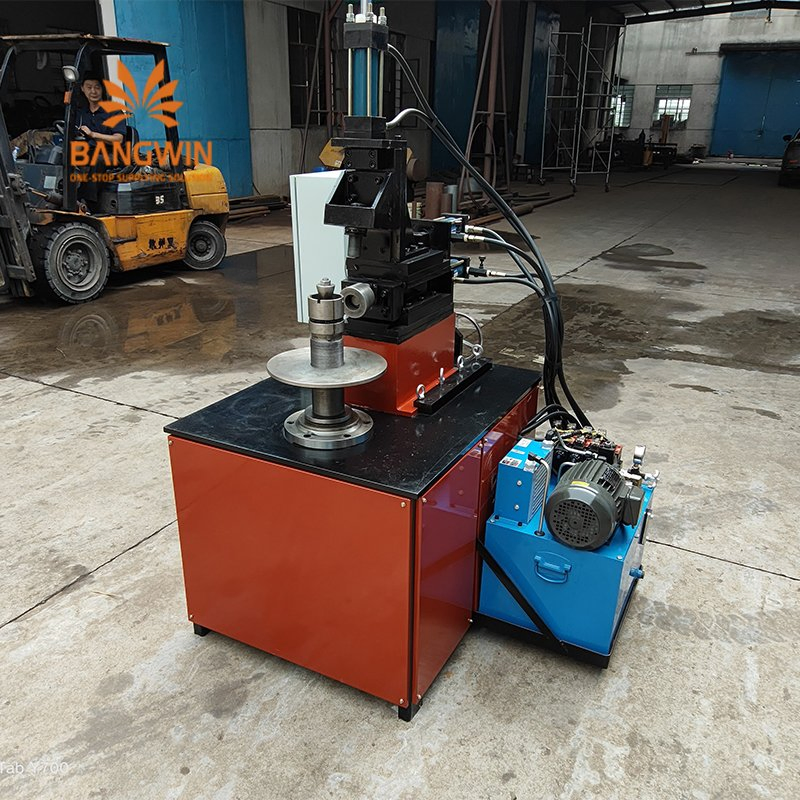

Heavy Duty Automatic Flanging Machine Detail 2

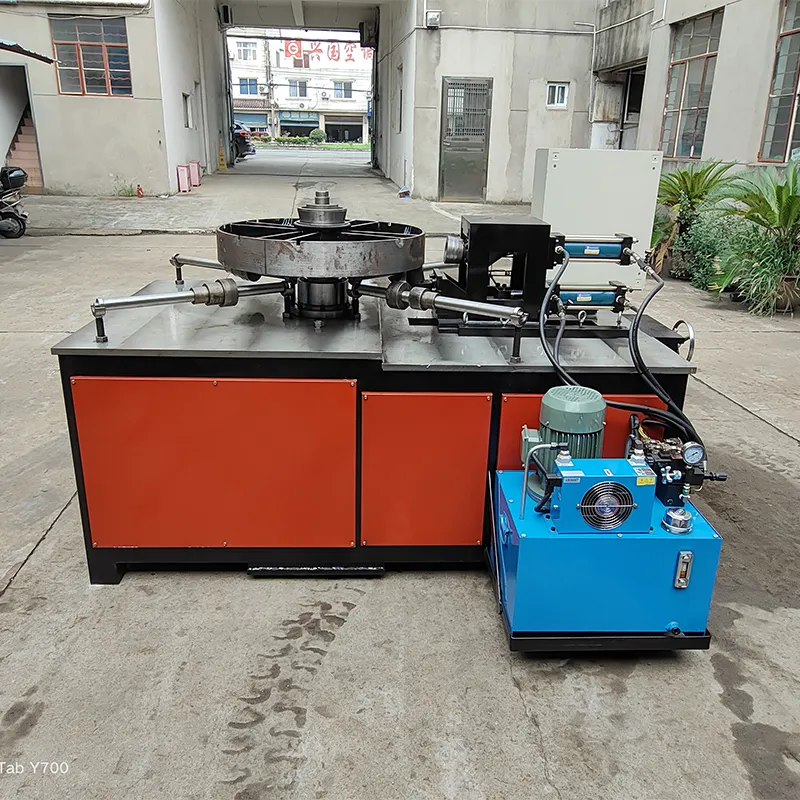

Heavy Duty Automatic Flanging Machine Detail 3

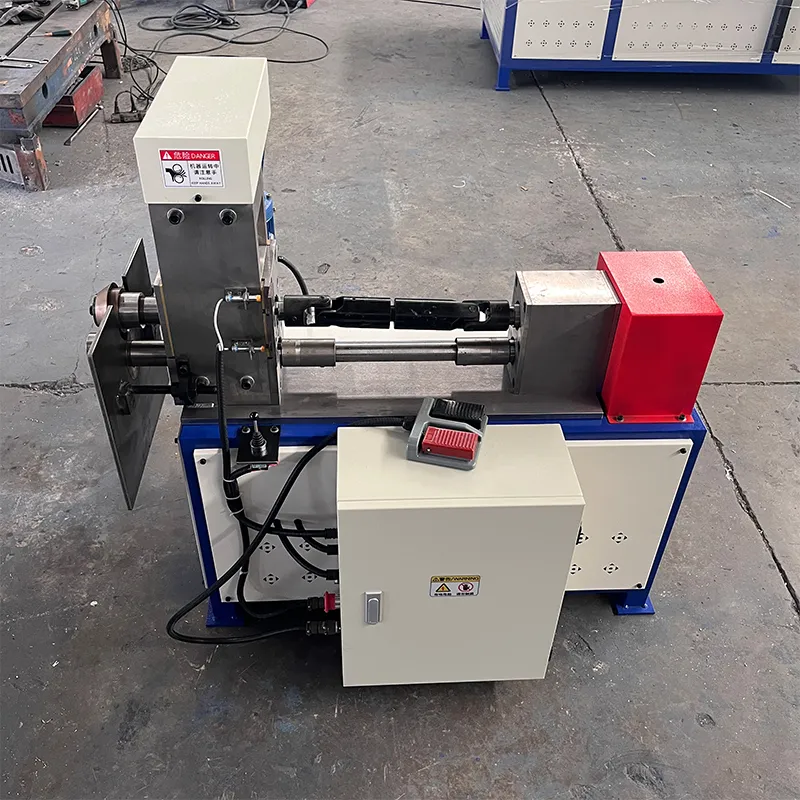

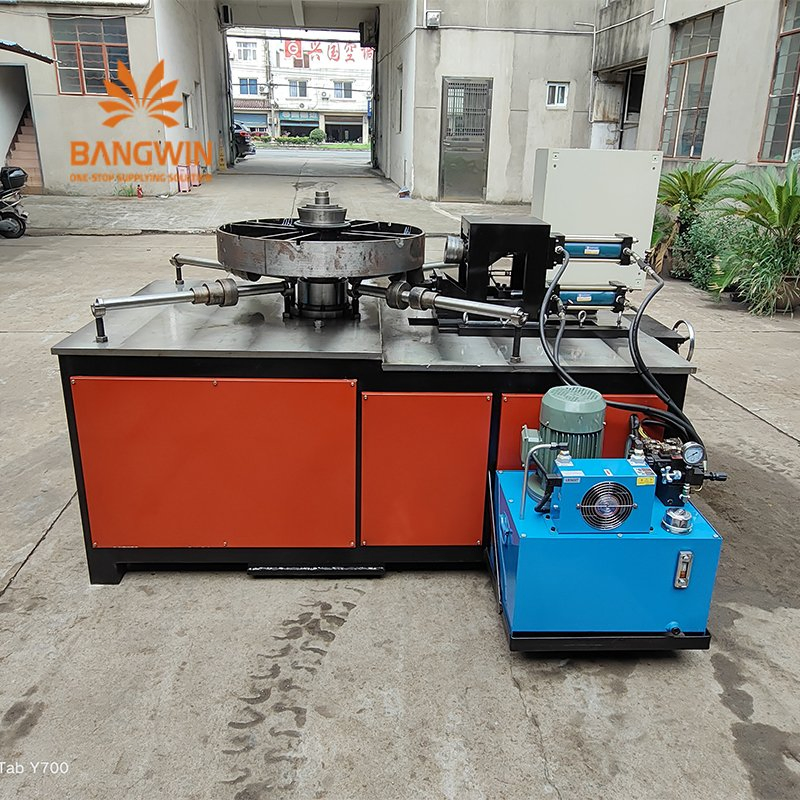

Heavy Duty Automatic Flanging Machine Detail 4

Heavy Duty Automatic Flanging Machine Structure

Heavy Duty Automatic Flanging Machine Schematic

Heavy Duty Automatic Flanging Machine Dimensions

Frequently Asked Questions (FAQ)

What is the maximum flanging thickness this machine can handle?

The machine handles workpieces with a wall/flanging thickness range of 0.8mm to 3mm, with specific basic models supporting fan thicknesses from 2mm to 5mm.

What workpiece diameters are compatible with the flanging machine?

The standard processing diameter range is φ250-1600mm. Optional special molds can be configured to support a smaller diameter down to φ150mm.

Can this machine execute turning and drilling simultaneously?

Yes, this machine features a high-performance design that allows turning over a 50mm extra-large edge width, finishing both turning and drilling in a single, continuous process.

What fields and industries is this equipment applied to?

It is widely applied in ventilation duct manufacturing, industrial fan fabrication, air valve processing, and various HVAC piping component productions.

What type of electrical control system does the machine use?

The electrical control box features a modern PLC digital display control system for precise regulation, parameters oversight, and high reliability.
