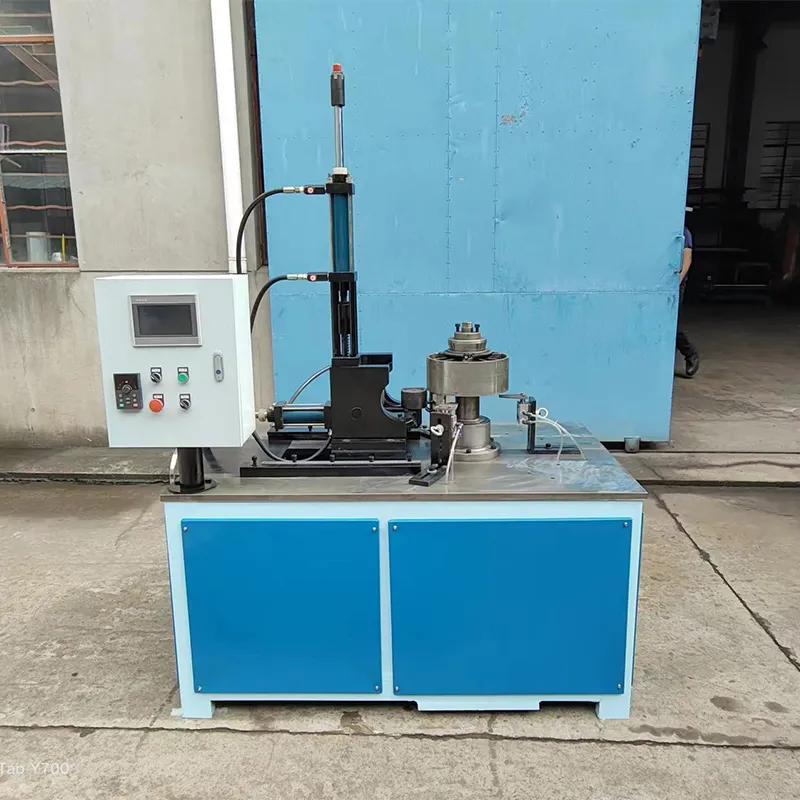

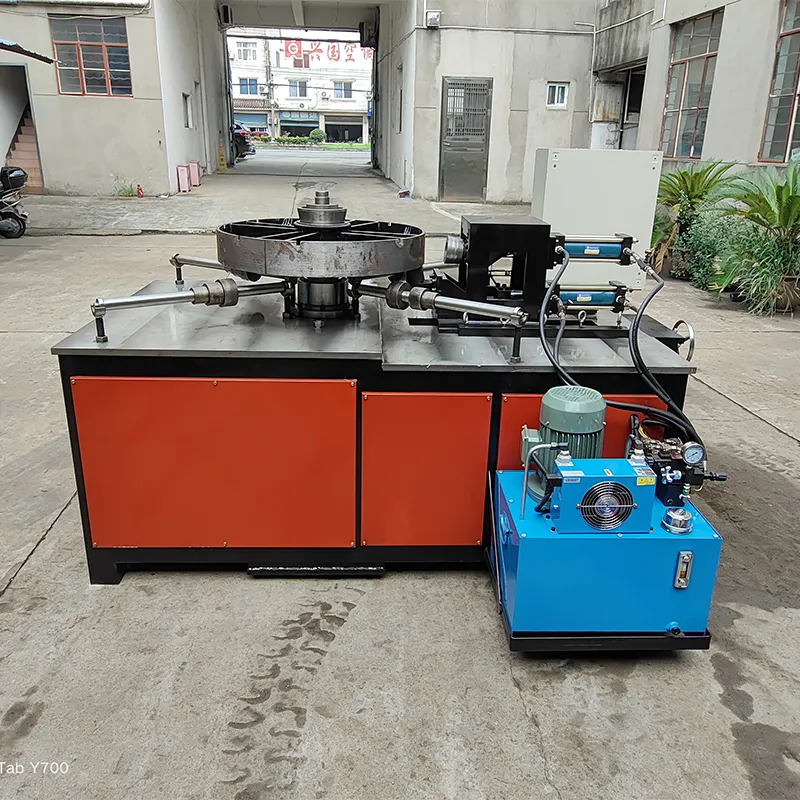

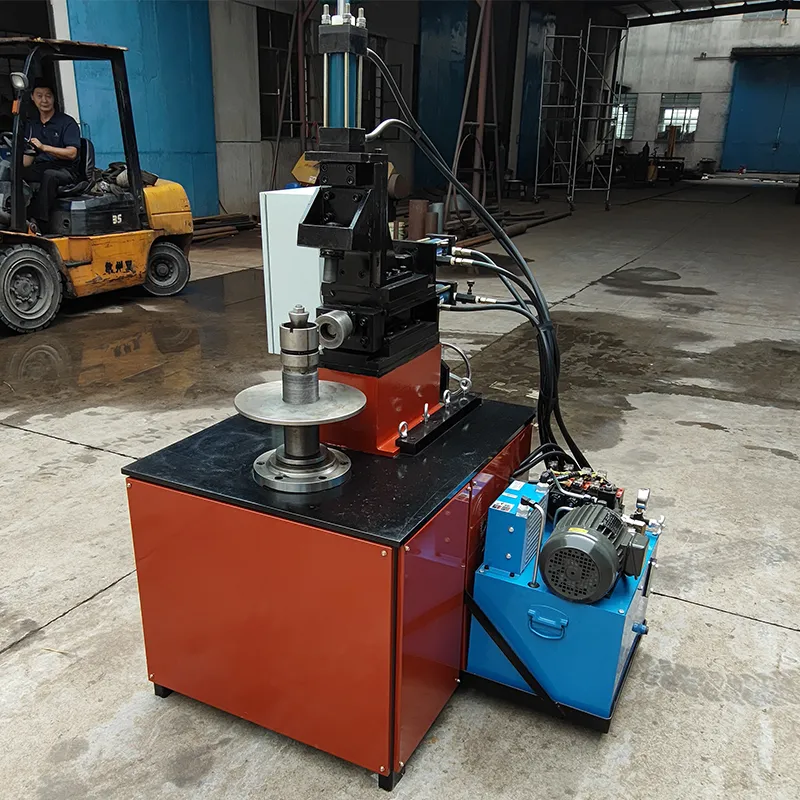

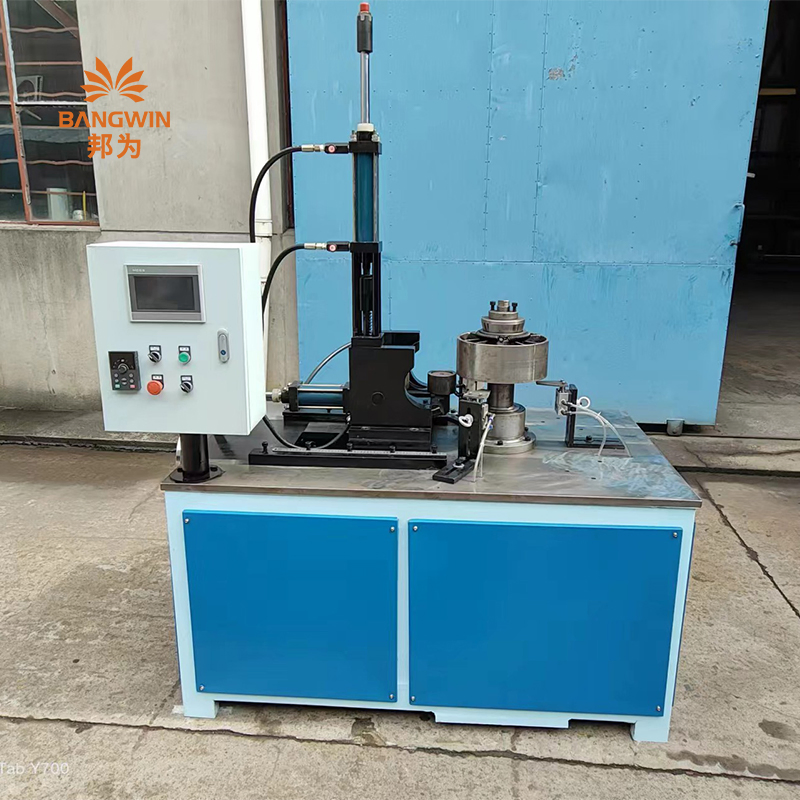

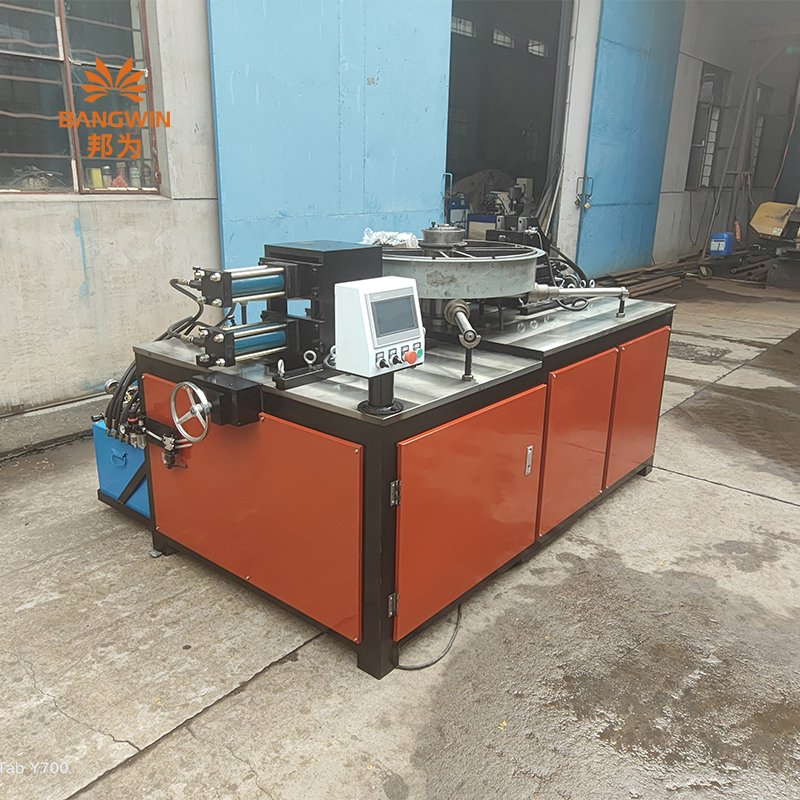

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Specifications Table
Flanging thickness
0.8mm-3mm
Flanging width
15mm-40mm
Flanging diameter
400mm-1600mm
Upper pulley
Cylinder control
Lower pulley
Cylinder control
Total motor power
15KW
Reducer
WPO reducer
Electrical box accessories
PLC digital display control
Frequently Asked Questions
What is the range of flanging diameter supported by the machine?
The machine handles a standard diameter range of φ250mm to φ1600mm. Optional special molds can be selected to achieve flanging for smaller workpieces down to a diameter of φ150mm.
What are the supported thickness and width parameters for flanging?
The machine supports a flanging thickness of 0.8mm to 3mm (with a wall thickness up to 3mm for specific workpieces) and a flanging width range between 15mm and 40mm. It can turn over an extra-large edge width of up to 50mm.
What applications is this heavy-duty CNC flanging machine best suited for?
It is widely utilized in industrial ventilation duct manufacturing, fan production, air valve processing, and other metal forming applications requiring precise and efficient flanging and drilling.
What type of controller and mechanics does the machine use?
The system features an electrical box with PLC digital display control. The upper and lower pulleys are managed via reliable cylinder control systems, and it is powered by a 15KW motor connected to a WPO reducer.
Can turning and drilling be processed simultaneously?
Yes, the design enables the turning and drilling operations to be completed in one continuous cycle, significantly optimizing production efficiency.
