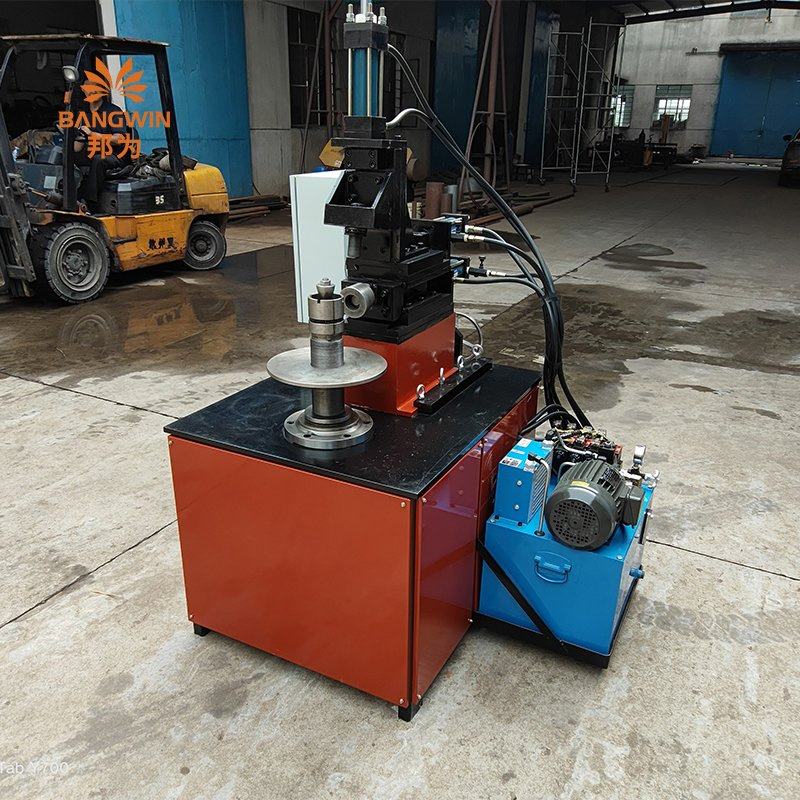

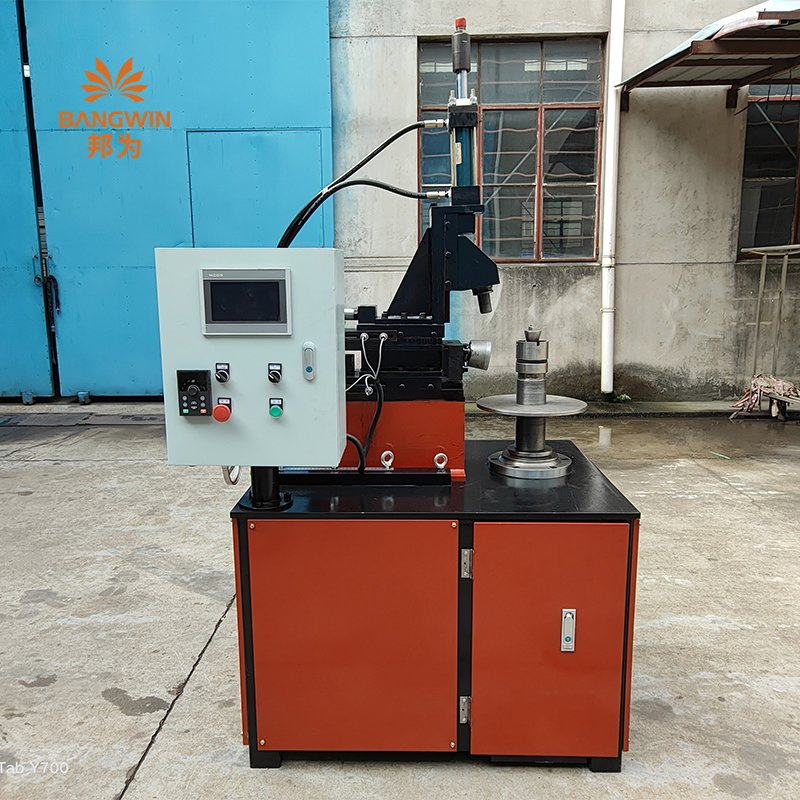

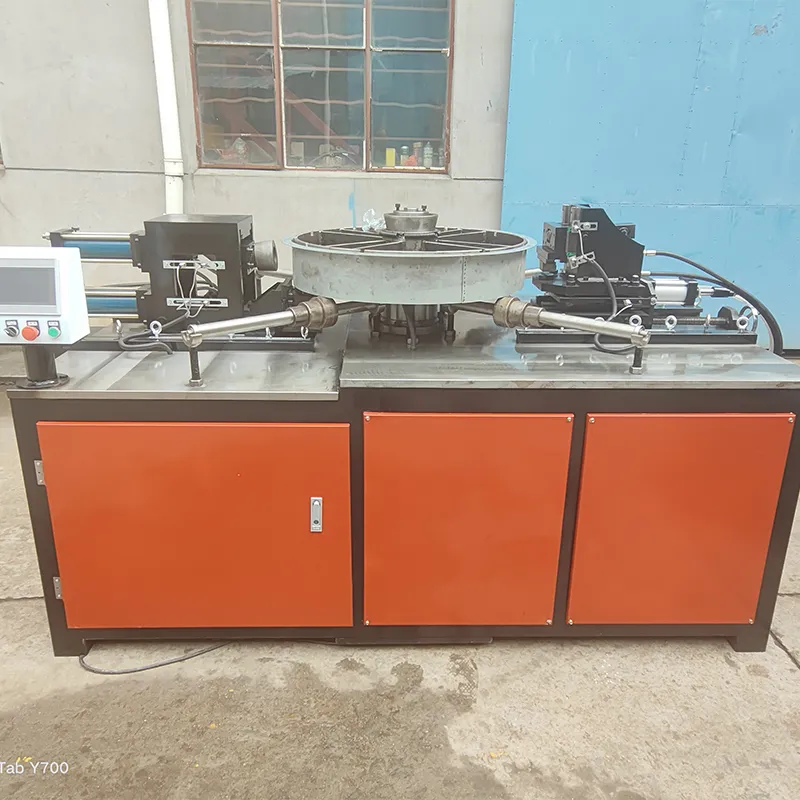

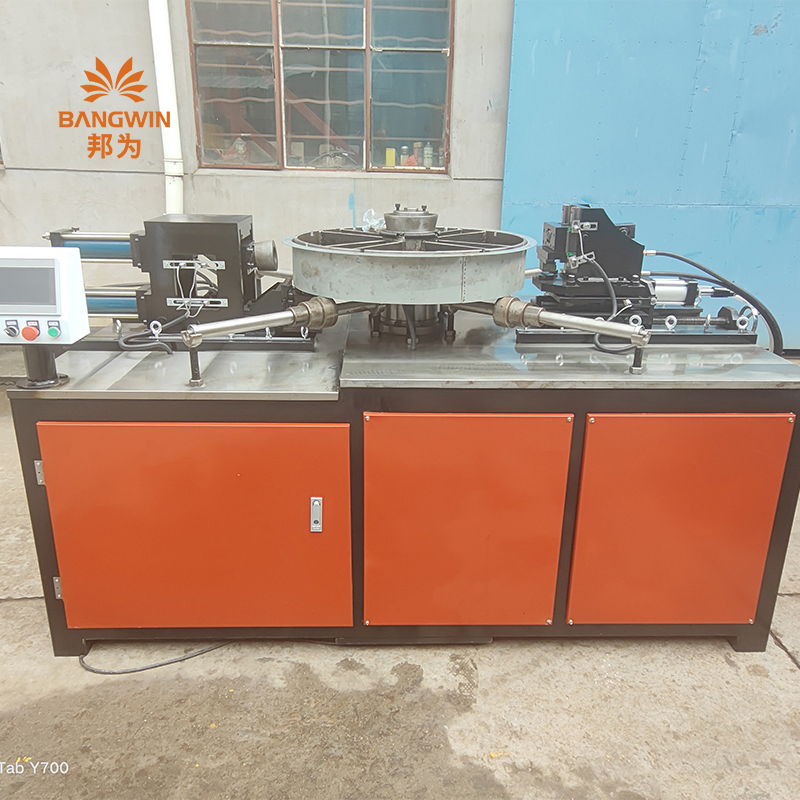

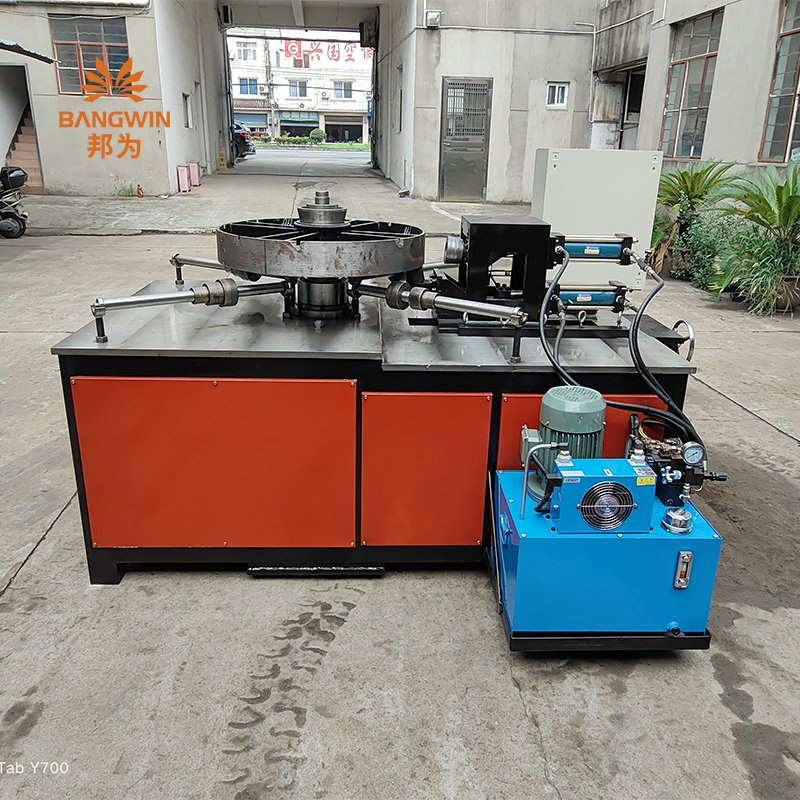

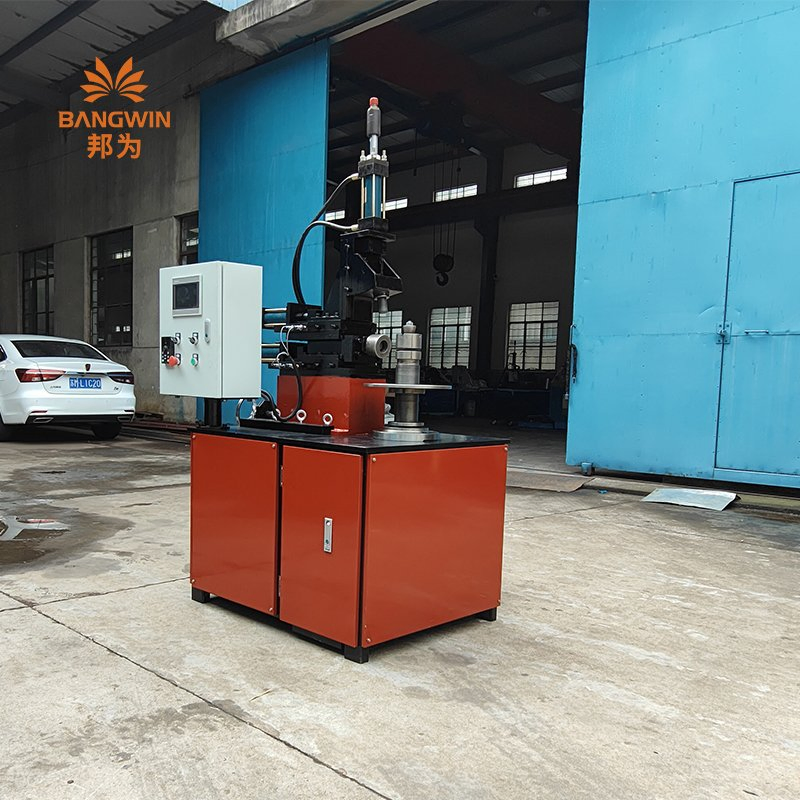

Heavy Duty CNC Flanging Machine for HVAC and Boiler Tubes

Product Description

Features

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.

It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.

The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Specifications

Flanging thickness	0.8mm-3mm
Flanging width	15mm-40mm
Flanging diameter	400mm-1600mm
Upper pulley	Cylinder control
Lower pulley	Cylinder control
Total motor power	15KW
Reducer	WPO reducer
Electrical box accessories	PLC digital display control

Product Gallery

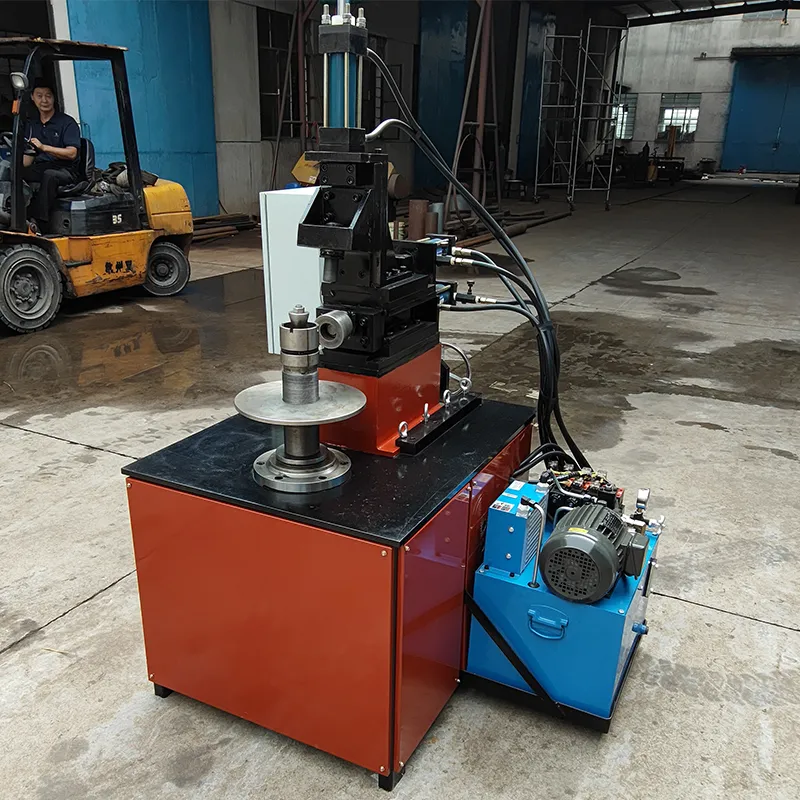

Heavy Duty CNC Flanging Machine for HVAC and Boiler Tubes Detail 1

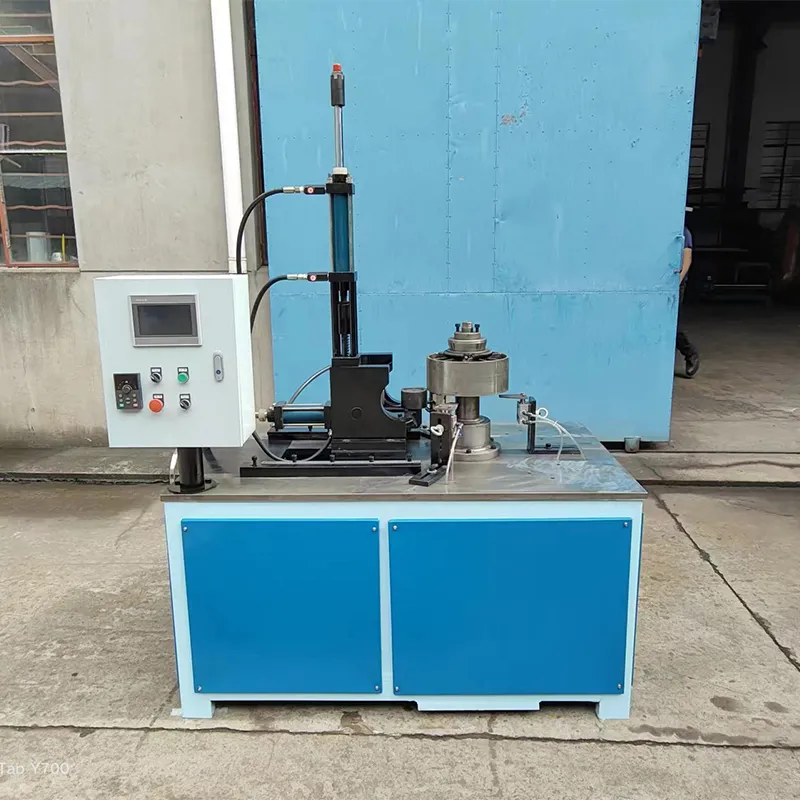

Heavy Duty CNC Flanging Machine for HVAC and Boiler Tubes Detail 2

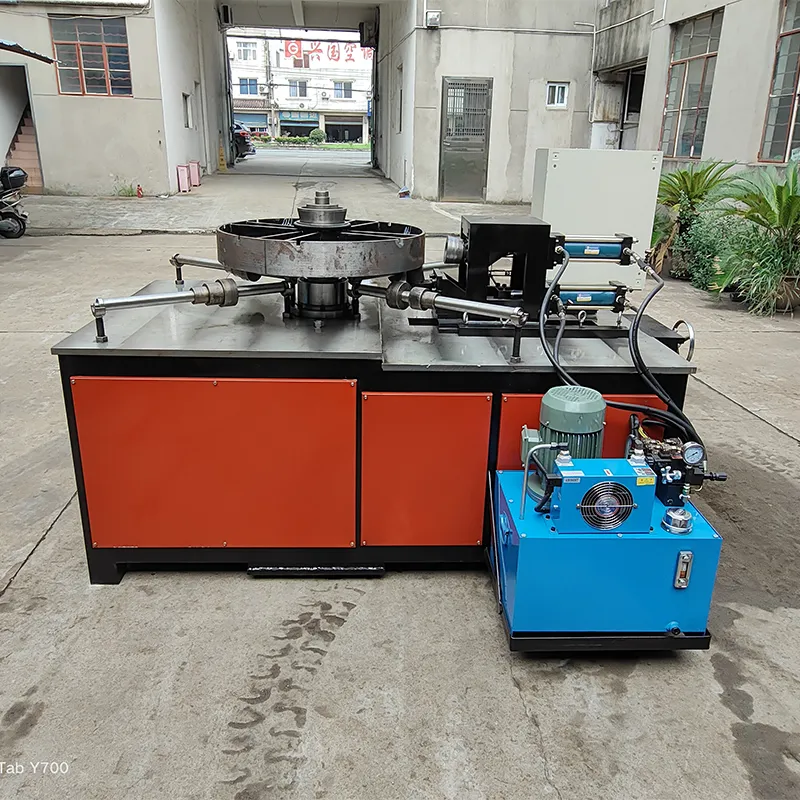

Heavy Duty CNC Flanging Machine for HVAC and Boiler Tubes Detail 3

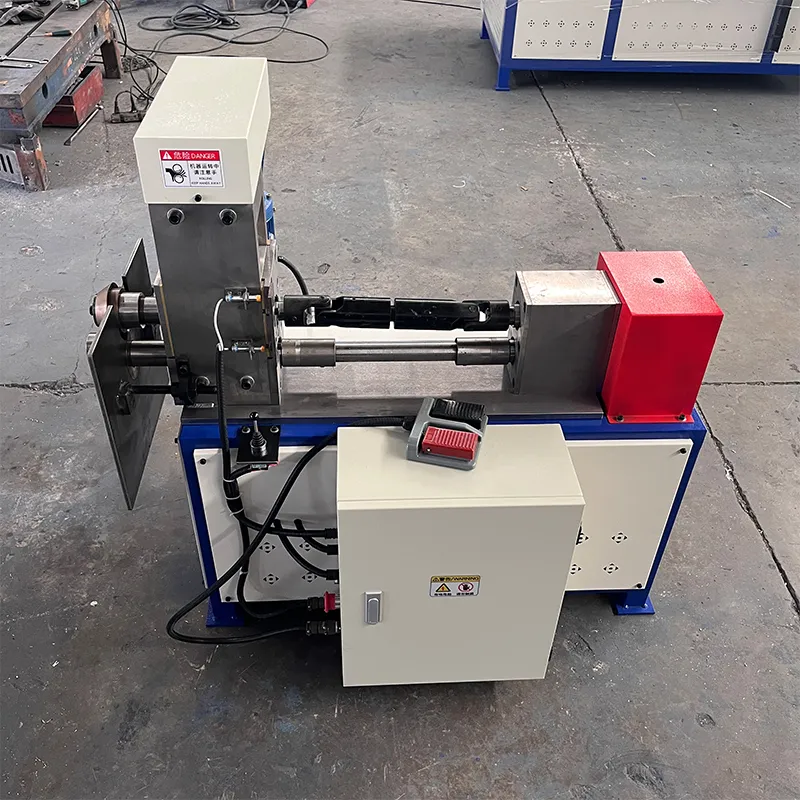

Heavy Duty CNC Flanging Machine for HVAC and Boiler Tubes Detail 4

Heavy Duty CNC Flanging Machine for HVAC and Boiler Tubes Flowchart 1

Heavy Duty CNC Flanging Machine for HVAC and Boiler Tubes Flowchart 2

Heavy Duty CNC Flanging Machine for HVAC and Boiler Tubes Flowchart 3

Frequently Asked Questions (FAQ)

What is the processing range for workpiece thickness and diameter?

The standard processing thickness is 0.8mm-3mm, and the standard diameter range is φ250-1600mm. Optional special molds can be configured to achieve flanging for smaller workpieces down to φ150mm.

Can this machine handle both turning and drilling operations?

Yes, the machine is designed to turn over up to 50mm of extra large edge width, allowing both turning and drilling processes to be completed efficiently in a single operation.

What are the primary industrial applications for this flanging machine?

This heavy duty CNC flanging machine is widely used in the manufacturing and processing of ventilation ducts, industrial fans, air valves, boiler tubes, and other HVAC components.

What are the main hardware specifications and controls?

It features a total motor power of 15KW, a high-performance WPO reducer, cylinder controls for both the upper and lower pulleys, and a user-friendly PLC digital display control system.

Is the machine fully automatic or semi-automatic?

The machine is equipped with advanced PLC digital display controls to automate key processes, ensuring precision, repeatability, and ease of operation during heavy duty flanging tasks.
