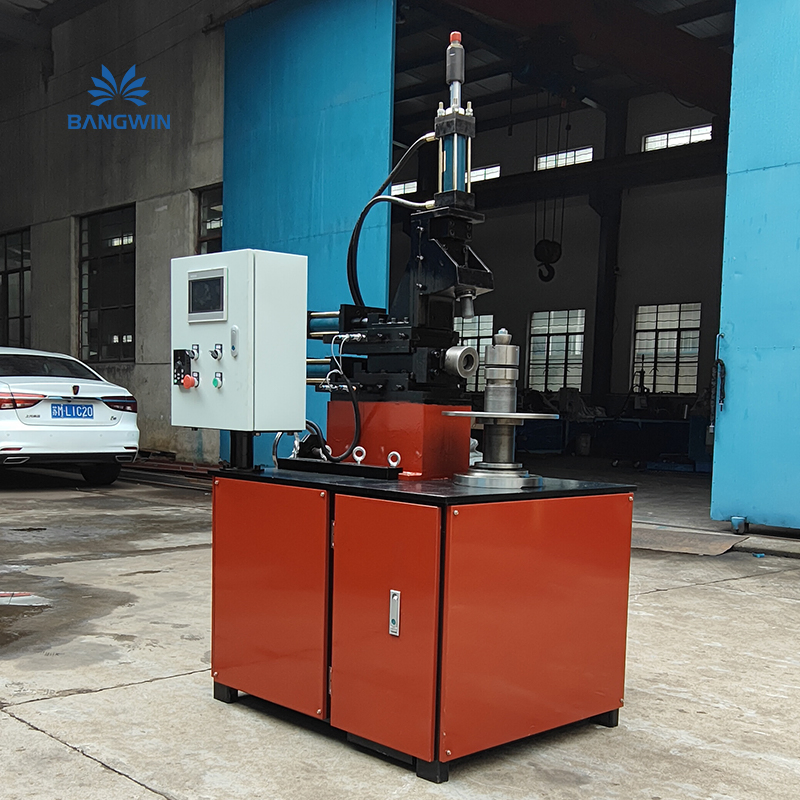

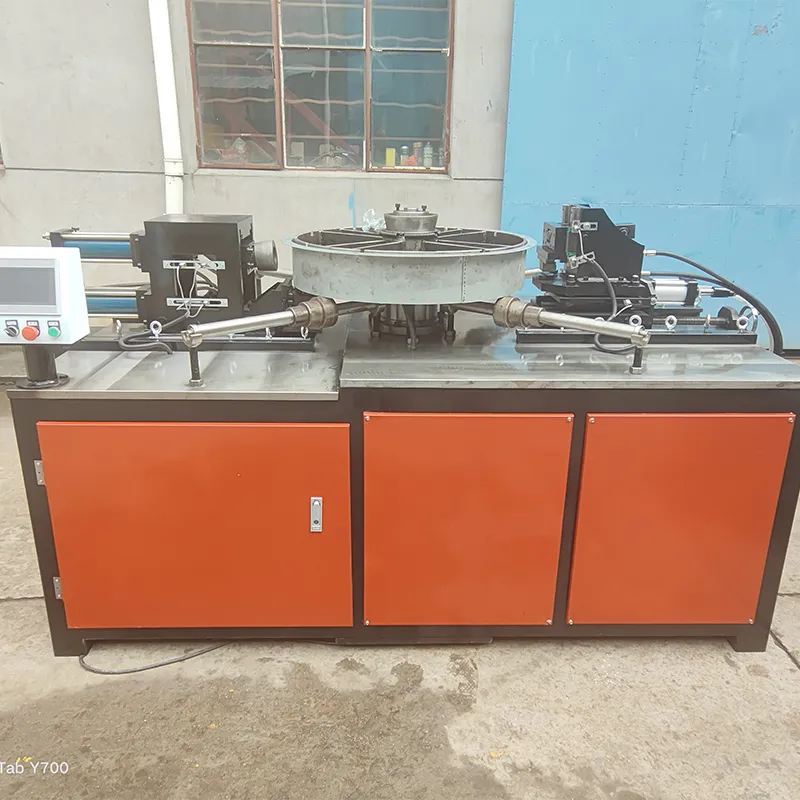

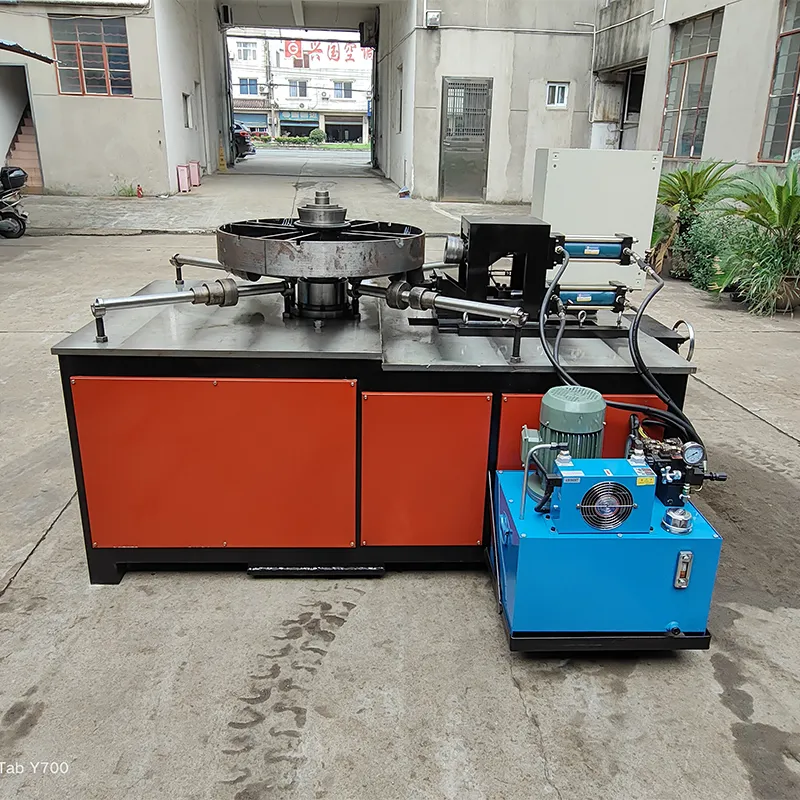

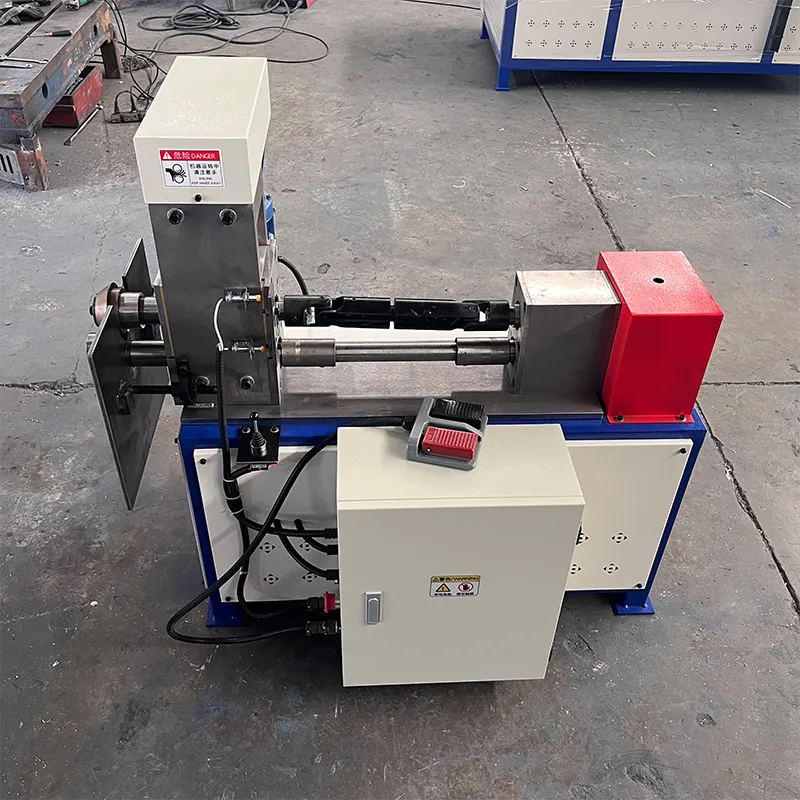

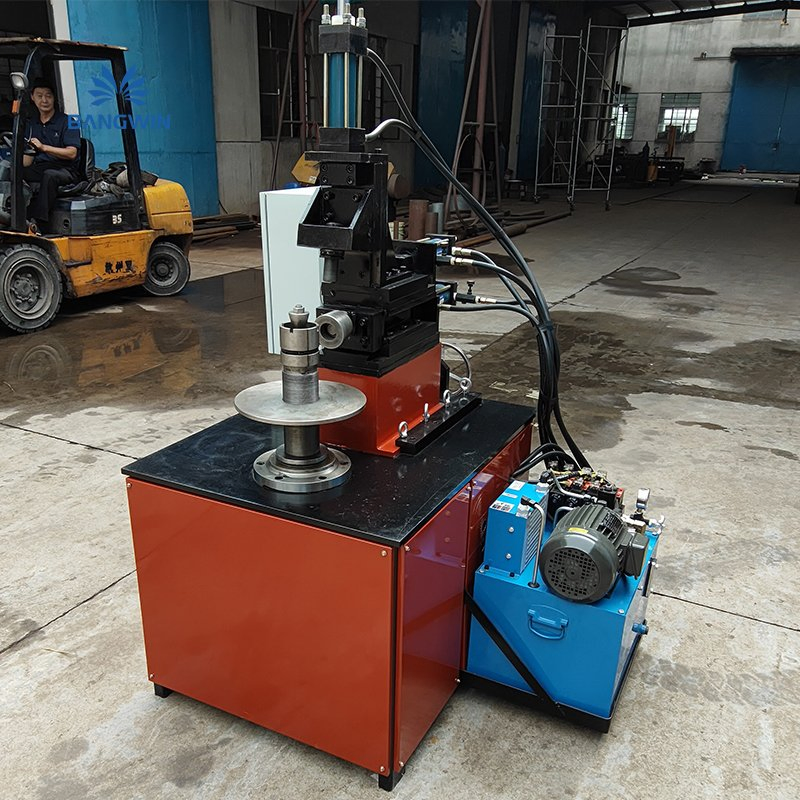

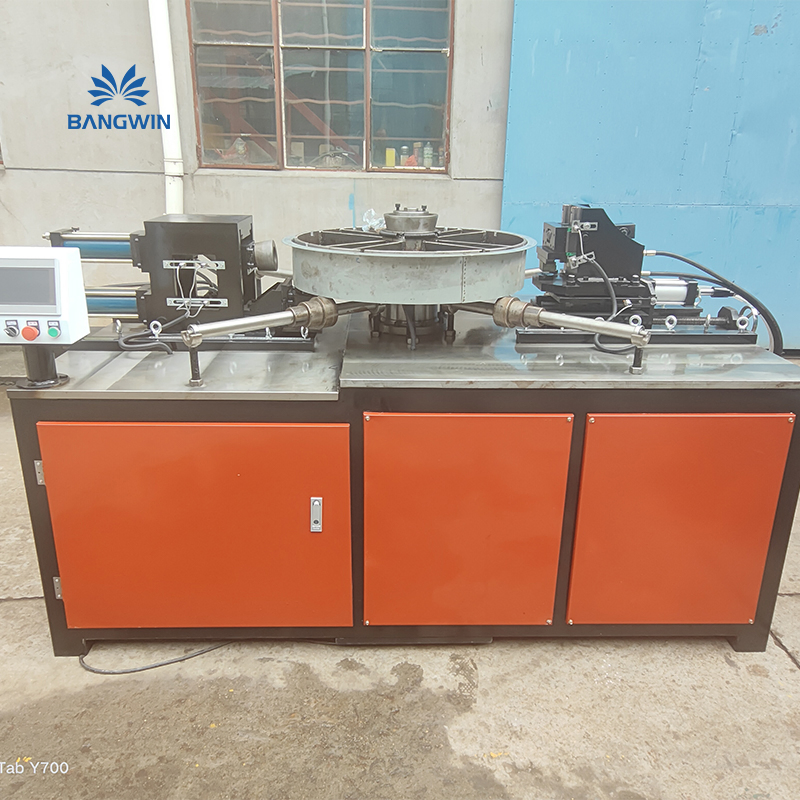

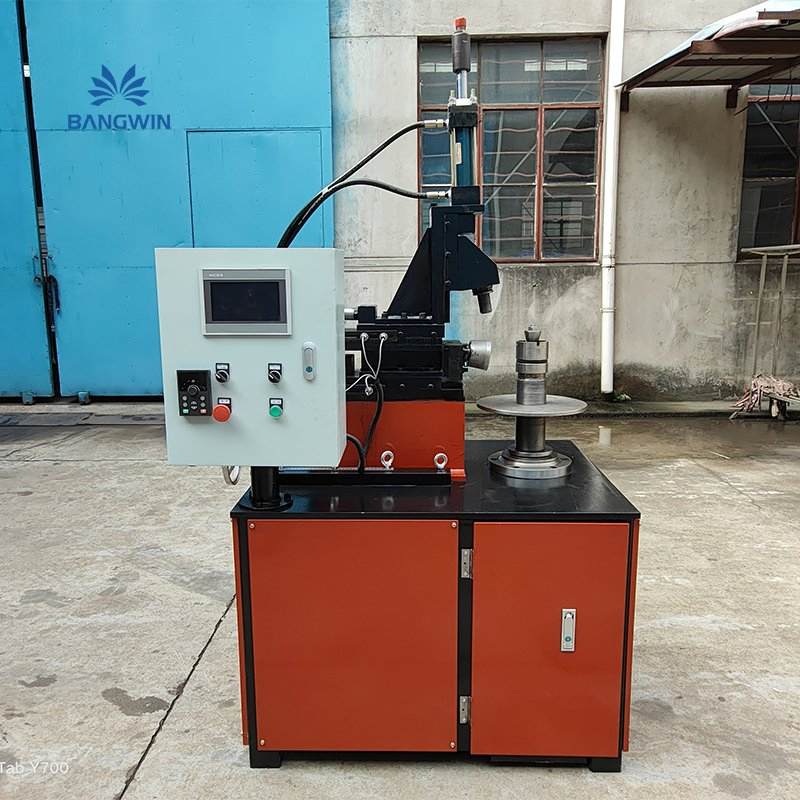

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Specification Parameter

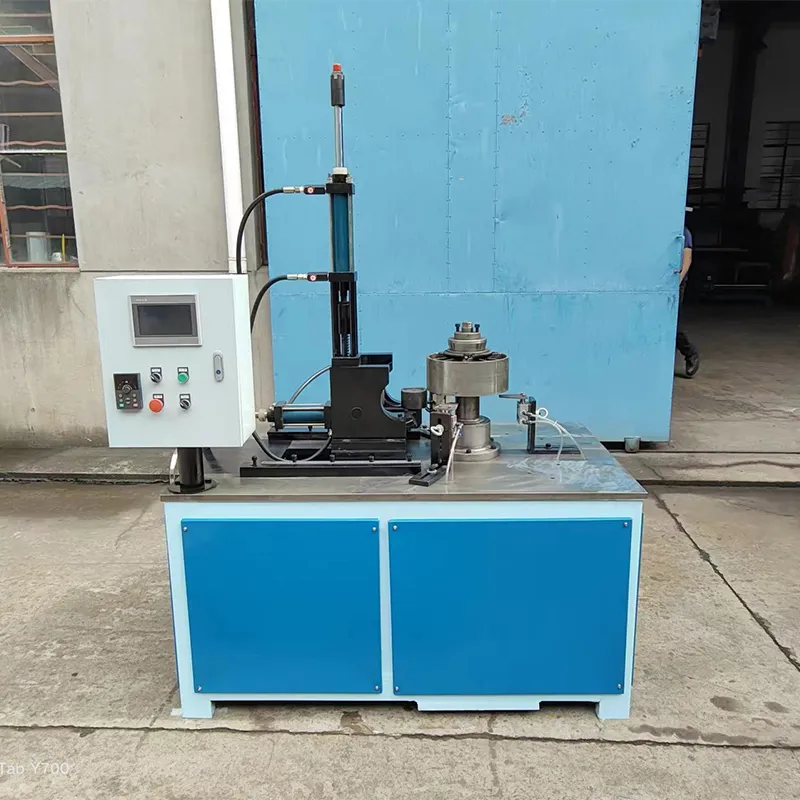

Detail Information
Flanging thickness
0.8mm-3mm
Flanging width
15mm-40mm
Flanging diameter
400mm-1600mm

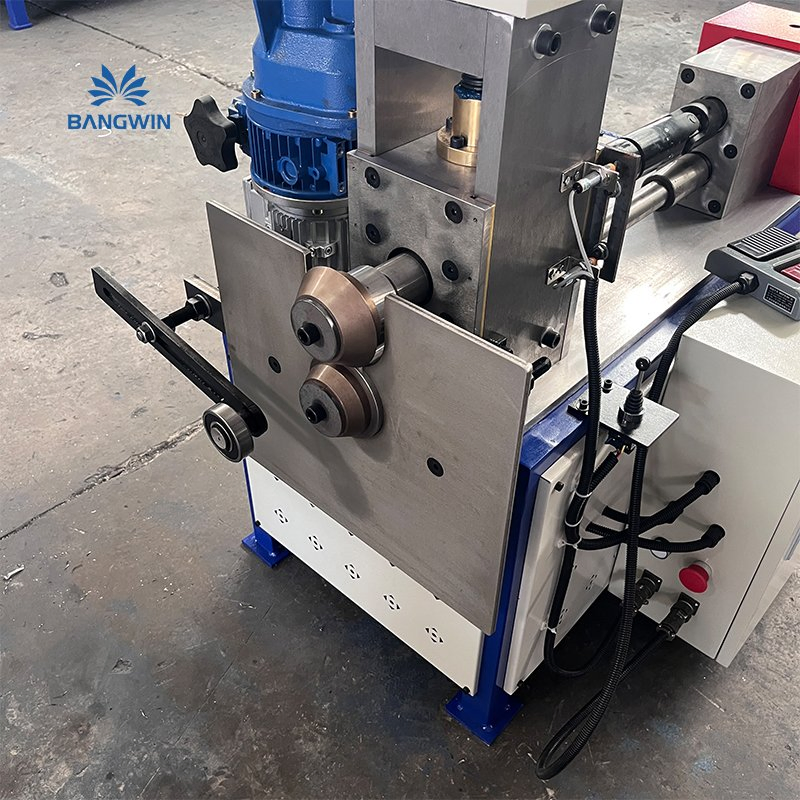

Upper pulley
Cylinder control
Lower pulley
Cylinder control
Total motor power
15KW
Reducer
WPO reducer
Electrical box accessories
PLC digital display control
Frequently Asked Questions (FAQ)
Q What is the flanging edge width and capability of this machine?
The machine has a standard flanging width range of 15mm-40mm. It is highly capable and can turn over up to 50mm of extra large edge width, finishing the turning and drilling process in one go.
Q What are the workpiece diameter and wall thickness specifications?
It supports workpieces with a wall thickness range of 0.8mm-3mm and a standard flanging diameter of 400mm-1600mm. It can process diameters from φ250-1600mm. Optional special molds can be used to achieve flanging for smaller workpieces down to φ150mm.
Q Which components are cylinder controlled?
Both the upper pulley and the lower pulley operations are managed through cylinder controls to ensure stable and precise operations.
Q What type of electrical control and drive system does this machine utilize?
The machine operates with a total motor power of 15KW, uses a WPO reducer, and features a PLC digital display control system within its electrical box accessories.
Q What applications is this heavy-duty flanging machine suitable for?
This machine is widely used in the processing of ventilation ducts, fans, air valves, and other sheet metal flanging production fields.
