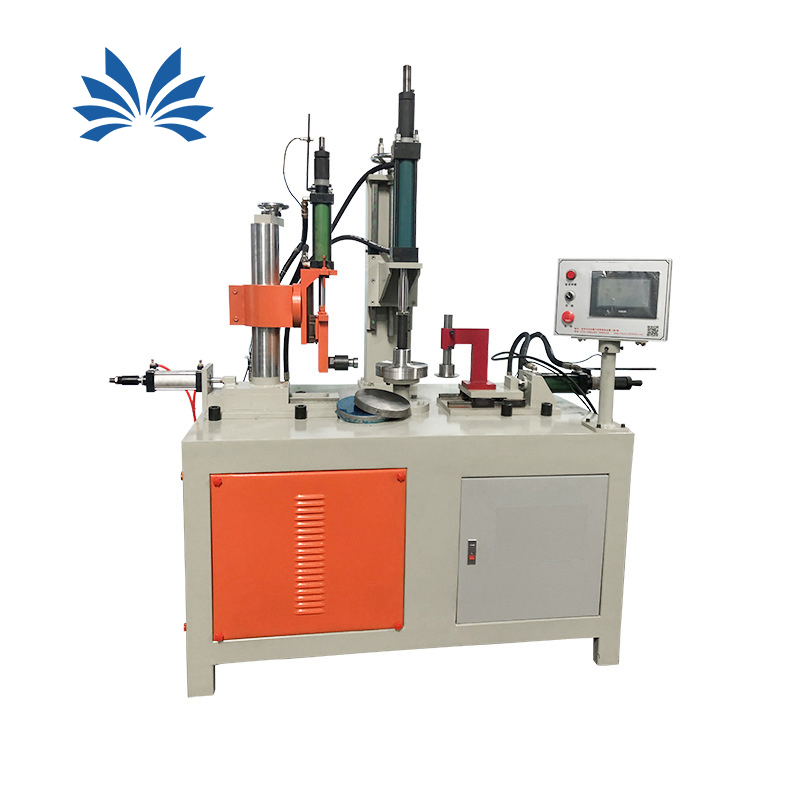

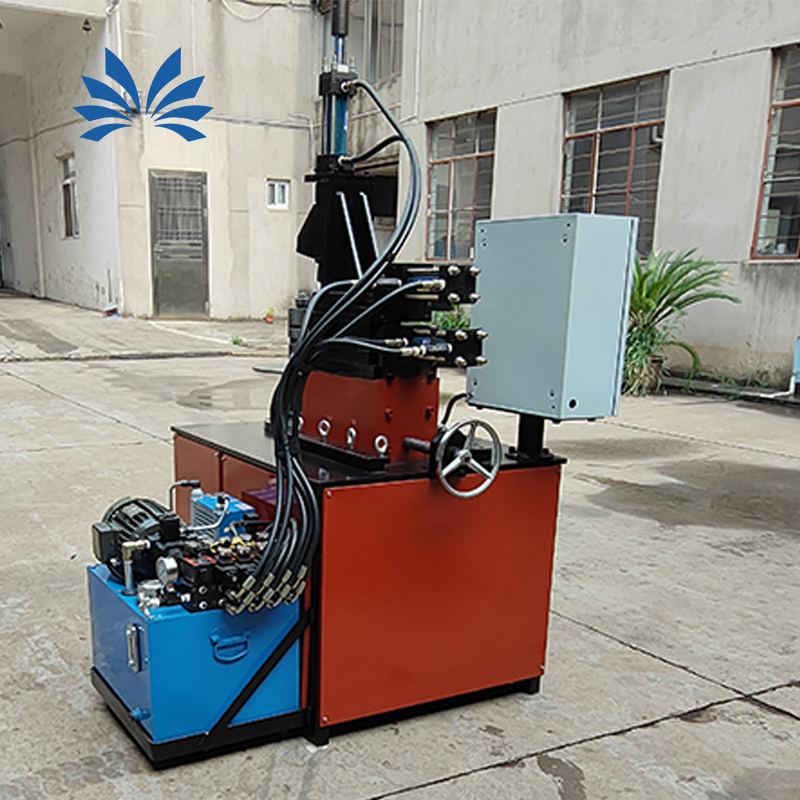

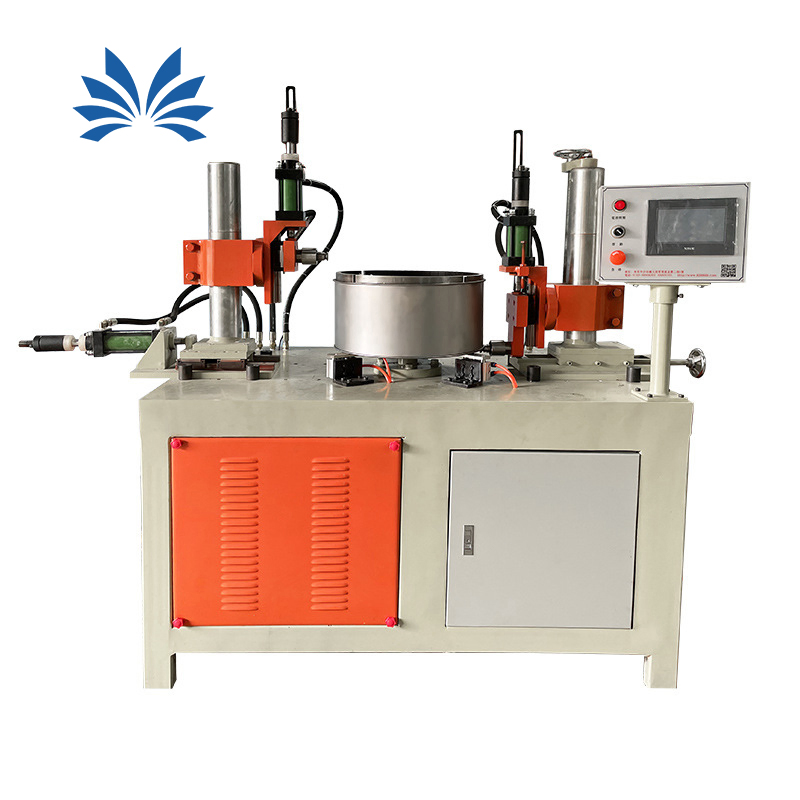

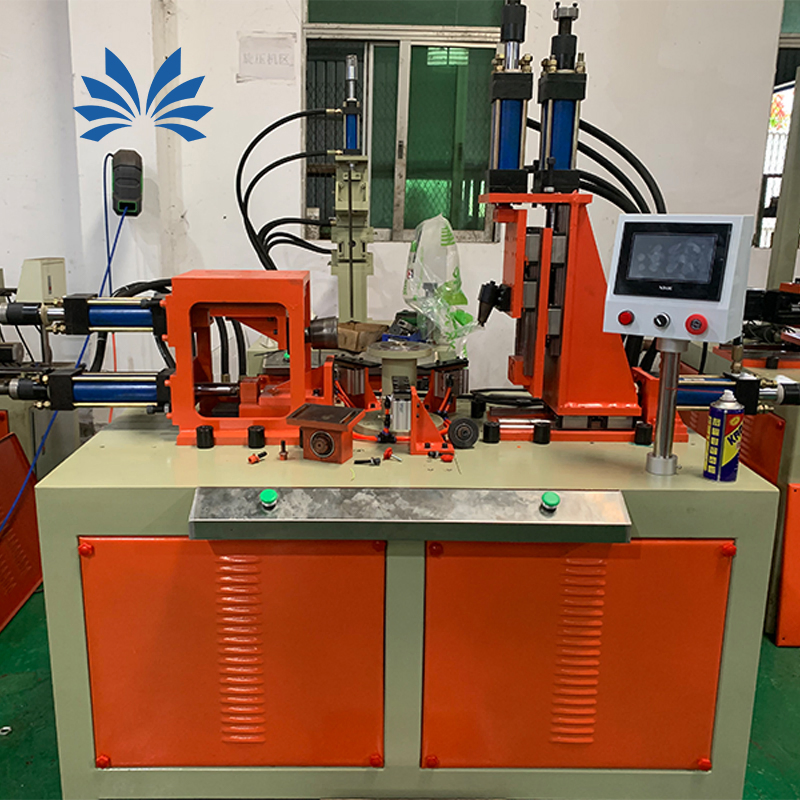

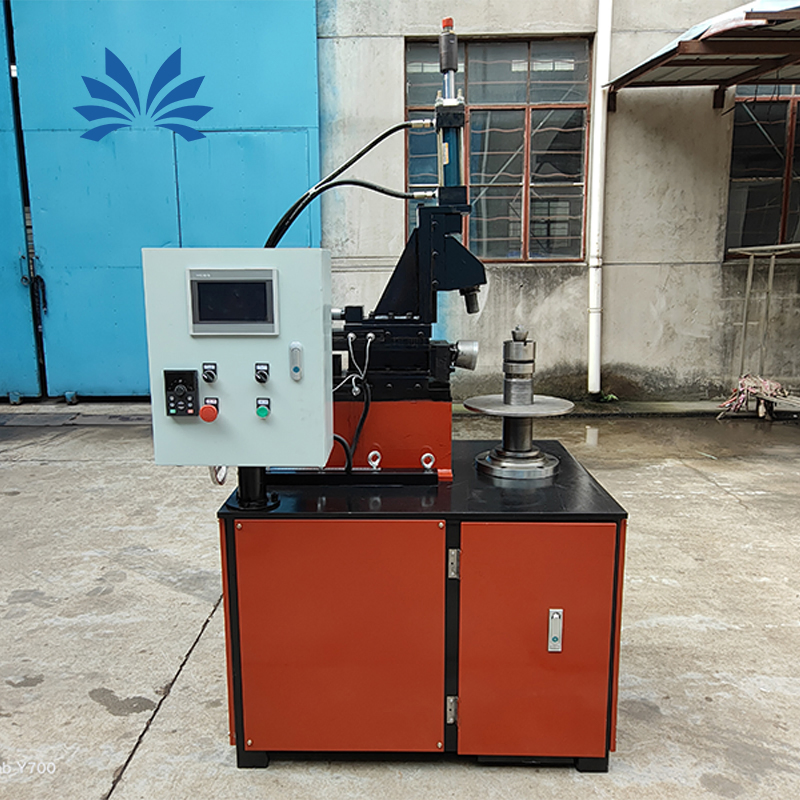

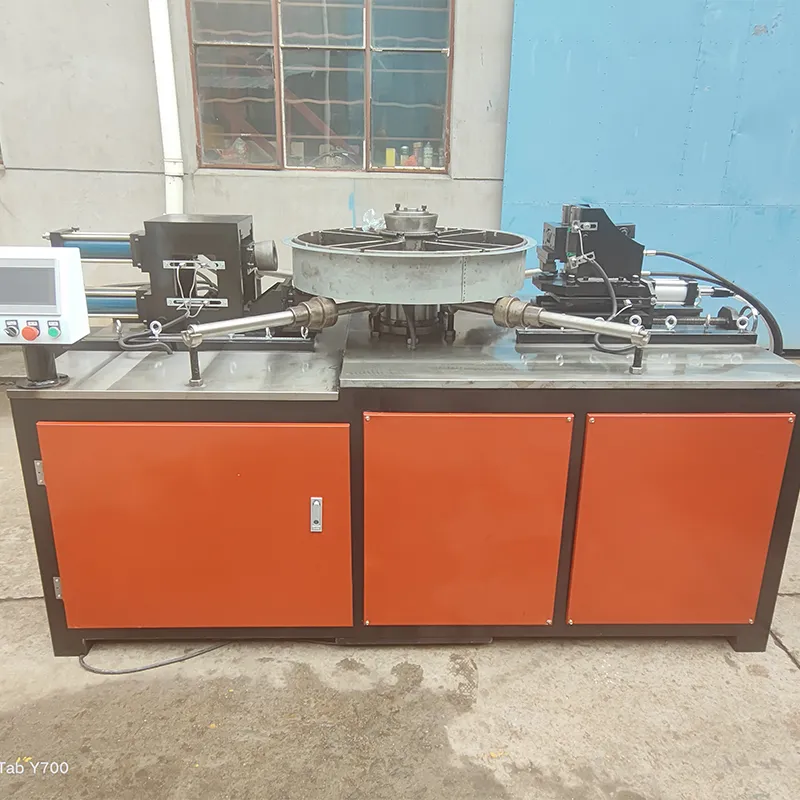

Heavy Duty Hydraulic Flanging Machine for Factory Use

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Basic Info

Model NO.bw

Fan Thickness2-5mm

Diameter300-1250mm

Flanging Height10-50mm

Motor3/2.2kw

Weight1500kg

Transport PackageCustom

Specification3200*1200*900mm

TrademarkN/A

OriginChina

Packaging & Delivery

Package Size100.00cm * 100.00cm * 100.00cm

Package Gross Weight100.000kg

Product Description

Heavy Duty Hydraulic Flanging Machine for Factory Use

Features

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Parameter	Specification Details
Flanging thickness	0.8mm-3mm
Flanging width	15mm-40mm
Flanging diameter	400mm-1600mm
Upper pulley	Cylinder control
Lower pulley	Cylinder control
Total motor power	15KW
Reducer	WPO reducer
Electrical box accessories	PLC digital display control

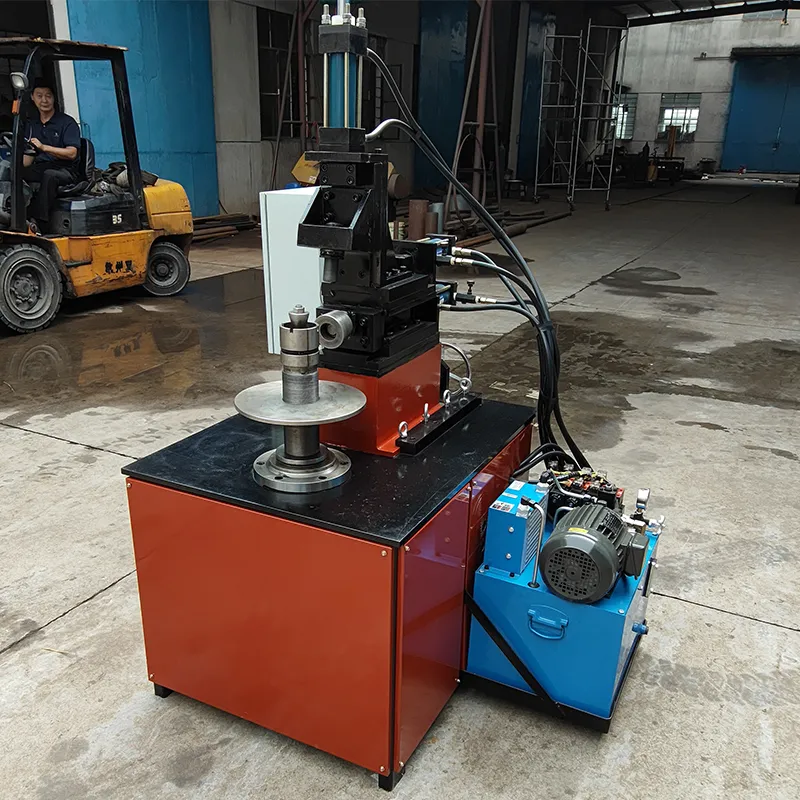

Heavy Duty Hydraulic Flanging Machine Detail 1

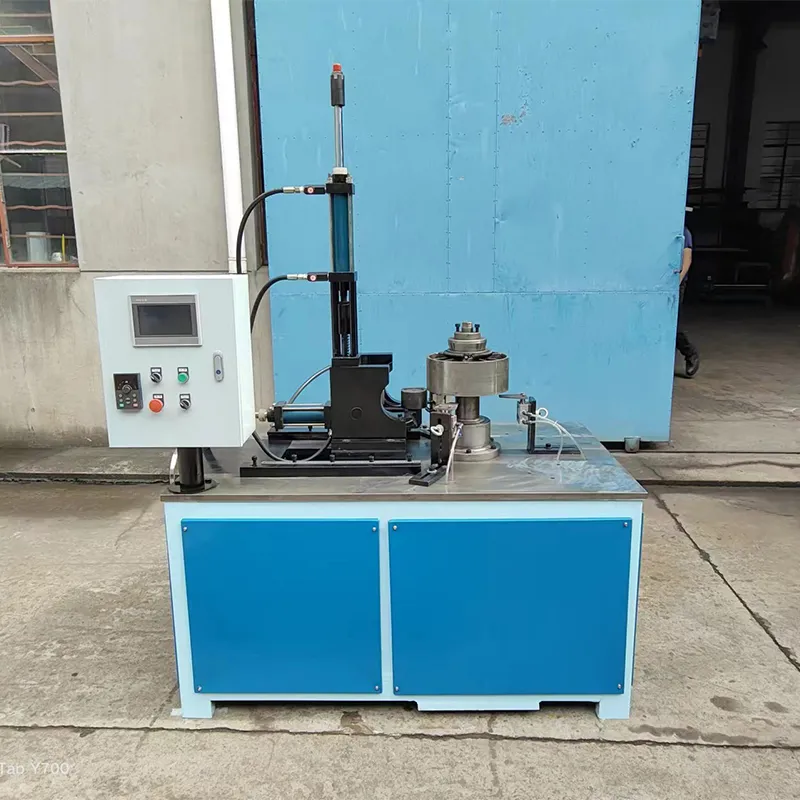

Heavy Duty Hydraulic Flanging Machine Detail 2

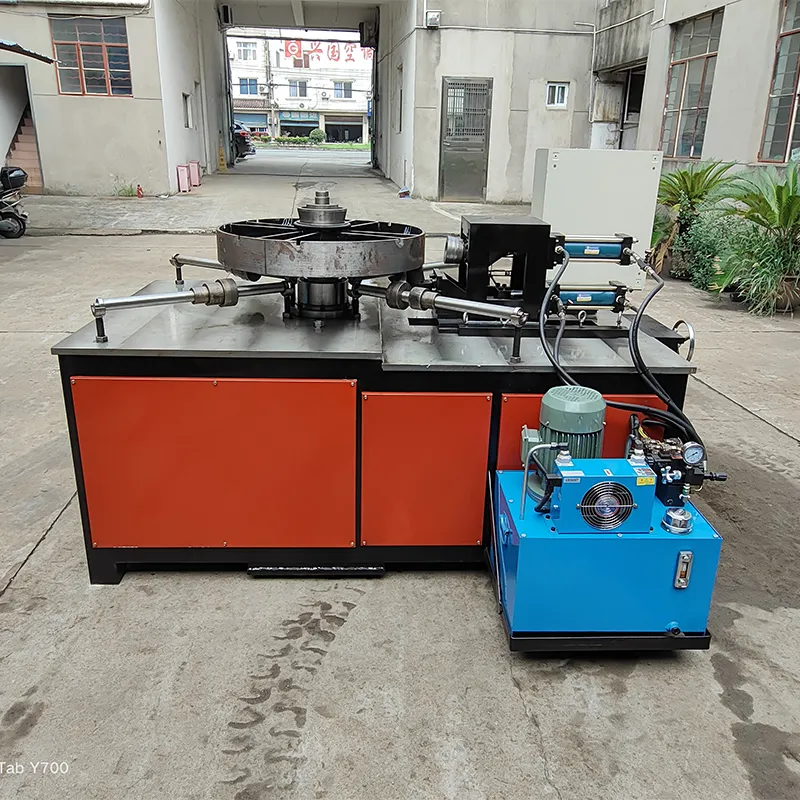

Heavy Duty Hydraulic Flanging Machine Detail 3

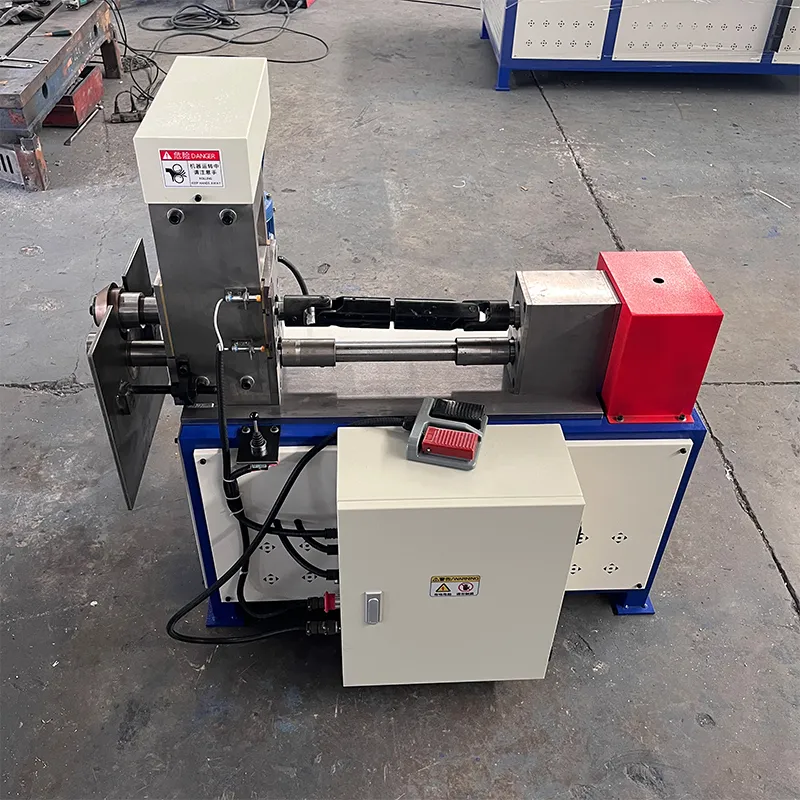

Heavy Duty Hydraulic Flanging Machine Detail 4

Heavy Duty Hydraulic Flanging Machine Dimensions

Heavy Duty Hydraulic Flanging Machine Operation Flow

Heavy Duty Hydraulic Flanging Machine Specifications Diagram

Frequently Asked Questions (FAQ)

QWhat is the maximum flanging edge width and thickness capacity?

The machine can turn over an extra-large edge width of up to 50mm. The processing thickness ranges from 0.8mm to 3mm (with a wall thickness up to 3mm for specific applications).

QWhat workpiece diameters can this flanging machine accommodate?

The standard processing diameter range is φ250-1600mm. Optional special molds can be selected to achieve flanging for smaller workpieces down to a diameter of φ150mm.

QWhat are the main industrial applications of this machine?

This heavy-duty hydraulic flanging machine is widely used in the processing of ventilation ducts, industrial fans, air valves, and other related manufacturing fields.

QWhat are the electrical and control system features?

The machine is equipped with a total motor power of 15KW and features a PLC digital display control system within the electrical box for precise configuration and ease of use.

QHow are the upper and lower pulleys controlled?

Both the upper pulley and the lower pulley are operated via highly reliable cylinder control mechanisms.

QWhat are the dimensions and weight specifications for transport?

The machine weighs 1500kg and has a specification footprint of 3200*1200*900mm. For shipping, the transport package size is 100.00cm * 100.00cm * 100.00cm with a gross weight of 100.000kg.
