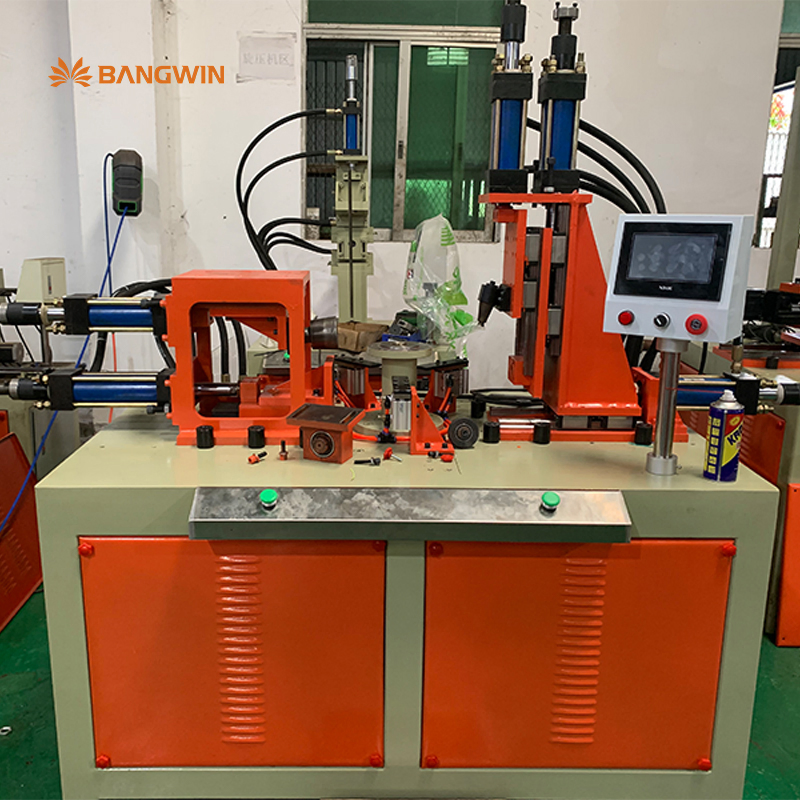

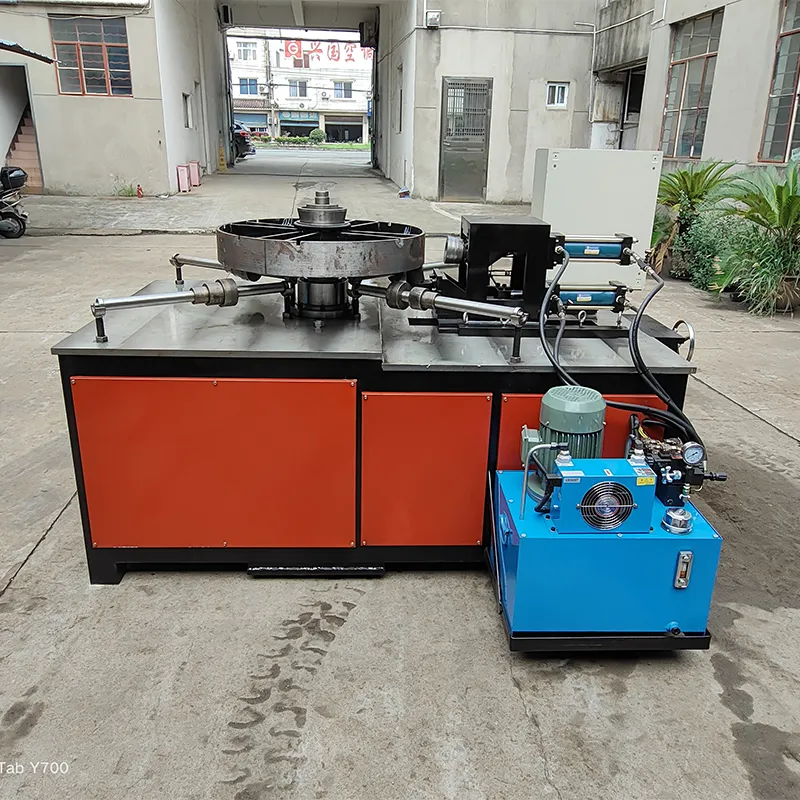

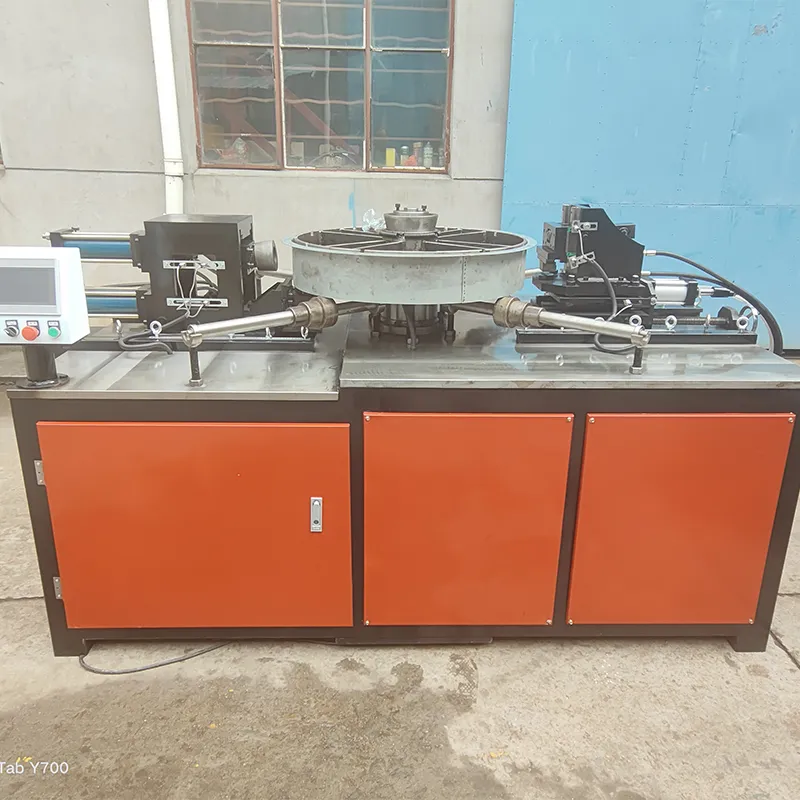

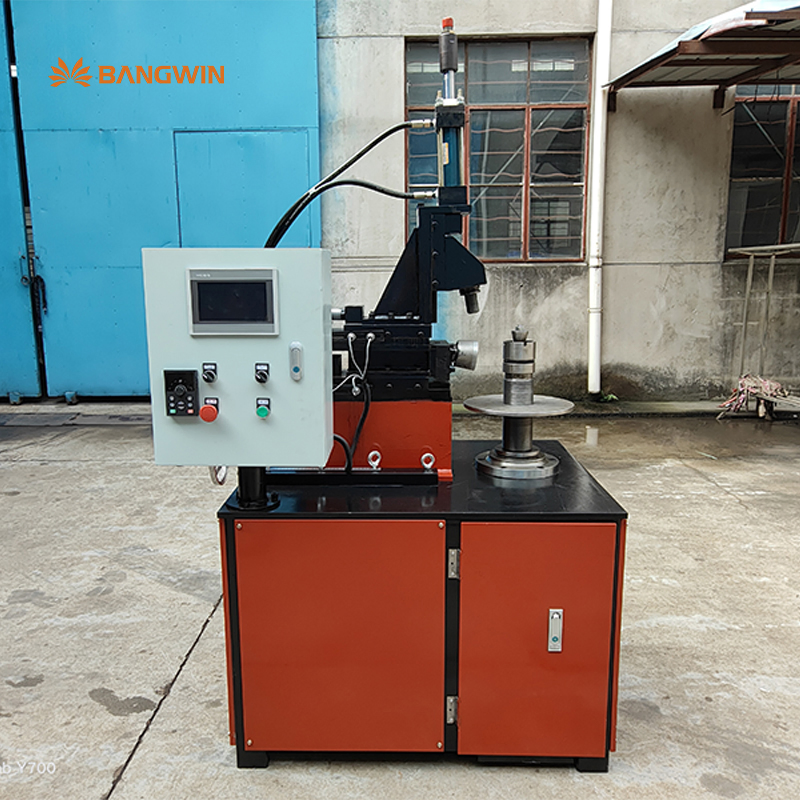

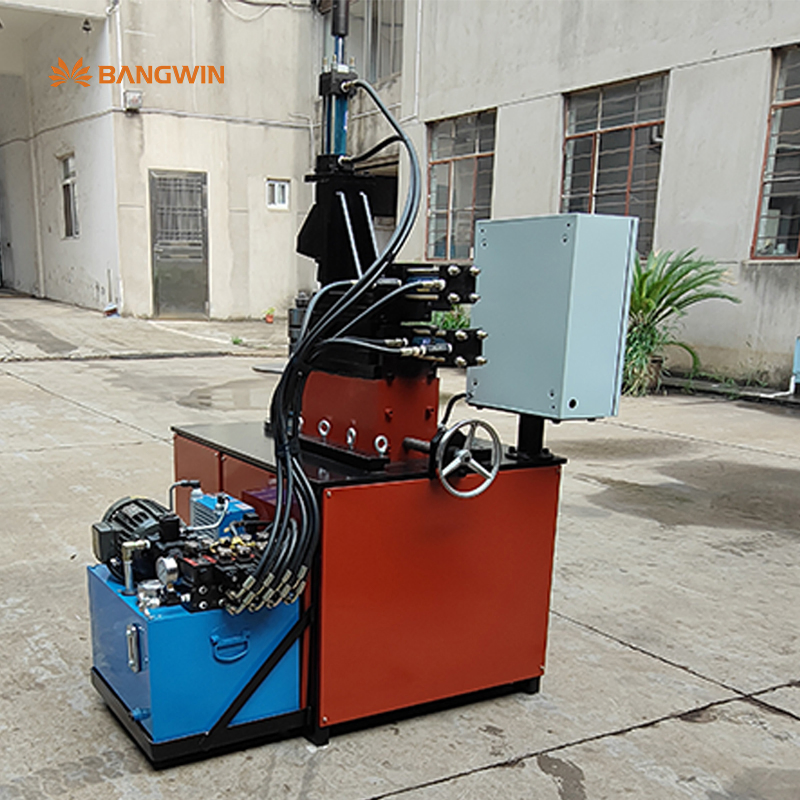

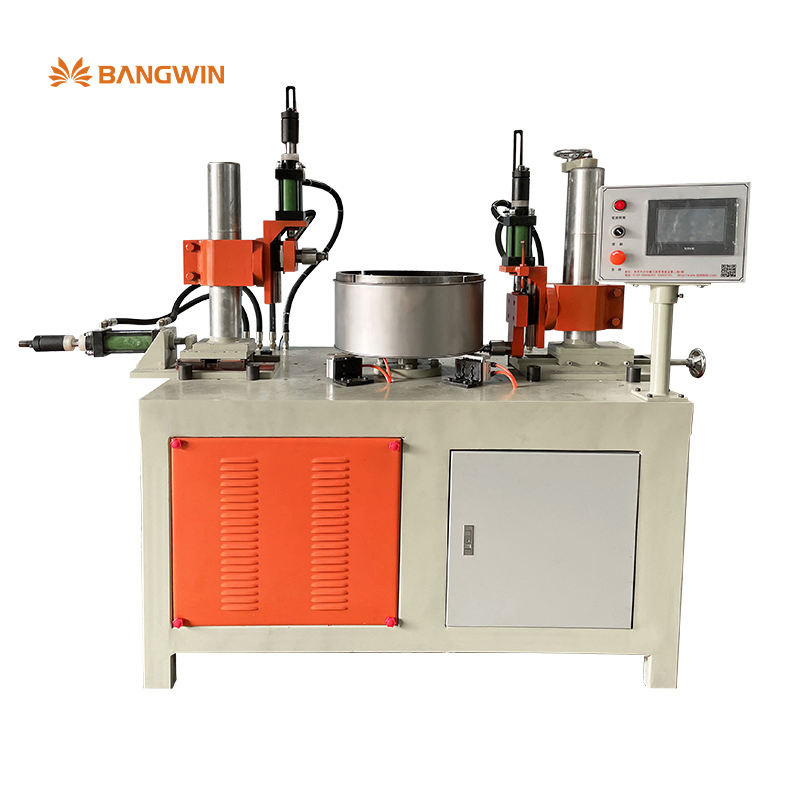

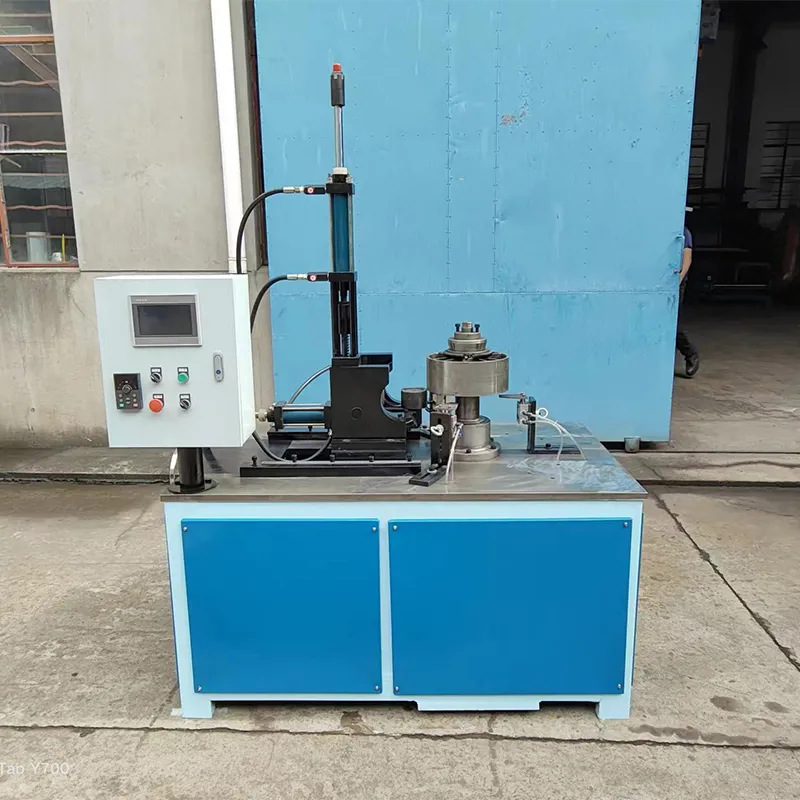

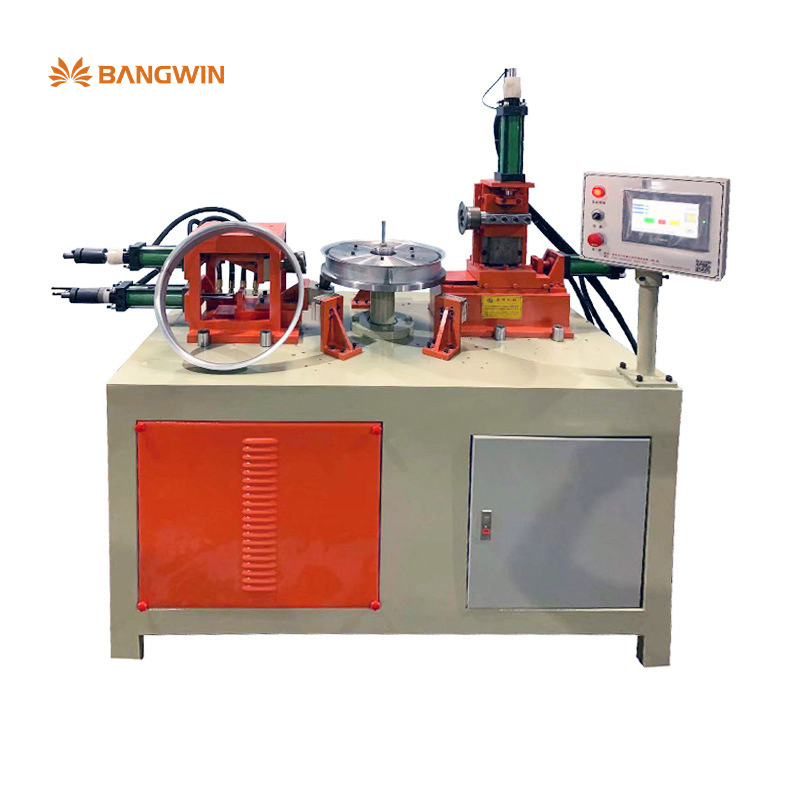

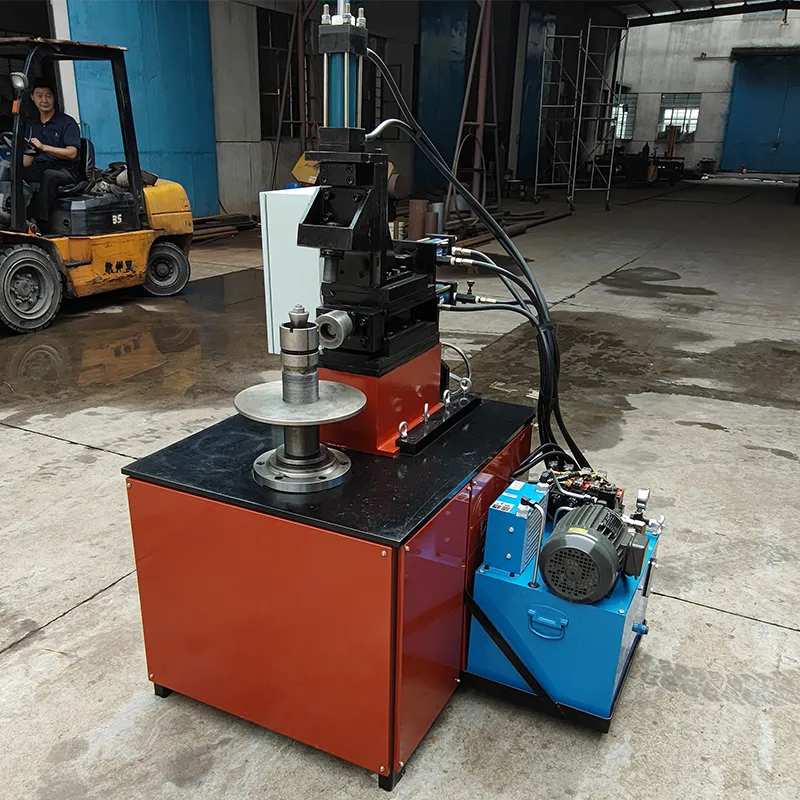

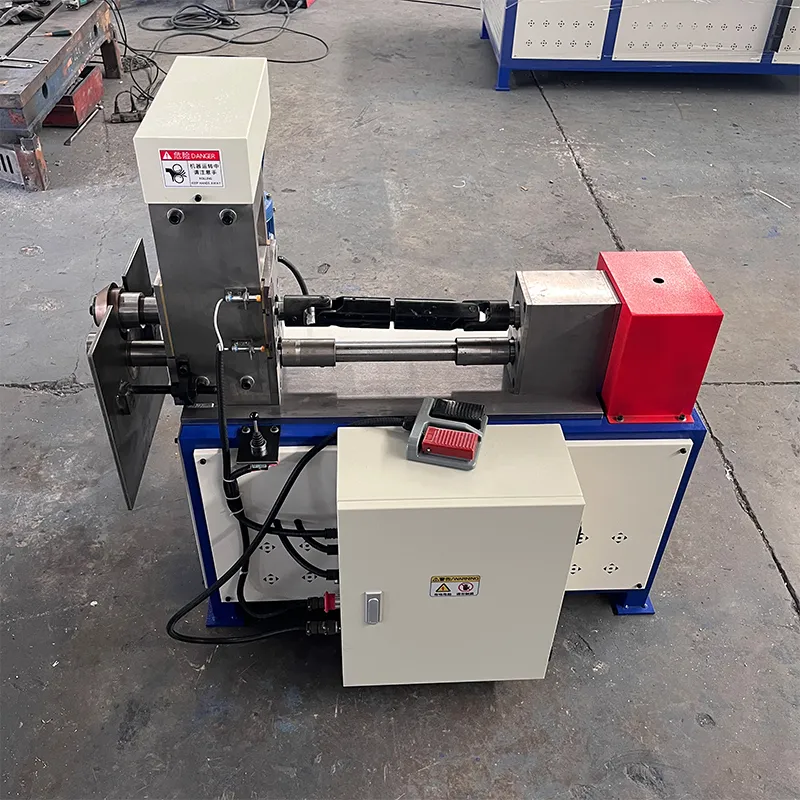

Heavy Duty Flanging Machine

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Basic Info

Model NO. bw

Fan Thickness 2-5mm

Diameter 300-1250mm

Flanging Height 10-50mm

Motor 3/2.2kw

Weight 1500kg

Transport Package Custom

Specification 3200*1200*900mm

Trademark N/A

Origin China

Packaging & Delivery

Package Size 100.00cm * 100.00cm * 100.00cm

Package Gross Weight 100.000kg

Product Description

Features

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Parameter	Specification Details
Flanging thickness	0.8mm-3mm
Flanging width	15mm-40mm
Flanging diameter	400mm-1600mm
Upper pulley	Cylinder control
Lower pulley	Cylinder control
Total motor power	15KW
Reducer	WPO reducer
Electrical box accessories	PLC digital display control

Frequently Asked Questions

What is the flanging thickness capability of this machine?

The heavy duty flanging machine is capable of processing flanging thicknesses ranging from 0.8mm to 3mm, with standard fan thickness support of 2-5mm depending on the material configuration.

What workpiece diameters can be processed?

The standard flanging diameter range is φ250mm to φ1600mm. Optional special molds can be integrated to achieve flanging for smaller workpieces down to a diameter of φ150mm.

What are the primary applications of this flanging machine?

This equipment is highly versatile and widely utilized in the manufacturing and processing of ventilation ducts, industrial fans, air valves, and associated components.

What control and electrical systems are integrated into the machine?

The machine features PLC digital display control inside the electrical box accessories, paired with pneumatic cylinder control for both the upper and lower pulleys.

What are the dimensions and weight of the machine?

The overall physical dimensions of the machine are 3200mm * 1200mm * 900mm, with a total operational weight of approximately 1500kg.
