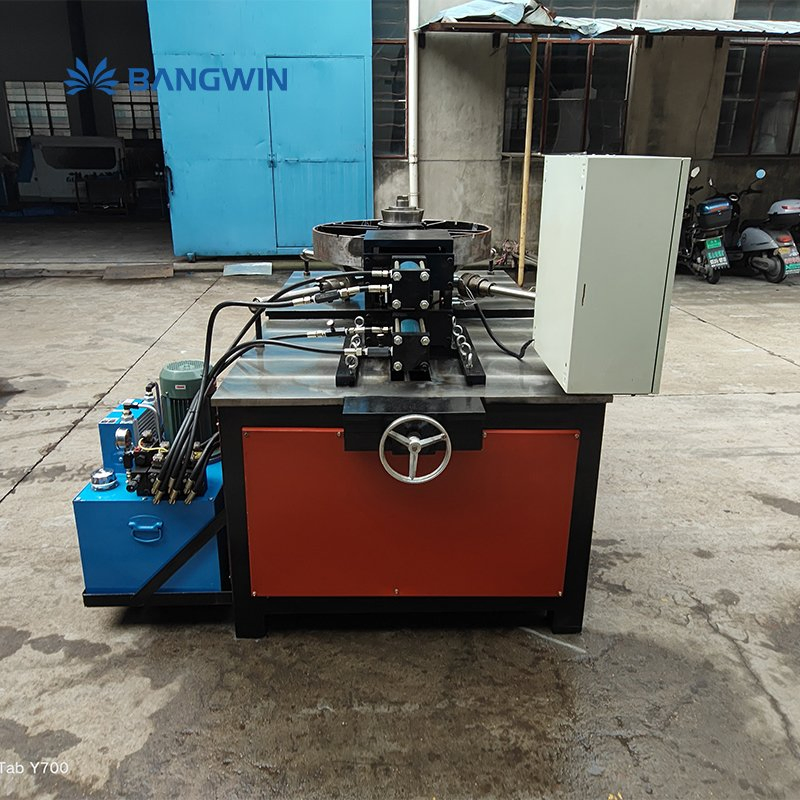

Heavy Duty Flanging Machine for Multi-Purpose Tubes

1 / 5

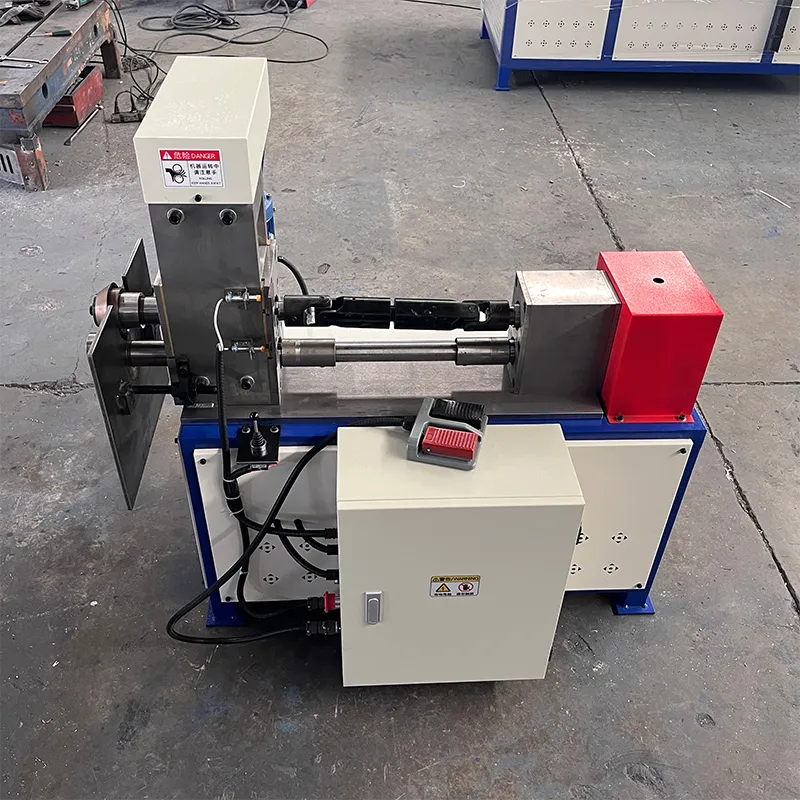

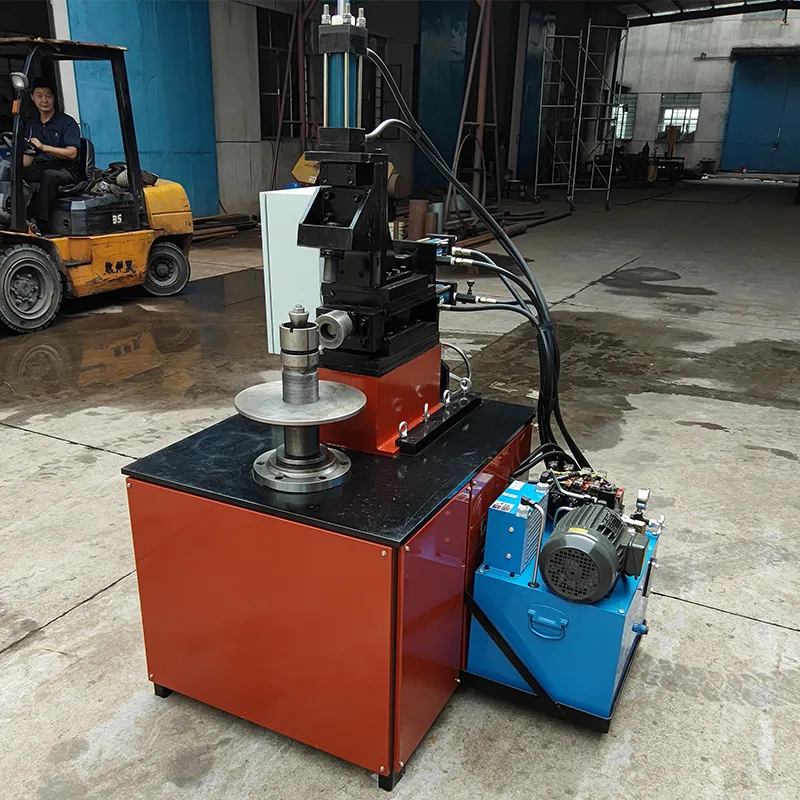

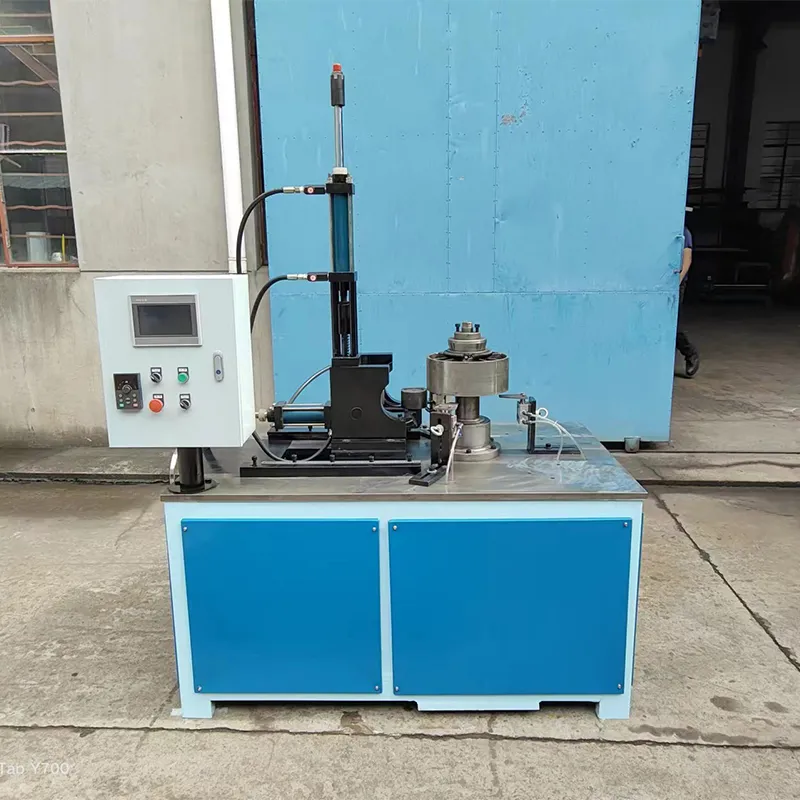

Heavy Duty Flanging Machine for Multi-Purpose Tubes

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info.

Model NO.

Fan Thickness

2-5mm

Diameter

300-1250mm

Flanging Height

10-50mm

Motor

3/2.2kw

Weight

1500kg

Transport Package

Custom

Specification

3200*1200*900mm

Origin

China

Packaging & Delivery

Package Size

100.00cm * 100.00cm * 100.00cm

Package Gross Weight

100.000kg

Product Description

Features

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Flanging thickness	0.8mm-3mm
Flanging width	15mm-40mm
Flanging diameter	400mm-1600mm
Upper pulley	Cylinder control
Lower pulley	Cylinder control
Total motor power	15KW
Reducer	WPO reducer
Electrical box accessories	PLC digital display control

Heavy Duty Flanging Machine Dimensions and Setup

Heavy Duty Flanging Machine Component Anatomy

Heavy Duty Flanging Machine Structural Layout

Frequently Asked Questions (FAQ)

QWhat is the maximum flanging width this machine can handle?

The machine features an impressive capability to turn over up to 50mm of extra-large edge width. For standard operations, the flanging width range is between 15mm and 40mm.

QWhat workpiece diameters and wall thicknesses are supported?

It processes workpieces with a wall thickness up to 3mm (flanging thickness range 0.8mm-3mm). The processing diameter spans from φ250mm to φ1600mm. Optional special molds can be configured to support smaller diameters down to φ150mm.

QWhat industries are best suited for this flanging machine?

This equipment is highly versatile and widely used in the processing of ventilation ducts, industrial fans, air valves, and associated mechanical piping sectors.

QWhat type of control and driving systems does the machine feature?

The system incorporates a highly accurate PLC digital display control unit for electrical configuration, along with a WPO reducer and cylinder control setups for both upper and lower pulleys.

QWhat are the physical dimensions and weight of this machine?

The machine itself weighs 1500kg and has physical dimensions of 3200*1200*900mm. The shipping package dimensions are 100.00cm * 100.00cm * 100.00cm with a gross shipping weight of 100.000kg.
