Heavy Duty Flanging Machine for Tube End Forming

1 / 5

Heavy Duty Flanging Machine for Tube End Forming

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info

Model NO. bw

Fan Thickness 2-5mm

Diameter 300-1250mm

Flanging Height 10-50mm

Motor 3/2.2kw

Weight 1500kg

Transport Package Custom

Specification 3200*1200*900mm

Trademark N/A

Origin China

Packaging & Delivery

Package Size 100.00cm * 100.00cm * 100.00cm

Package Gross Weight 100.000kg

Product Description

Features

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.

It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.

The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Technical Parameters

Parameter	Specification Details
Flanging thickness	0.8mm-3mm
Flanging width	15mm-40mm
Flanging diameter	400mm-1600mm
Upper pulley	Cylinder control
Lower pulley	Cylinder control
Total motor power	15KW
Reducer	WPO reducer
Electrical box accessories	PLC digital display control

Product Gallery

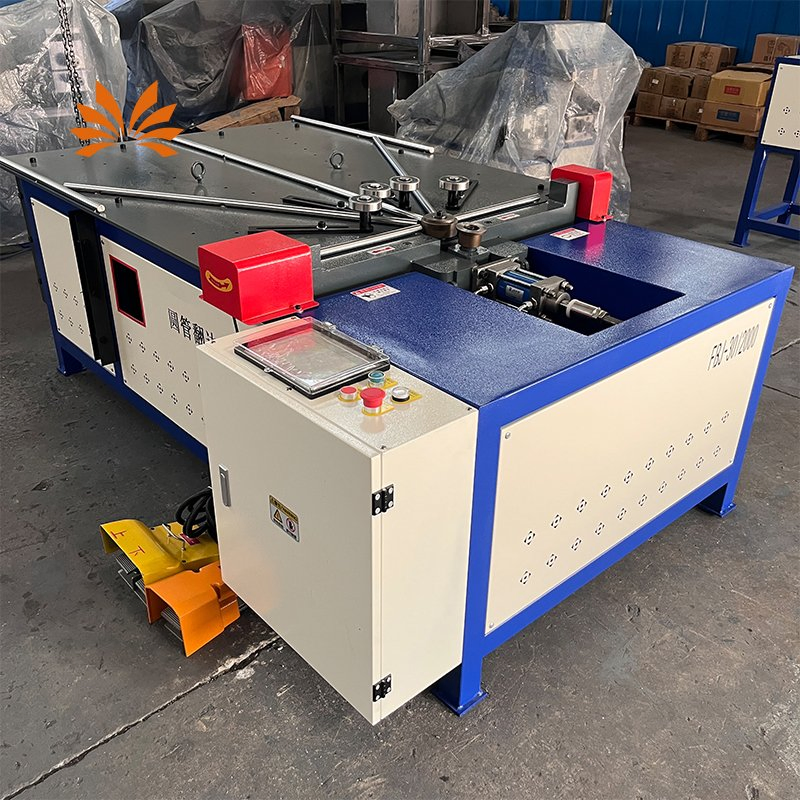

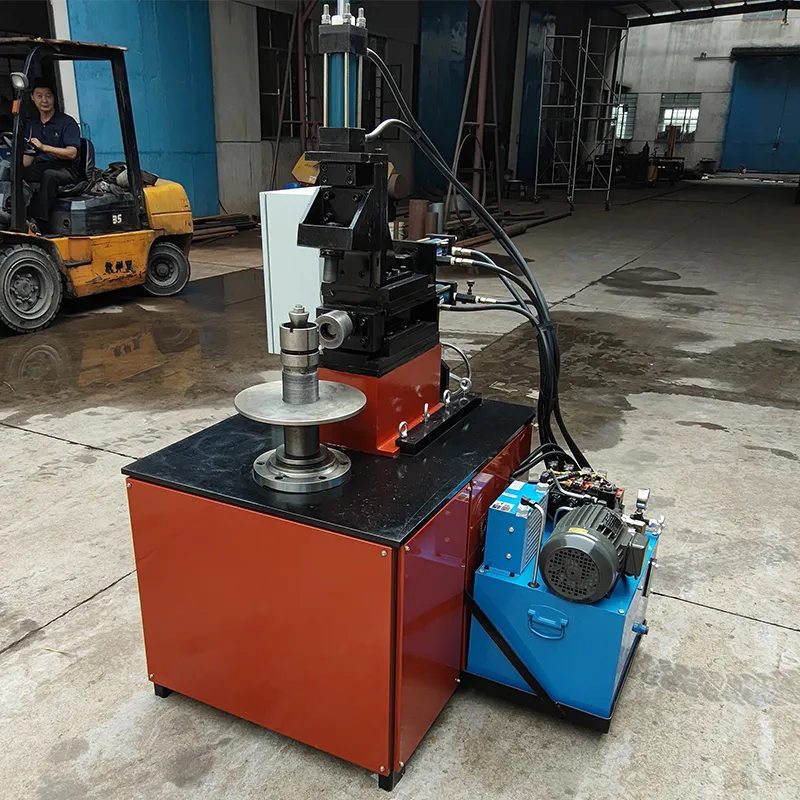

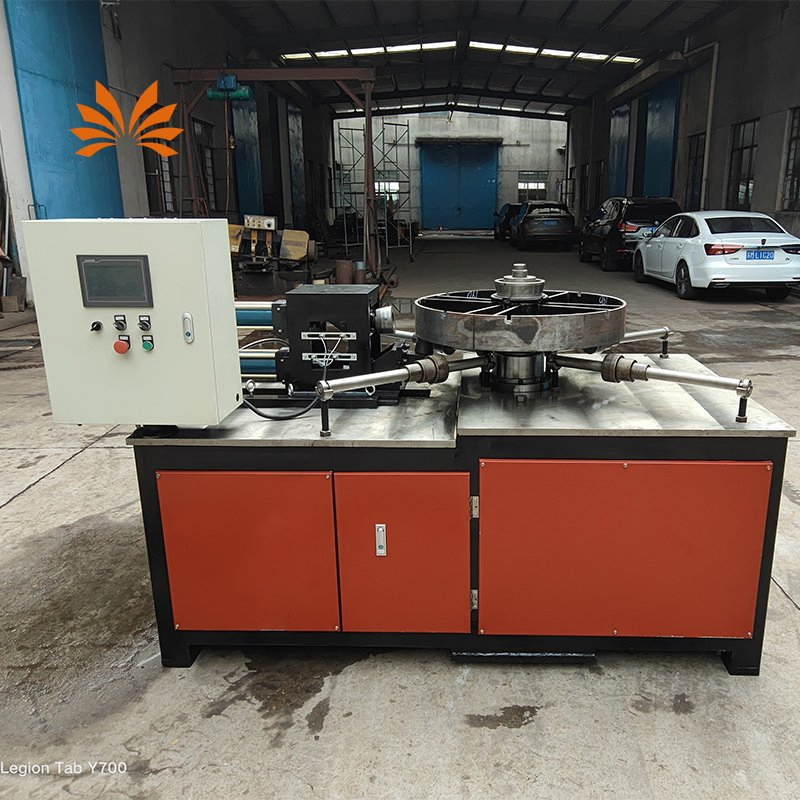

Heavy Duty Flanging Machine for Tube End Forming Detail 1

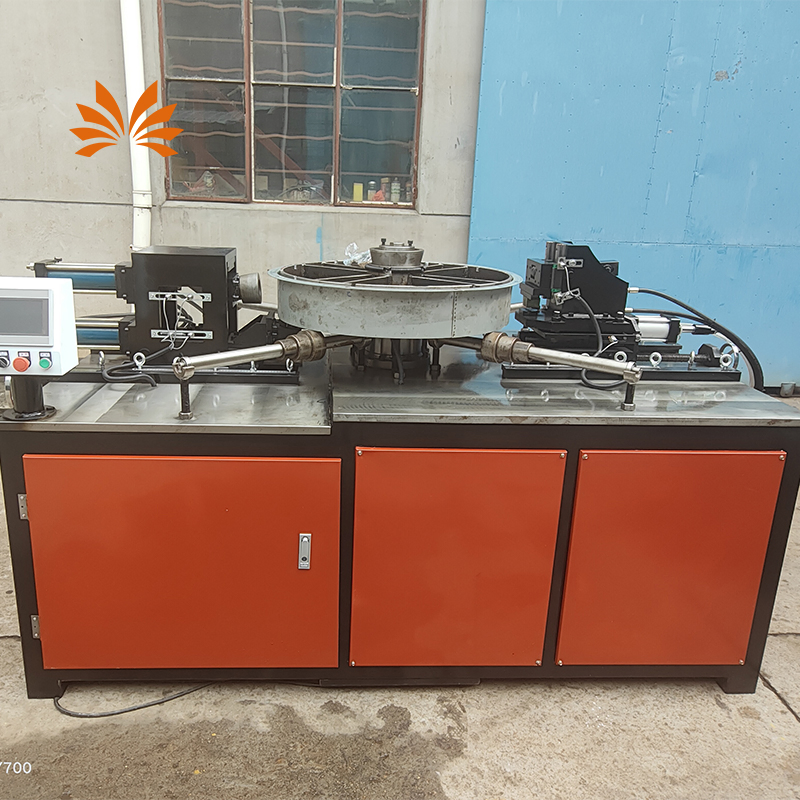

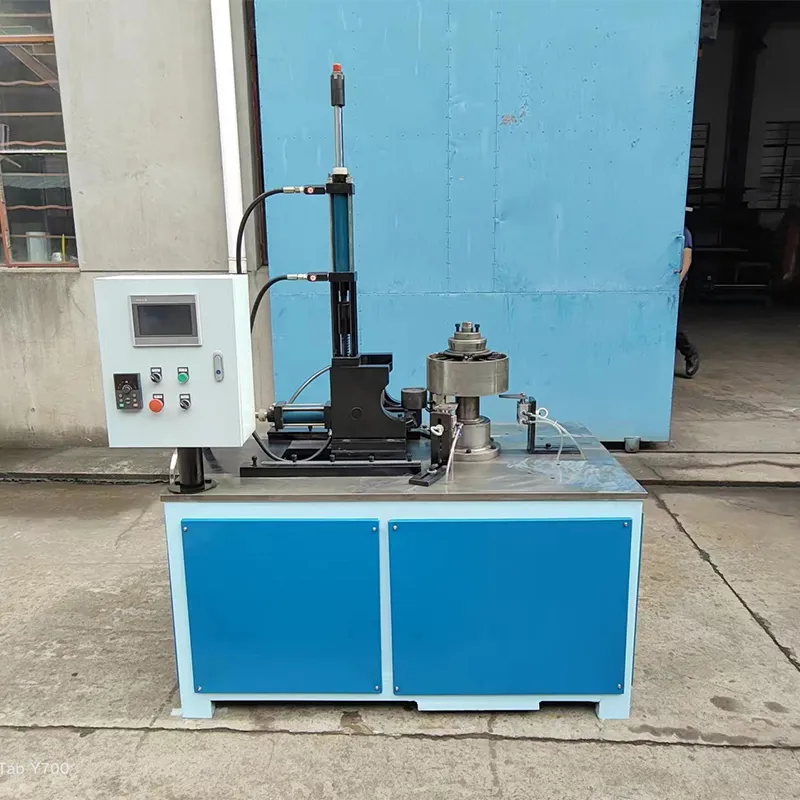

Heavy Duty Flanging Machine for Tube End Forming Detail 2

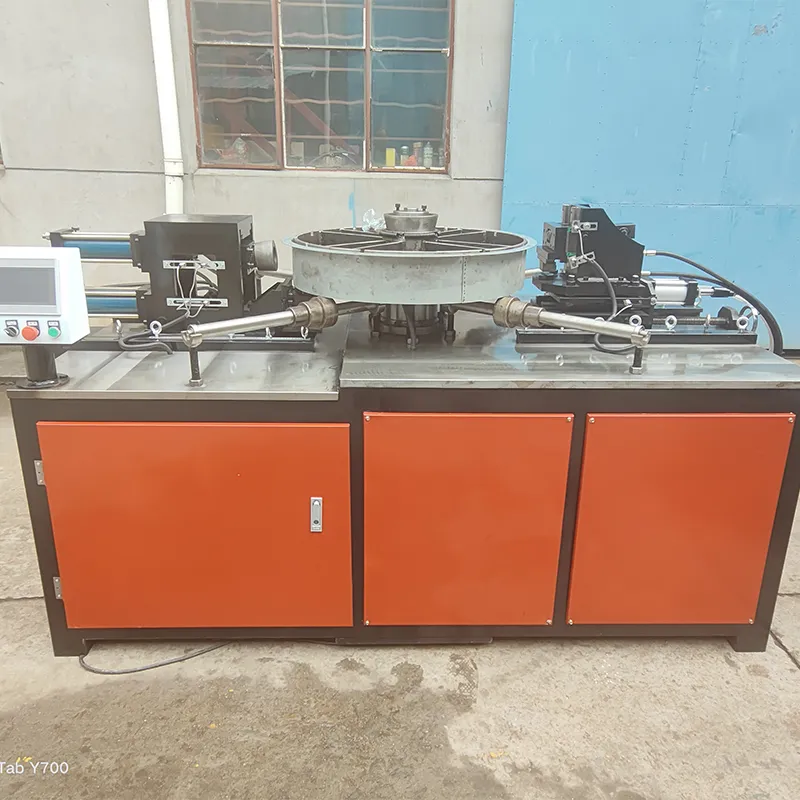

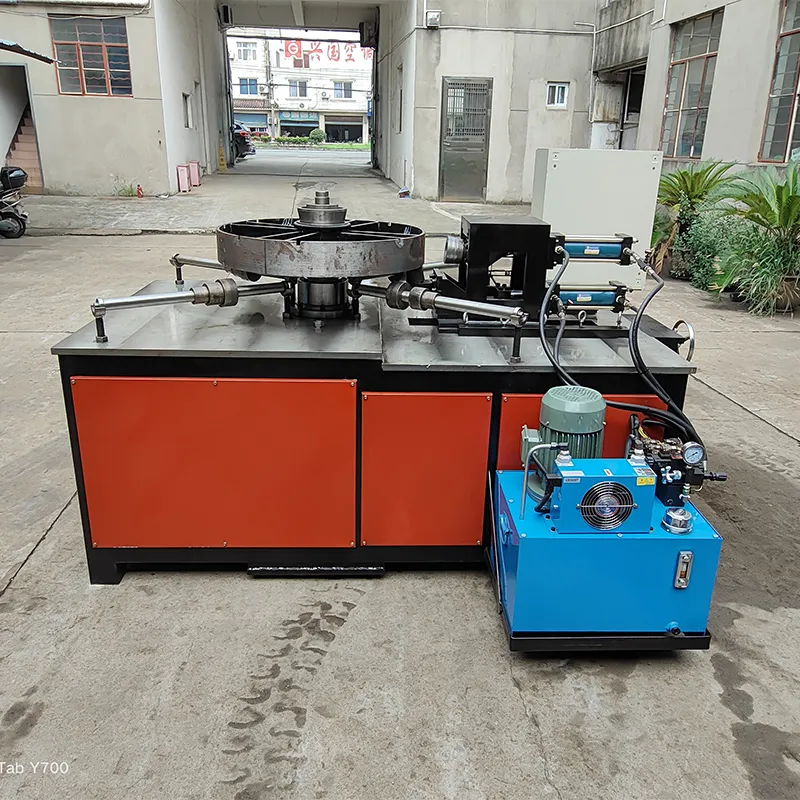

Heavy Duty Flanging Machine for Tube End Forming Detail 3

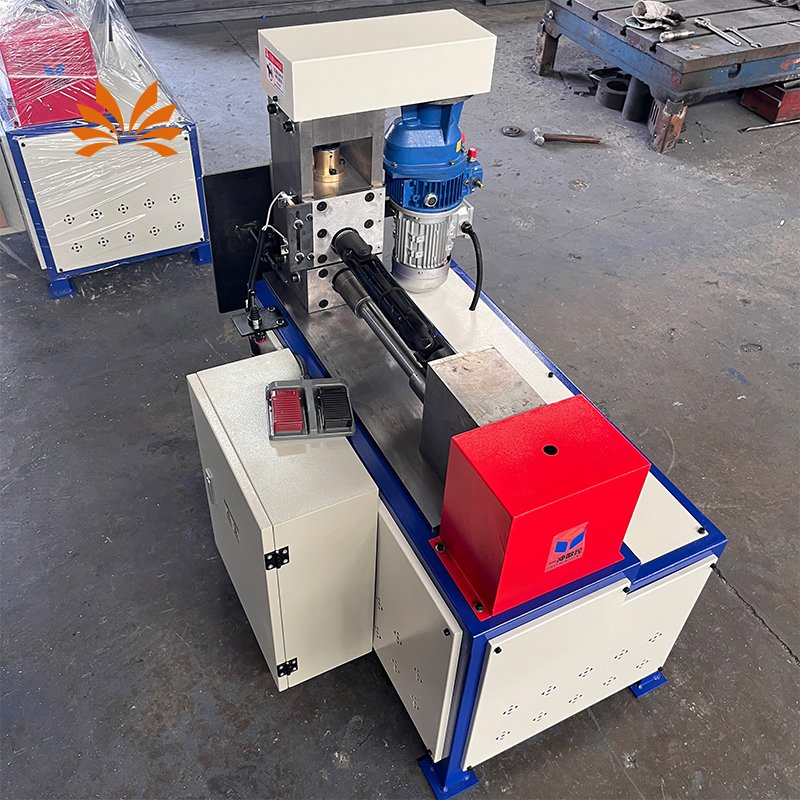

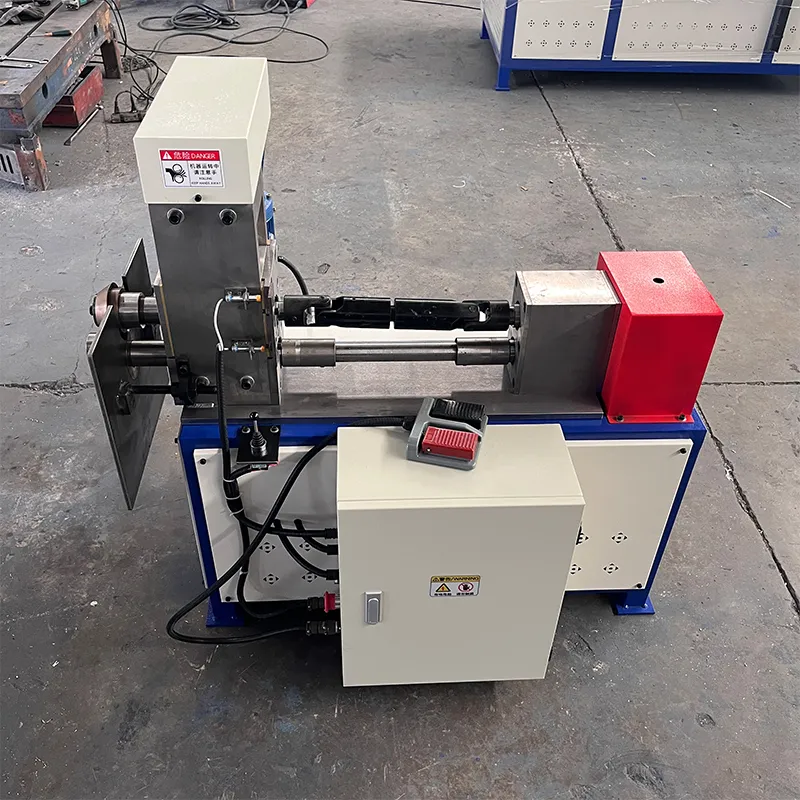

Heavy Duty Flanging Machine for Tube End Forming Detail 4

Heavy Duty Flanging Machine for Tube End Forming Specifications Layout 1

Heavy Duty Flanging Machine for Tube End Forming Specifications Layout 2

Heavy Duty Flanging Machine for Tube End Forming Specifications Layout 3

Frequently Asked Questions (FAQ)

What is the maximum flanging width this machine can handle?

This heavy-duty flanging machine can process an extra-large edge width of up to 50mm. The turning and drilling processes can be completed efficiently in one single operation.

What workpiece sizes and thicknesses are compatible with this flanging machine?

The machine standardly supports a processing diameter range of φ250mm to 1600mm with a workpiece wall thickness of up to 3mm. Additionally, special optional molds are available to achieve flanging of smaller workpieces down to φ150mm.

What are the primary fields of application for this machine?

It is widely applied in the fabrication and processing of ventilation ducts, industrial fans, air valves, tube end forming, and other general sheet metal processing fields.

What kind of control system and electrical options are configured?

The equipment is configured with a PLC digital display control system within its electrical box accessories for convenient operations. It also features cylinder control for both the upper and lower pulleys.

What are the power and transmission specifications of the flanging machine?

The total motor power of this system is 15KW (with basic configurations including 3/2.2kw motors) integrated with a high-performance WPO reducer to ensure stable torque and transmission.
