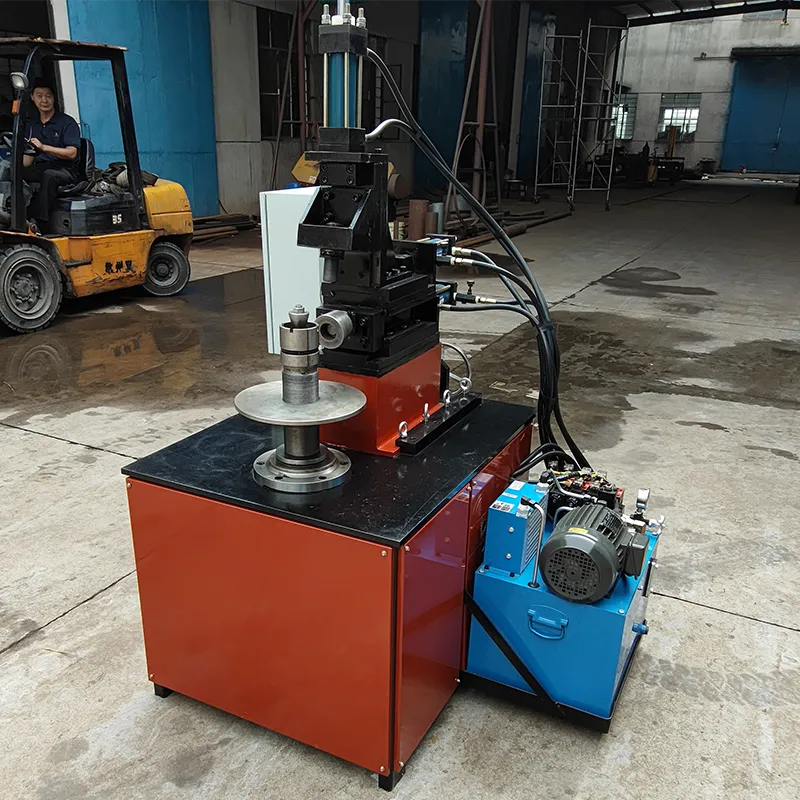

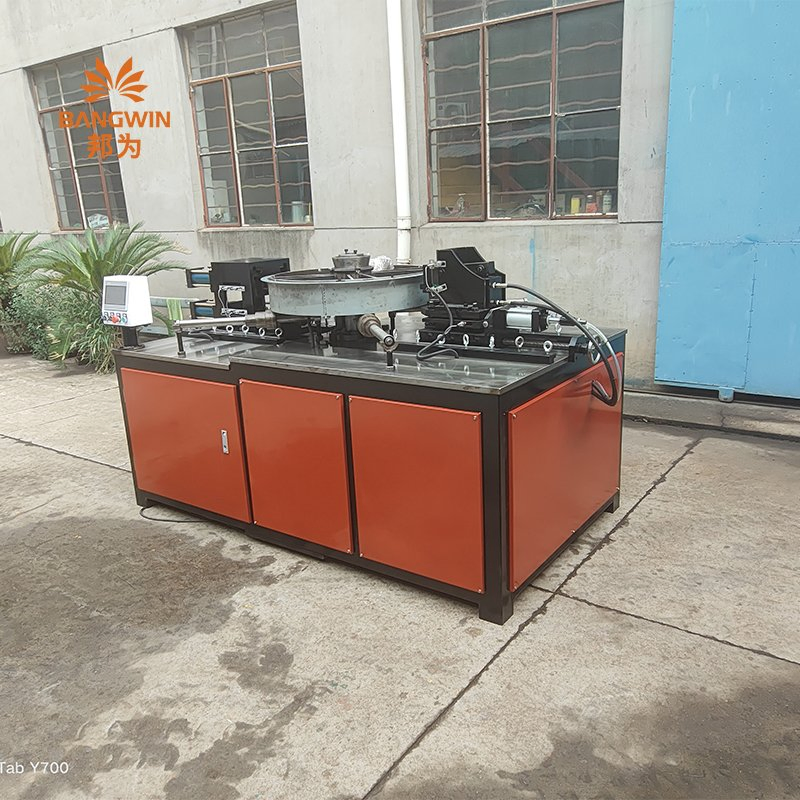

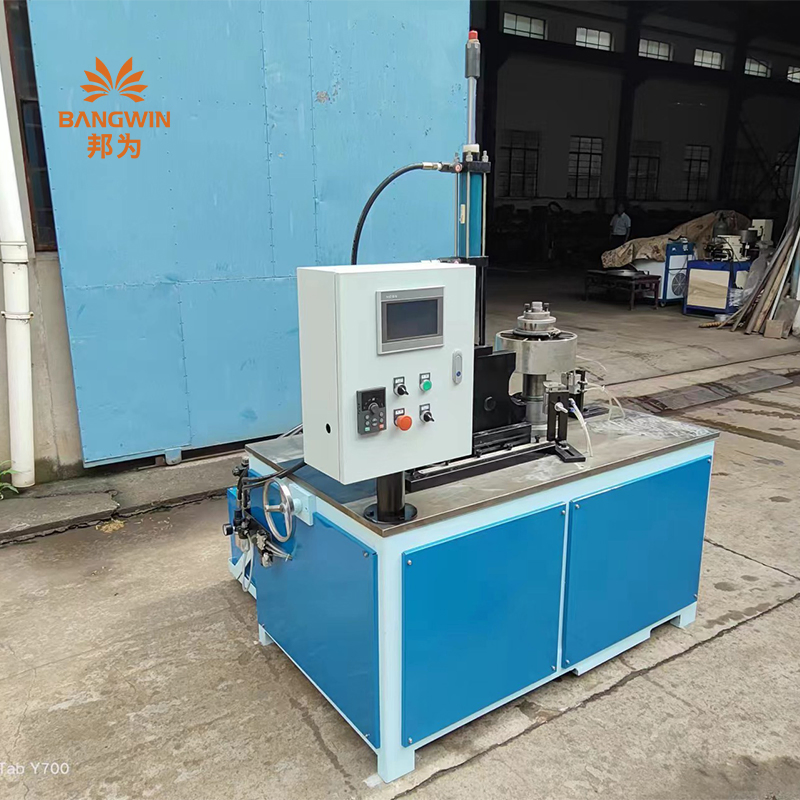

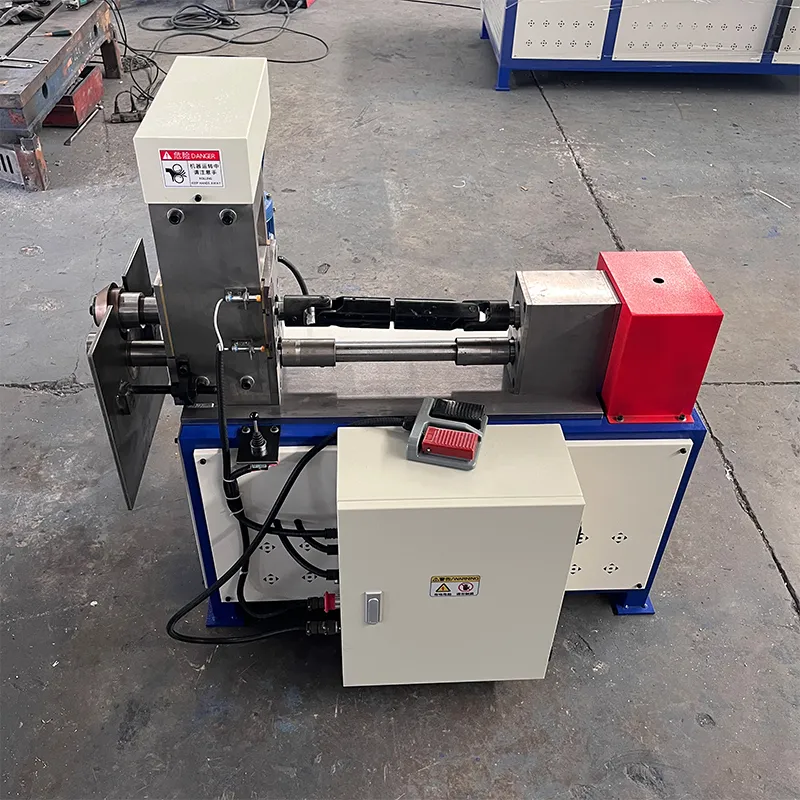

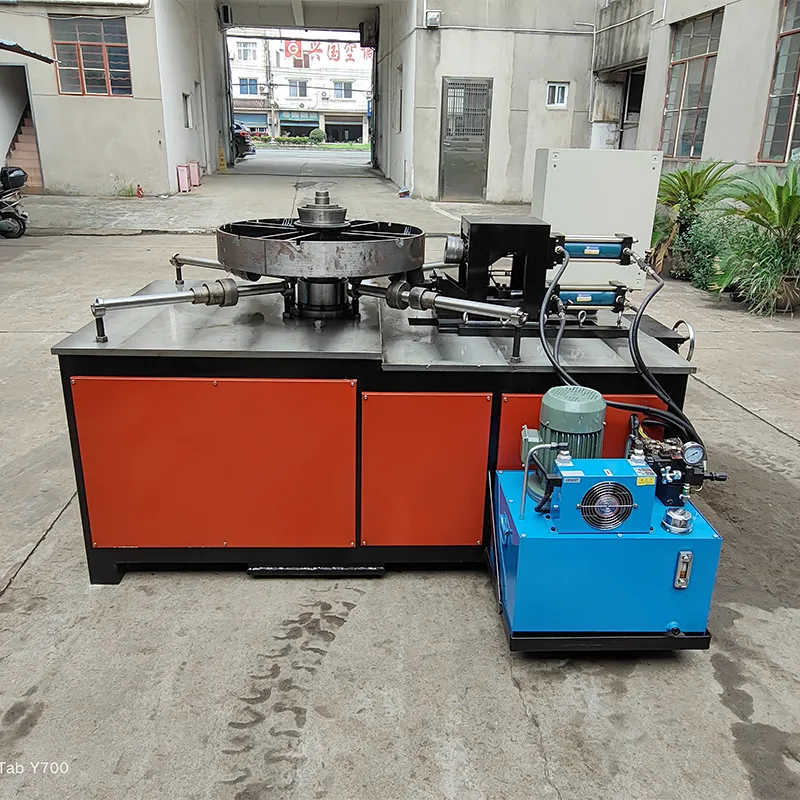

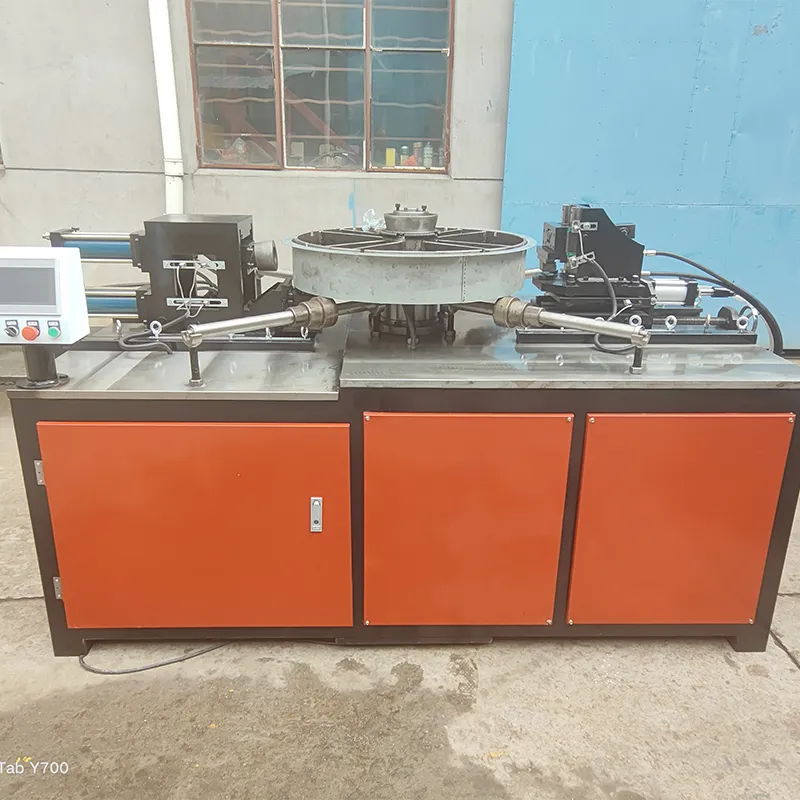

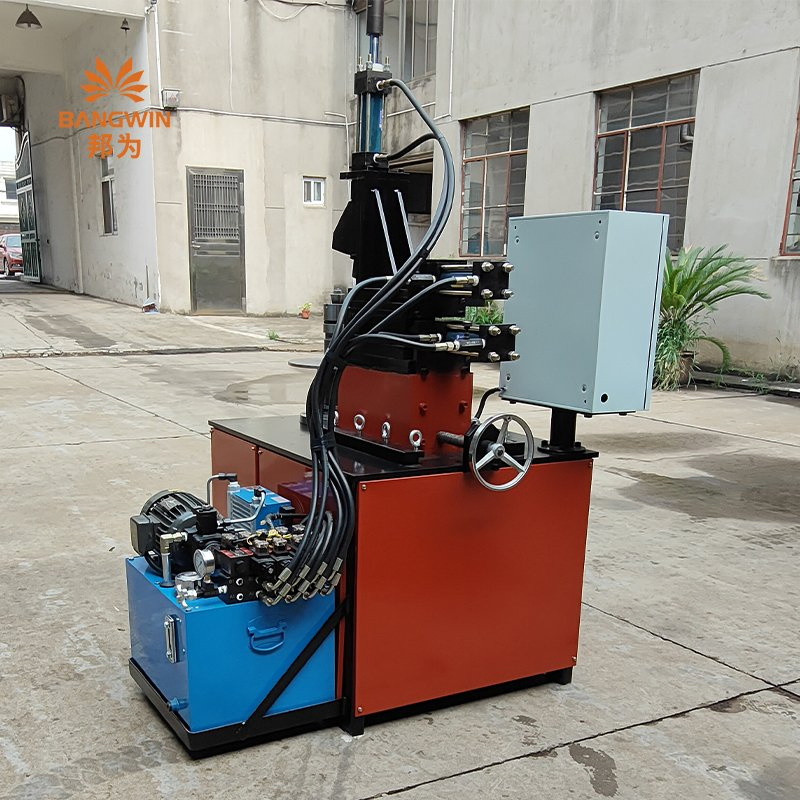

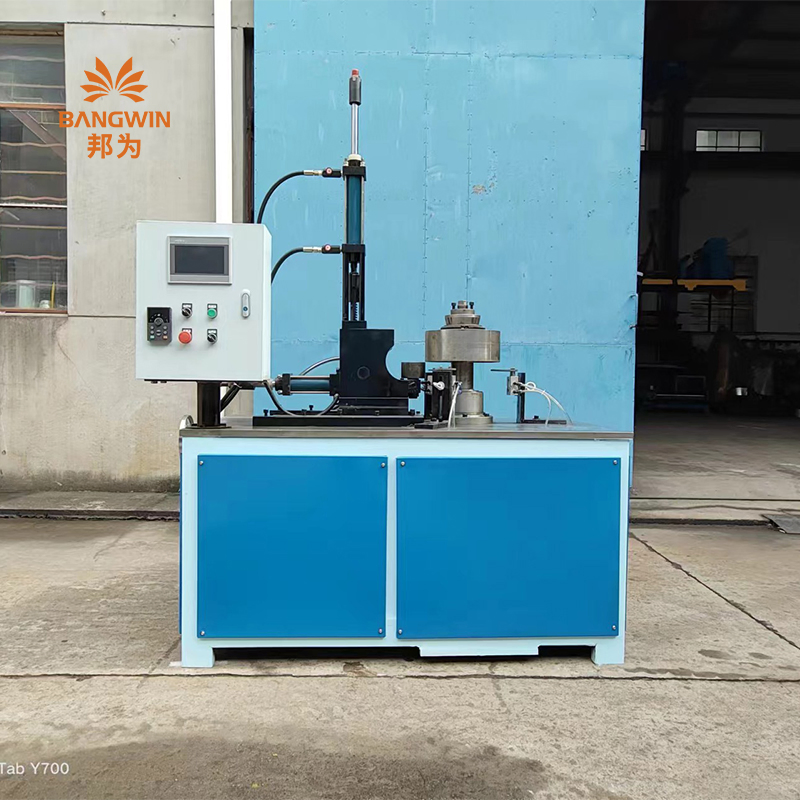

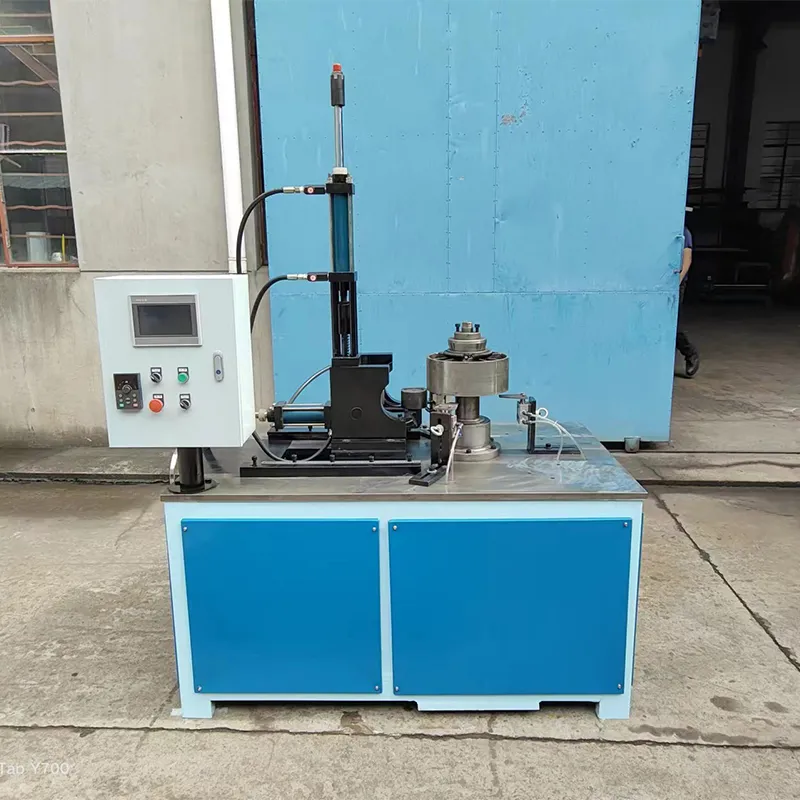

Heavy Duty Flanging Machine for Factory Tube Fabrication

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info.

Model NO. bw

Fan Thickness 2-5mm

Diameter 300-1250mm

Flanging Height 10-50mm

Motor 3/2.2kw

Weight 1500kg

Transport Package Custom

Specification 3200*1200*900mm

Trademark N/A

Origin China

Packaging & Delivery

Package Size 100.00cm * 100.00cm * 100.00cm

Package Gross Weight 100.000kg

Product Description

Features

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Flanging thickness	0.8mm-3mm
Flanging width	15mm-40mm
Flanging diameter	400mm-1600mm
Upper pulley	Cylinder control
Lower pulley	Cylinder control
Total motor power	15KW
Reducer	WPO reducer
Electrical box accessories	PLC digital display control

Frequently Asked Questions (FAQ)

Q What is the processing diameter range of this flanging machine?

The standard processing diameter range is φ250-1600mm. Optional special molds can be selected to achieve flanging for smaller workpieces down to φ150mm.

Q What are the thickness and width capabilities for flanging?

The machine supports a flanging thickness of 0.8mm-3mm and a flanging width of 15mm-40mm. It is capable of turning over up to 50mm of extra large edge width.

Q Which industrial fields is this equipment suitable for?

This machine is widely used in the processing and manufacturing of ventilation ducts, fans, air valves, and other related industrial fabrication fields.

Q What type of control system and power configurations does the machine use?

It features a PLC digital display control system, WPO reducer, and cylinder controls for both the upper and lower pulleys. The total motor power rating is 15KW.

Q Does the machine require multiple steps to turn and drill?

No, the turning and drilling operations can be fully completed in a single, continuous process to optimize production efficiency.

Q What are the weight and physical dimensions of the machine?

The machine has a physical size specification of 3200*1200*900mm and weighs approximately 1500kg.
