Heavy-Duty Dish End Pressing Machine for Reliable Production

Customization:	Available
After-sales Service:	24hours
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info.

Model NO. YTL

Transport Package Steel Plate

Specification 600

Origin China

HS Code 8462299000

Production Capacity 100 Sets

Product Description

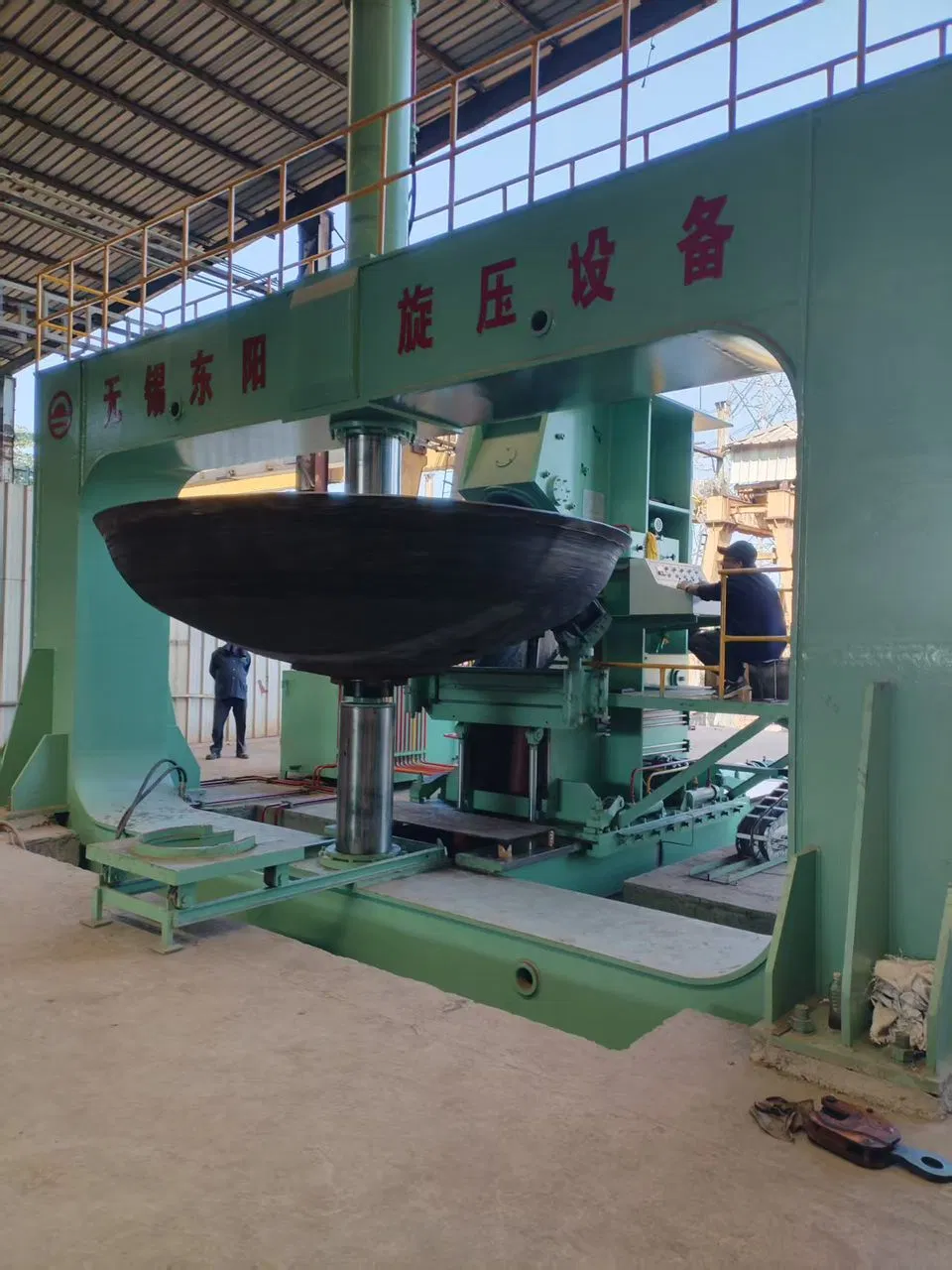

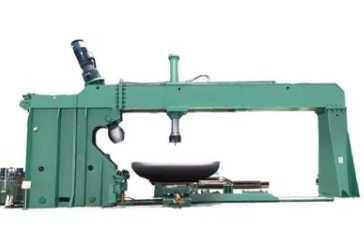

CNC spinning molding equipment / Head spinning machine

Model	Diameter	Length	Thickness(Stainless steel)
FTSM-2500-A	2500	1000/1500	12/20/30
FTSM-4000-A	4000	1000/1500	12/20/30
FTSM-6000-A	6000	1000/2000	12/20/30
FTSM-8000-A	8000	1000/2500	12/20/30
FTSM-10000-A	10000	1000/2500	12/20/30

Features

1. Full CNC control, only need to call the preset program to realize the edge spinning operation.
2. The precise control of the movement accuracy of each axis by the servo motor ensures high diameter accuracy and excellent consistency in product processing.
3. The equipped turning device can not only complete turning operations, but also has the ability to chamfer the workpiece.
4. In order to ensure the smooth installation and disassembly of the mold, the mold installation rack needs to be properly configured to improve operating efficiency and convenience.
5. Configure workpiece loading bracket
6. The equipment has a one-button start function and is easy to operate. Only one operator can easily manage two machines, thus significantly reducing labor costs and improving work efficiency.

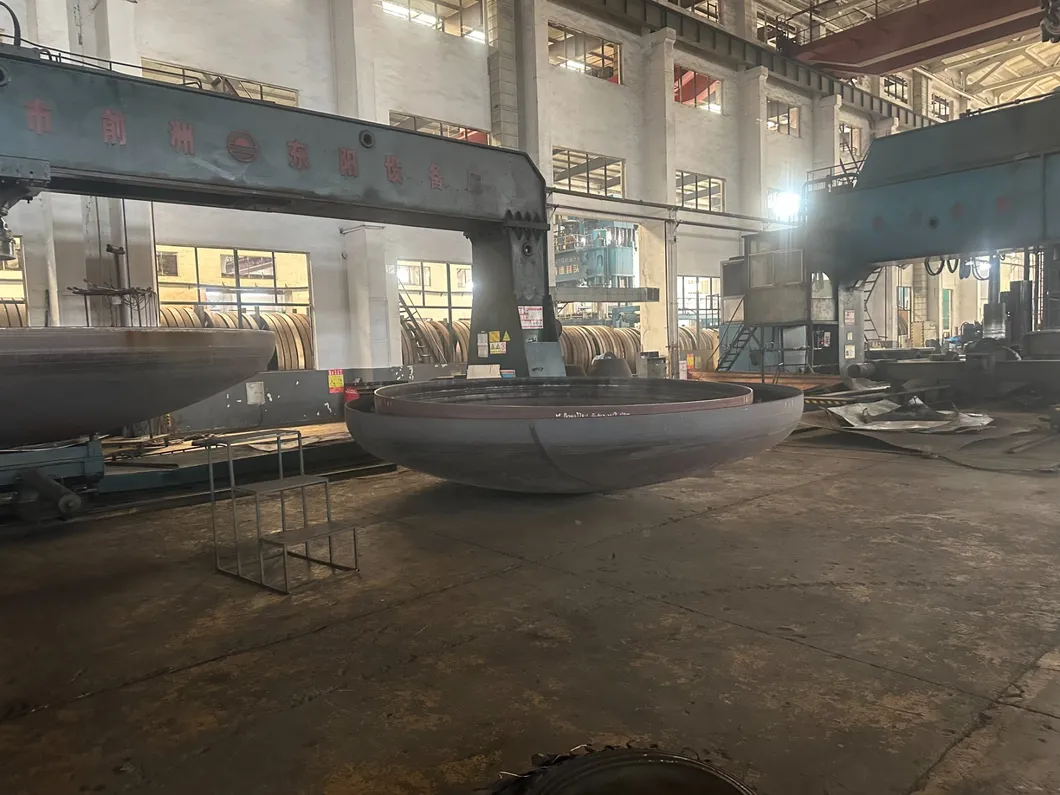

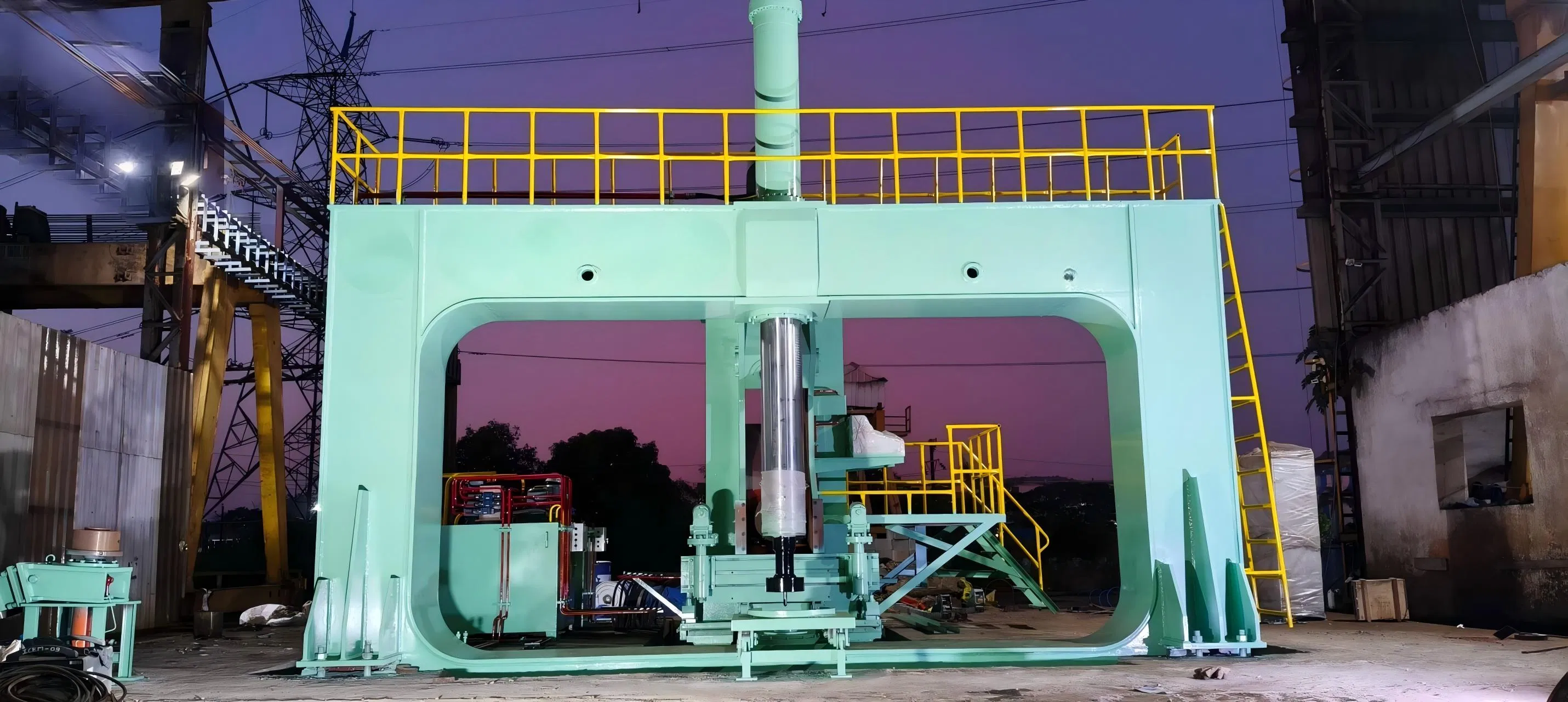

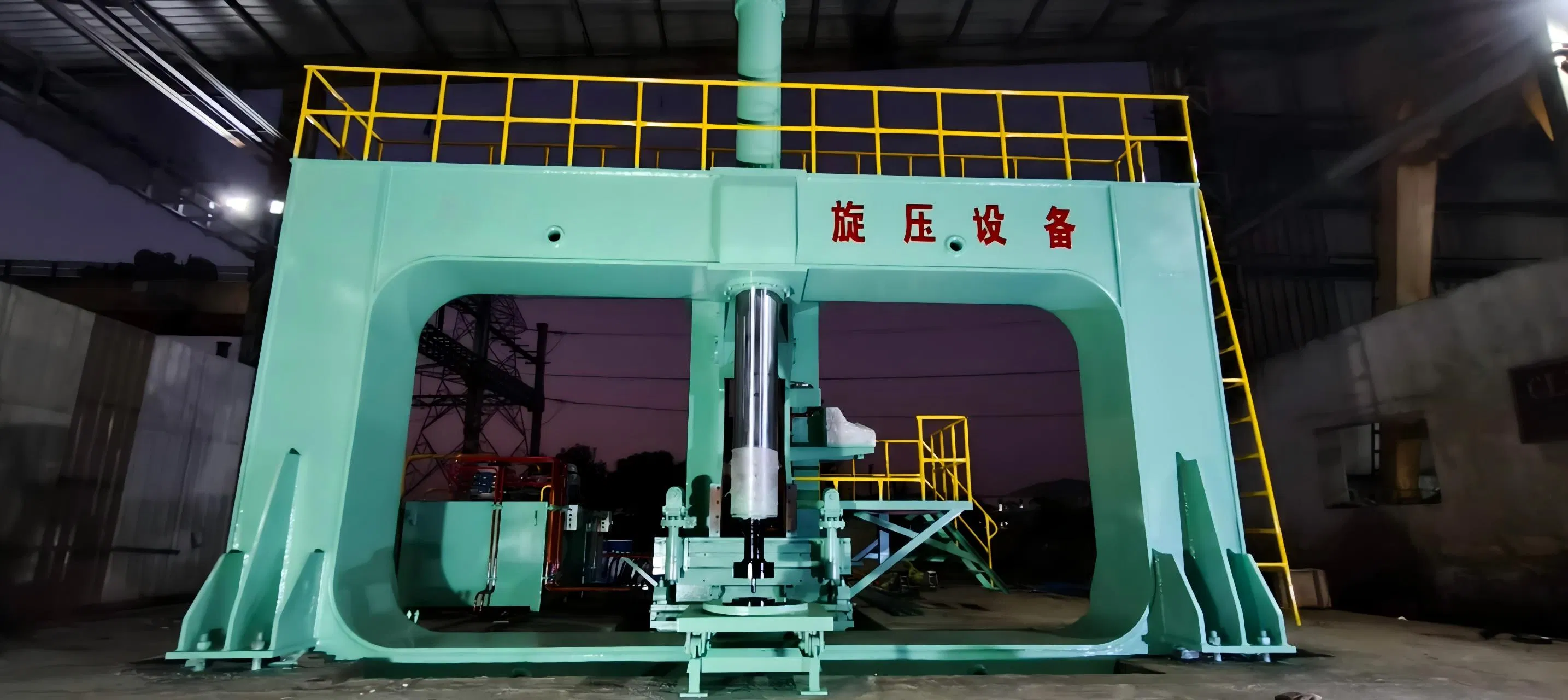

Head forming machine

Model	Diameter	Length	Thickness(Stainless steel)
FTFM-2500-A	2500	1000/1500	12/20/30
FTFM-4000-A	4000	1000/1500	12/20/30
FTFM-6000-A	6000	1000/2000	12/20/30
FTFM-8000-A	8000	1000/2500	12/20/30
FTFM-10000-A	10000	1000/2500	12/20/30

Features

1. Full CNC control, only need to call the preset program to realize the edge spinning operation.
2. The precise control of the movement accuracy of each axis by the servo motor ensures high diameter accuracy and excellent consistency in product processing.
3. The equipped turning device can not only complete turning operations, but also has the ability to chamfer the workpiece.
4. In order to ensure the smooth installation and disassembly of the mold, the mold installation rack needs to be properly configured to improve operating efficiency and convenience.
5. Configure workpiece loading bracket
6. The equipment has a one-button start function and is easy to operate. Only one operator can easily manage two machines, thus significantly reducing labor costs and improving work efficiency.

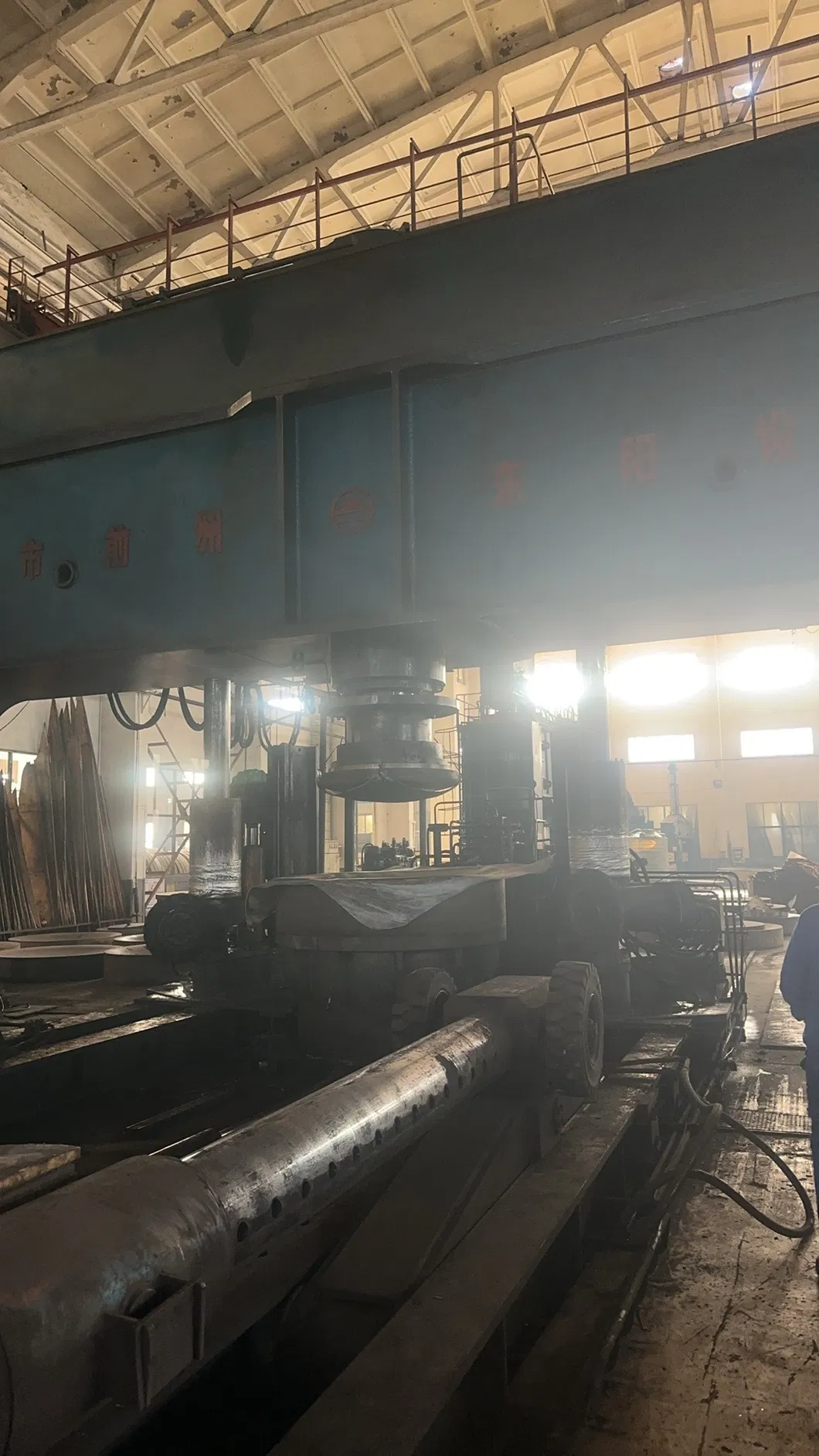

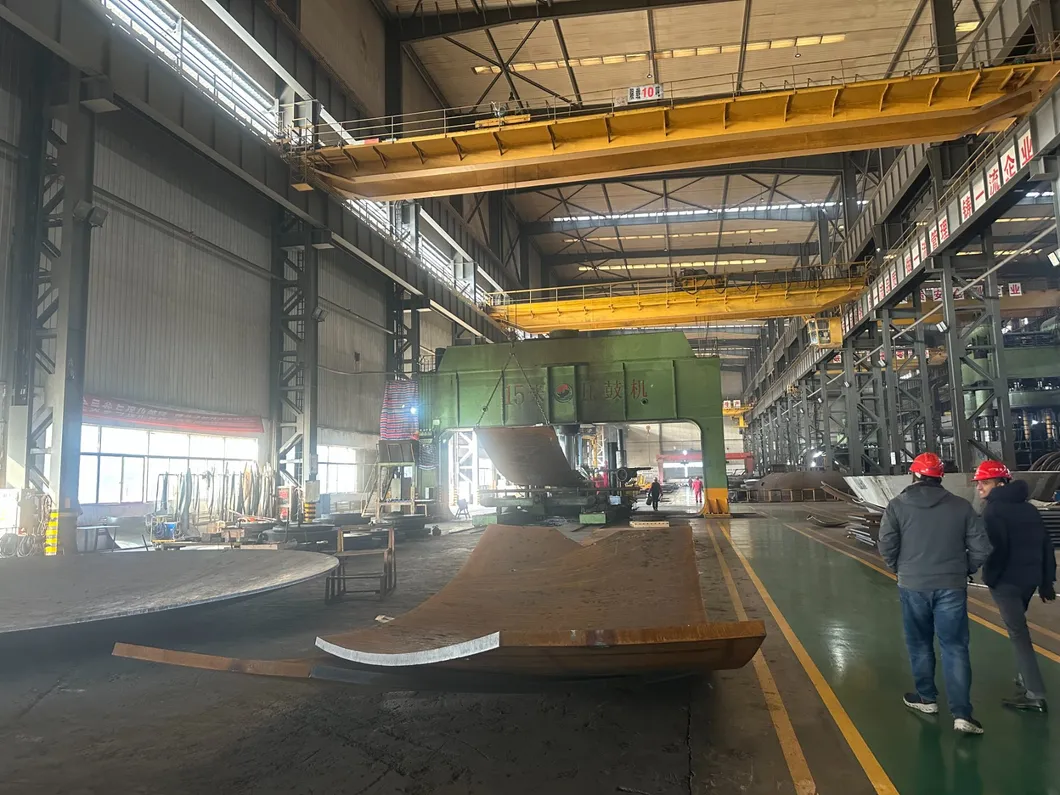

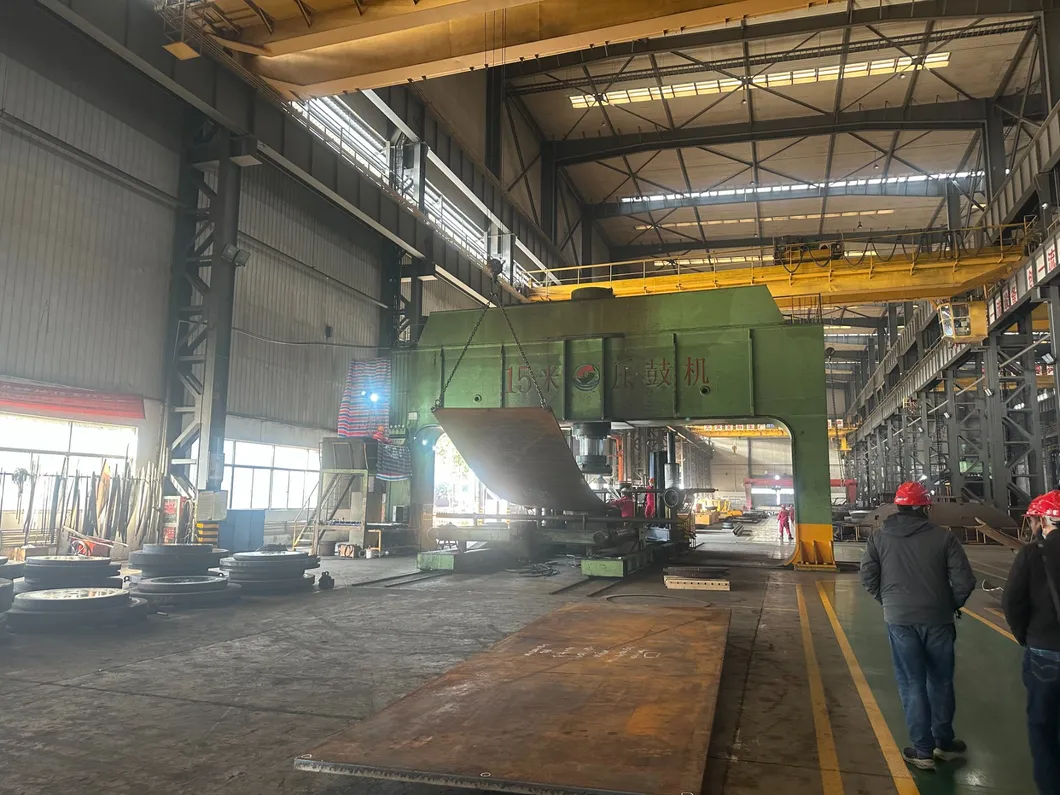

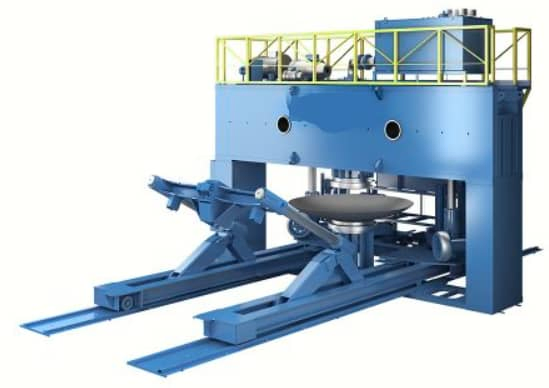

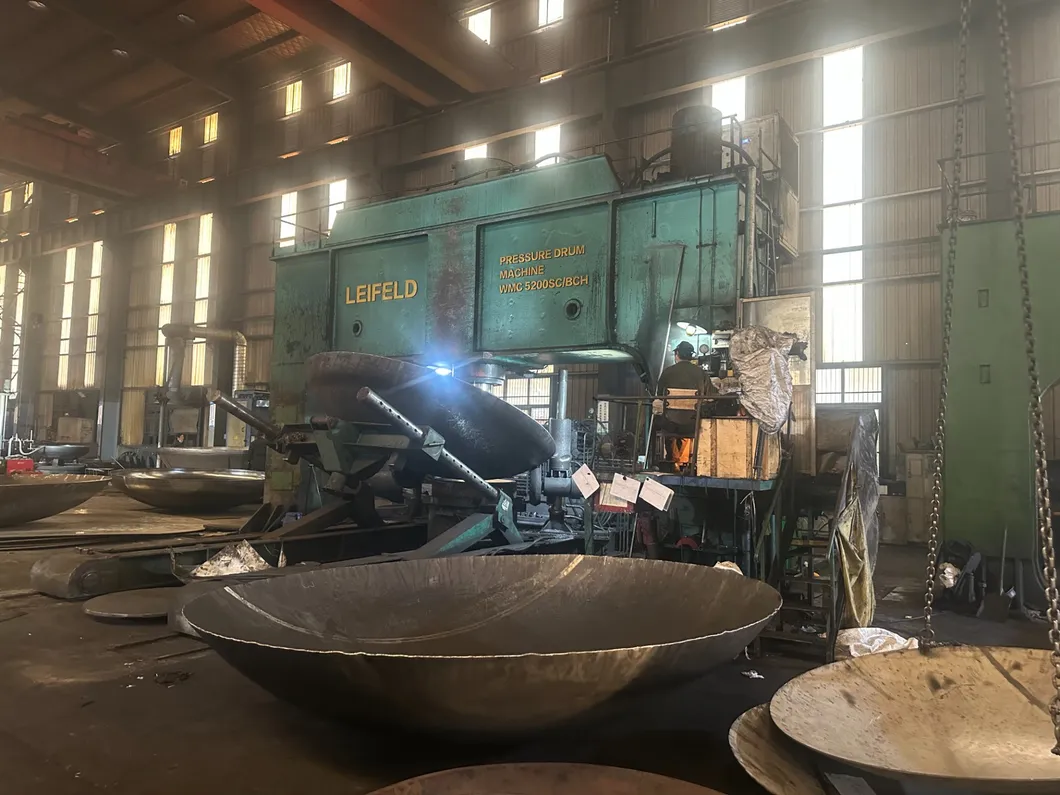

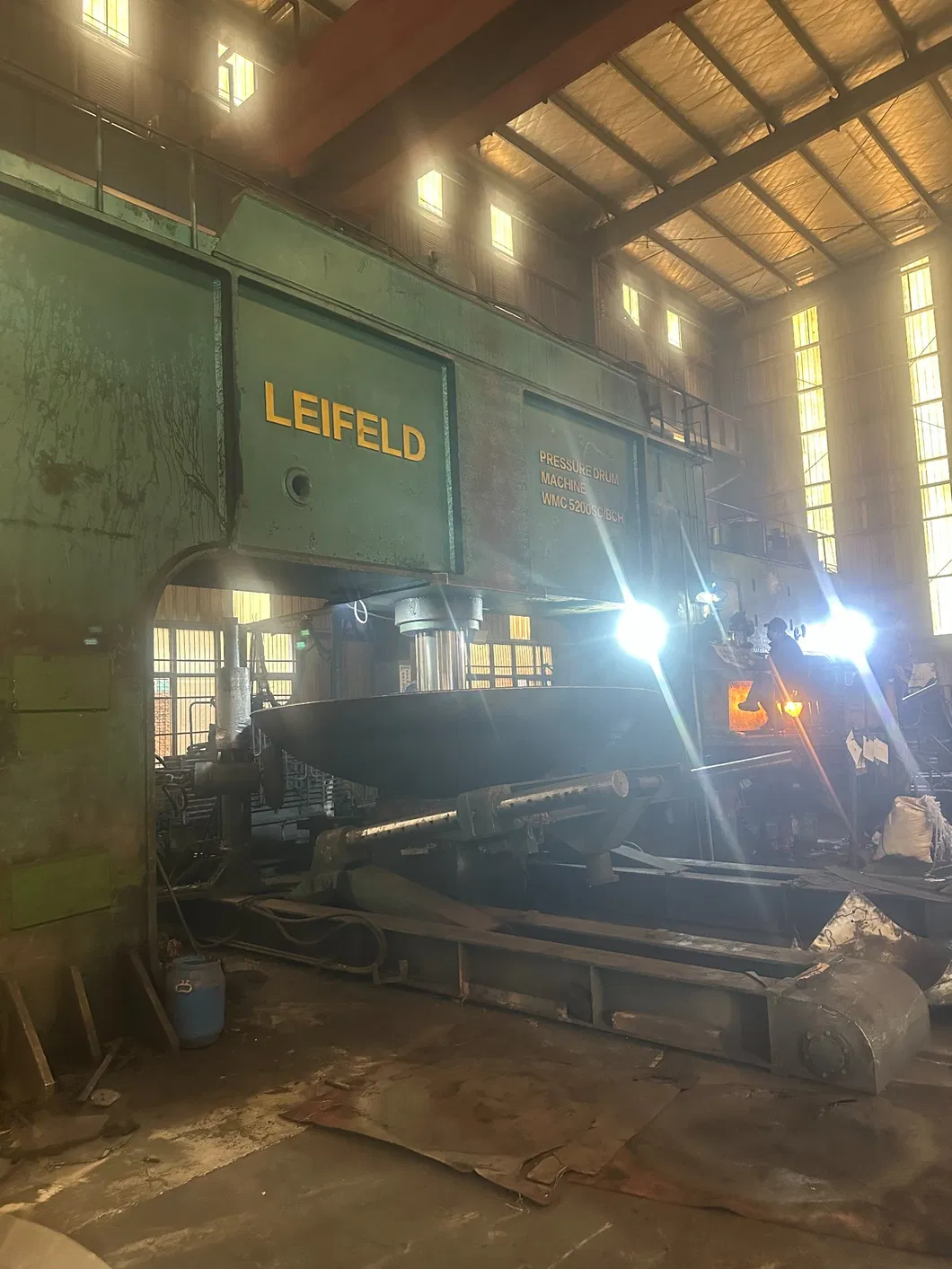

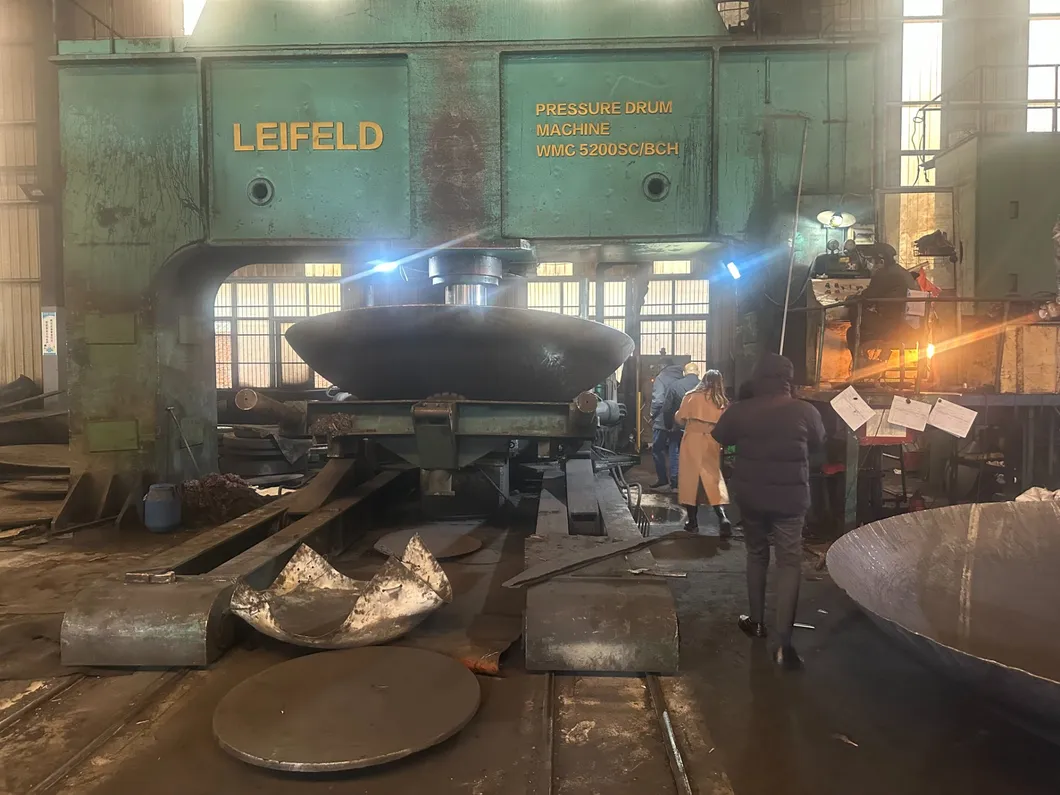

This is first step. The piston of main cylinder moves up and down to drive upper tool to press the raw plate to become required concave shape.

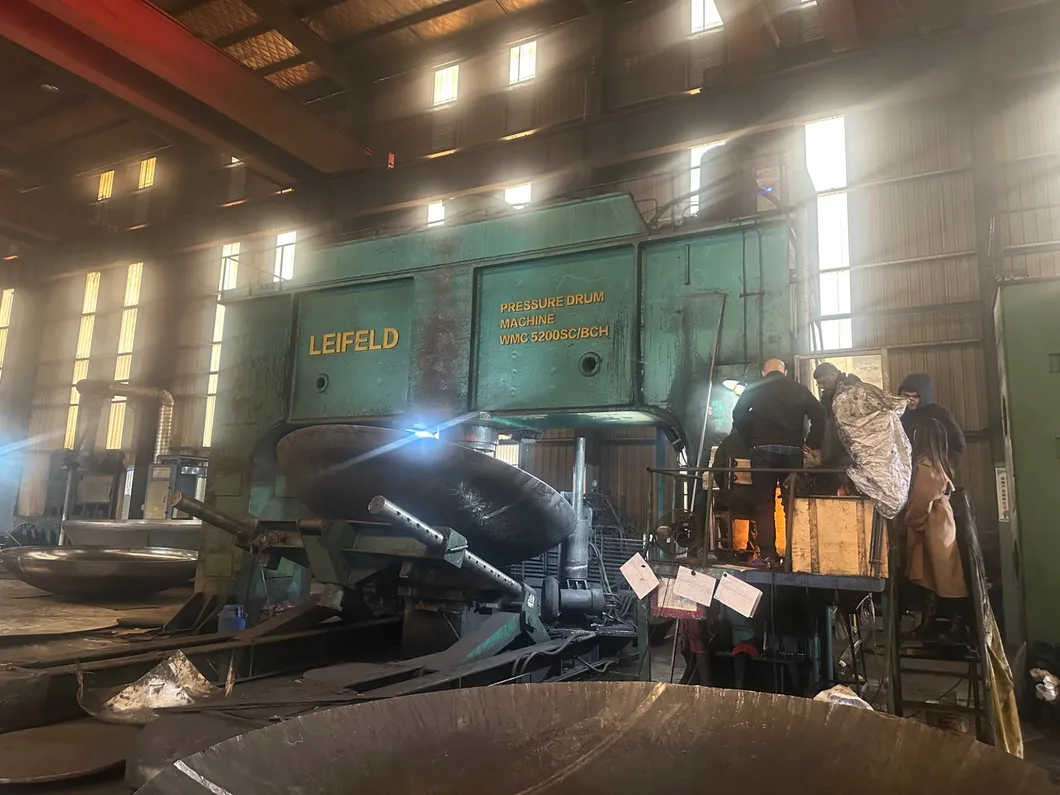

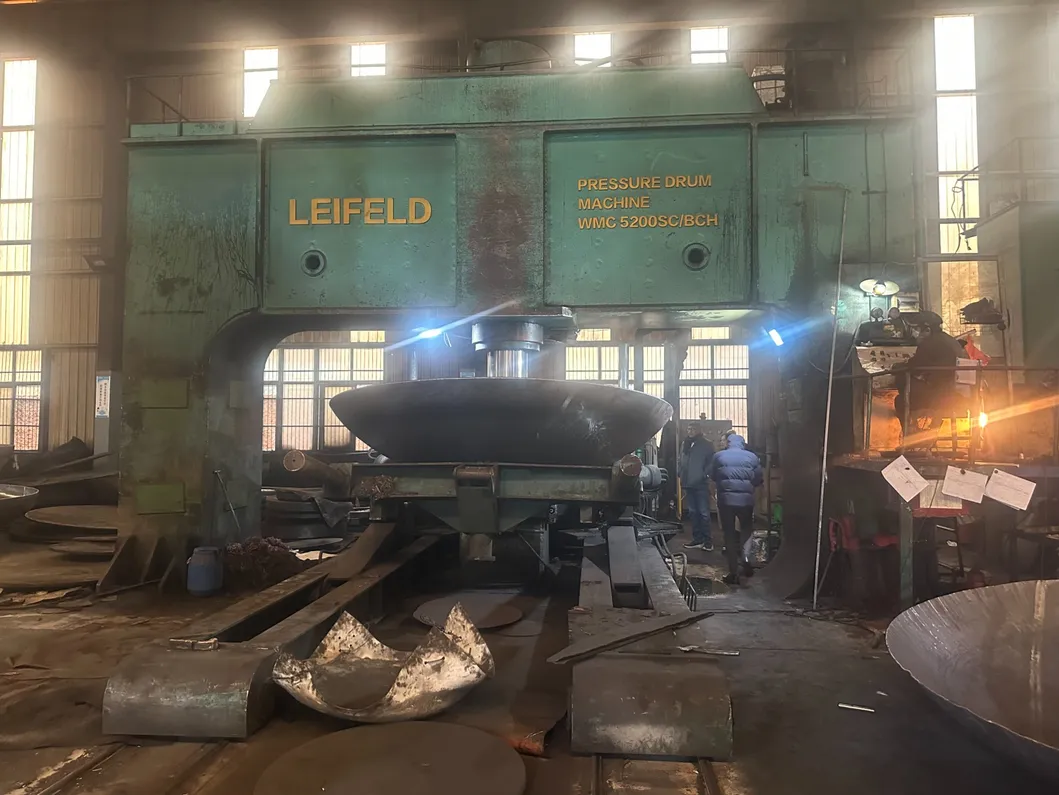

There is one manipulator mounted inside the frame. It will move, rotate and incline the workpiece.

Specification of drum pressing machines*: Control type: CNC

Frequently Asked Questions (FAQ)

What are the primary applications of CNC head spinning machines?

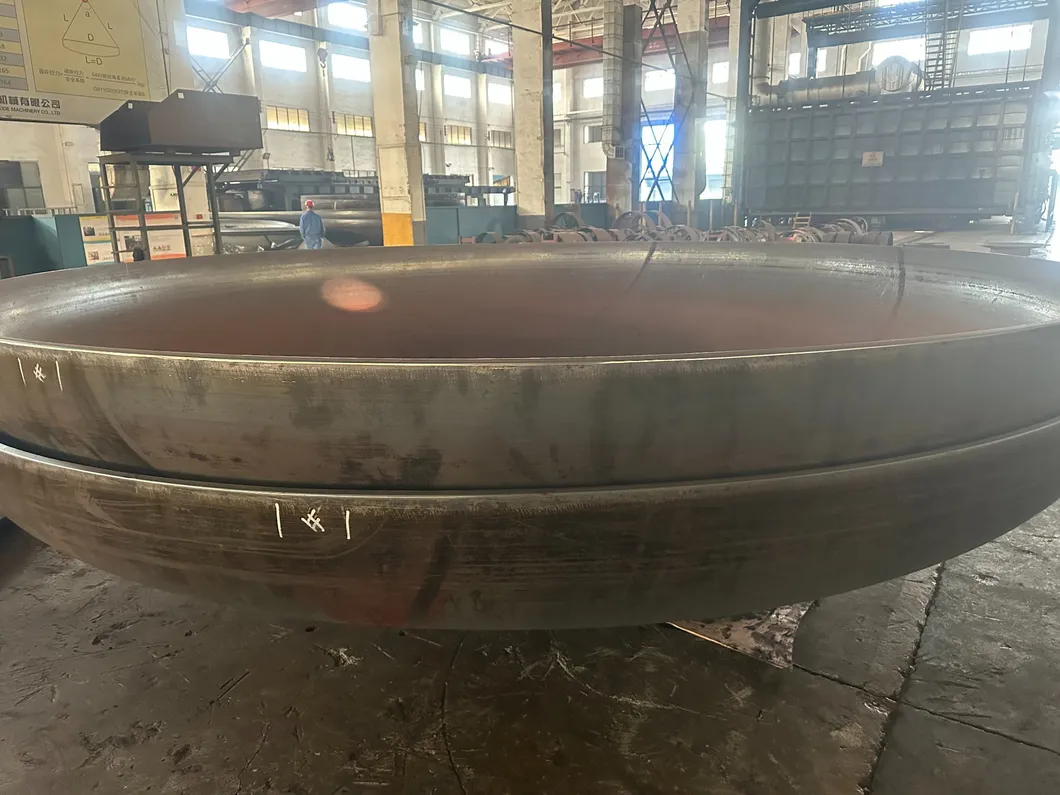

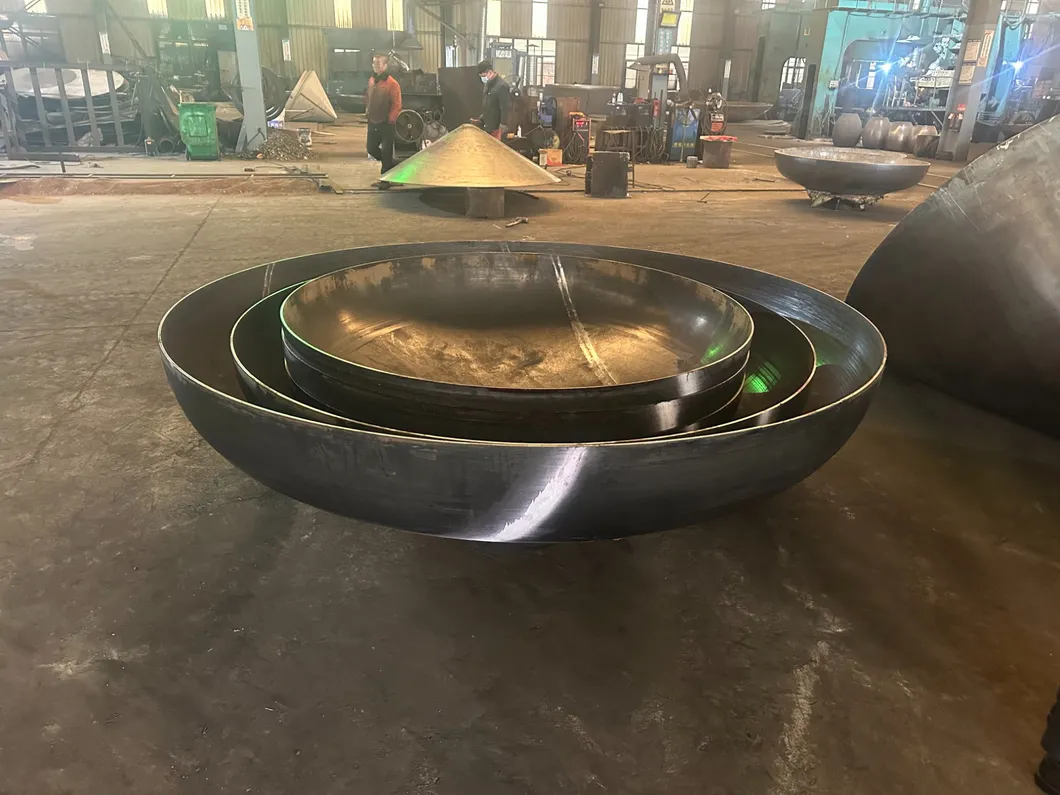

CNC head spinning machines are primarily used for edge spinning operations to form metal plates into standard dish ends, concave heads, and other precise symmetrical shapes required in vessel manufacturing.

How does full CNC control benefit the head forming process?

With full CNC control, operators only need to select a preset program to automate the edge spinning sequence. This ensures precise movement tracking via servo motors, delivering high accuracy and perfect product consistency.

Can these machines handle thick stainless steel plates?

Yes, both our FTSM and FTFM series support stainless steel thickness options including 12mm, 20mm, and 30mm, catering to various heavy-duty industrial configurations.

What function does the internal manipulator perform?

The manipulator mounted inside the frame is designed to automatically move, rotate, and incline the workpiece during the pressing steps, ensuring smooth and uniform forming.

Is the operation labor-intensive?

No. Thanks to the one-button start capability and high automation of the CNC system, a single operator can easily manage and run two machines simultaneously, maximizing production efficiency and lowering labor costs.
