Heavy Duty CNC Flanging Machine for Factory Line

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Basic Info.

Model NO. bw

Fan Thickness 2-5mm

Diameter 300-1250mm

Flanging Height 10-50mm

Motor 3/2.2kw

Weight 1500kg

Transport Package Custom

Specification 3200*1200*900mm

Trademark N/A

Origin China

Packaging & Delivery

Package Size 100.00cm * 100.00cm * 100.00cm

Package Gross Weight 100.000kg

Features

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Technical Parameters

Specification	Value / Details
Flanging thickness	0.8mm-3mm
Flanging width	15mm-40mm
Flanging diameter	400mm-1600mm
Upper pulley	Cylinder control
Lower pulley	Cylinder control
Total motor power	15KW
Reducer	WPO reducer
Electrical box accessories	PLC digital display control

Detailed Views

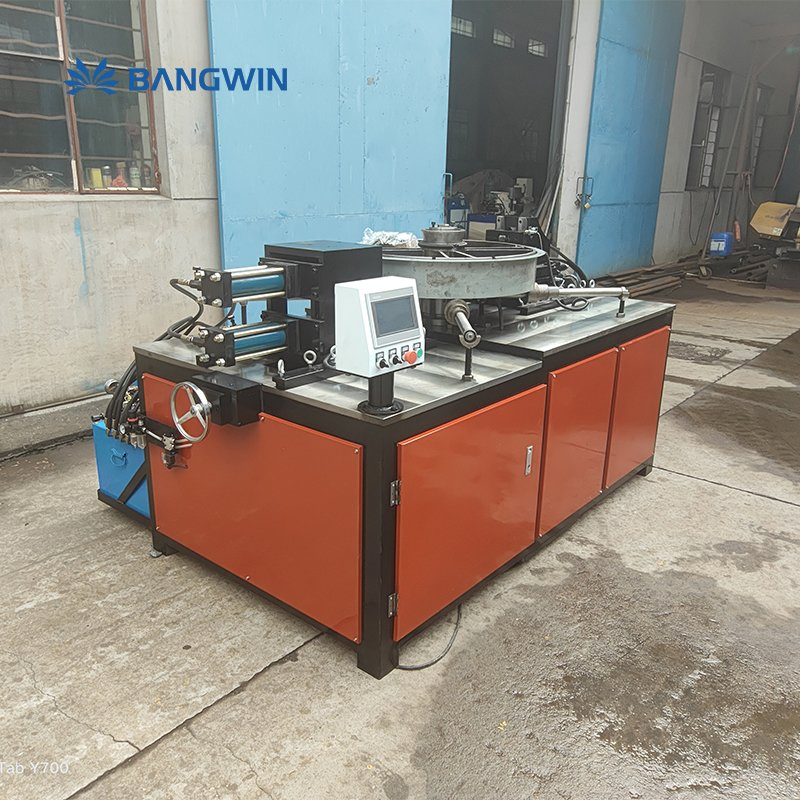

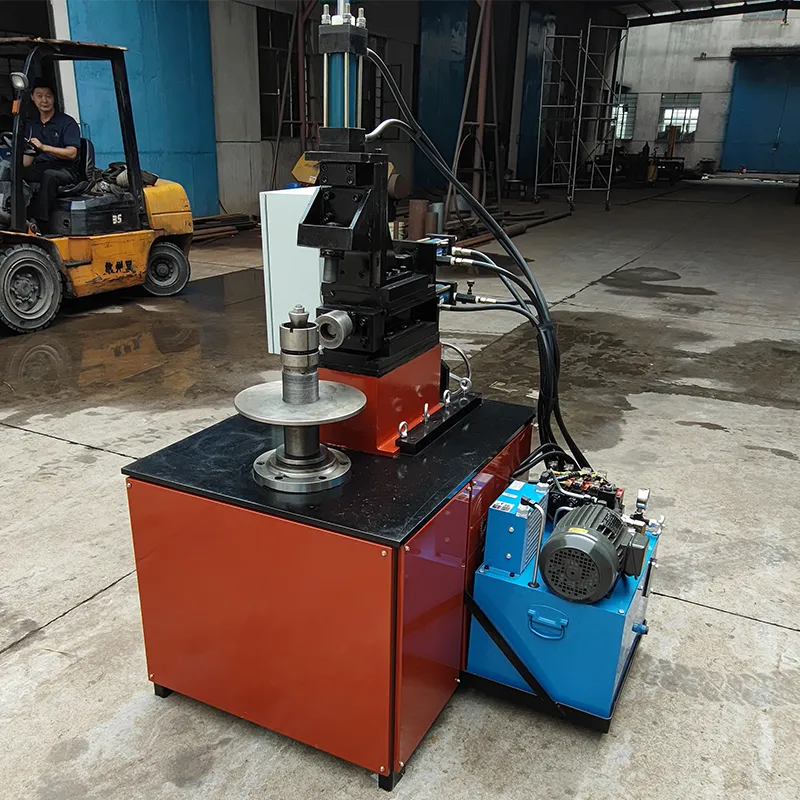

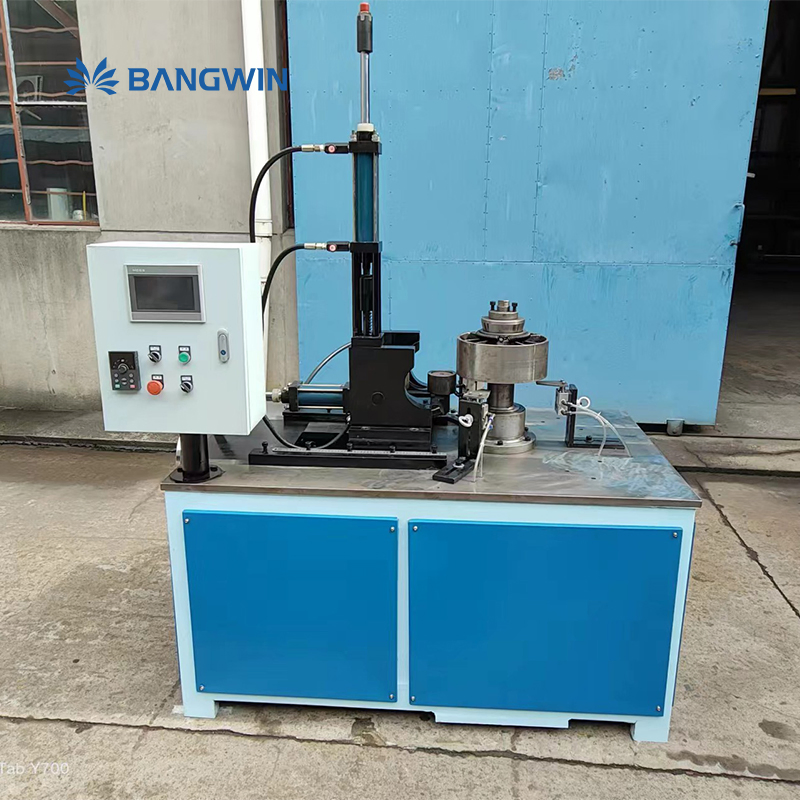

Heavy Duty CNC Flanging Machine for Factory Line Detail 1

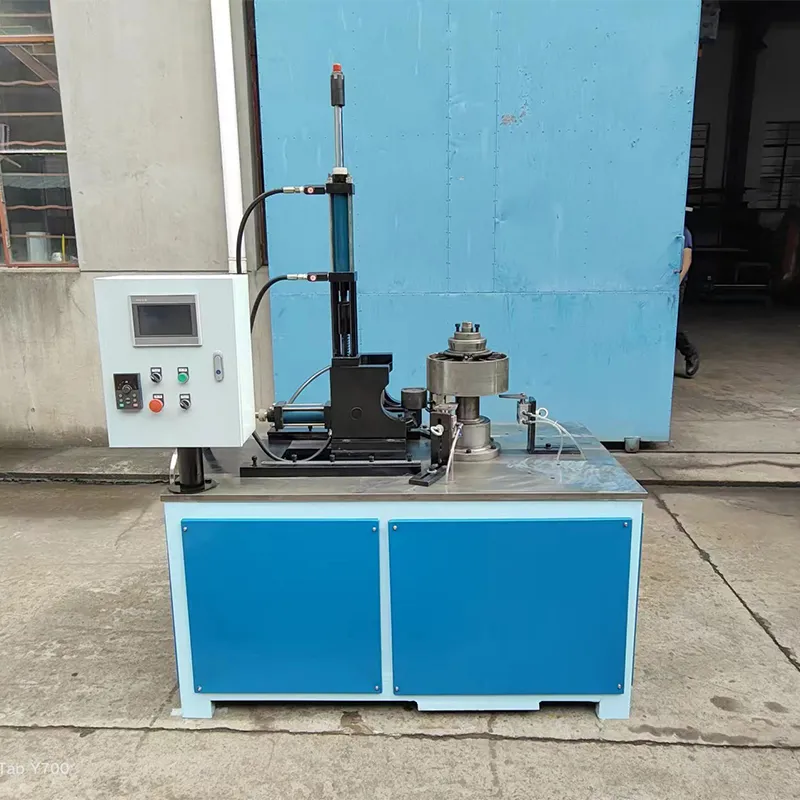

Heavy Duty CNC Flanging Machine for Factory Line Detail 2

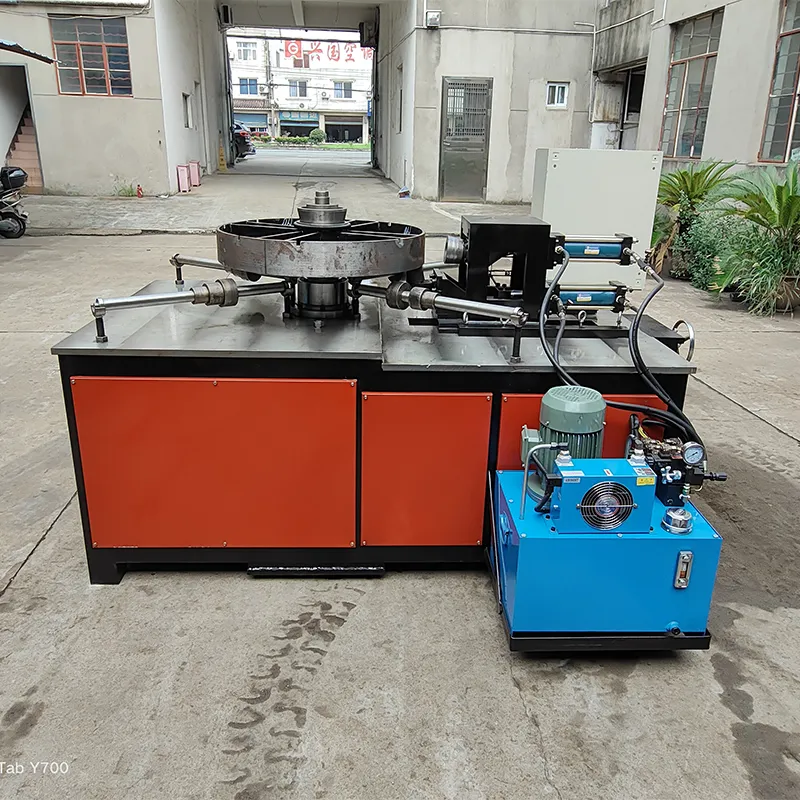

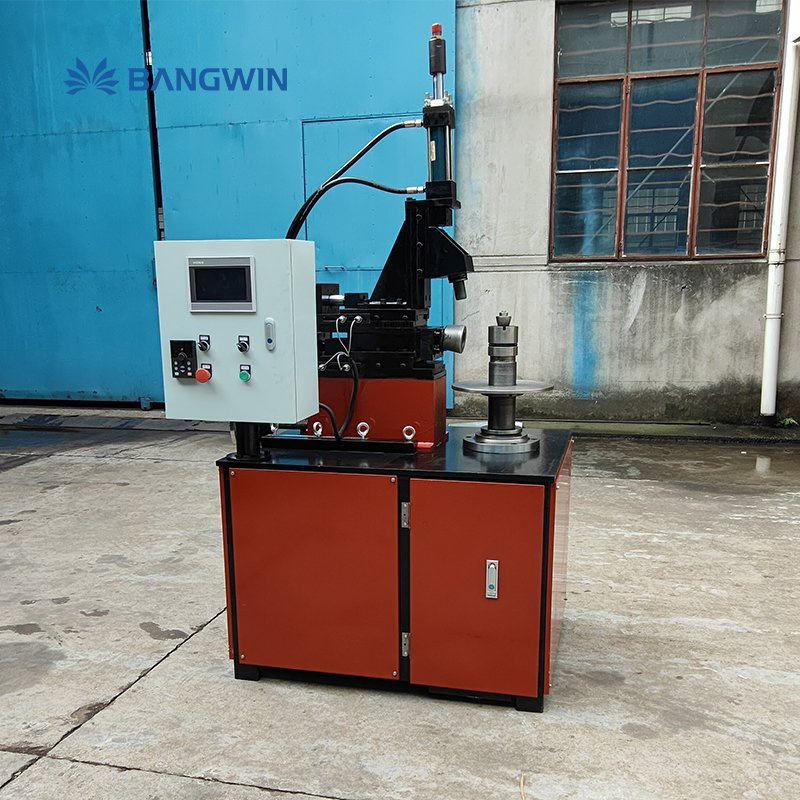

Heavy Duty CNC Flanging Machine for Factory Line Detail 3

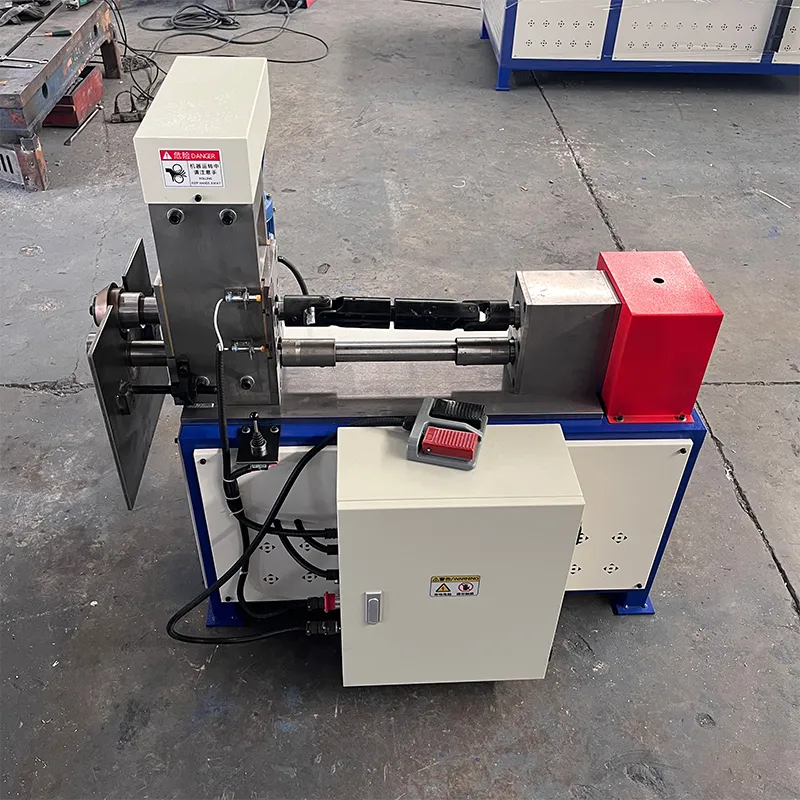

Heavy Duty CNC Flanging Machine for Factory Line Detail 4

Heavy Duty CNC Flanging Machine Dimensions and Layout

Heavy Duty CNC Flanging Machine Working Display

Heavy Duty CNC Flanging Machine Finished Product

Frequently Asked Questions

What workpiece diameter range can this flanging machine handle?

The standard processing diameter range of the workpiece is φ250-1600mm. Optional special molds can be selected to process smaller workpieces with a diameter of φ150mm.

What is the thickness capability for flanging operations?

The machine supports a flanging thickness range of 0.8mm to 3mm, with a maximum wall thickness capability of 3mm for specific workpieces.

In which industries is this flanging machine commonly used?

This heavy-duty CNC flanging machine is widely used in the processing and manufacturing of ventilation ducts, industrial fans, air valves, and related fields.

What are the control system features and total motor power?

The machine features a PLC digital display control system for precise operations. The system is powered by a total motor power of 15KW.

How are the upper and lower pulleys controlled?

Both the upper and lower pulleys are operated and accurately managed via individual cylinder control systems.

What is the maximum flanging width achievable?

The machine is capable of turning over an extra-large edge width of up to 50mm, and it can complete both turning and drilling processes in a single cycle.
