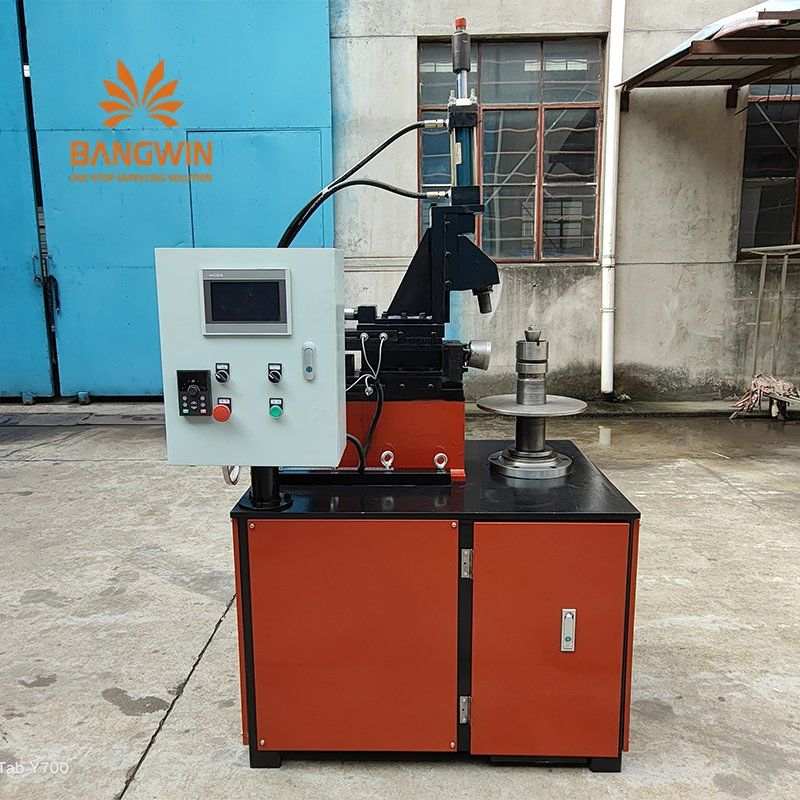

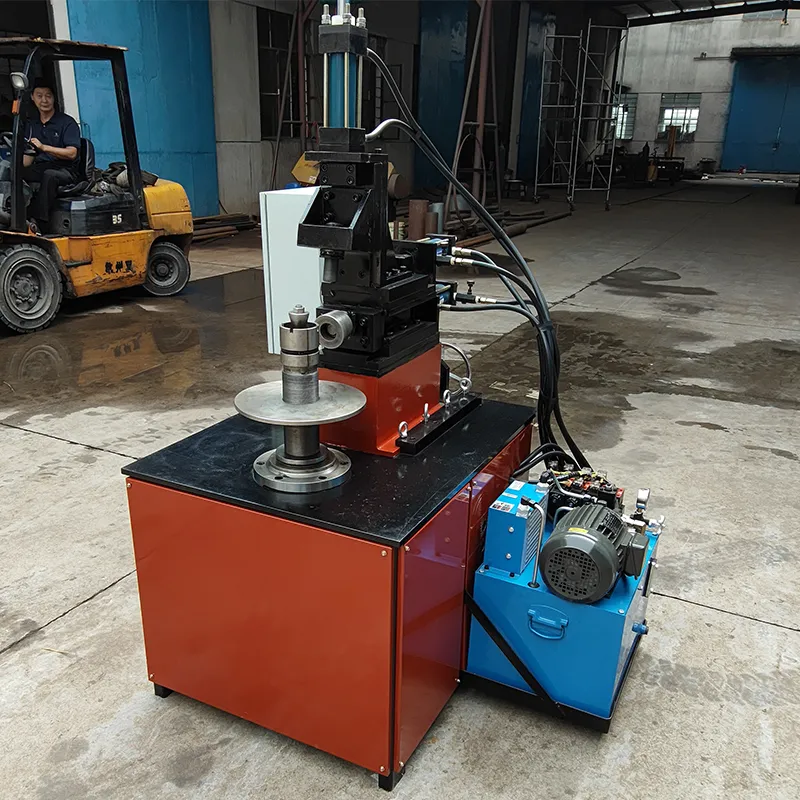

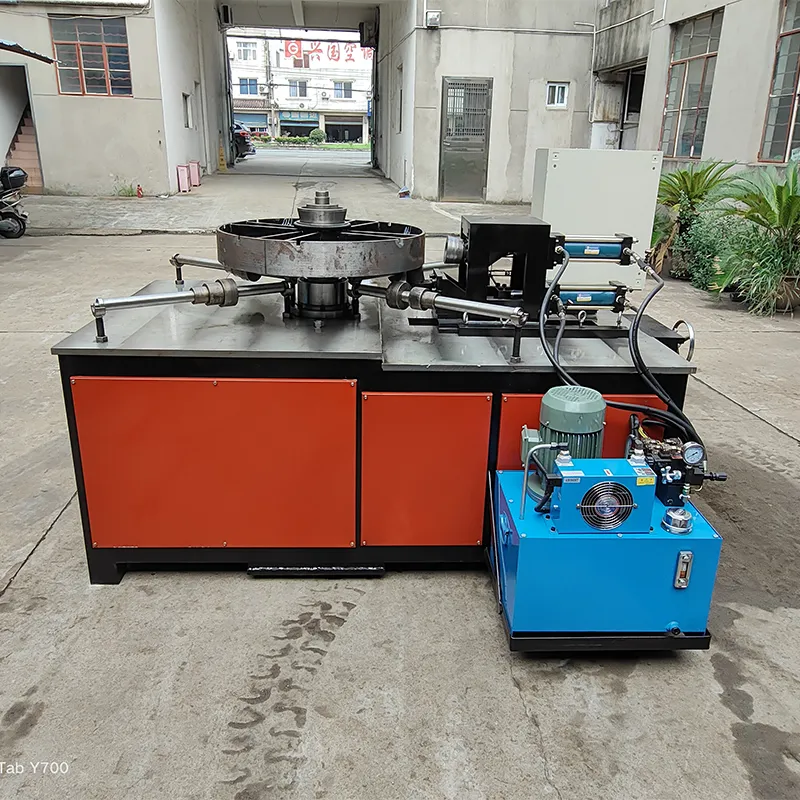

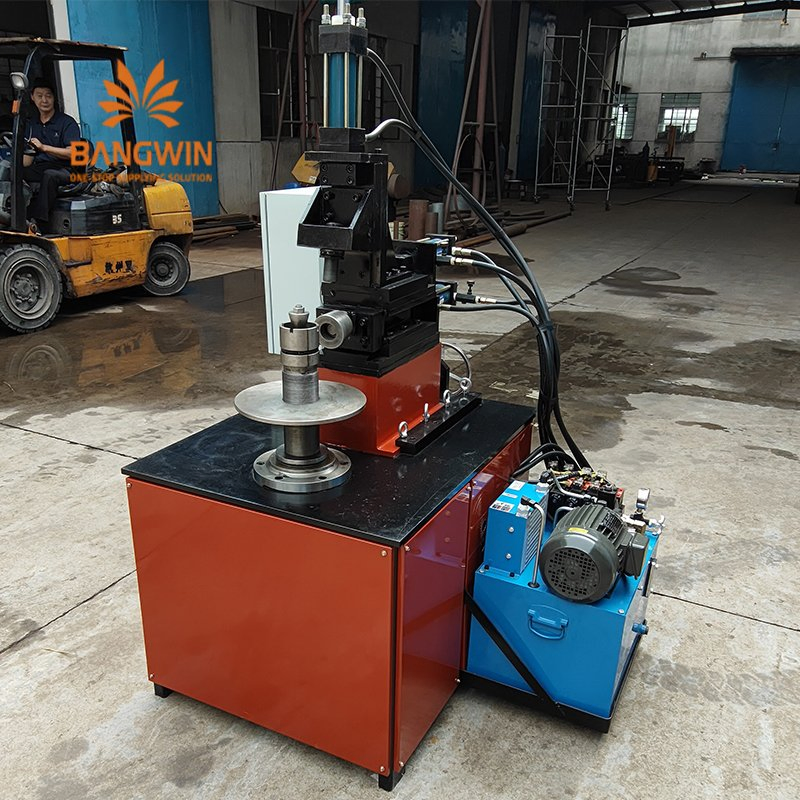

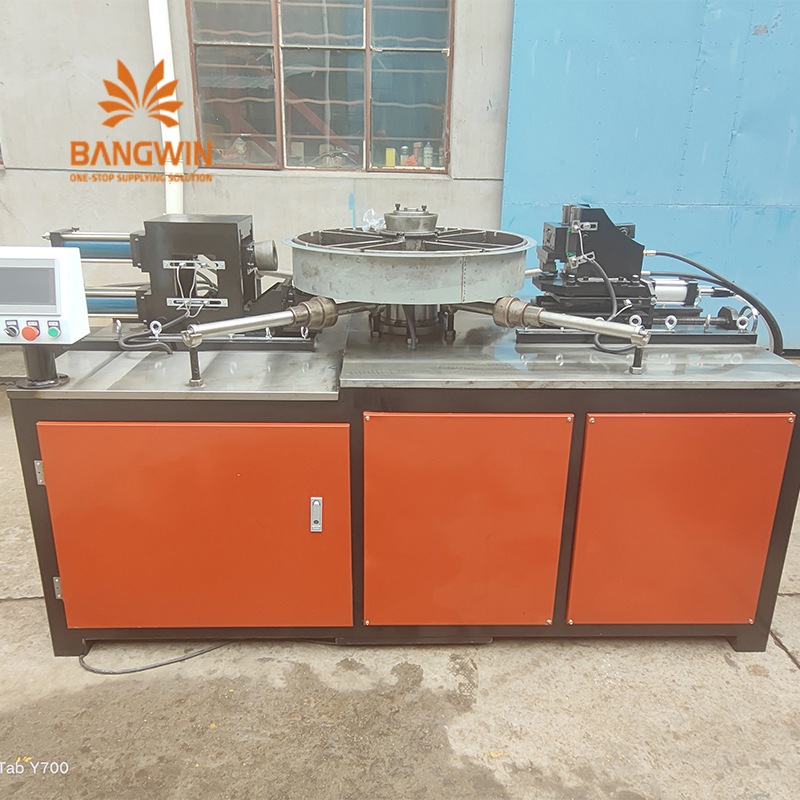

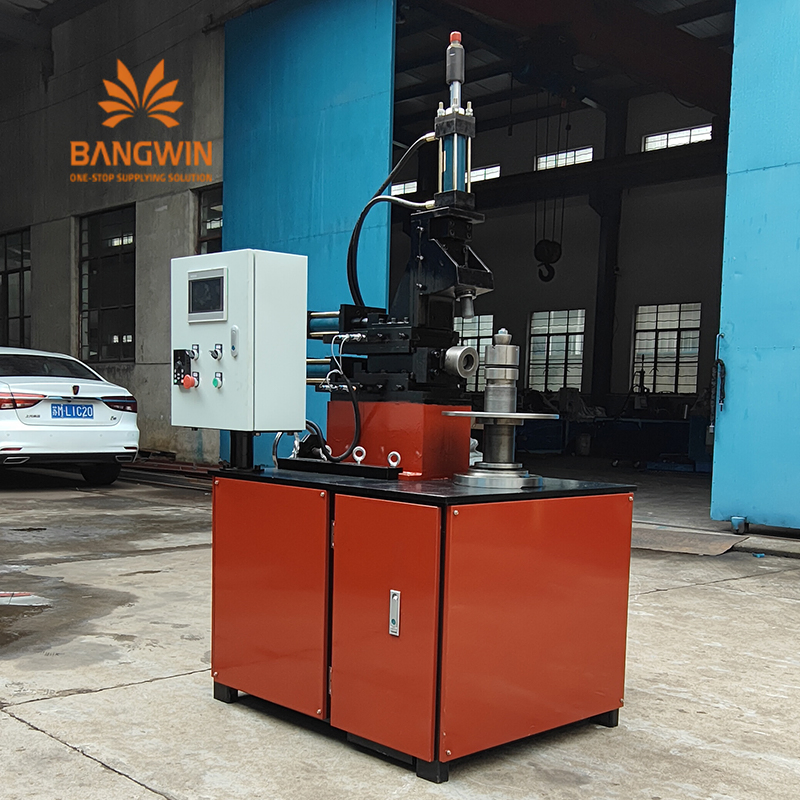

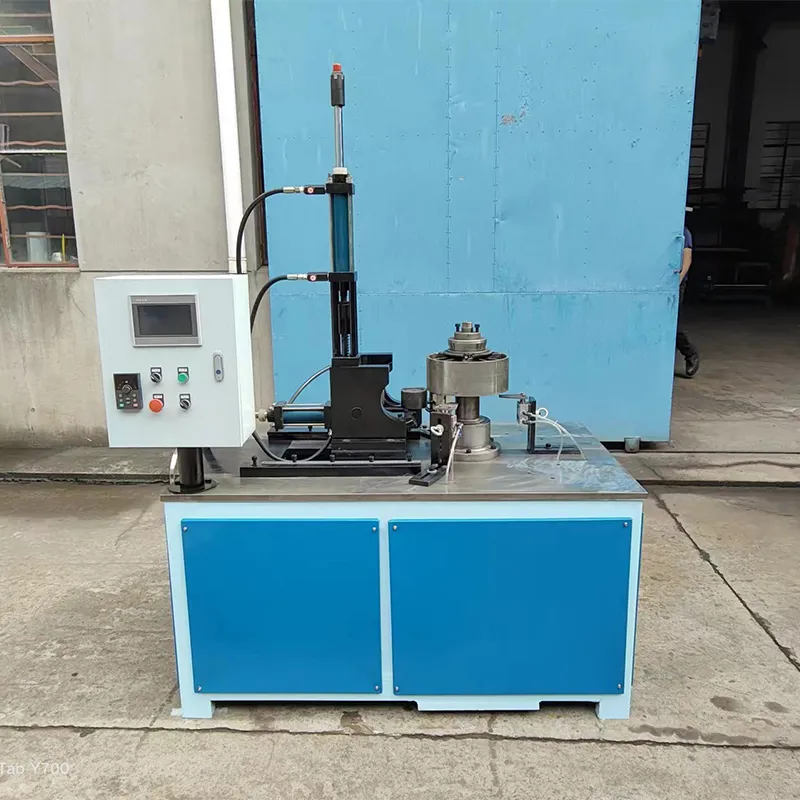

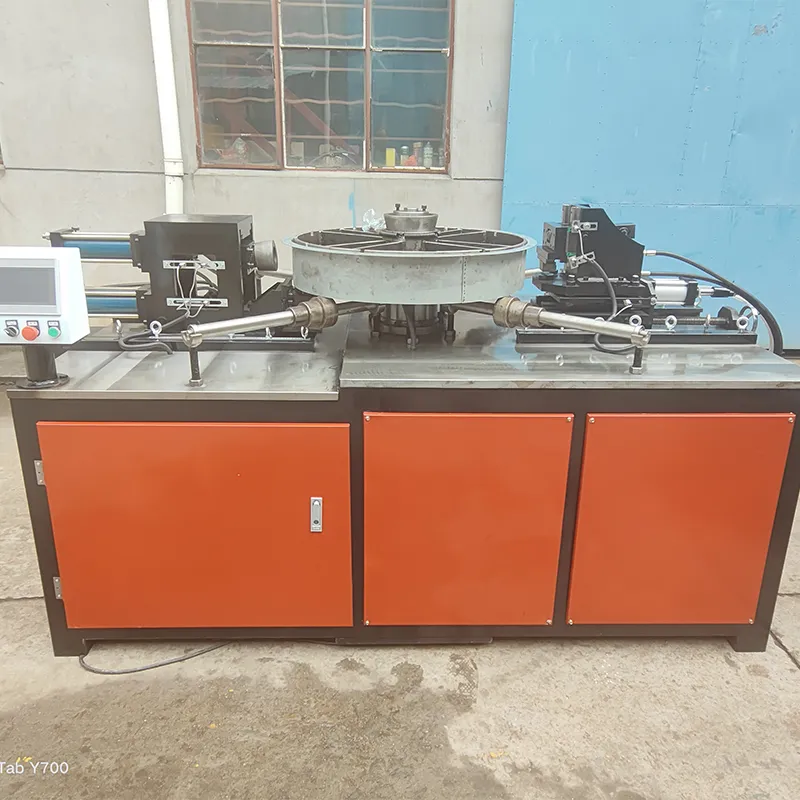

Heavy Duty Flanging Machine for Factory

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Send Inquiry

Product Description

Overview

Basic Info

Model NO.bw

Fan Thickness2-5mm

Diameter300-1250mm

Flanging Height10-50mm

Motor3/2.2kw

Weight1500kg

Transport PackageCustom

Specification3200*1200*900mm

TrademarkN/A

OriginChina

Packaging & Delivery

Package Size100.00cm * 100.00cm * 100.00cm

Package Gross Weight100.000kg

Product Description

Features

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Specifications	Details
Flanging thickness	0.8mm-3mm
Flanging width	15mm-40mm
Flanging diameter	400mm-1600mm

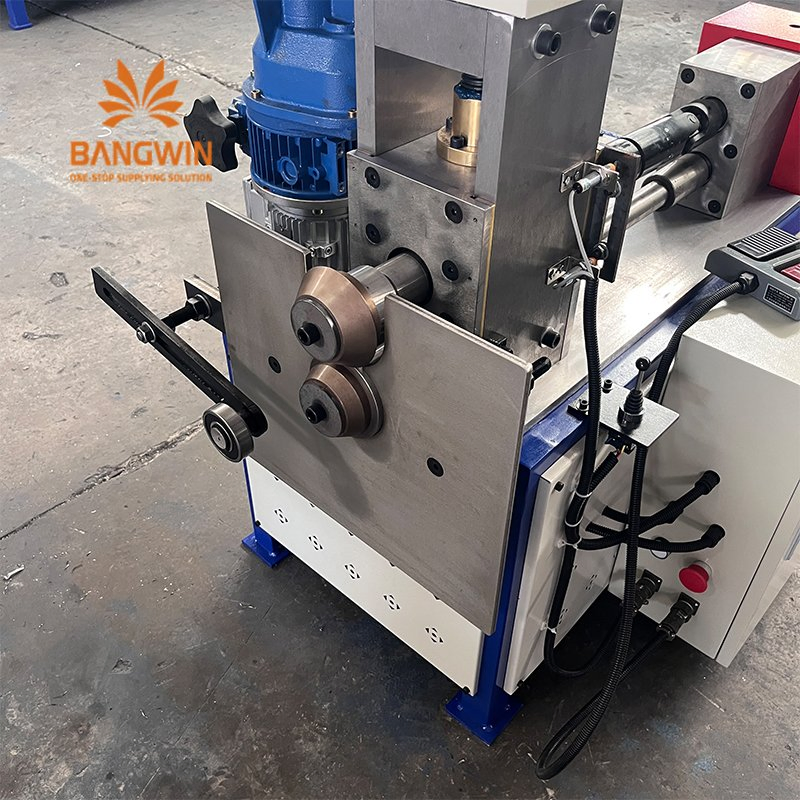

Upper pulley	Cylinder control
Lower pulley	Cylinder control
Total motor power	15KW
Reducer	WPO reducer
Electrical box accessories	PLC digital display control

Frequently Asked Questions

What is the range of flanging diameter that this machine can handle?

The standard workpiece diameter range for this flanging machine is φ250mm to φ1600mm. Optional special molds can be used to reach a smaller diameter flanging capacity of φ150mm.

What wall thickness limits and flanging widths does this machine support?

The machine handles flanging thicknesses ranging from 0.8mm to 3mm, and is capable of forming edge flanging widths between 15mm and 40mm.

What are the primary applications of this flanging machine?

It is highly suitable for processing operations in the manufacturing of ventilation ducts, industrial fans, air valves, and other similar mechanical engineering sectors.

What kind of control system is used for the pulleys?

Both the upper and lower pulleys are fully driven and managed by cylinder control mechanisms for stable and secure operation.

What power and control features does the electrical configuration support?

The machine operates with a total motor power of 15KW and is equipped with a WPO reducer along with a digital display PLC control panel inside the electrical box.
