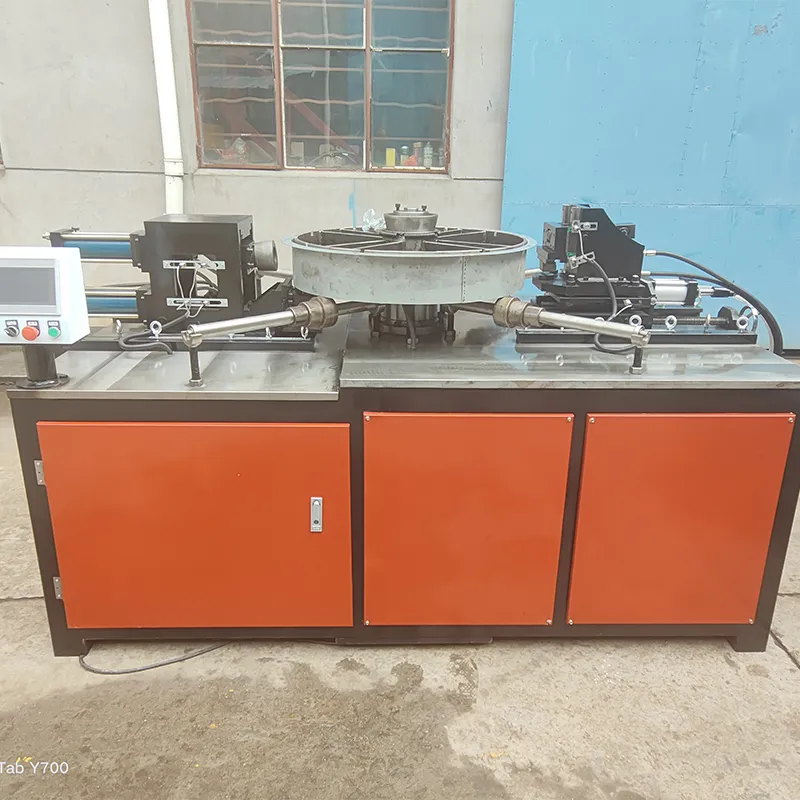

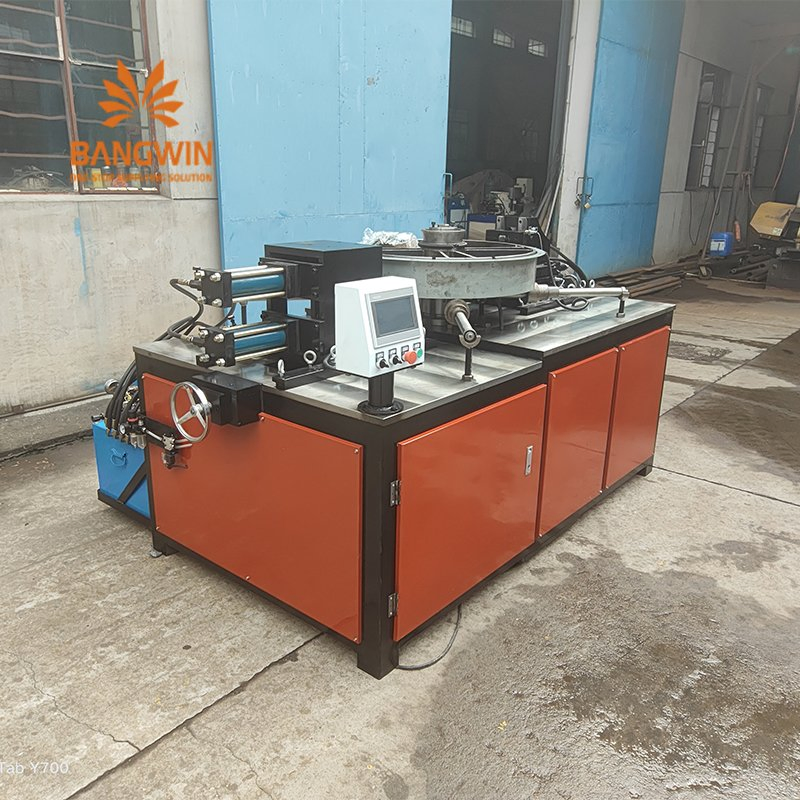

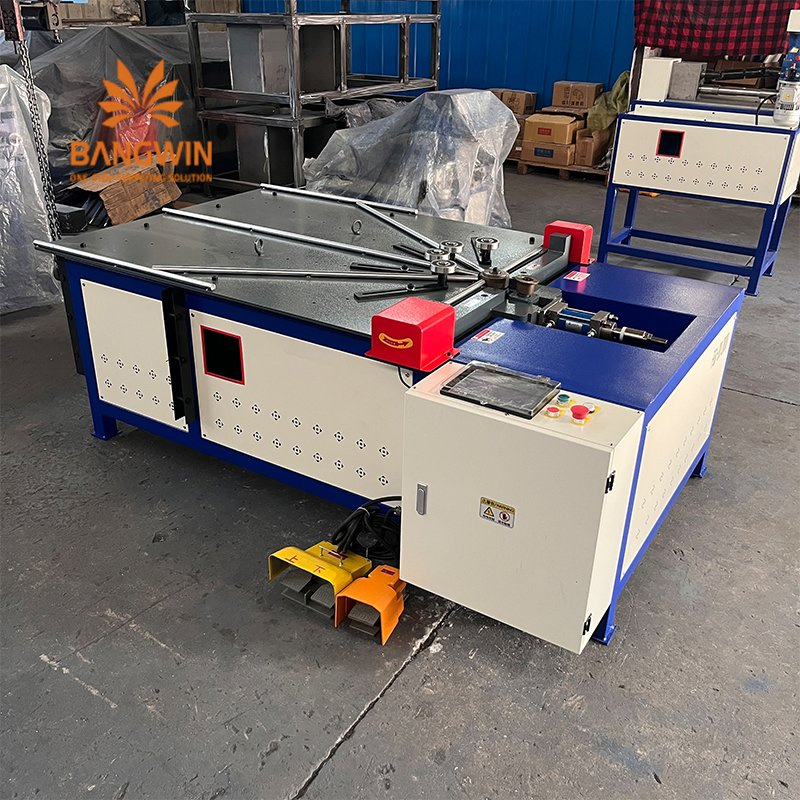

Heavy Duty CNC Flanging Machine

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Basic Info

Model NO.

bw

Fan Thickness

2-5mm

Diameter

300-1250mm

Flanging Height

10-50mm

Motor

3/2.2kw

Weight

1500kg

Transport Package

Custom

Specification

3200*1200*900mm

Trademark

N/A

Origin

China

Packaging & Delivery

Package Size

100.00cm * 100.00cm * 100.00cm

Package Gross Weight

100.000kg

Product Description

Features It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Parameter	Specification
Flanging thickness	0.8mm-3mm
Flanging width	15mm-40mm
Flanging diameter	400mm-1600mm
Upper pulley	Cylinder control
Lower pulley	Cylinder control
Total motor power	15KW
Reducer	WPO reducer
Electrical box accessories	PLC digital display control

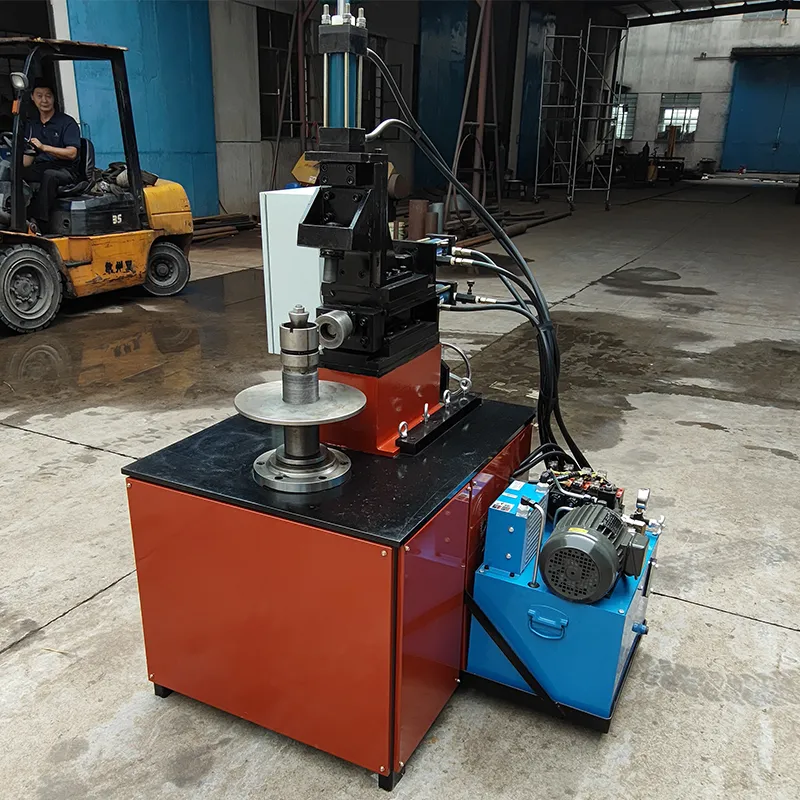

Heavy Duty CNC Flanging Machine Details 1

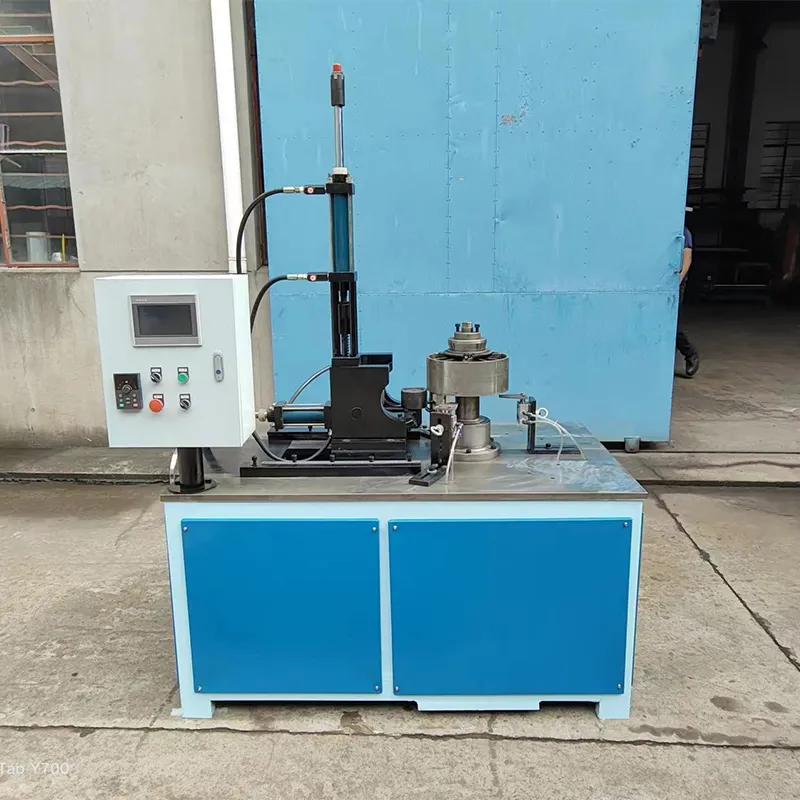

Heavy Duty CNC Flanging Machine Details 2

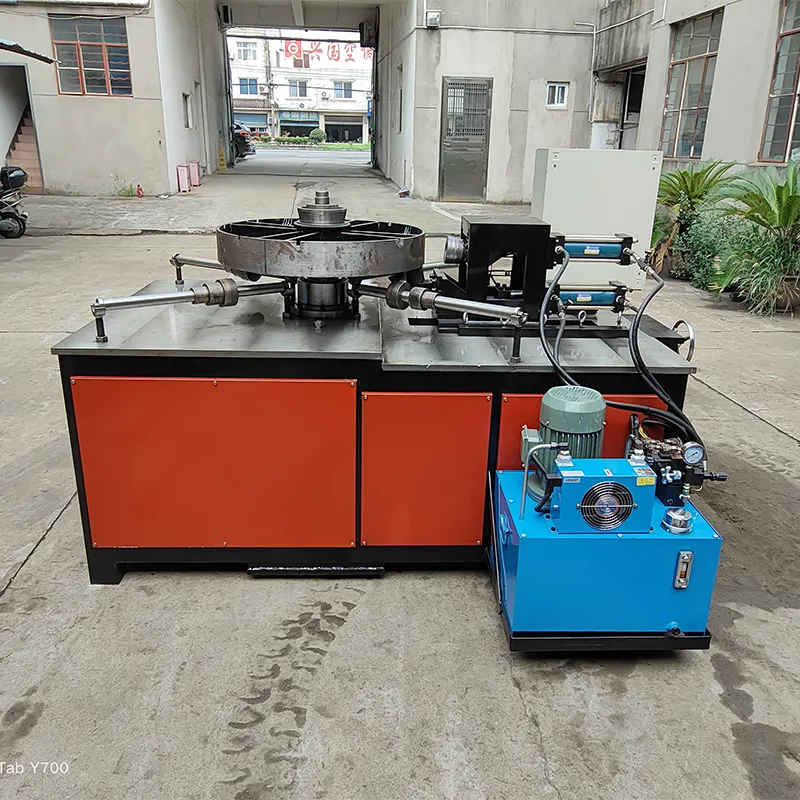

Heavy Duty CNC Flanging Machine Details 3

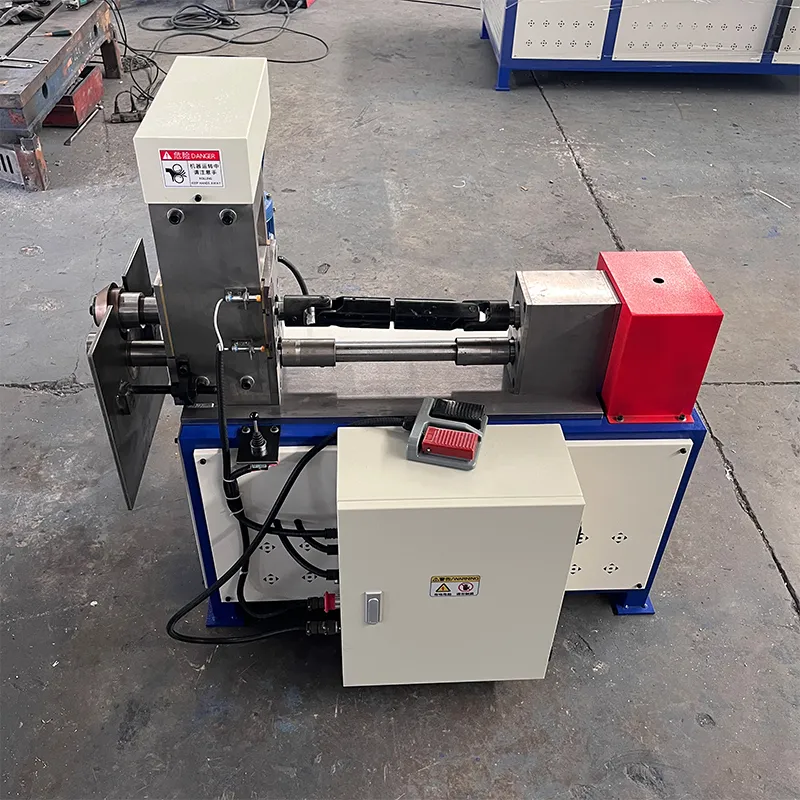

Heavy Duty CNC Flanging Machine Details 4

Heavy Duty CNC Flanging Machine Technical Detail 1

Heavy Duty CNC Flanging Machine Technical Detail 2

Heavy Duty CNC Flanging Machine Technical Detail 3

Frequently Asked Questions

What is the maximum flanging width achievable by this machine?

The machine features a standard flanging width range of 15mm to 40mm, and it is capable of turning over an extra-large edge width of up to 50mm.

What are the compatible workpiece diameters and thicknesses?

It supports workpiece diameters ranging from φ250mm to φ1600mm (with optional special molds to reach a smaller diameter of φ150mm) and processed wall thicknesses from 0.8mm up to 3mm.

What applications is this heavy-duty flanging machine designed for?

This equipment is widely used for processing ventilation ducts, fans, air valves, and various related industrial fields.

What control system does the electrical box use?

The electrical system is equipped with an advanced PLC digital display control for precise, user-friendly operation and adjustments.

How are the upper and lower pulleys controlled?

Both the upper pulley and the lower pulley operations are managed through cylinder controls to ensure stable and consistent processing performance.

What is the total motor power and physical size of the machine?

The total motor power is 15KW, operating with a WPO reducer. The physical dimensions of the machine are 3200mm * 1200mm * 900mm, with a net weight of approximately 1500kg.
