Basic Info
Model NO.
bw
Fan Thickness
2-5mm
Diameter
300-1250mm
Flanging Height
10-50mm
Motor
3/2.2kw
Weight
1500kg
Transport Package
Custom
Specification
3200*1200*900mm
Trademark
N/A
Origin
China
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
100.000kg

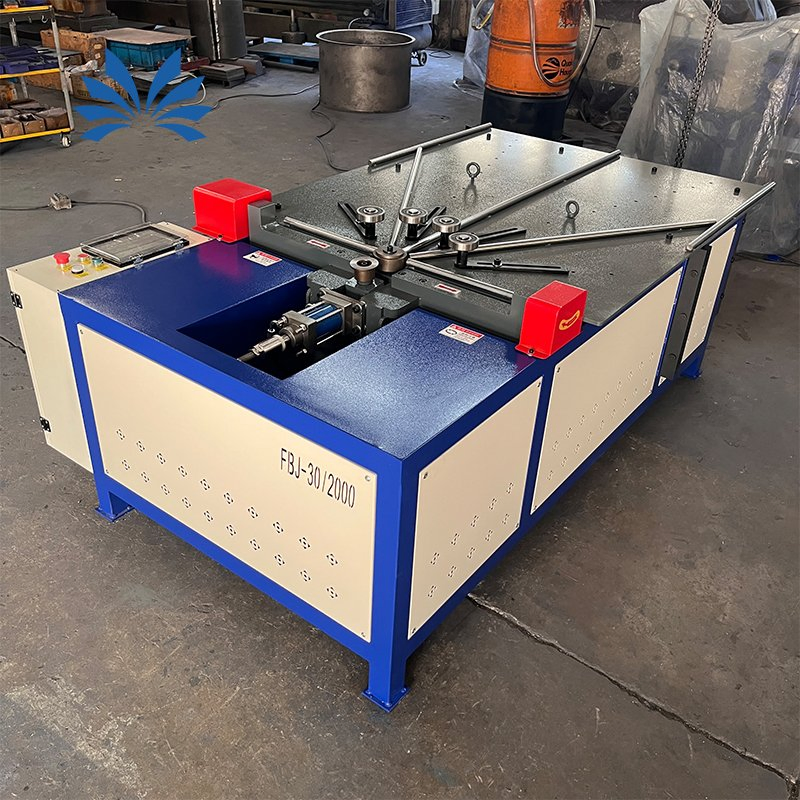

Product Description
Key Features
- It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
- It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
- The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
| Flanging thickness |
0.8mm-3mm |
| Flanging width |
15mm-40mm |
| Flanging diameter |
400mm-1600mm |
| Upper pulley |
Cylinder control |
| Lower pulley |
Cylinder control |
| Total motor power |
15KW |
| Reducer |
WPO reducer |
| Electrical box accessories |
PLC digital display control |
Frequently Asked Questions
What is the range of flanging thickness this machine can process?
This heavy-duty CNC flanging machine is designed to handle workpiece wall thicknesses ranging from 0.8mm to 3mm.
What workpiece diameters are supported by the machine?
The standard flanging diameter range is φ400-1600mm. Optional special molds can be integrated to achieve flanging for smaller workpieces down to a diameter of φ150mm.
What are the primary applications of this flanging machine?
It is highly suitable and widely used in the production and processing of ventilation ducts, industrial fans, air valves, and other related tube manufacturing fields.
What kind of control system does this machine utilize?
The electrical control box features a modern PLC digital display control system, ensuring high precision, ease of operation, and efficient configuration.
How are the pulleys controlled during operation?
Both the upper pulley and lower pulley operations are managed via cylinder controls, offering stable and reliable mechanical drive control.
What are the motor and power specifications of this machine?
The system features a total motor power of 15KW with built-in cylinder controls and a WPO reducer for optimal efficiency.
