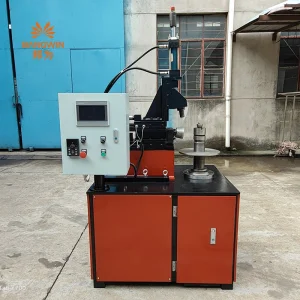

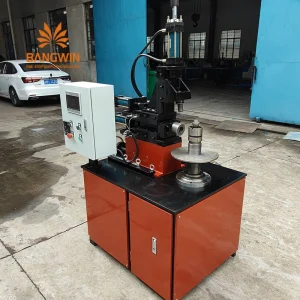

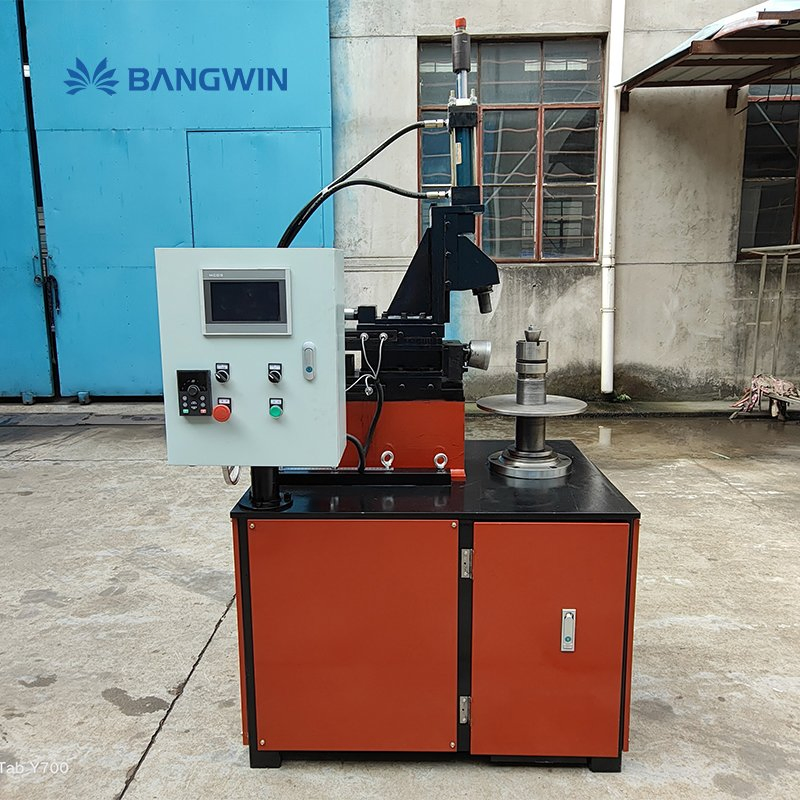

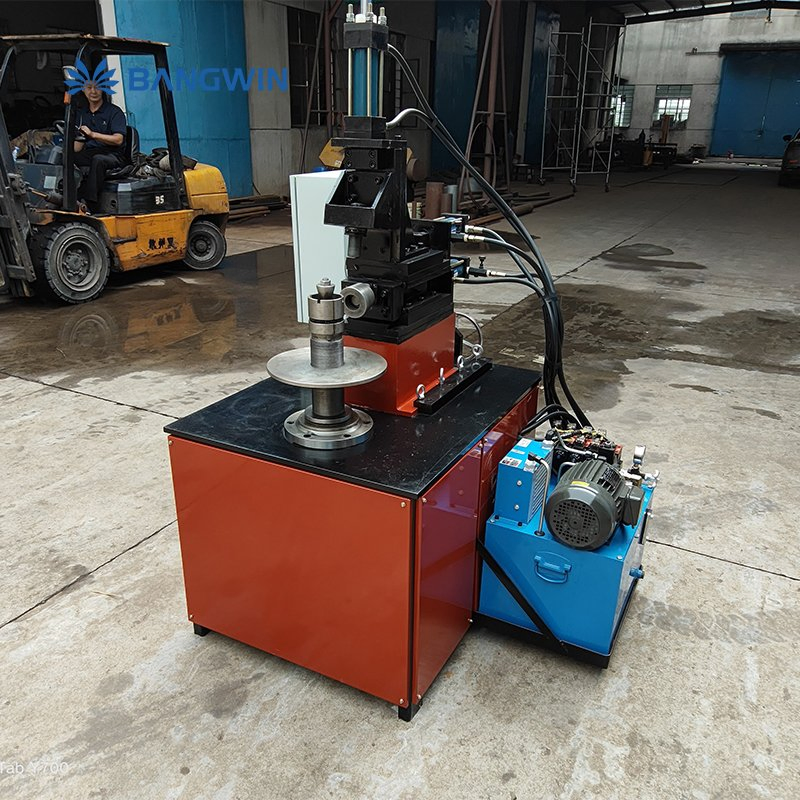

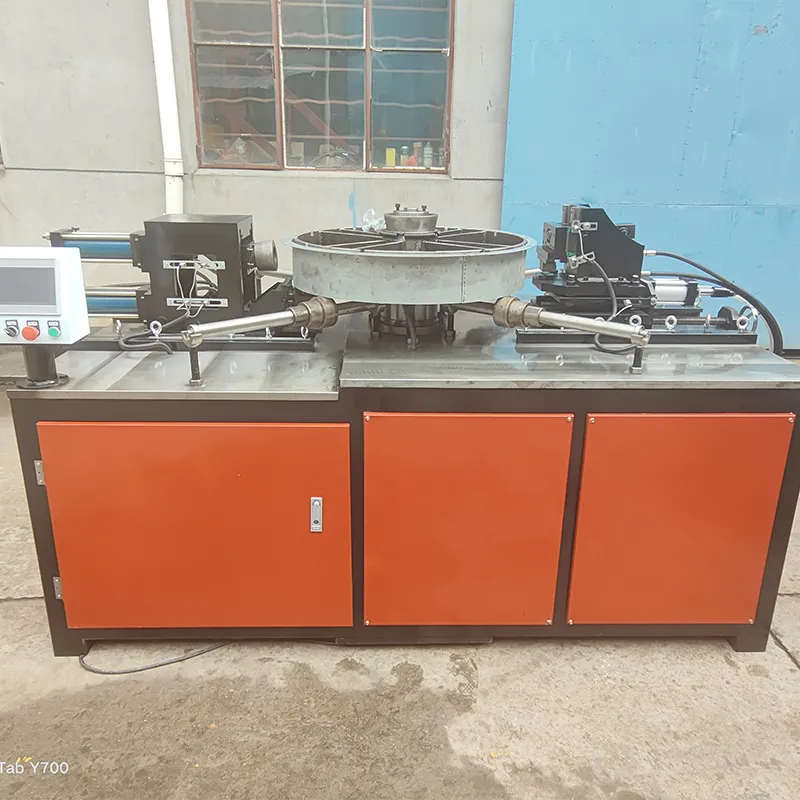

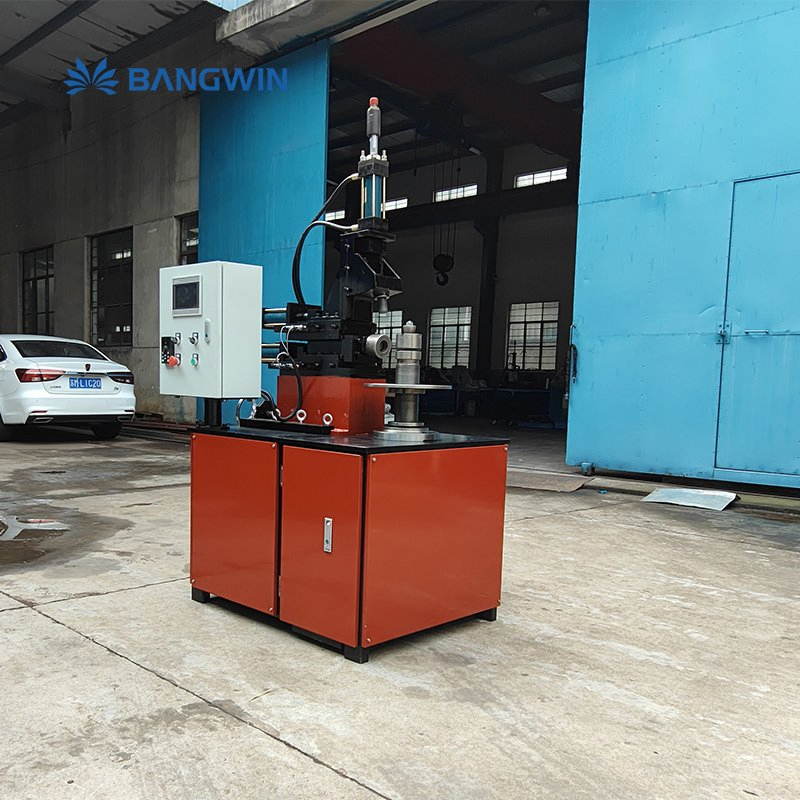

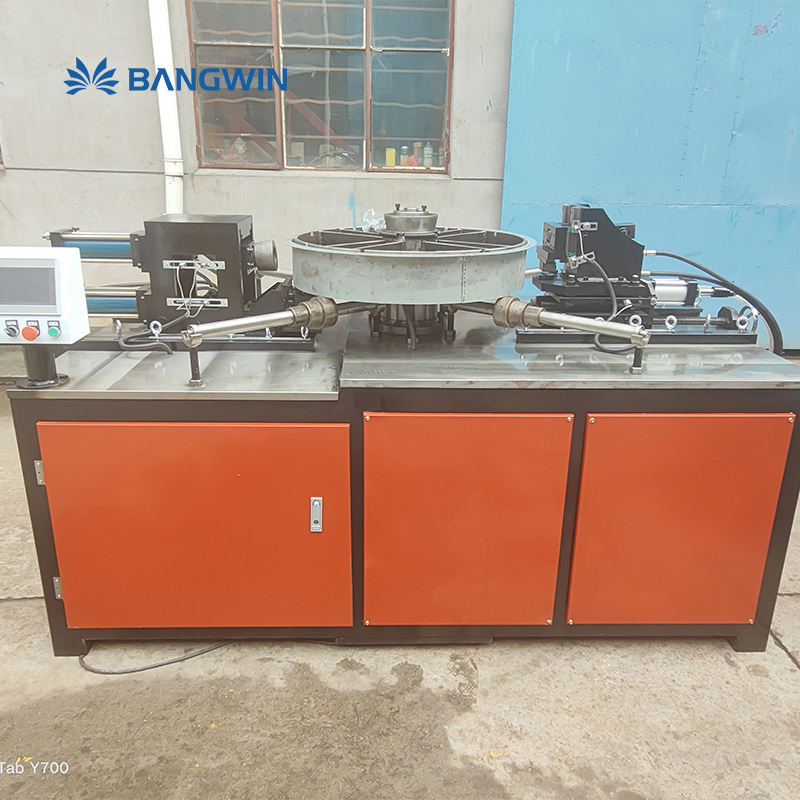

Heavy Duty CNC Flanging Machine for Copper Pipes

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Basic Info.

Model NO.

bw

Fan Thickness

2-5mm

Diameter

300-1250mm

Flanging Height

10-50mm

Motor

3/2.2kw

Weight

1500kg

Transport Package

Custom

Specification

3200*1200*900mm

Trademark

N/A

Origin

China

Packaging & Delivery

Package Size

100.00cm * 100.00cm * 100.00cm

Package Gross Weight

100.000kg

Product Description

Heavy Duty CNC Flanging Machine for Copper Pipes

Features

It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Parameter	Specification Details
Flanging thickness	0.8mm-3mm
Flanging width	15mm-40mm
Flanging diameter	400mm-1600mm
Upper pulley	Cylinder control
Lower pulley	Cylinder control
Total motor power	15KW
Reducer	WPO reducer
Electrical box accessories	PLC digital display control

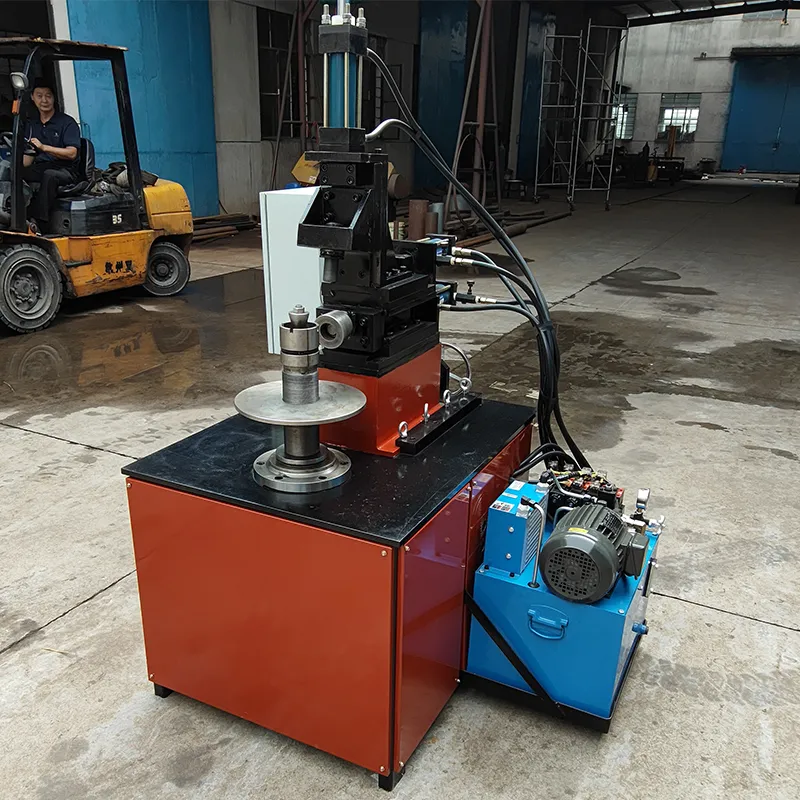

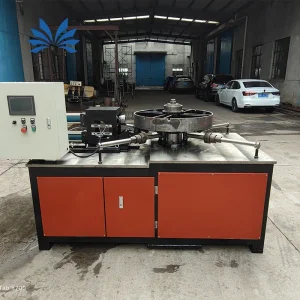

Heavy Duty CNC Flanging Machine for Copper Pipes Showcase 1

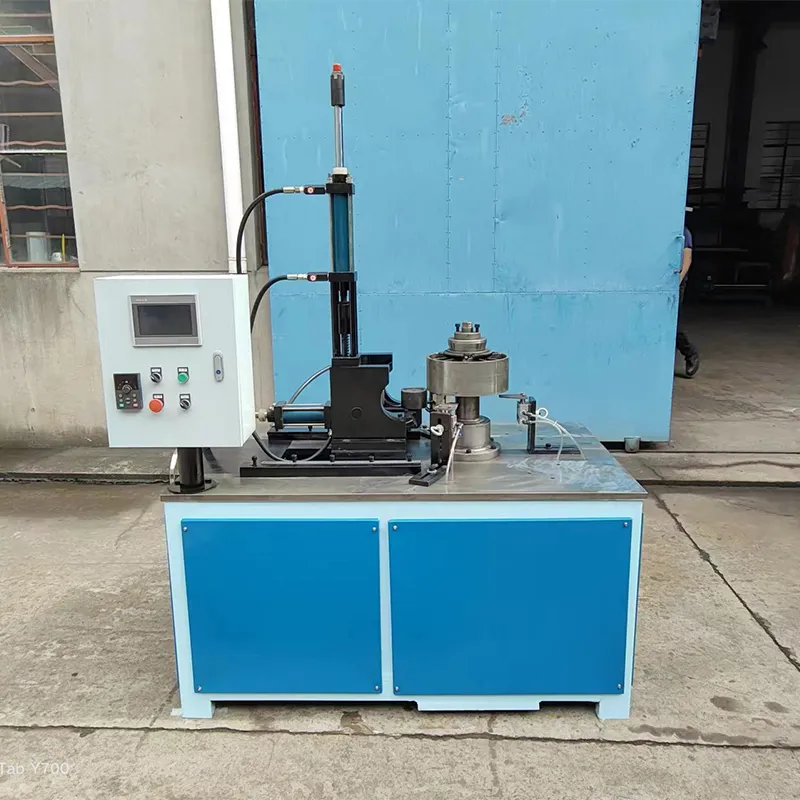

Heavy Duty CNC Flanging Machine for Copper Pipes Showcase 2

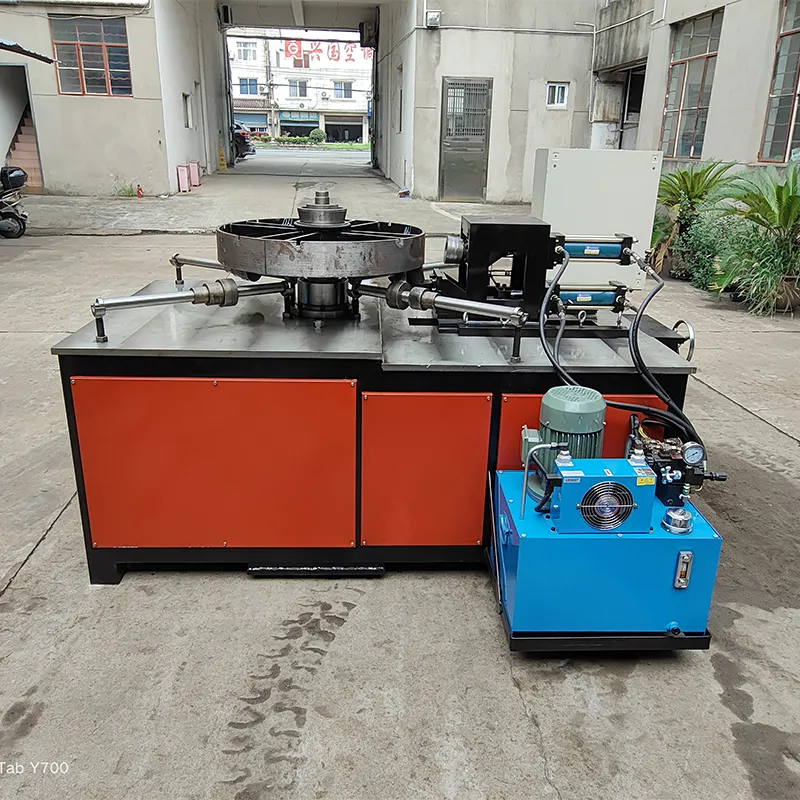

Heavy Duty CNC Flanging Machine for Copper Pipes Showcase 3

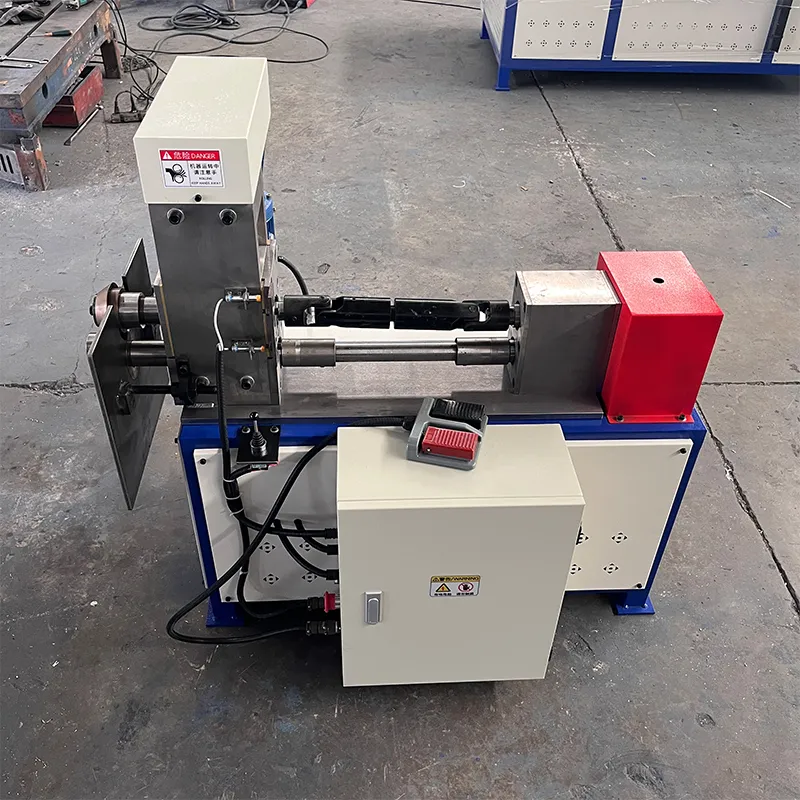

Heavy Duty CNC Flanging Machine for Copper Pipes Showcase 4

Heavy Duty CNC Flanging Machine Technical Layout

Heavy Duty CNC Flanging Machine Specifications Detail

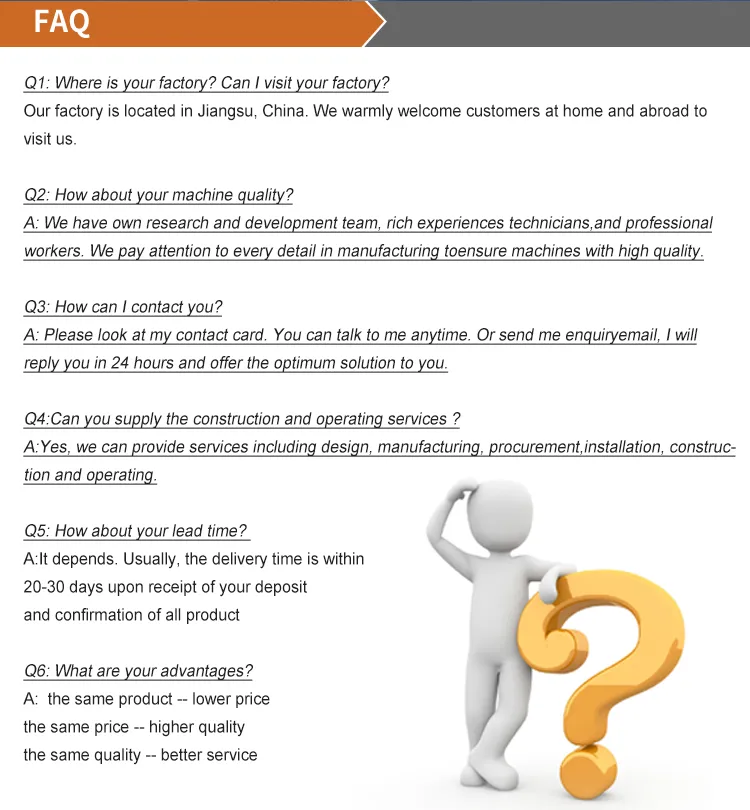

Heavy Duty CNC Flanging Machine Operation Flow

Frequently Asked Questions (FAQ)

What is the processing range for the flanging diameter?

The standard flanging diameter range is φ250-1600mm. Optional special molds can be configured to support workpieces with smaller diameters down to φ150mm.

What maximum flanging thickness and width can this machine handle?

This machine is capable of processing flanging thicknesses from 0.8mm to 3mm, and features an adjustable flanging width from 15mm to 40mm. It can also turn over an extra-large edge width of up to 50mm.

In which fields is this flanging machine typically applied?

It is widely used in metal forming and fabrication for ventilation ducts, industrial fans, air valves, copper piping systems, and related industrial fields.

What kind of control system does this CNC flanging machine use?

The machine utilizes a high-precision PLC digital display control system integrated into the electrical box, alongside cylinder-controlled upper and lower pulleys for stable operation.

What are the power and transmission specifications?

The machine has a total motor power of 15KW and is equipped with a high-durability WPO reducer to ensure steady torque transmission during heavy-duty operations.

What are the dimensions and shipping weight of this equipment?

The machine body specifications are 3200*1200*900mm with a net weight of approximately 1500kg. For transport details, customized packaging can be arranged accordingly.
