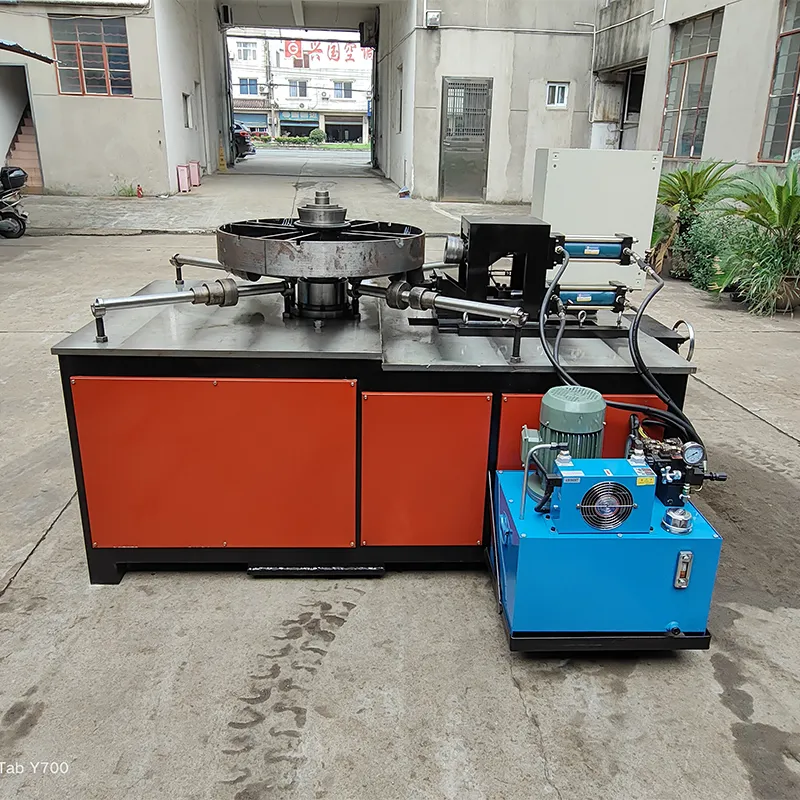

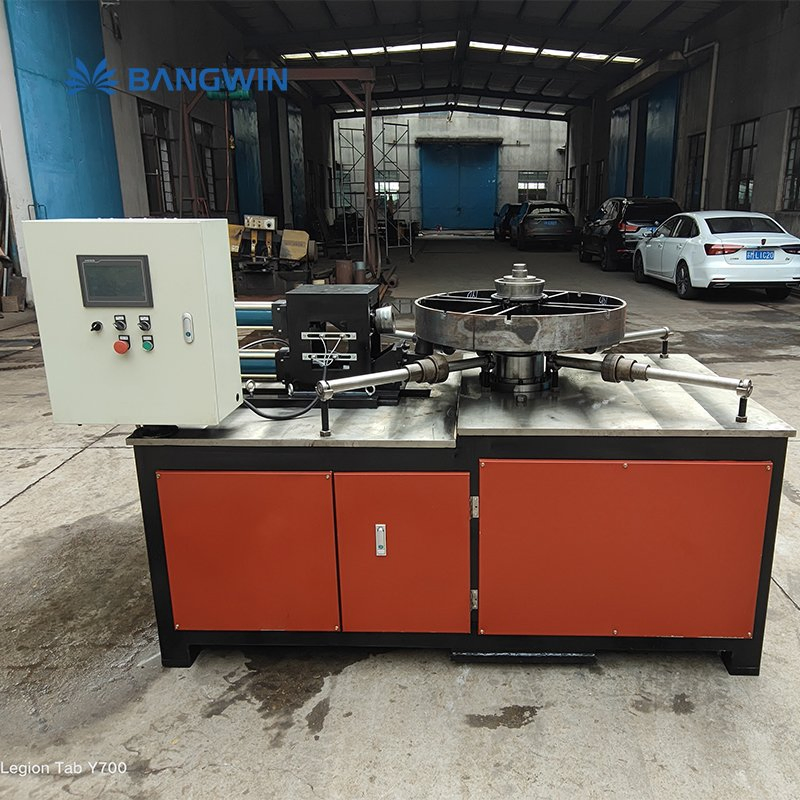

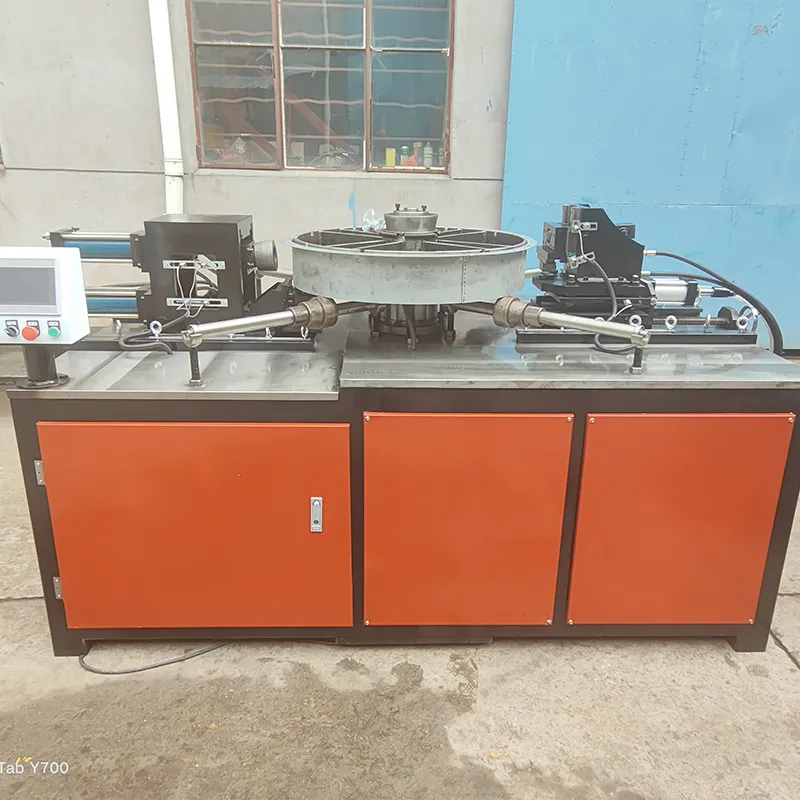

Features
- It can turn over 50mm of extra large edge width, and the turning and drilling can be completed in one go.
- It can be widely used in the processing of ventilation ducts, fans, air valves and other fields.
- The wall thickness of the workpiece to be processed is 3mm, and the diameter range is φ250-1600mm. (Note: Special molds are optional to achieve flanging of smaller diameter φ150mm workpieces).
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Technical Specifications
| Flanging thickness |
0.8mm-3mm |
| Flanging width |
15mm-40mm |
| Flanging diameter |
400mm-1600mm |
| Upper pulley |
Cylinder control |
| Lower pulley |
Cylinder control |
| Total motor power |
15KW |
| Reducer |
WPO reducer |
| Electrical box accessories |
PLC digital display control |
Frequently Asked Questions
What is the range of flanging thickness this machine can process?
This heavy duty flanging machine supports workpiece wall thicknesses ranging from 0.8mm up to 3mm.
What are the supported workpiece diameter specifications?
The standard diameter range is φ250-1600mm. Optional special molds can be selected to process smaller workpieces with a diameter of φ150mm.
What is the maximum flanging width the machine can perform?
The machine supports a flanging width range from 15mm up to 40mm, and it can turn over an extra-large edge width of up to 50mm.
What control system does this flanging machine use?
It utilizes a professional PLC digital display control system for reliable operation and accurate configurations.
How are the pulleys controlled and what is the total power input?
Both the upper and lower pulleys are managed via cylinder control. The machine features a total motor power of 15KW and is equipped with a WPO reducer.
What are the primary applications of this machine?
It is widely used in metal processing for ventilation ducts, fans, air valves, and other related industrial applications.
