| Features | TK-550B | TK-580B | TK-590 |
|---|---|---|---|

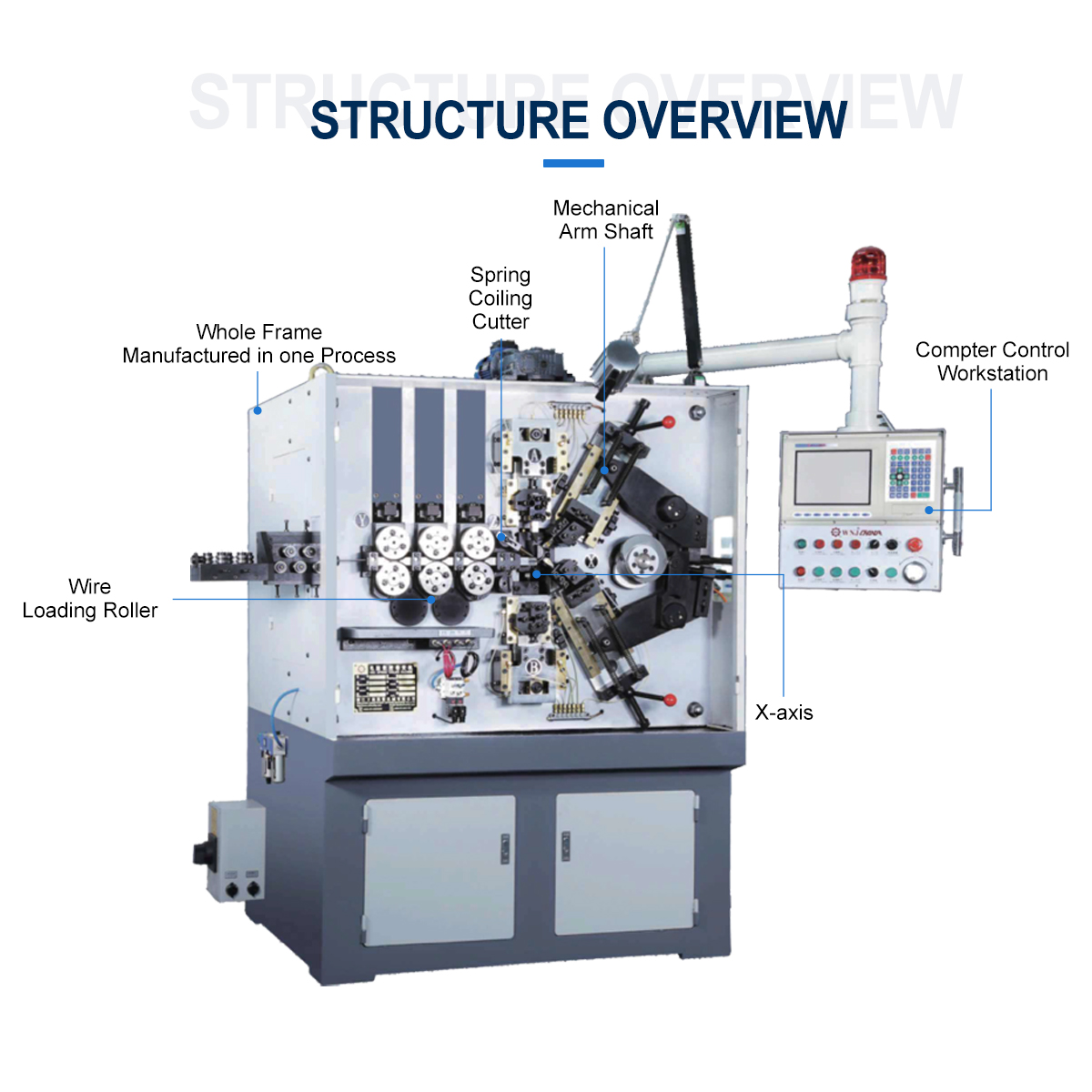

| Axies Number | Five Axies (Wire Load, Pitch, Cam, Upper Cutter, Lower Cutter) | ||
| Wire Diameter (Carbon Steel Wire) (MM) | Φ1.5~Φ5 | Φ3~Φ8 | Φ3~Φ9 |
| Total Power (KW) | 32 | 55 | 65 |
| Oil Quenching Line (≤1900N /MM2) | ≤Φ3.5 | ≤Φ6 | ≤Φ6 |
| Max. Outside Diameter (MM) | Φ65 | Φ120 | Φ120 |
| Wire Feed Length | No Limitation | No Limitation | No Limitation |
| Wire Feed Speed | 75 M/Min | 80 M/Min | 80 M/Min |
| Rotation | Left or Right | Left or Right | Left or Right |
| Forming Way | Double Points | Double Points | Double Points |
| Number of Wire Load Axies | 3 Pairs | 4 Pairs | 4 Pairs |
| Cam Axis Motor (KW) | 4.5 | 7 | 7 |
| Pitch Axis Motor (KW) | 2 | 2.7 | 4.5 |
| Wire Feed Axis Motor (KW) | 15 | 30 | 30 |
| Cutter Motor (KW) | 4.5*2 | 7*2 | 11*2 |
| Machine Workstation Size (L * W * H) (MM) | 2350 * 1600 * 2000 | 3450 * 2350 * 2250 | 3450 * 2350 * 2250 |
| Main Host Weight (KG) | 2,480 | 6,100 | 6,150 |
| Voltage | 3AC 380V/50HZ | 3AC 380V/50HZ | 3AC 380V/50HZ |
