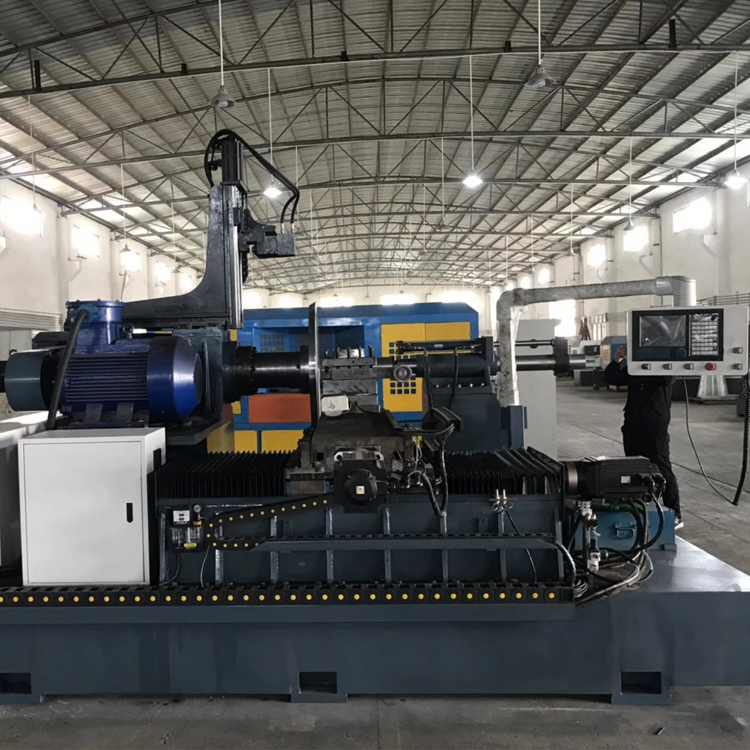

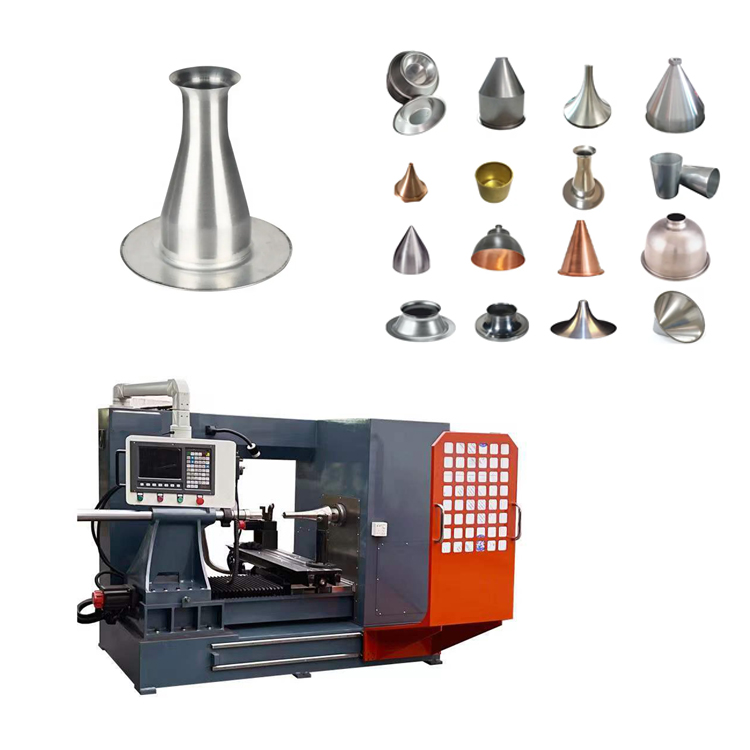

High Accuracy CNC Heavy Duty Metal Combo Spin Flow Lathe Forming Spinning Machine For Cookware
Description
This fully automatic spinning machine and heavy-duty spinning machine is an efficient working machine specially developed to meet the spinning compression ports of various metal cylinders and the production needs of various industries such as lamps, cookware, tea sets, kettles and handicrafts. This machine tool completely solves the traditional manual spinning work's shortcomings of high labor intensity, difficulty in personnel management, poor product consistency, low efficiency, and lack of spinning technicians.
This machine tool is an enhanced double-knife spinning machine. It is designed for spinning processing of relatively thick and hard materials. It is completely controlled by advanced CNC program. The programming operation is simple, easy to learn and easy to use. One person can control multiple machine tools, which is an option for improving production efficiency, reducing production costs and mass production.
Features
It has mature CAD drawing programming software functions. The wheel motion trajectory can be straight lines, arcs, multi-arc connecting lines and combined curves, etc., and can be input into the computer for standardized programming of passes.
The operator can input process parameters and spinning passes through the keyboard and operation panel, and can edit, store and call them at will.
It has the function of "copying" the outline of the mandrel, that is, the rotating wheel will not collide with the mandrel during process adjustment and recording and teaching.
The machine tool can pause the feed speed and spindle speed in the automatic program. It is equipped with stroke limit protection, software and hardware limit protection in the control system, fault detection and alarm functions.
Automatic fault detection, automatic diagnosis and overload protection for each unit when turned on.
According to the user's requirements, various special-shaped parts can be spin-formed to ensure that the shape, diameter, thinning rate and other related dimensions of the workpiece meet the requirements.
Complete trimming, flanging, curling, shrinking, rolling and other functions on the same machine tool.
Technical Parameters
NO.
Item
Parameter
1
Machine Model
BOXY-800
2
Machine Type
Horizontal, Flat Bed Lathe
3
Max. Length of Workpiece
600mm
4
Max. Spindle Speed
1400r.p.m
5
X Axis Travel
600mm
6
Z Axis Travel
600mm
7
Spindle Bore
110mm
8
Spindle Speed Change
Servo stepless speed change
9
Tool Holder Station
6

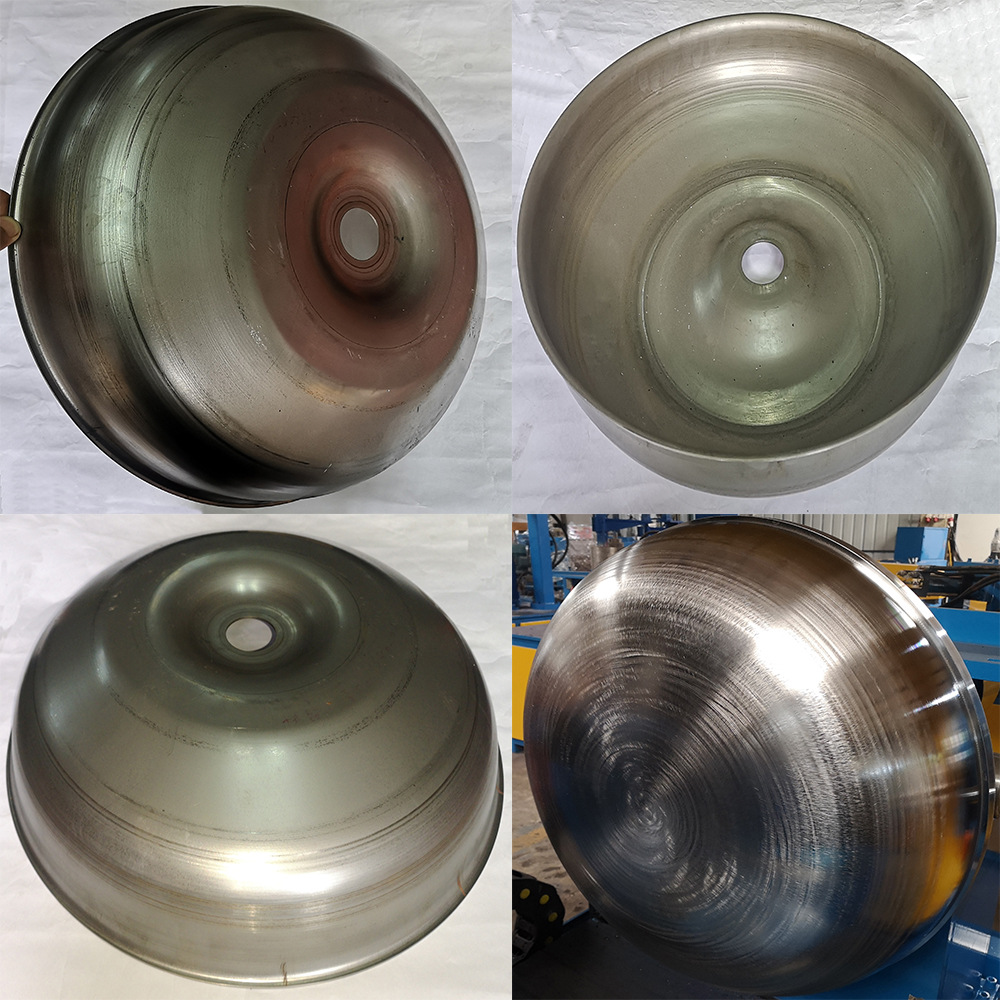

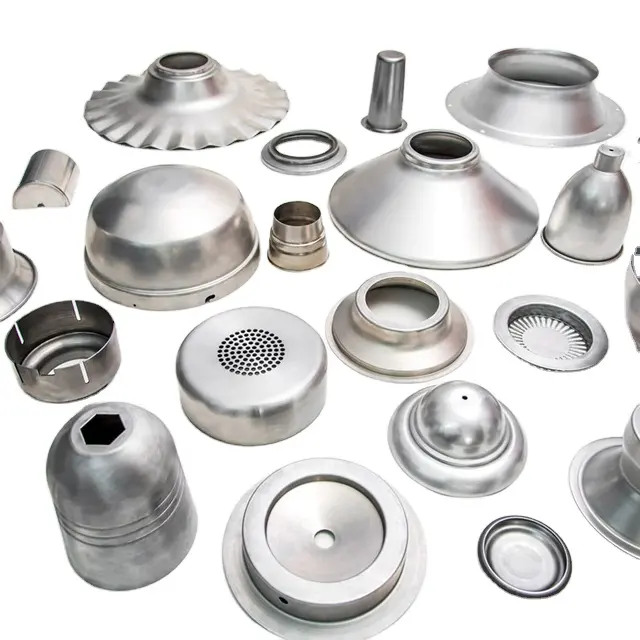

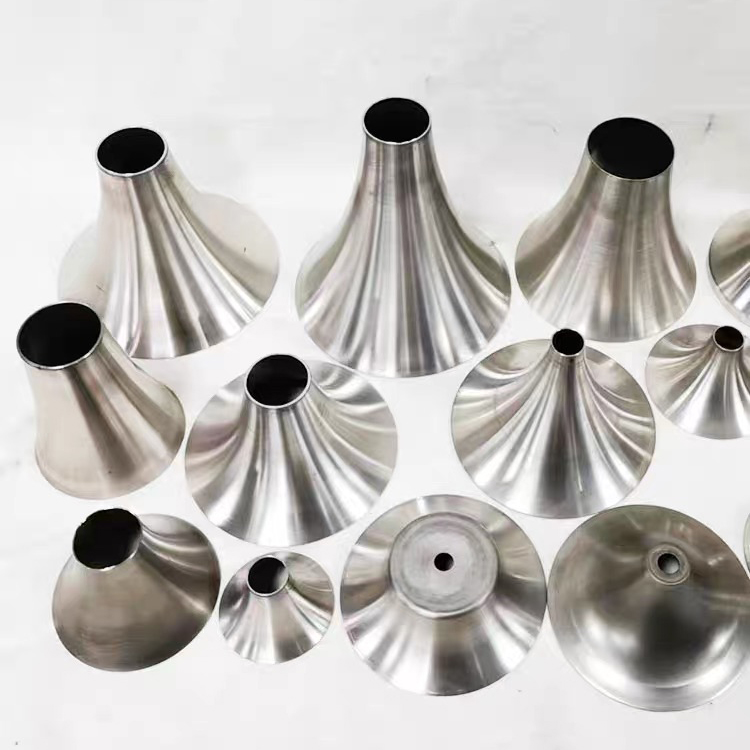

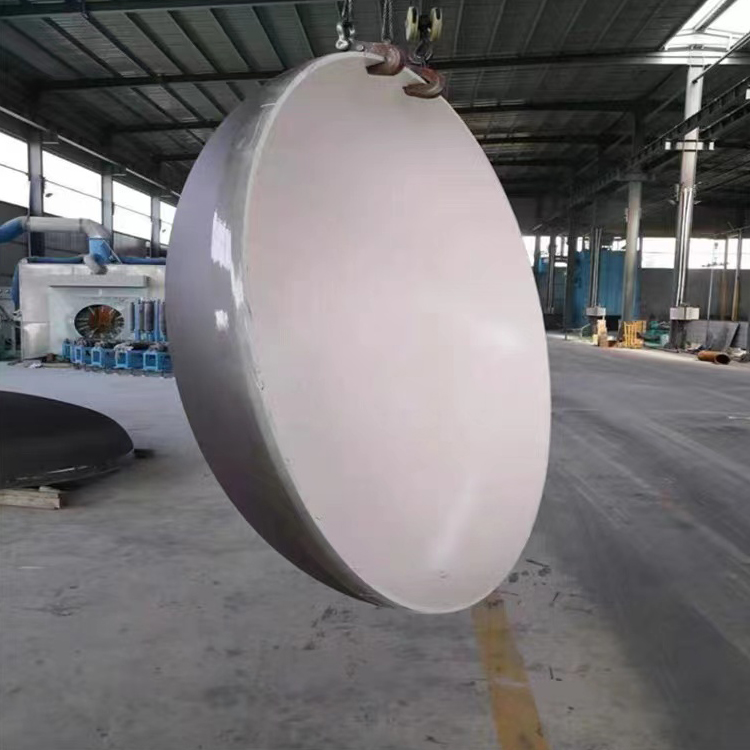

Finished Products & Workshop Showcase
Frequently Asked Questions
What industries is this CNC spinning machine suitable for?
It is designed for various metal cylinders and spinning compression ports, suitable for industries such as lamps, cookware, tea sets, kettles, and handicrafts.
What kind of materials can this machine tool process?
The BOXY-800 is an enhanced double-knife spinning machine specifically designed for spinning processing of relatively thick and hard metallic materials.
Can the machine execute complex shapes and processes?
Yes, the wheel motion trajectory can be straight lines, arcs, multi-arc connecting lines, and combined curves. It is capable of completing trimming, flanging, curling, shrinking, and rolling on the same machine.
What safety mechanisms are built into the system?
The control system is integrated with stroke limit protection, software and hardware limit protection, automatic fault detection, system diagnostic tools, and overload protection for each unit.
Is the machine operator-friendly?
Yes, the programming operation is simple and easy to learn. It uses standardized CAD-based programming, and because of its advanced CNC program automation, one operator can easily manage multiple machine tools.
