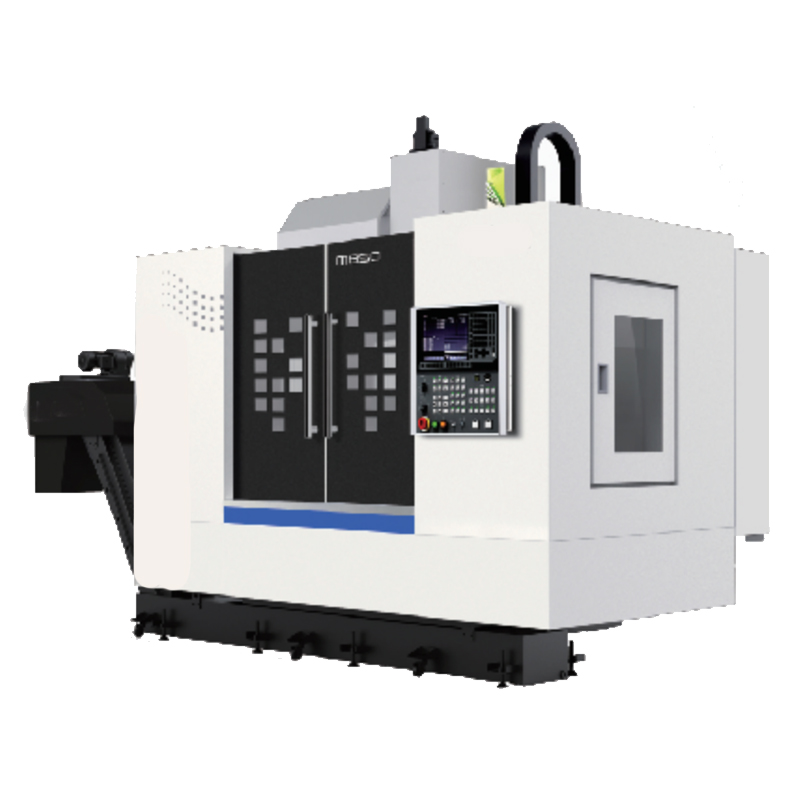

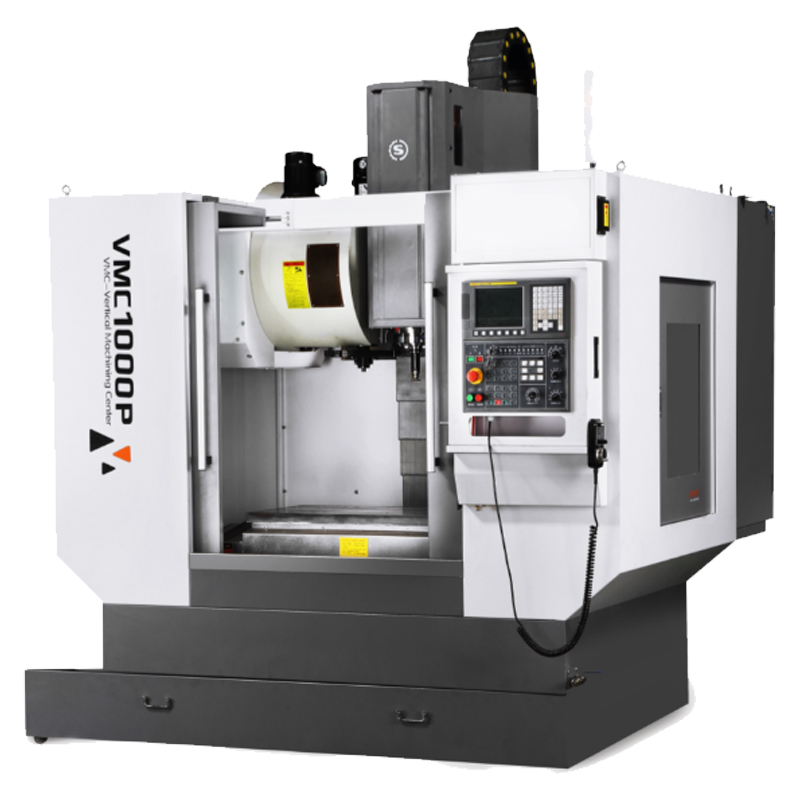

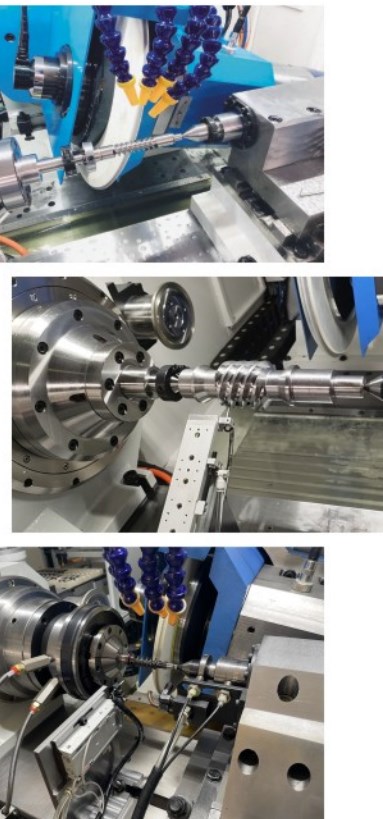

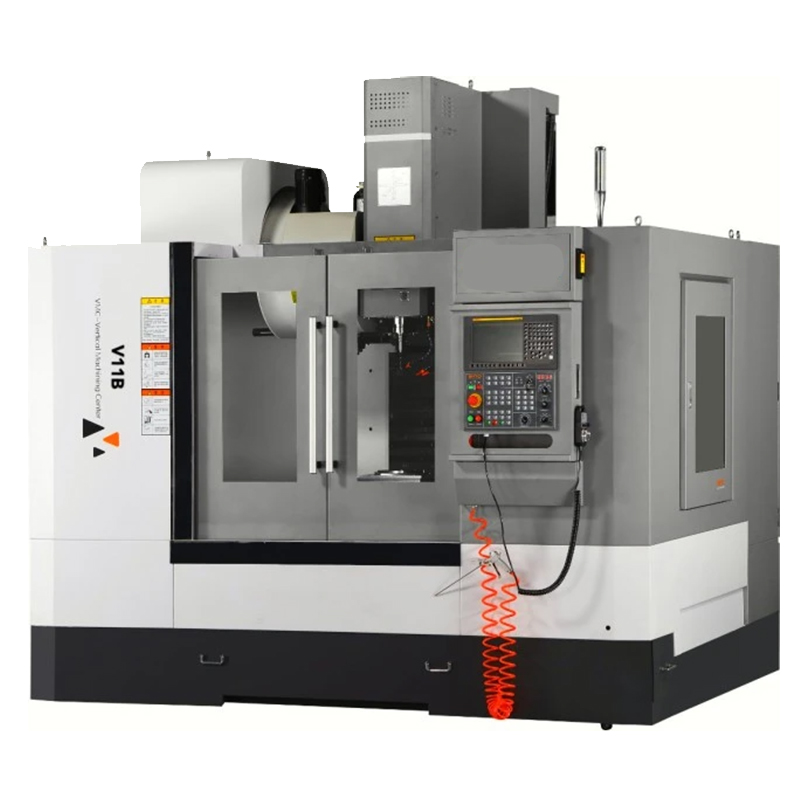

ZRF Spinning
1 / 5

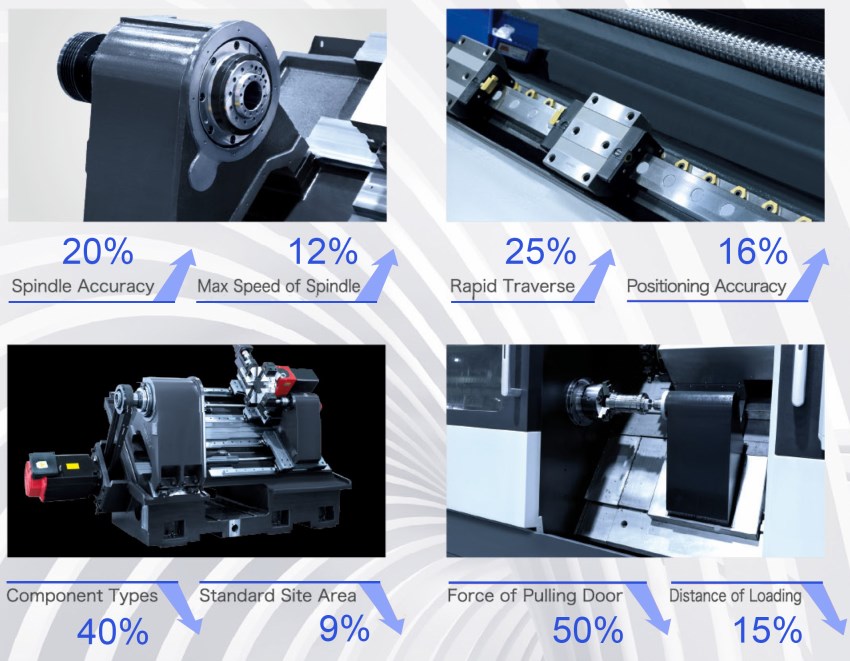

| Category | Parameter | Unit | Value |
|---|---|---|---|
| TABLE | |||
| Worktable size | Worktable size dimensions | mm | 800*800 |
| Workpiece size range | Max. workpiece diameter & height | mm | φ1110*1220 |
| Max load of worktable | Maximum load capacity | kg | 1300 |
| X/Y/Z axis travel | Travel distance along X/Y/Z axis | mm | 1050/900/900 |
| SPINDLE | |||
| Spindle speed | Standard rotation speed (Optional configurations) | r/min | 8000 (6000/12000 Optional) |
| Spindle taper | Taper type specifications | - | NO.50 (7:24) |
| Spindle drive mode | Type of spindle drive mechanism | - | Motorized spindle |
| Spindle power | Electric motor power rate | kw | 18.5 |
| Spindle maximum torque | Maximum output torque value | nm | 24 |
| MOVEMENT | |||
| X/Y/Z cutting speed | Working cutting feed rate | m/min | 20 |
| X/Y/Z feeding speed | Rapid traverse rate | m/min | 54 |
| ATC SYSTEM | |||
| Tool magazine capacity | Maximum number of tools (Options) | - | 40 (60/80/120 Optional) |
| Tool shank type | Shank standard and pull stud angle | - | BT50-45° |
| Max. tool weight | Maximum allowable tool weight | kg | 25 |
| Max. tool diameter (w/o adjacent tools) | Diameter with adjacent slots empty | mm | φ115 |
| Max.tool length | Maximum allowable tool length | mm | 500 |
| Time of tool change (T-T) | Tool to tool change duration | s | 2 |
| ACCURACY | |||
| X/Y/Z axis positioning accuracy | Linear positioning accuracy | mm | 0.01 |
| X/Y/Z axis repeatability accuracy | Linear repeatability accuracy | mm | 0.006 |
| CONTROL SYSTEM | |||
| Controller | Supported CNC system integrations | - | GSK/SIEMENS/FANUC |
