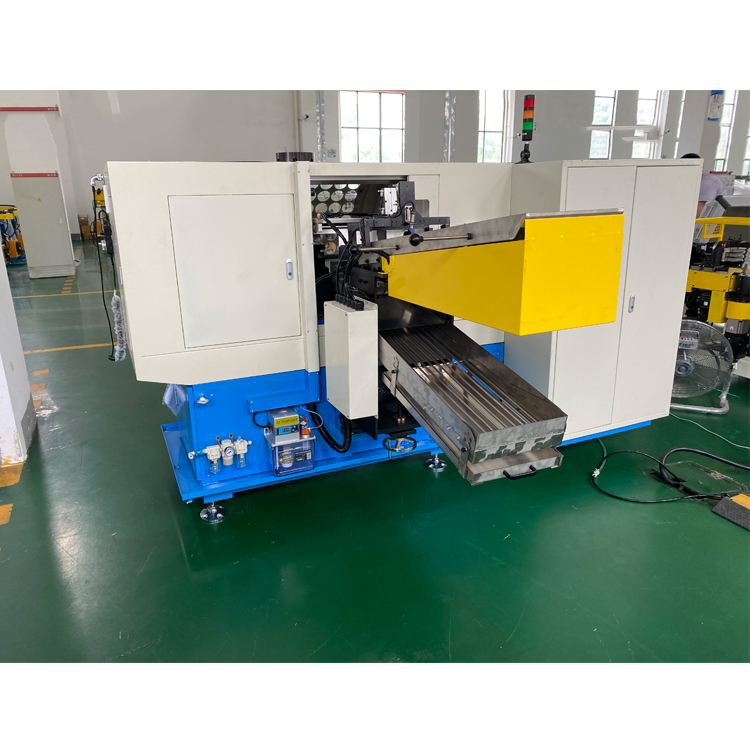

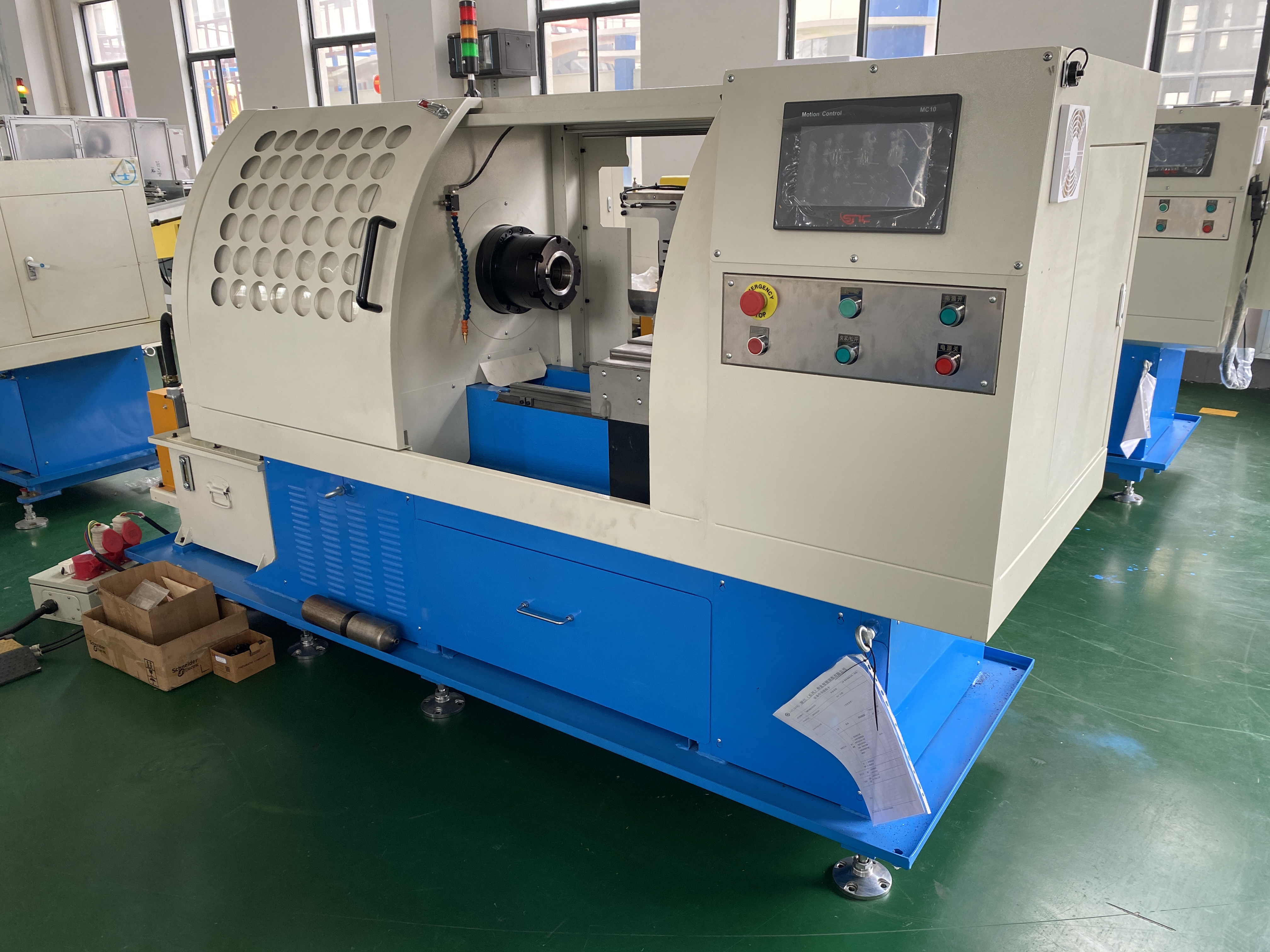

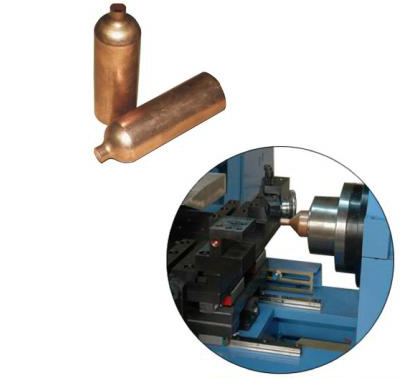

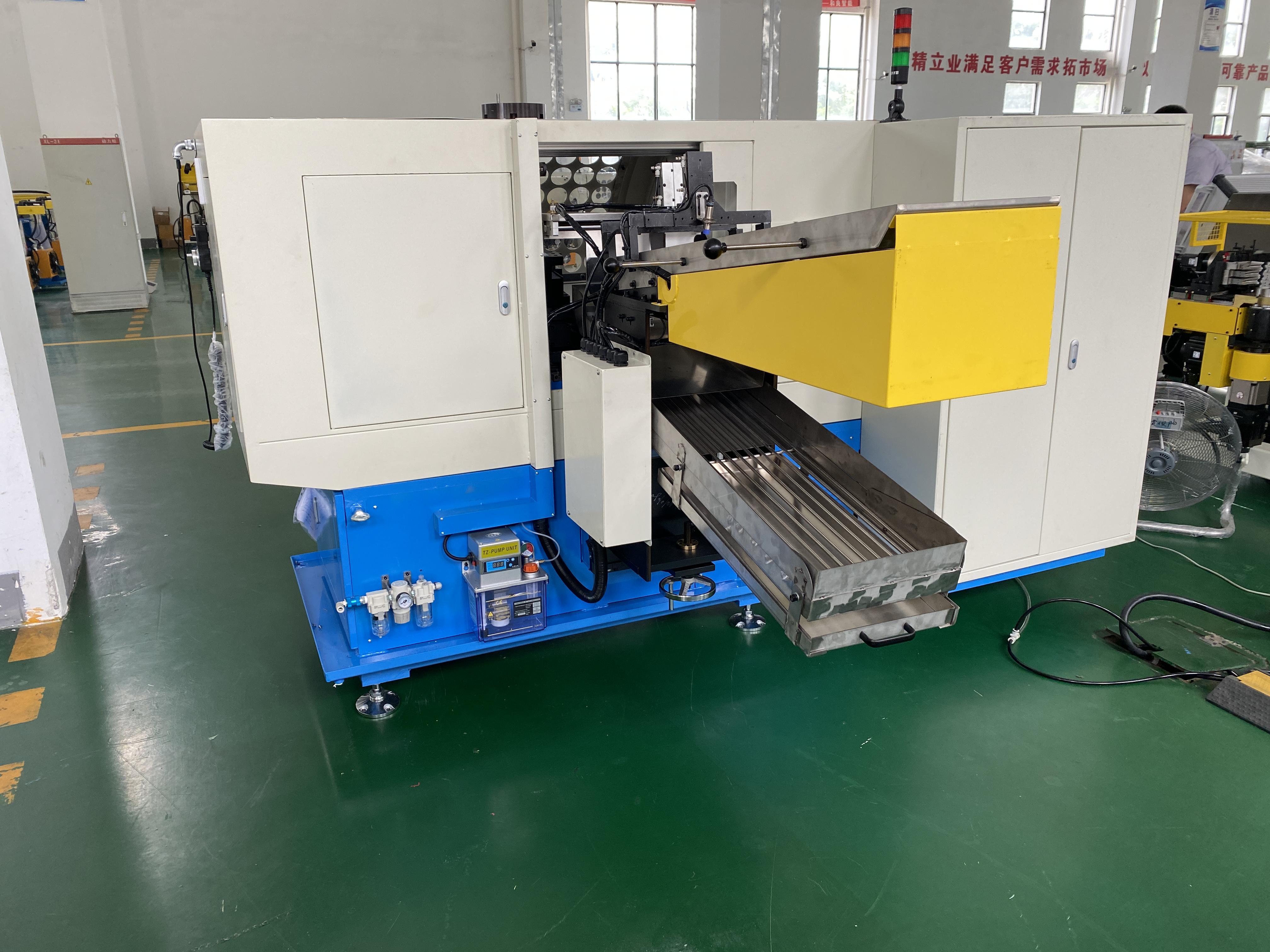

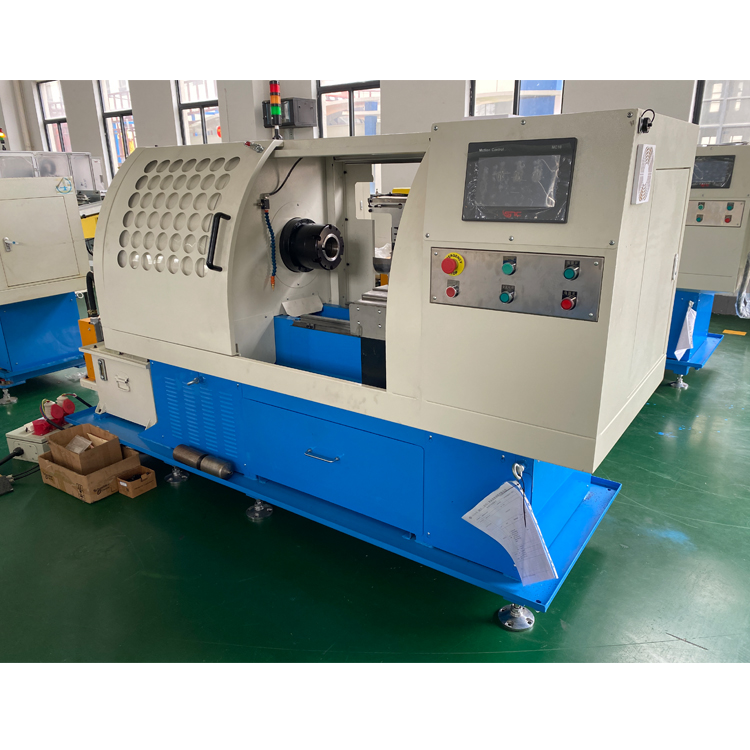

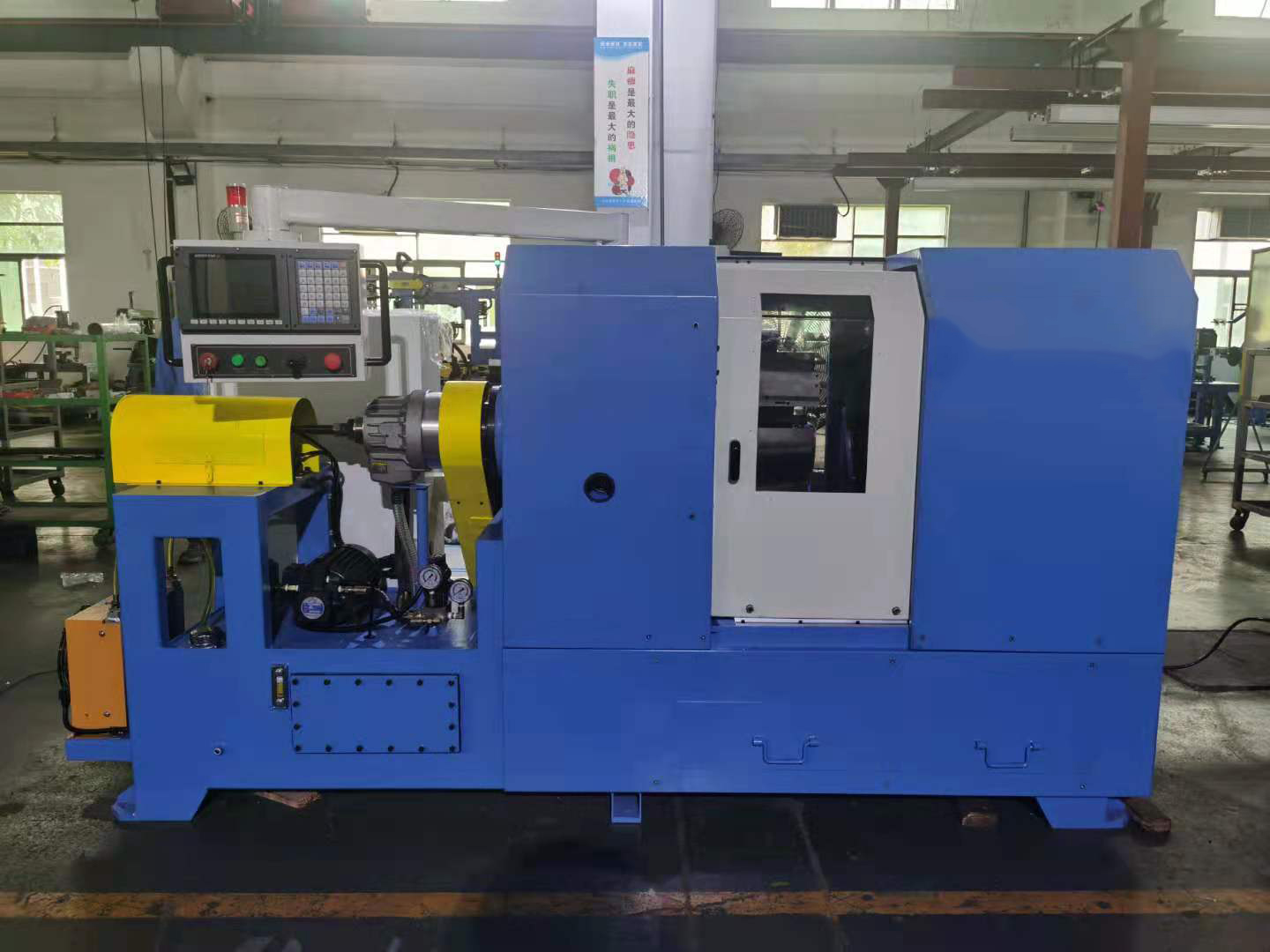

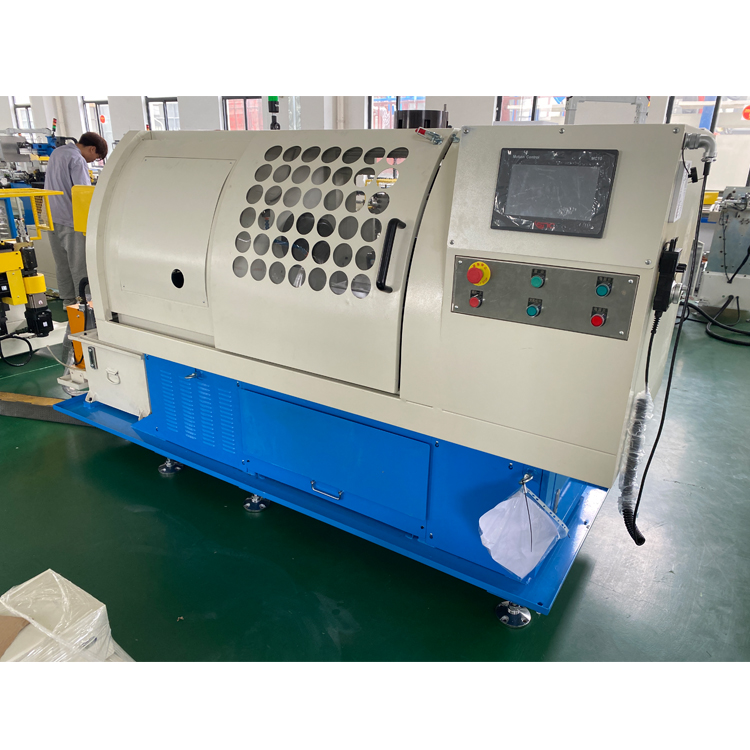

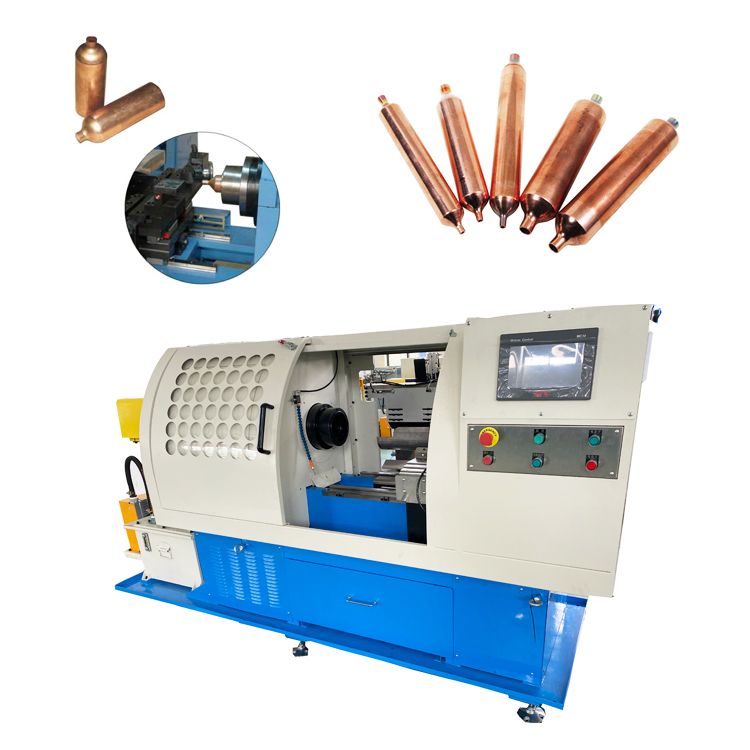

ZRF Spinning
1 / 5
| Nos. | Item | Details |
|---|---|---|
| 1 | Model | XYC111 |
| 2 | Power supply | 380V(AC)±10%, 50HZ |
| 3 | X-axis travel | 80mm |
| 4 | X-axis machining accuracy | ±0.03 |
| 5 | X-axis speed | 200mm/s |
| 6 | Z-axis travel | 200mm |
| 7 | Z-axis machining accuracy | ±0.03 |
| 8 | Z-axis travel | 300mm/s |
| 9 | Processing pipe length | 40mm-200mm |
| 10 | Processing method | Spin compression port |
| 11 | Operate | Automatic, manual, jogging |
| 12 | Pack Dimension | 3230x1700x1280mm |
| 13 | Weight | 300kg |
A: The standard power supply is 380V, 3P, 50Hz. We can also customize the power supply configurations according to your local requirements.
A: Customers should provide related technical requirements, technical drawings, sample pictures, industrial voltage requirements, and planned production output.
A: The standard payment term is a 30% down payment, and 70% paid before shipment via T/T mode. We also accept other payment terms like L/C, DA, D/P, etc.
A: Normally, the delivery time of the machine is 30 days after the receipt of the down payment.
A: The warranty period is one year starting from the date of the Bill of Lading (B/L).

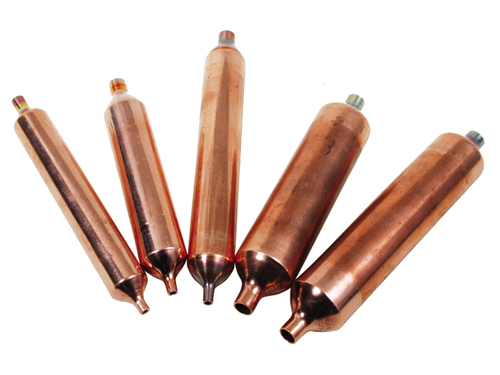

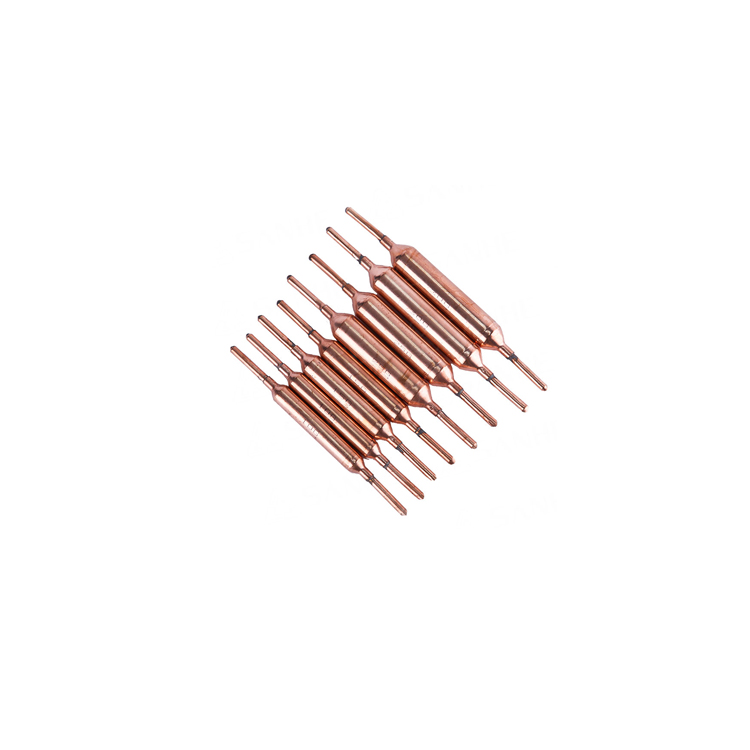

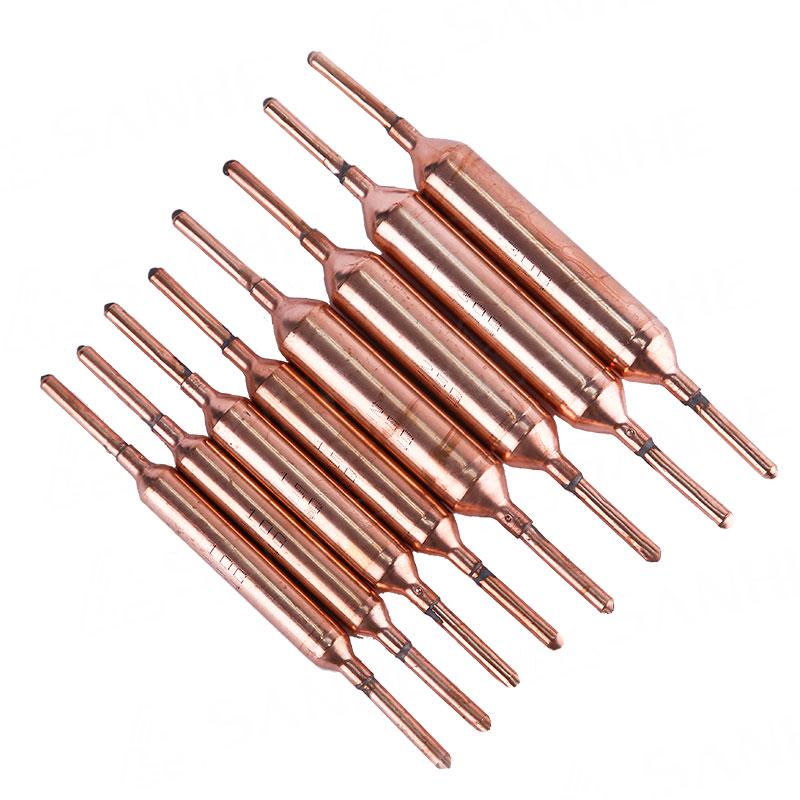

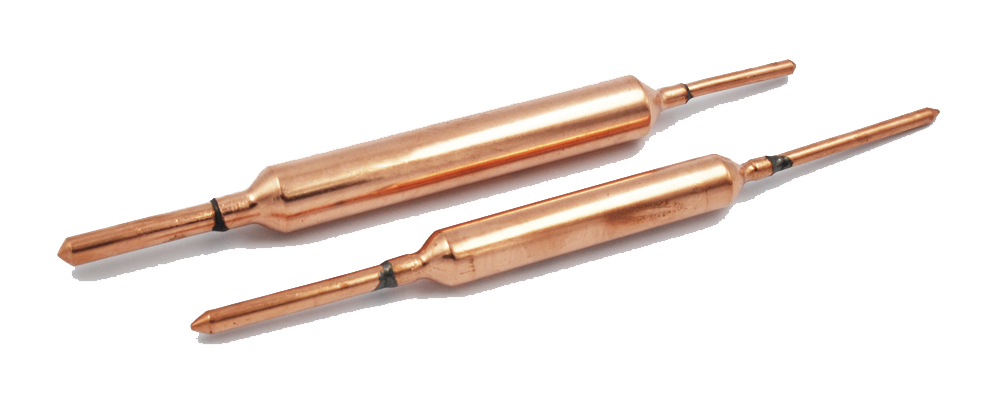

A: Yes, our CNC spinning machines can be customized to adapt to various copper pipe diameters, wall thicknesses, and custom shapes based on your specific application requirements.
