High Performance Cnc Metal Tube End Spinning Flow Forming Machine

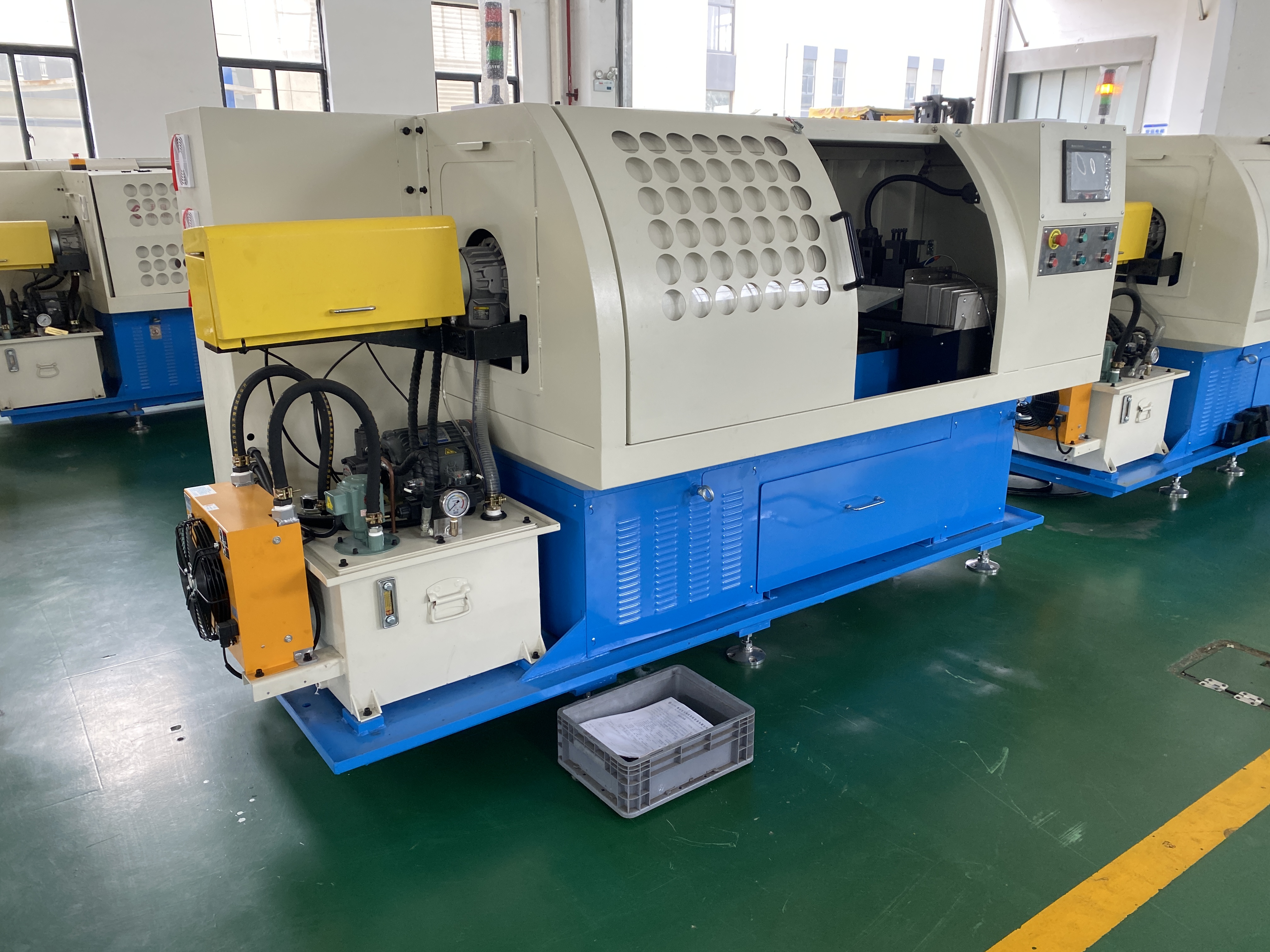

CNC Metal Tube End Spinning Flow Forming Machine

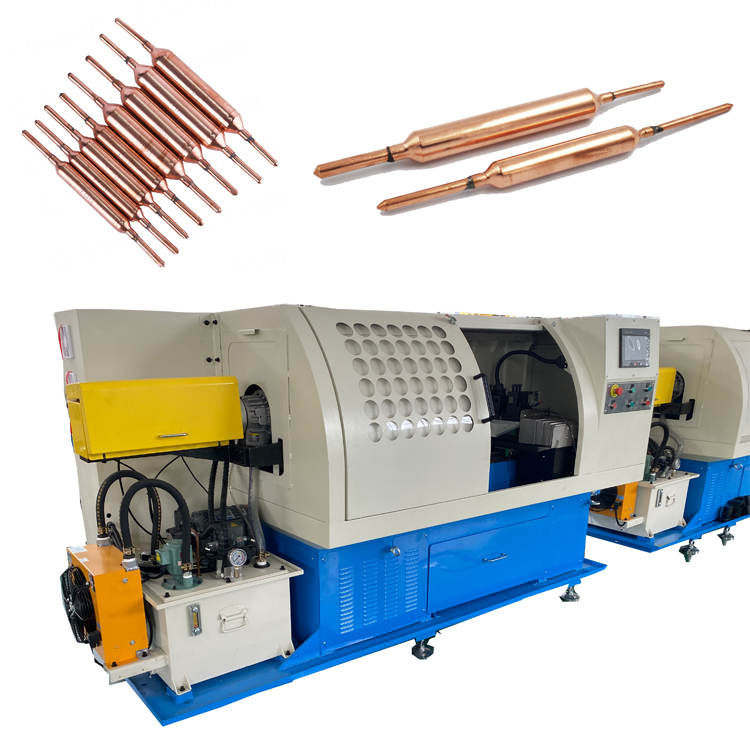

CNC spinning machine is a special equipment used for rolling the nozzle of copper pipes, reaching the necking or sealing processing of pipe fittings, and the diameter can be processed in the middle of 12mm Copper pipes within 40mm and wall thickness within 1.0mm.

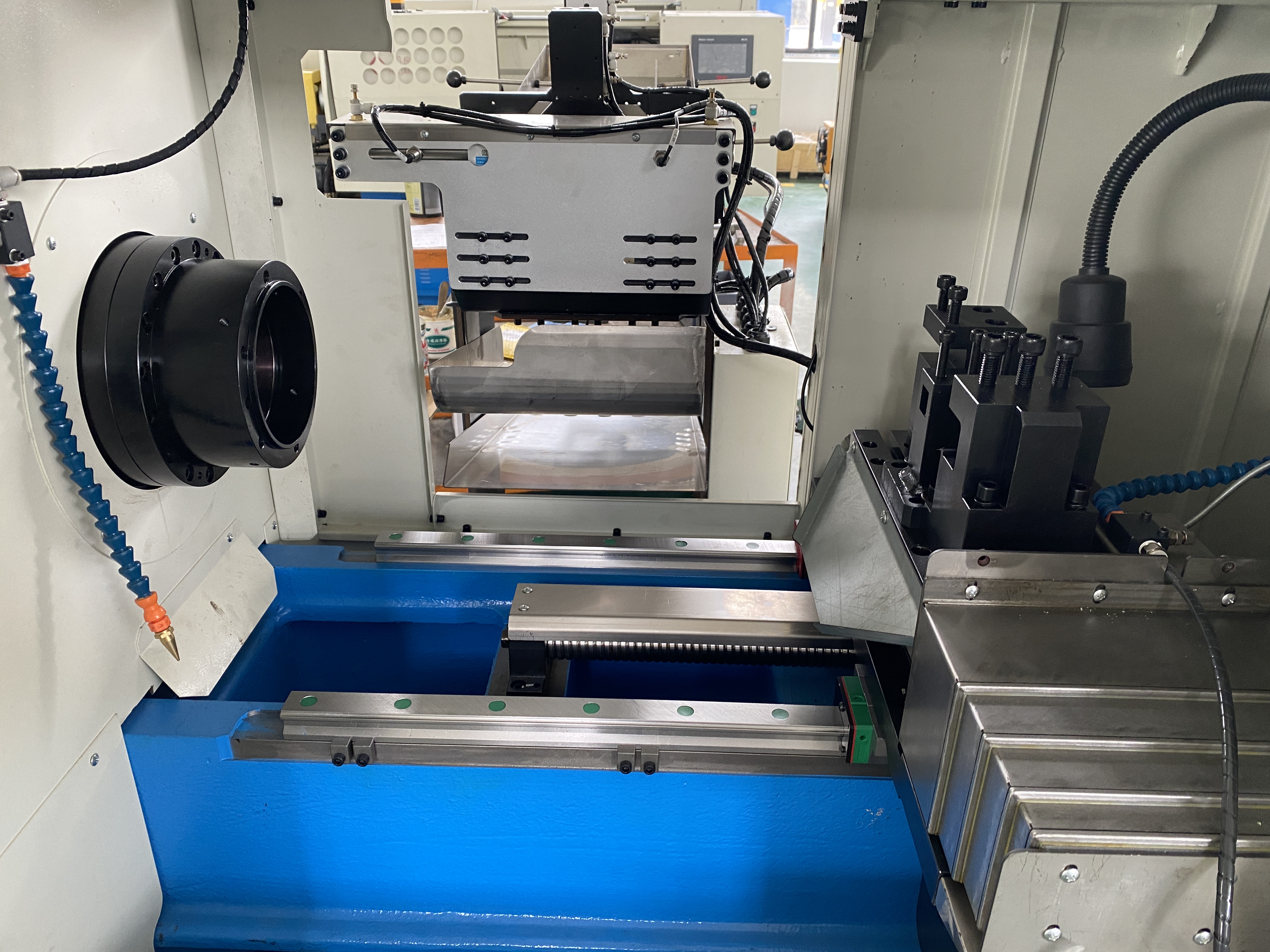

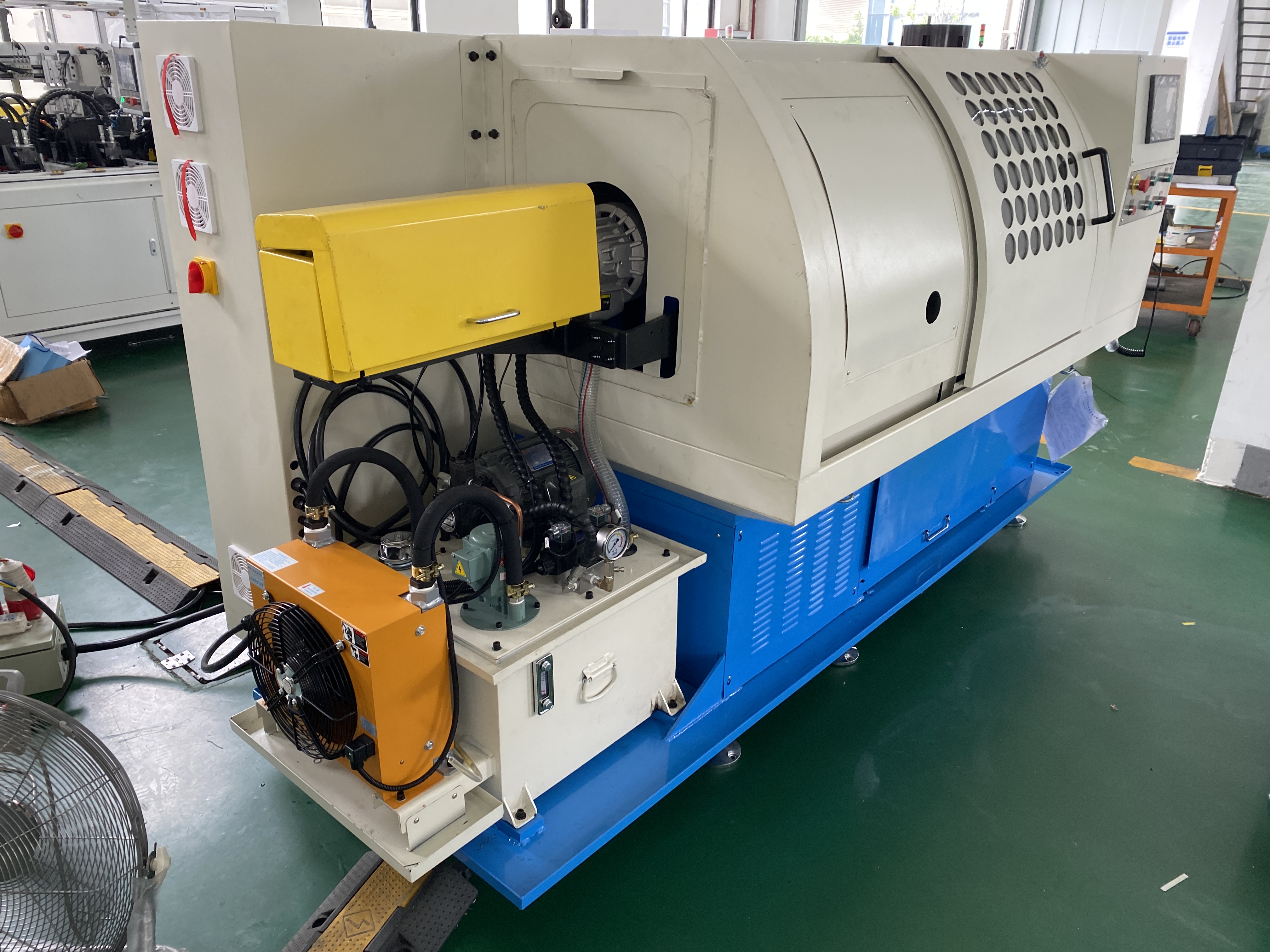

The clamping of this machine is controlled by hydraulic pressure, and the electronic control is controlled by two-coordinate numerical control system. This machine is composed of a frame, an independent spindle, a two-dimensional spinning head, a centering tailstock, a hydraulic clamping system, an electronic control system, etc.

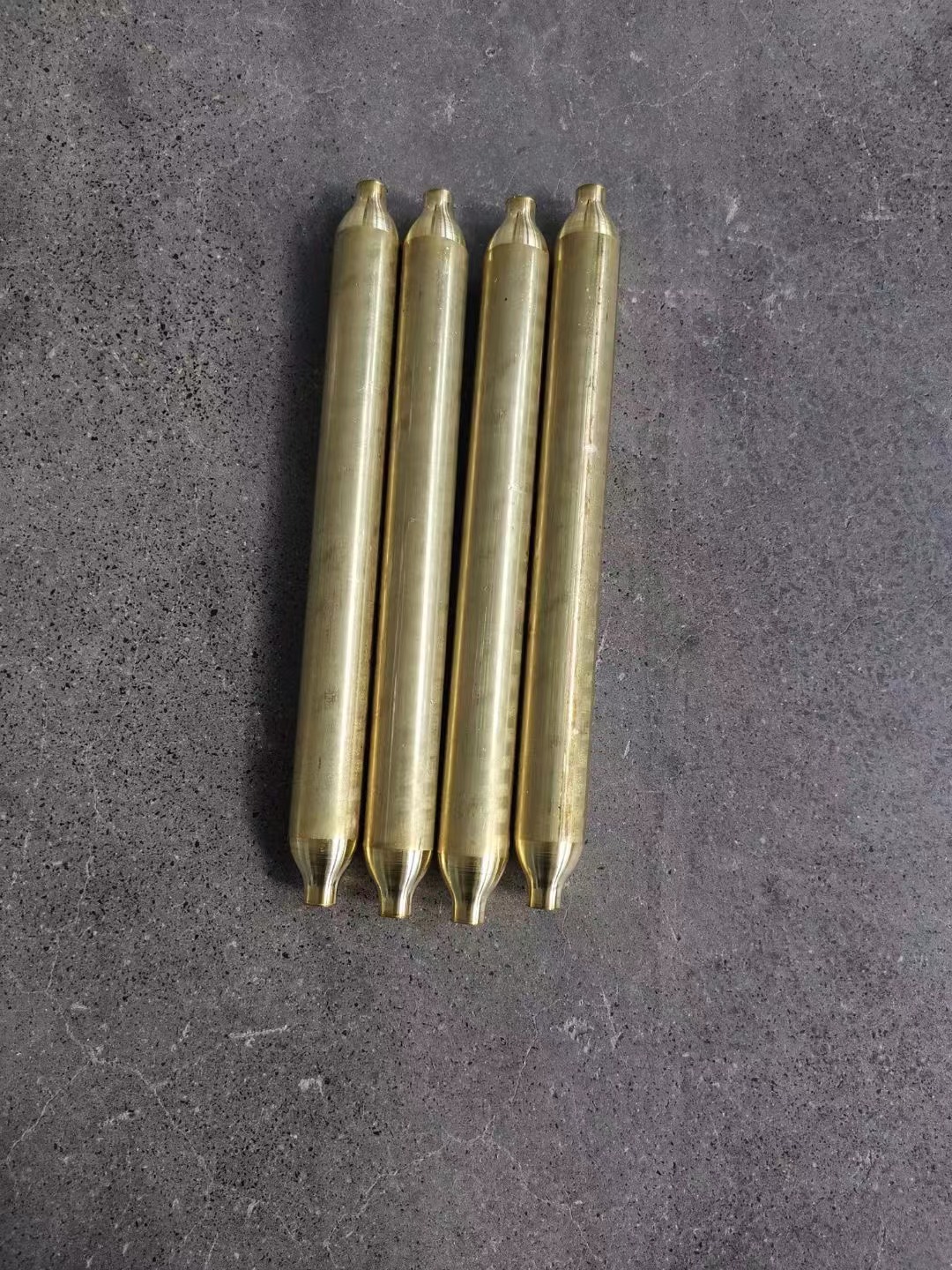

Samples Display

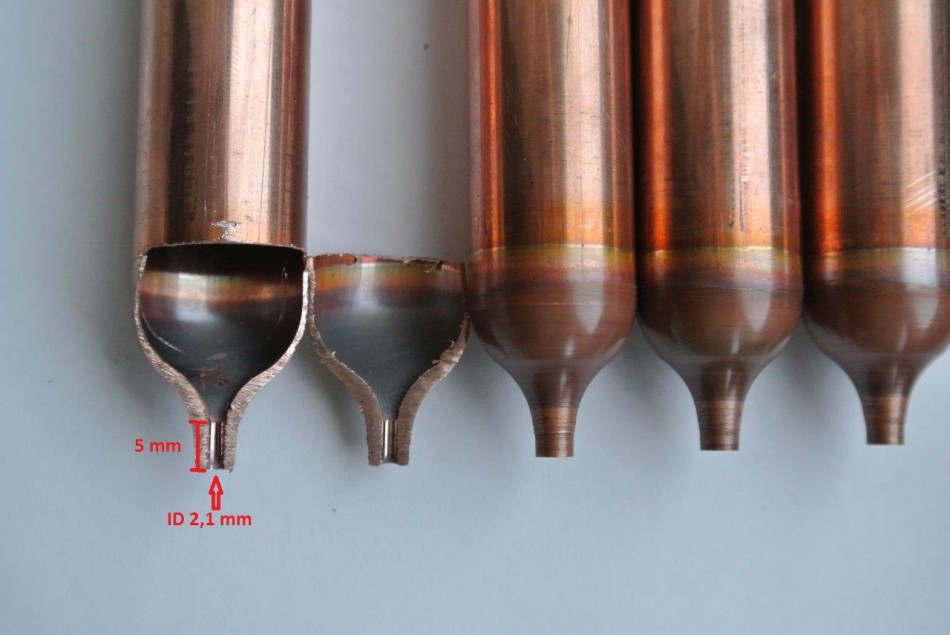

Sample Display 1

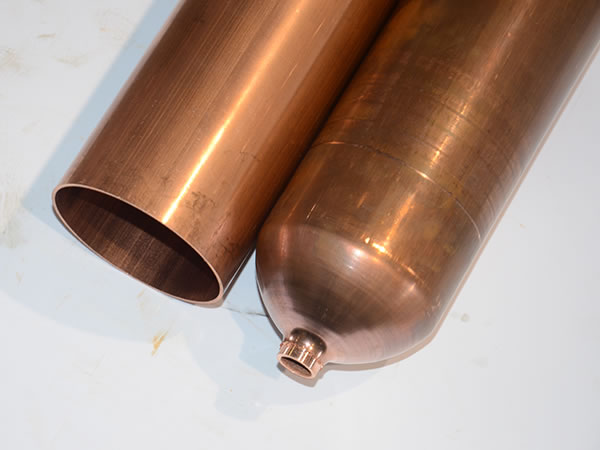

Sample Display 2

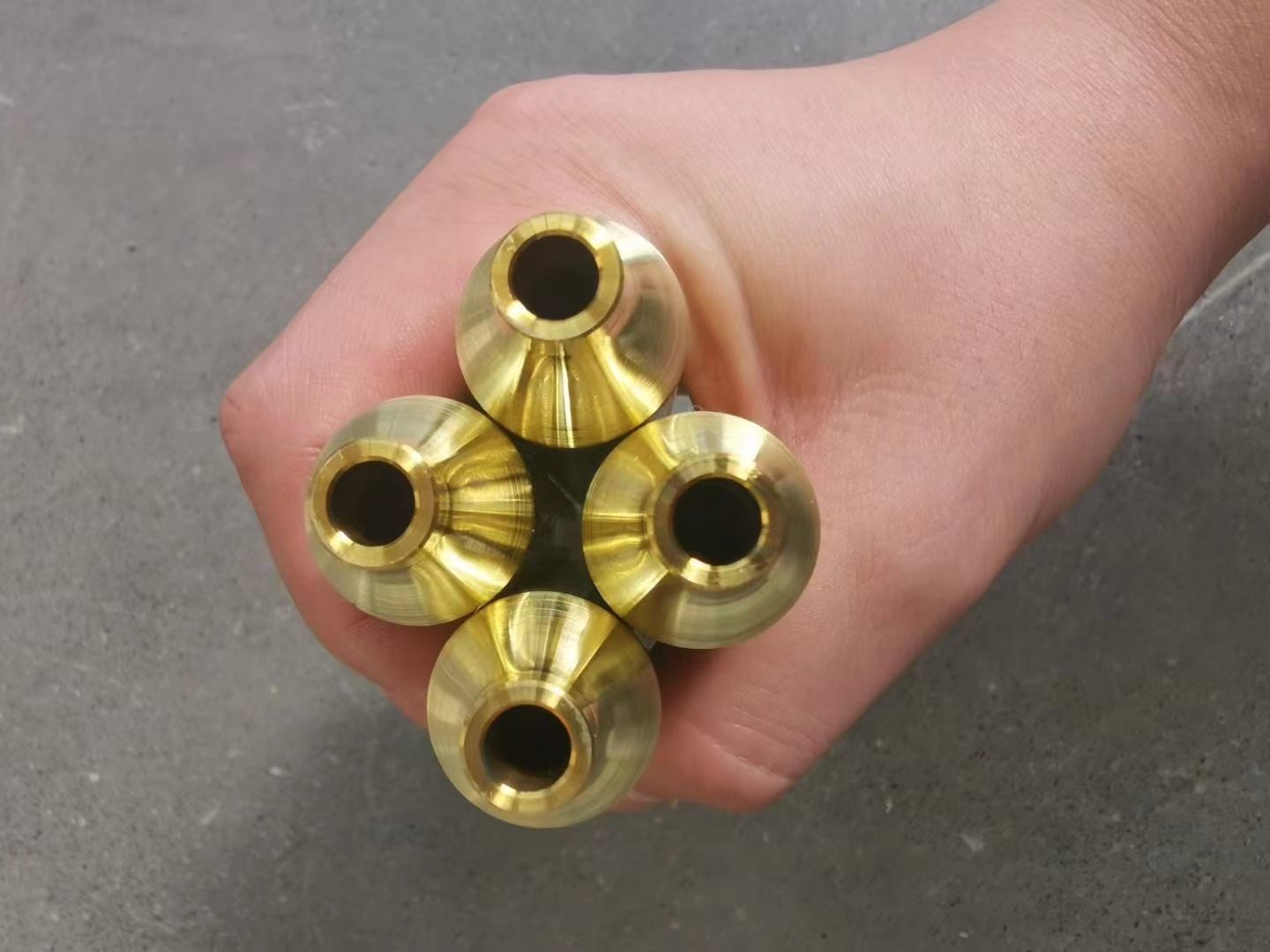

Sample Display 3
Sample Display 4
Features
Precise control: The advanced CNC system can accurately control the processing size of copper pipes to ensure processing accuracy and repeatability.
High degree of automation: It can automatically complete the process of shrinking or sealing copper pipes, reduce manual operation and improve production efficiency.
Versatility: It can not only be necked, but also can be processed according to needs.
Flexibility: It can adapt to the processing of copper pipes of different sizes and shapes, with good adaptability and flexibility.
Easy to operate: Friendly man-machine interface, simple operation, easy to learn and use.
High processing efficiency: Compared with traditional manual processing, CNC spinning machine can significantly improve the processing speed and shorten the production cycle.
CNC Spinning Machine Detail 1

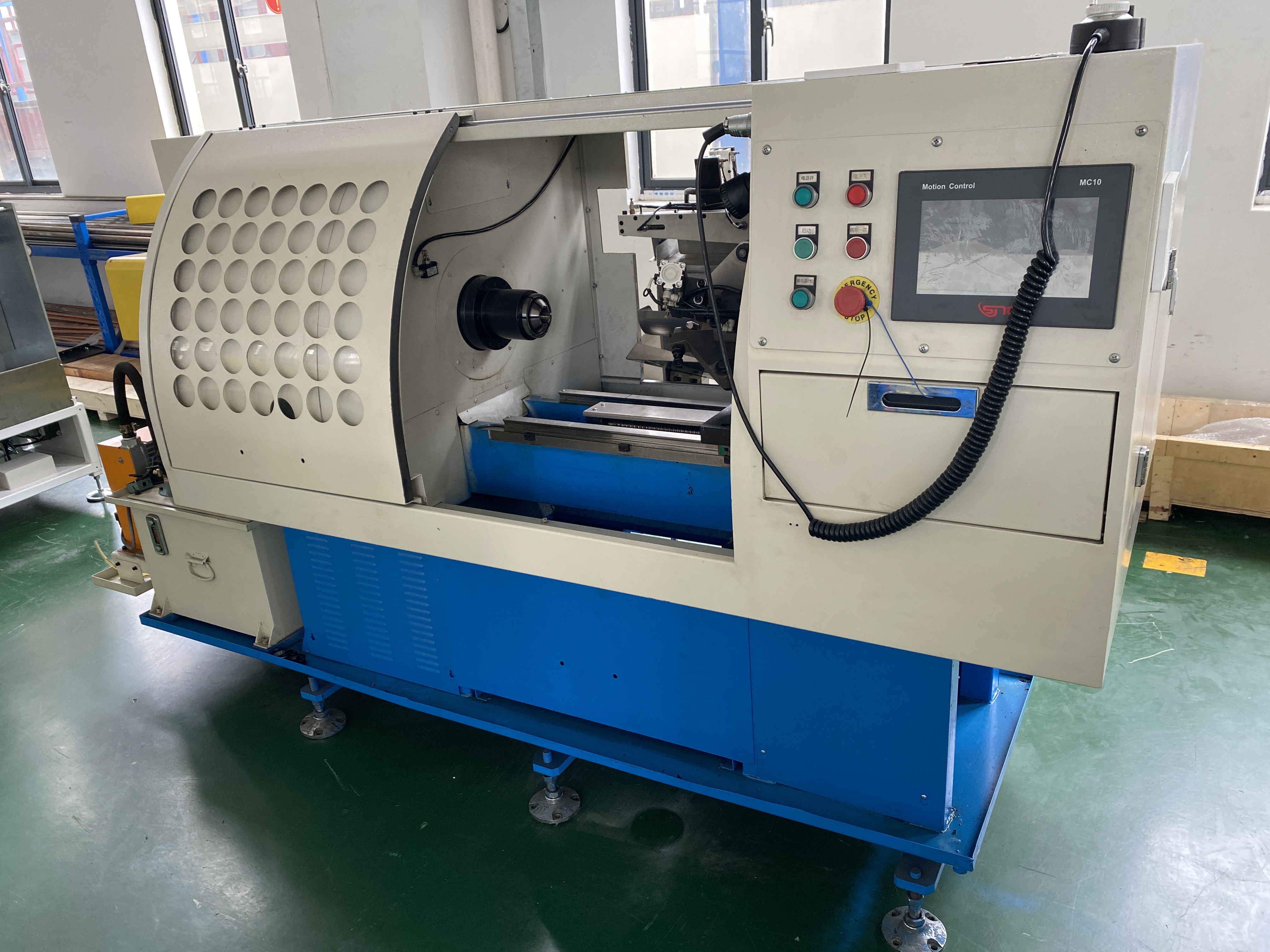

CNC Spinning Machine Detail 2
Specification
No. Item Details
1 Model XYC111
2 power supply 380V(AC)±10%,50HZ
3 X-axis travel 80mm
4 X-axis machining accuracy ±0.03
5 X-axis speed 200mm/s
6 Z-axis travel 200mm
7 Z-axis machining accuracy ±0.03
8 Z-axis speed 300mm/s
9 Processing pipe length 40mm-200mm
10 Processing method Spin compression port
11 Operate Automatic, manual, jogging
12 Pack Dimension 3230x1700x1280mm
13 Weight 2000kg
Packing and Shipping
Packing and Shipping Details
Packaging
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
About Us
About Us Factory 1
About Us Factory 2
About Us Factory 3
About Us Factory 4
About Us Factory 5
About Us Factory 6
FAQ
Q What is the power supply of the machine?
The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
Q What is the payment term?
The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc.
Q What is the delivery time?
Normally the delivery time of the machine is 30 days after receive down payment.
Q What is the warrantee period of the machine?
The warrantee period is one year since the date of B/L.
