1-17" touch PC panel, simple operation and easy to learn even without CNC knowledge. Support Wi-Fi and remote assistance (Optional: Syntec control system).

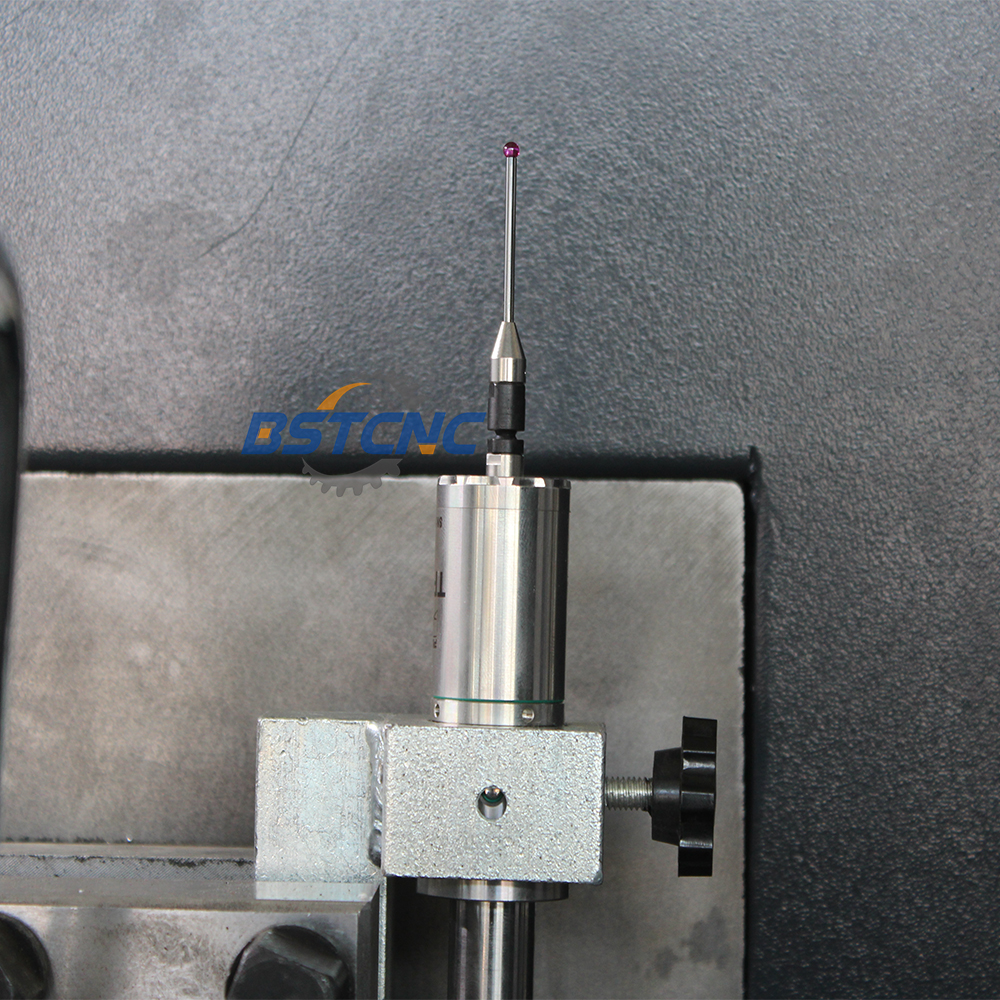

Laser detection device, fast speed, automatic detection, automatic optimization, and automatic processing, easy to operate.
Linear guide, rapid speed moving.
No need to switch detection devices and tools for one-time clamping.
It is more easy to load and unload the rims, strong load capacity, cutting stability, high efficiency.
The spindle speed can reach 1000 RPM.
Small body is suitable for different workplaces, cast iron body, strong and high rigidity.
Protective door: anti-clip, electric, highly ergonomic consideration.
| No. | Item | VRC32 |
|---|---|---|
| 1 | Max. rim diameter | 32inch |
| 2 | Chuck diameter | 320mm |
| 3 | Spindle speed | 100-1000rpm |
| 4 | Cutting speed | 0.1-1000mm/min |
| 5 | Max. travel (X/Z) | X/Z: 440/700mm |
| 6 | Rapid speed moving | X/Z: 5000/6000mm/min |

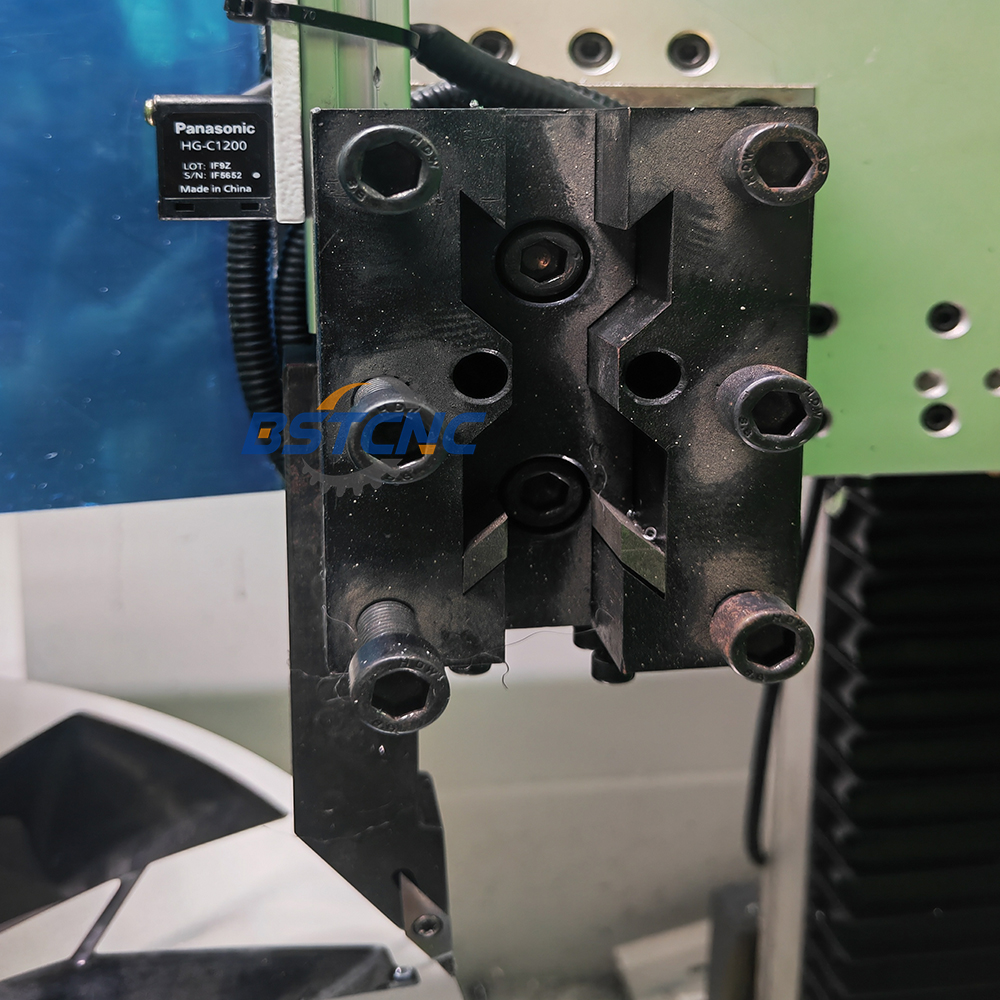

| 7 | Tool post | 4 station manual tool post |
| 8 | Section of tool post | 25×25mm |
| 9 | Feed motor torque | X/Z: 6/10Nm |
| 10 | Surface roughness | Ra 0.8-1.6 |
| 11 | Main motor power | 5.5kw |
| 12 | Weight | 1600kg |
| 13 | Machine Dimension | 1930×1650×1990mm |
| 14 | Package Dimension | 2000x1900x2130mm |

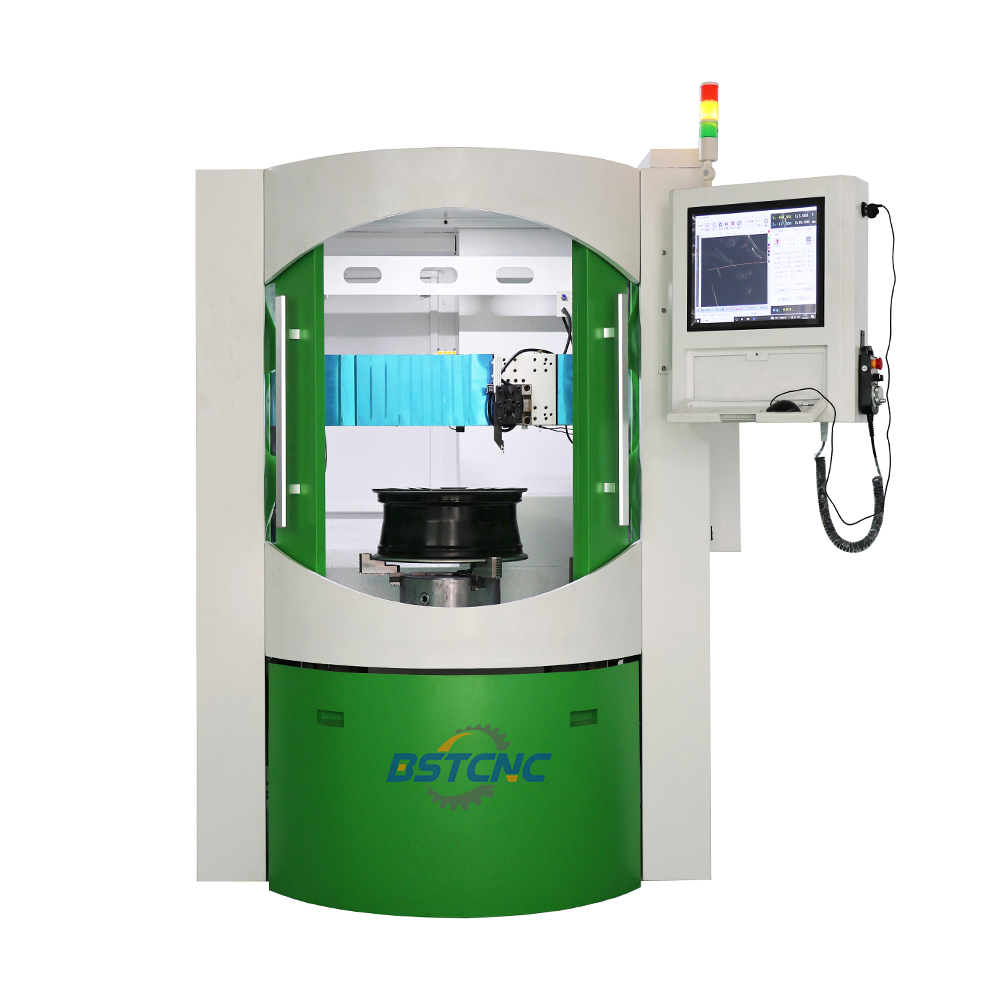

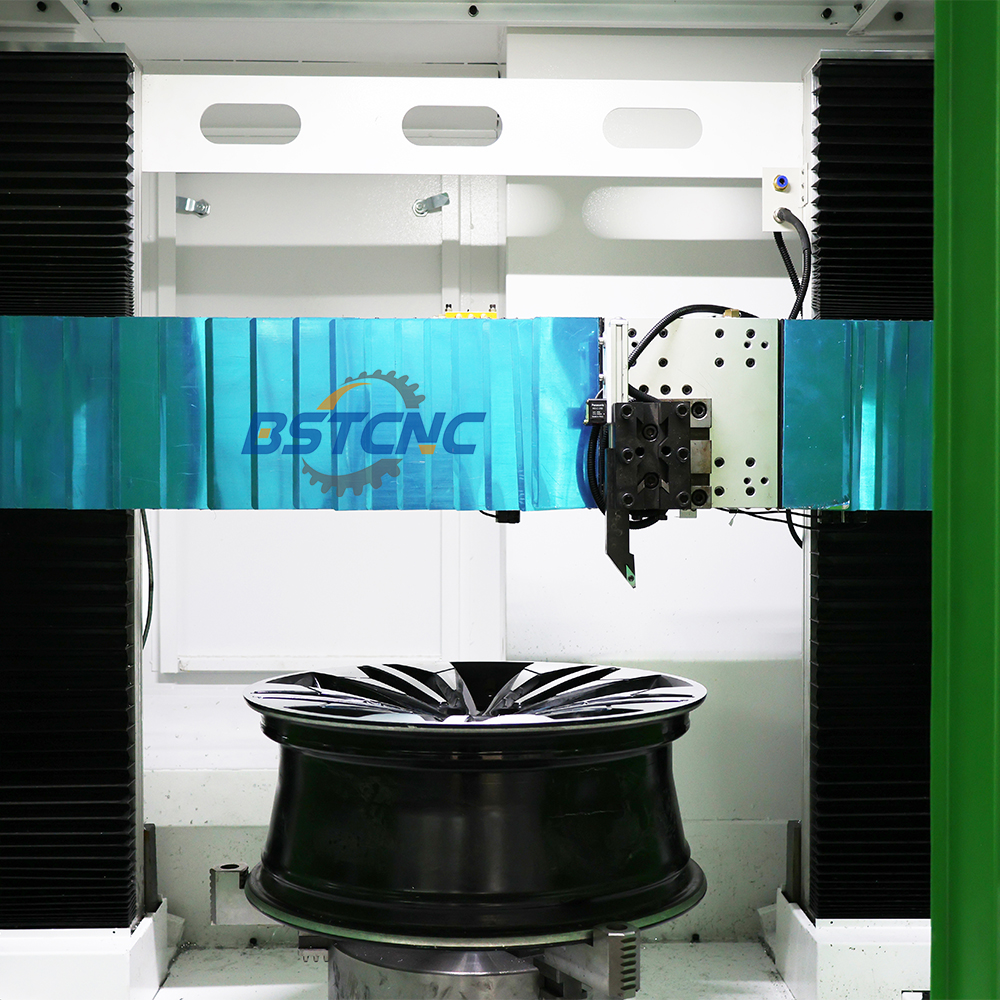

The VRC32 CNC alloy wheel rim repair lathe is designed to handle a maximum rim diameter of up to 32 inches.
No, it is equipped with a 17-inch touch PC panel that features simple operation, making it easy to learn even for beginners with no CNC knowledge. It also supports remote assistance and Wi-Fi.
The integrated laser detection device provides rapid automatic detection, automatic path optimization, and automatic processing, eliminating the need to manually switch detection devices and tools.

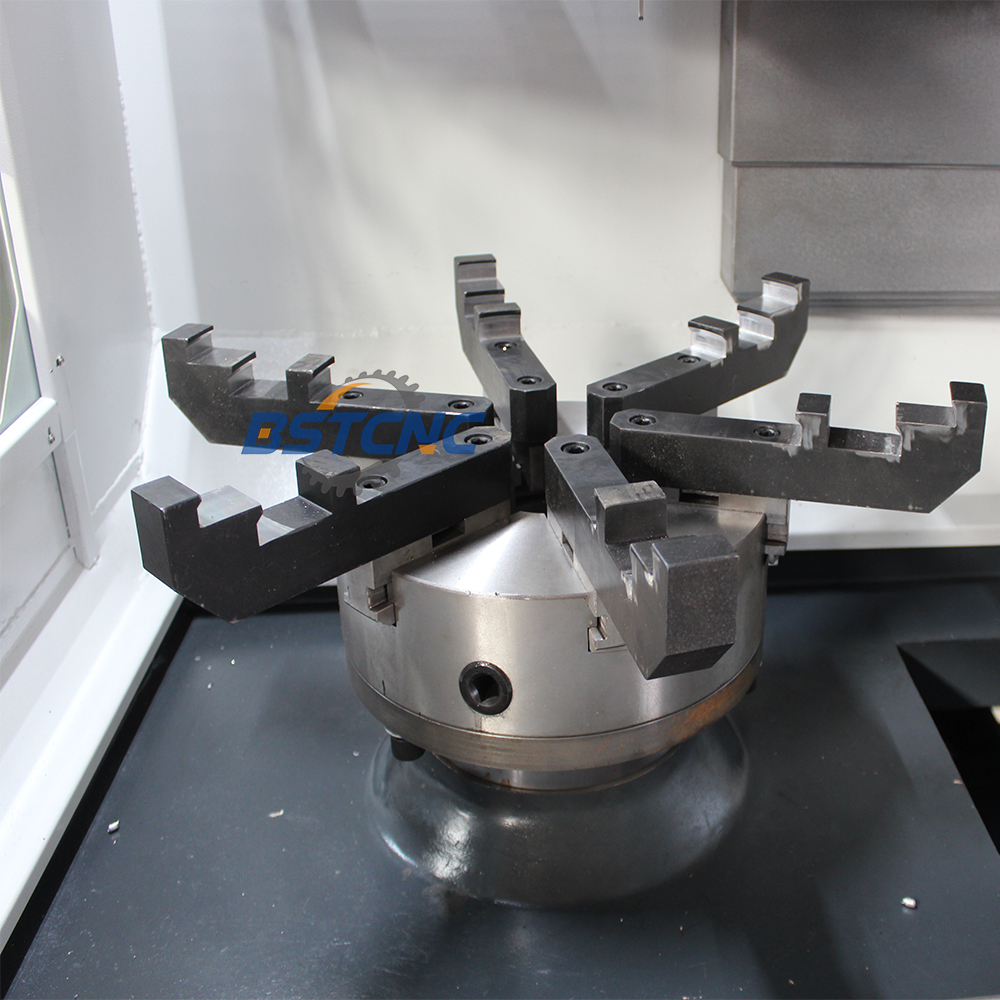

The standard configuration includes a special 3-jaws manual chuck, fixed turret or electric 4-station turret, automatic lubrication system, turning cooling system, probing system, optimize software, and operation manual.
Yes, the machine features a cast iron body which provides high rigidity and strength. Along with a linear guide, it ensures fast movement speed, high load capacity, and cutting stability.
