Key Selling Points
High Power Capacity
160kW main spindle power suitable for heavy-duty aluminum alloy forming.
Wide Application Range
Compatible with wheel diameters from 14 to 26 inches.
Precision Control
Servo motor timing belt drive for spindle; CNC programmable radial feed for spinning rolls.
Hydraulic Strength
Tailstock force adjustable from 0-350 KN.
Smart Operation
Programmable control system supporting manual, semi-auto, and fully automatic modes.
Versatile Forming
Meets the spinning requirements for both forged and cast aluminum alloy hubs.
Product Attributes
| Attribute |
Value |
| Condition |
New |
| Type |
Spinning Machine / Metal Spinning Lathe |
| Structure Type |
Vertical |
| Material Capability |
Aluminum Alloy (Cu/Al) |
| Workpiece Diameter |
14 - 26 inch |
| Spindle Power |
160 kW |
| Spindle Speed |
800 rpm (Stepless regulation via servo) |
| Tailstock Thrust |
0-350 KN (Adjustable) |
| Tool / Roller Positions |
2 |
| Material Thickness (Aluminum) |
1 - 32 mm |
| Control System |
Programmable (CNC) |
| Operation Modes |
Manual / Semi-auto / Full-auto |
| Spindle Unit |
Servo motor + Timing belt drive |
| Transmission Axes |
Axial & Radial (Servo motor driven) |
| Safety Features |
Fault alarm function |
| Additional Feature |
Ejector installed inside spindle |
| After-sales Service |
Video technical support / Online support / Spare parts |
Detailed Product Description
Product Overview

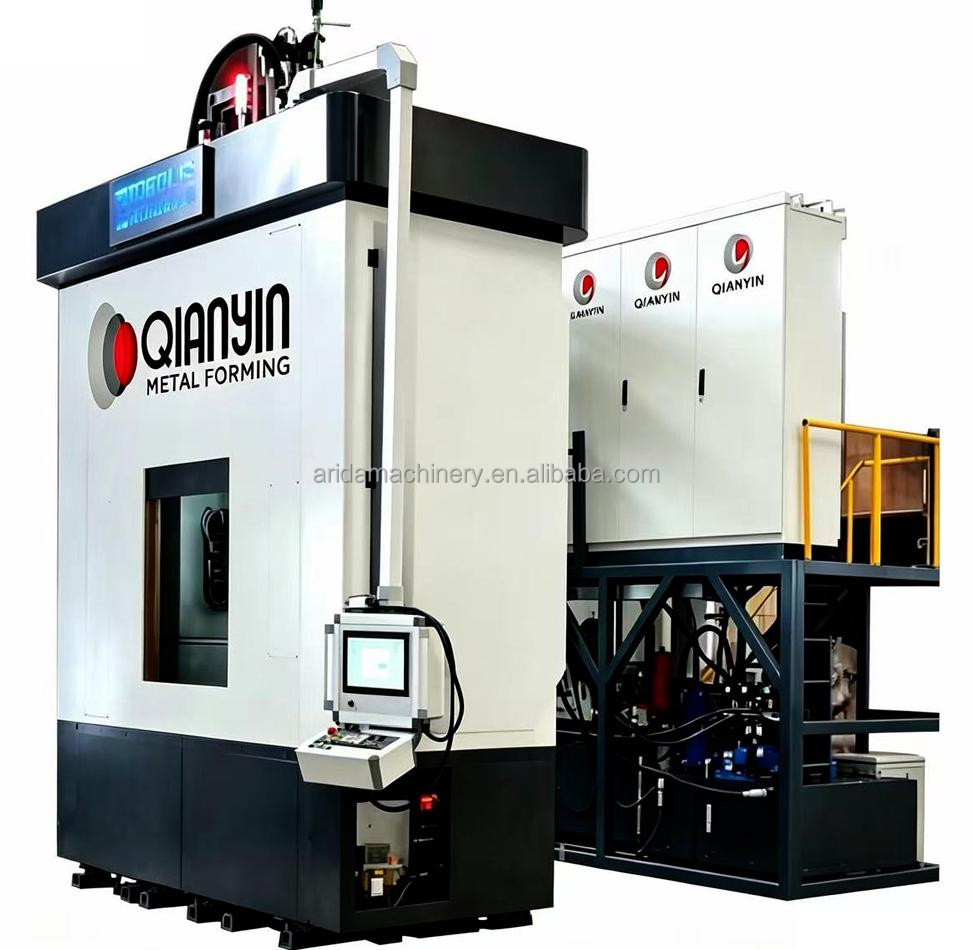

The QY-702X Series is a Vertical Dual-Spindle High-Power Hub Spinning Machine (Vertical double rollers wheel hub spinning machine). Designed specifically for the spinning forming of aluminum alloy wheels, this unit combines a vertical high-strength casting structure with advanced servo motor technology to deliver precise, high-efficiency forming for 14-26 inch hubs.
Working Principle & Structure
- Main Structure: Vertical high-strength cast component integrated structure ensures rigidity during heavy cutting.
- Drive System: The spindle unit utilizes a servo motor with a timing belt drive. The axial and radial drives of the spinning rolls are also independently driven by servo motors.

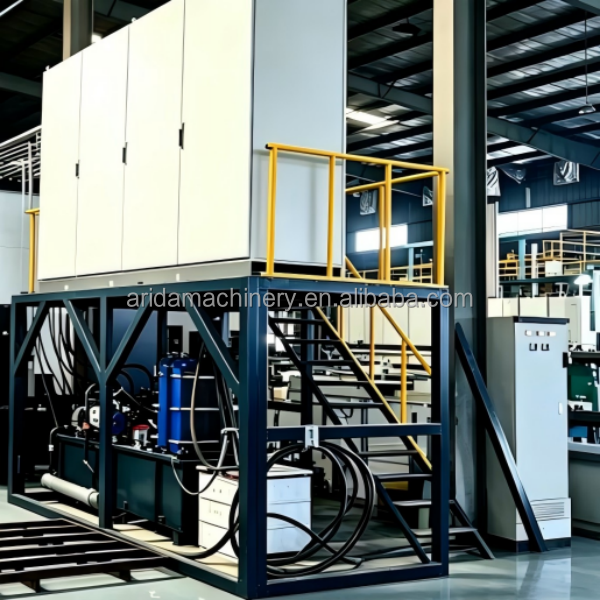

- Hydraulic System: The tailstock employs hydraulic transmission, providing a programmable thrust force (0-350 KN).
Performance Advantages
- Powerful Spindle: Boasting 160kW of power, it handles wall thicknesses up to 32mm with ease.
- Accuracy: Stepless speed regulation and programmable speed control allow for perfect material flow during forming.
- Dual Roller Efficiency: Equipped with 2 tool positions to shorten processing time and balance radial force.
- Automation Ready: The programmable control system supports manual adjustment, semi-automatic, and fully automatic operation modes.
- Safety & Monitoring: Equipped with a fault alarm function to protect the workpiece and tooling.
Applications

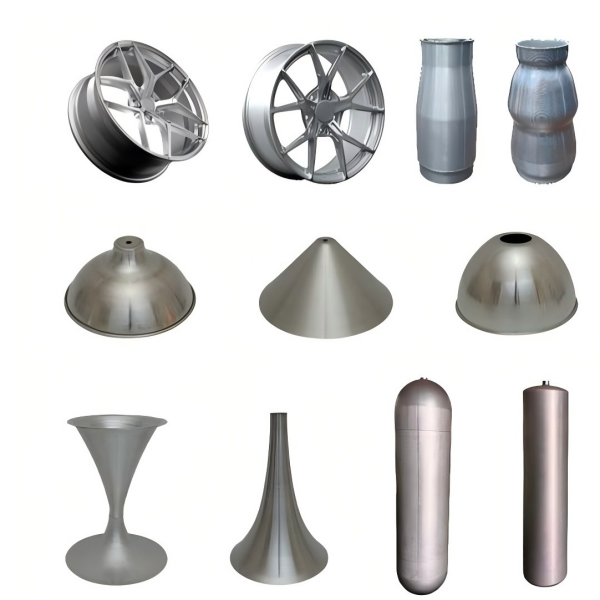

Specifically optimized for the wheel manufacturing industry. Suitable for the spinning forming requirements of both forged aluminum alloy hubs and cast aluminum alloy hubs.
Included Core Component: Ejector installed inside the spindle for easy workpiece removal.
Frequently Asked Questions (FAQ)
What types of wheel hubs can this spinning machine process?
This machine is specifically optimized for the wheel manufacturing industry and meets the spinning requirements for both forged aluminum alloy hubs and cast aluminum alloy hubs.
What is the range of wheel diameters and material thicknesses supported?
The system is compatible with wheel diameters ranging from 14 to 26 inches and can handle aluminum material thicknesses from 1 mm up to 32 mm.
How powerful is the spindle and what is the maximum speed?
The machine features a high-power 160 kW spindle unit driven by a servo motor and timing belt, supporting stepless speed regulation up to 800 rpm.
What modes of operation does the control system support?
It is equipped with a programmable CNC control system that supports manual adjustment, semi-automatic, and fully automatic operation modes.
What safety and built-in features are included for workpiece removal?
The machine includes an integrated fault alarm function for safety monitoring and features a built-in ejector installed inside the spindle to facilitate easy workpiece removal.
