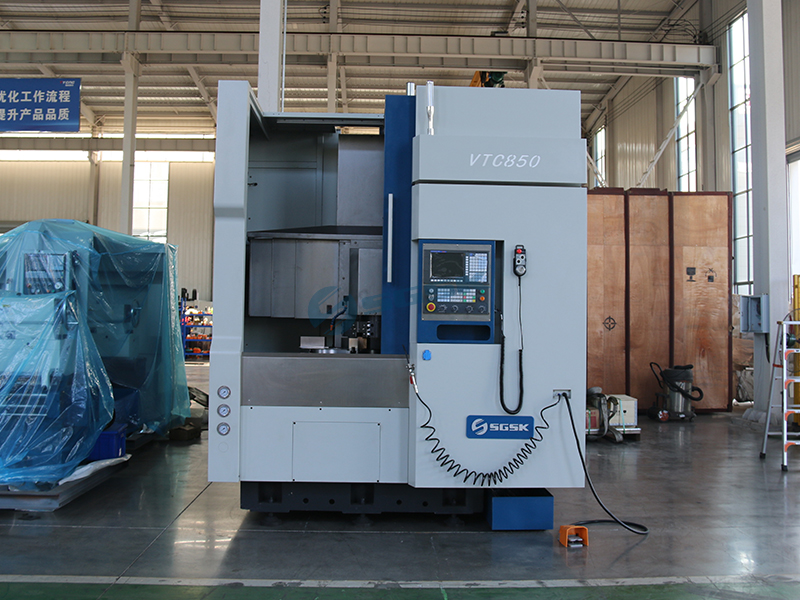

| SPECIFICATIONS | Units | VTC750 | VTC850 | VTC1000 |
| Max. Swing diameter | mm | 750 | 850 | 1000 |
| Max. Turning diameter | mm | 650 | 750 | 850 |
| Spindle nose type | A2-11 | A2-11 | A2-11 | |

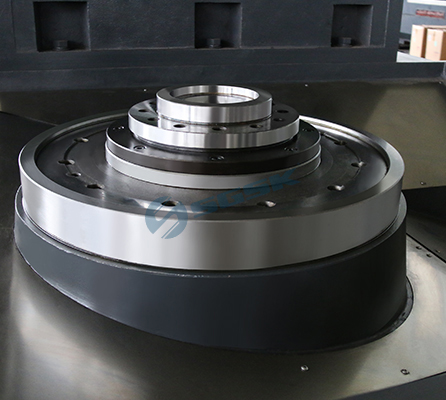

| Diameter of spindle bearing | mm | 180 | 180 | 180 |
| Spindle speed range | rpm | 50-1000 | 30-800 | 30-800 |
| Spindle output torque | nm | 715 | 890 | 890 |

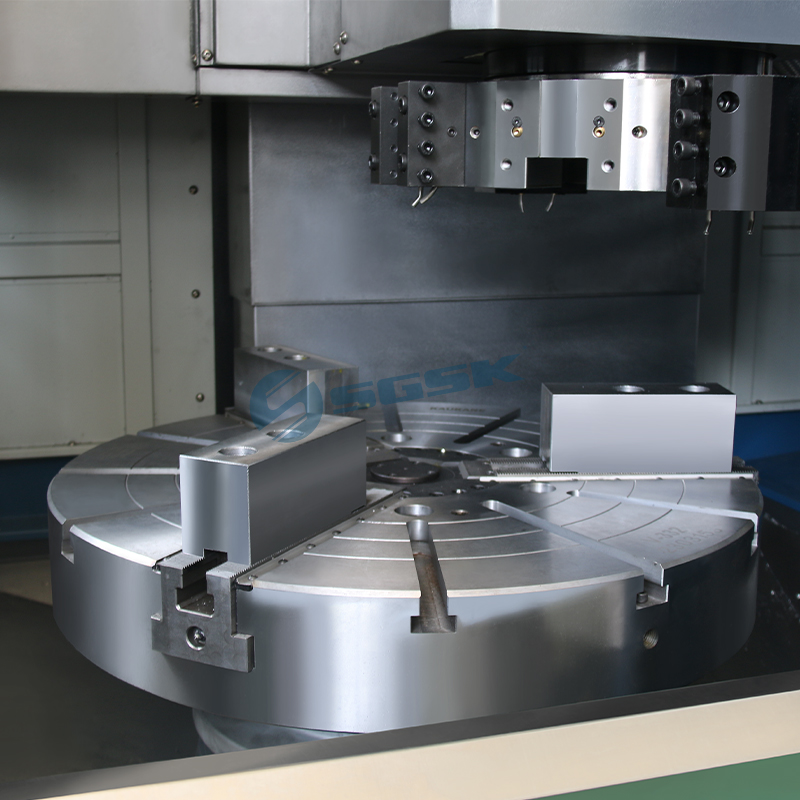

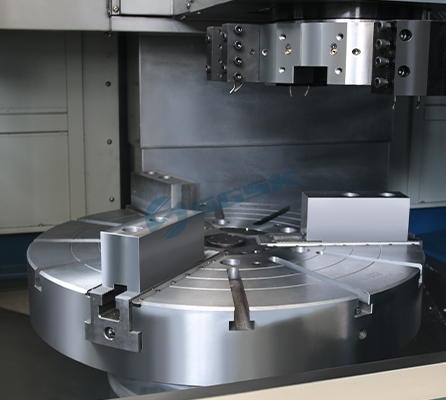

| Chuck diameter | inch | 21" HYD | 24" HYD | 32" HYD |

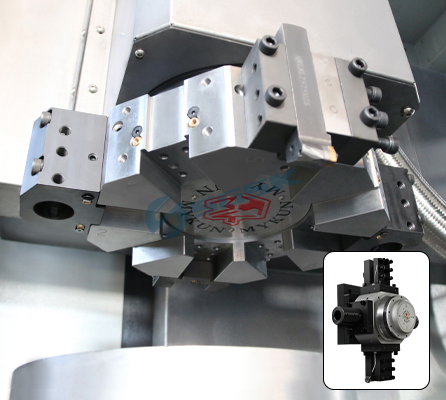

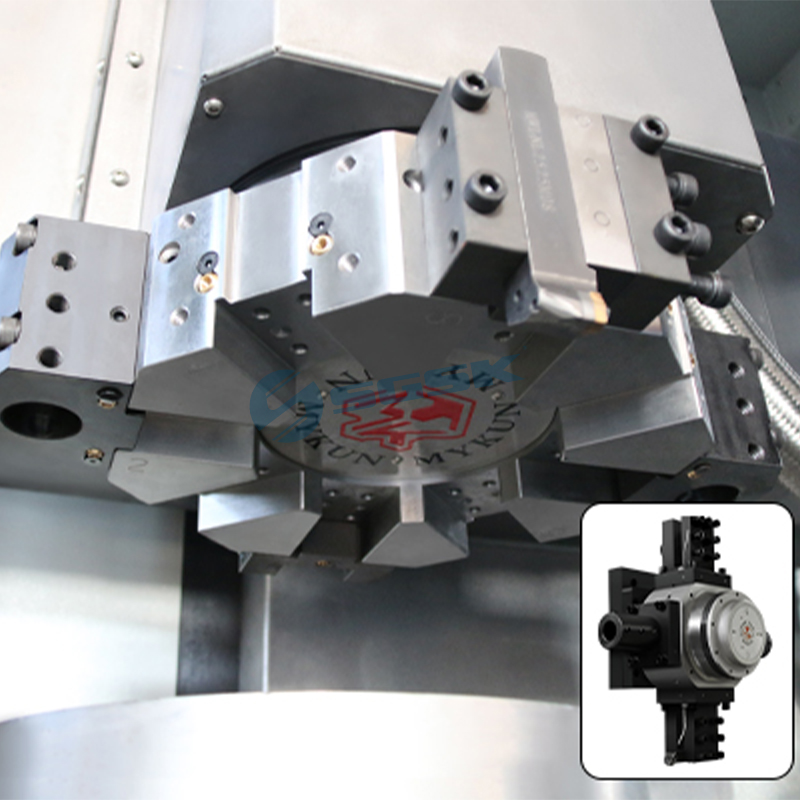

| Turret type | Hor.8 position / Ver.4 position | |||
| Turret spec. | 125 | 125 | 125 | |
| Tool size | mm | □32 / Φ50 | □32 / Φ50 | □32 / Φ50 |
| Turret travel X axis | mm | -425 | -500 | -600 |
| Turret travel Z axis | mm | 700 | 800 | 800 |
| Distance from Bottom of turret to up of chuck | mm | 0-700 | 0-800 | 0-800 |

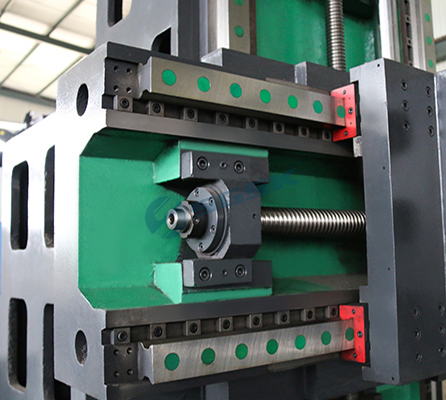

| X/Z linear rails | 55 Roller | 55 Roller | 55 Roller | |
| Diameter of X/Z screw | mm | Φ50 / Φ40 | Φ50 / Φ40 | Φ50 / Φ40 |
| X-axis rapid traverse | m/min | 15 | 15 | 15 |
| Z-axis rapid traverse | m/min | 12 | 12 | 12 |
| Cutting feeding | m/min | 0.1-5000 | 0.1-5000 | 0.1-5000 |
| X axis motor power/torque | Kw/nm | 2.4 / 15 | 2.8 / 18 | 3.5 / 22 |
| Z axis motor power/torque | Kw/nm | 2.8 / 18 | 3.5 / 22 | 3.5 / 22 |
| Main motor power/torque | Kw/nm | 22/30 - 286 | 30/37 - 356 | 30/37 - 356 |
| Overall size (L*W*H) | m | 2.3 * 2 * 3 | 2.5 * 2.25 * 3.15 | 2.6 * 2.35 * 3.15 |
| Machine weight | kg | 7200 | 9500 | 10500 |
