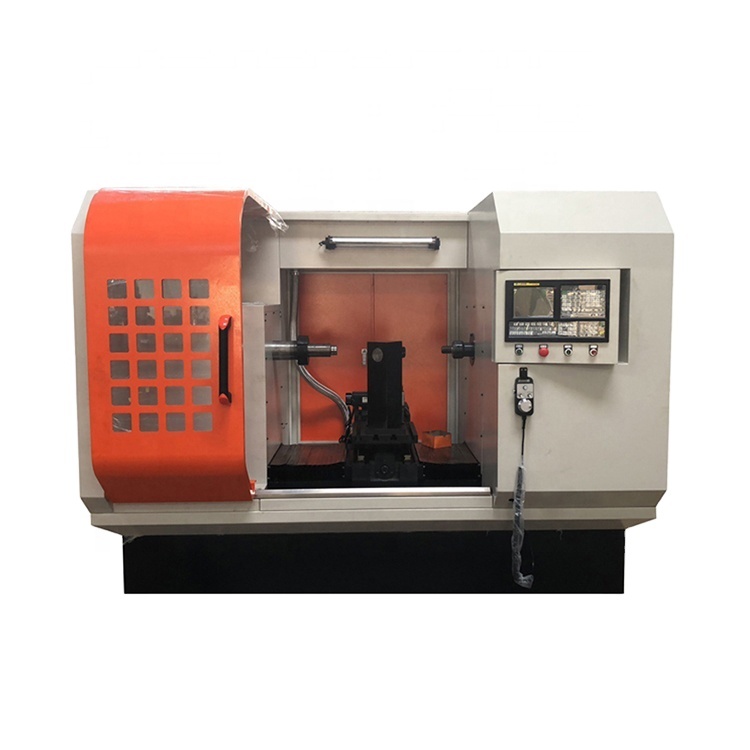

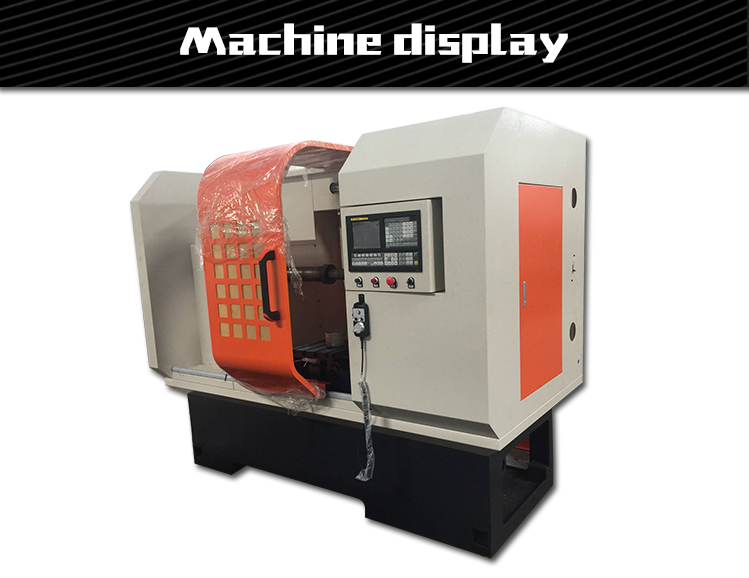

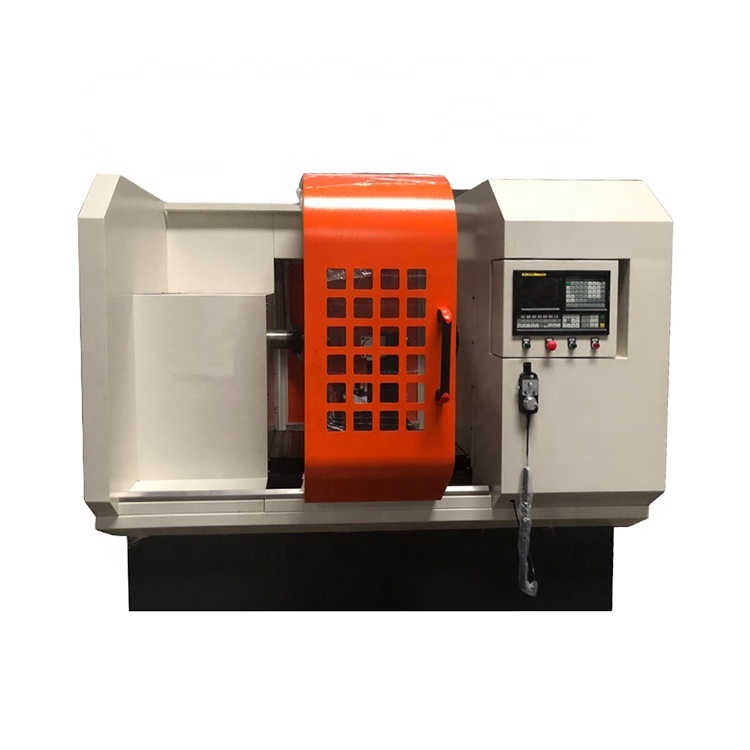

ZRF Spinning
1 / 5
| Items | Specification |
|---|---|

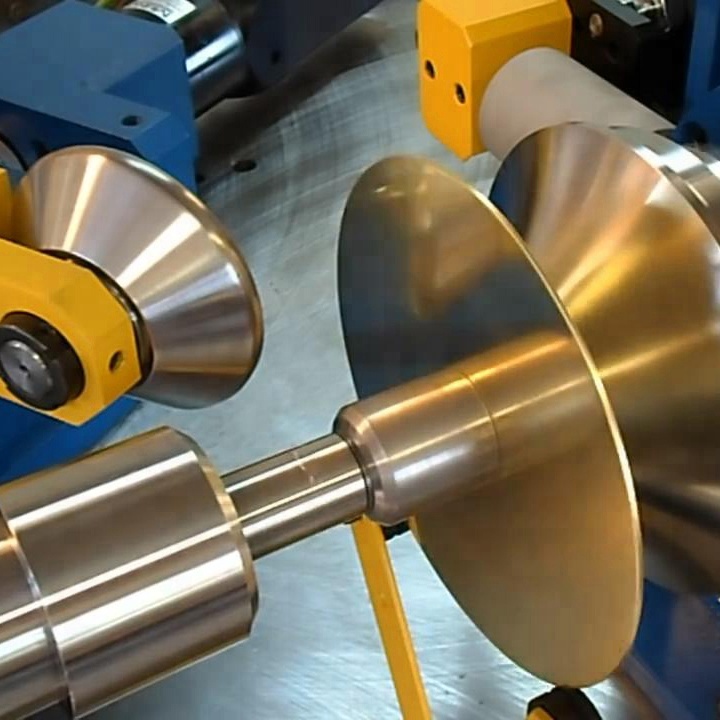

| Number of spinning roller | Synchronous roller 4+ swiveling roller 1 |
| Max diameter of workpiece | 1000mm |
| The maximum rotary diameter over the plate. | 700mm |
| Max length of workpiece | 450mm |
| Thickness of workpiece | 0.5mm-2.0mm(Aluminum, copper), 0.5-2.5mm(Iron), 0.3-1.0mm(stainless steel) |
| Stroke of X/Z axis | 500mm/500mm |
| Z axis thrust | 30kn |
| The tailstock thrust | 20kn |
| Guide rail | Liner guide rail |
| Width of lathe bed | 900mm |
| X/Z axis fast speed | 10/15m/min |
| Positioning accuracy | 0.01mm |
| Repositioning Accuracy | 0.005mm |
| Model of spindle nose | M42*4 |
| Spindle bore | 10mm (blow ) |
| Spindle speed | 3000rpm |
| Stroke of tailstock | 300mm |
| Tail sleeve movement. | 200mm |
| Diameter of tailstock sleeve | 70mm |
| Main motor power | 5.5kw |
| Machining accuracy | 1t6 |
| Surface roughness | Ra1.25 |

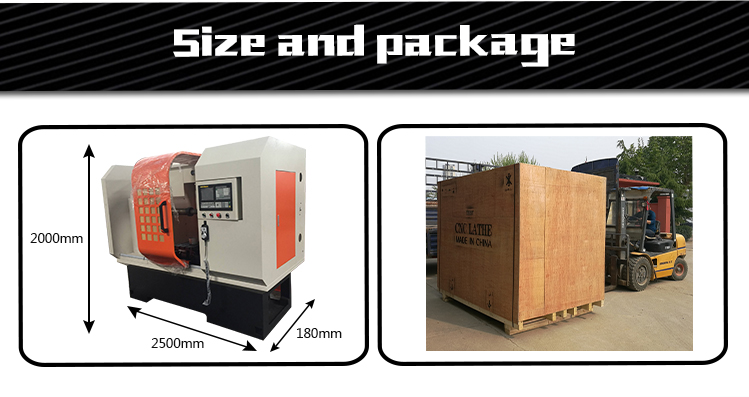

| Size(length×width×height)(mm) | 2500*1500*2000 |
| Net weight(Kg) | 3000 |
| Controller | KEYUAN from Guangzhou |
