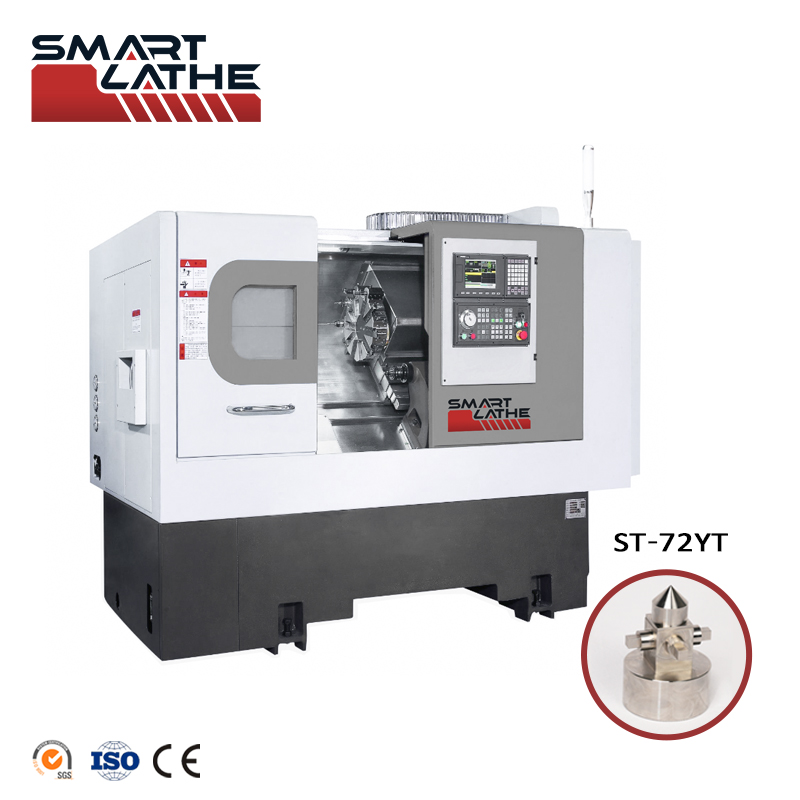

Heavy-duty CNC Lathe With Sub-Spindle And Tailstock For Metalworking

1 / 5

Heavy-duty CNC Lathe With Sub-Spindle And Tailstock For Metalworking

Send Inquiry

Product Description

Product Description

Features

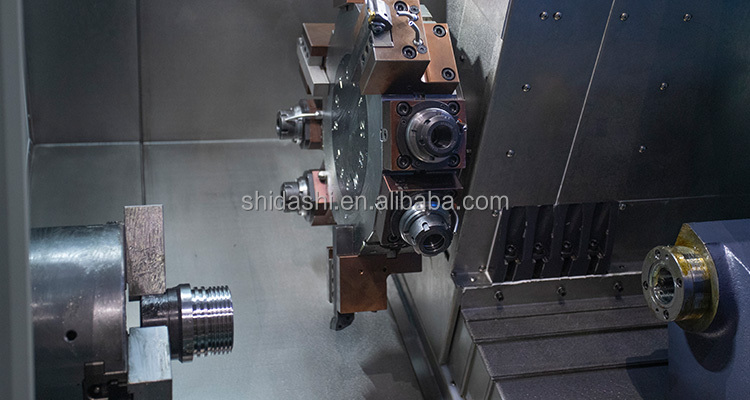

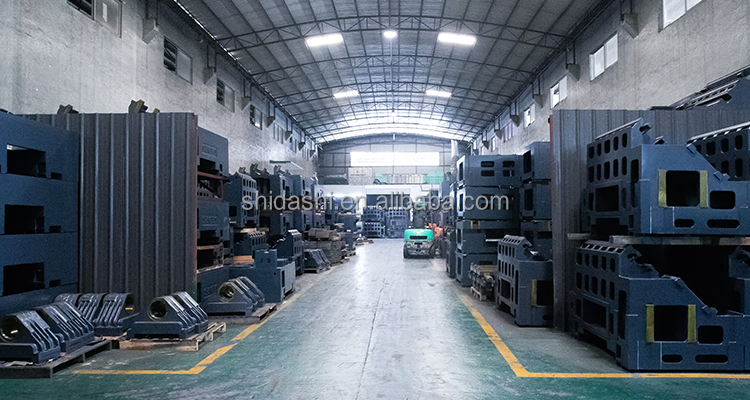

One-piece cast iron foundation is a true 30-degree slant bed casting, providing large mass in a small footprint. More mass means higher rigidity and better heat dissipation.

The patented slant bed design increases the X-axis travel to 200mm, Y-axis travel to 45mm and Z-axis to 550mm reducing the lathe size and stability.

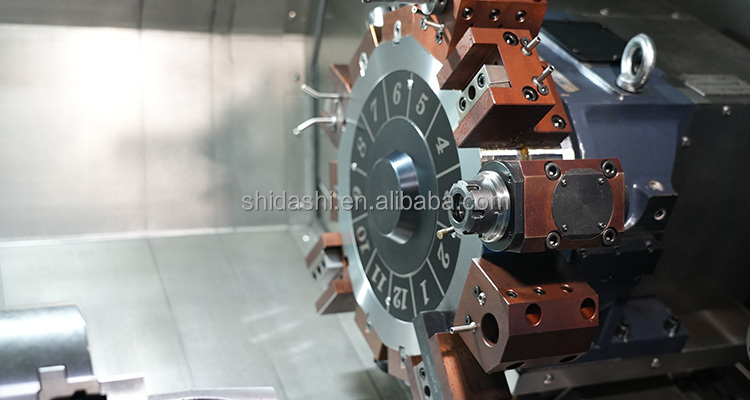

Equipped with a BMT55 12-station power turret, a power milling head can be installed at the upper or bottom position of the Y-axis (turret), high rigidity cutting, suitable for long-axis turning, milling, Processing of complex multi-process products such as drilling and tapping.

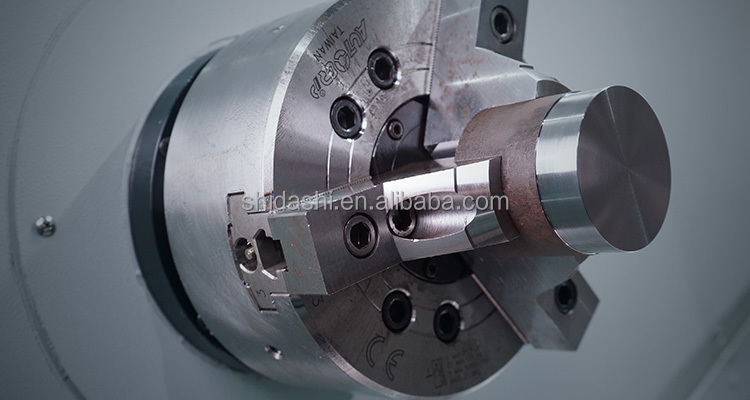

The main spindle is with C-axis Simultaneous machining function, high speed, high precision, and low vibration which can make the workpiece precise. Each spindle bearing assembly was tested for dynamic balance before installation to ensure high-speed running stability.

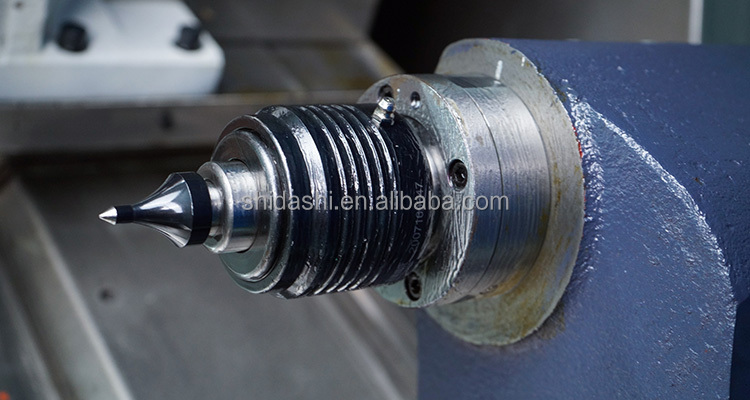

MT5 Hydraulic Tailstock, automatically detects pressure and locks, providing better conditions for processing slender parts.

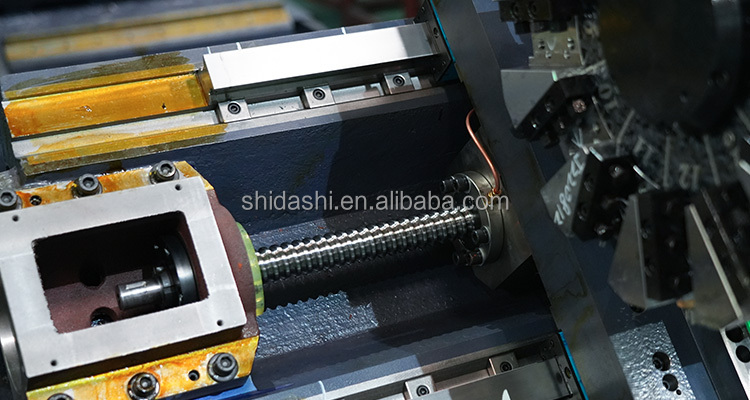

Equips with Taiwan 32mm ball screw rod rail and 35mm linear guideway to provide precision and low vibration tool carriage movement.

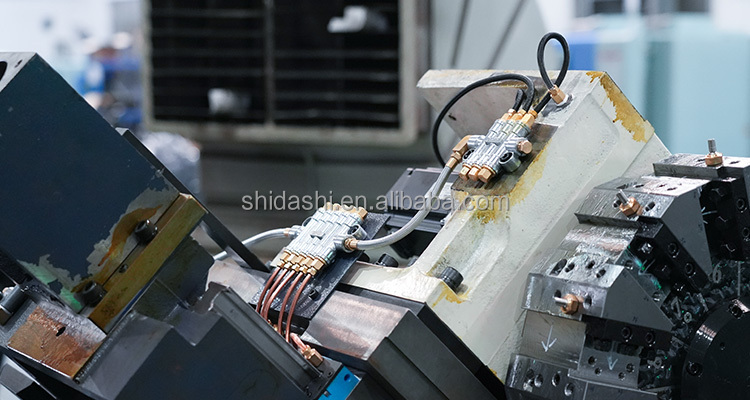

Equips with auto lubrication system to ensure transmission system smoothly and long-lived.

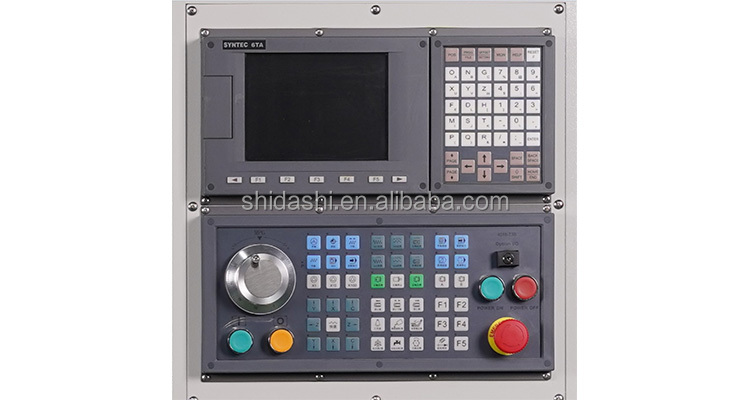

SYNTEC CNC system co-works with quality electrical parts providing a rapid-operation and durable use.

Standard Configuration

Fully enclosed splash guard with top roof	11KW spindle servo motor	Telescopic guards for X/Z axes
Spindle speed 3000 rpm, A2-8	Automatic lubrication system	Coolant system & Coolant tank
Hydraulic Chuck (10 inch)	Hydraulic system	MT5 tailstock
Simultaneous machining C axis(±0.01°)	LED working lamp	Electronic handwheel (MPG)
CNC Simulation	Toolbox and user manuals	Power turret

Optional Accessories

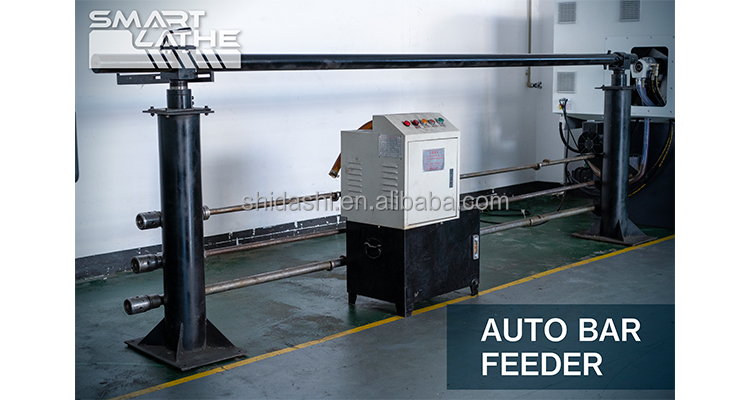

Oil Bar Feeder

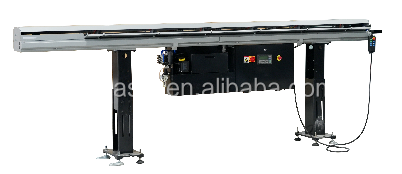

Servo Bar Feeder

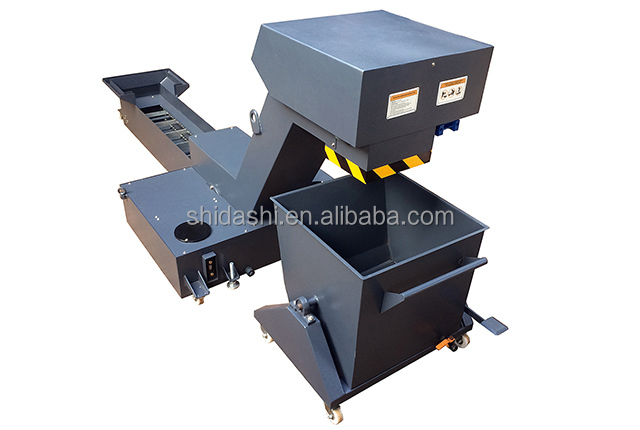

Chain Chip Conveyor

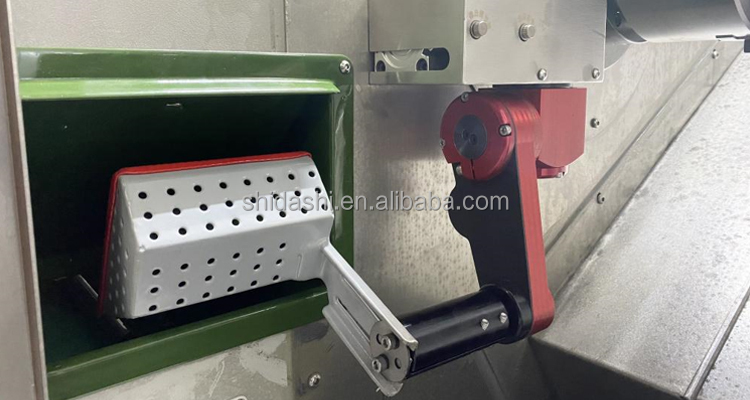

Part Catcher

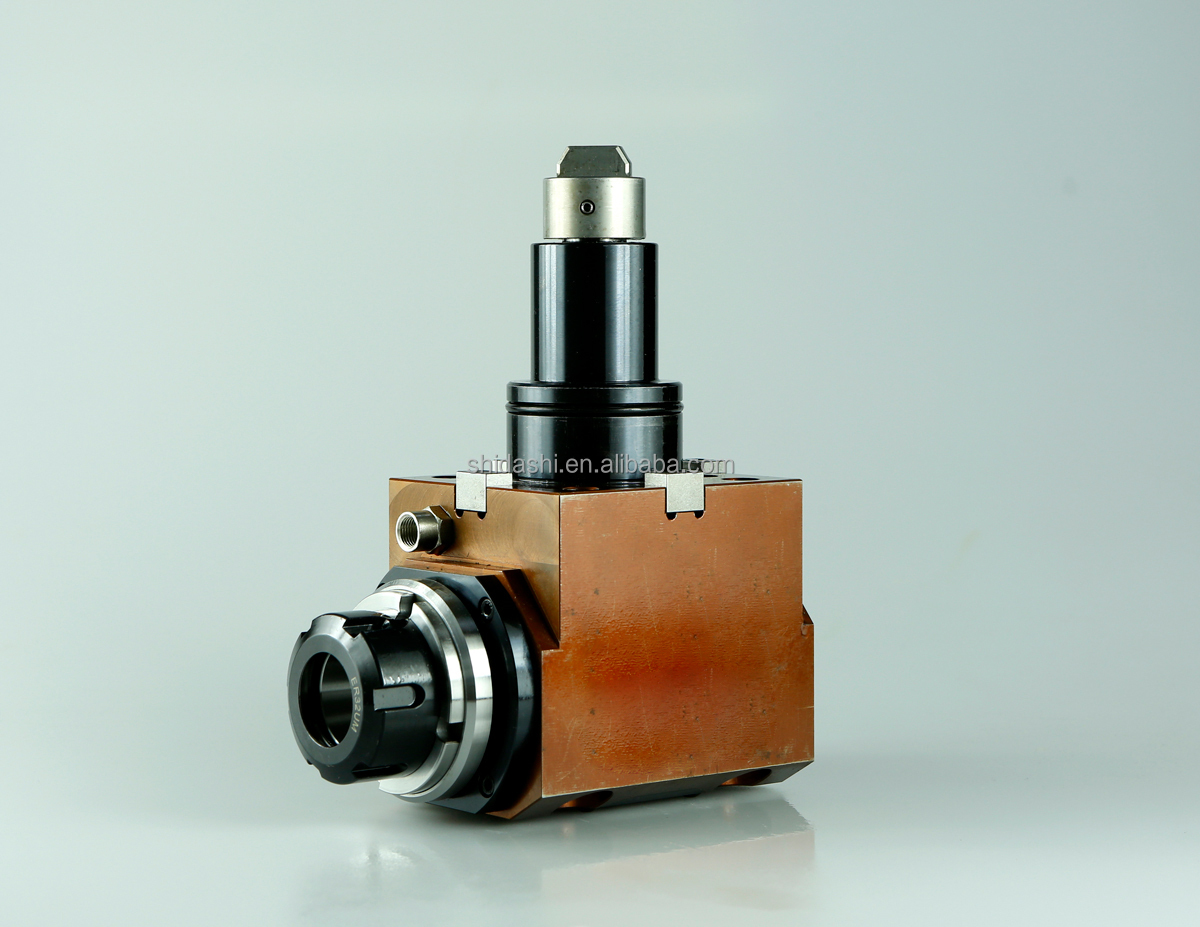

Face Milling Tool Holder

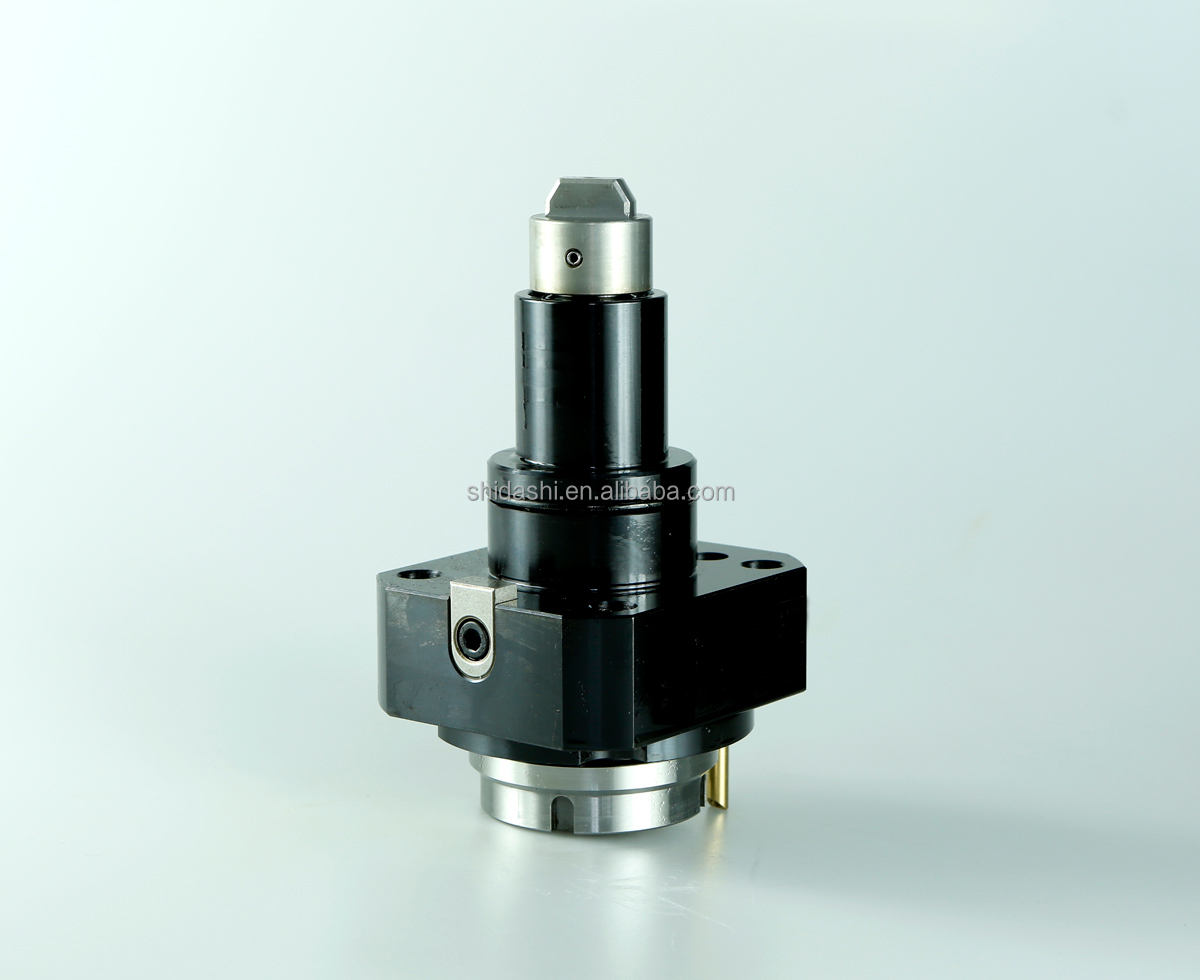

Side Milling Tool Holder

Oil Mist Collector

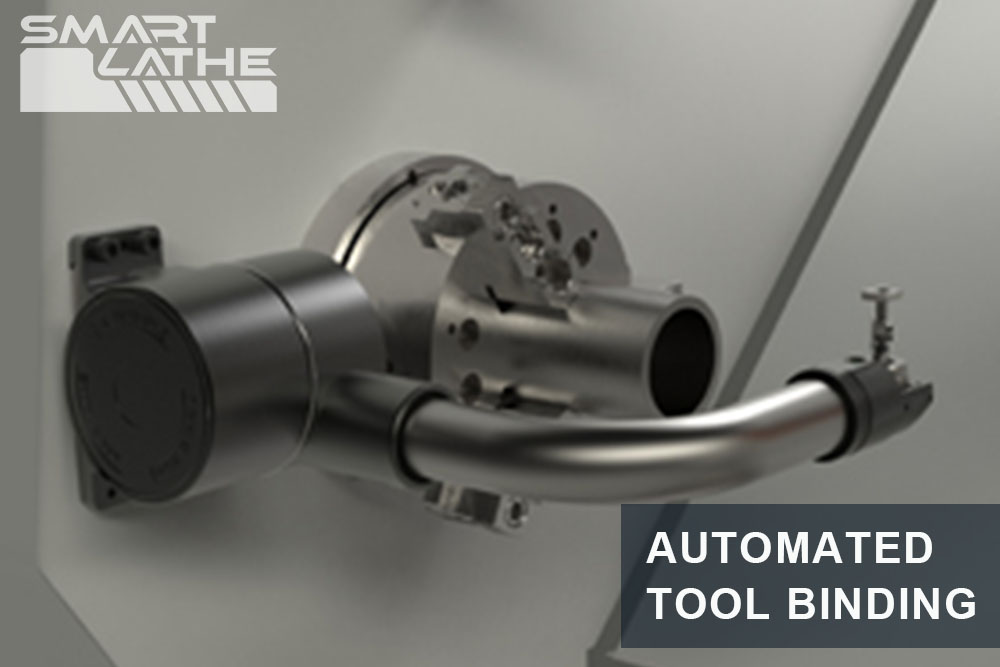

Automated Tool Setting

Applications

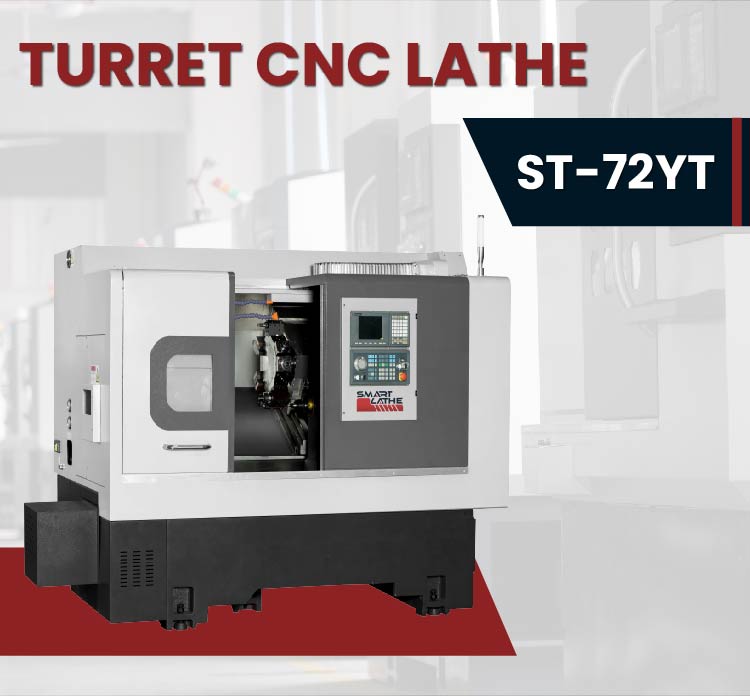

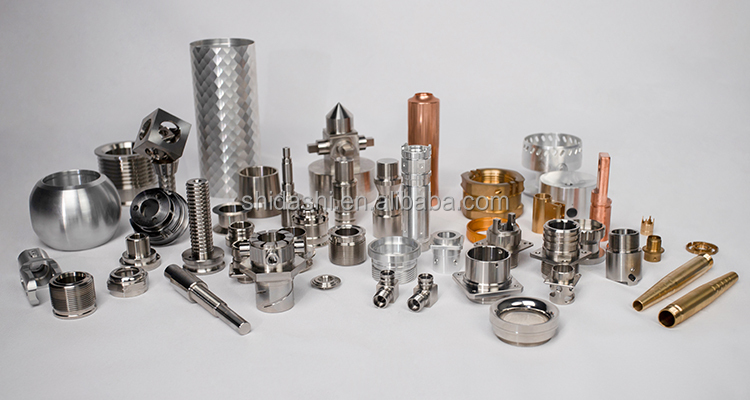

Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to Φ71 mm or single workpieces up to Φ300mm. High Rigidity casting iron body provides the possibility of higher hardness materials and better smoothness (smaller roughness). ST-72YT is equipped with a CNC program-controlled hydraulic tailstock, a 12-station power turret, a power milling head that can be installed at the upper or bottom position of the Y-axis (turret), high rigidity cutting, suitable for long-axis turning, milling, Processing of complex multi-process products such as drilling and tapping.

Demo Services

After-sales Services

FAQ

1: How can I choose machines?

For the model selection, please send us the drawing of the turning part and our engineer will evaluate it and provide the suitable configuration of the CNC lathe fit for your needs.

2: What's the main products of your company?

We concentrate resources to successfully develop the CNC slant bed lathes series and the CNC Turning-Milling machines to help our customers in the field of prototyping, entry-level business, and the craftsman with a bootstrap budget.

3: Where is your factory located?

Our factory is located in China. You are warmly welcome to visit our factory.

4: What are the Trade & Payment Terms?

FOB, CFR, and CIF are all acceptable. T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight.

5: What's the MOQ?

1 set. We will offer you a better price if you order more.

6: What is the warranty period?

The warranty period is generally 13 months after B/L date.
