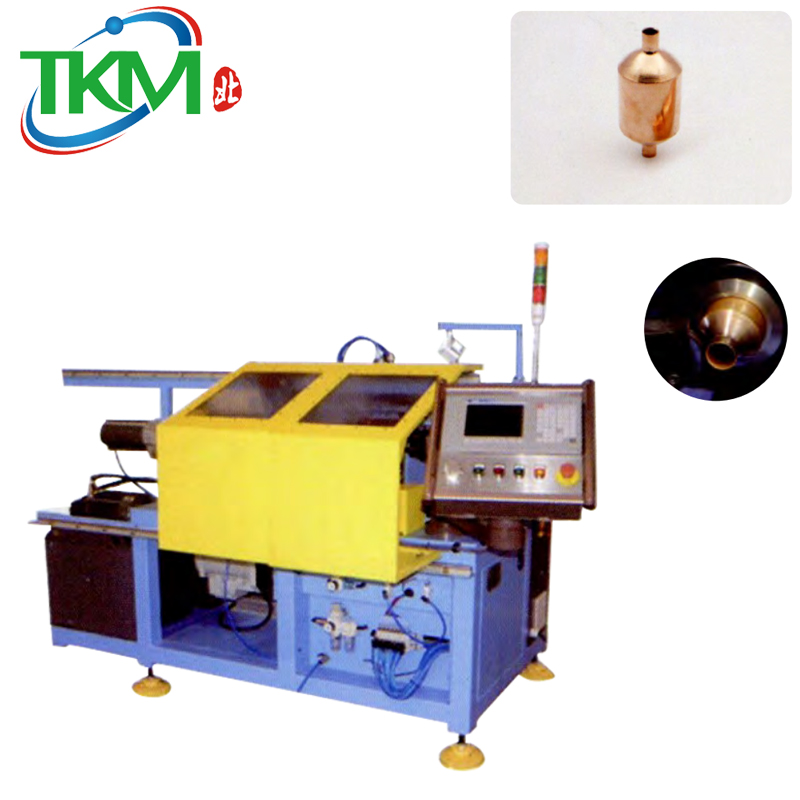

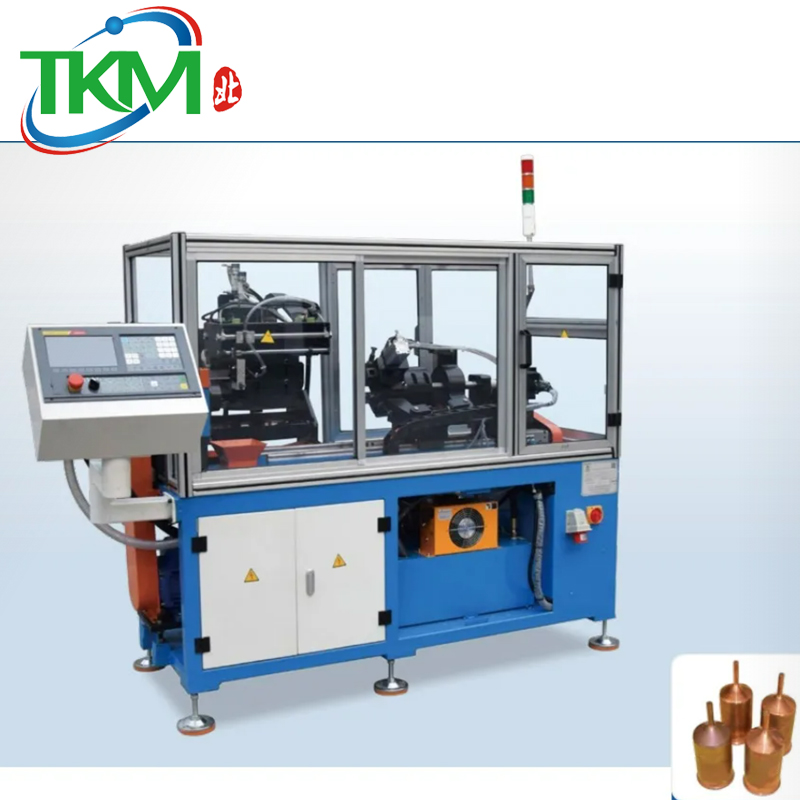

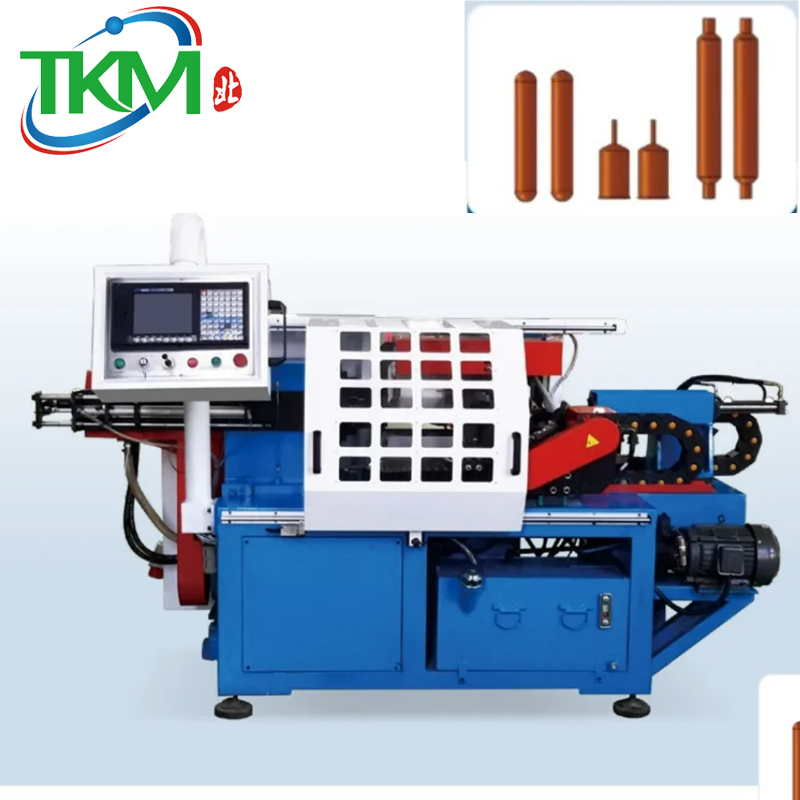

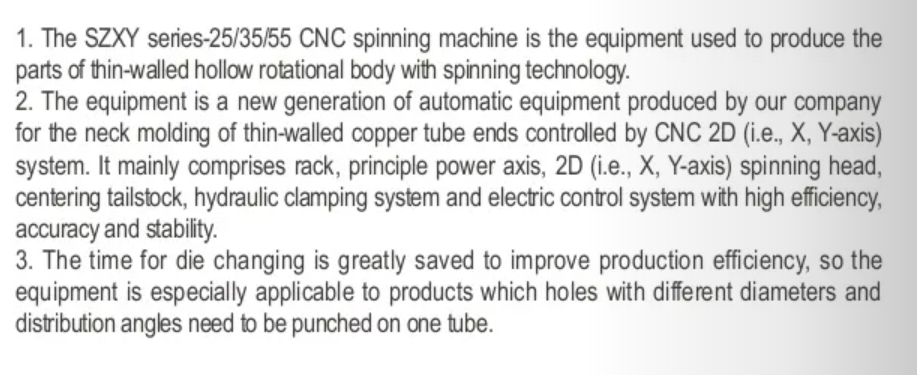

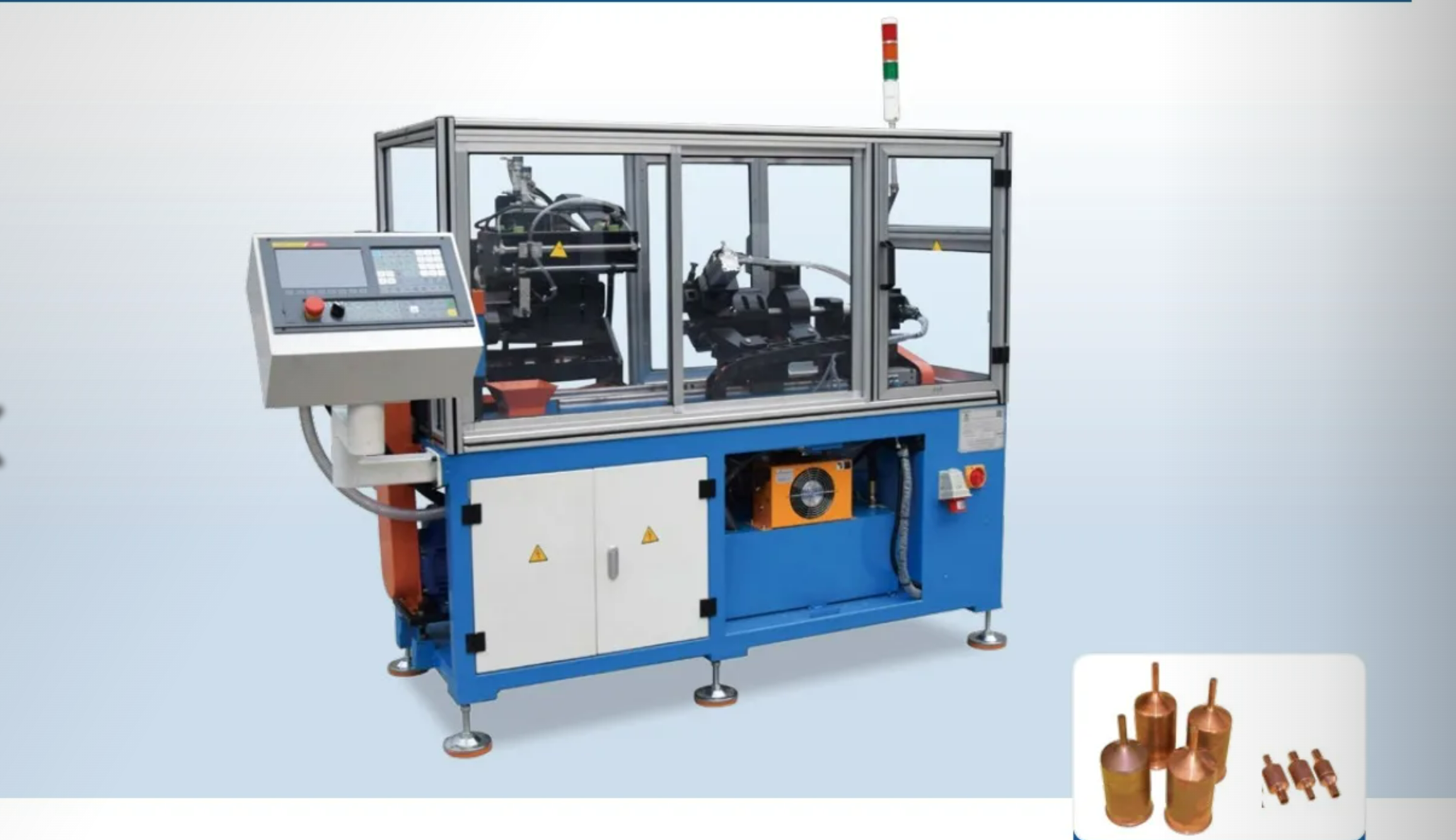

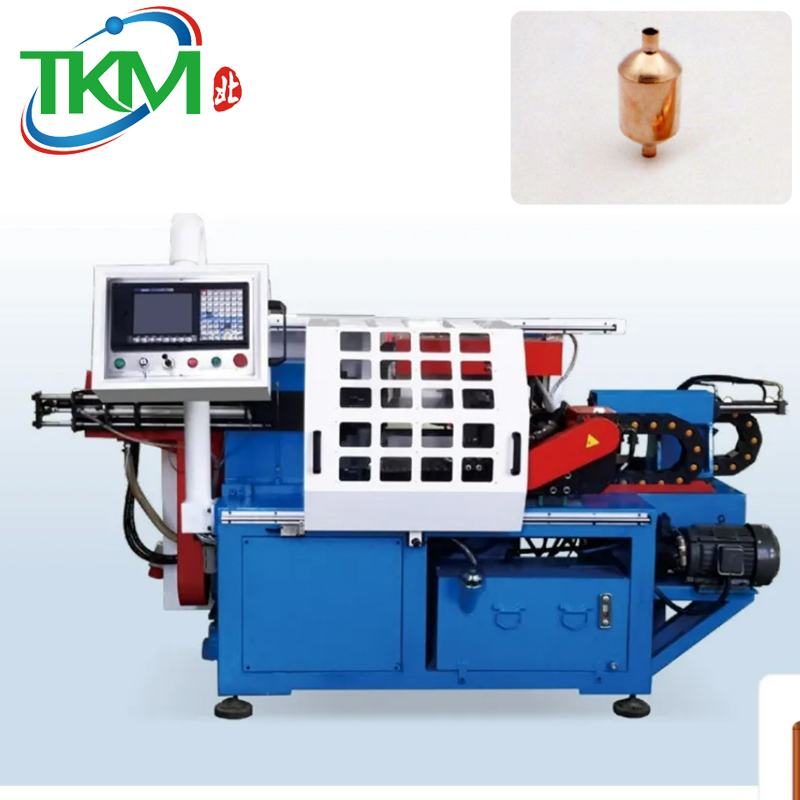

The SZXY series-25/35/55 CNC spinning machine is the equipment used to produce the parts of thin-walled hollow rotational body with spinning technology.
The equipment is a new generation of automatic equipment designed for the neck molding of thin-walled copper tube ends controlled by CNC 2D (i.e., X, Y-axis) system. It mainly comprises rack, principle power axis, 2D (i.e., X, Y-axis) spinning head centering tailstock, hydraulic clamping system and electric control system with high efficiency, accuracy and stability.
The time for die changing is greatly saved to improve production efficiency, so the equipment is especially applicable to products which holes with different diameters and distribution angles need to be punched on one tube.
A1: It is specifically designed to produce thin-walled hollow rotational body parts using advanced spinning technology, particularly optimized for the neck molding of thin-walled copper tube ends.
A2: The CNC 2D (X, Y-axis) system controls the spinning head, ensuring highly efficient, precise, and stable operations compared to conventional manual or semi-automatic methods.
A3: Yes. The system significantly minimizes the time required for die changing, making it highly suitable for manufacturing parts that require holes with different diameters and varying distribution angles on one single tube.
A4: The machine mainly comprises a rigid rack, principle power axis, a 2D spinning head centering tailstock, a robust hydraulic clamping system, and an integrated electrical control system.
A5: The series includes the SZXY-25, SZXY-35, and SZXY-55 models, catering to different specifications and production capacities for hollow rotational body parts.
A6: While highly optimized for thin-walled copper tubes, it is also highly compatible with other ductile thin-walled metal rotational bodies suitable for CNC spinning and neck molding processes.
