KD-616 6-MOLD 6-PUNCH High Speed Precision Cold Heading Forming Machine Max Cut Dia.26mm Cut Length 240mm
KD-616 6-MOLD 6-PUNCH High Speed Precision Cold Heading Forming Machine Max Cut Dia.26mm Cut Length 240mm
KD-616 6-MOLD 6-PUNCH High Speed Precision Cold Heading Forming Machine Max Cut Dia.26mm Cut Length 240mm
KD-616 6-MOLD 6-PUNCH High Speed Precision Cold Heading Forming Machine Max Cut Dia.26mm Cut Length 240mm
KD-616 6-MOLD 6-PUNCH High Speed Precision Cold Heading Forming Machine Max Cut Dia.26mm Cut Length 240mm
1 / 5
KD-616 6-MOLD 6-PUNCH High Speed Precision Cold Heading Forming Machine Max Cut Dia.26mm Cut Length 240mm
KD-616 6-MOLD 6-PUNCH High Speed Precision Cold Heading Forming Machine Max Cut Dia.26mm Cut Length 240mm
KD-616 6-MOLD 6-PUNCH High Speed Precision Cold Heading Forming Machine Max Cut Dia.26mm Cut Length 240mm
KD-616 6-MOLD 6-PUNCH High Speed Precision Cold Heading Forming Machine Max Cut Dia.26mm Cut Length 240mm
KD-616 6-MOLD 6-PUNCH High Speed Precision Cold Heading Forming Machine Max Cut Dia.26mm Cut Length 240mm

KD-616 6-MOLD 6-PUNCH High Speed Precision Cold Heading Forming Machine Max Cut Dia.26mm Cut Length 240mm

Send Inquiry

Product Description

Technical Specifications
Model Unit KD-613L KD-616 KD-620 KD-625
Forging station No. 6 6 6 6
Forging force Kgf 160000 280000 410000 600000
Max.cut-off dia mm 18 26 32 38
Max.cut-off length mm 285 240 260 295
Production speed pcs/min 70 95 80 60
Master die ejection stroke mm 280 220 255 270
Punch die ejection stroke mm 60 60 60 70
Main sliding table stroke mm 380 275 350 365
Overall dims. Of mian die mm 93*294 108*220 125*240 148*250
Overall dims. Of punch die mm 60*232 75*185 90*215 120*270
Overall dims. Of cut of die mm 60*100 84*120 85*120 109*150
Die pitch mm 110 129 140 160
Applicable bolt dia mm 8-16 10-18 12-24 16-32
Shank lenght of blank mm 20-262 20-200 25-240 25-240
Max flange dia mm 32 42 48 56
Main engine motor KW 55 90 115 132
Machine weight Kgs 48000 65000 91000 150000
Machine dimension mm 7500*4500*3000 13600*6300*2900 15200*5750*3250 16500*6800*3300
Product Display

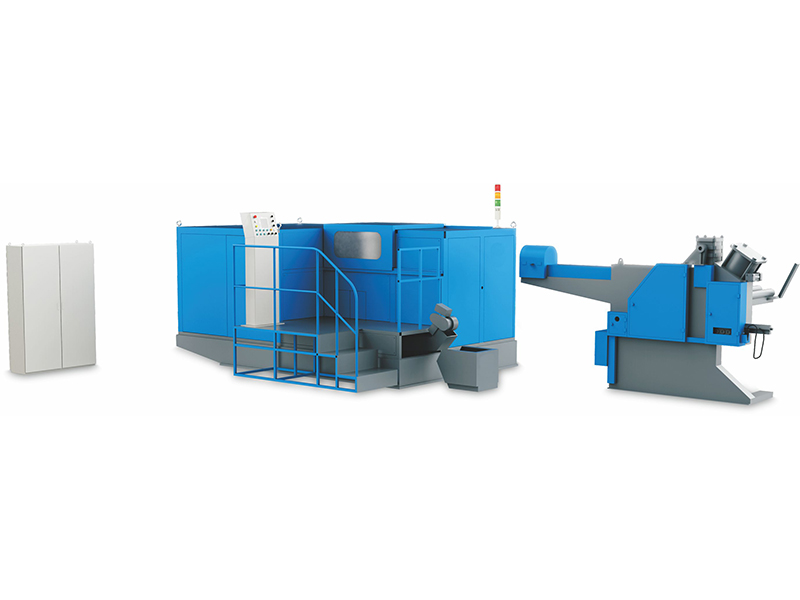

High Speed Precision Cold Heading Forming Machine
Cold Heading Forming Machine Details

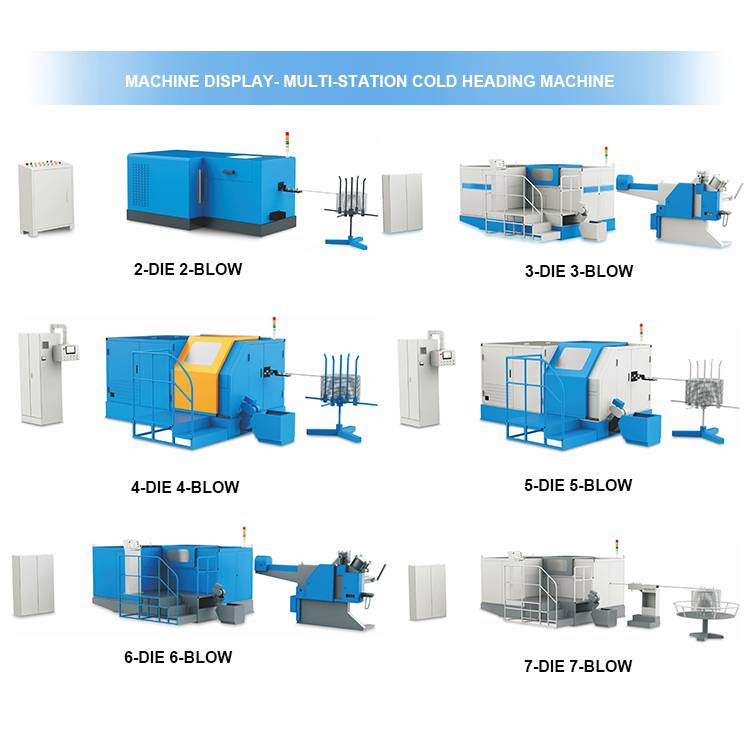

6-Mold 6-Punch Forming Process
Machine Structure
Precision Components
Production Workflow
Internal Mechanism
Operation Panel
Cooling System
Forging Stations Detail
Technical Layout
Frequently Asked Questions
What is a 6-Mold 6-Punch Cold Heading Machine used for?
This machine is designed for high-speed precision manufacturing of complex fasteners, bolts, and specialized metal parts through a multi-station cold forging process, allowing for intricate shapes and high production efficiency.
What is the maximum production speed of these machines?
The production speed varies by model. For instance, the KD-616 can reach a maximum speed of 95 pieces per minute, while the larger KD-625 operates at 60 pieces per minute to handle heavier forging requirements.
What is the maximum diameter and length this series can handle?
The series covers a wide range of specifications. The KD-625 model can handle a maximum cut-off diameter of 38mm and a maximum cut-off length of 295mm, making it suitable for large-scale fastener production.
How does the 6-station forging process benefit production?
Multiple stations allow for sequential forming steps (such as upsetting, extrusion, and trimming) in a single cycle. This reduces material waste, improves dimensional accuracy, and enables the creation of more complex geometries compared to machines with fewer stations.
What are the power requirements for the KD series?
Main engine motor power ranges from 55KW for the KD-613L up to 132KW for the KD-625, ensuring sufficient forging force (up to 600,000 Kgf) for high-strength material processing.
Is the machine compatible with different bolt sizes?
Yes, each model is designed for a specific range. For example, the KD-620 is applicable for bolt diameters ranging from 12mm to 24mm, providing flexibility for various manufacturing needs.
