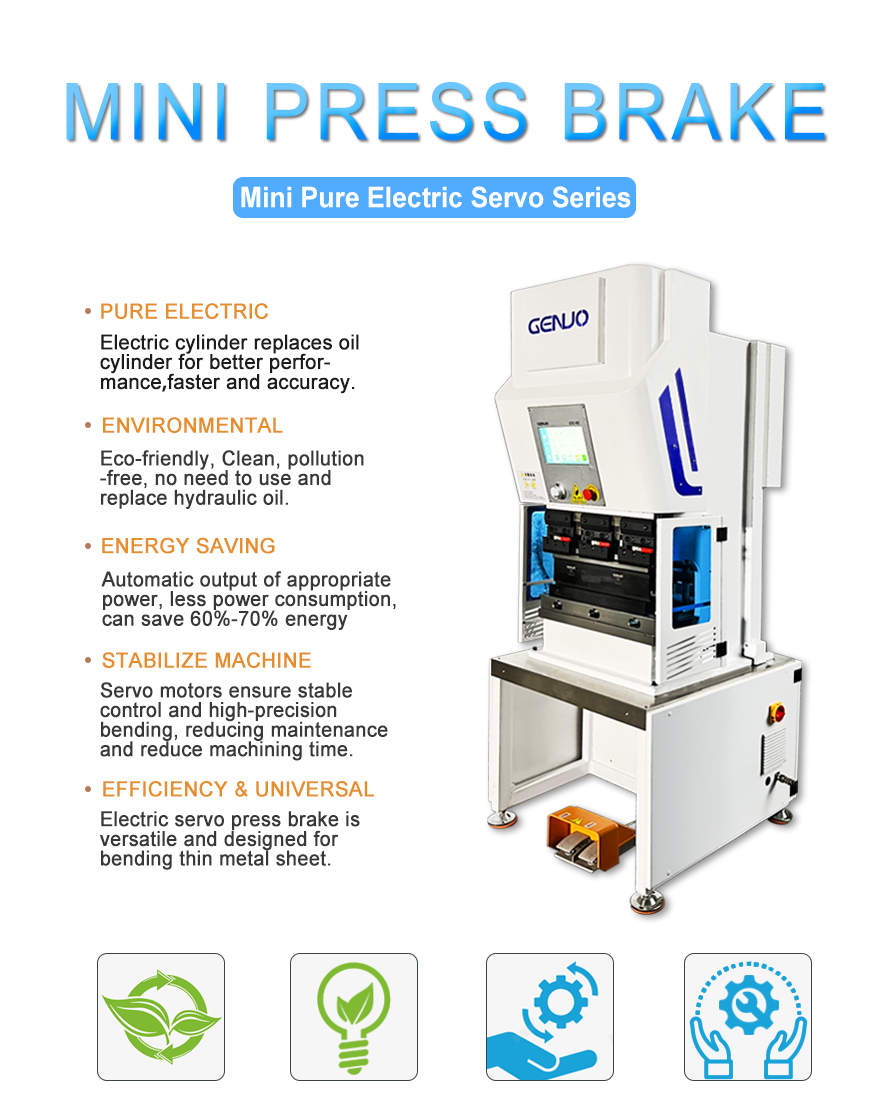

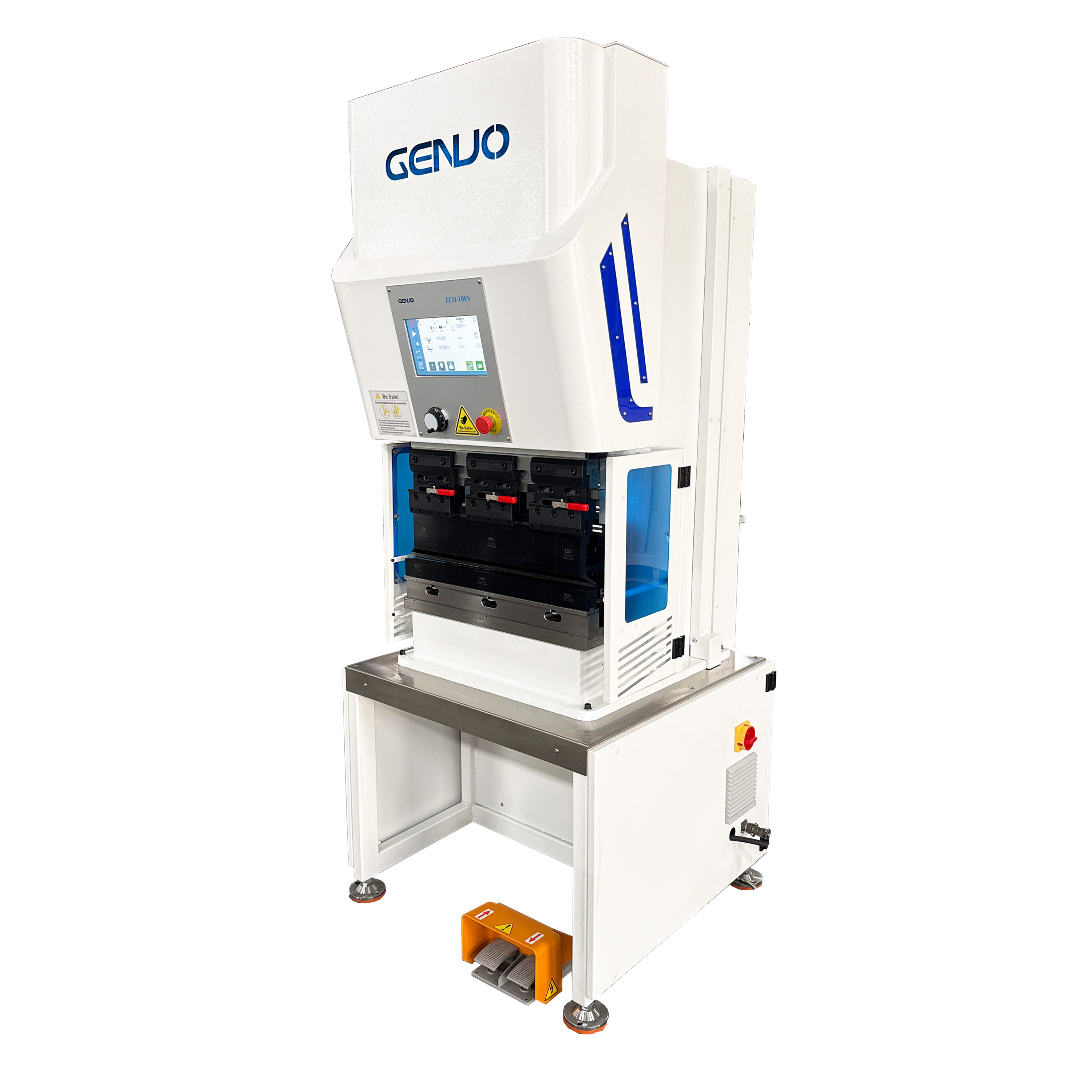

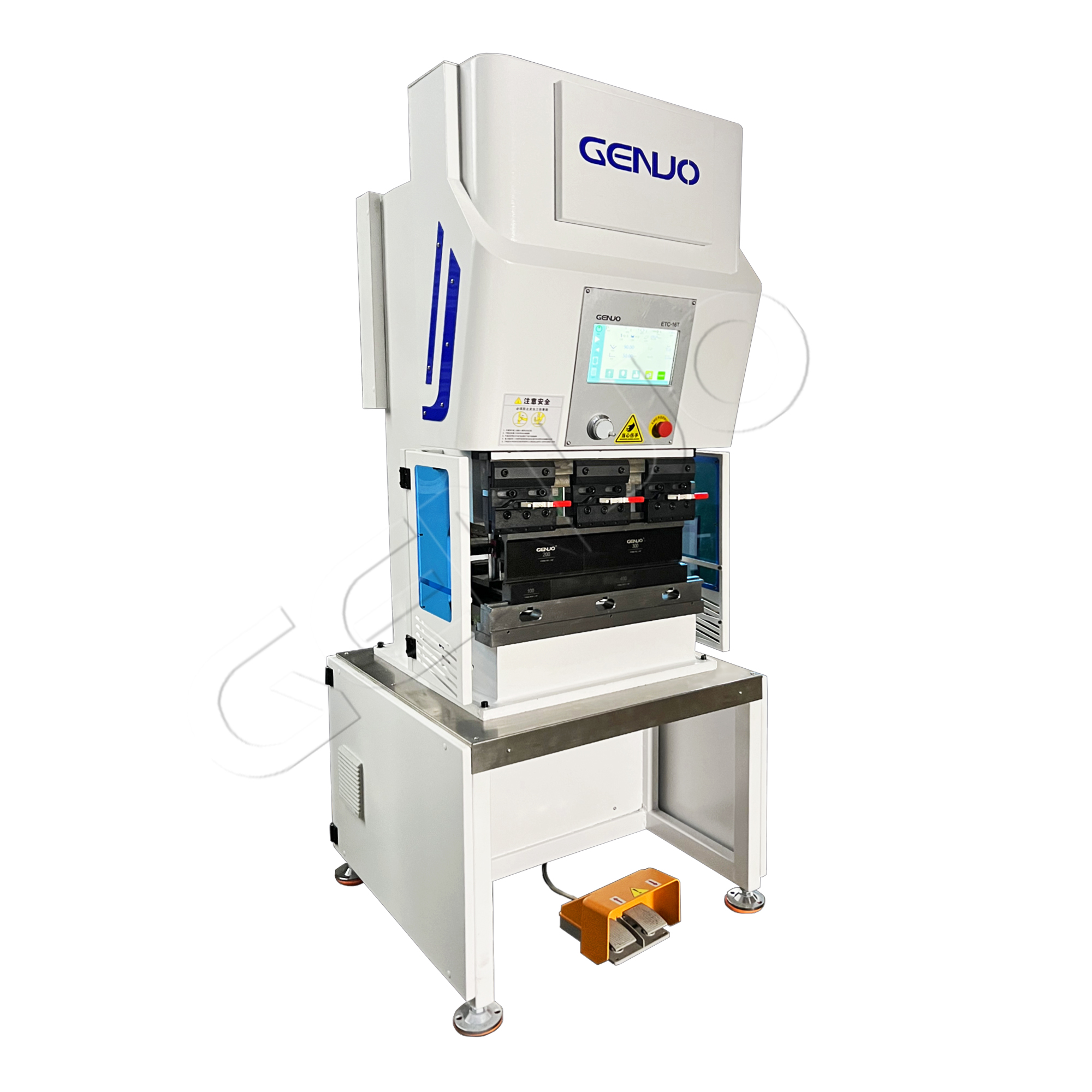

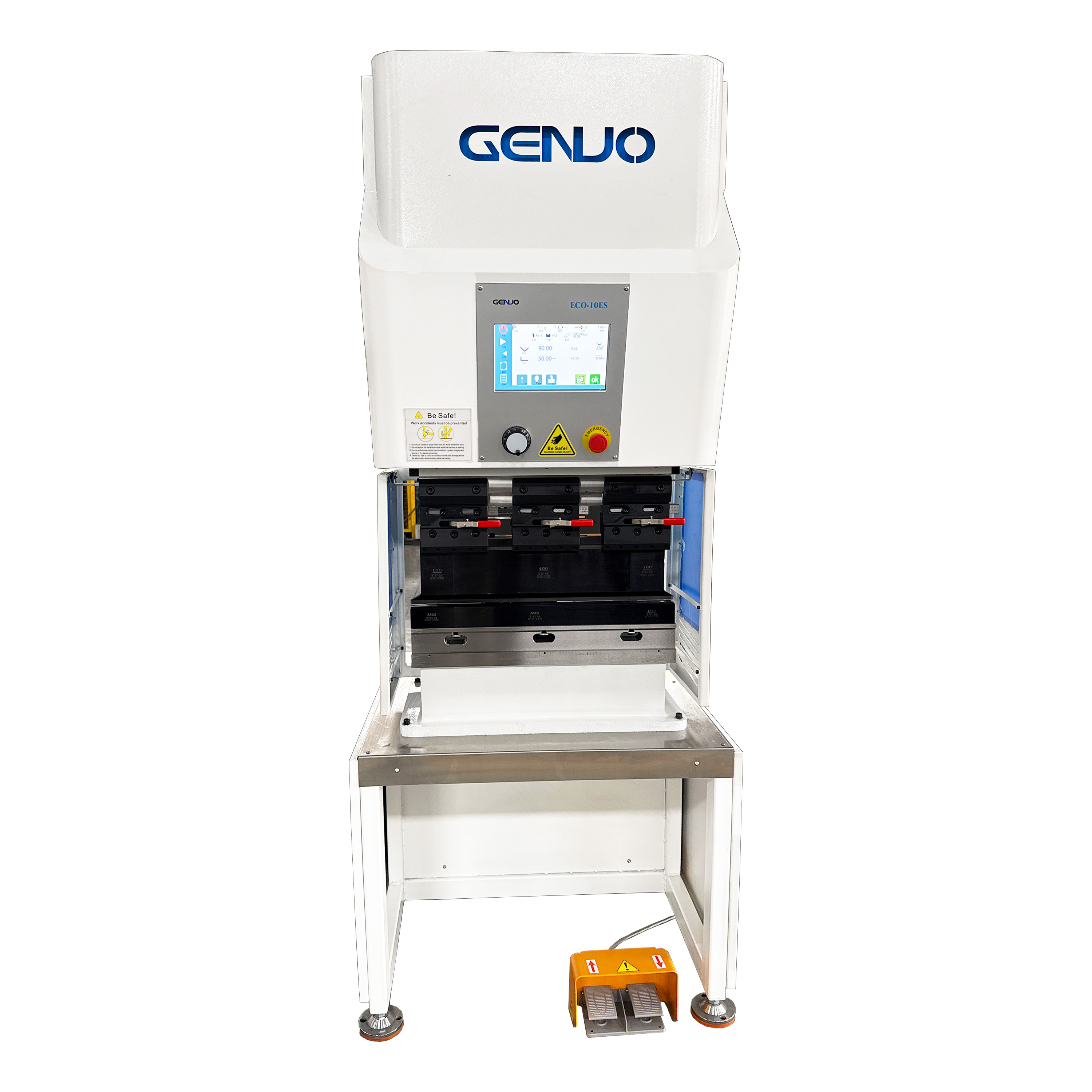

If you have to define mini series pure electric servo CNC Press Brake in three words, it must be innovation, reliability, and productivity. Electric Press brakes will quickly respond to your production requirements and are renowned for their high precision and performance. The newly designed small CNC press brake is simple and easy to use, with both speed and accuracy, and can meet the requirements of both household and commercial use. You can fully master this machine within two hours!
The pure electric mini press brake has several advantages: Firstly, this machine uses Electric cylinder replaces oil cylinder for better performance; Secondly, this machine adopts self-developed CNC controller to create maximum production value with minimal cost; Thirdly, this machine is manufactured as a whole and has a long service life. In addition, all components of this machine use well-known foreign brand accessories; Fourthly, this machine are environmental protection and energy saving.
This is an excellent environmentally friendly bending machine for small workpieces. With this machine, you can easily bend workpieces, very fast and convenient. 3T~20T optional.

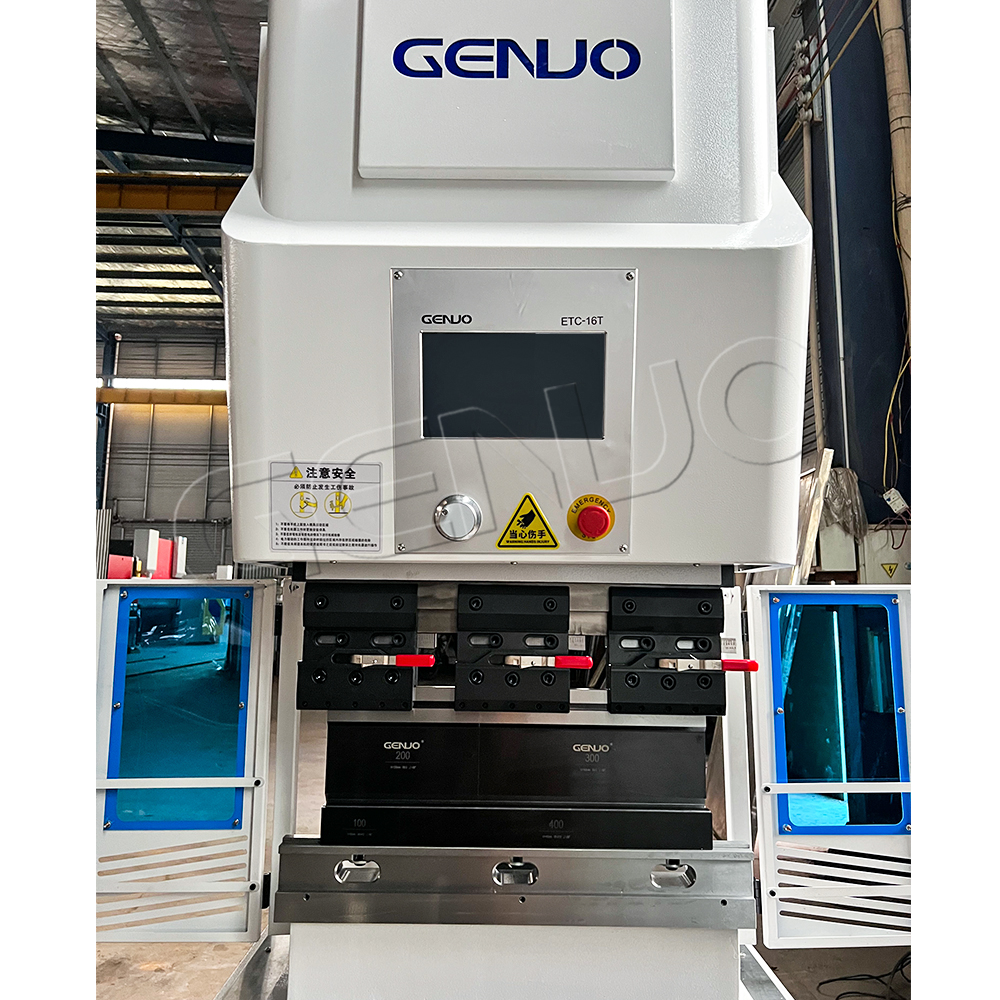

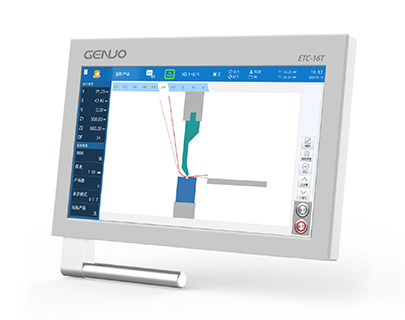

ES-10T is a new generation of performance bending control system dedicated to electric servo press brakes. The controller has rich interfaces, Configure an easy-to-use angle and back gauge automatic control program. Powerful multi program storage and calling make bending of different complex workpieces more convenient. Featured encoder handwheel configuration. The machine can be easily adjusted in any mode.

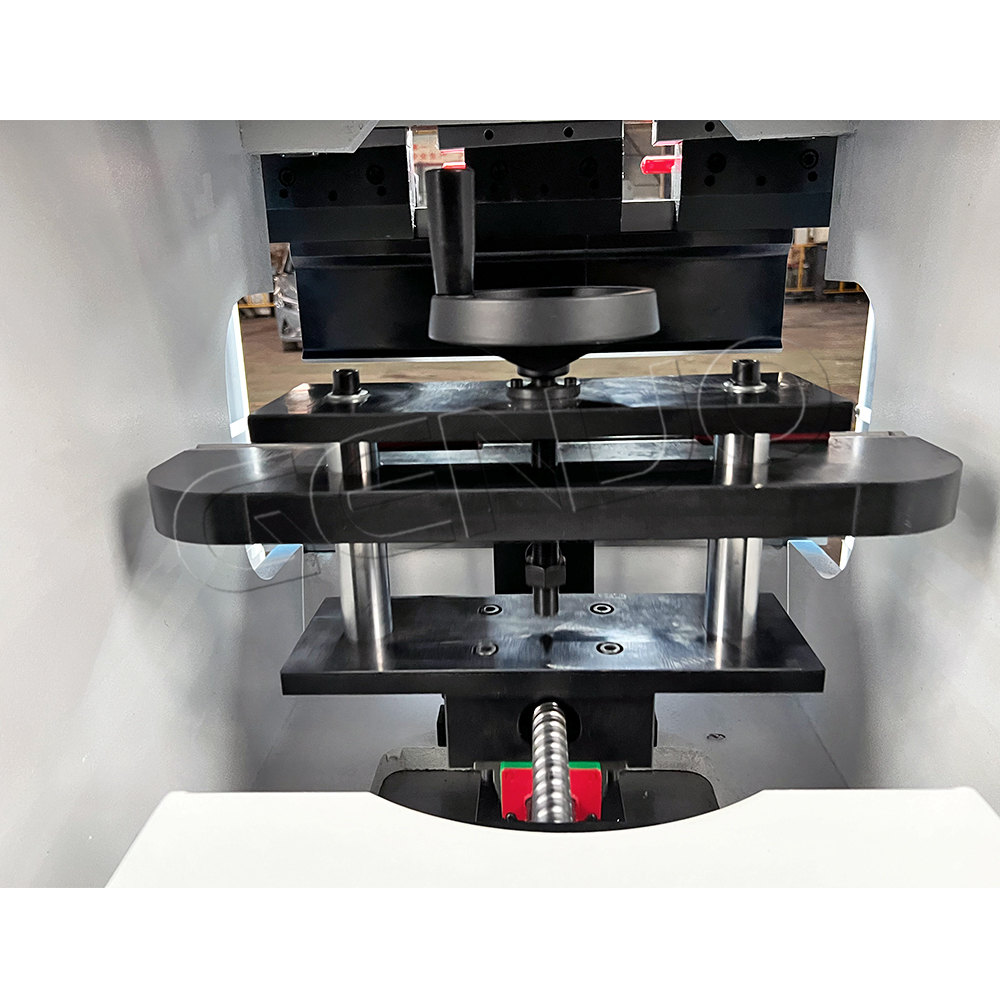

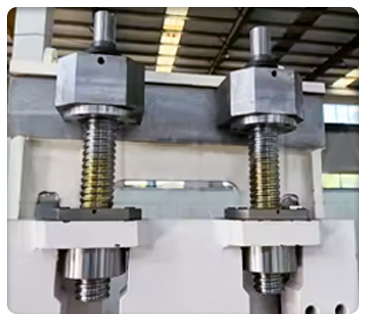

Pure Mini series press brakes use German IF heavy-duty ball screws to ensure the efficiency of the machine, maximize productivity and achieve high-precision bending operation.

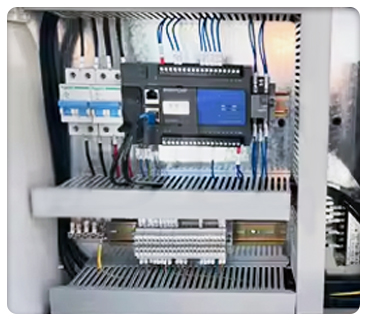

The electrical control system consists of several electrical components, including control system, power supply system, etc. The main functions are: automatic control, protection, monitoring and measurement. They cooperate with each other, greatly reducing the failure rate, is an important part of the stable operation of the machine and safe operation.

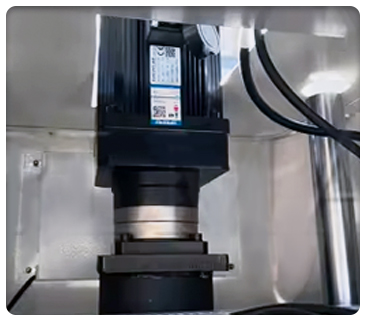

Compared with other motors, servo motors have the significant advantages of energy saving, environmental protection and pollution-free, accurate and quiet operation, fast slider speed, high production efficiency and low maintenance cost. The servo motor driven bending machine does not use hydraulic oil to transfer pressure, avoid affecting the operating accuracy and speed, and is also more suitable for temperature and longterm high load processing environment.

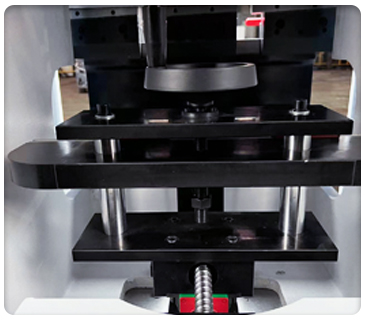

Backgauge is a mechanical system whose main function is to interact with the CNC controller of the press brake to precisely position the metal material for bending and forming. Establishing the right Back-gauge for your project will allow for increased part production and accuracy, and technicians are happy to help you with any questions about your project requirements.

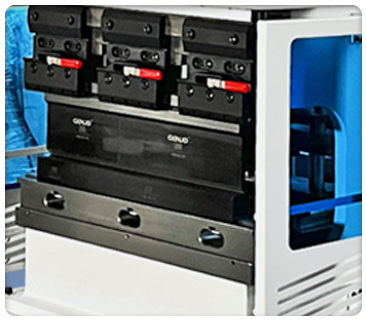

Pure Series Press Brake comes standard with accessories such as quick clamps and quick change top punches to save time. We provide a variety of tooling solutions to meet your different production needs. Not only that, we are also experts in the field of bending tools. If you have any special bend, our engineers will customize special tools for each workpiece, improve your productivity and business benefits.

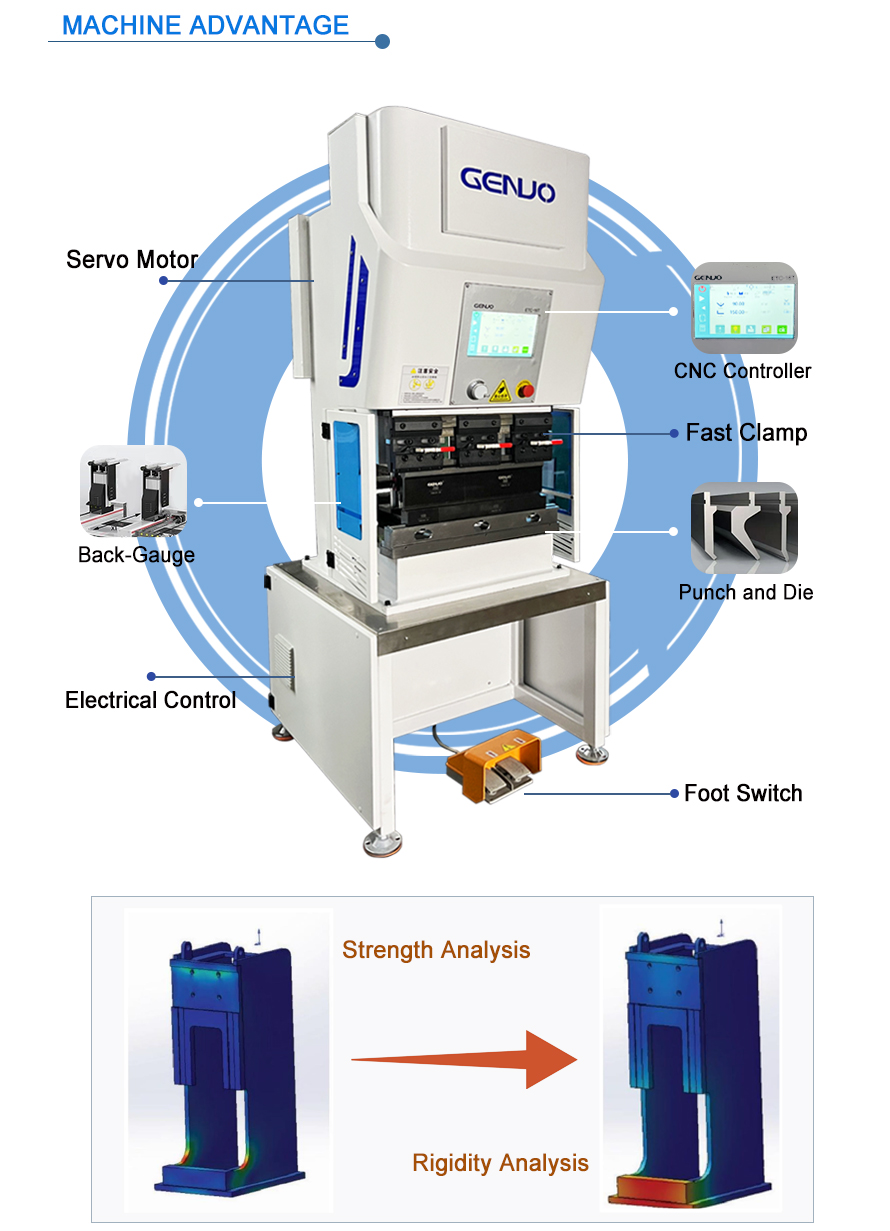

The key mechanical parts of the machine tool adopt finite element analysis to analyze the deformation and safety factor; so as to ensure the high rigidity requirements of the whole machine tool and the reliability of long-term use.

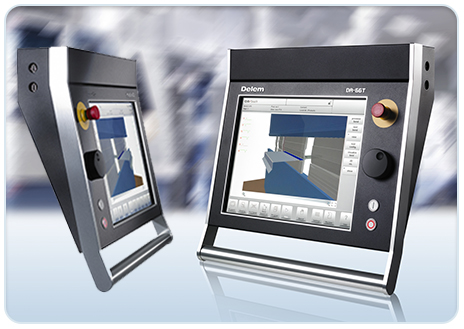

New generation of DA-Touch controls offers a higher level of efficiency in programming, operation and control. DA-66T offers 2D programming, including automatic bending sequence calculations and collision detection, 3D visualization in simulation and production. DA-58T is an advanced complete 2D graphic control solution for synchronous press brake servo and inverter control. DA-53AT features industrial-grade multi-touch technology, high-resolution color TFT, industrial-grade multi-touch technology and access to a proven Delem user interface.
| Machine Parameter | ES-3T200 | ES-6T400 | ES-12T600 |
|---|---|---|---|
| Bending Force | 30 KN | 60 KN | 120 KN |
| Bending Length | 200 mm | 400 mm | 600 mm |
| Column Distance | 300 mm | 370 mm | 450 mm |
| Throat Depth | / | 160 mm | 200 mm |
| Stroke | 120 mm | 120 mm | 120 mm |
| Open Height | 420 mm | 420 mm | 420 mm |
| Approach Speed | 200 mm/s | 200 mm/s | 200 mm/s |
| Working Speed | 1~30 mm/s | 1~30 mm/s | 1~30 mm/s |
| Return Speed | 200 mm/s | 200 mm/s | 200 mm/s |
| Main motor | 2 KW | 3 KW | 5.5 KW |
| Dimensions | 700x700x1980 mm | 750x750x1980 mm | 850x850x2080 mm |
| Weight | 350 KG | 600 KG | 800 KG |
