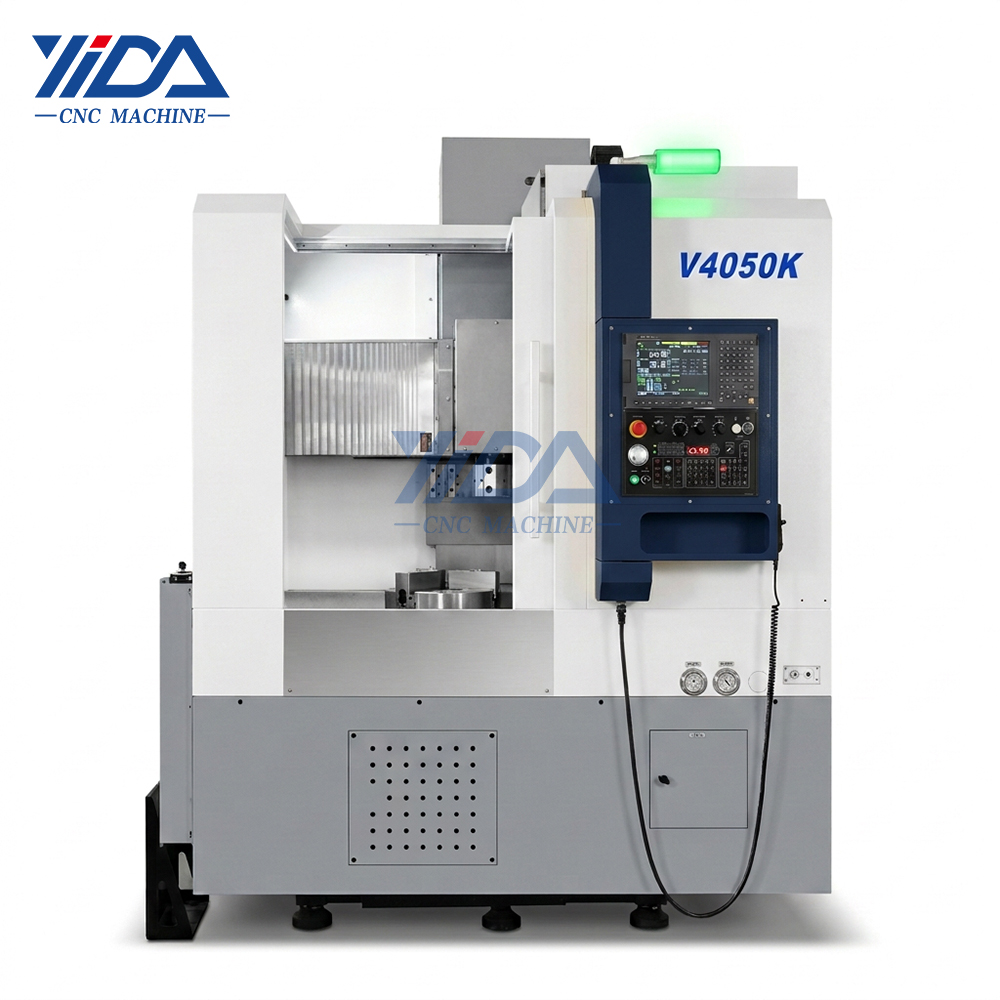

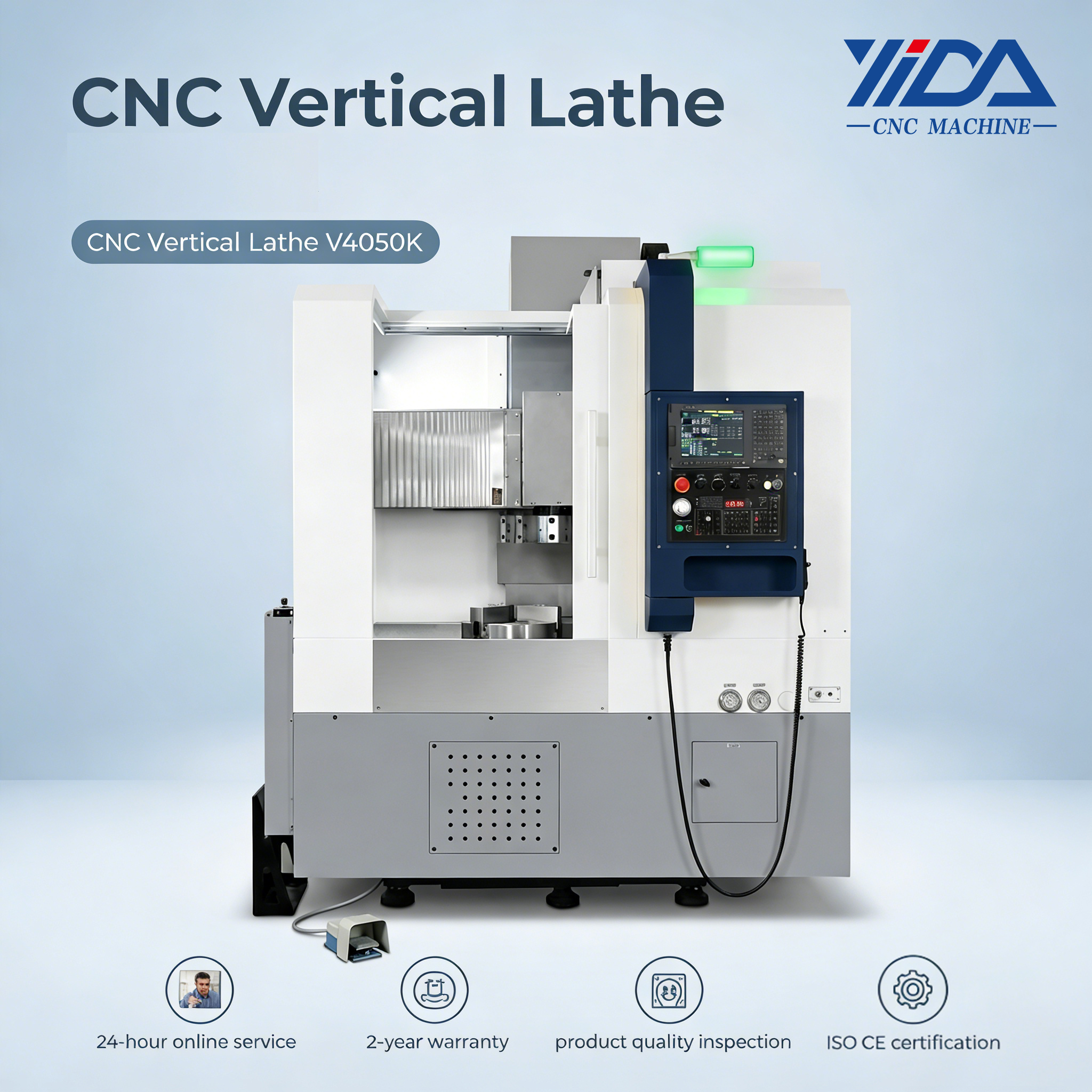

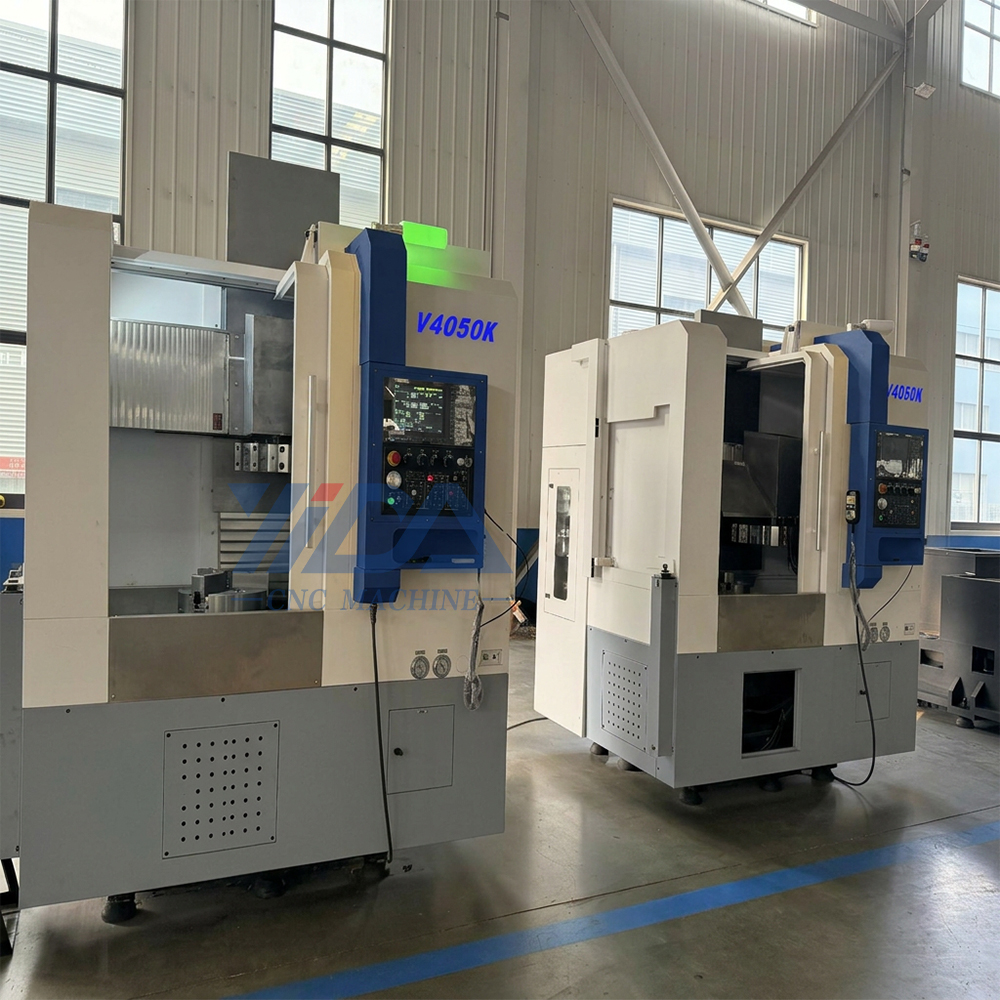

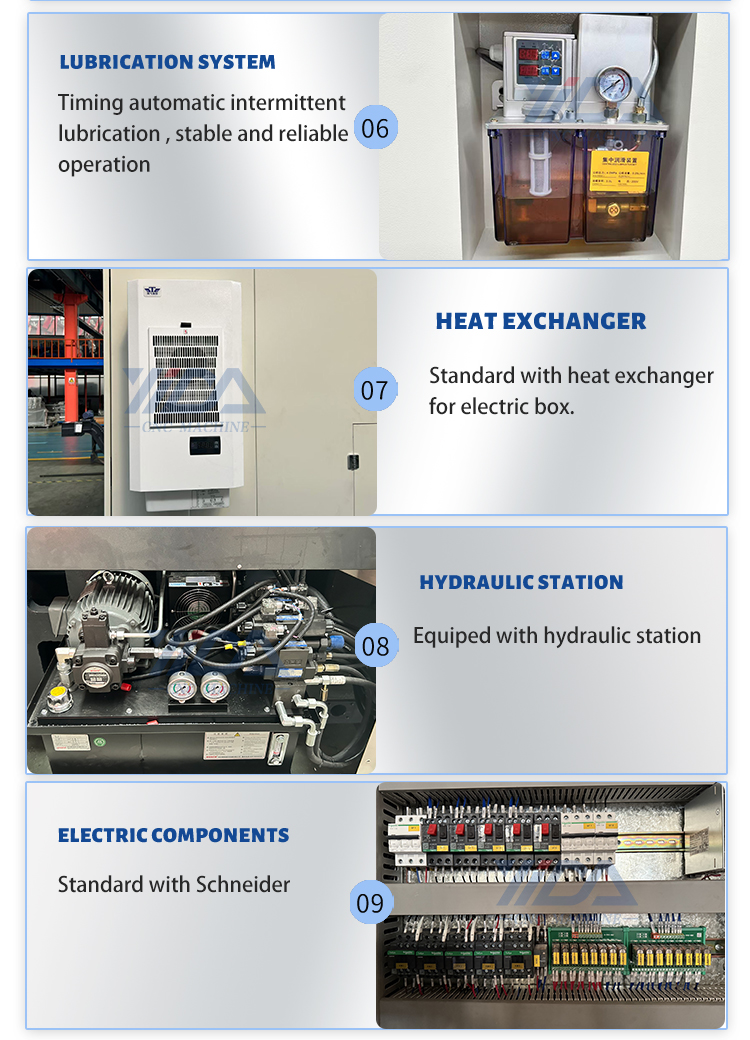

| Project | VTC500(L) | Remarks | |
|---|---|---|---|
| Maximum turning diameter mm | 550 | ||
| Maximum cutting length (mm) | 500 (cutting outer diameter ≤ Φ480) | ||
| Maximum cutting diameter (mm) | Φ500 (cutting height ≤ 300) | ||
| Spindle configuration and designation | A2-8 (Spindle Unit) | ||
| Spindle speed range (r/min) | 80-1500 (Spindle Unit) | ||
| spindle speed range | stepless | ||
| main shaft transmission ratio | 1:3 | ||
| Main motor output power (kW) | 15/18.5 | ||
| Rated torque of main motor Nm | 143 | ||

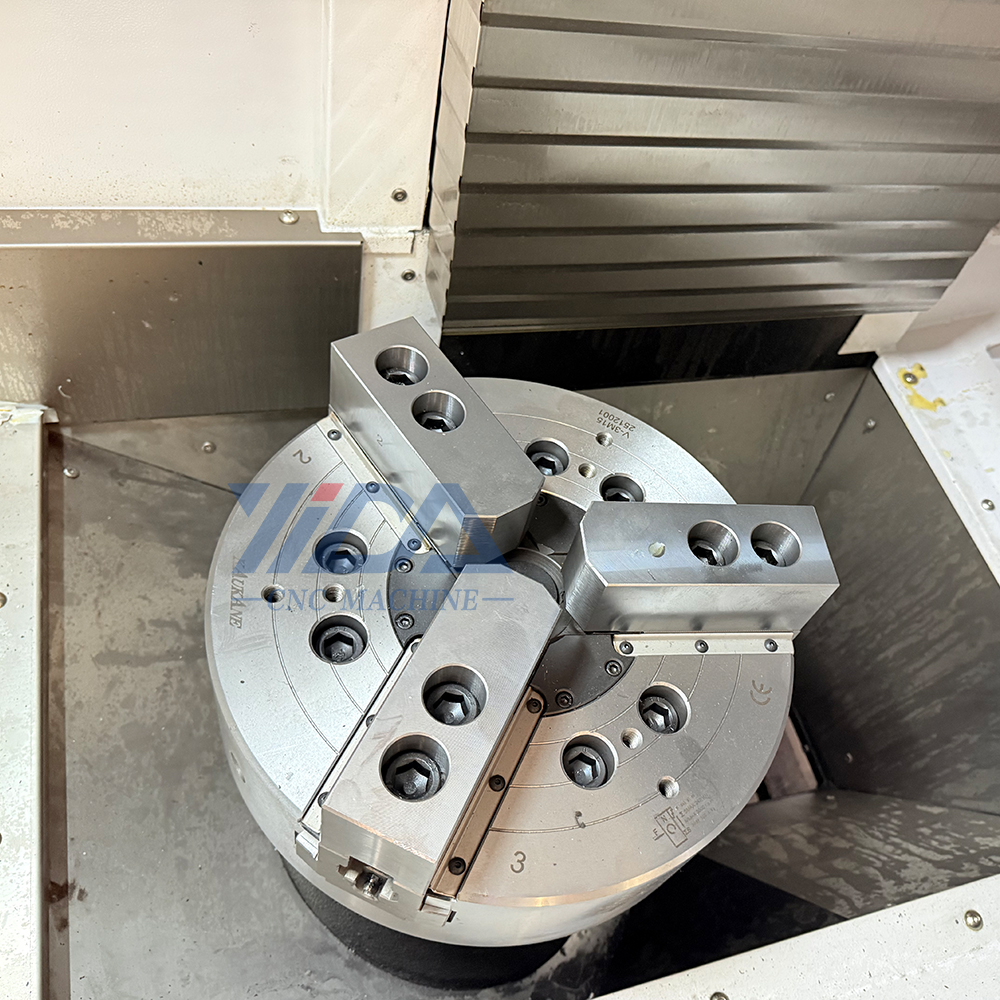

| Chuck diameter/form | 450/K3L | ||
| X-axis servo motor | 4Kw-β12 / 15nm | ||
| Z-axis servo motor | 4Kw-β22 / 22nm | ||
| Tool holder type | Knife cutter | Knife cutter holder | Optional |
| Electric tool holder | 4/6 Workstations | Optional | |

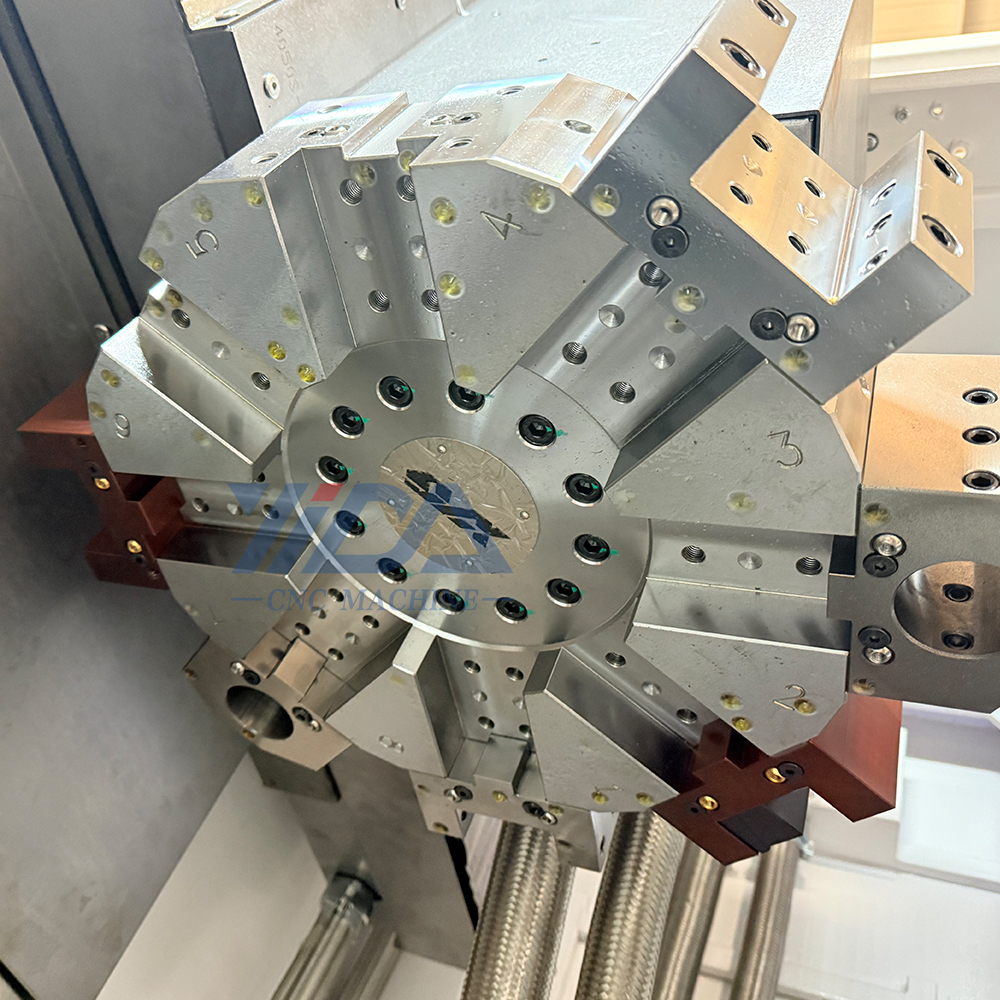

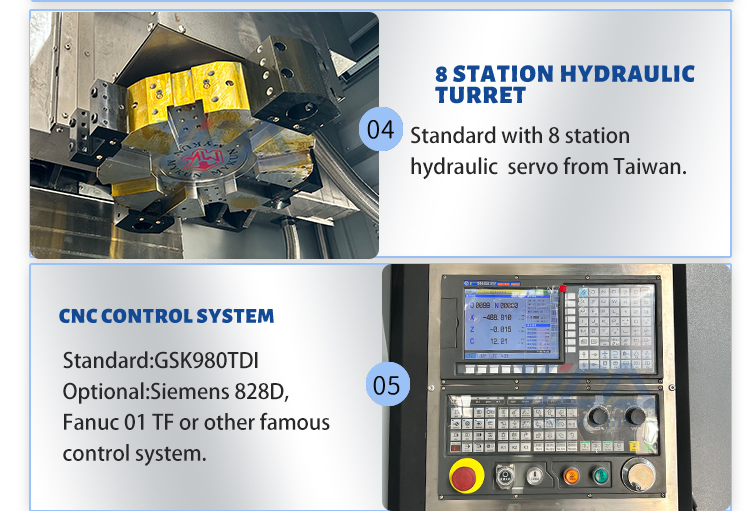

| Hydraulic turret | 8/12 Workstations | Optional 8-station configuration | |
| power tool holder | Eight Workstations | standard configuration | |
| Optional power tower parameters | Toolholder specifications | BMT55 | |
| Power motor power (KW) | 4 | ||
| Maximum rotational speed of the power head (rpm) | 3000 | ||

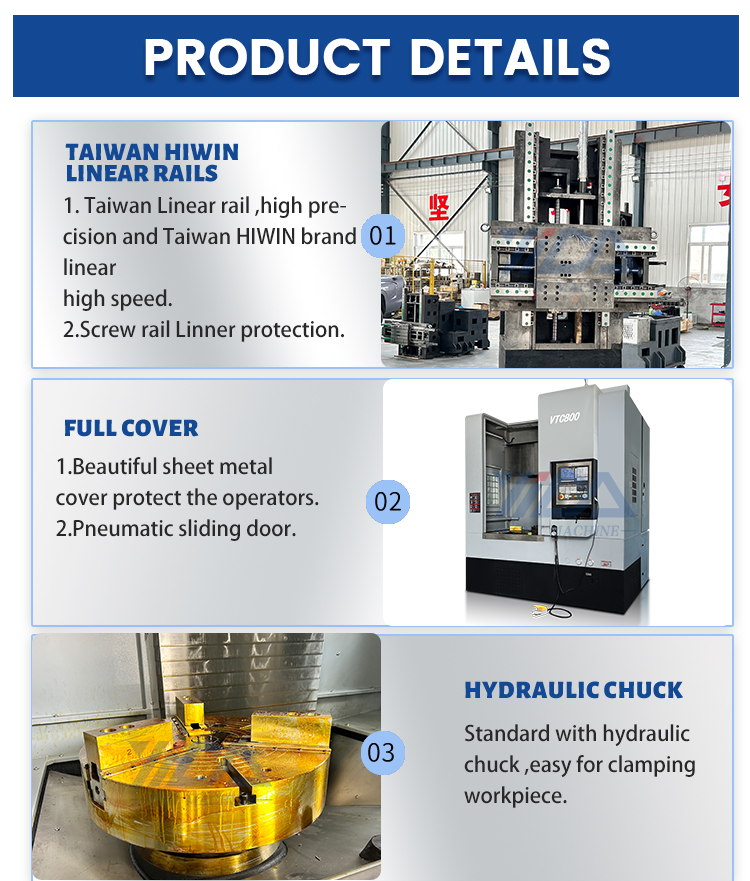

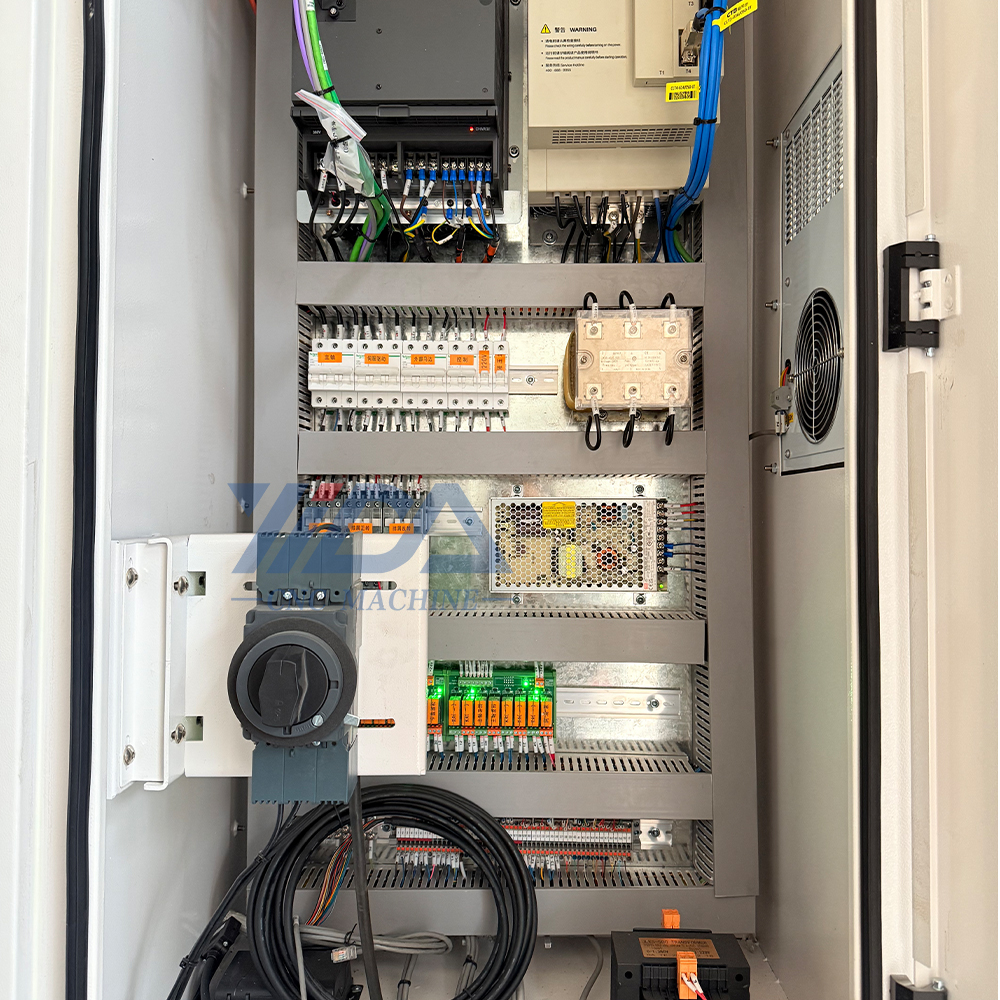

| Guide rail structure form (mm) | roller linear guide | Z-axis 45mm | |
| X-axis 45mm | |||
| Span of column guide rail (mm) | 465 | ||
| Span of crossbeam guide rail (mm) | Hard rail | 350 | Optional |
| Railway track | 335 | standard configuration | |
| Z-axis ball screw pair | 4010 | Taiwan Shangyin | |
| X-axis ball screw pair | 4010 | Taiwan Shangyin | |
| X-axis rapid movement speed (m/min) | Hard rail | 10 | Optional |
| Railway track | 18 | standard configuration | |
| Z-axis rapid movement speed (m/min) | Hard rail | 10 | Optional |
| Railway track | 18 | standard configuration | |
| X-axis stroke (mm) | -150~+200 | ||
| Z-axis stroke (mm) | 520 | ||
| C axle | 360° | ||
| Electric capacity (KVA) | 18 | ||
| The weight of the machine tool is approximately T. | 5.8 | ||
| Dimensions: length × width × height (mm) | 2000×1900×3100 (Balanced cylinder block) | ||
1. What is the payment terms?
T/T, 30% initial payment when ordered, 70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready, we will take pictures for you. After we get your balance payment, we will send the machine to you.
2. What CNC system do you use?
FANUC, SIEMENS, MITSUBISHI, LNC, SYNTEC, GSK, etc. It depends on your choice.
3. When is the delivery time?
If the machine you order is a standard machine, we can have it ready within 15 days. Special machines may take longer. The shipping time is about 30 days to Europe and America. If you are from Australia or Asia, it will be shorter. You can place your order according to delivery time and shipping time, and we will advise you accordingly.
4. What is your trade terms?
FOB, CFR, CIF or other terms are all acceptable.
5. What is your minimum order quantity and warranty?
The MOQ is one set, and the warranty is one year. However, we offer lifetime service for the machine.
6. What is the package of the machines?
The machines are standardly packed in strong plywood cases.
