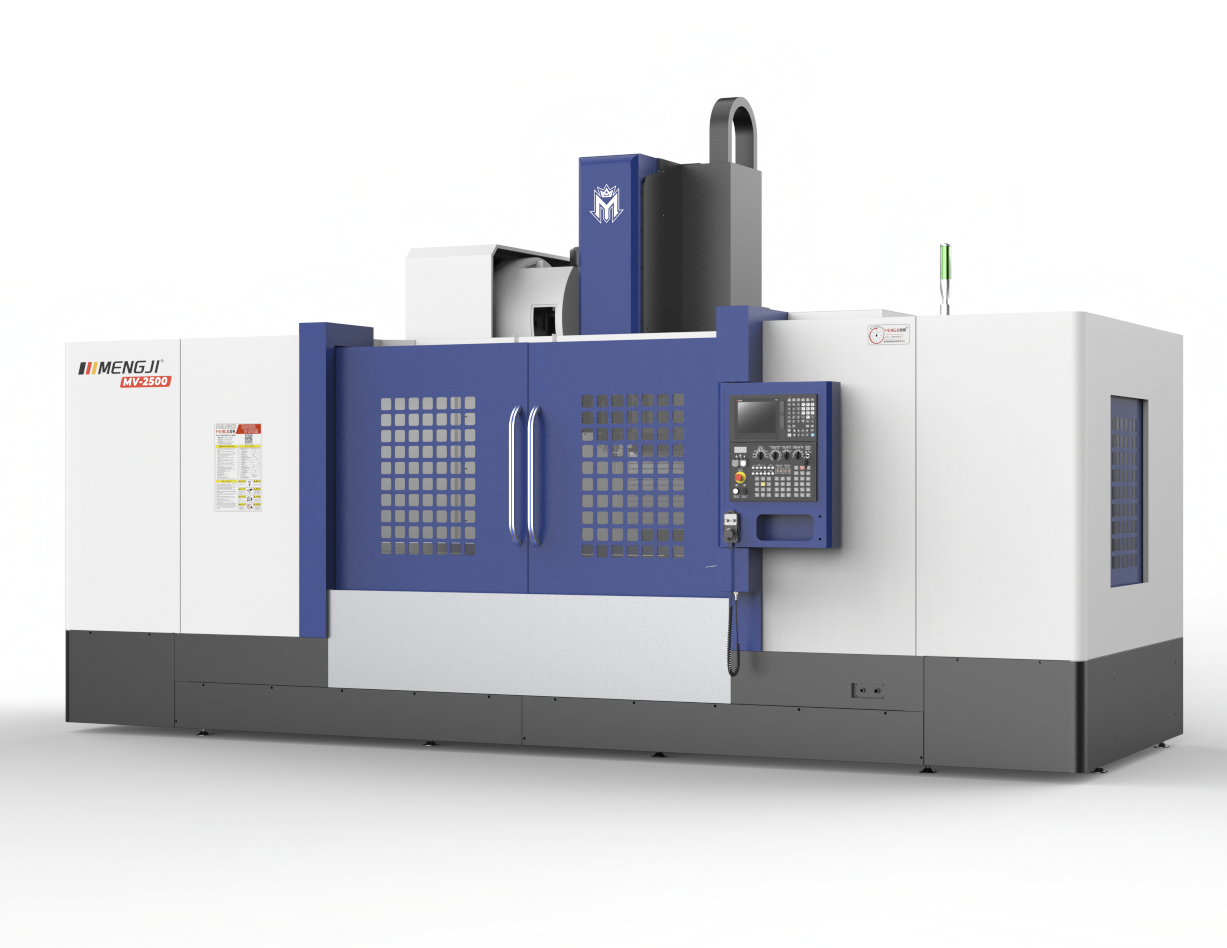

| SPECIFICATIONS | V-2000 | V-2500 |
|---|---|---|
| Machine size | 4800*2600*2500 | 5000*2600*2500 |
| Worktable size | 2100*700 | 2500*700 |
| Table Travel (X) (mm) | 2000 | 2500 |
| Table Travel (Y) (mm) | 750 | 750 |
| Table Travel (Z) (mm) | 630 | 630 |

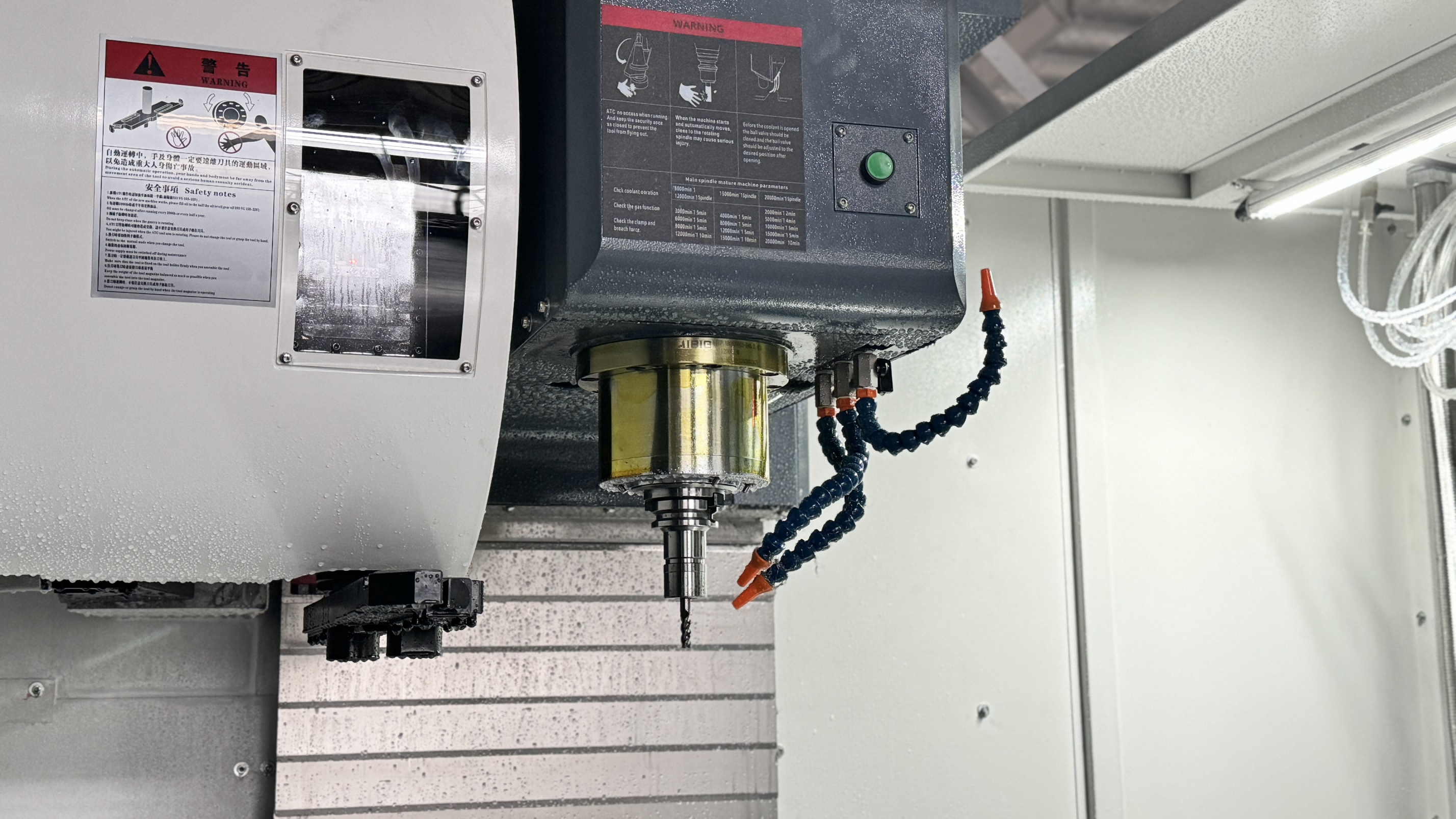

| Spindle specifications | BT40-φ150 | BT40-φ150 |
| Positioning accuracy(X/Y/Z)mm | 0.025/0.008/0.005 | 0.025/0.008/0.005 |
| Repeatability positioning accuracy(X/Y/Z)mm | 0.02/0.006/0.004 | 0.02/0.006/0.004 |
| Spindle speed range | 1-20000r.p.m | 1-20000r.p.m |

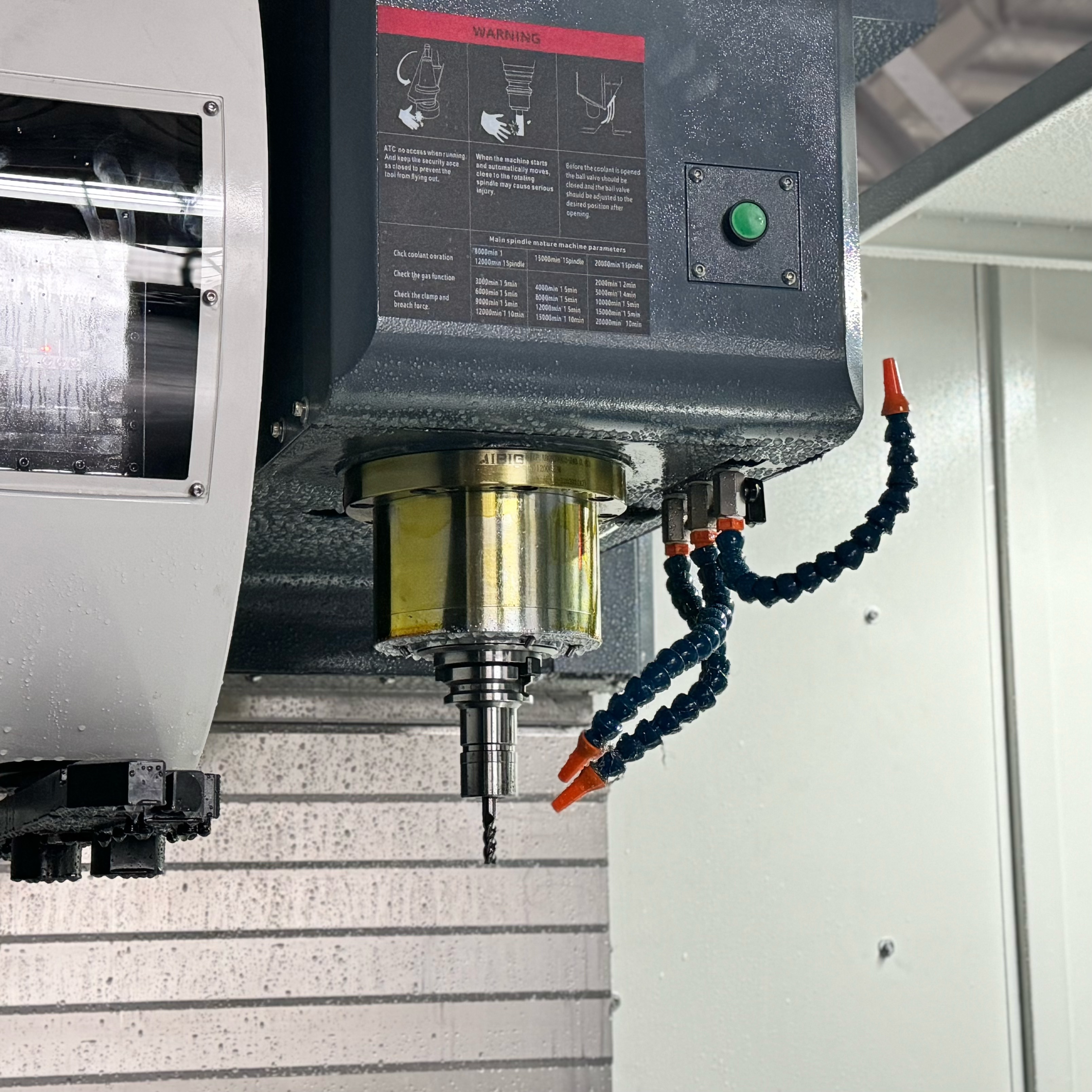

| Spindle Drive Type | Direct spindle drive | Direct spindle drive |
| Maximum worktable load capacity | 600 | 900 |

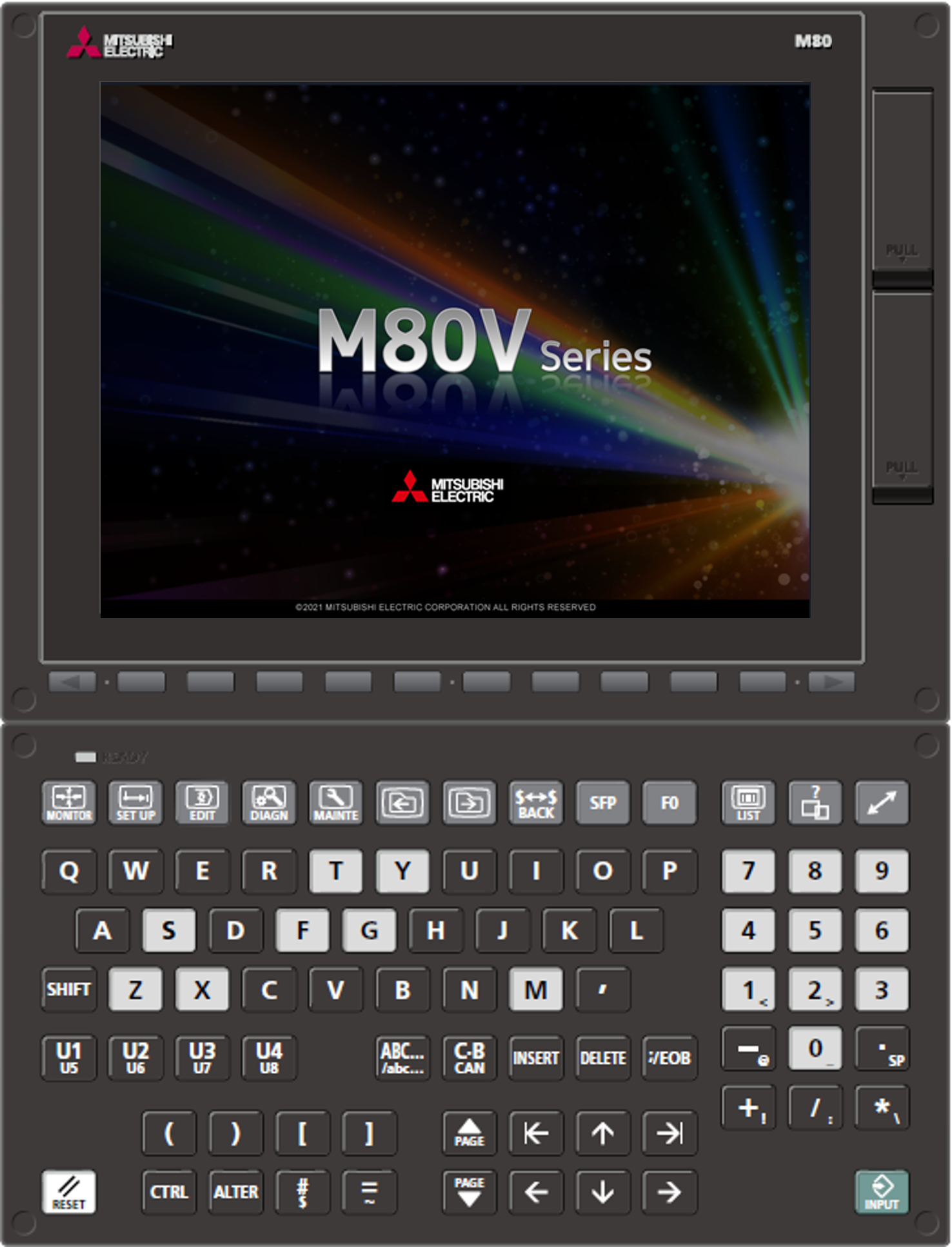

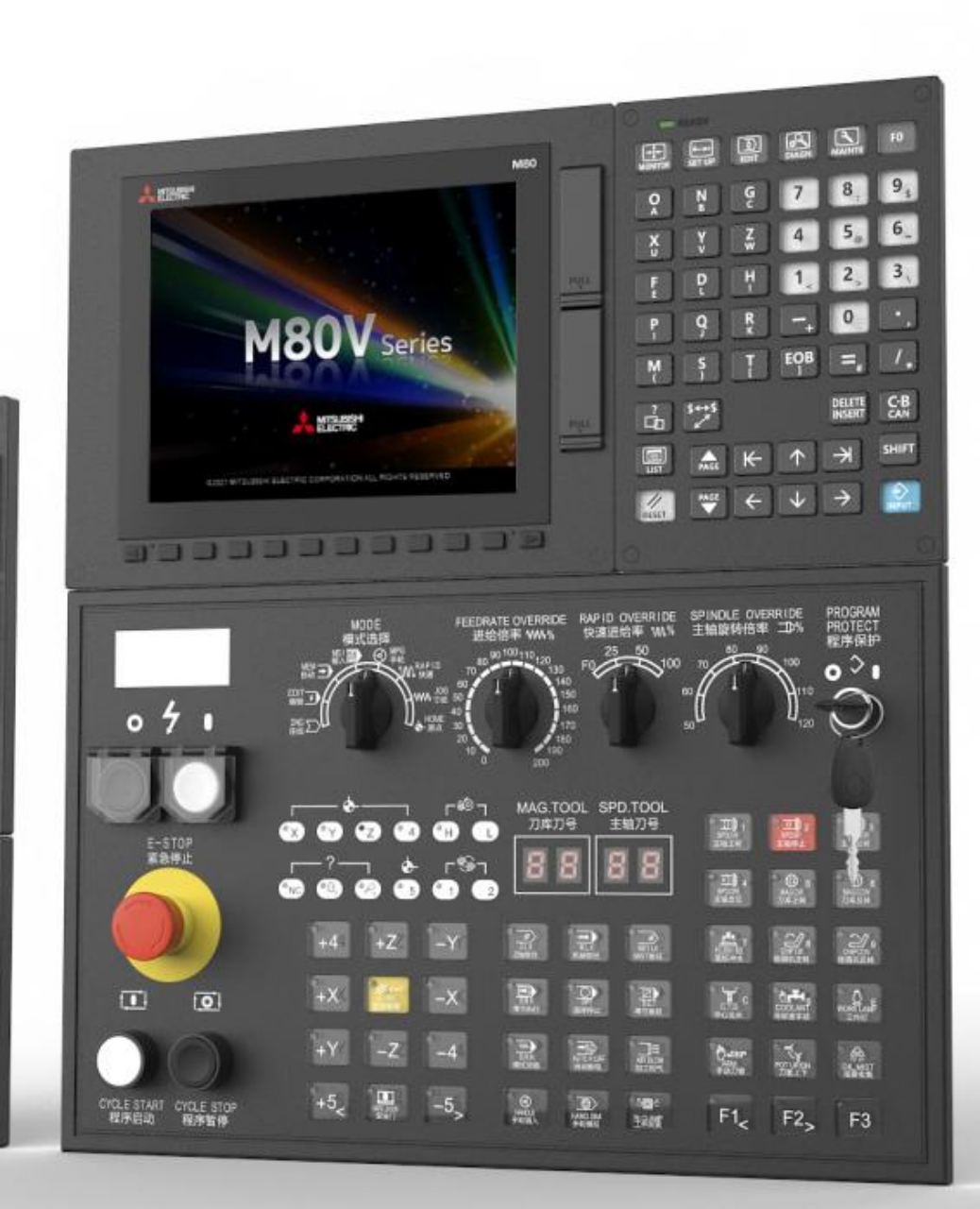

| Numerical control system | Mitsubishi M80B | Mitsubishi M80B |

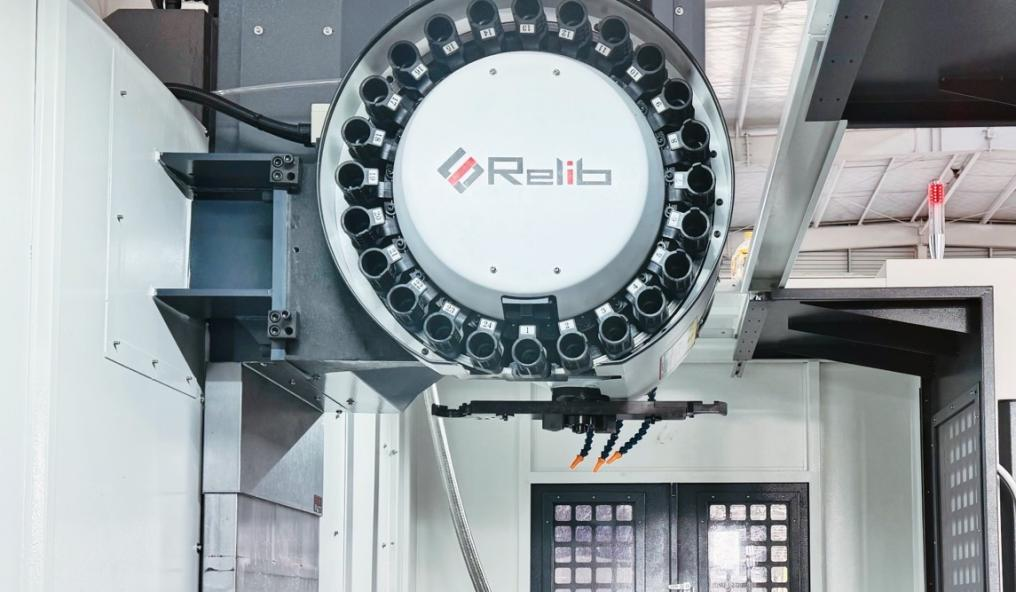

| Standard number of tool magazines | 24 | 24 |
| Voltage | 380V-50HZ | 380V-50HZ |

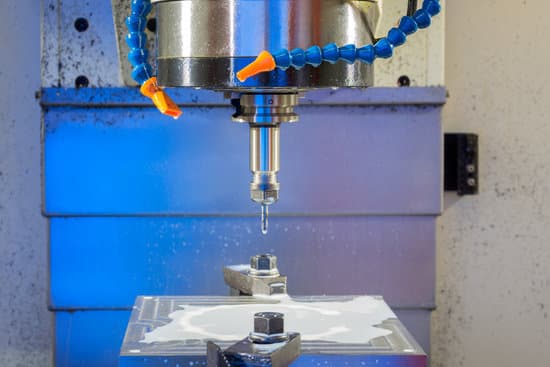

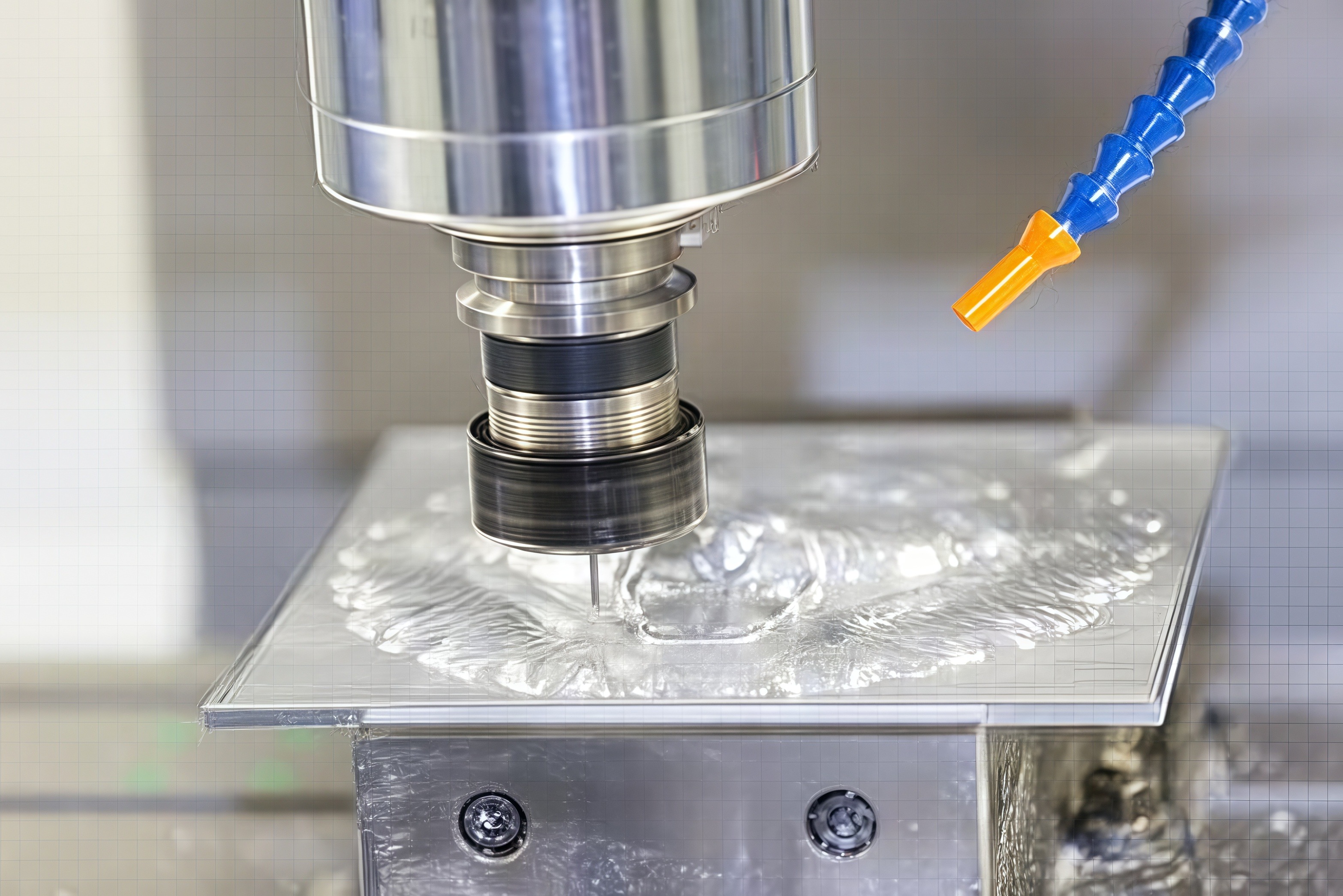

| Processing Capability | High speed machining | High speed machining |
| X/Y/Z-axis Rapid Traverse Rate | 20/20/20 | 20/20/20 |
| Distance from Spindle Centerline to Column Face | 760 | 760 |
| Spindle Nose to Table Distance | 170-810 | 170-810 |
| T-slots (Number of slots - Width × Pitch) | 5-18*130 | 5-18*100 |
