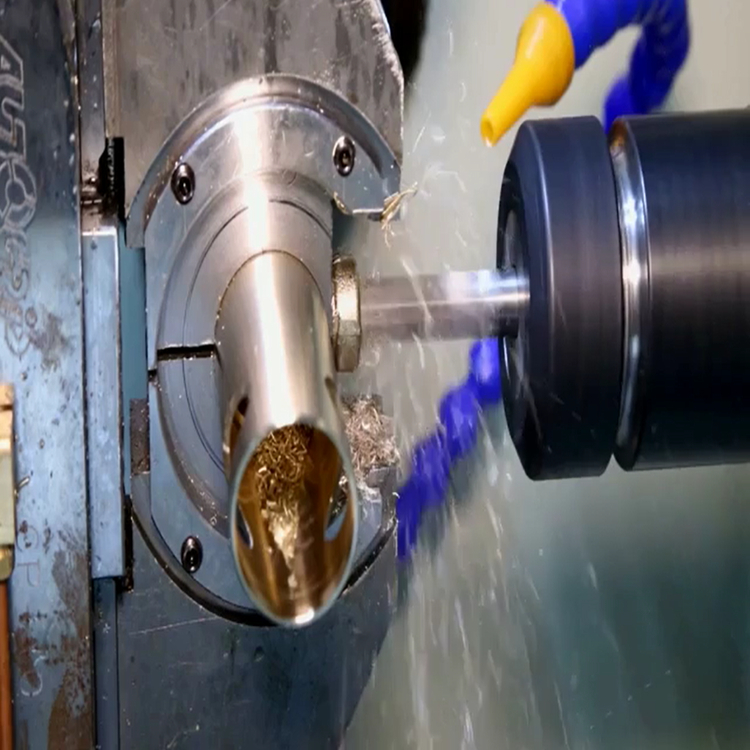

Drilling Hole • Boring Hole • Tapping Hole

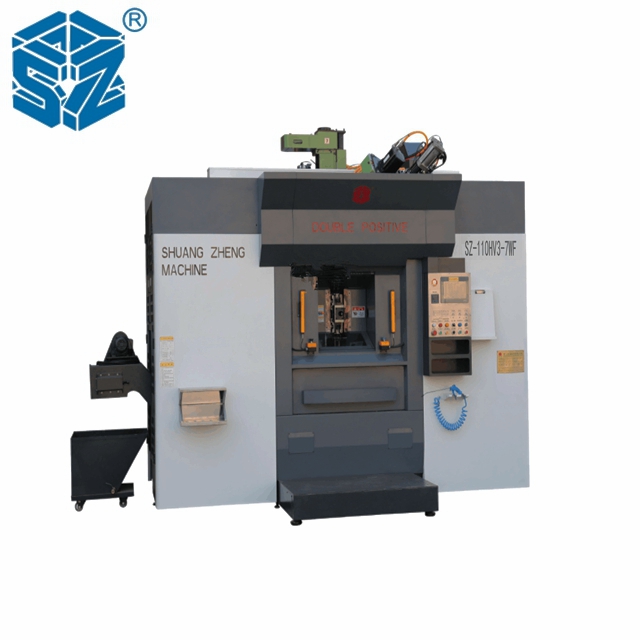

Italian technology. Vertical rotation 6 station 3 direction 7 axis. Boring/tapping/milling slot. Transfer zinc alloy frame processing special machine.
This machine adopts Schneider PLC programmable controller control. The operation control is flexible and convenient. Can connect intelligent manufacturing control system. Ensure the efficiency of machine tools. The device has a wide operating window. Convenient workpiece entry and fixture replacement.

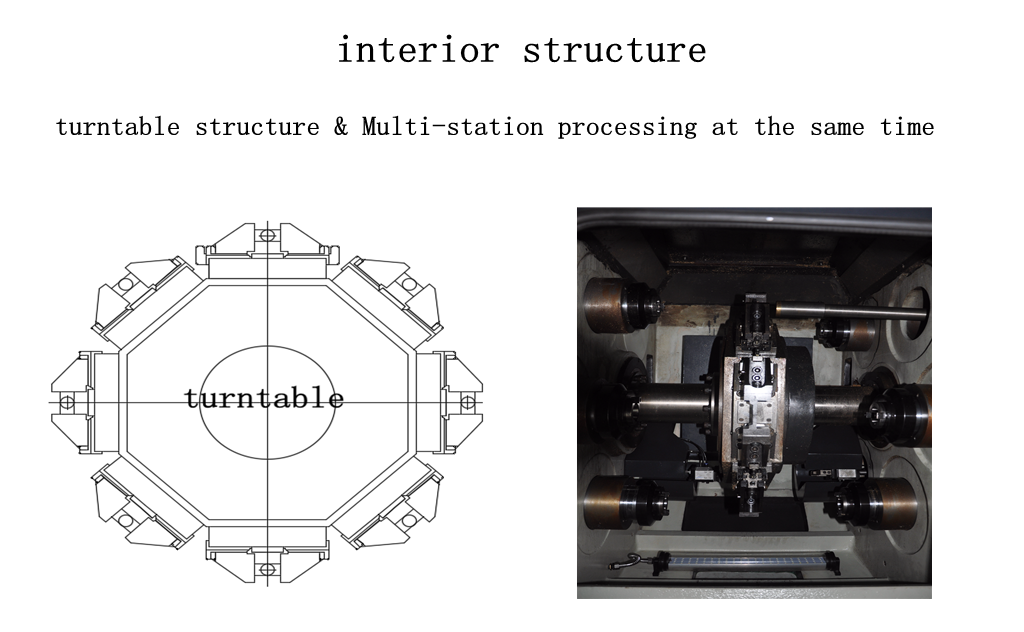

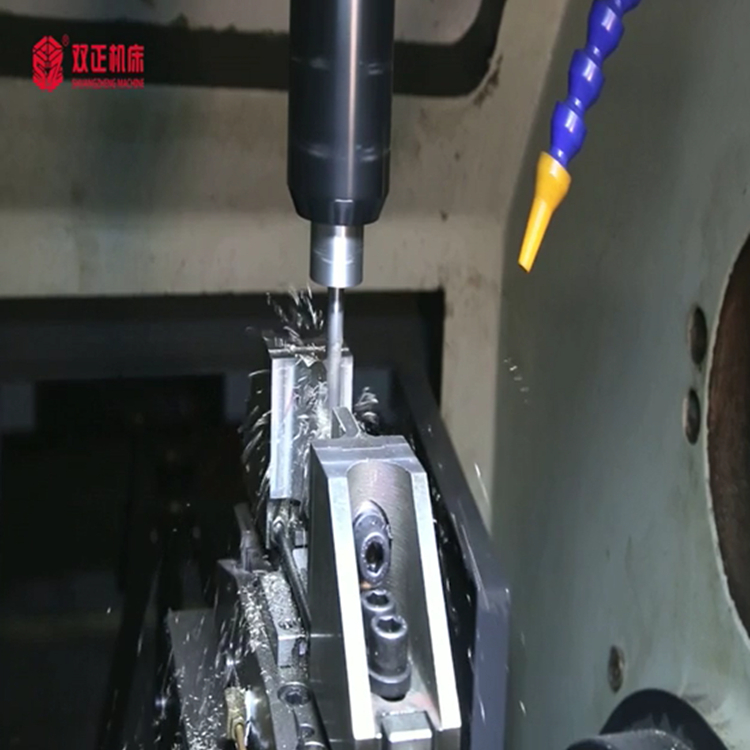

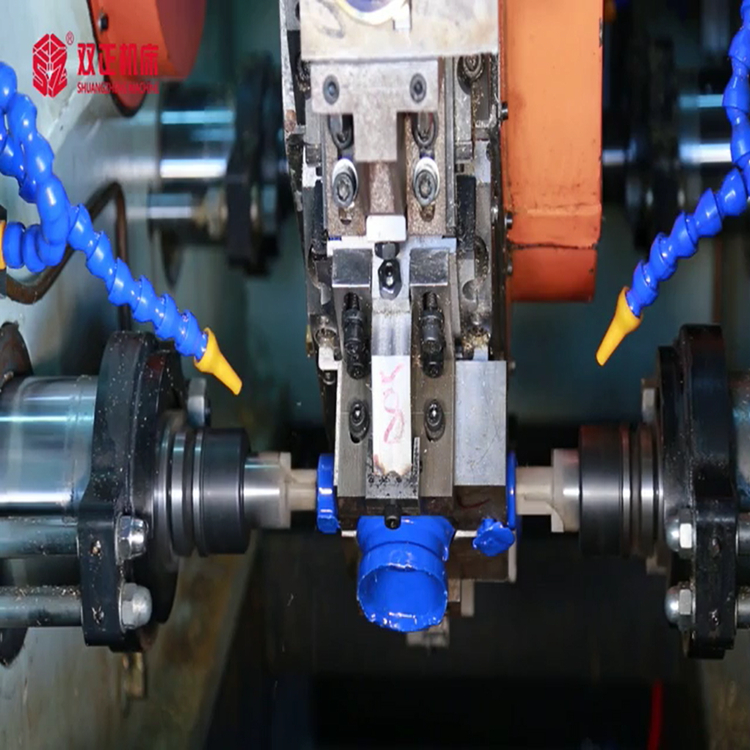

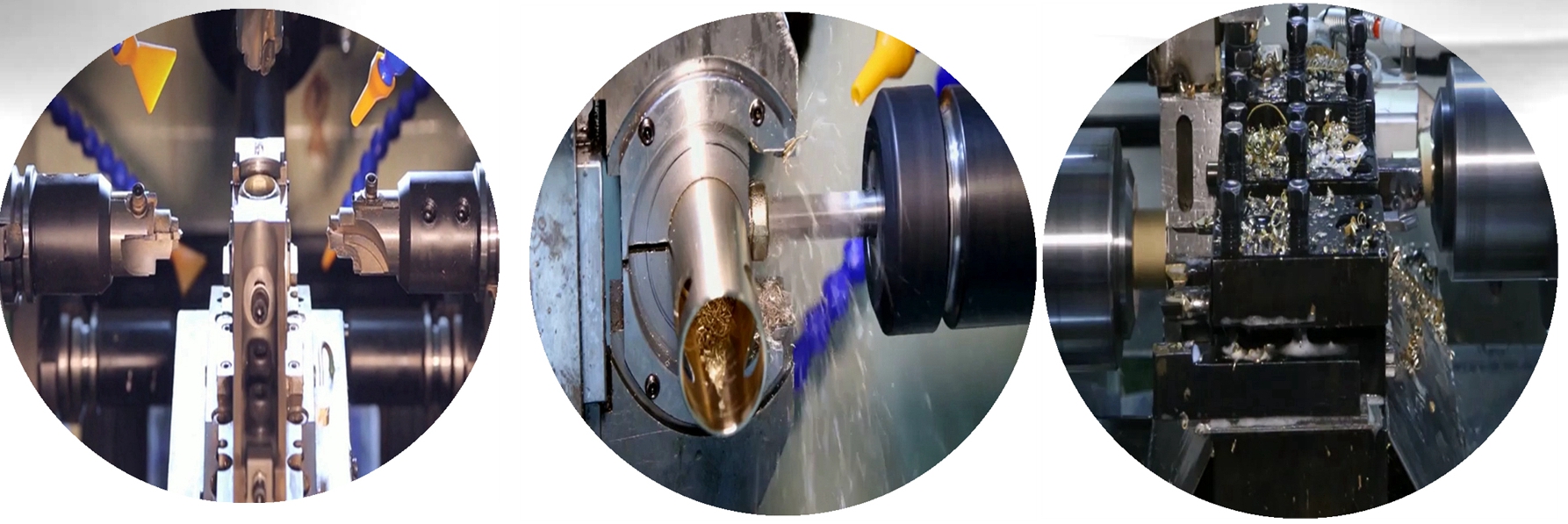

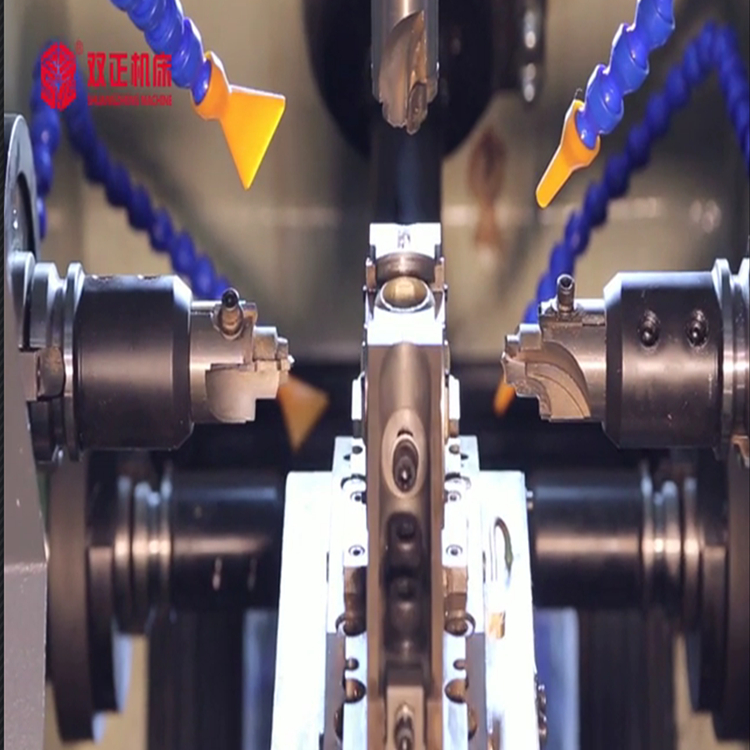

The workpiece is clamped in the machine tool one-time Armor, 6 station Vertical rotation of station rotary table. Synchronous clamp turn 5 close 1 open. Each functional power head, Three directions simultaneously complete boring/tapping/milling slot process. According to customer product drawing processing standard requirements. To complete the finished product in one time. Lean production.
The bed structure is made of HT300 as a whole. According to the process, three times of aging treatment. Minimize internal stress. Ensure no deformation. All holes for power heads and datum plane. The five-sided CNC machining center is used for one-time processing. Perfect to ensure mounting accuracy.

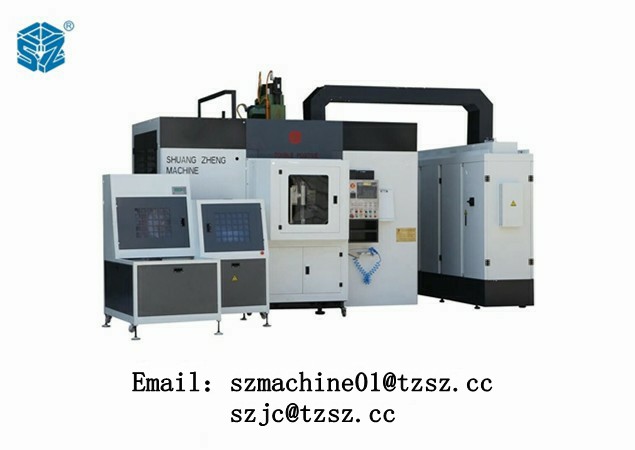

Specializing in the design and manufacture of high-end precision transfer multi-axis combination. Provide 4, 6, 8, 10, 12 station body design, power head, and fixture modular design. Provides a highly flexible combination. Effectively provide customer product solutions. It is widely used in water heating, valve, sanitaryware, refrigeration and auto parts.
| Parameter Item | Specifications / Capabilities |
|---|---|
| Processed Product | Zinc alloy frame |
| Power (kw) | 34kw |
| Weight | 5500kg |
| Equipment Size (Length*Width*Height)m | 3.2*3*2.8 |
| Execution of Figures | Boring/tapping/milling slot |
| Upper and Lower Feeding System | Manual loading/unloading |
| Processing Efficiency s/pcs | 7 s |
| Chip Removal Machine | Chain plate chip removal machine |
| Processing Method | Water-cooling processing |
Specialized in plumbing valves, sanitary ware, refrigeration, and auto parts design and manufacture of high-end intelligent servo multi-axle transfer machine combination processing machines, automatic assembly machines, CNC machine tools, hydraulic machine tools, automatic machining of pipe fitting joints, robot intelligent upper and lower feeding systems, and flexible production line machines of more than 100 varieties of production equipment. Customized various special machine tools according to the user's demand and product automation assembly machine assembly line equipment are also supported.
