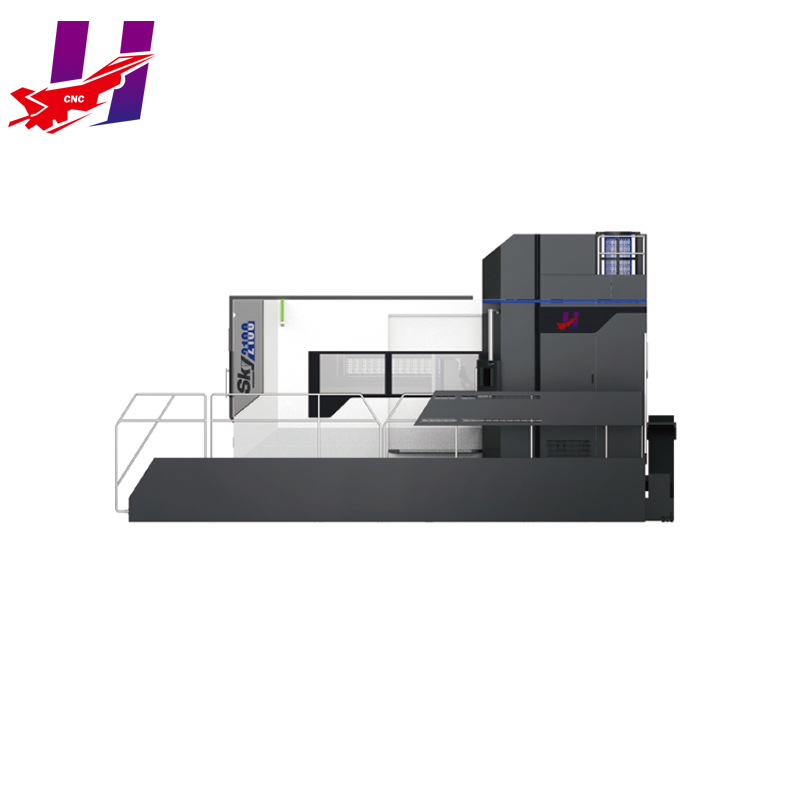

The SKY model enables vertical and horizontal conversion movements and processes workpieces through its high-precision, high-efficiency rotary table, significantly improving both machining accuracy and efficiency for difficult-to-process materials.

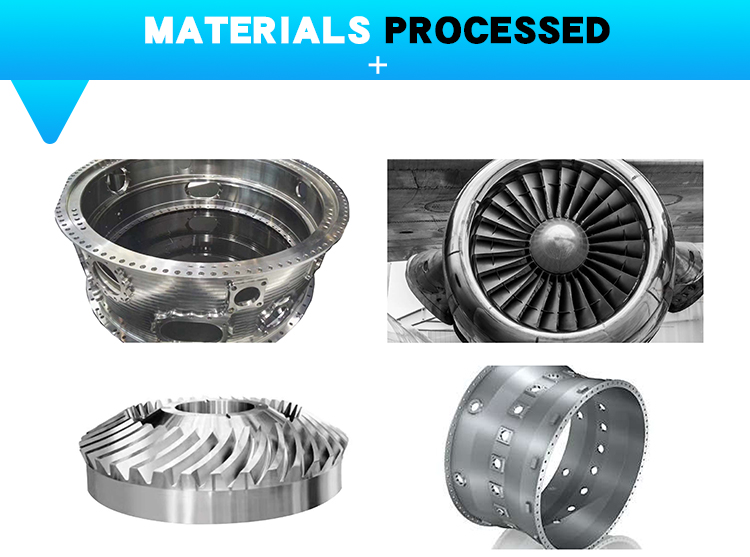

It serves as an indispensable and highly efficient machining center for high-precision applications in the aerospace industry.

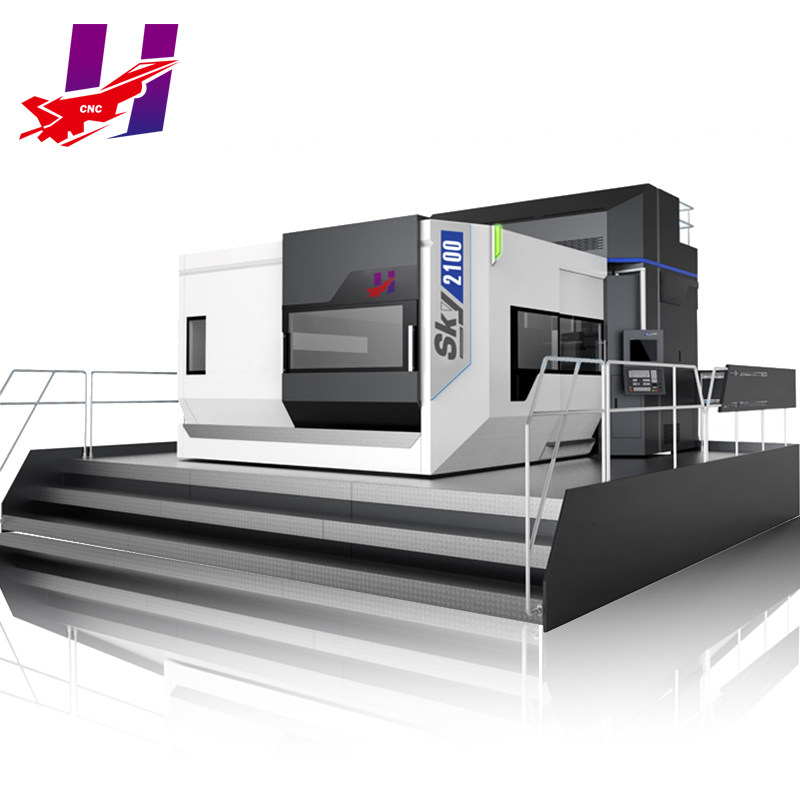

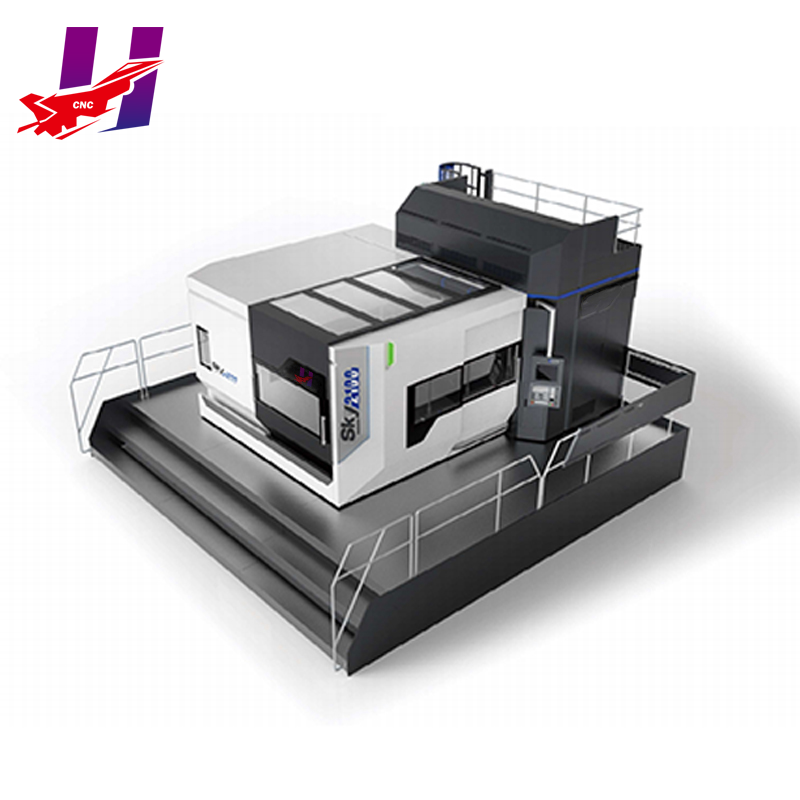

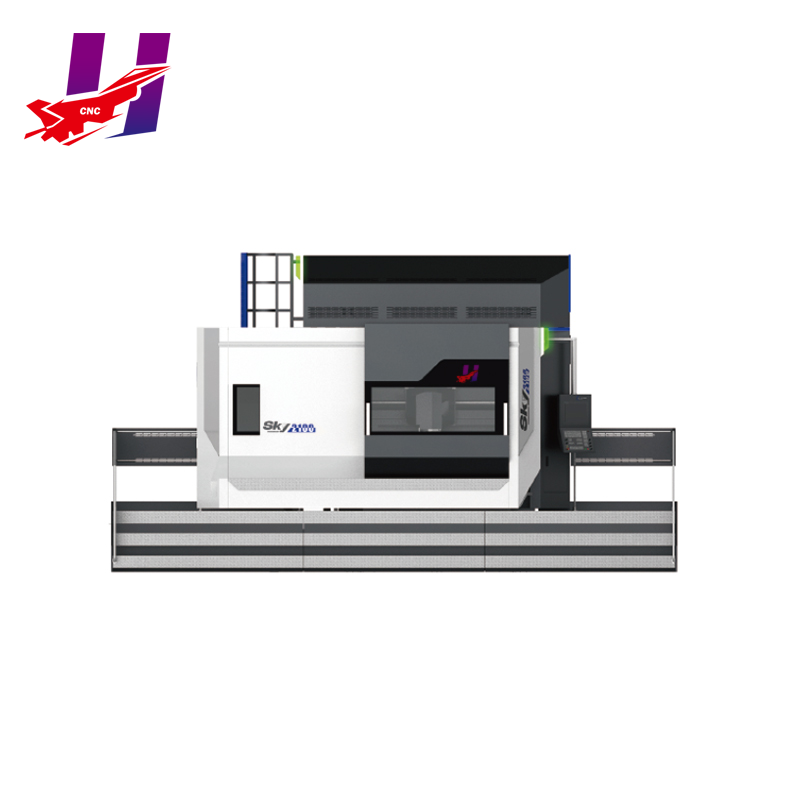

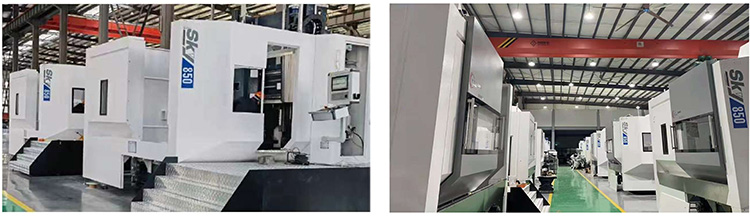

The SKY-H model features an integral positive T-shaped bed and a high-rigidity moving column. Its main structural components are manufactured using high-strength cast iron through resin sand molding.

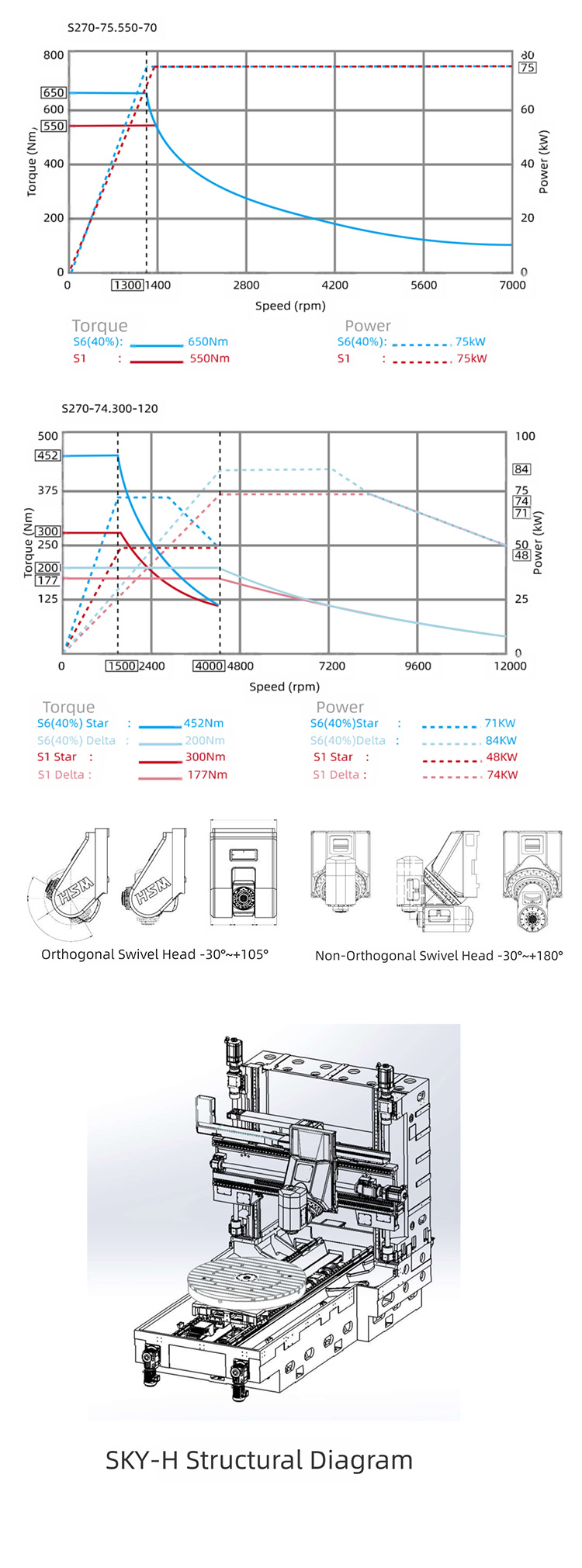

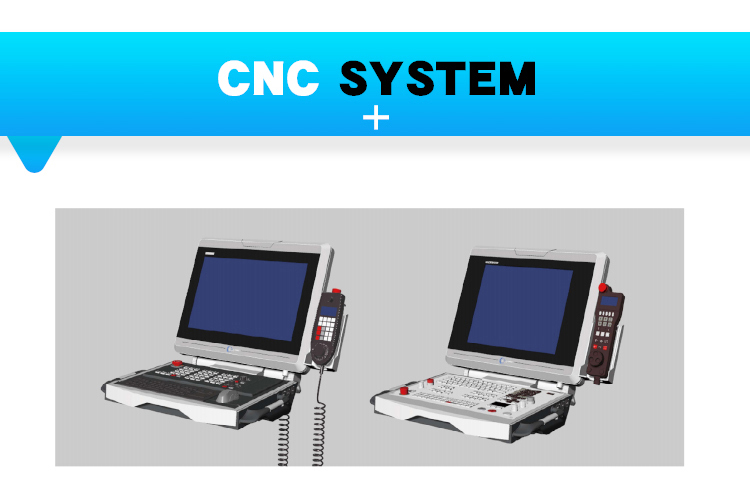

It offers the option of an orthogonal pendulum head or a non-orthogonal 45° vertical/horizontal conversion pendulum head. The milling turntable utilizes torque motor direct drive and is fully enclosed with a protective cover.
| SKY-H Specifications | SKY-H-1650 (T Option) | SKY-H-2100 (T Option) | SKY-H-3500 (T Option) |
|---|---|---|---|
| X-Axis Travel | 1650mm | 2100mm | 2100mm |
| Y-Axis Travel | 1600mm | 2100mm | 2100mm |
| Z-Axis Travel | 1400mm | 1600mm | 1600mm |
| Table Size | Φ 1600 | Φ 1800 | Φ 1800 |
| Table Load Capacity | 4800KG | 8000KG | 8000KG |
| X/Y/Z-Axis Rapid Traverse Rate | 30 m/min | 30 m/min | 30 m/min |
| X/Y/Z-Axis Positioning Accuracy | 0.008mm | 0.008mm | 0.008mm |
| X/Y/Z-Axis Repeatability | 0.006mm | 0.006mm | 0.006mm |
| Rotary Table Drive | Torque Motor Direct Drive | Torque Motor Direct Drive | Torque Motor Direct Drive |
| Rotary Table Speed | 20(Milling)/250(Turning) rpm | 20(Milling)/250(Turning) rpm | 20(Milling)/250(Turning) rpm |
| Rotary Table Positioning Accuracy | 8" | 8" | 8" |
| Rotary Table Repeatability | 6" | 6" | 6" |
| Tool Magazine | 40T/60T/120T | 40T/60T/120T | 40T/60T/120T |
