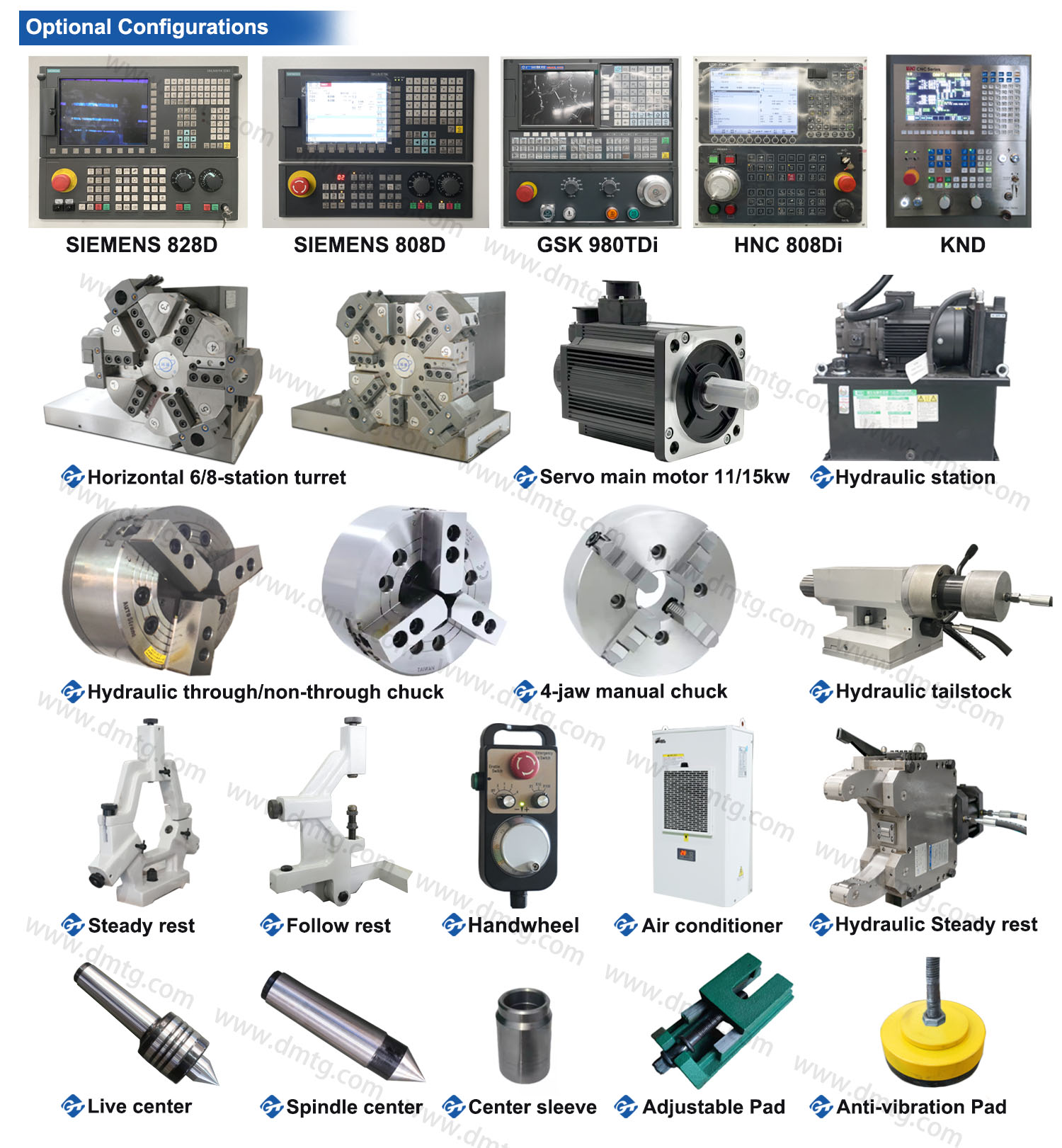

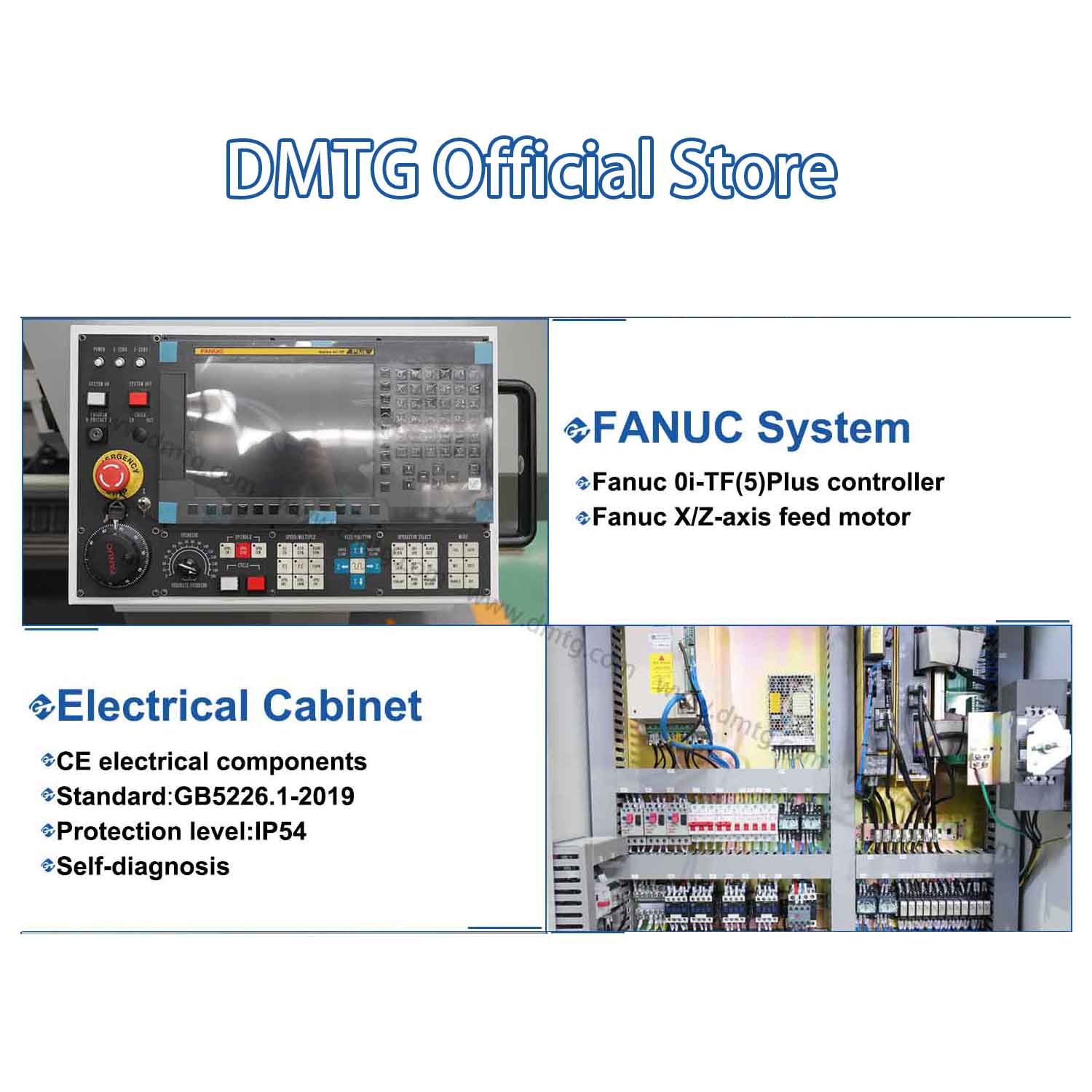

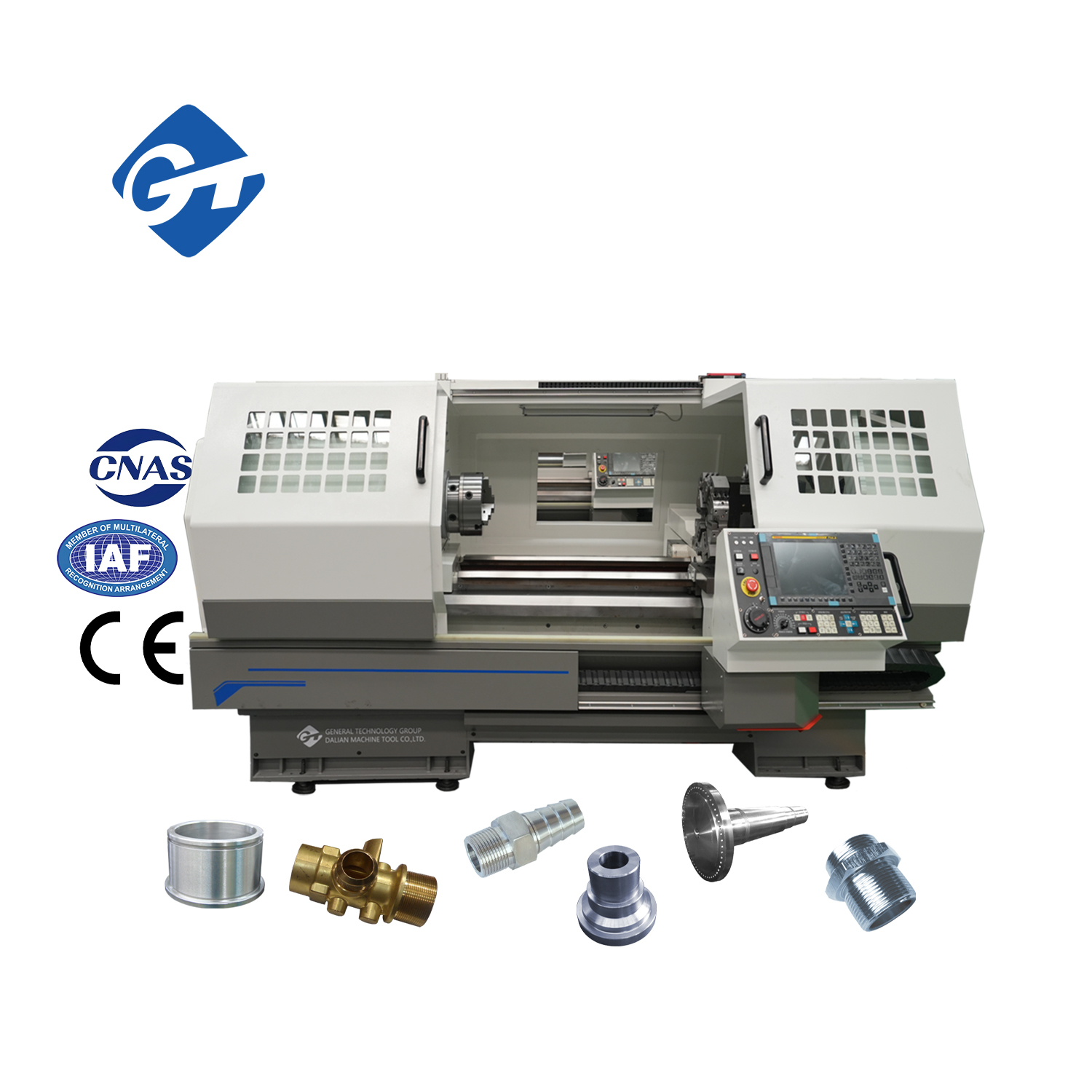

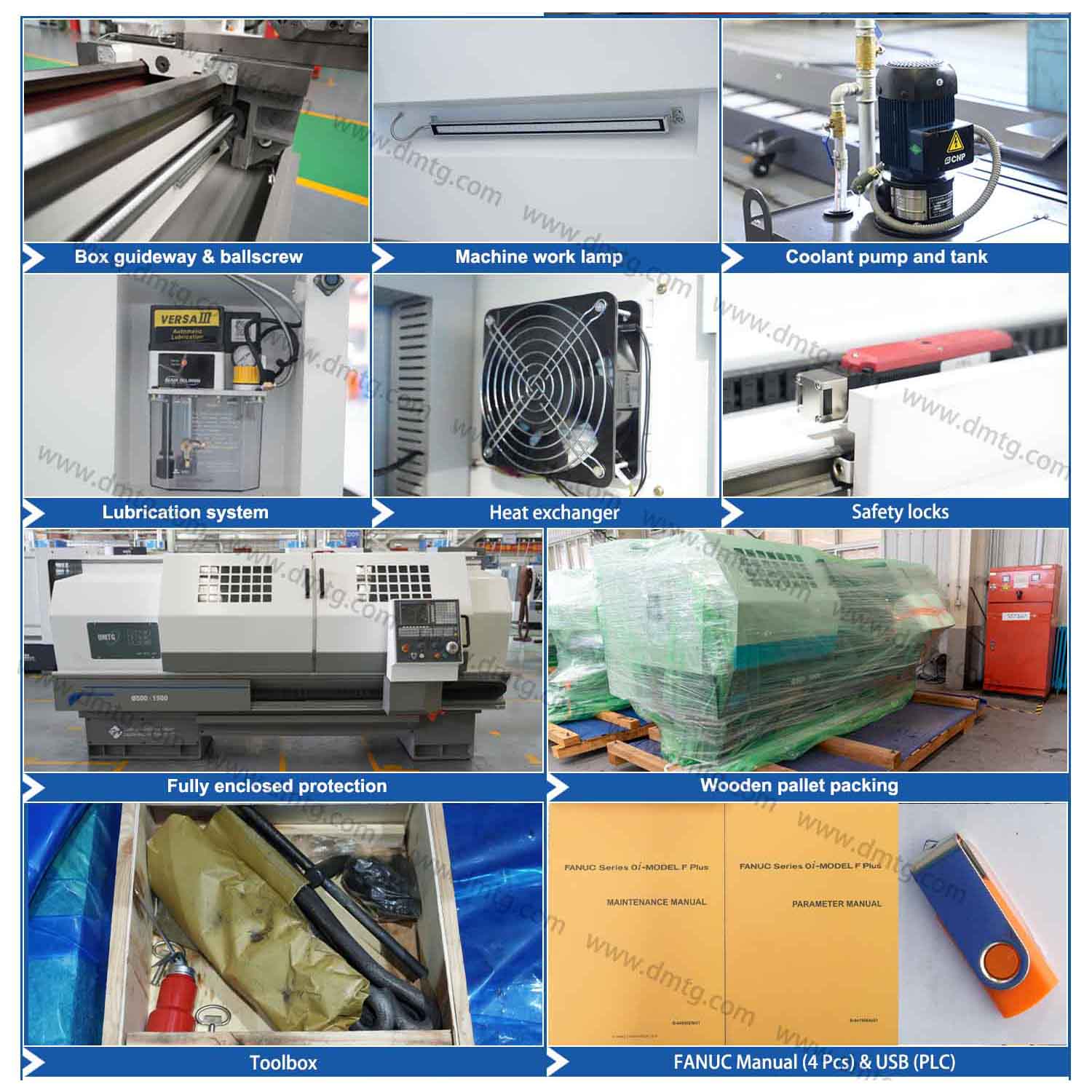

Specification |
Unit |
CNC Lathe CK6150 |
CNC Lathe CK6180 |
|

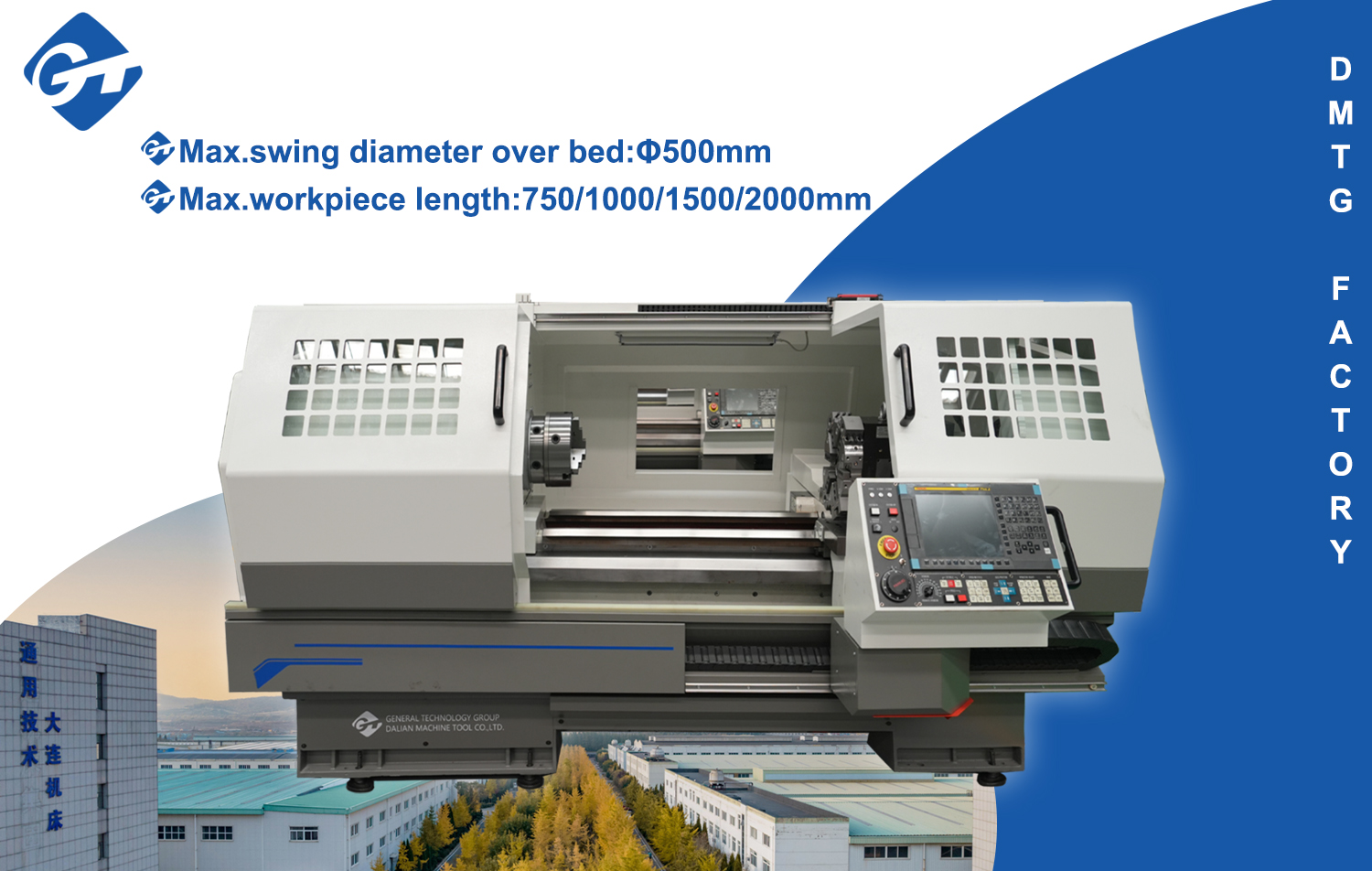

Max. swing diameter over bed |
mm |
Φ500 |
Φ800 |
|
Max. swing diameter over cross slide |
mm |
Φ500 |
Φ490 |
|
Max. workpiece length |
mm |
750/1000/1500/2000 |
1000/1500/2000/3000/4000/5000 |
|
Max. cutting length |
mm |
680/930/1430/1930 |
795/1245/1845/2745/3785/4745 (Vertical 4-position) 690/1140/2740/2640/3680/4640 (Horizontal 6-position) 700/1150/2750/2650/3690/4650 (Horizontal 8-position) |
|
Max. turning length |
Vertical 4-position |
mm |
Φ500 |
Φ800 |
Opt:Horizontal 6-position |
mm |
Φ400 |
Φ620 |
|
Opt:Horizontal 8-position |
mm |
Φ370 |
Φ620 |
|
Spindle center height |
mm |
250 |
400 |
|
Bed guideway width |
mm |
400 |
550 |
|

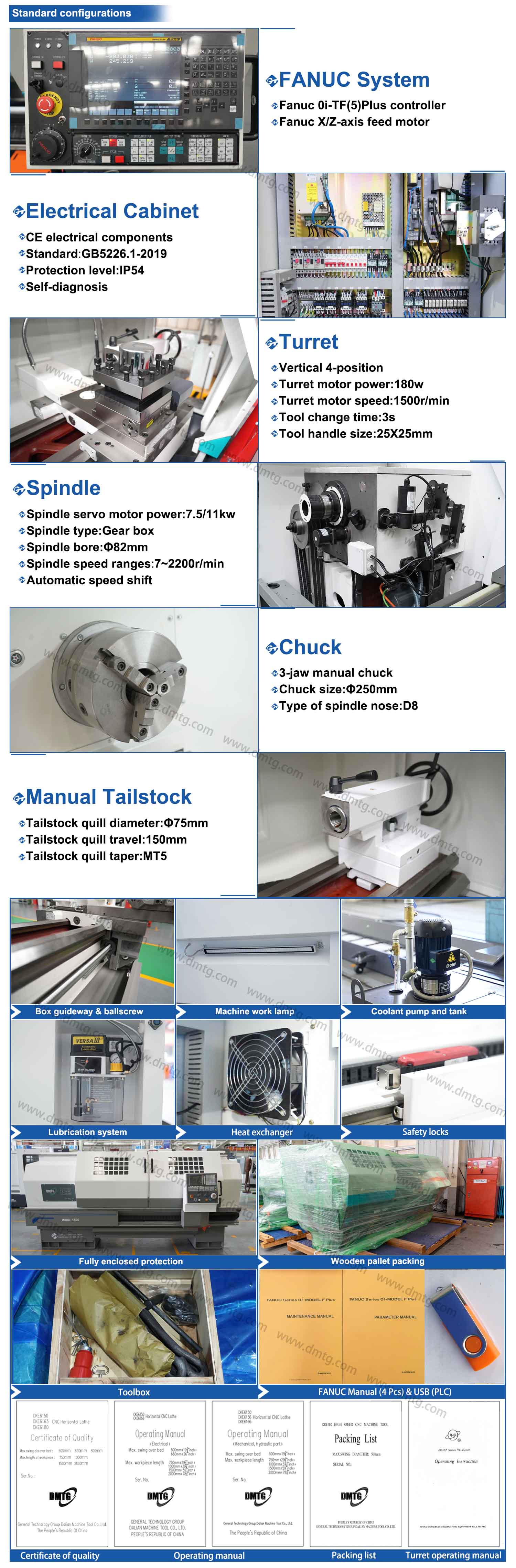

Spindle motor power |
kw |
7.5/11(Servo motor) |
11 (inverter-driven motor) |
|

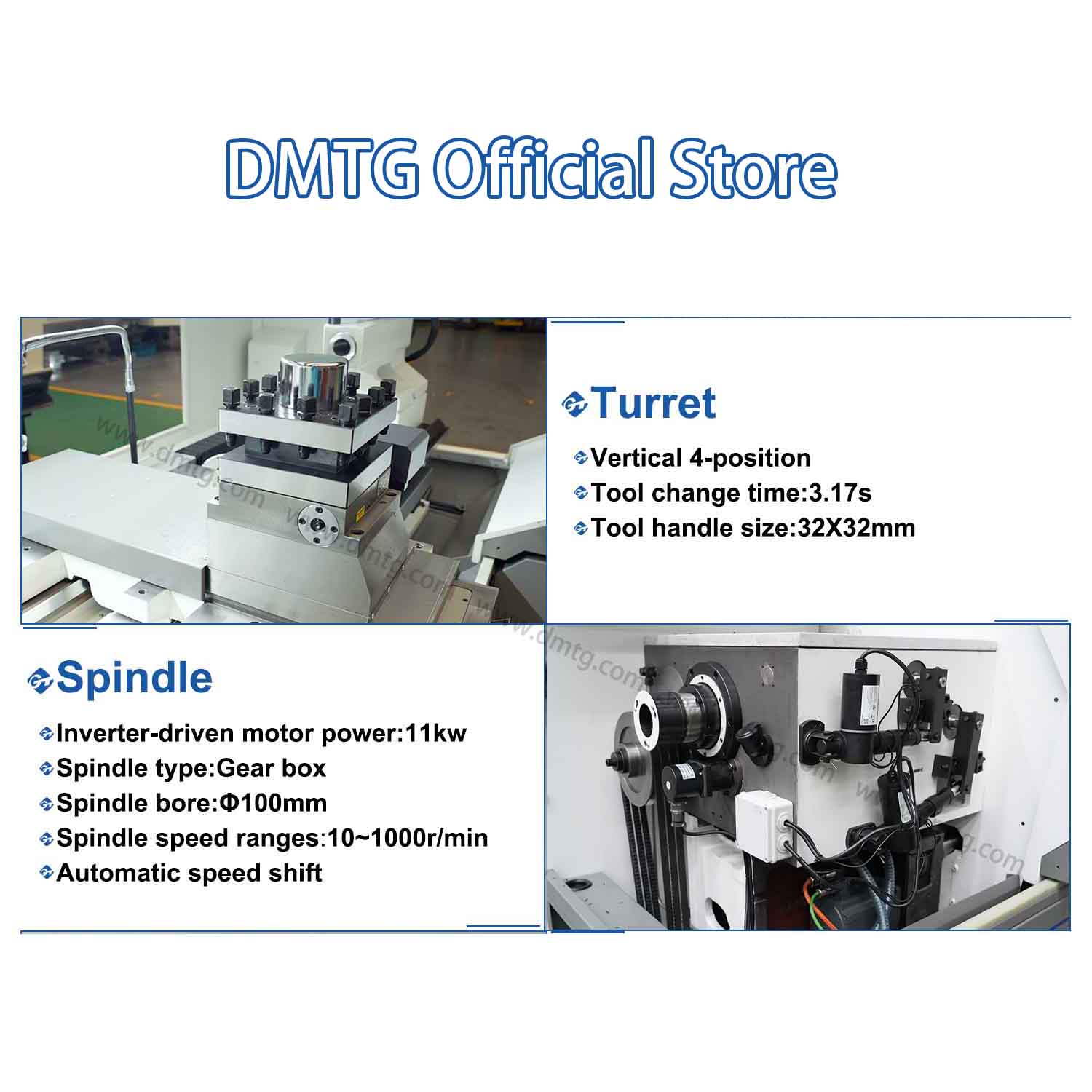

Spindle type |
r/min |
Gear box |
Gear box |
|
Spindle bore |
mm |
Φ82 |
Φ100 |
|

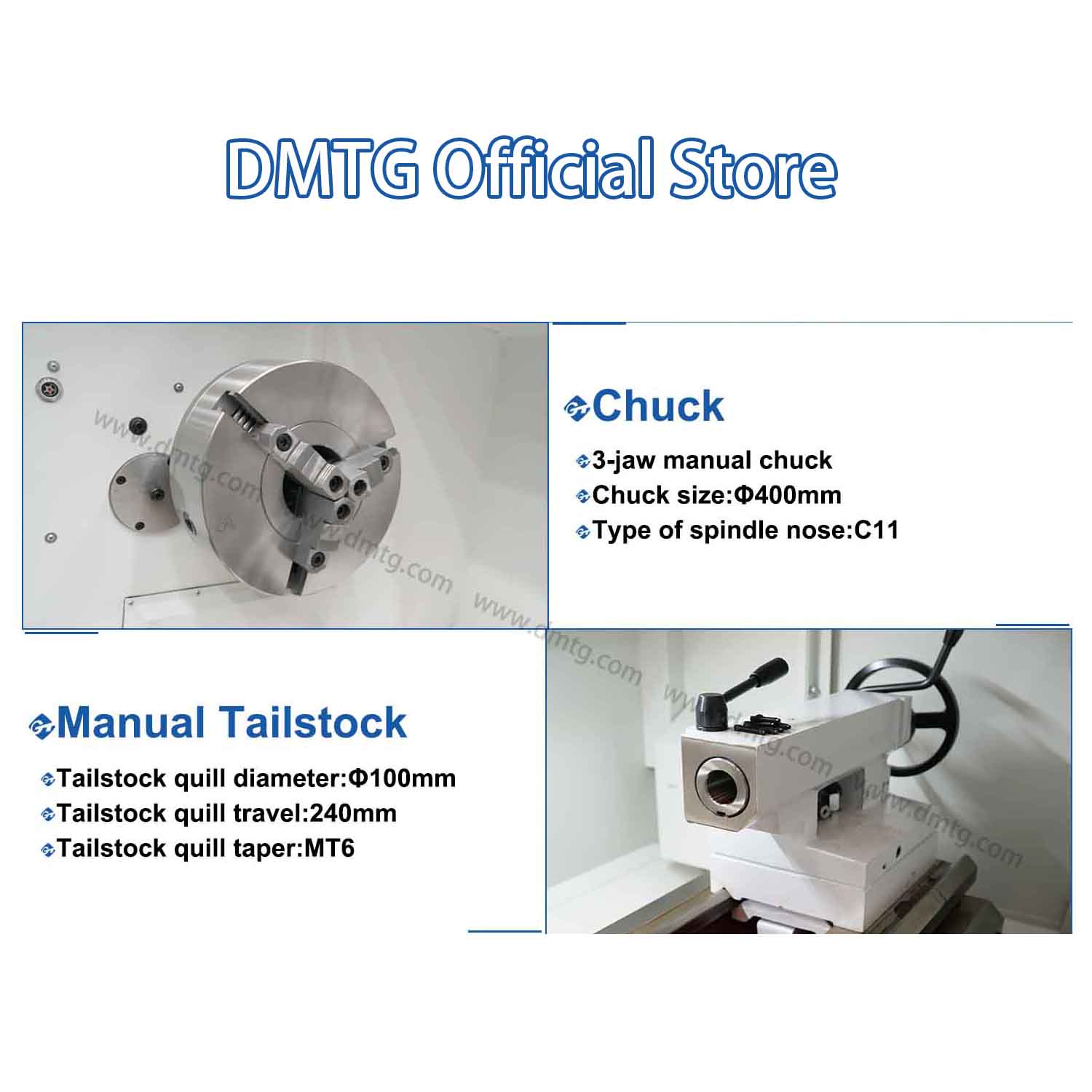

Chuck size |
mm |
Φ250 |
Φ400 |
|
Taper of spindle bore |
Front end Φ90 1:20 |
Front end Φ120 1:20 |
||
Type of spindle nose |
D8 |
C11 |
||
Spindle speed ranges |
r/min |
7~2200 3 range manual(auto) |
10~1000 4 range manual(auto) |
|
Tailstock quill diameter |
mm |
Φ75 |
Φ100 |
|
Tailstock quill travel |
mm |
150 |
240 |
|
Tailstock quill taper |
MT 5 |
MT 6 |
||
Max. travel of X-axis |
mm |
280 |
400 |
|
Max. travel of Z-axis |
mm |
685/935/1435/1935 |
800/1250/1850/2750/3790/4750 |
|
Rapid travel of X/Z axis |
m/min |
4/8 (750, 1000, 1500) 4/6 (2000) |
4/7.5(1000, 1500, 2000), 4/4(3000), 4/3.5(4000, 5000) |
|
Tool shank size (Vertical 4-position) |
mm |
25X25 |
32 X32 (32 X 25 Horizontal 8 position) |
|
X/Z axis positioning accuracy |
mm |
0.018/0.021(750) 0.024(1000) 0.026(1500, 2000) |
0.018/0.024(1000) 0.026(1500, 2000) 0.030(3000, 4000, 5000) |
|
X/Z axis repeatability accuracy |
mm |
0.006/0.008(750) 0.011(1000) 0.014(1500, 2000) |
0.006/0.011(1000) 0.014(1500, 2000, 3000, 4000, 5000) |
|
Machine dimensions (L×W×H) |
mm |
2580×1750×1620(750) 2830×1750×1620(1000) 3330×1750×1620(1500) 3830×1750×1620(2000) |
3455×2020×1805(1000) 3905×2020×1805(1500) 4505×2020×1805(2000) 5405×2020×1805(3000) 6455×2020×1805(4000) 7535×2020×1805(5000) |
|
Machine weight |
kg |
2550(750) 2600(1000) 2700(1500) 2800(2000) |
5300(1000)/5600(1500)/6100(2000)/6400(3000)/7600(4000)/8600(5000) |
|
