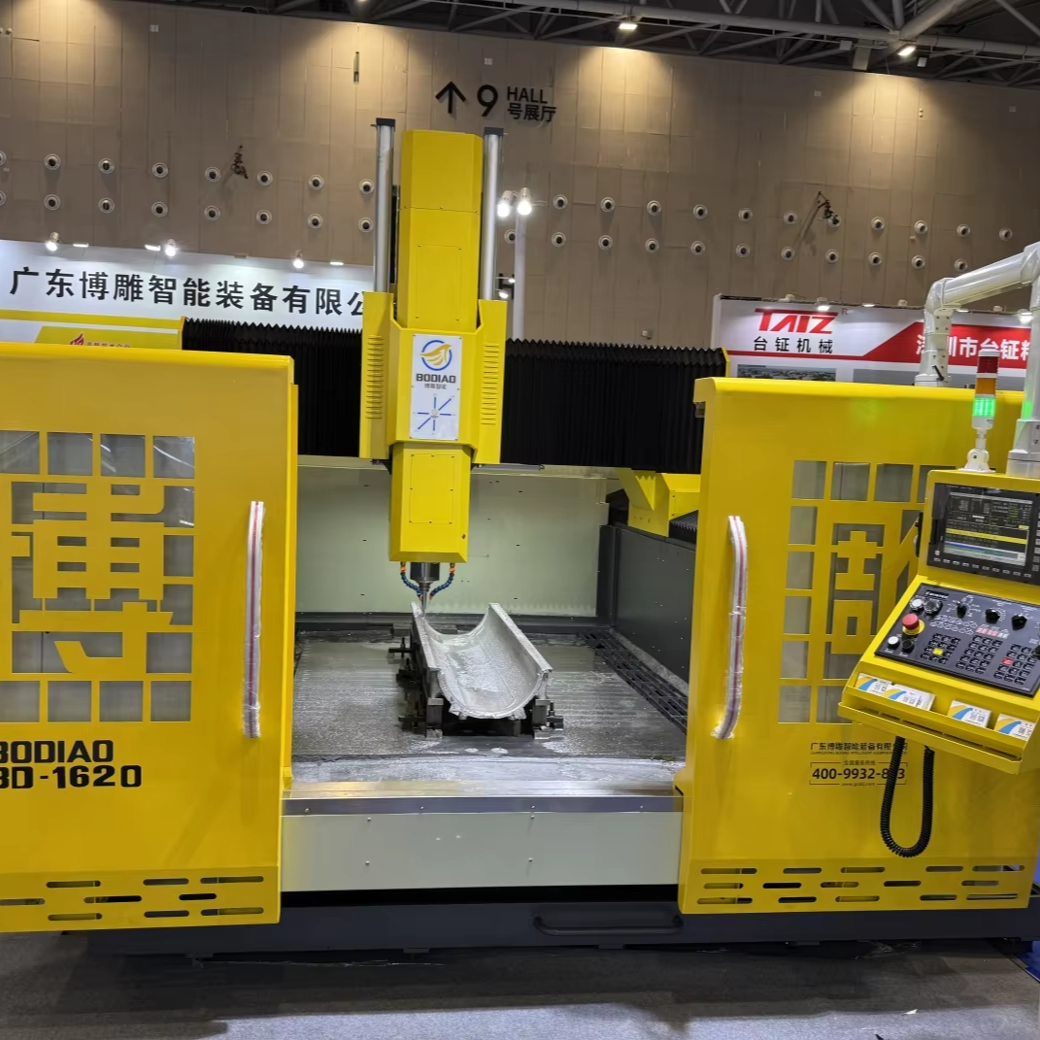

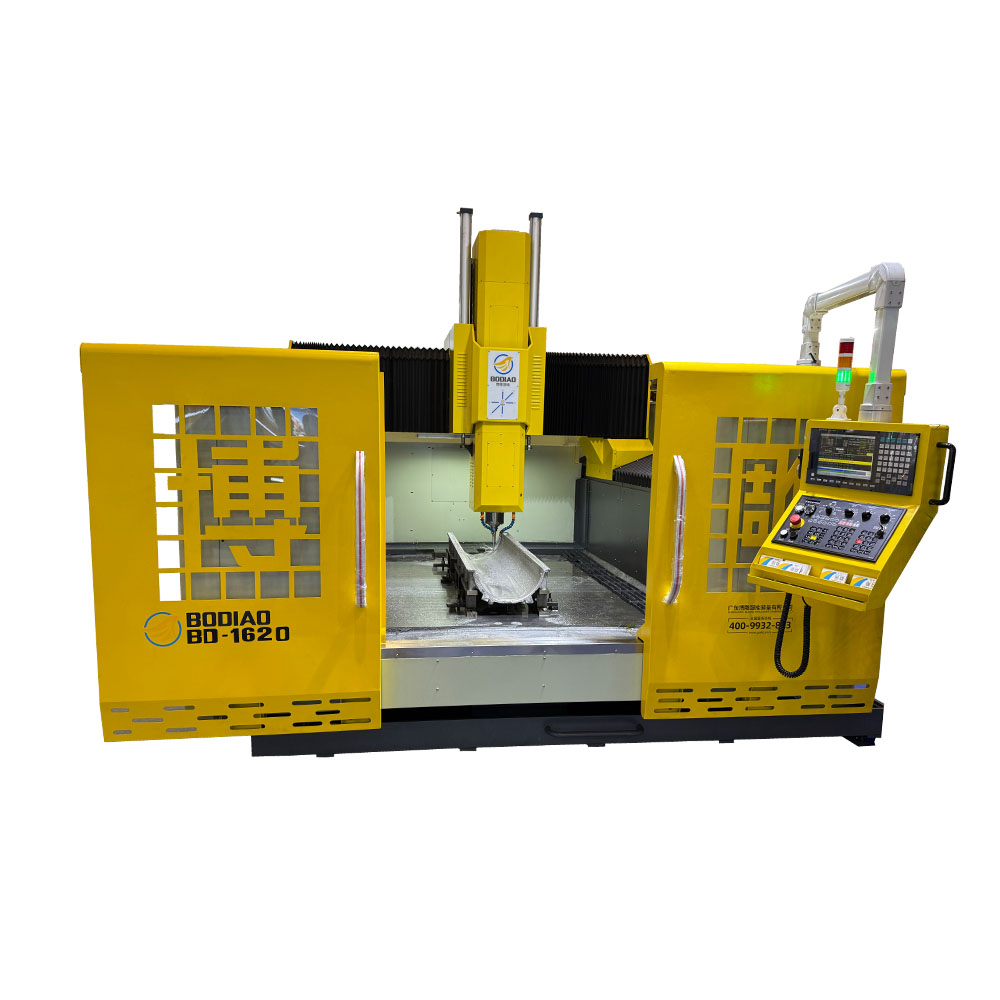

Gantry CNC Machining Center for Die & Mold Making 5-Axis BT40 Spindle Single Spindle Auto Tool Changer High Precision

Product Description

Product Description

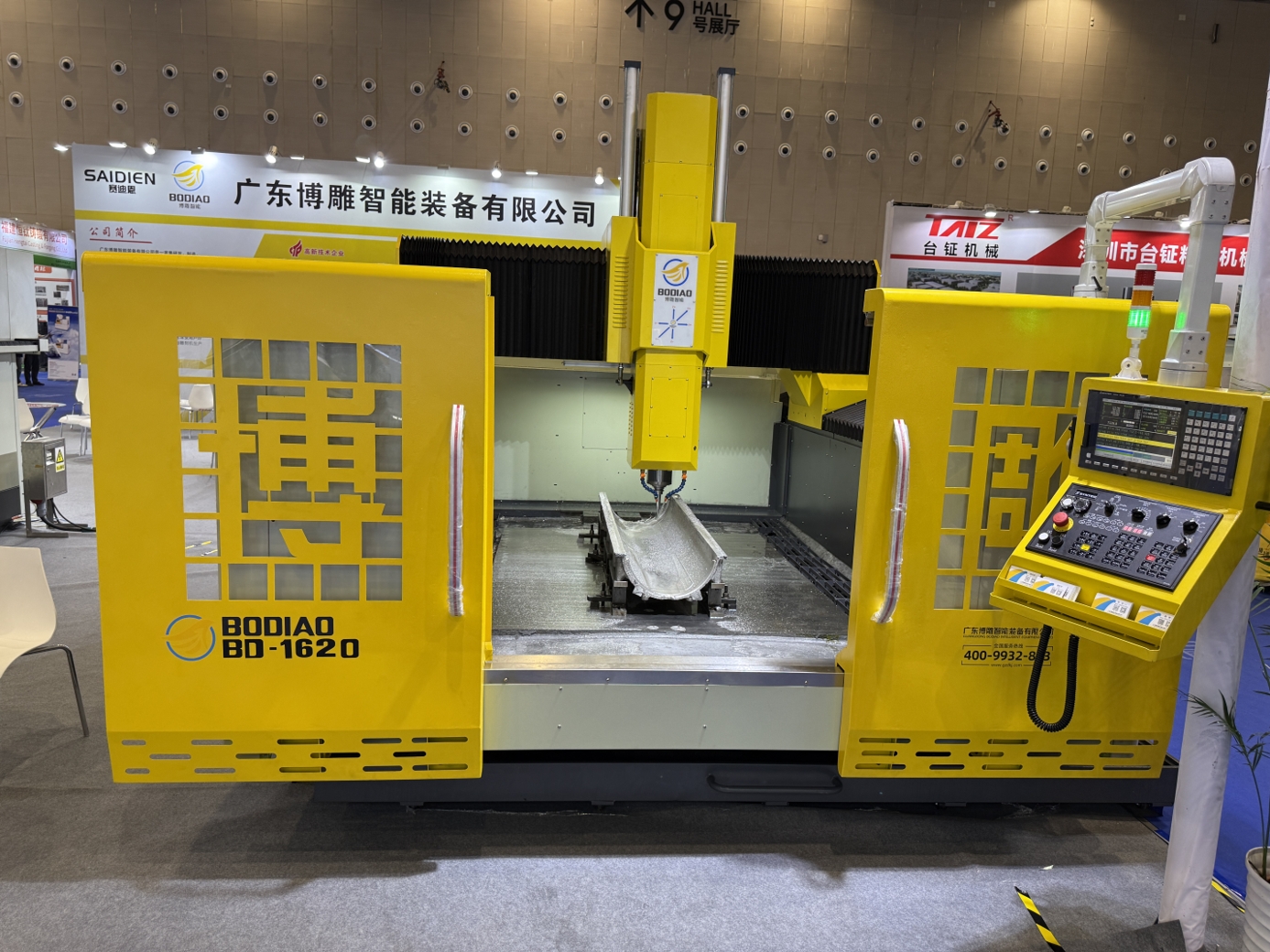

Product Image

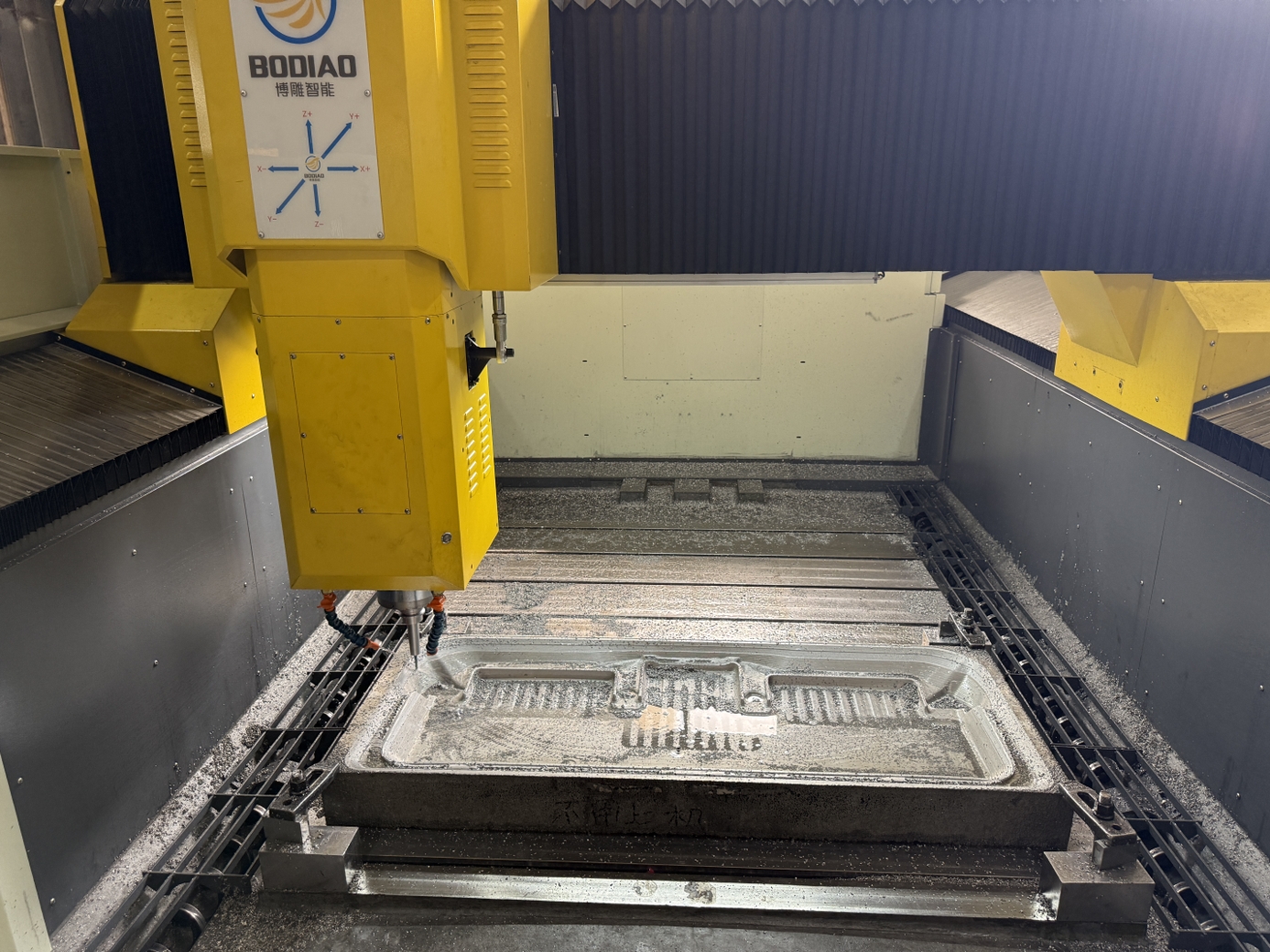

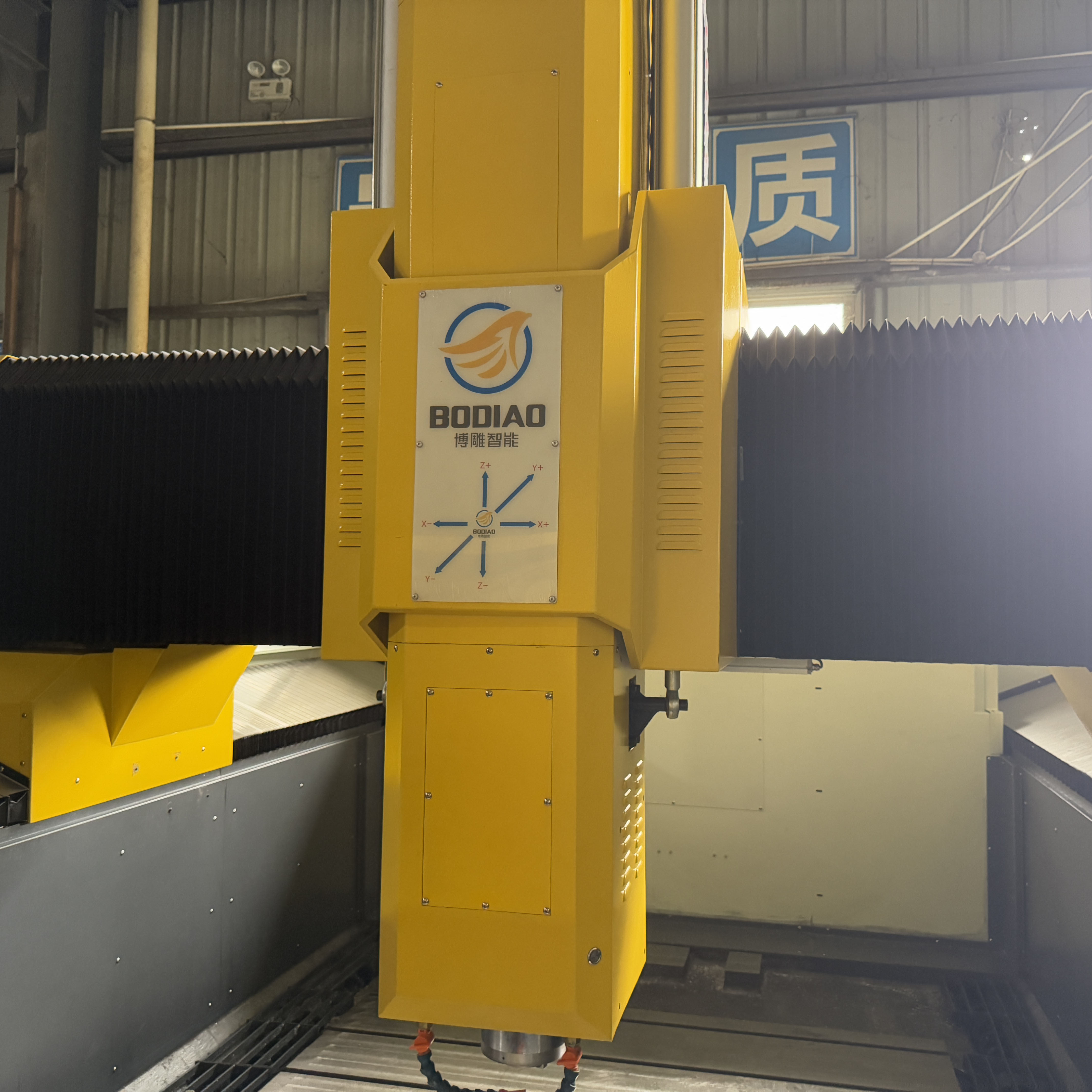

Product Detail View 1

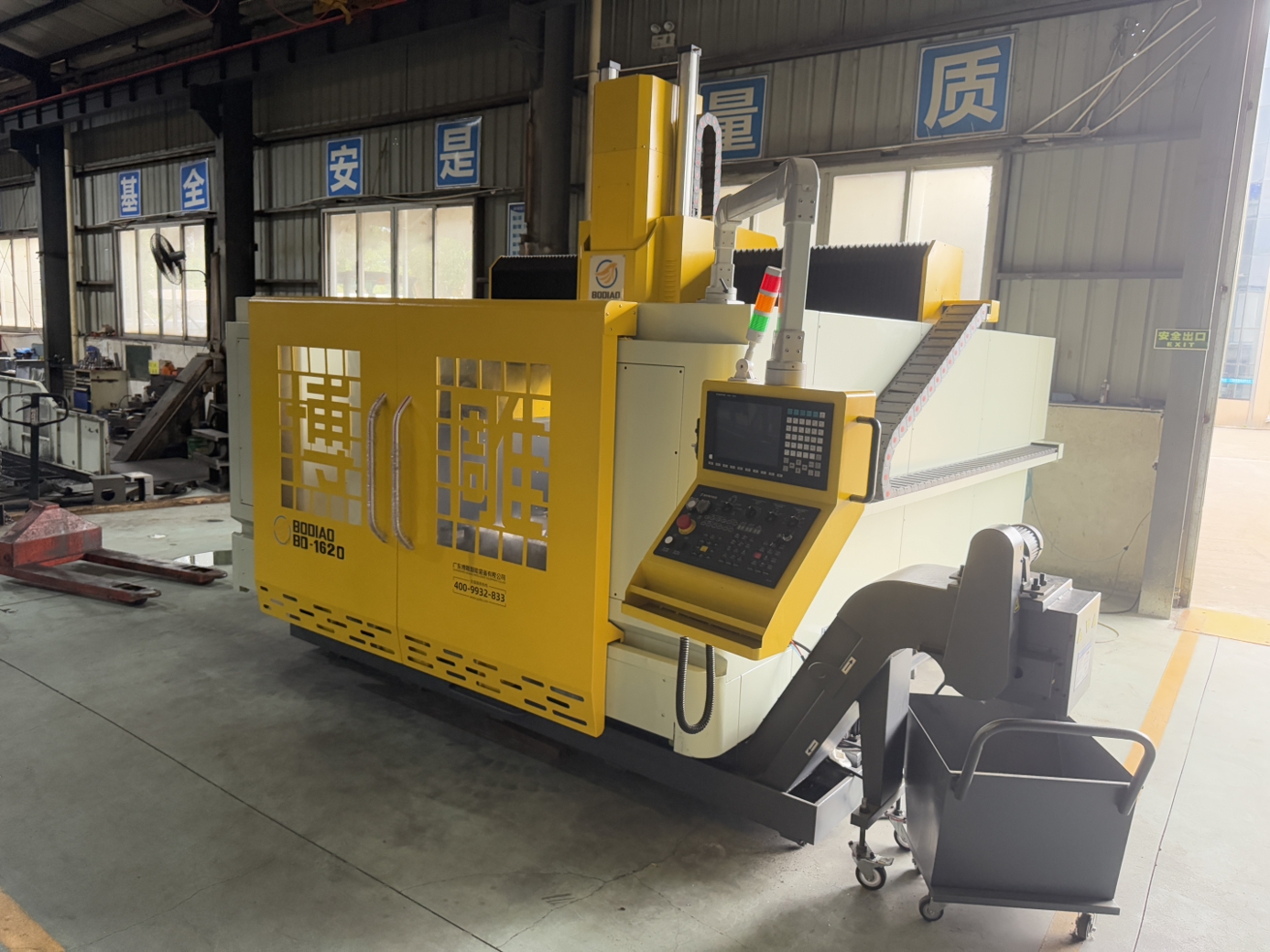

Product Detail View 2
  • 1
    Product advantages:
    As the core processing equipment in the mold industry—such as for metal molds, plaster molds, aluminum cast molds, and foam molds—machining centers possess robust processing capabilities. Their high-precision control systems and advanced mechanical structure design enable them to easily handle high-accuracy machining of various complex molds, providing solid assurance for users in the mold industry to produce high-quality processed products.
  • 2
    Aerospace Standards:
    In the aerospace field, our machining centers achieve efficient processing of components, meeting the industry's stringent high-precision standards and requirements, thereby contributing to the development of the aerospace industry.
  • 3
    New Energy Vehicles:
    In the new energy vehicle industry, gantry machining centers can rapidly and accurately complete the processing of new energy vehicle parts, improving production efficiency, reducing manufacturing costs, and helping new energy automotive enterprises stand out in the fierce market competition.
Specification
Processing range X stroke 1600mm X maximum speed 25m/min
Y stroke 2000mm Y maximum speed 25m/min
Z stroke 800mm Z maximum speed 15m/min
Operating mode Servo Spindle power 11KW
Operation instructions G code, F/S command compatible with G code, F/S command Spindle speed 0-8000RPM/min
Operating voltage AC380V/50HZ Positioning precision engraving 0.02mm
Operating system SYNTEC 22MA System resolution 0.001
Dimensions 5300x3300x3500mm Weight 14000KG
Details Display
Detail 1
Bridge Gantry with Grade 300 Cast Iron: Rigid & Stable, No Long-Term Deformation
Detail 2

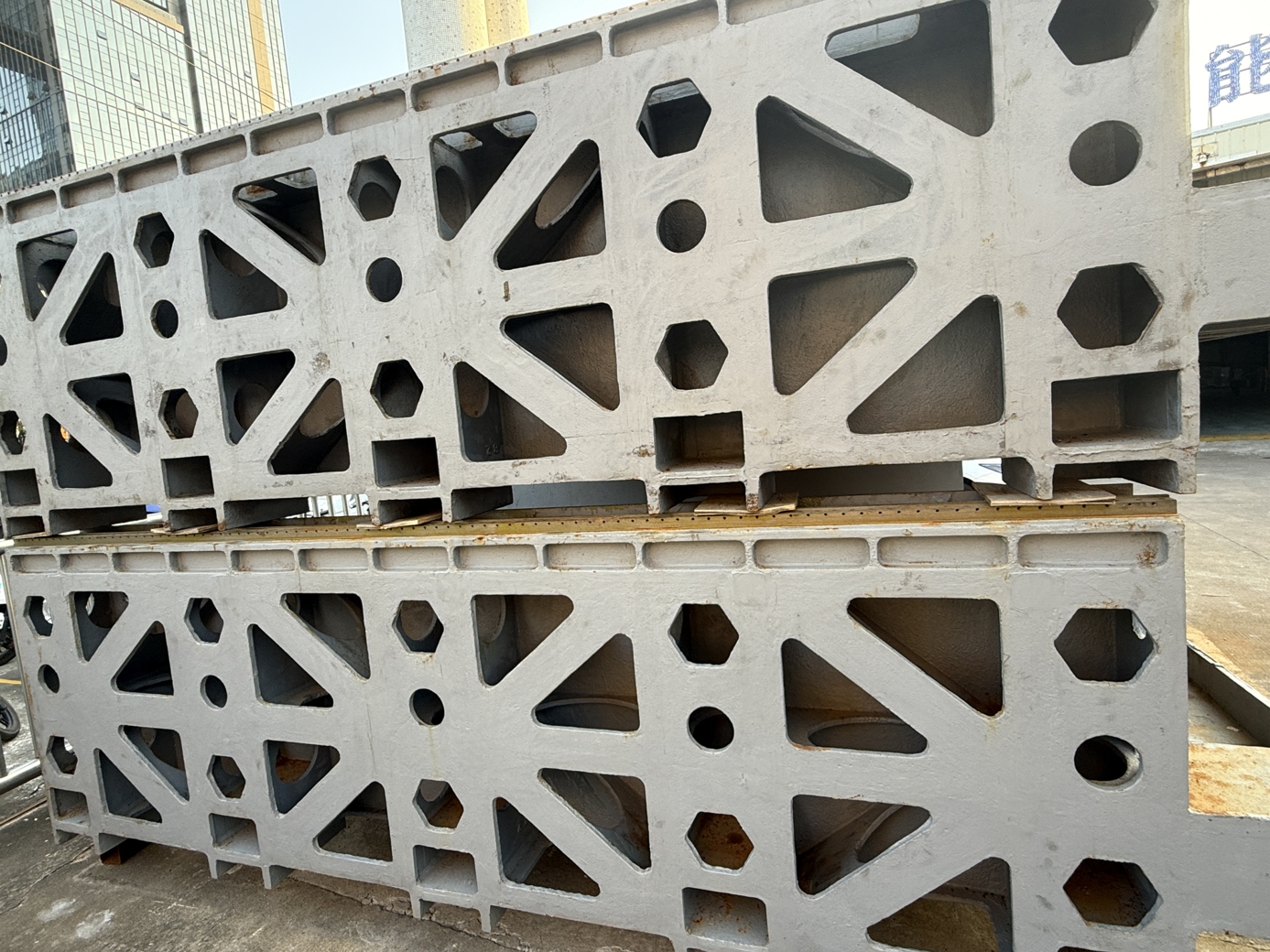

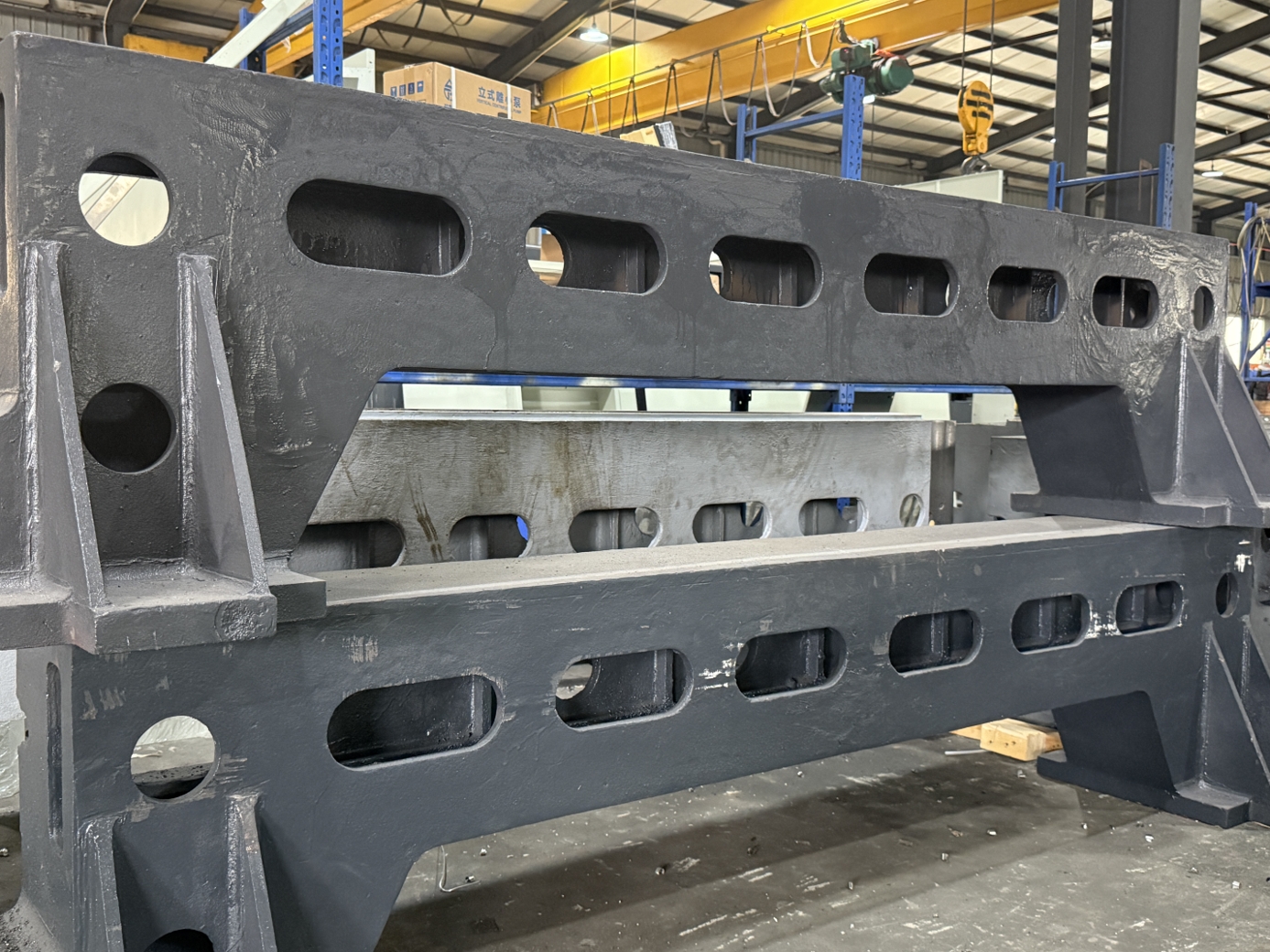

Gray iron casting, TH300 casting, reducing stress, improving machine tool stability and rigidity
Detail 3

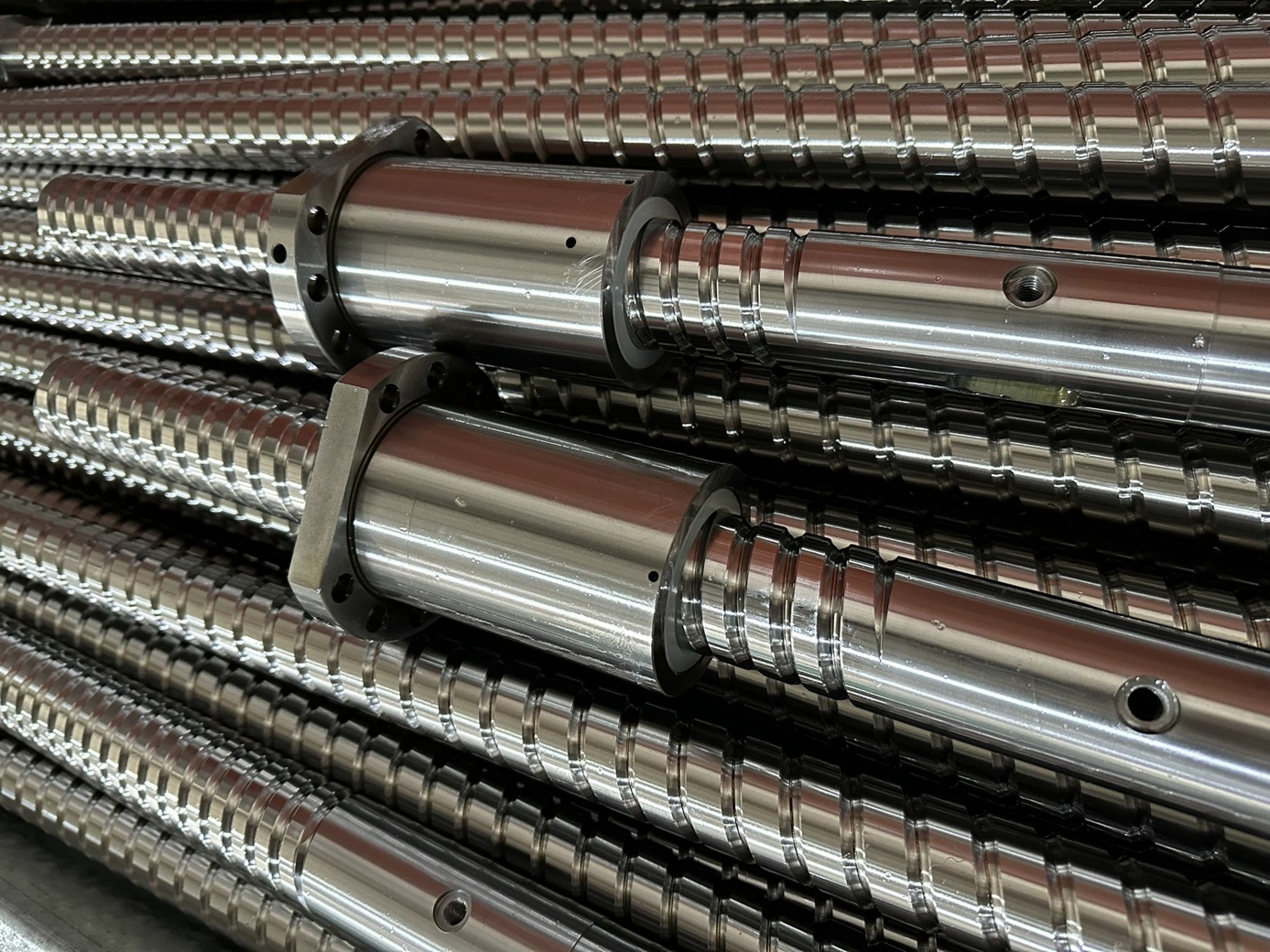

All three axes utilize TBI high-precision ground ball screws, ensuring high positioning accuracy, low friction, and long-term precision retention
Detail 4

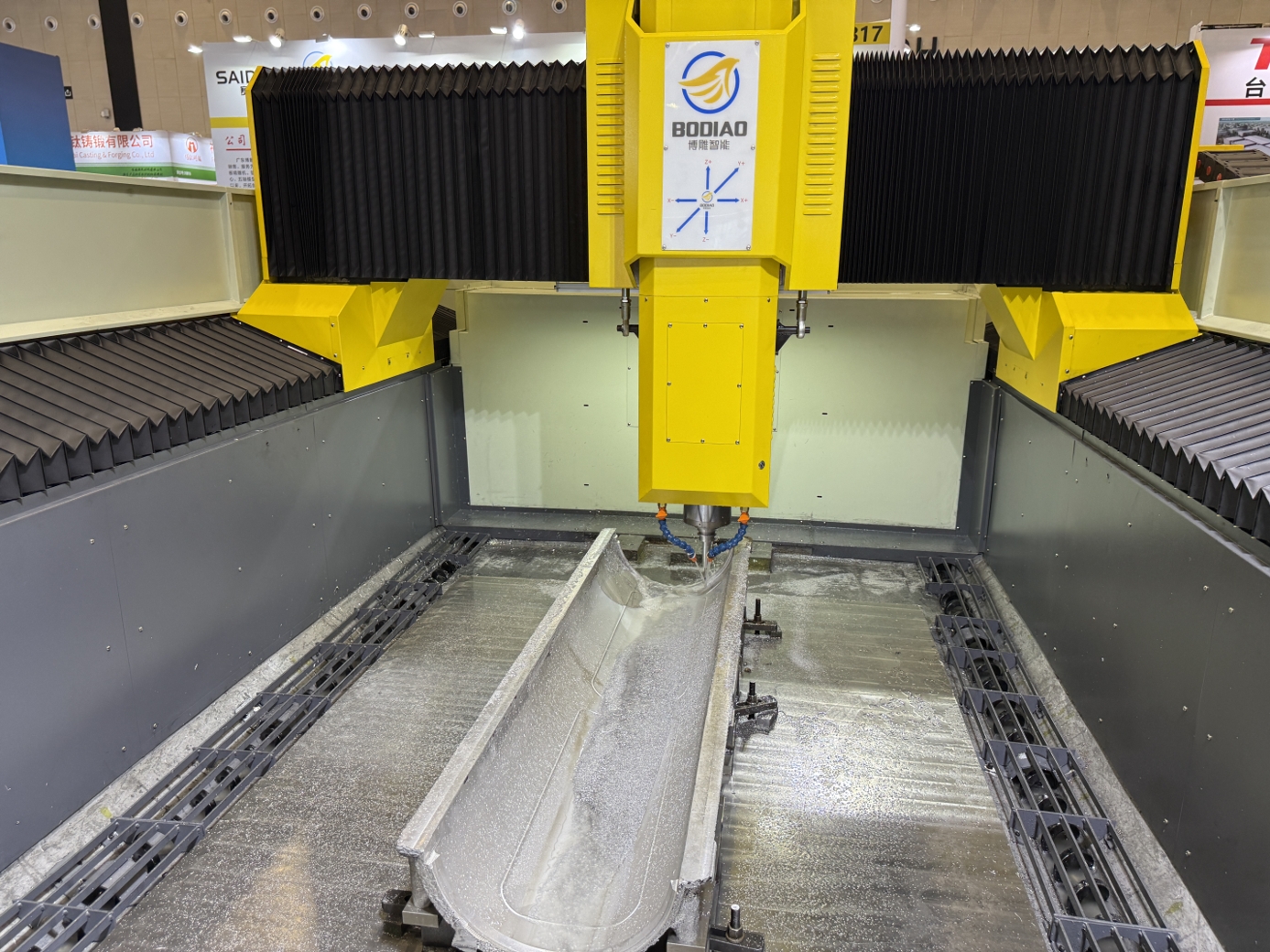

50mm Quenched Cast Worktable: High Hardness, Wear-Resistant & Rigid
Detail 5

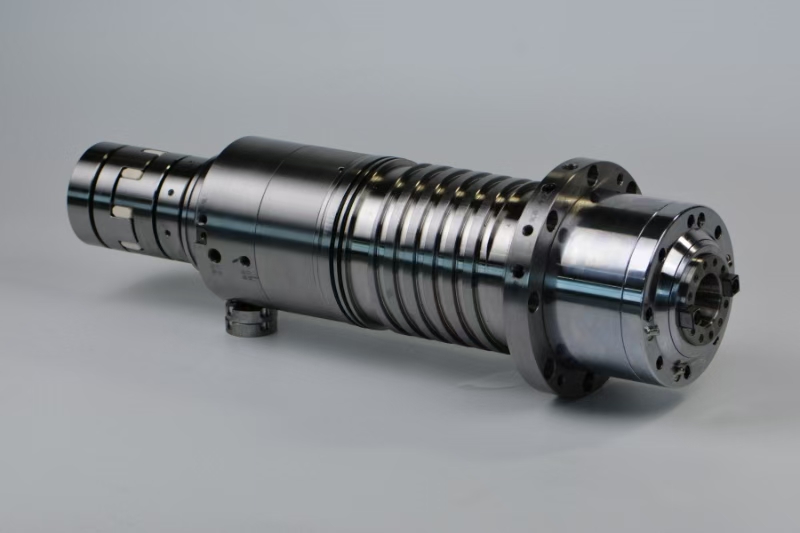

The BT40 high-power direct-drive spindle delivers reliability, stability, and durability, combining high-speed operation with superior performance
Detail 6

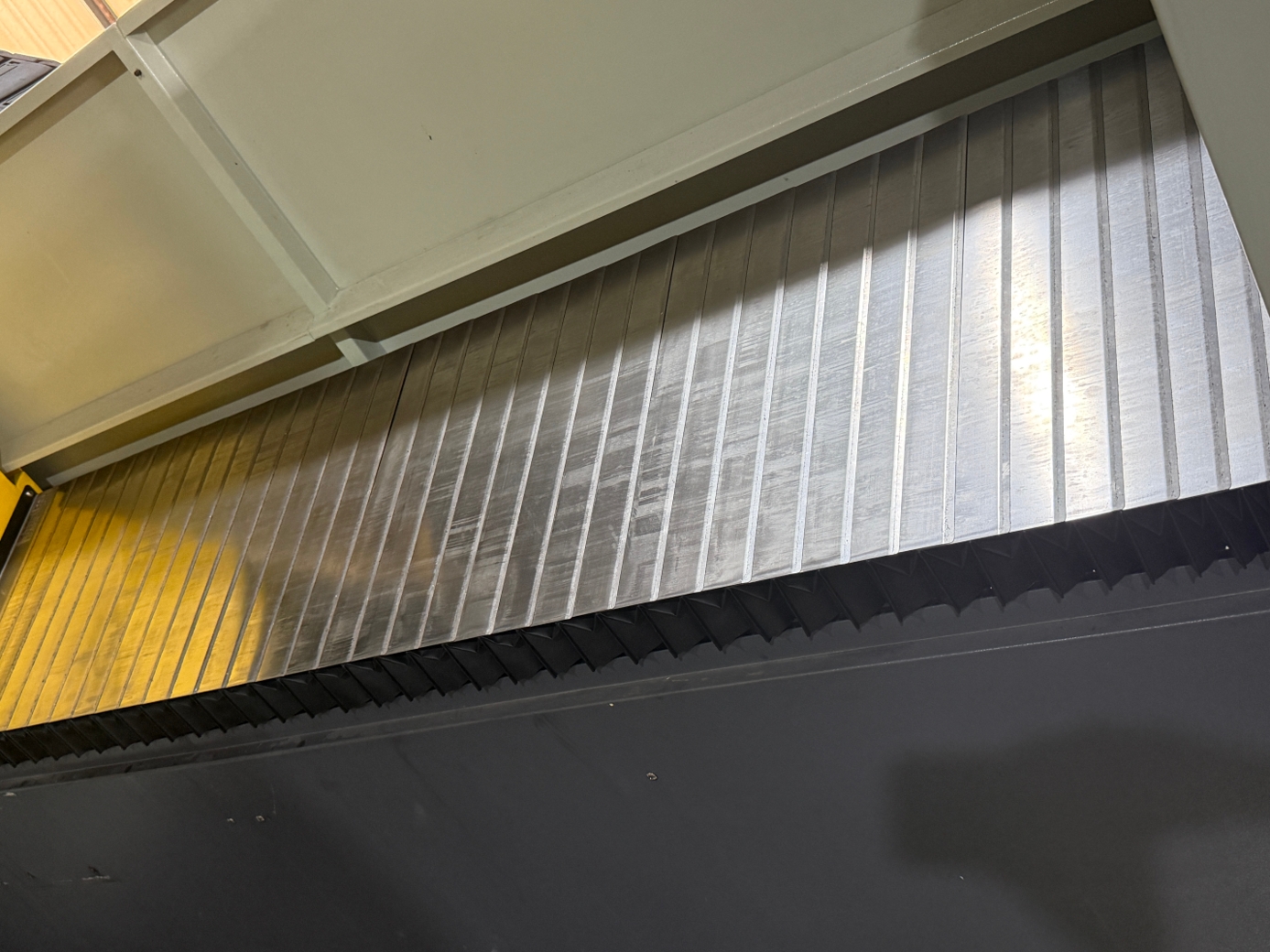

Provides superior protection for the machine's internal components, effectively extending service life and ensuring long-term precision stability

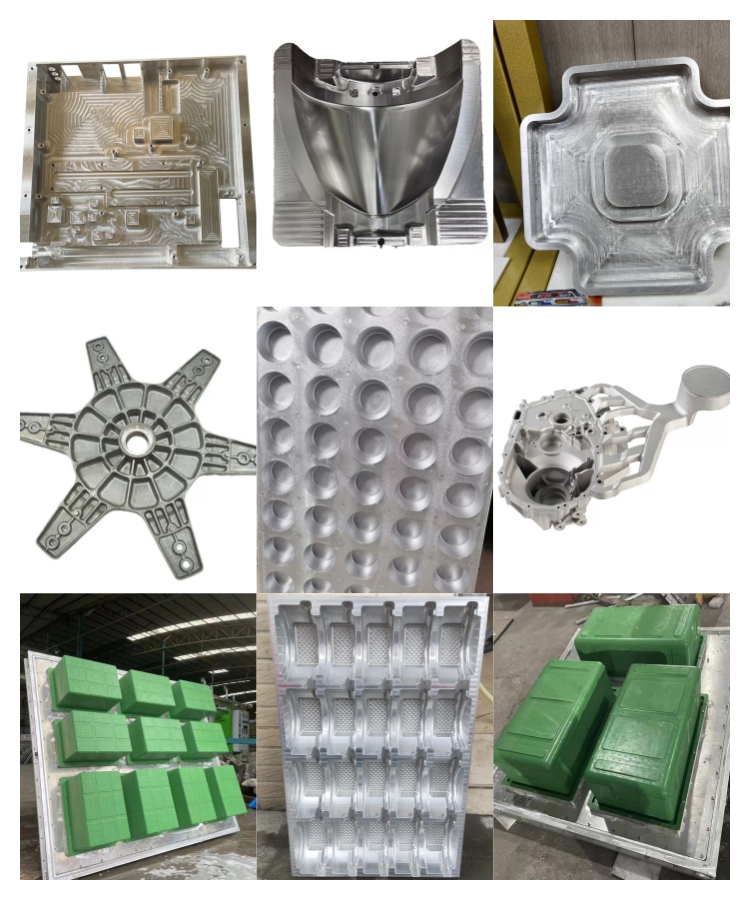

Application Industries
Application Industries

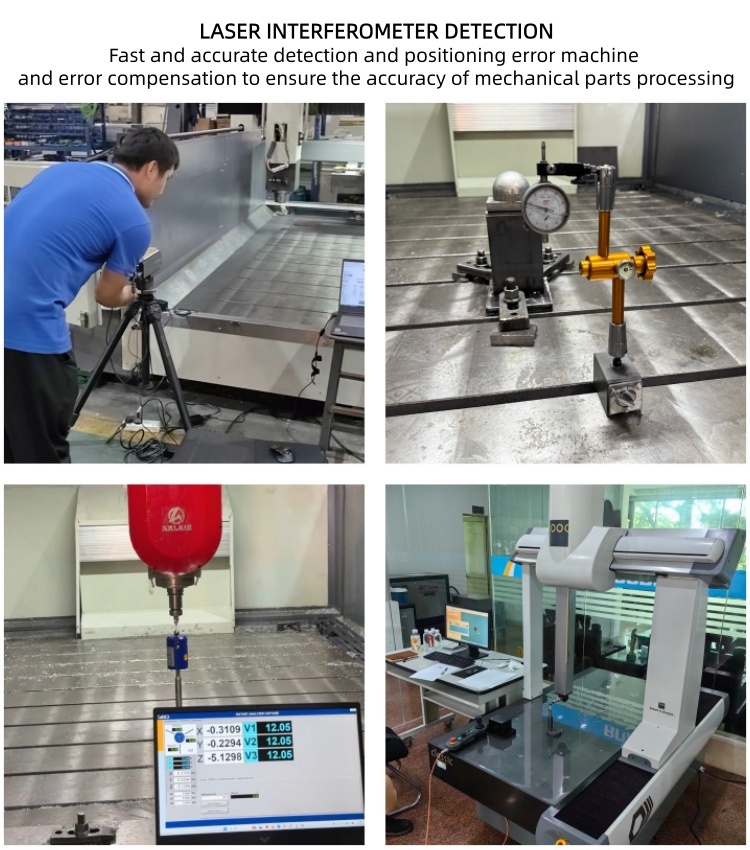

Quality Testing
Quality Testing
Company Profile
With over 30 years of specialization, we are dedicated to manufacturing and exporting high-quality machinery worldwide. Our facility spans more than 80,000 square meters and employs over 200 skilled workers. The company has obtained numerous international certifications, including ISO, and holds more than 40 patents. Our machines have been exported to over 100 countries and regions, and we provide long-term overseas technical guidance and after-sales service to these markets. We adhere to the business philosophy of "Quality First, Service Foremost, Continuous Improvement, and Innovation to Meet Customer Needs." This is backed by a strict quality control system with over 24 steps in our testing process. We sincerely look forward to collaborating with partners from around the globe for mutual growth and success.

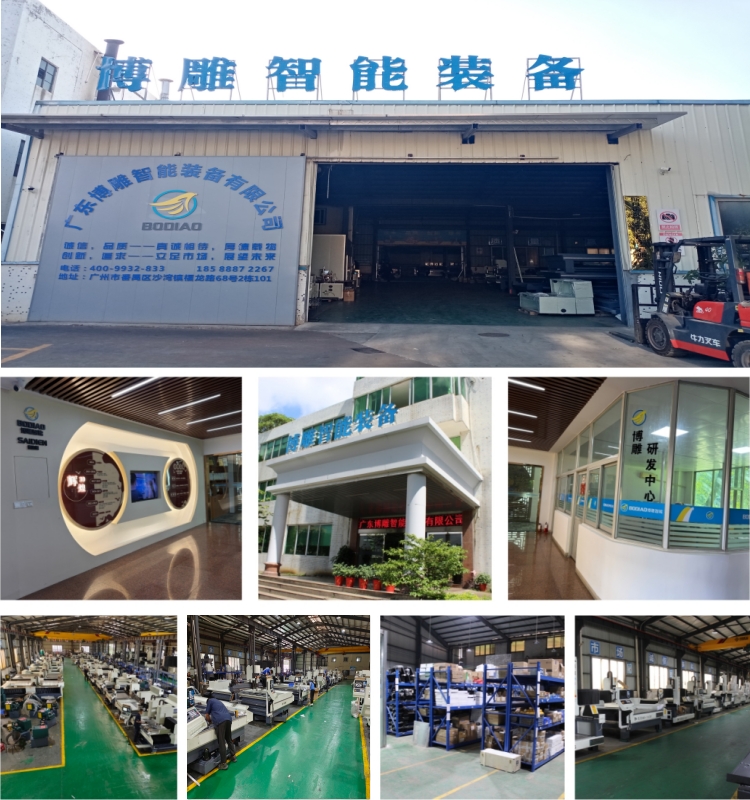

Company Facility 1
Company Facility 2
Company Facility 3
Product packaging
Product Packaging
FAQ
Q How to choose the most suitable machine?
Please tell me your material specifications, and I can choose the best model for you, or you can choose the exact model. You can also send us the product drawings, and we will select the most suitable machine for you.
Q What are the main products?
We specialize in various CNC equipment, such as CNC machine tools, gantry machining centers, metal engraving machines, three-axis/four axis/five axis engraving machine equipment, Poly Dragon engraving machines, and so on.
Q What needs to be confirmed before placing an order?
Is there a freight forwarder for voltage, frequency, plug type trade terms.
Q Can I place a small order?
Yes, the minimum order quantity for our product is 1 unit. Different order quantities have different prices.
Q What are our payment terms?
30% initial payment upon ordering, and 70% balance payment before shipment.
