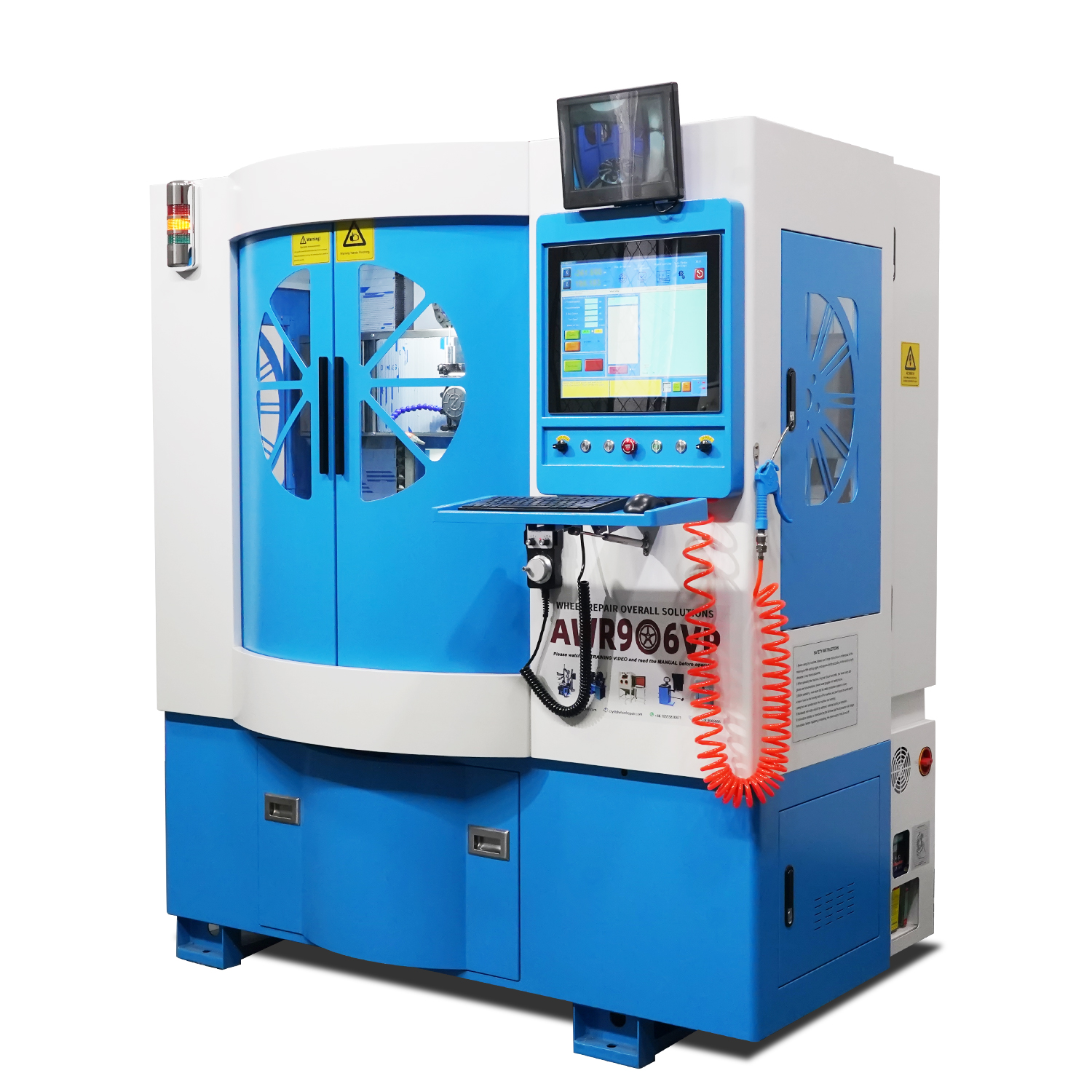

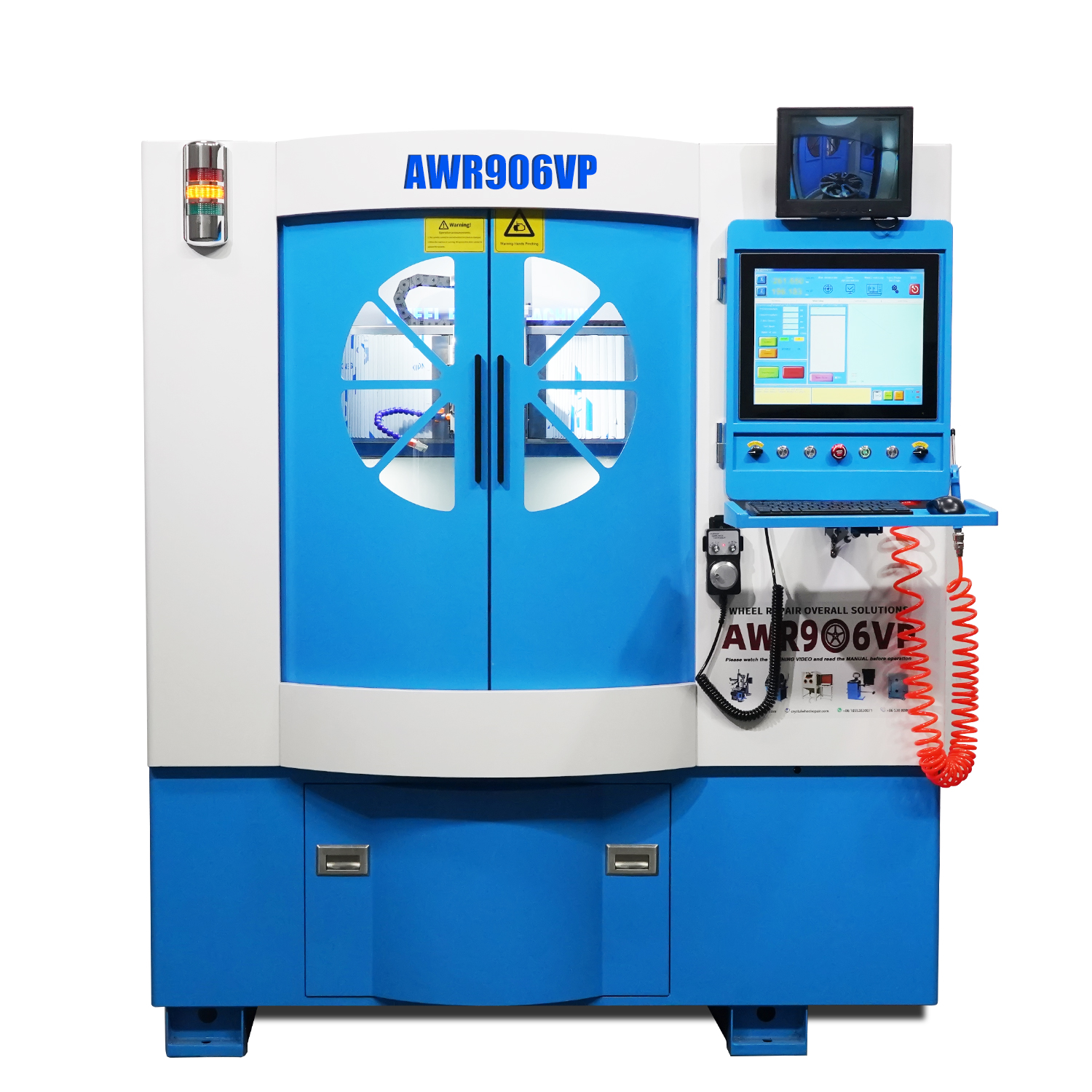

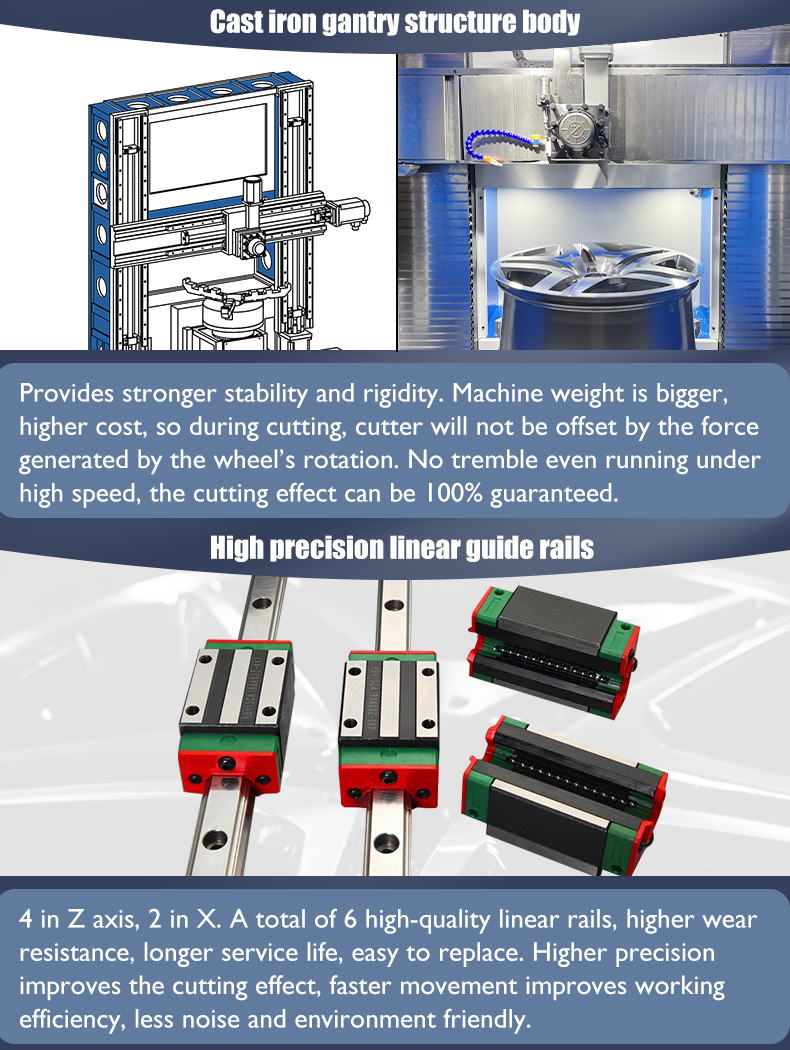

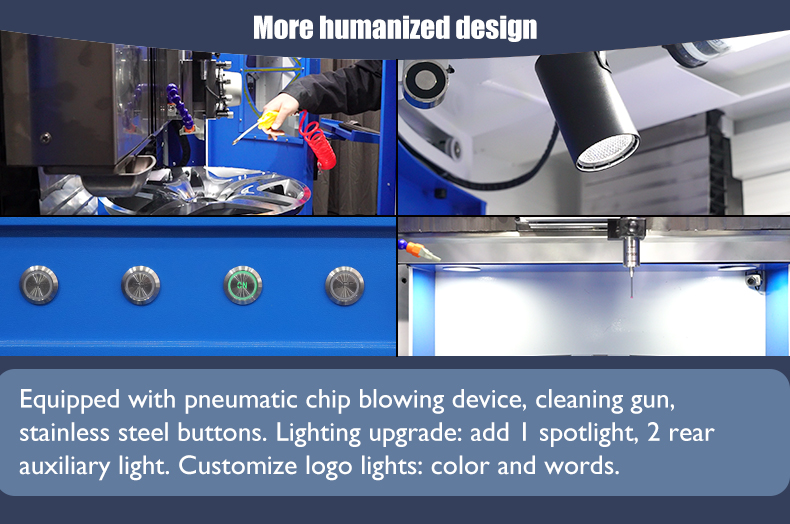

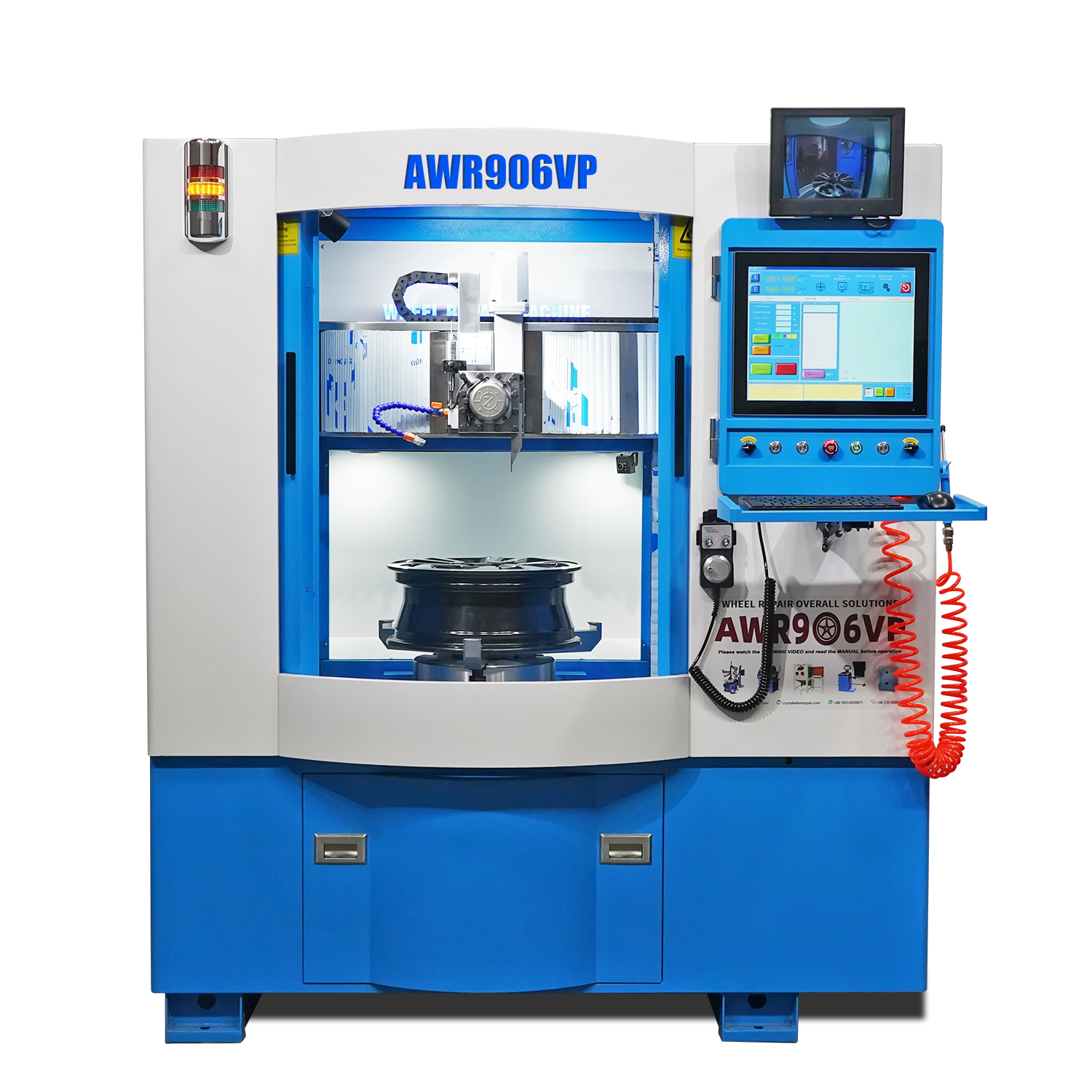

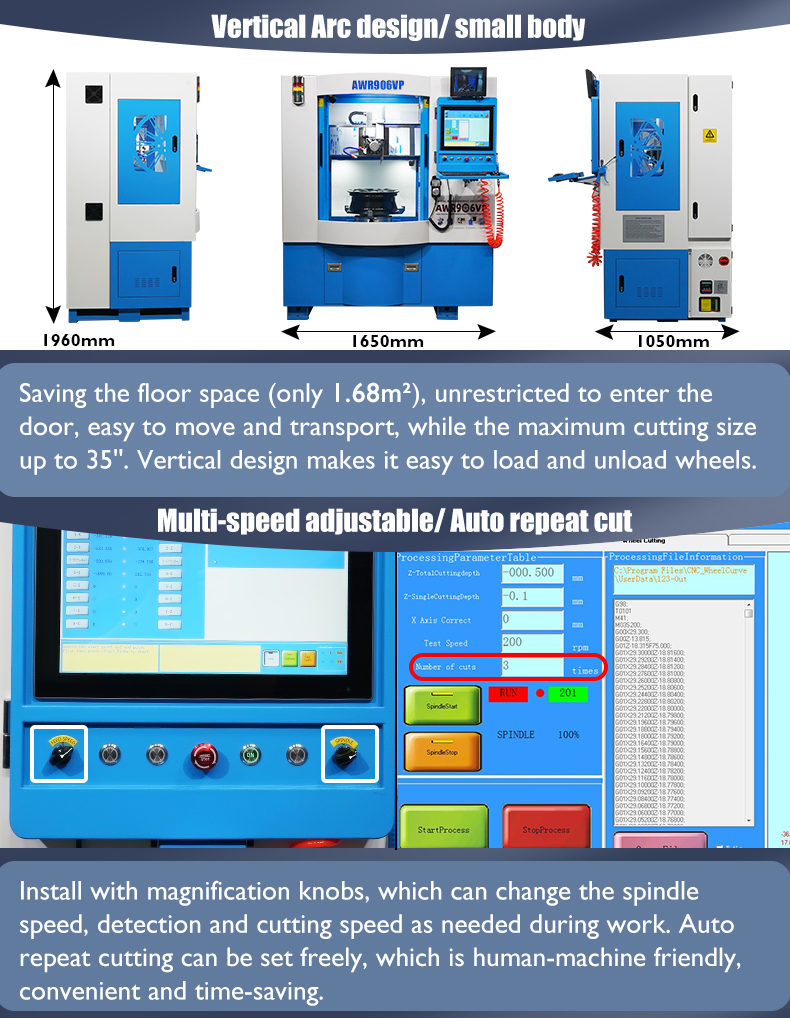

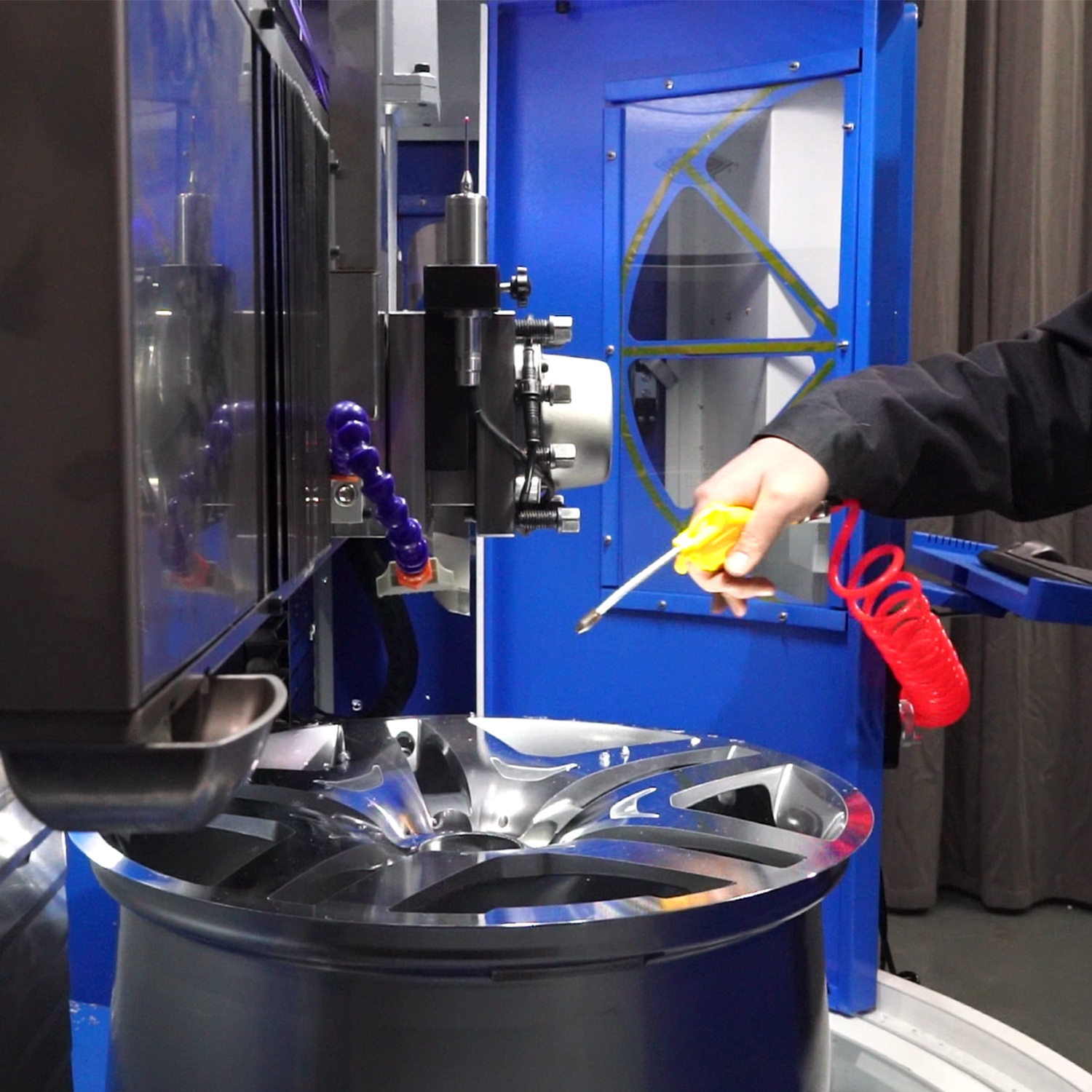

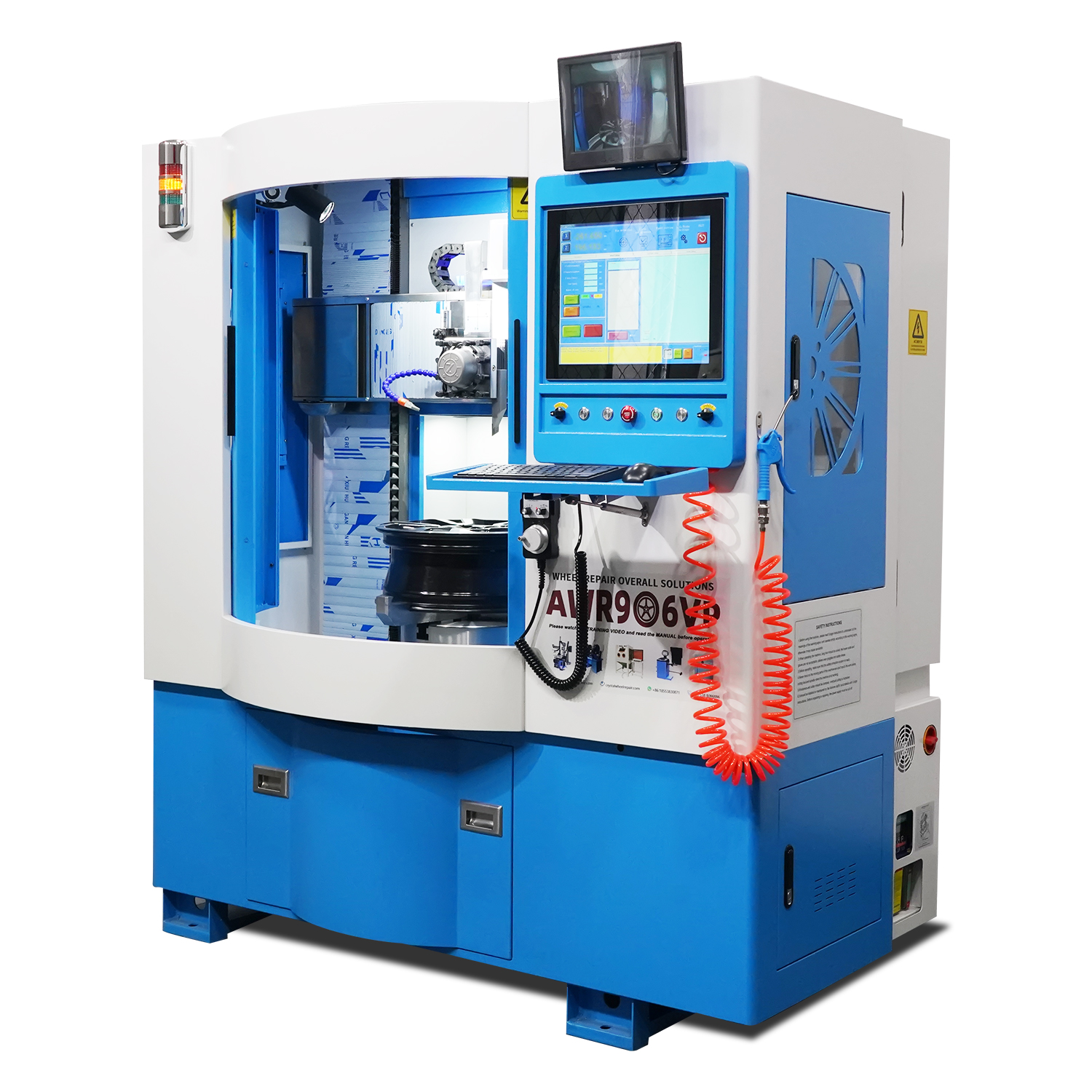

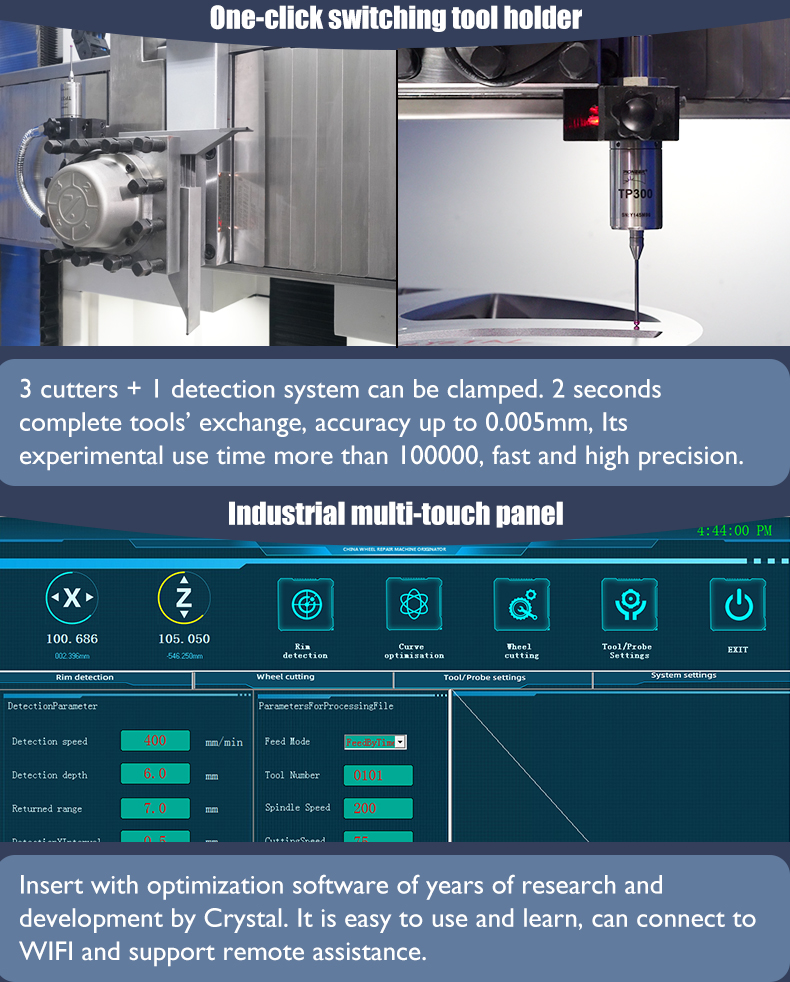

AR906VP adopts a vertical design, cast iron body, six linear guide-rails and a gantry structure, which can ensure that the machine is more stable and the cutting effect is better. The max. cutting size can reach to 35''. At the same time, many user-friendly and convenient designs were used: spindle speed, detection and cutting speed can be adjusted during working, automatic tool-holder, pneumatic chip removal device, multi-touch screen, automatic perform repetitive cutting etc., which makes it easier to operate, saves time and labor costs. At the same time, its floor space is only 1.68 m². AWR906VP is the model we highly recommend to you.
| ITEM | AWR906VP |
|---|---|
| Control system | CRYSTAL V2.0 |
| Max. wheel cutting size (inch) | 36 |
| Machine floor space (m²) | 1.68 |
| X/Z axis travel (mm) | 914/590 |
| No. & type of guide in X/Z axis | 2/4 linear guide-rails |
| X/Z axis position accuracy (mm) | 0.001 |
| Chuck & claw | 13″ chuck with 3 extended claw (6 claw available) |
| Range of spindle speed (rpm) | 10-1500 |
| Machine motors power (Kw) | 9.02 Kw |
| Type of tool holder | 4 position electric tool holder |
| Detection method | Ruby contact probe (laser detection available) |
| Power supply | 3P 380V 50/60Hz |
| Machine / Packing size | 1650*1020*1960 / 1810*1230*2200 |
| Net / Gross weight (Kg) | 1350/1450 |
| HS code | 8458911090 |
