CNC Spinning and Turning Machines are especially developed to spin lamps, art wares, kitchenwares and auto fittings. It has many patents issued by the State Intellectual Property Office. This machine is practical, professional and strong. It has high production efficiency and can complete horn, bucket, cone type, parabolic products. It can also process threading, trimming, flanging and rolling at the same machine tool. The machine can spin many materials such as carbon steel, stainless steel, aluminum and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate. The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, mechanic and other manufacturing industries.
Standard Configurations & Main Features:
Siemens 808D as standard CNC system which has USB port.
Meehanite cast iron after aging treatment, with high quality and less deformation.
Adopted independent spindle unit to ensure good movement precision, stiffness and stability.
Precision ball screws ensure dynamic performance well and positioning accurately.
X axis adopts integral two-way ball screw, 2 rollers move in synchronization.
Feeding axles are driven by servo motors.
Spindle motor is Servo controlled.
Pneumatic tailstock.
Integrated automatic lubrication system makes the maintenance more reliable.
Configuration cooling pump.
Mobile manual pulse generator makes easy to operate.
Semi-enclosed shield.
Optional Accessories:
NC system such as FANUC, SIEMENS, GSK or KND is available for your selection.
Hydraulic tailstock.

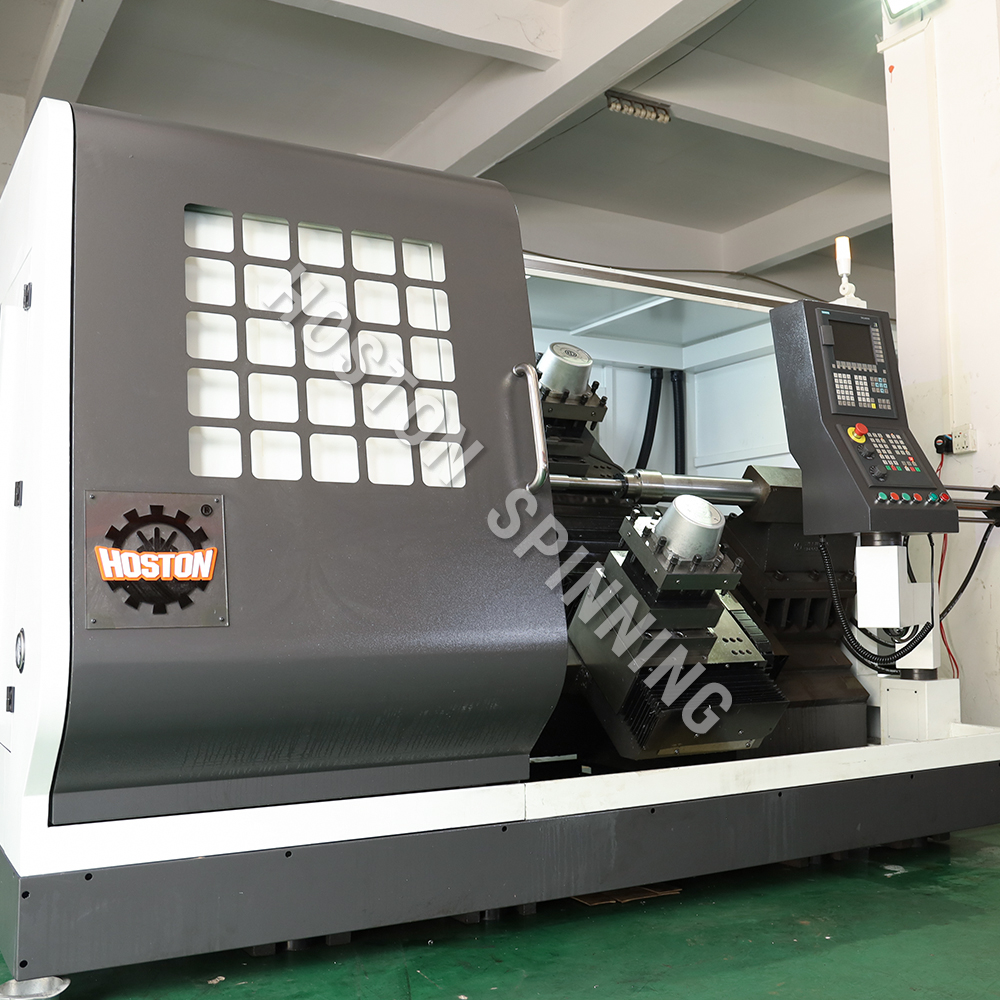

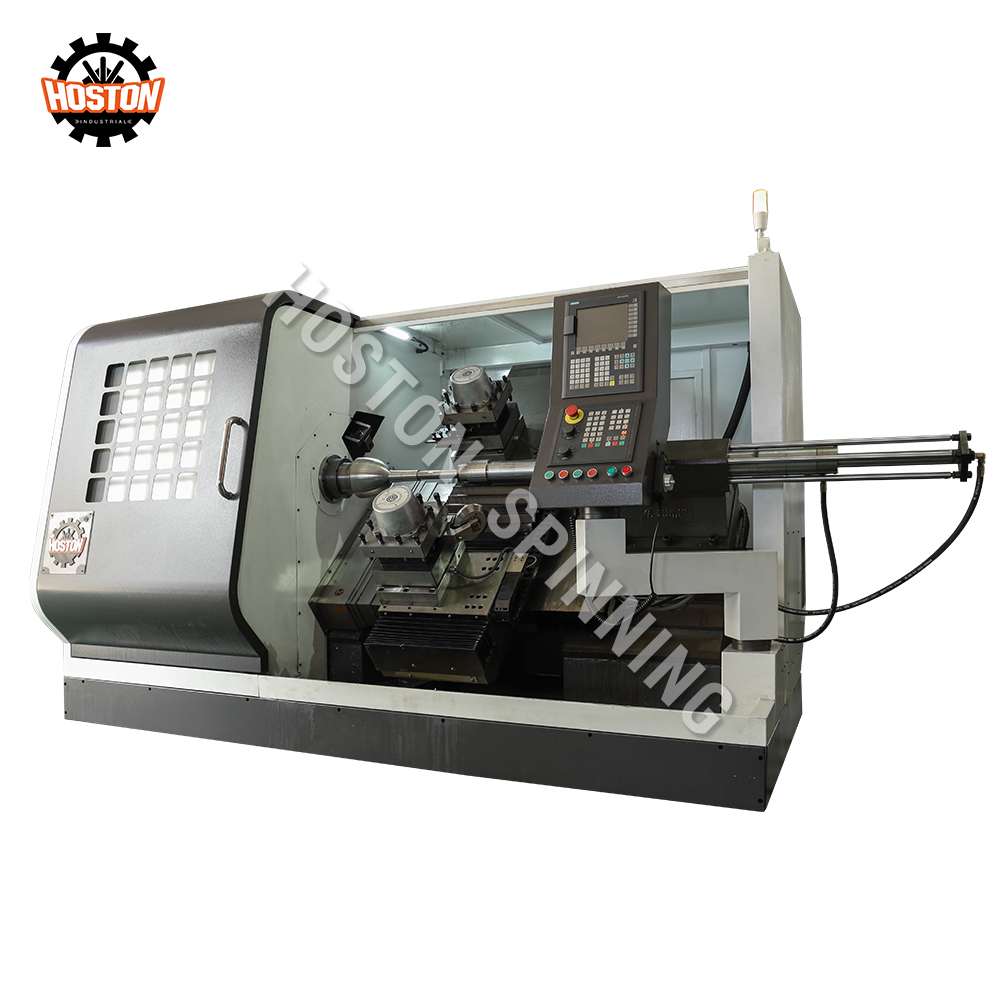

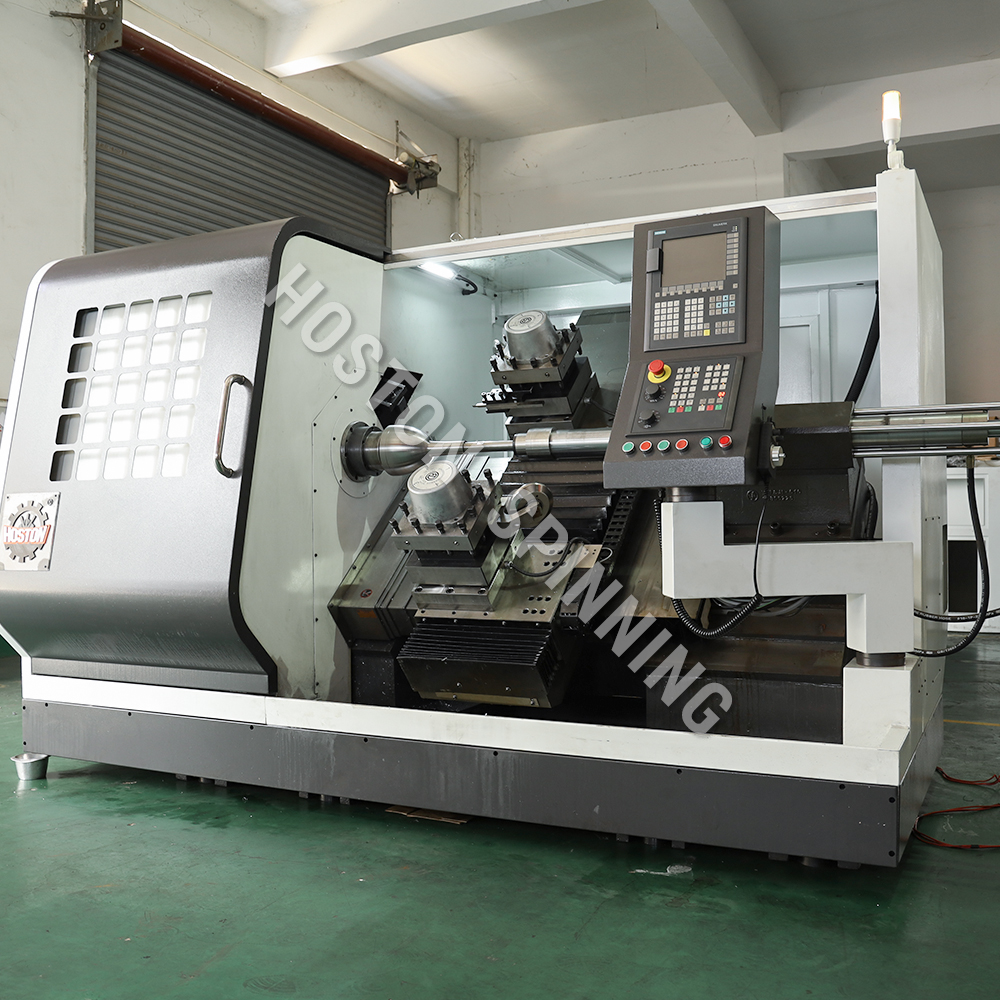

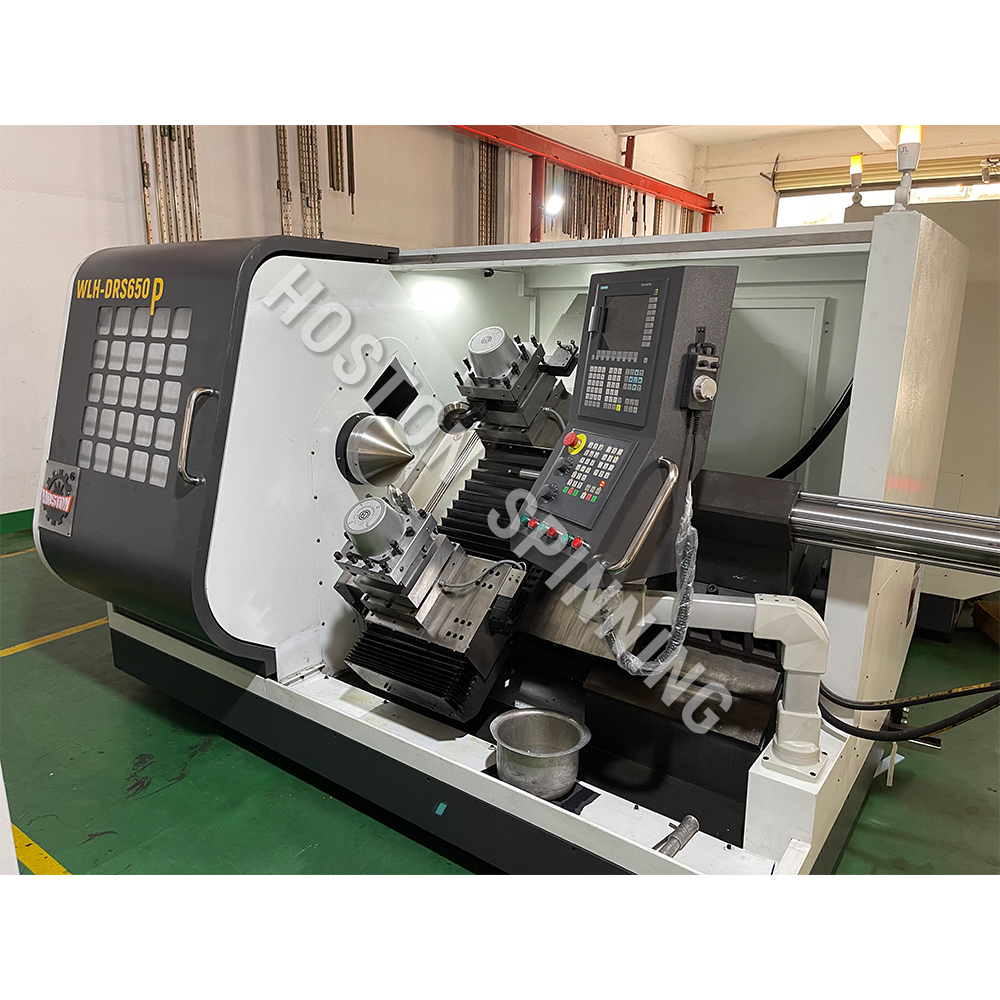

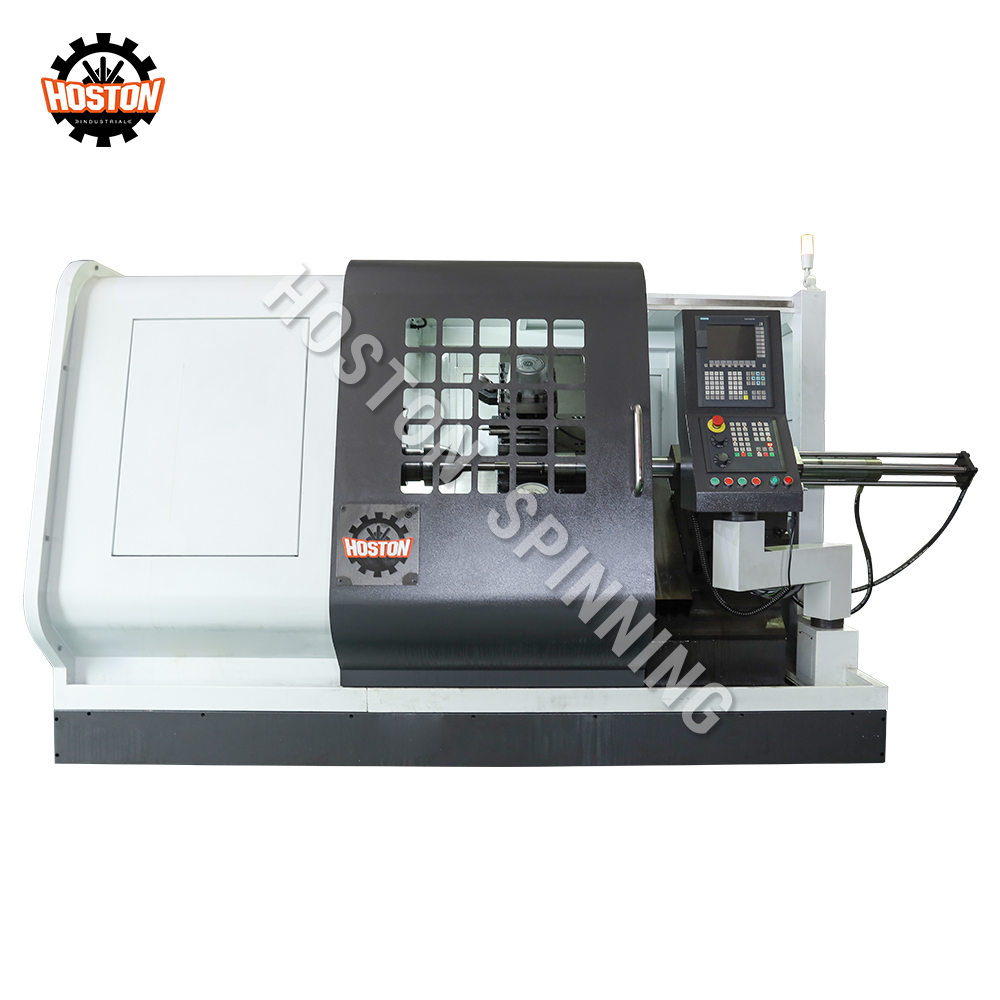

Product Pictures for China Factory Price Manufacturer CNC Metal Spinning Lathe Machine
Frequently Asked Questions (FAQ)
What types of products can be processed using this CNC metal spinning machine?
This machine is ideal for processing horn, bucket, cone, and parabolic type products such as lamps, art wares, kitchenwares, and automotive fittings.
Which materials can the CNC spinning machine process?
It supports spinning a wide range of metals, including carbon steel, stainless steel, aluminum, copper, and other similar metal materials.
What machining operations can be completed on this single machine?
Beyond standard spinning, the machine tool can perform threading, trimming, flanging, and rolling processes, consolidating multiple steps into one station.
What standard CNC system is equipped on this machine?
The standard CNC system is the Siemens 808D, which comes with a built-in USB port for easy operation and programs transmission.
Are there any optional CNC systems or control configurations?
Yes, you can choose from optional CNC systems like FANUC, SIEMENS, GSK, or KND based on your operational preferences. A hydraulic tailstock is also available as an option.
