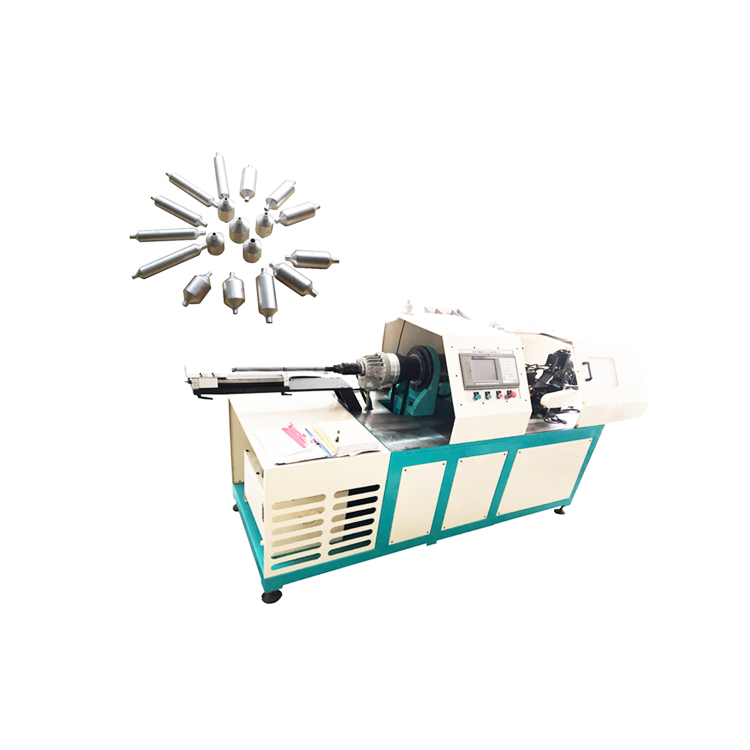

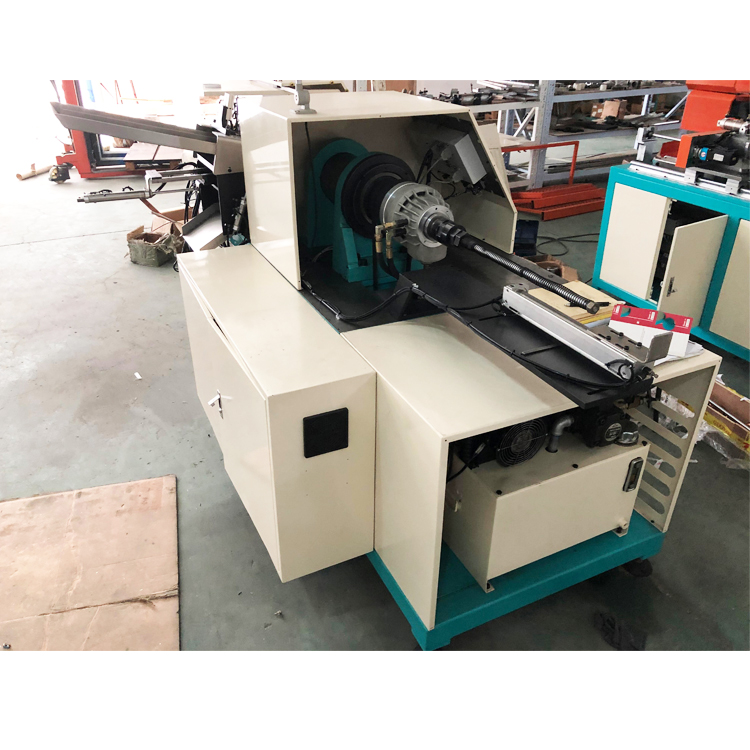

Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine
Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine
Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine
Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine
Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine
1 / 5
Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine
Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine
Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine
Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine
Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine

Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine

Send Inquiry

Product Description

Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine
Cnc Metal Tube End Stainless Steel Spinning Flow Forming Machine
Product Description
CNC spinning machine is a special equipment used for rolling the nozzle of stainless steel pipe, reaching the necking or sealing processing of pipe fittings, and the diameter can be processed in the middle of 12mm Copper pipes within 40mm and wall thickness within 1.0mm.
The clamping of this machine is controlled by hydraulic pressure, and the electronic control is controlled by two-coordinate numerical control system. This machine is composed of a frame, an independent spindle, a two-dimensional spinning head, a centering tailstock, a hydraulic clamping system, an electronic control system, etc.

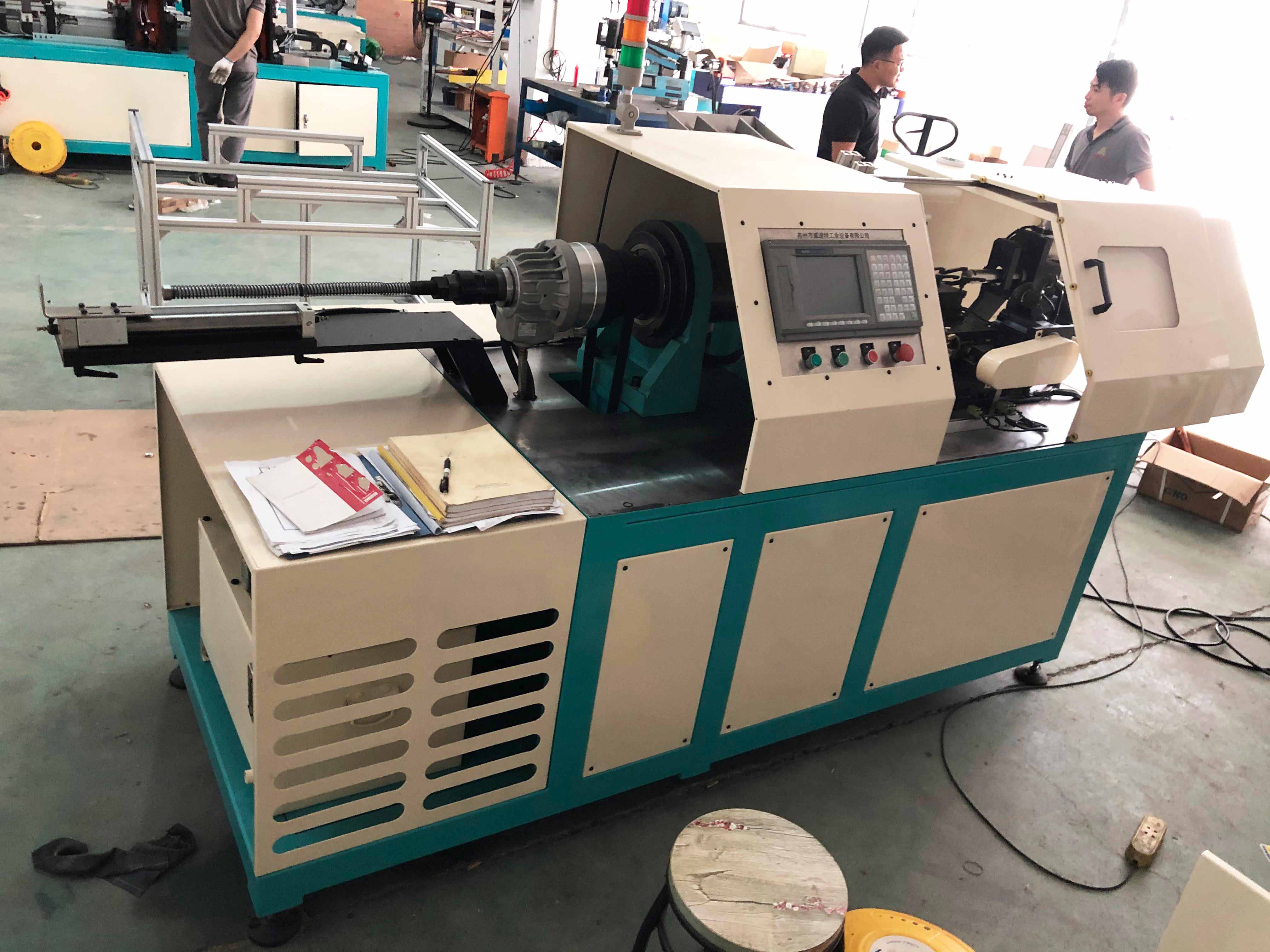

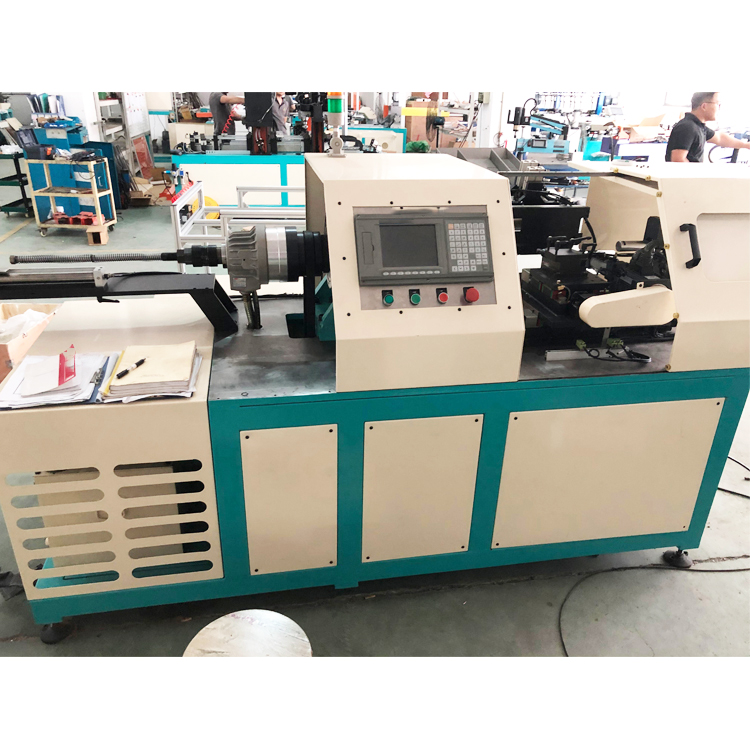

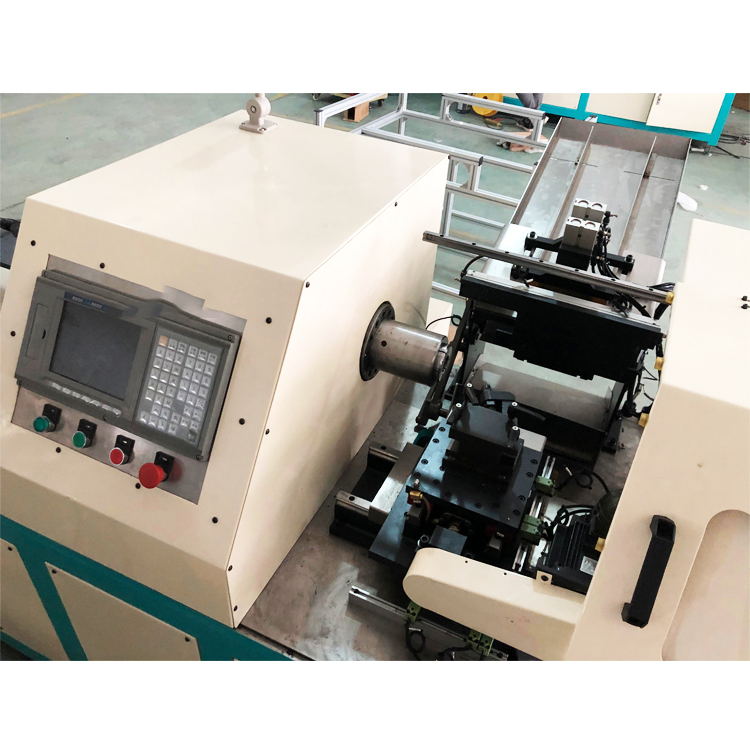

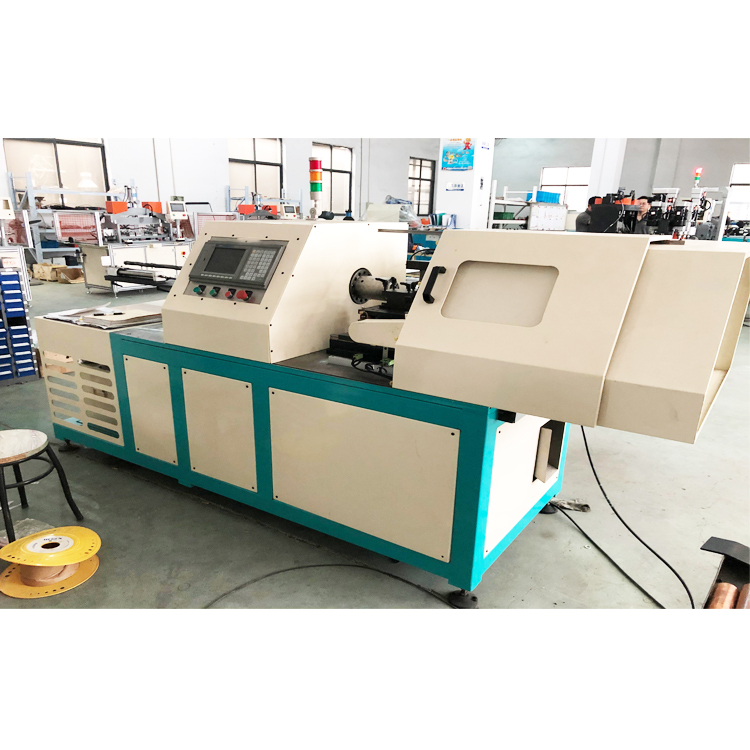

Product Photograph

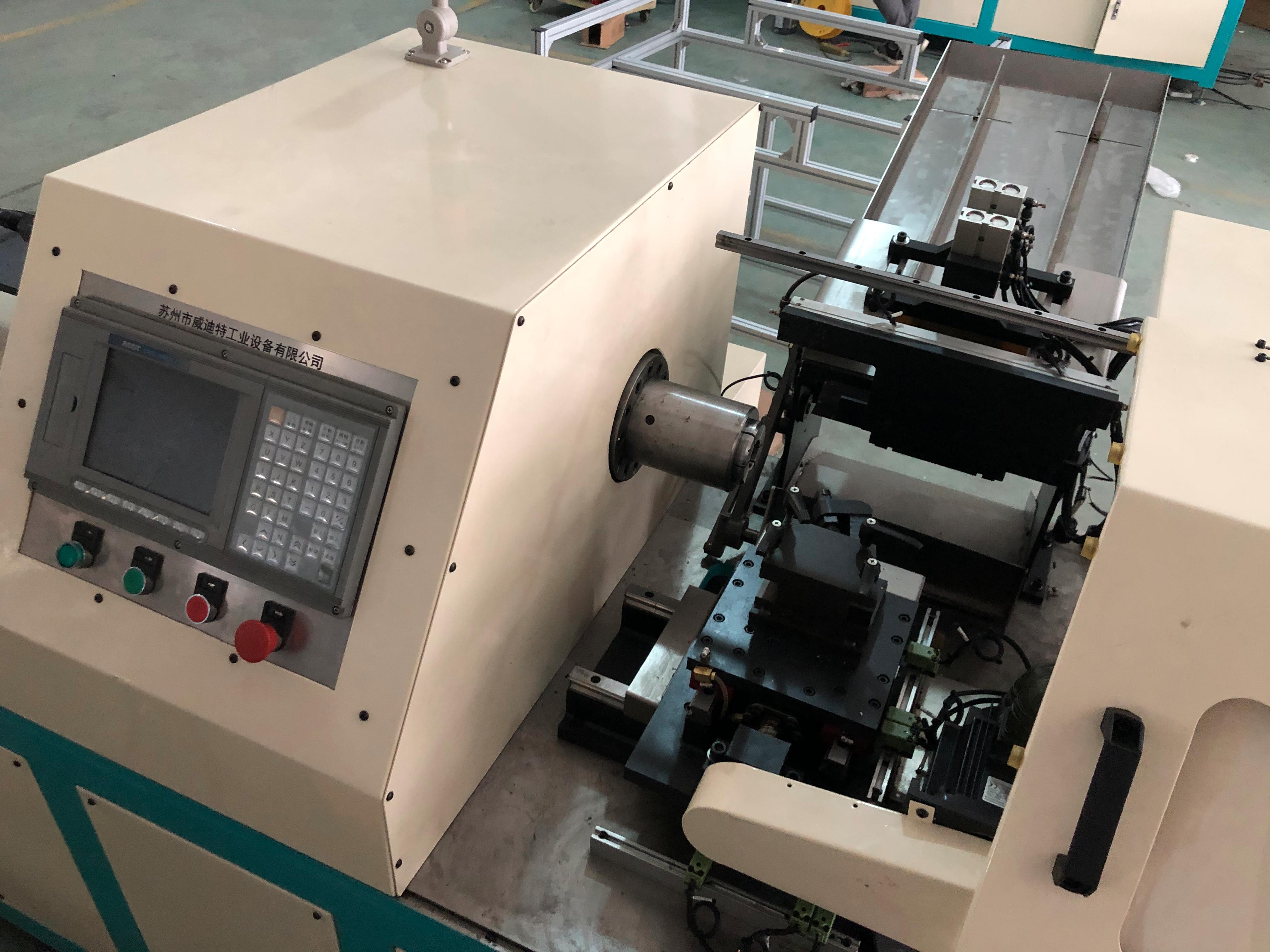

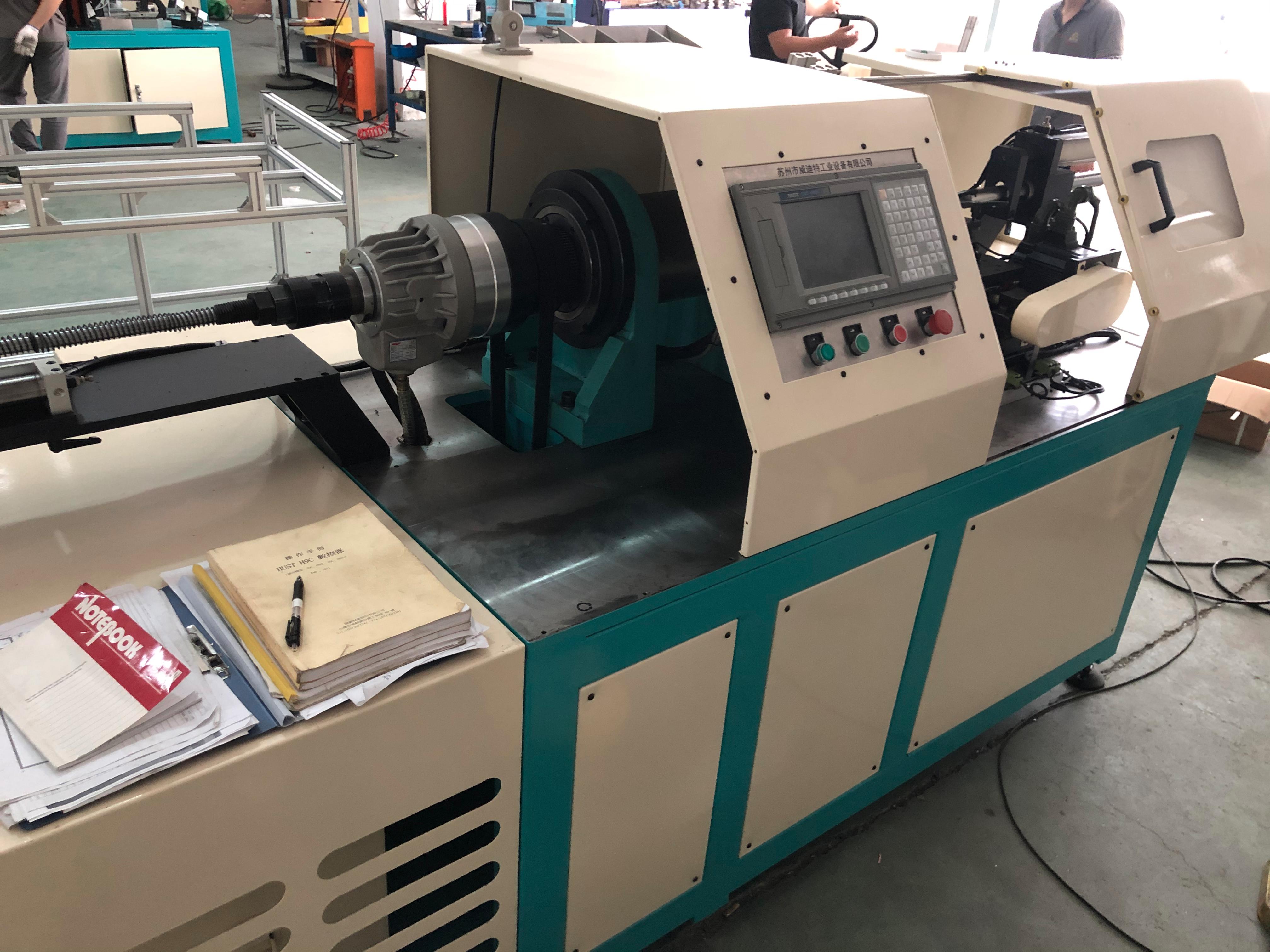

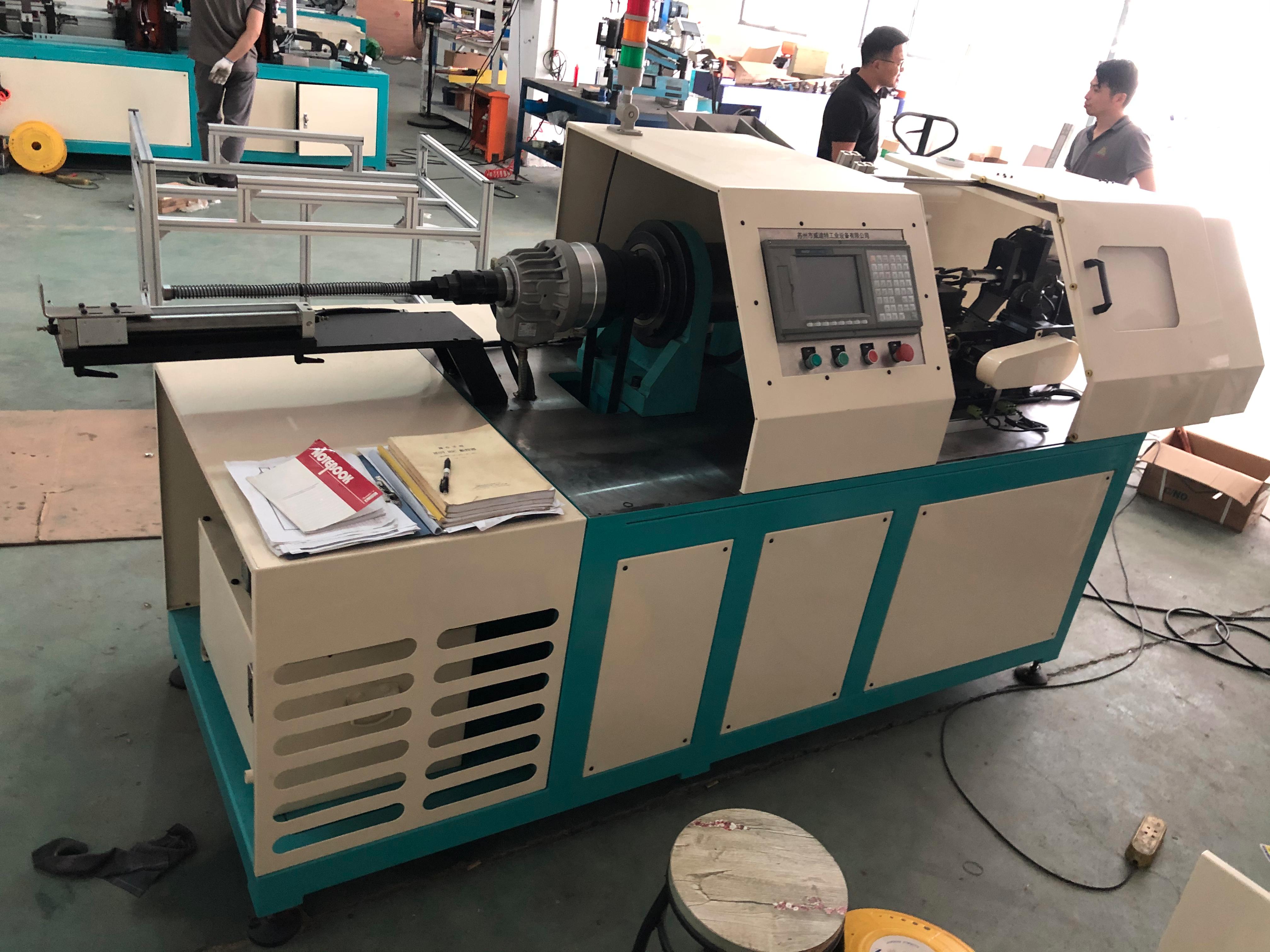

CNC Spinning Machine Photograph 1 CNC Spinning Machine Photograph 2 CNC Spinning Machine Photograph 3

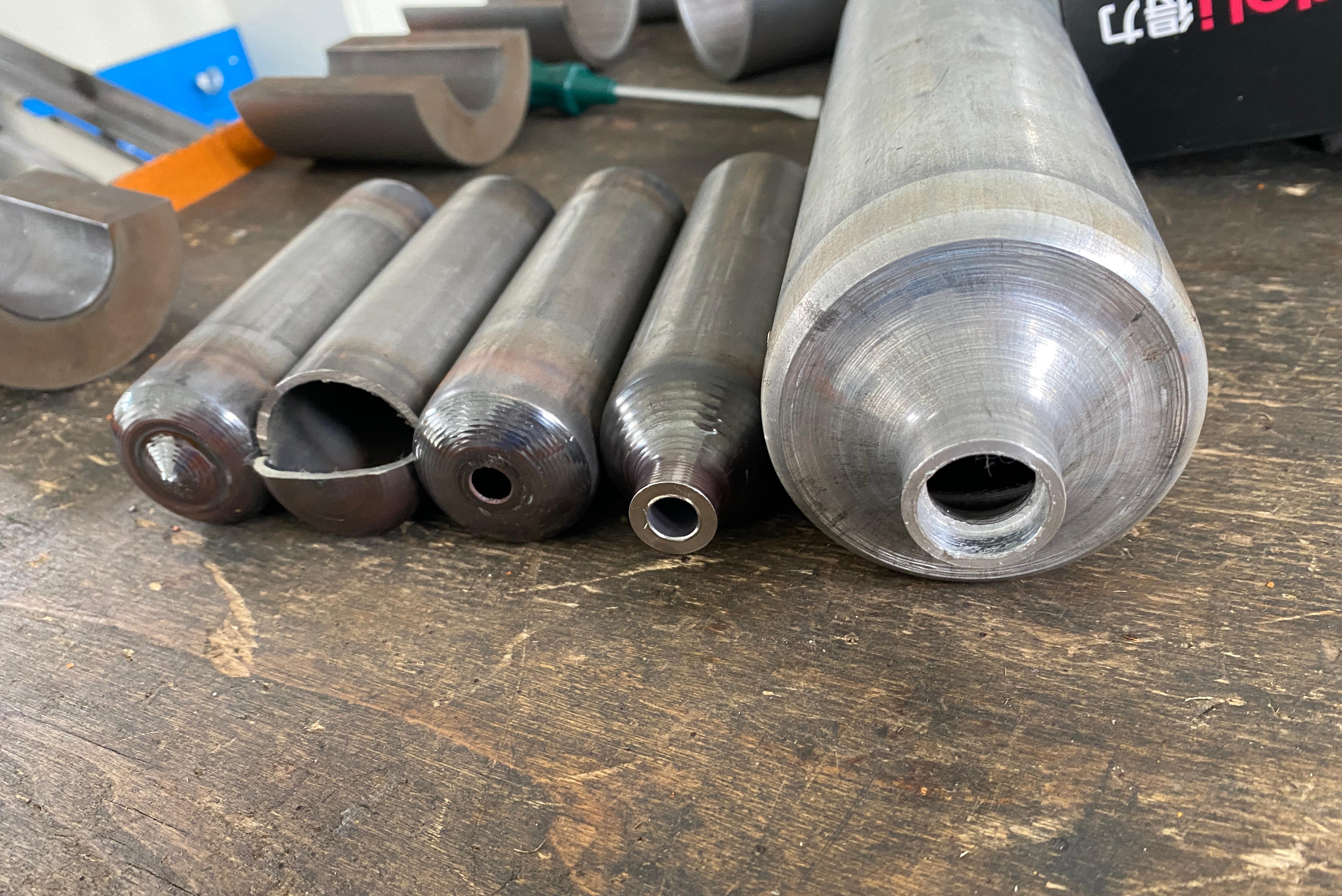

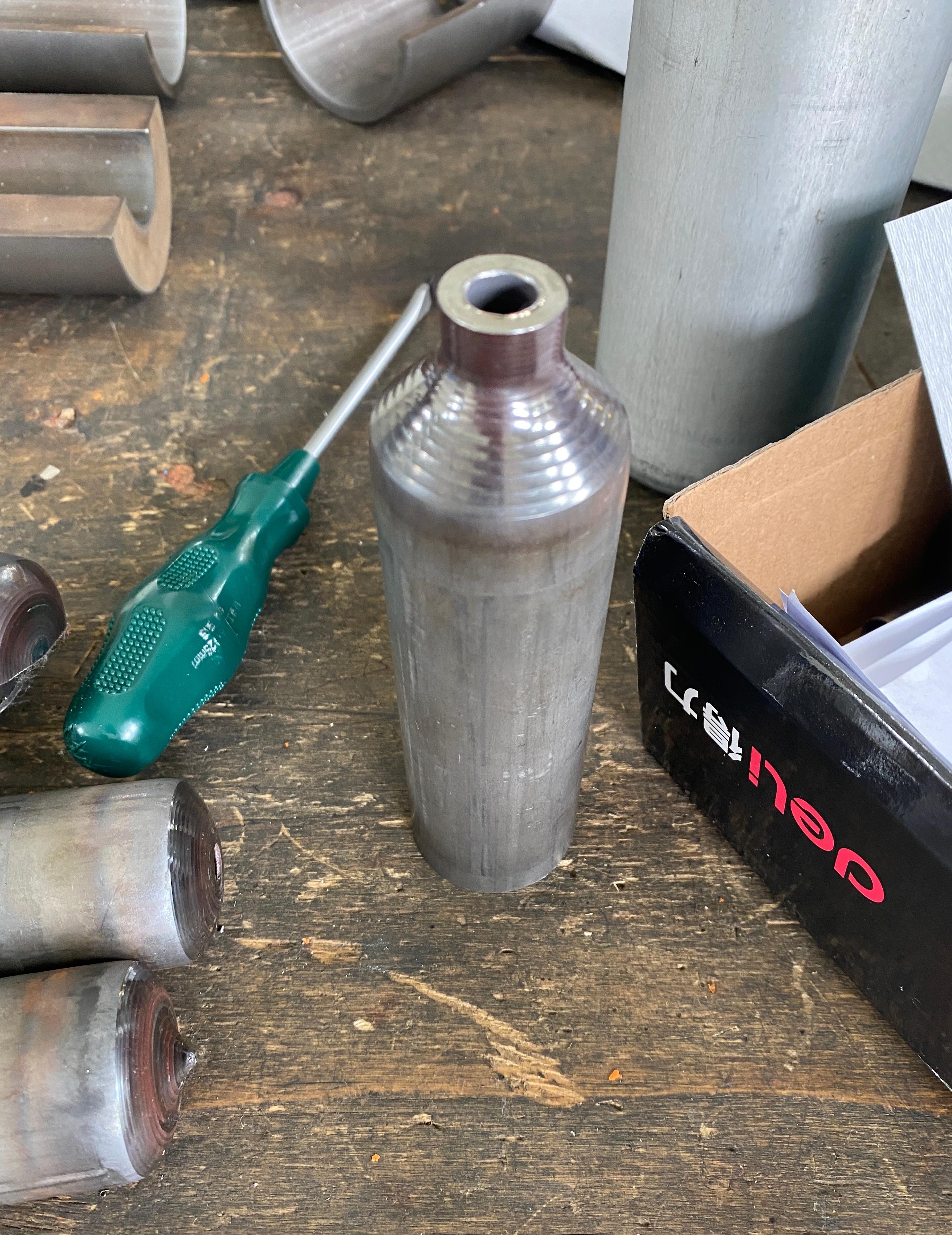

Samples

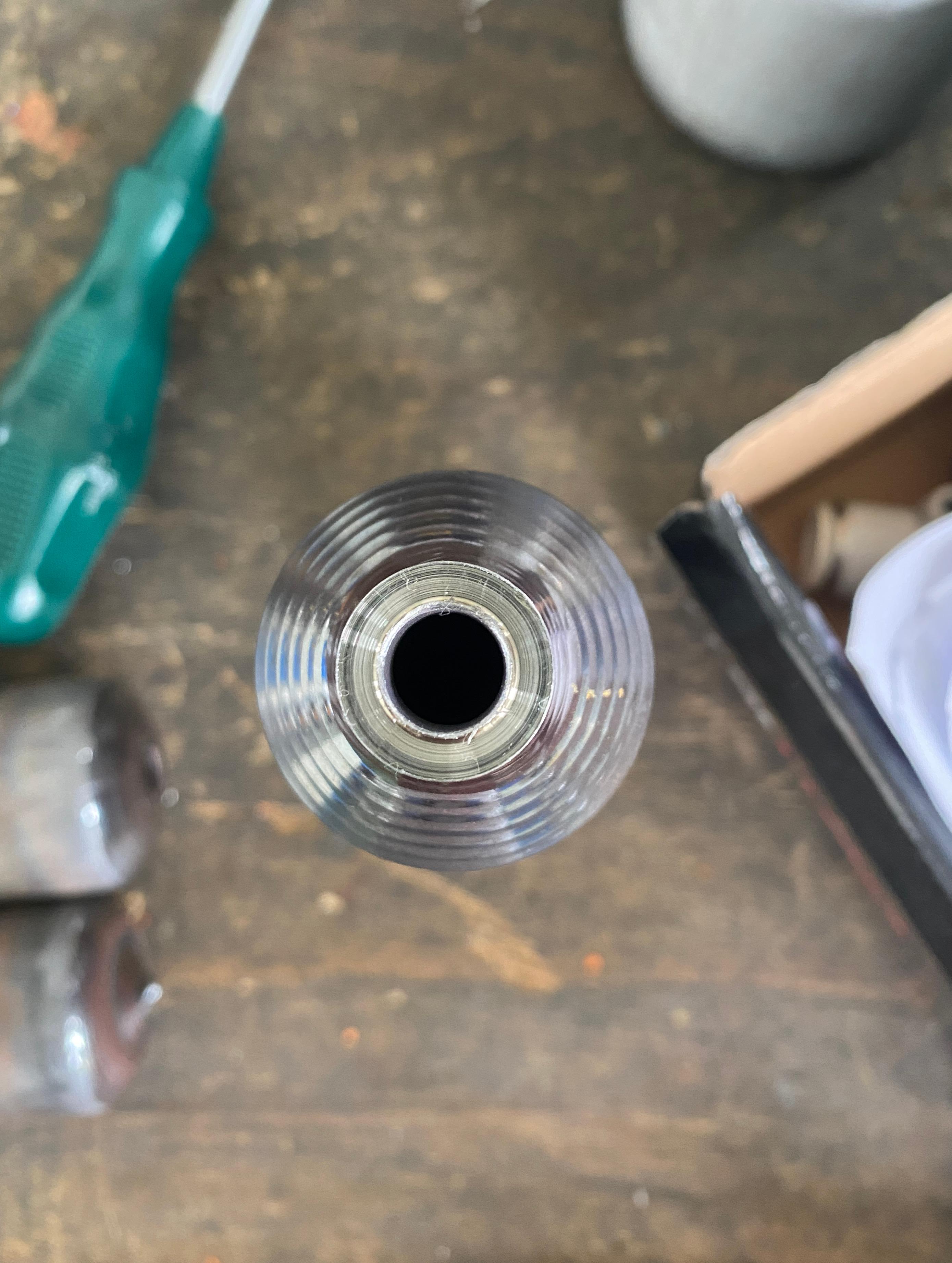

Processing Samples 1 Processing Samples 2 Processing Samples 3
Product Features
  • 1. Precise control
    The advanced CNC system can accurately control the processing size of stainless steel pipe to ensure processing accuracy and repeatability.
  • 2. High degree of automation
    it can automatically complete the process of shrinking or sealing copper pipes, reduce manual operation and improve production efficiency.
  • 3. Versatility
    It can not only be necked, but also can be processed according to needs.
  • 4. Flexibility
    It can adapt to the processing of copper pipes of different sizes and shapes, with good adaptability and flexibility.
  • 5. Easy to operate
    Friendly man-machine interface, simple operation, easy to learn and use.
  • 6. High processing efficiency
    Compared with traditional manual processing, CNC spinning machine can significantly improve the processing speed and shorten the production cycle.

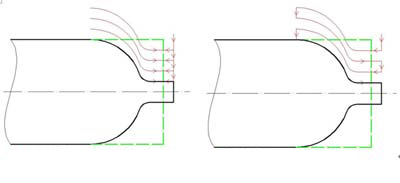

Working process
Working process diagram 1 Working process diagram 2
Specification
Nos. Item Details
1 Model XYC111
2 power supply 380V(AC)±10%,50HZ
3 X-axis travel 80mm
4 X-axis machining accuracy ±0.03
5 X-axis speed 200mm/s
6 Z-axis travel 200mm
7 Z-axis machining accuracy ±0.03
8 Z-axis speed 300mm/s
9 Processing pipe length 40mm-200mm
10 Processing method Spin compression port
11 Operate Automatic, manual, jogging
12 Pack Dimension 3230x1700x1280mm
13 Weight 300kg
Packing and Shipping
Packaging details diagram
Packaging Details:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping Details:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
About Us
Factory Image 1 Factory Image 2 Factory Image 3 Factory Image 4 Factory Image 5 Factory Image 6
Frequently Asked Questions
Q1: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We can also customize it accordingly.
Q2: What information should the customer provide to get an accurate quotation?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
Q3: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment (T/T mode). We also accept other payment terms, like L/C, DA, D/P, etc.
Q4: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receiving the down payment.
Q5: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
Q6: What size of pipes can this CNC spinning machine process?
A: The machine can process pipes with diameters ranging from 12mm to 40mm, wall thickness within 1.0mm, and length ranging from 40mm to 200mm.
