ZRF Spinning
1 / 5

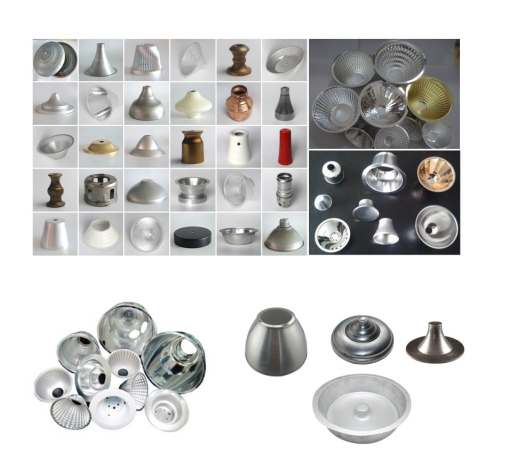

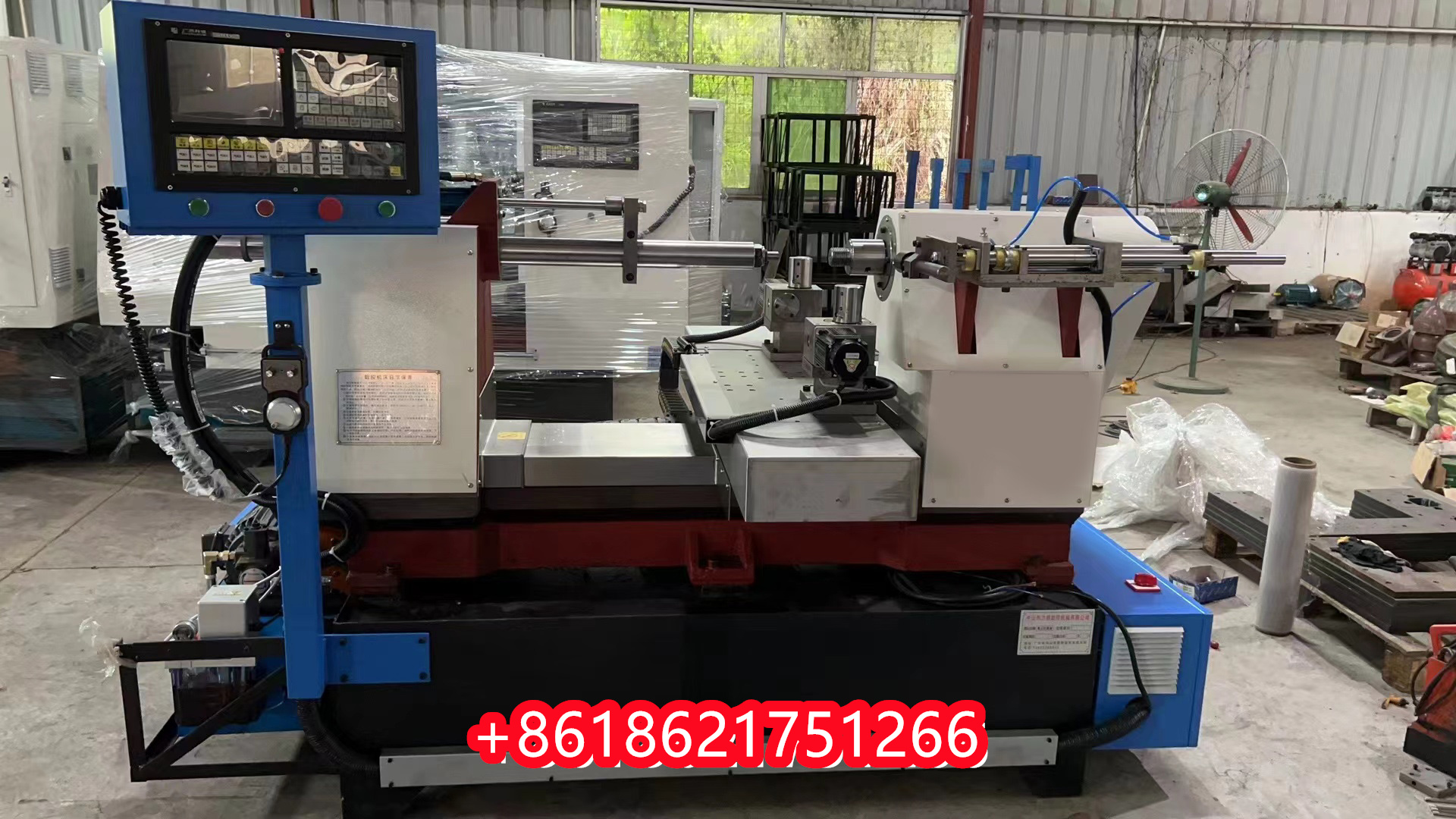

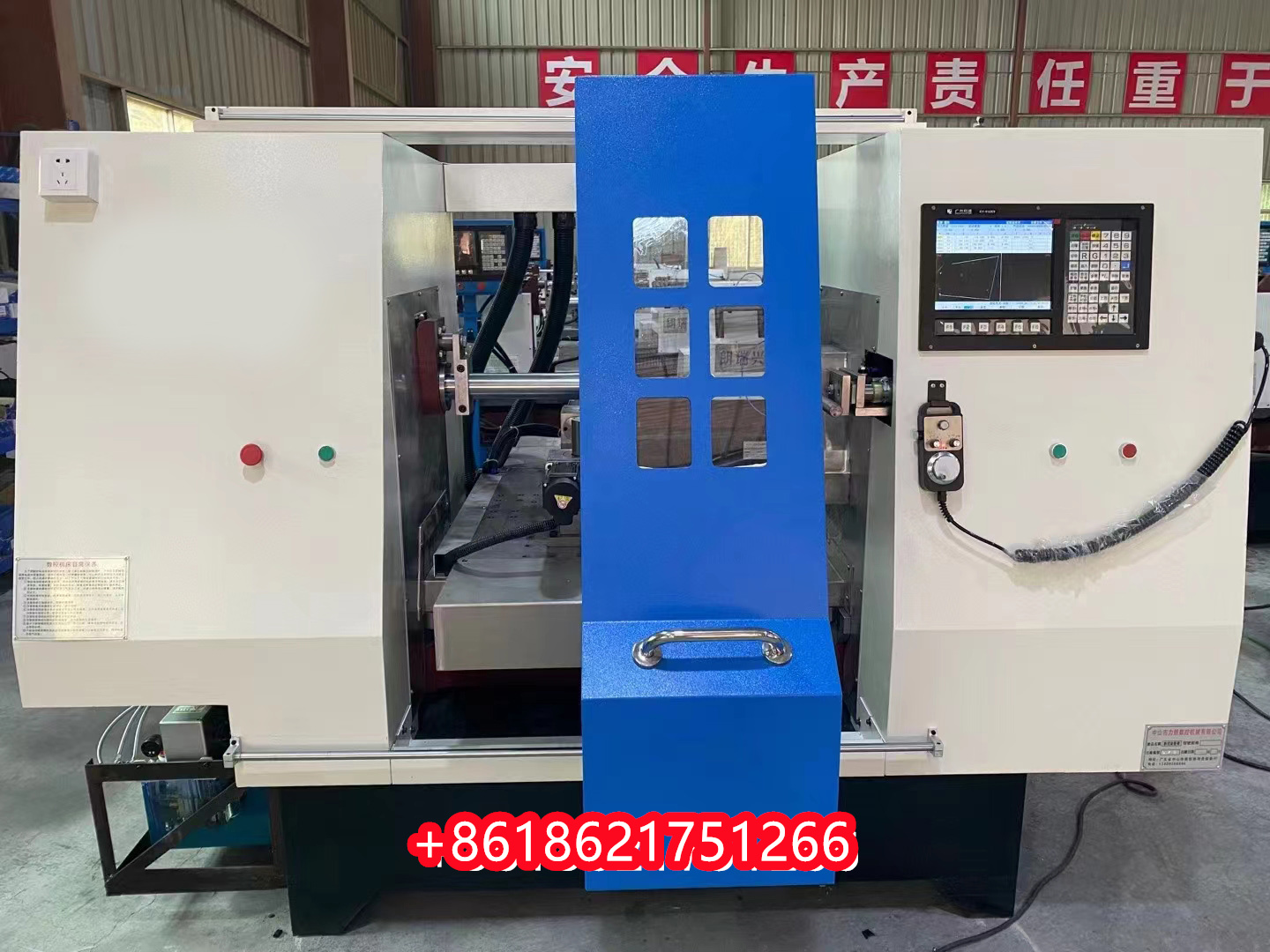

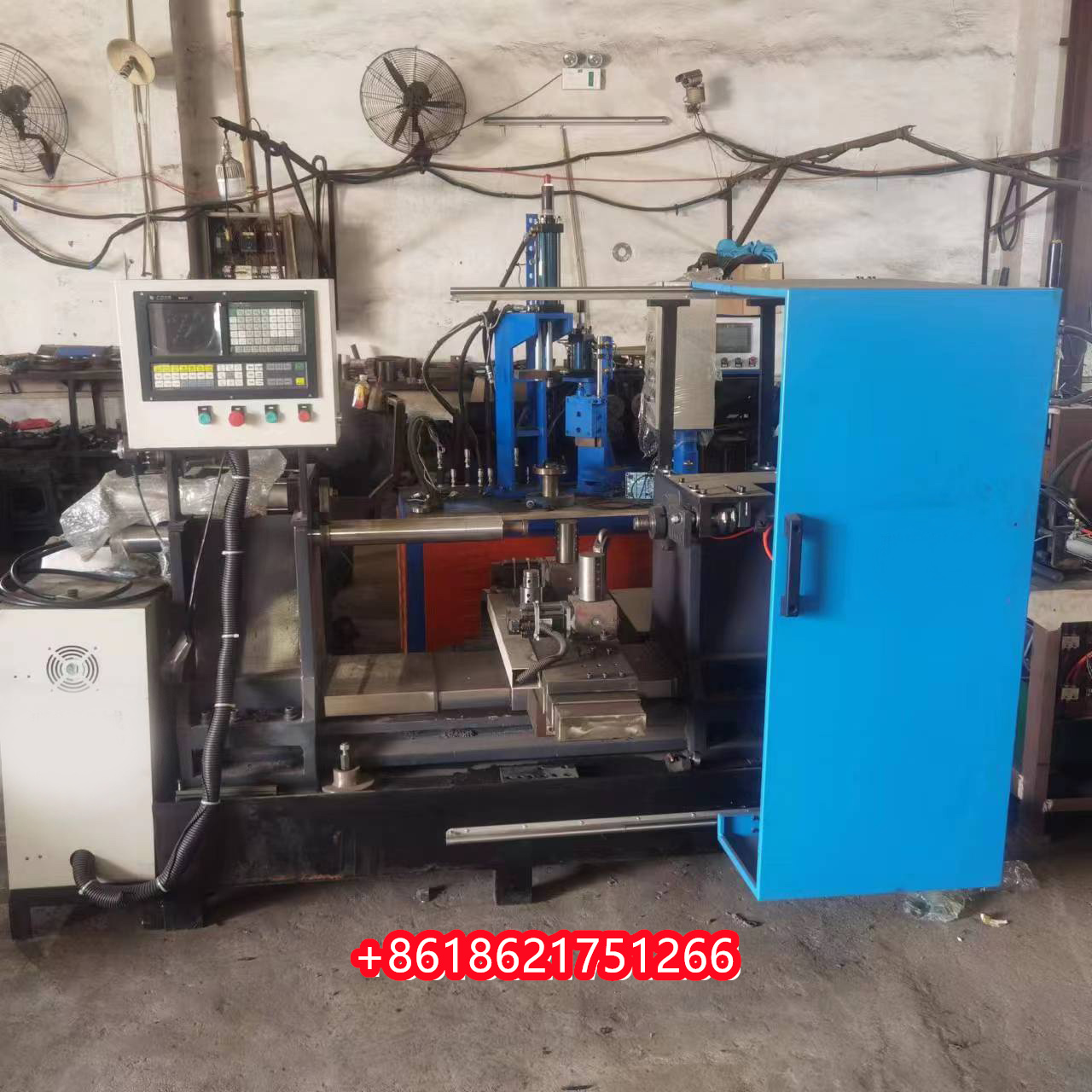

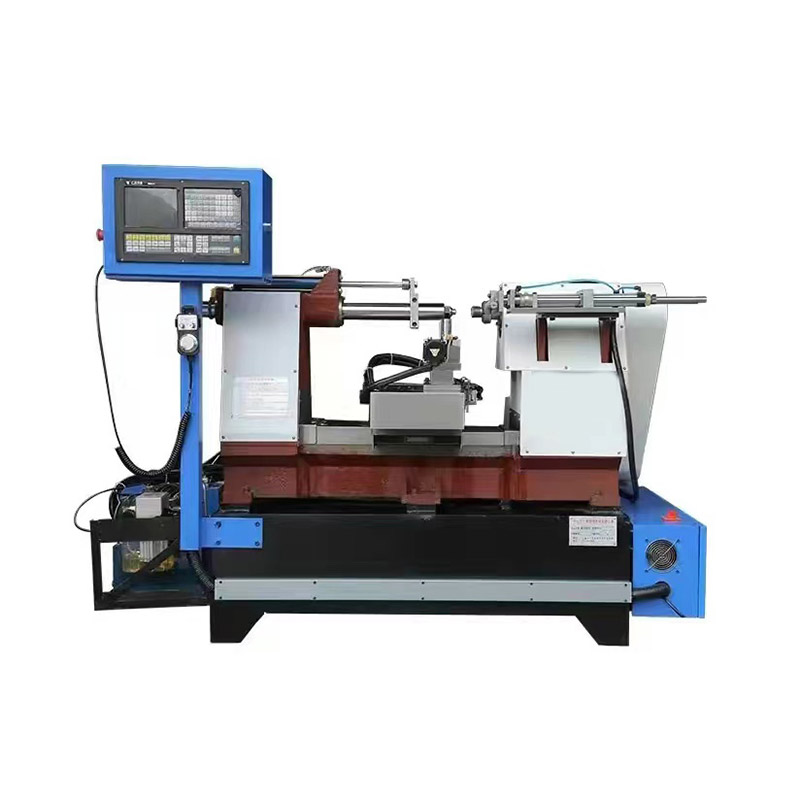

CNC spinning machine is to spin the metal blank into horn type, barrel type, cone type, parabolic type and other target product automation equipment. On the same machine, turning, trimming, flanging and beaming can be realized simultaneously. Metal materials such as stainless steel, carbon steel, aluminum, silver or copper can be spun and molded. CNC spinning machine is widely used in aerospace, machinery, chemical, automobile, ventilation, hardware, lampshade, handicraft, kitchenware, environment and agriculture industries. Using advanced digital program control, programming operation is simple and easy to learn. It can shorten the production cycle, improve the processing accuracy and save human resources.
| Name | Technical parameters |
|---|---|
| System configuration | There is no need to zero the KEYUAN absolute value |
| Quantity of tool holder | Double sided tool holder |
| Maximum overfeed diameter | 520mm |
| Maximum machining material thickness | Iron material: 2.0mm aluminum material: 3.0mm |
| Maximum processing product caliber | 420mm |
| Maximum length of processed product | 380mm |
| Tail top mode | Oil pressure |
| Spindle spindle motor | 5.5KW |
| Dimensions of machine | 2300mm*1500mm*1600mm |
| Weight of machine | 2300kg |
| Range of adaptation | All kinds of lampshade, handicraft, spinning processing |
