Product Description

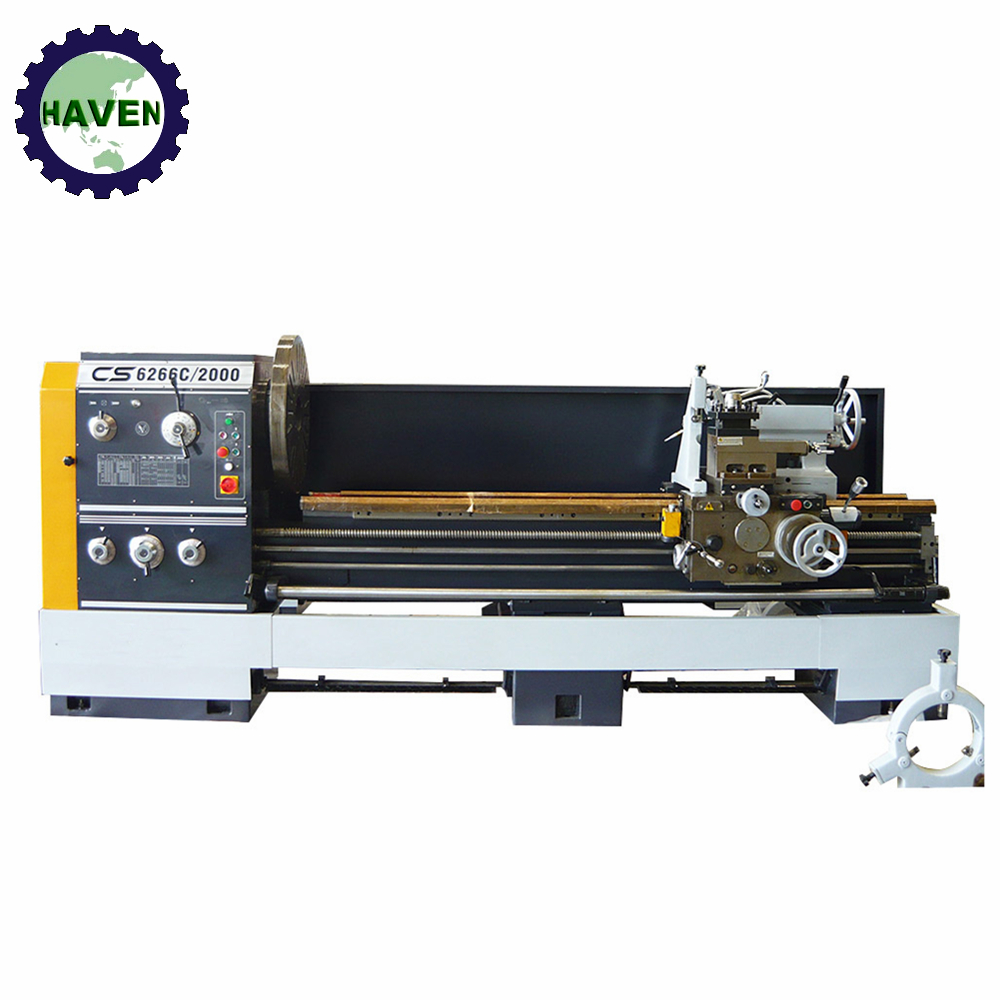

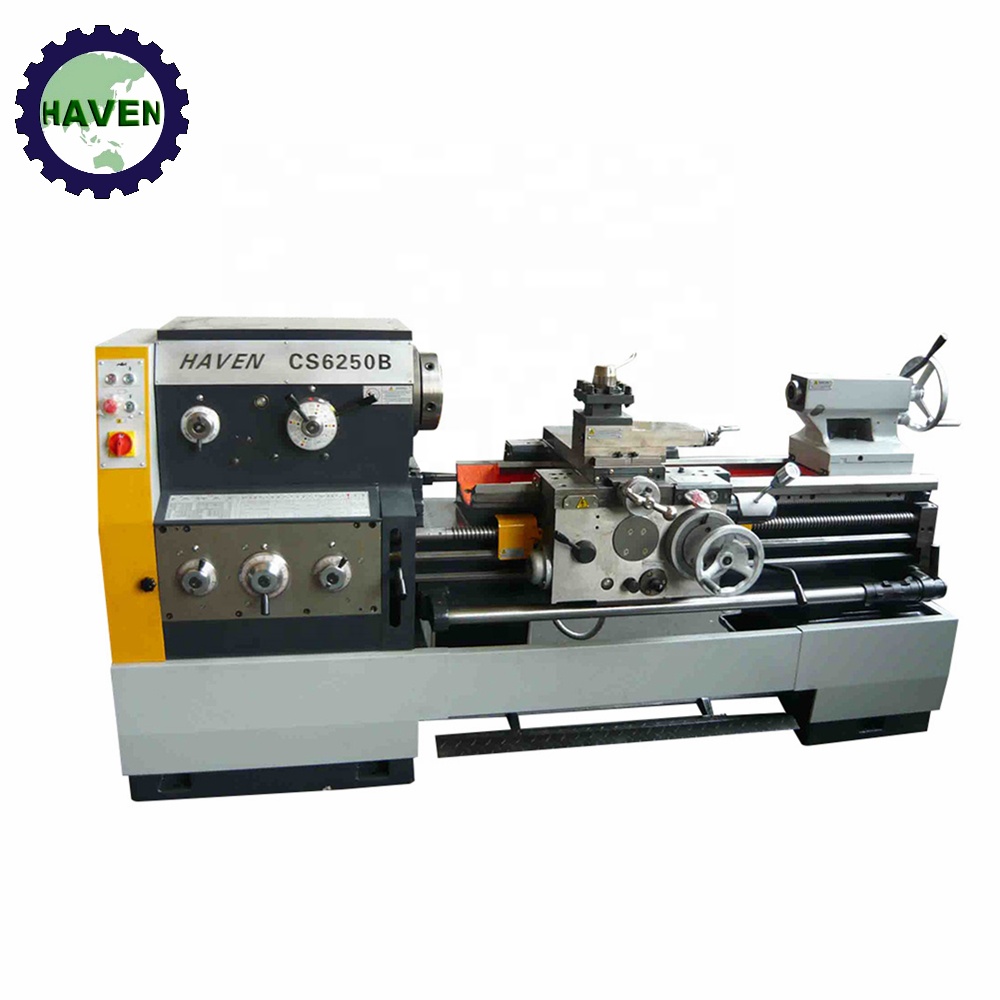

CS6266B/3000 Universal Gap Bed Lathe Machine

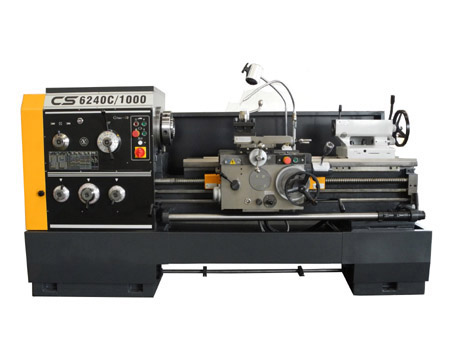

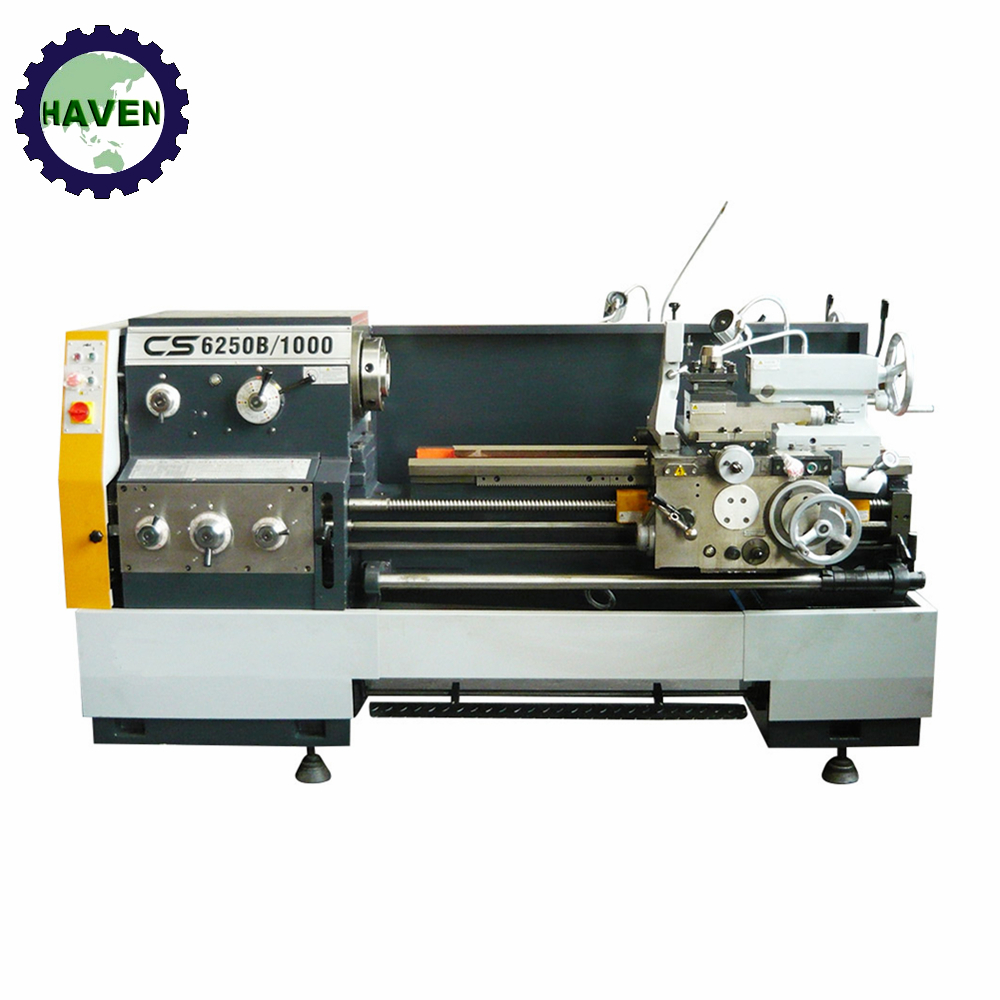

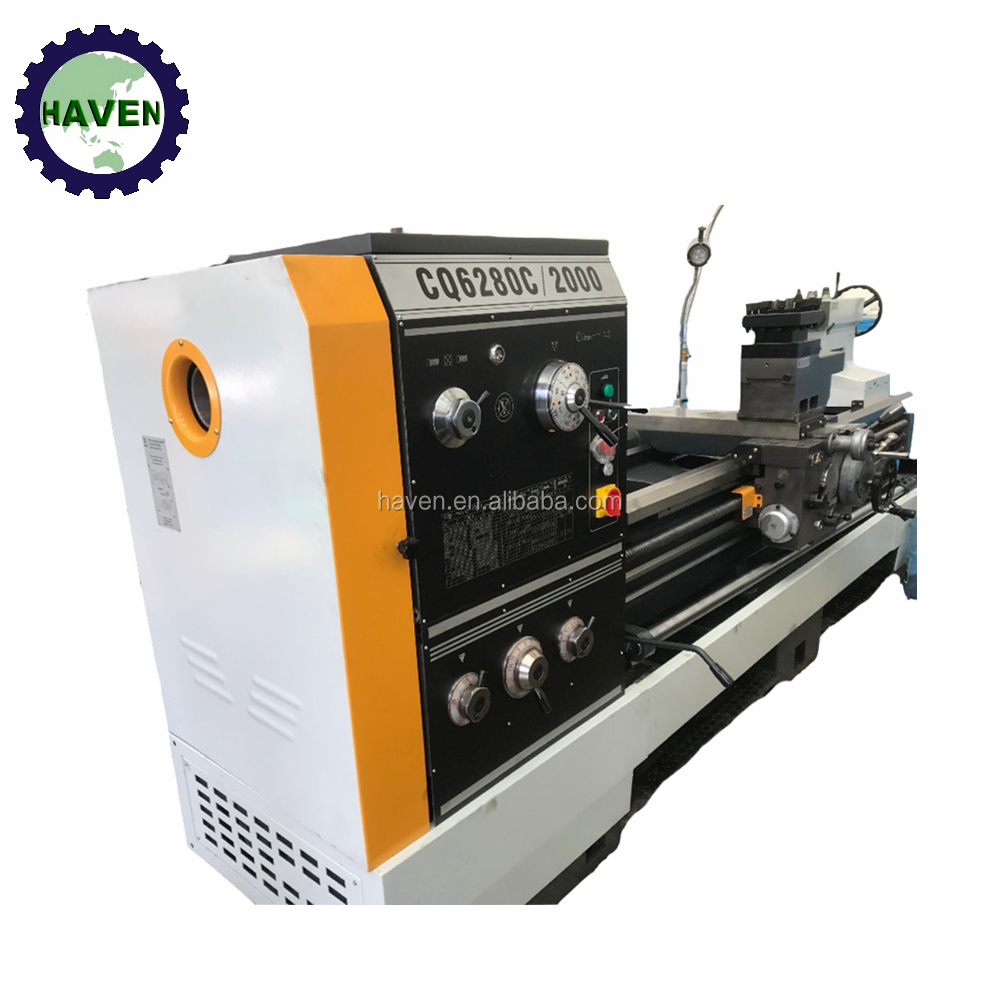

Machine Show

Product Description

1. Introduction :

Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz, 60Hz) are available.

Standard Accessories:

3 Jaw Chuck Reduction Sleeve Dead Centers Brake System Length Splash Guard Coolant System Face Plate 4 Jaw Chuck Steady Rest Follow Rest Tool Box & Tools Work Light

2. Main Parameter :

SPECIFICATIONS		UNIT	CS6240	CS6250/B	CS6266/B	CQ6280B	CS6250C	CS6266C	CQ6280C
Capacity	Max. swing dia. over bed	mm	Φ400	Φ500	Φ660	Φ800	Φ500	Φ660	Φ800
	Max. swing dia.in gap	mm	Φ630	Φ710	Φ870	Φ1000	Φ710	Φ870	Φ1000
	Max. swing dia. over slides	mm	Φ220	Φ300	Φ420	Φ560	Φ300	Φ420	Φ560
	Max. workpiece length	mm	750/1000/1500/2000/3000		1000/1500 2000/3000	2000/3000	1000/1500 2000/3000		2000/3000
Spindle	Spindle bore diameter	mm	Φ52	Φ82		Φ82	Φ105
	Type of spindle nose	no	CS6240:ISO 702/III NO.6 bayonet lock; others:ISO 702/II NO.8 com-lock type
	Spindle speed	rpm	24 steps 9-1600			24 steps 8-1400	12 steps 36-1600		12 steps 30-1400
	Spindle motor power	KW	7.5
Tailstock	Diameter of quill	mm	Φ75			Φ90	-		Φ90
	Max. travel of quill	mm	150
	Taper of quill (Morse)	MT	5
Turret	Tool O.D. size	mm	25X25
Feed	Max. X travel	mm	145
	Max. Z travel	mm	320					310	320
	X feed range	mm/r	93 kinds 0.028-6.43				65 kinds 0.063-2.52
	Z feed range	mm/r	93 kinds 0.012-2.73				65 kinds 0.027-1.07
	Metric threads	mm	48 kinds 0.5-224				22 kinds 1-14
	Inch threads	t.p.i	48 kinds 72-1/4				25 kinds 28-2
	Module threads	πmm	42 kinds 0.5-112				18 kinds 0.5-7
	Diametric pitch threads	t.p.i.π	42 kinds 56-1/4				24 kinds 56-4
Other	Cooling pump motor power	KW	0.06
	Length	mm	2382/2632/3132/3632/4632		2632/3132 3632/4632	3365/4365	2632/3132 3632/4632		3365/4365
	Width	mm	975		1050	1340	975		1340
	Height	mm	1230		1350	1430	1270	1450	1490
	Weight	Kg	1795/2050 2250/2450/2850	2050/2100 2300/2500/2900	2400/2600 2800/3000	3300/3700	2100/2300 2500/2900	2200/2400 2600/3000	3000/3200

Packaging & Shipping

Packing: Steel Pallet with Plastic film in Container.

Shipping: By Sea

Our Customers & Team

Our Customer

Our Team

Details

Frequently Asked Questions (FAQ)

Q1: What are the primary machining capabilities of the CS6266B gap bed lathe?

A1: This machine can perform internal and external turning, taper turning, end facing, drilling, boring, groove broaching, and threading operations (Metric, Inch, Module, and D.P.).

Q2: Does this lathe support both Metric and imperial measurement systems?

A2: Yes, both Inch and Metric systems are fully integrated into these series lathes, making it simple to operate for users from different measuring systems worldwide.

Q3: What power configurations are available for international orders?

A3: We support power supplies of different voltages (220V/380V/420V) and frequencies (50Hz or 60Hz) to suit the electrical standards of your factory's location.

Q4: What standard accessories are included with the machine purchase?

A4: The package includes a 3-Jaw Chuck, 4-Jaw Chuck, Reduction Sleeve, Dead Centers, Brake System, Length Splash Guard, Coolant System, Face Plate, Steady Rest, Follow Rest, Tool Box & Tools, and Work Light.

Q5: How is the lathe packaged for secure maritime transit?

A5: It is securely mounted on a steel pallet, wrapped with protective plastic film, and transported inside standard shipping containers via sea freight.
