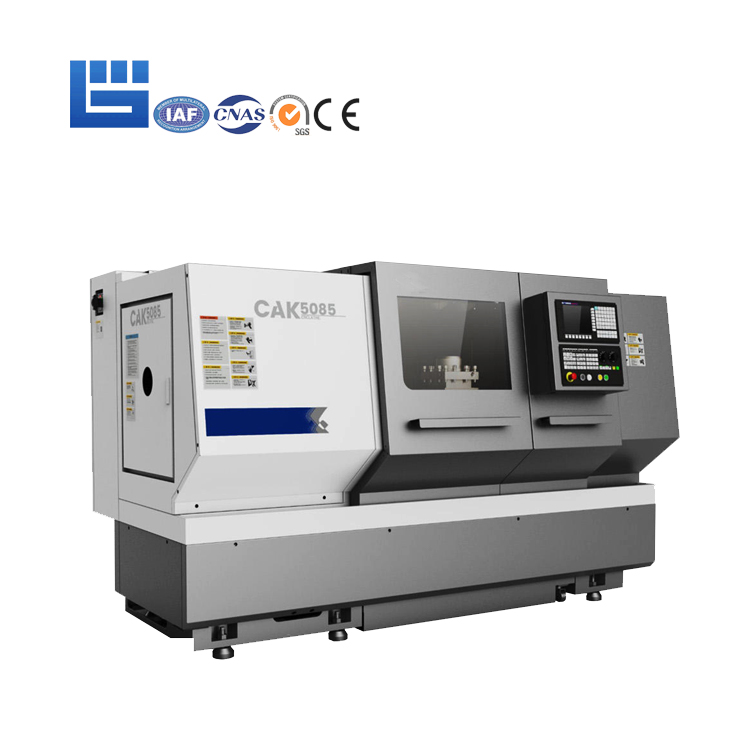

| Item | Unit | CNC LATHE CAK50 | ||
| Specification | 85L | 85P | 85 | |
| Max.parts length | mm | 900 | 890 | 890 |
| Max cutting length | mm | 850 | 770 | 850 |
| Max swing diameter over bed | mm | Φ500 | Φ500 | Φ500 |
| Max.swing diameter over slide | mm | Φ280 | Φ300 | Φ300 |
| Max cutting diameter | mm | Φ500 | Φ400 | Φ500 |
| Spindle nose type | A2-8 | A2-8 | A2-8 | |

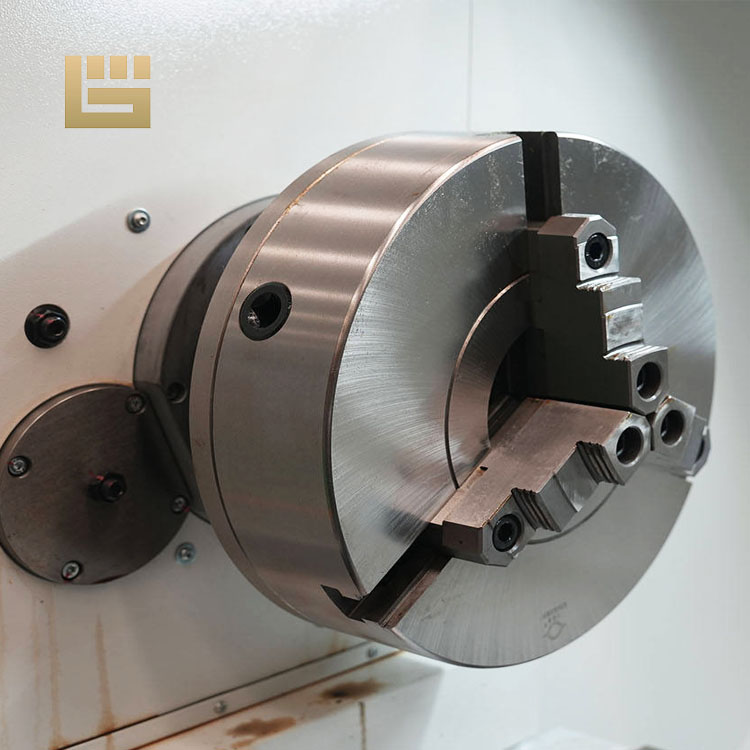

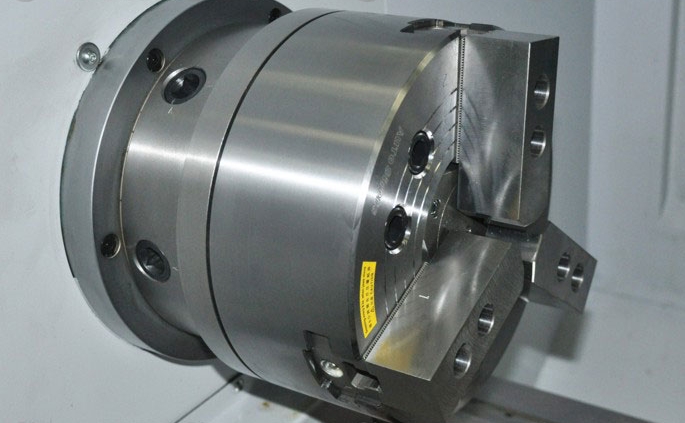

| Chuck diameter | mm | Φ250 | Φ250 | Φ250 |
| Spindle bore | mm | Φ53 | Φ80 | Φ78 |
| Spindle speed range (Auto 3 step) | r/min | - | - | 15-2200 |
| Spindle speed range (manual stepless) | r/min | 100-1800 | - | 22-1800 |
| Spindle speed range (Auto 3 step,12 grades) | r/min | - | - | 40-1800 |
| Spindle speed range (Single spindle) | r/min | - | 30-2500 | - |
| Rated power of main motor | kw | 7.5 (frequency conversion) |
11 (Main servo motor) |
7.5 (Main servo motor) |
| Rated power of main motor(S series) | kw | - | - | 6.5/8(Dual-speed) |

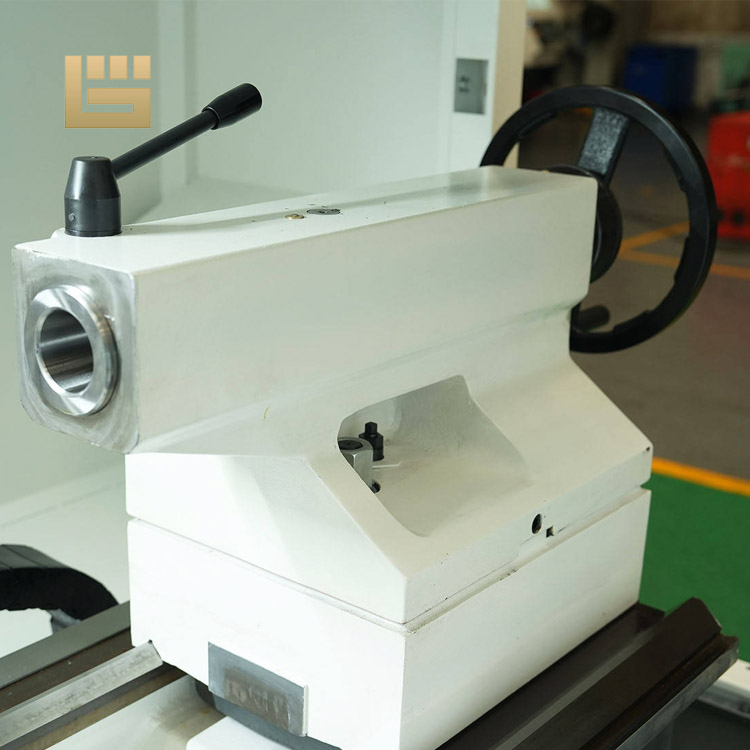

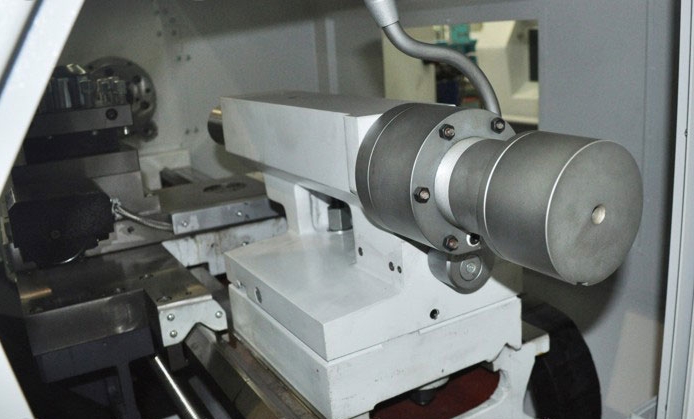

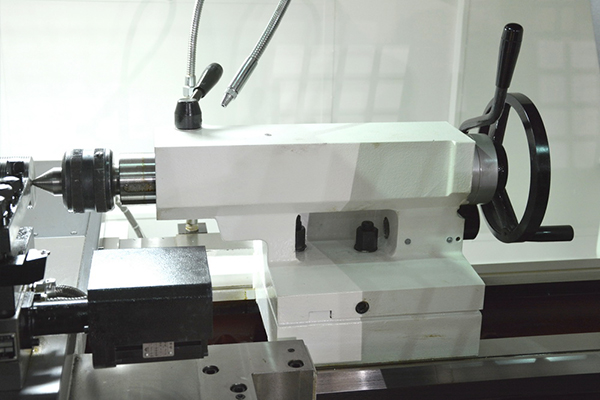

| Tailstock quill diameter | mm | Φ75 | Φ75 | Φ75 |
| Tailstock quill travel | mm | 150 | 150 | 150 |

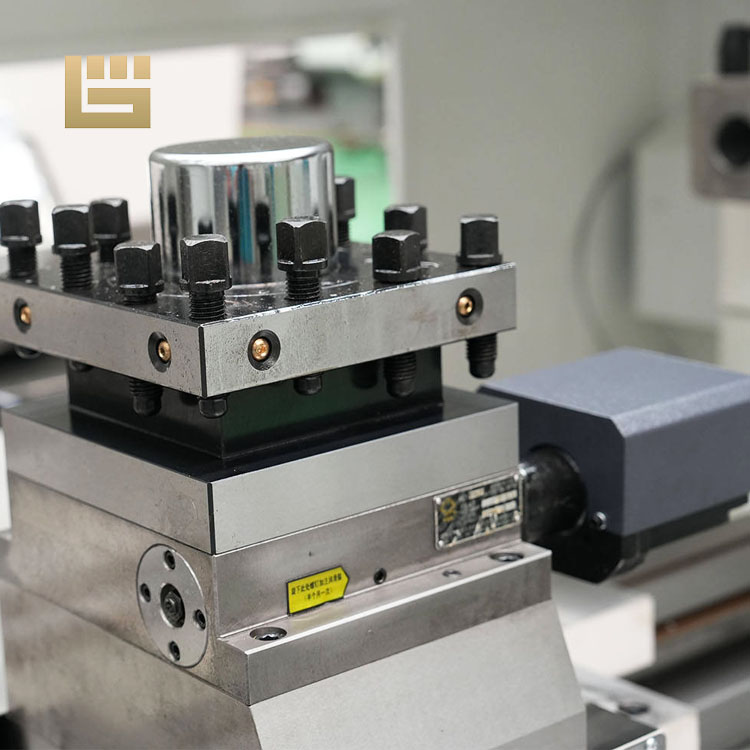

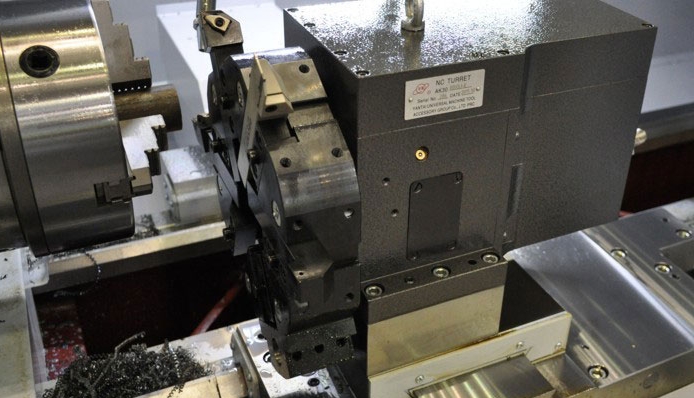

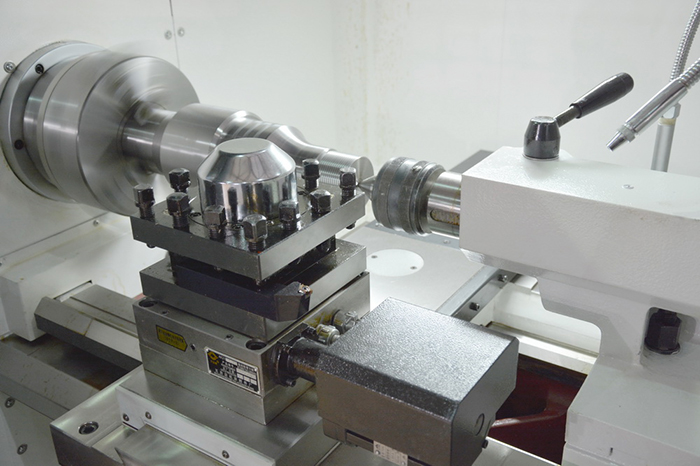

| Turret type | Vertical 4 positions | Horizontal 6 positions | Vertical 4 positions | |
| Tool shank size | mm | 25×25 | 25×25 | 25×25 |
| X/Z axis rapid traverse | m/min | 6/12 | 6/12 | 6/12 |
| Machining accuracy | IT6~IT7 | IT6~IT7 | IT6~IT7 | |
| X Axis Travel | mm | 260 | 270 | 270 |
| Z Axis Travel | mm | 850 | 850 | 850 |
| X axis Positioning | mm | 0.018 | 0.018 | 0.018 |
| Z axis Positioning | mm | 0.024 | 0.024 | 0.024 |
| X axis Repeat positioning | mm | 0.006 | 0.006 | 0.006 |
| Z axis Repeat positioning | mm | 0.011 | 0.011 | 0.011 |
| Machine net weight | kg | 2200 | 2800 | 2800 |
| Overall dimension (LxWxH) | mm | 2470*1500*1580 | 2770*1700*1735 | 2770*1700*1735 |
