China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
1 / 5
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S

China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S

Send Inquiry

Product Description

China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
Item DCM32P-S
Maximum clamping wheel size 760mm (30 inch)
Maximum diameter with tire on 800mm
Maximum repairable wheel thickness 480mm
X-axis effective travel 550mm
X-axis drive motor torque 6NM
Z-axis effective travel 750mm
Z-axis drive motor torque 10NM With brake function
Maximum distance between the tool post and the chuck 600mm
Main motor power 4KW
Chuck Diameter/Number of Jaws 250mm / 4 jaws
Tool changer station 4
Tool change method Automatic
Positioning accuracy 0.02mm

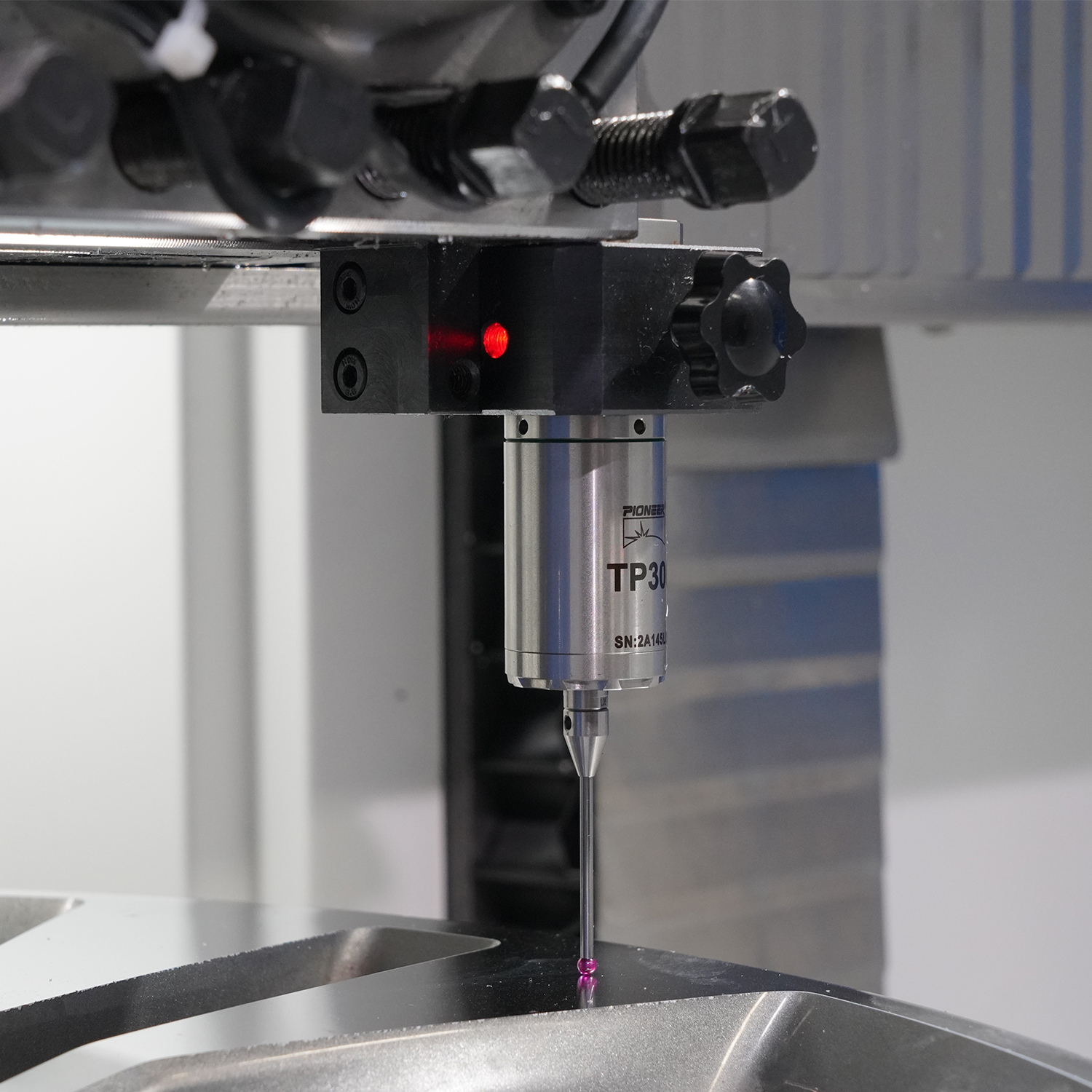

Wheel detection method Ruby probe detection system (optional laser detection system)
Device Voltage/Frequency 380V 3ph/ 50HZ
Voltage customization for different countries Support
Weight 1250KG
Machine size 1450*1120*1960mm
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
China Vertical Wheel Repair Cnc Lathe with Rim Repair and Lathe Machine Alloy Wheel DCM32P-S
Frequently Asked Questions
? What is the maximum wheel size that the DCM32P-S can repair?
The DCM32P-S vertical wheel repair CNC lathe supports a maximum clamping wheel size of 760mm (30 inches), and a maximum diameter of 800mm with the tire still mounted on the wheel.

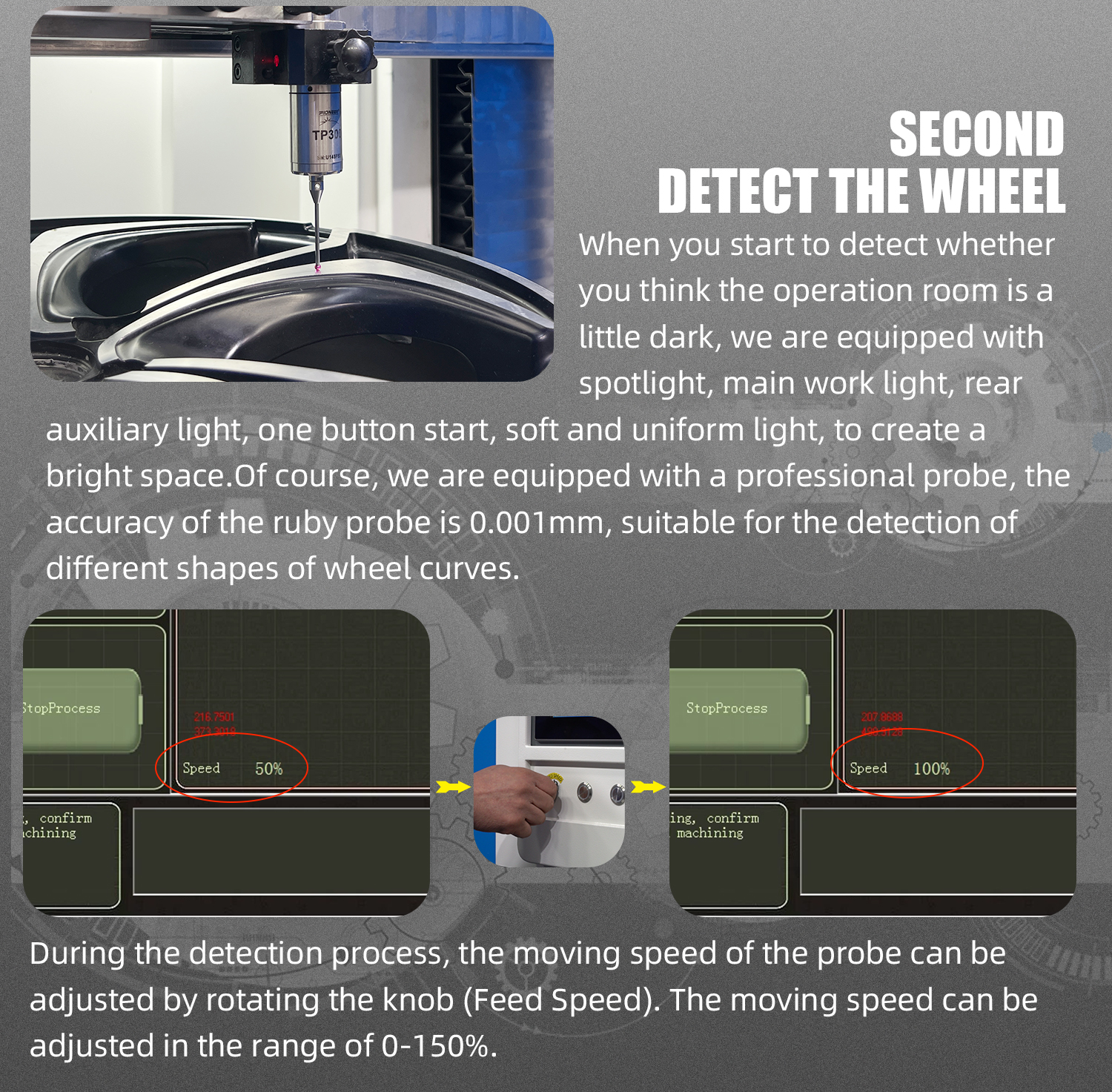

? What standard detection method does this wheel repair machine use?
The machine is equipped with a high-precision Ruby probe detection system for profiling wheels. Additionally, an optional laser detection system is available based on your operational preferences.
? Can the voltage of the machine be customized for different regional standards?
Yes, voltage customization is fully supported to meet the electrical standards of different countries. The default standard configuration is 380V, 3-phase, 50HZ.
? What are the dimensions and total weight of the DCM32P-S?
The overall dimensions of the machine are 1450*1120*1960mm, and it has a robust industrial net weight of approximately 1250KG.
? What is the positioning accuracy of the lathe?
The DCM32P-S offers highly precise and reliable operations, featuring a positioning accuracy of 0.02mm to ensure a flawless finish during wheel restoration.

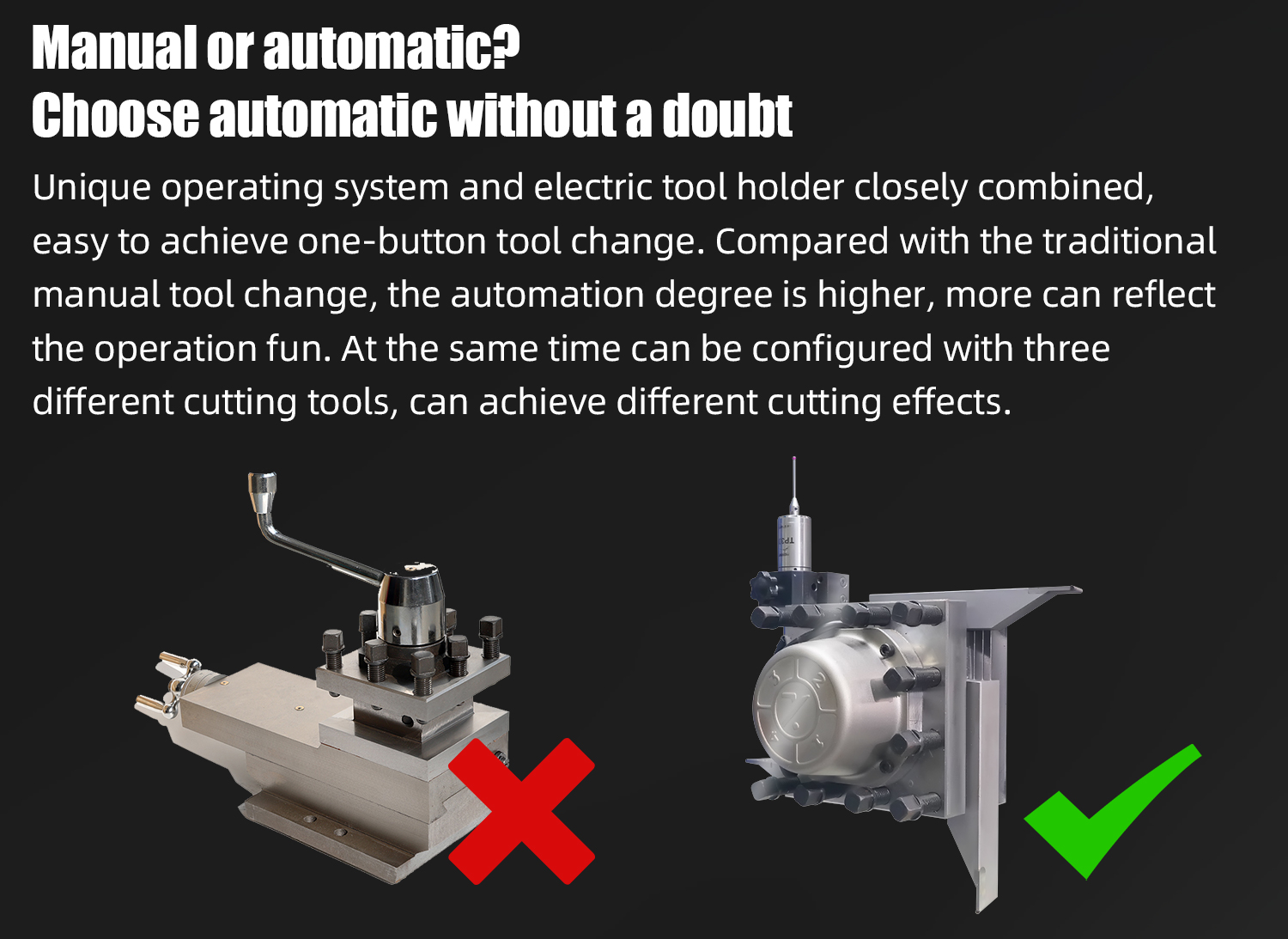

? Does the machine support automatic tool changes?
Yes, the lathe utilizes an automatic tool changing method and features a 4-station tool changer system for streamlined and efficient workflows.
