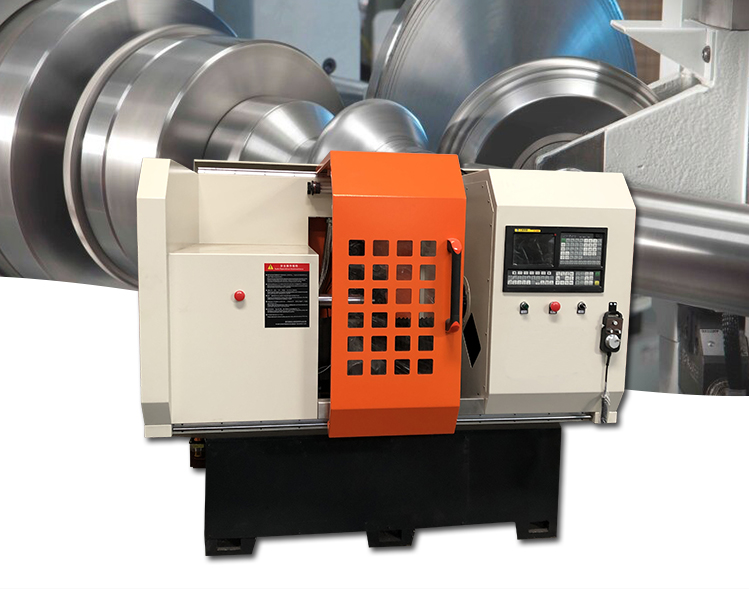

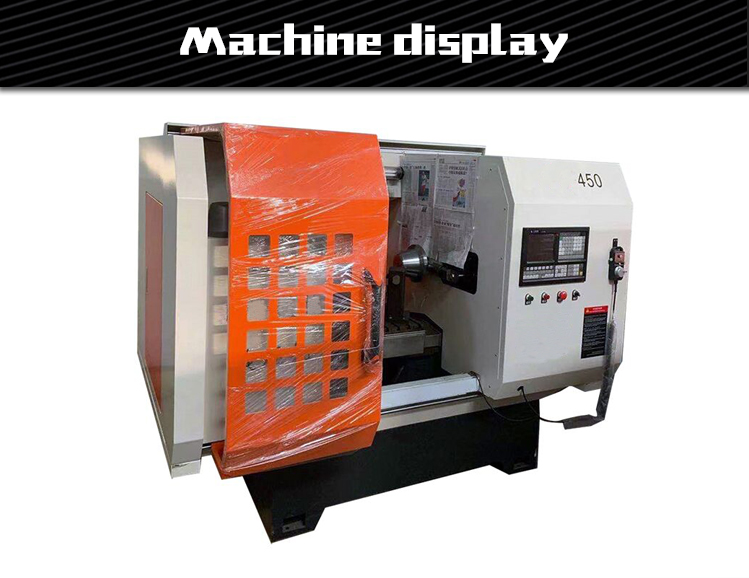

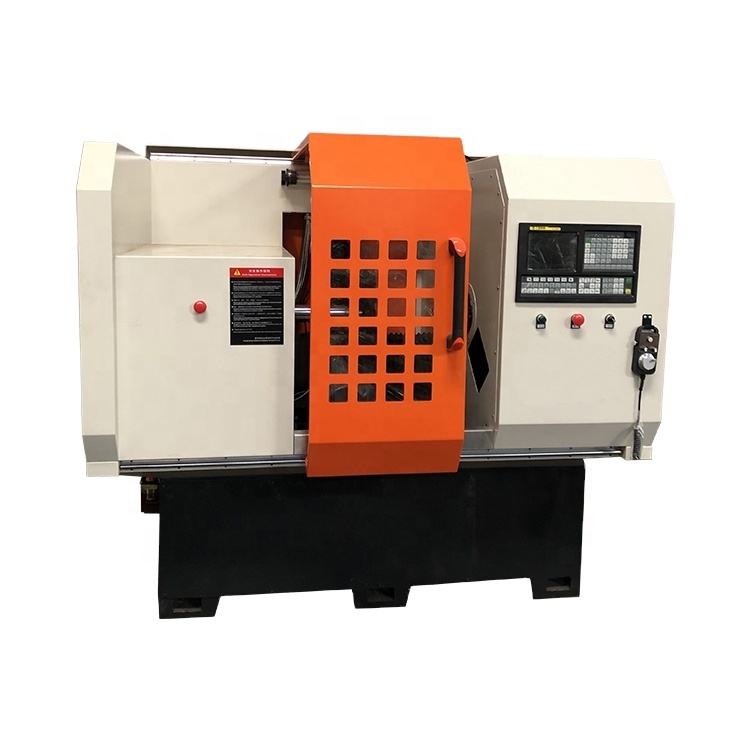

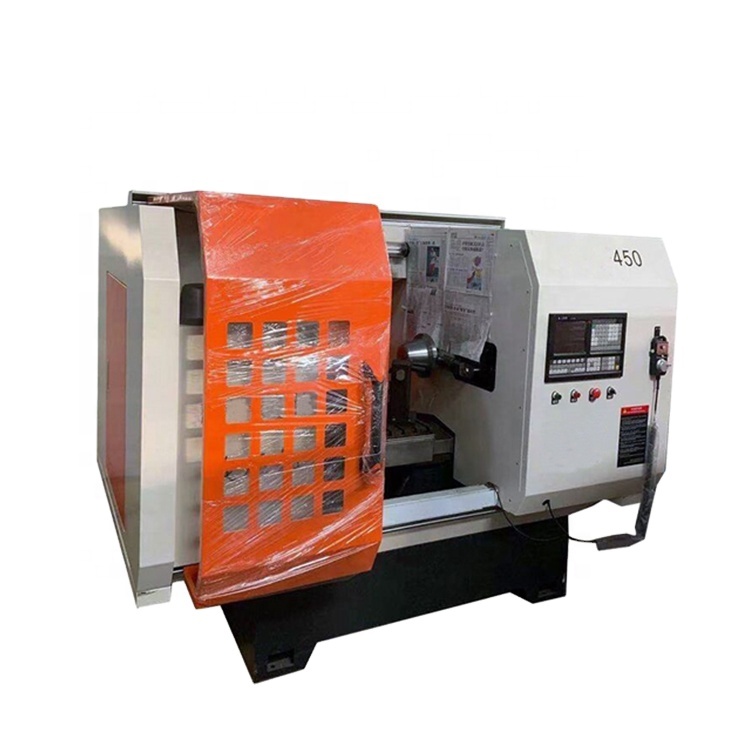

ZRF Spinning
1 / 5

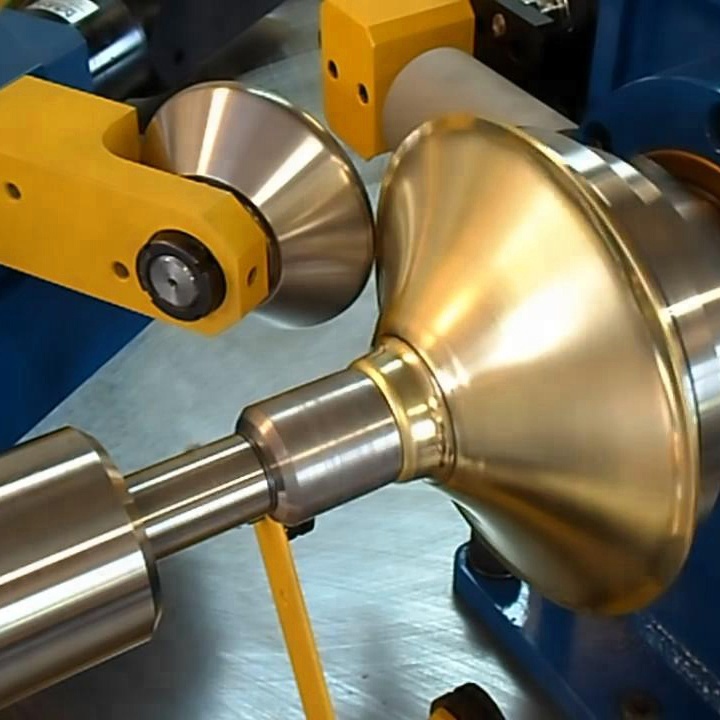

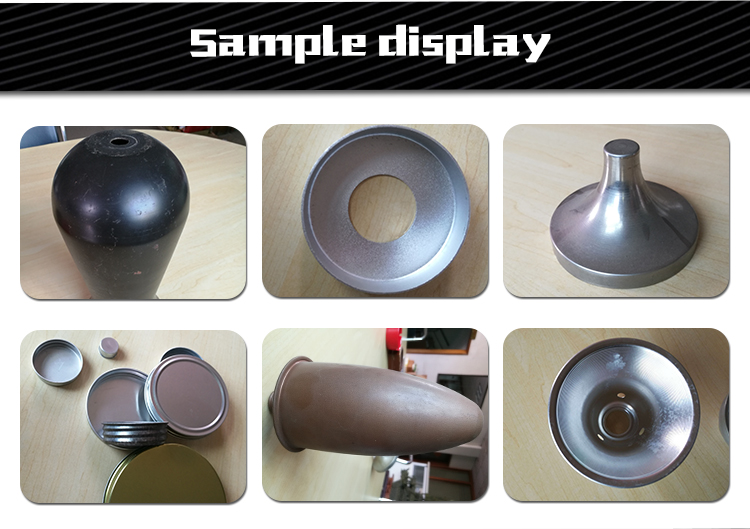

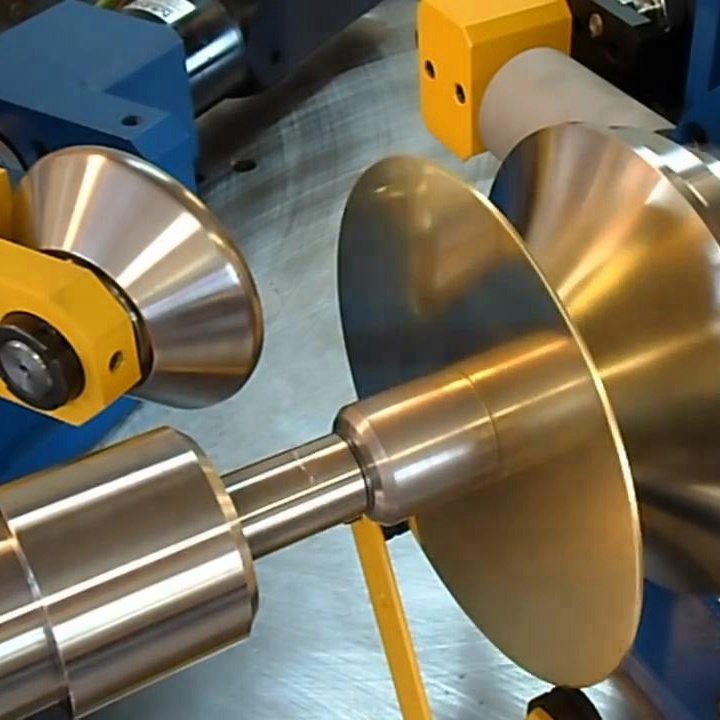

Applies to lighting, cooking utensils, handicrafts wait until the industry a variety of substrates such as aluminum, cooper, iron, stainless steel plate and steel plate spinning process. Complete series of products of mass of the bucket, conical, parabolic, hom type, warhead type.
| Items | Specification |
|---|---|

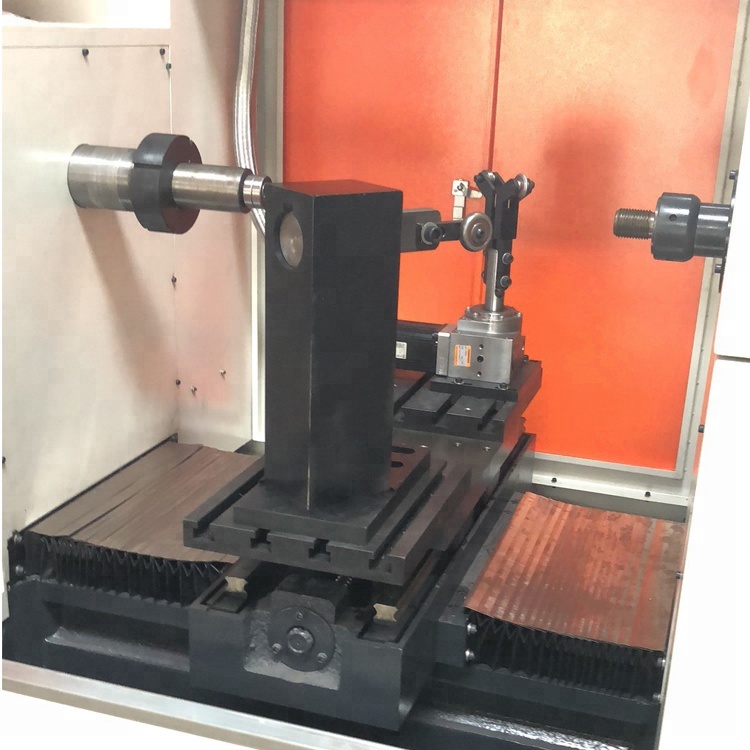

| Number of spinning roller | Main roller + swiveling roller 2 |
| Max diameter of workpiece | 450mm |
| The maximum rotary diameter over the plate. | 230mm |
| Max length of workpiece | 250mm |
| Thickness of workpiece | 0.5mm-2.0mm(Aluminum, copper), 0.5mm-1.2mm(Iron), 0.5mm-0.8mm(stainless steel) |
| Stroke of X/Z axis | 500mm/370mm |
| Z axis thrust | 20kn |
| The tailstock thrust | 20kn |
| Guide rail | Liner guide rail |
| Width of lathe bed | 800mm |
| X/Z axis fast speed | 10/15m/min |
| Positioning accuracy | 0.01mm |
| Repositioning Accuracy | 0.005mm |
| Spindle bore | 10 (blow) |
| Spindle speed | 3000rpm |
| Stroke of tailstock | 300mm |
| Tail sleeve movement. | 200mm |
| X/Z axis pulse equivalent | 0.001mm |
| Spindle bore taper | Tooth connection |
| Diameter of tailstock sleeve | 40mm |
| Main motor power | 4kw |
| Machining accuracy | 1t6 |
| Surface roughness | Ra1.25 |

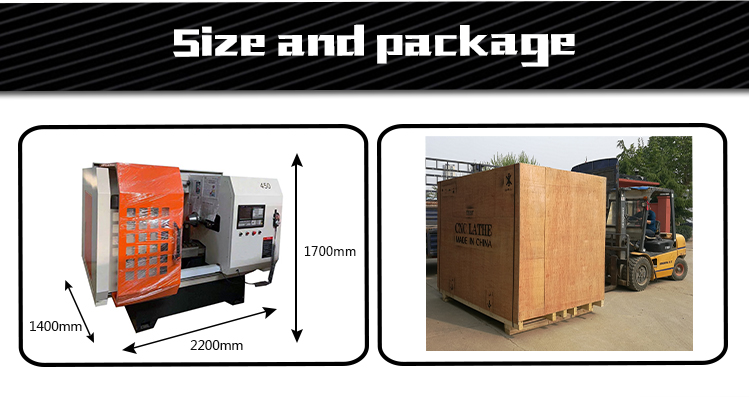

| size(length×width×height)(mm) | 2200*1400*1700 |
| Net weight(Kg) | 1800 |
| Controller | KEYUAN System |
Which trade term I can choose?
You can choose FOB, CIF, DDU or other terms. You can book a ship or we can book a ship for you.
How can I get a quotation?
You can make an inquiry online or send a message to us. It is better if you can share your detailed request information. We will reply to you within 1 hour on work days, and within 4 hours on holidays.
How can I choose the right machine and how to assure quality?

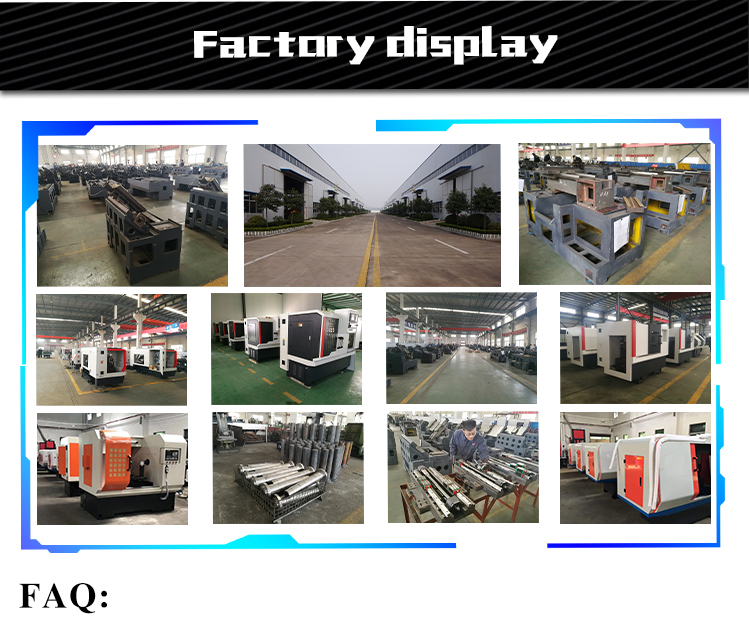

You can choose a machine on our website according to your request. Or you can let us know what is your request specification or what are your parts, so we can recommend a suitable machine to you. We have done trade machine business for years, and exported machines to over 100 countries. We have CE, ISO, SGS and other quality certificates.
How can I make the payment?
We can complete the transaction via online platforms, and you can pay by T/T or credit card. You can also pay to the business bank account, choose L/C or other methods.
How long does it take to get the machine?
If the machine you order is a standard machine, we can prepare it within 15 days. For custom machines, please confirm the delivery timeline with us. The shipping time is about 30 days to Europe and America. If you are located in Australia or Asia, it will be shorter. You can place your order according to the production and shipping time.
How about the warranty?
The warranty is two years, and we offer lifetime service for the machine.
