Automatic Wheel CNC Machine CK6160Q Diamond Cut Alloy Wheels Lathe

1 / 5

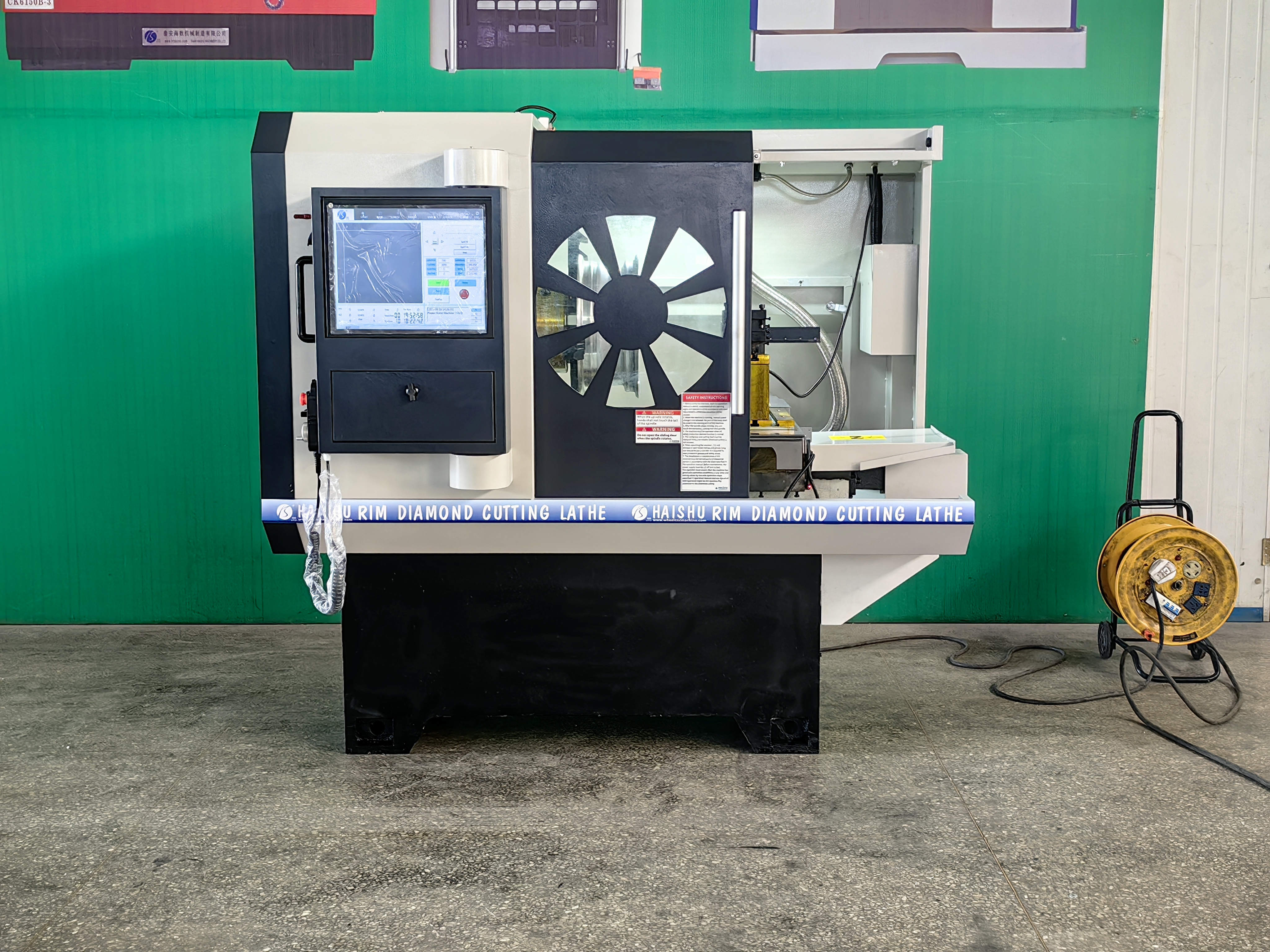

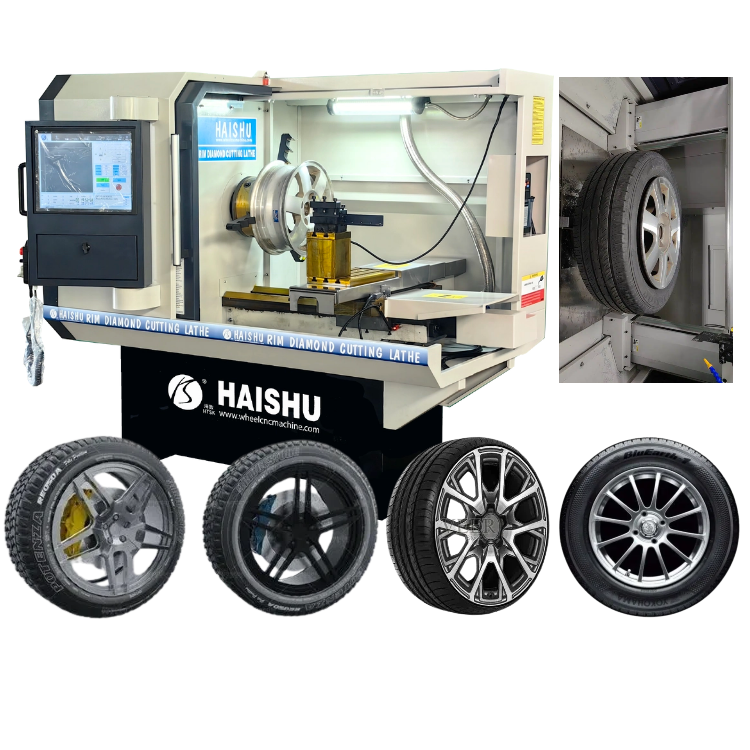

Automatic Wheel CNC Machine CK6160Q Diamond Cut Alloy Wheels Lathe

Send Inquiry

Product Description

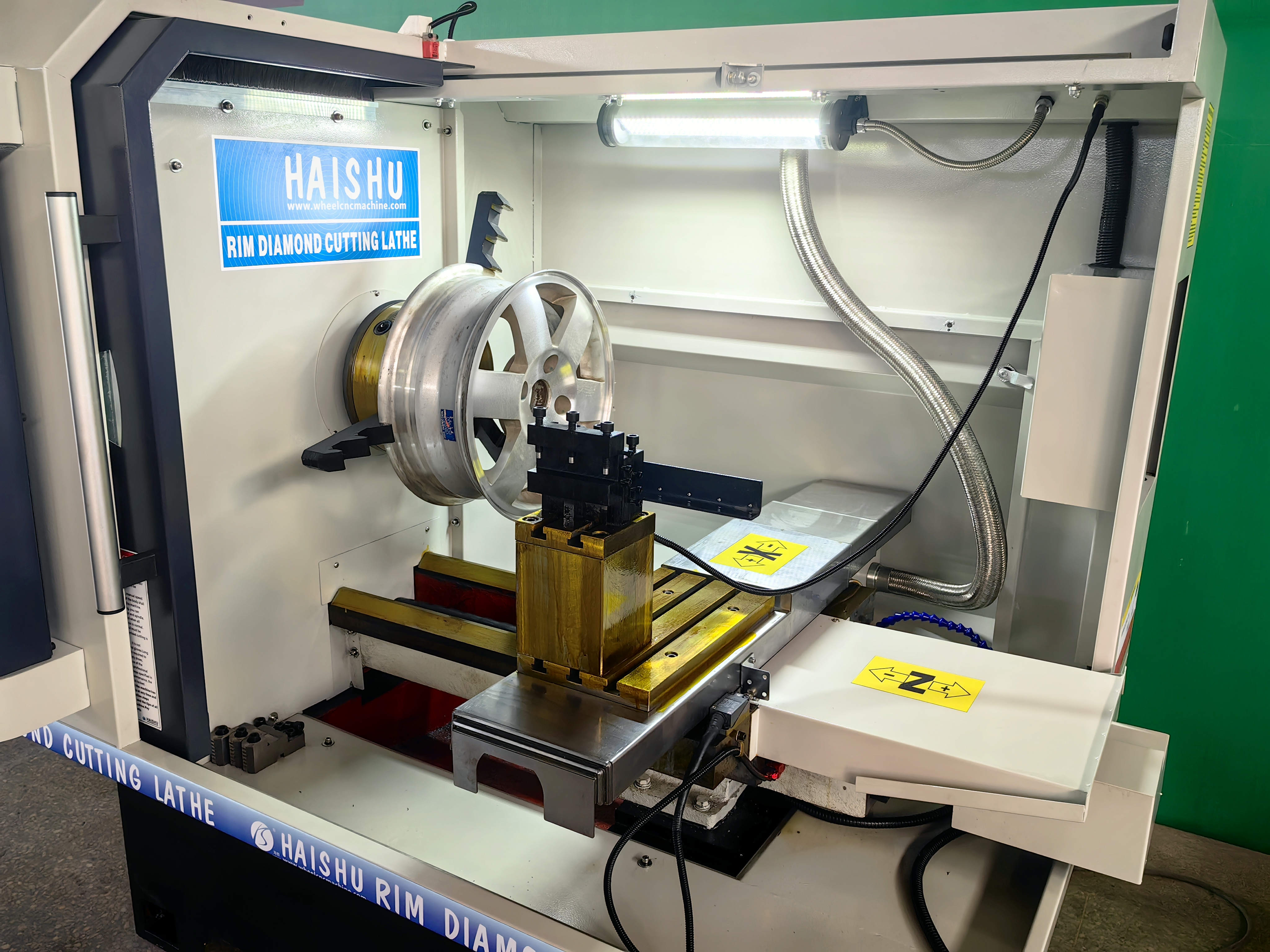

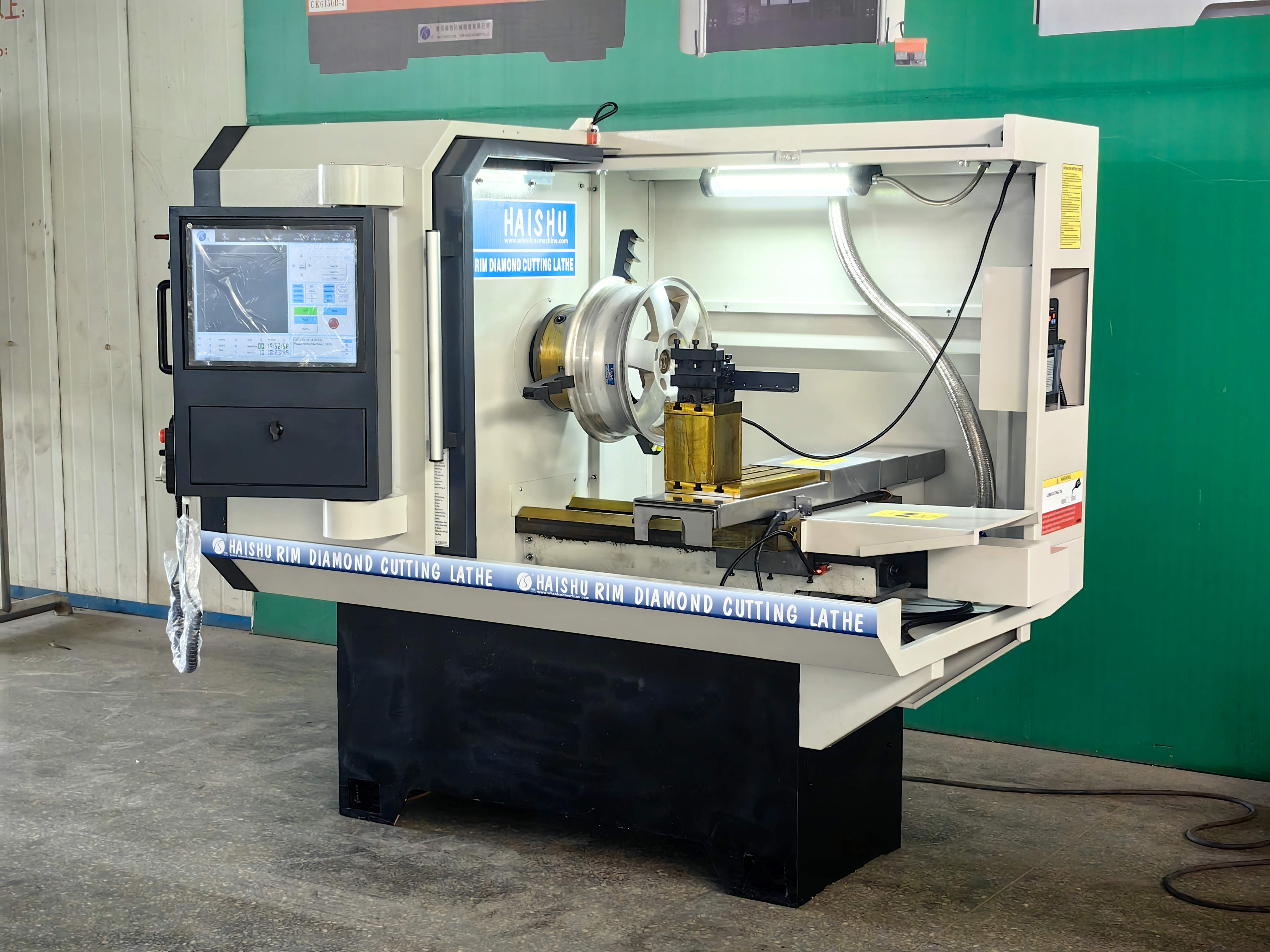

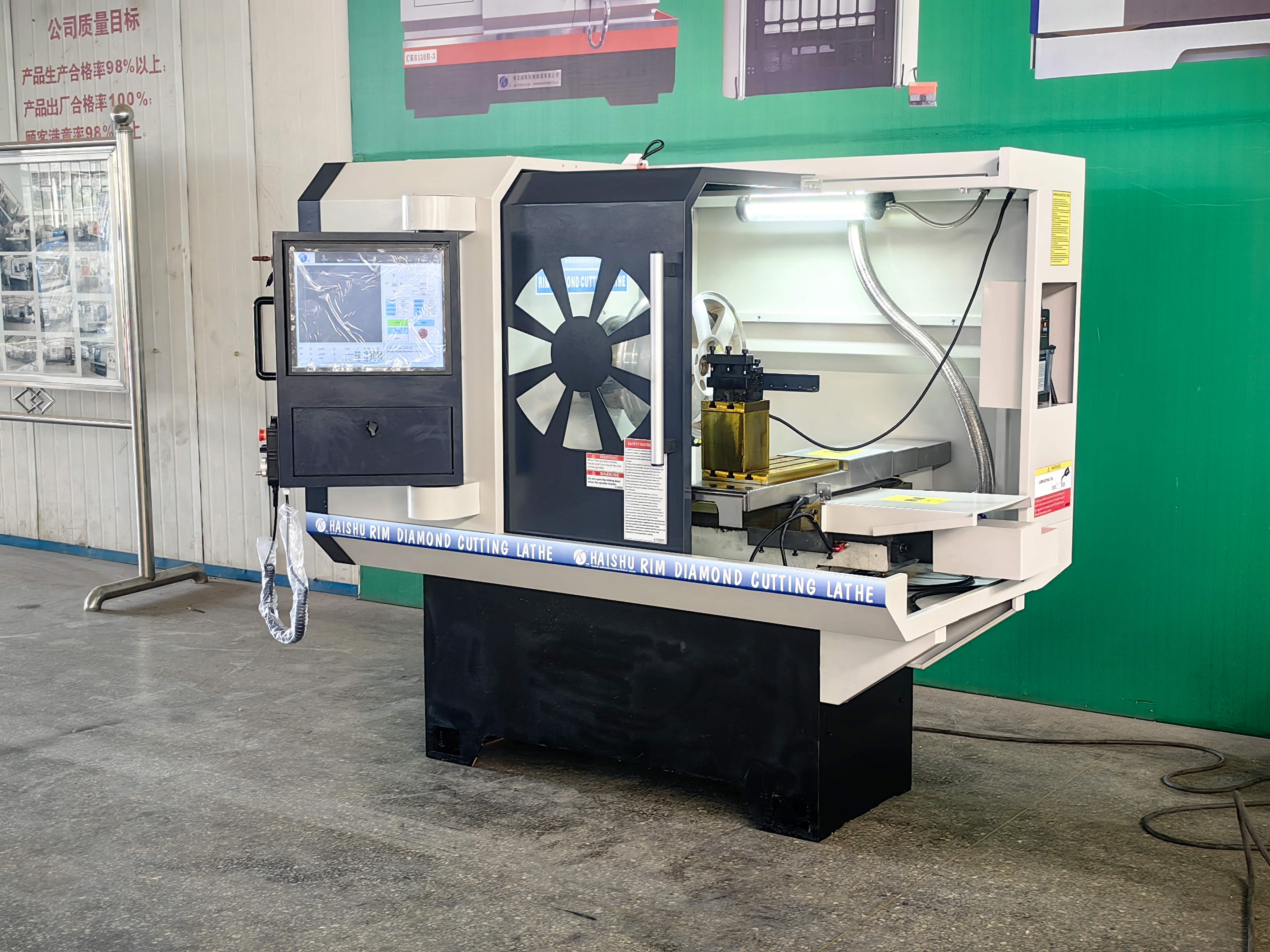

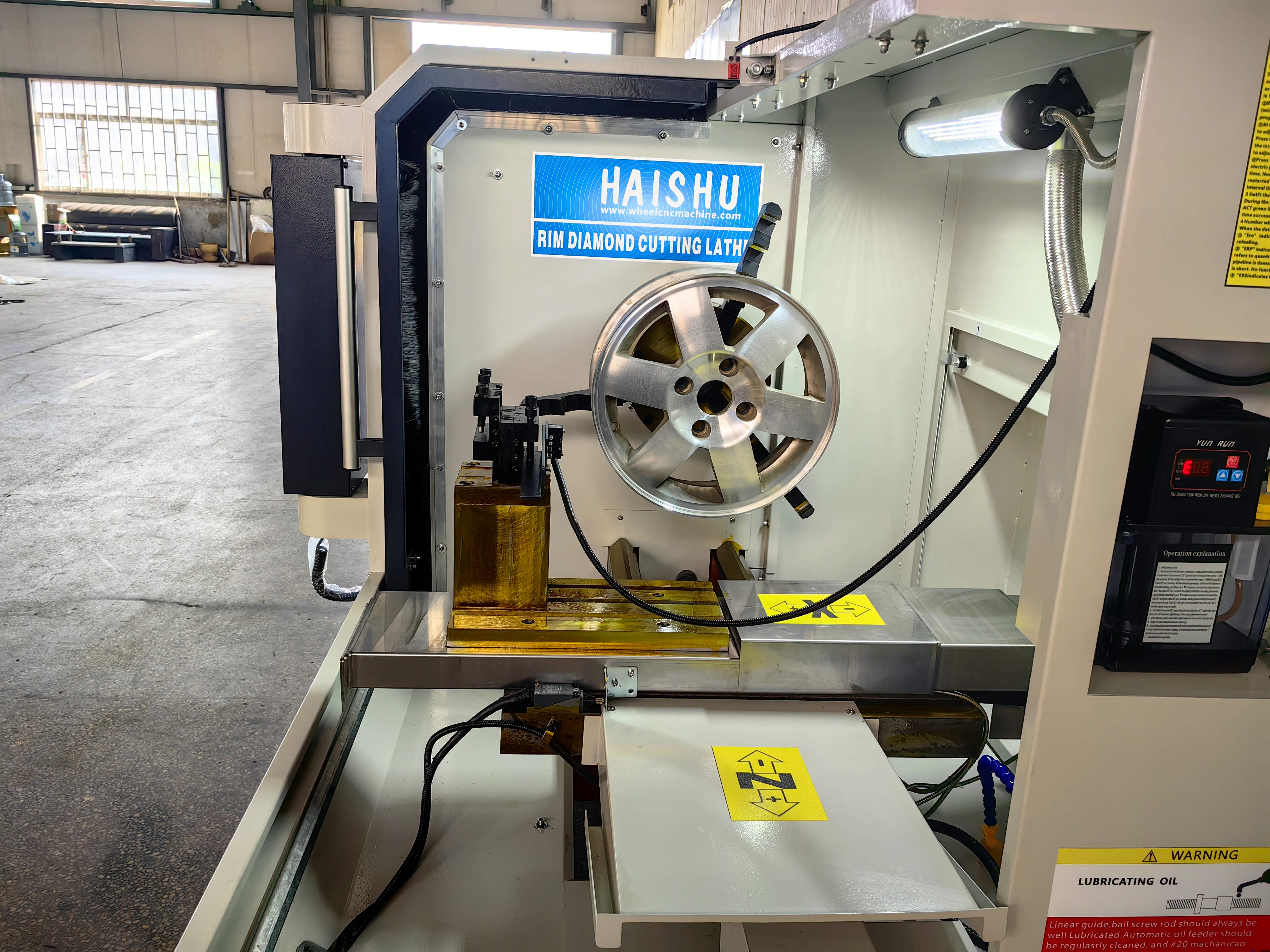

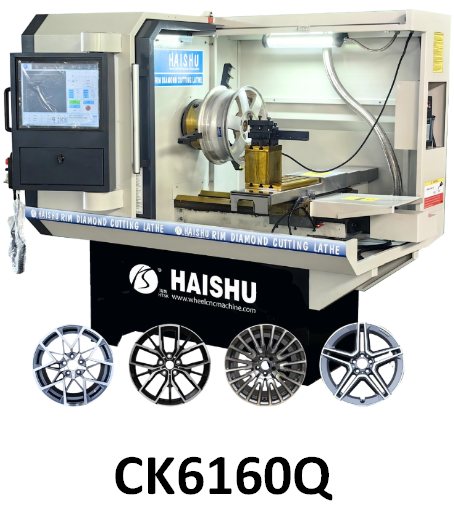

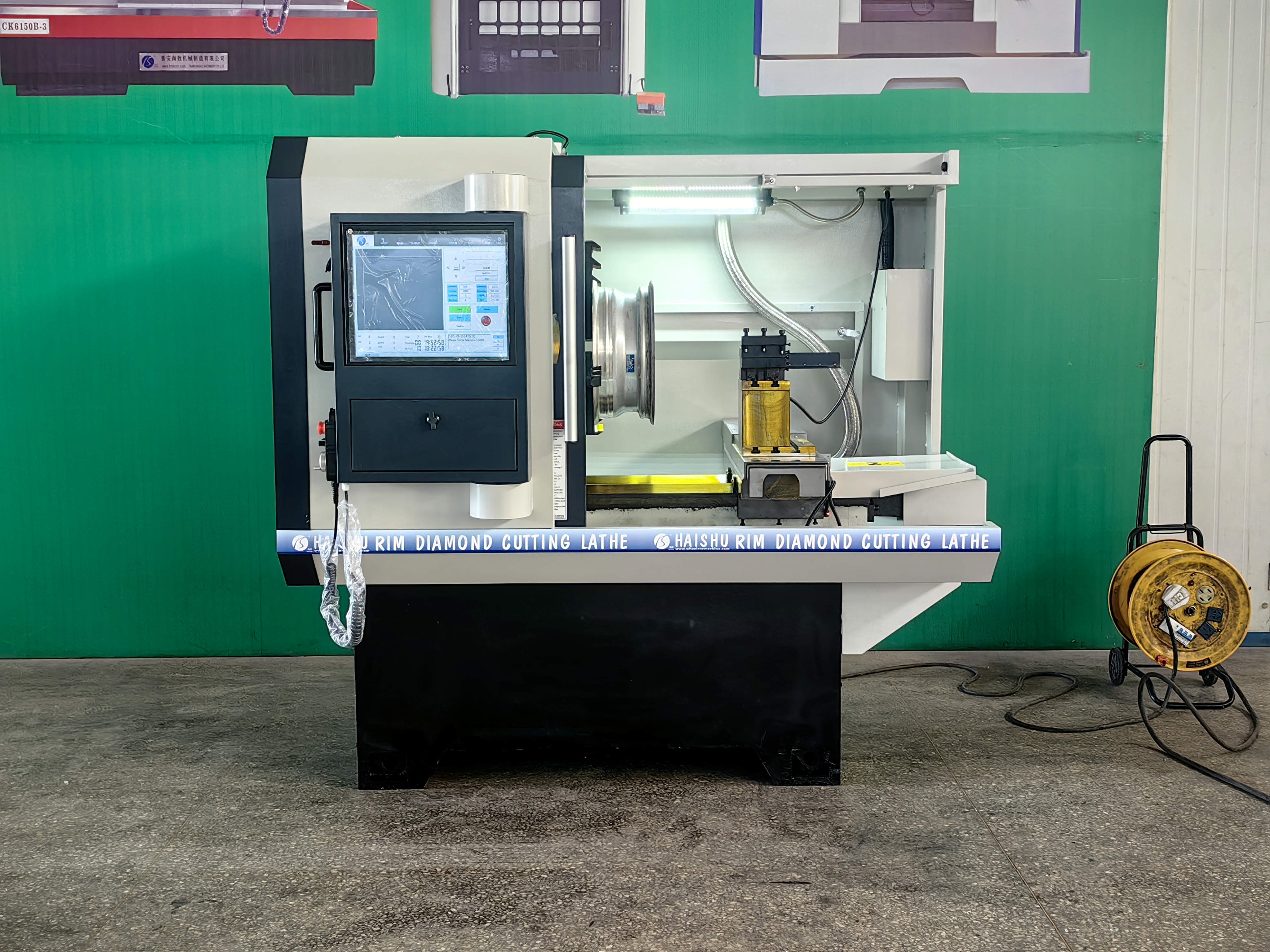

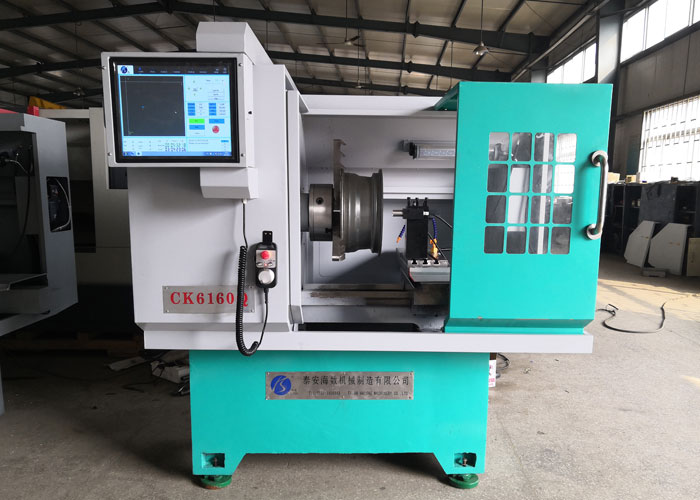

Automatic Wheel CNC Machine CK6160Q Diamond Cut Alloy Wheels Lathe

Automatic Wheel CNC Machine CK6160Q Diamond Cut Alloy Wheels Lathe is an advanced, efficient system. It can automatically detect, generate programs, and repair wheel hubs with just one click. It finds applications in automotive maintenance, machining, and tire manufacturing industries. With the Wheel Refurbishment Equipment CK6160Q Diamond Cutting Wheel Lathe, efficiency is enhanced, costs are reduced, and market demands are met. Experience high-quality and reliable wheel repairs with Mag Wheel Repair Lathe CK6160Q CNC Alloy Wheel Rim Fix Machine.

Key Components & Features

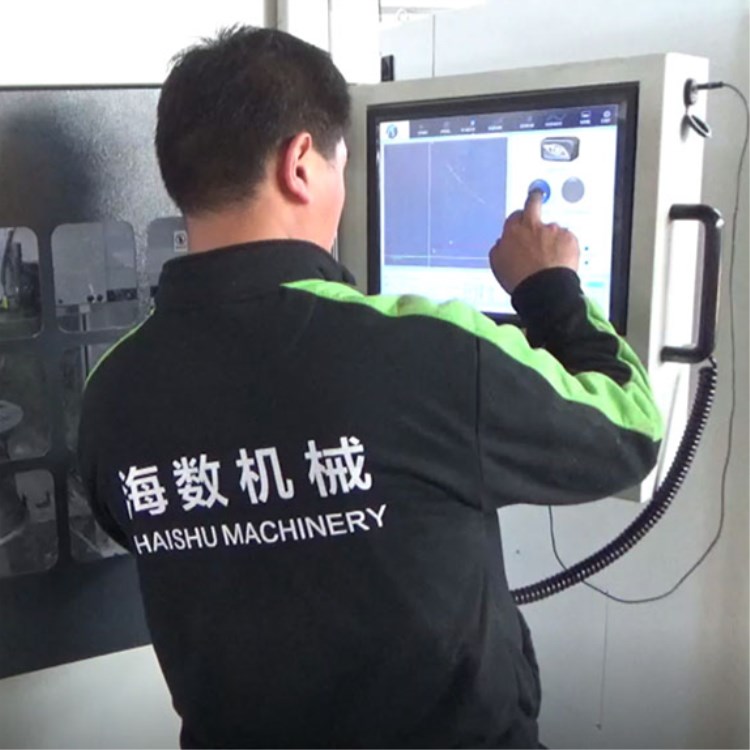

Touch screen system

A touch screen system specially developed for wheel hub repair, with one click operation, simple and easy to operate. It can be continuously updated and upgraded according to the different requirements of customers.

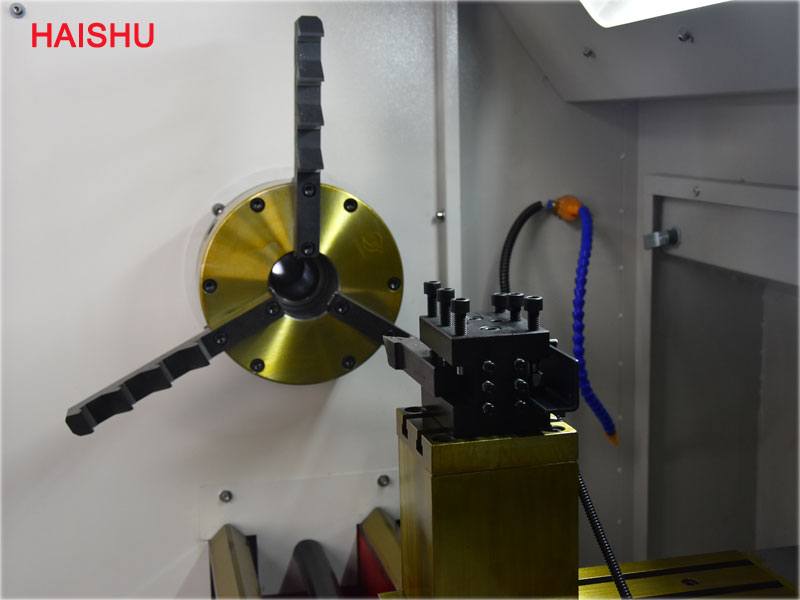

Long jaws

Designed for the characteristics of wheel hubs, the chuck extension claw can hold up to 24 inches. And provide a special special chuck wrench, which can easily clamp and release the wheel hub with one hand.

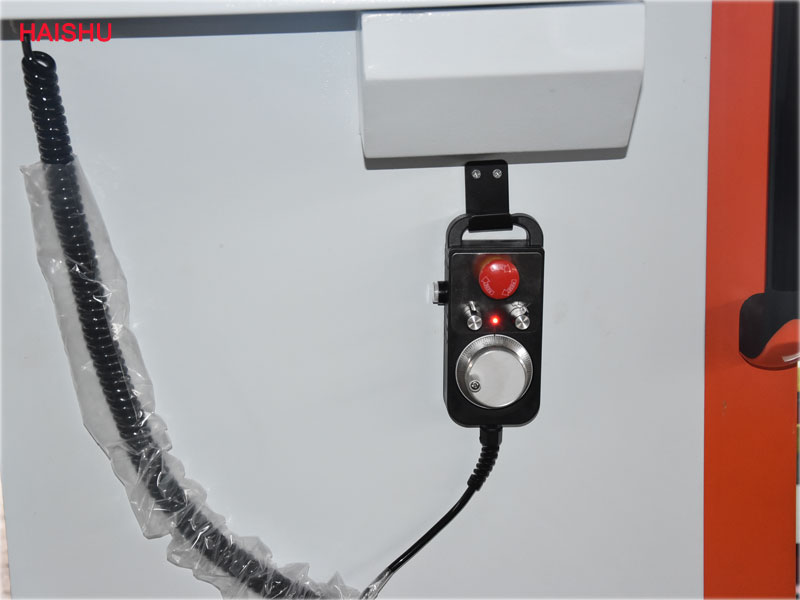

MPG

Install MPG on wheel repair cnc lathe. Teaching style mechanical work origin and endpoint setting for hub CNC lathes, with manual step adjustment to make the entire work process simpler and more convenient.

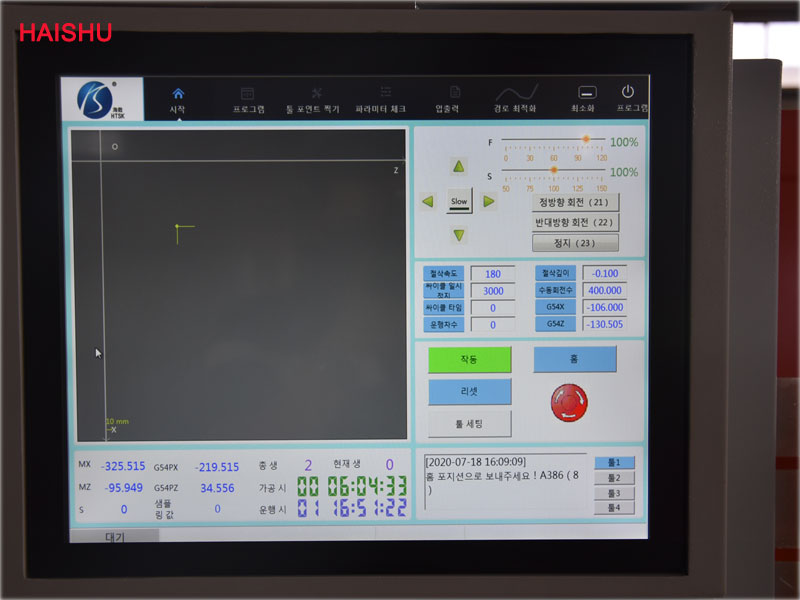

Multilingual software

At present, it supports Italian, English, Turkish, French, German, Russian, Vietnamese, Arabic, Spanish, Greek, Korean and other different languages.

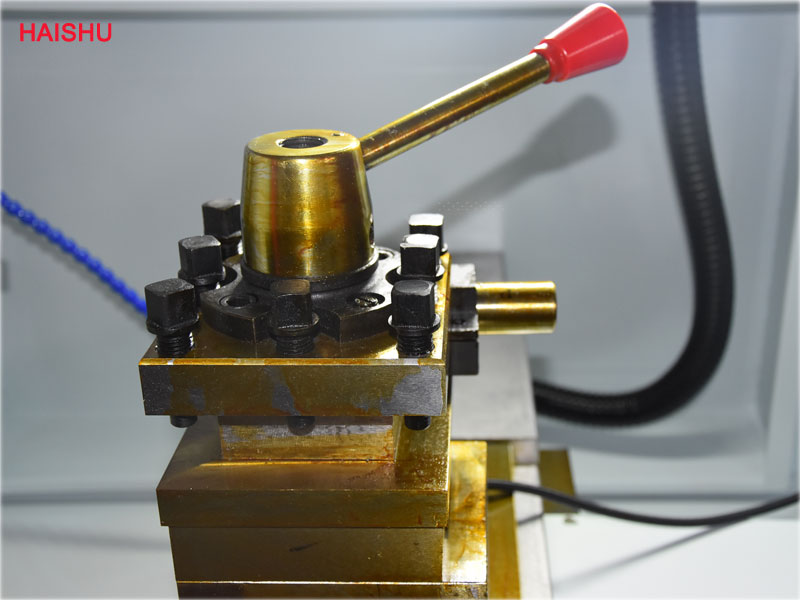

Turret

Different forms of tool holders can be installed according to customer requirements. Gang-type tool holder or four station manual turret.

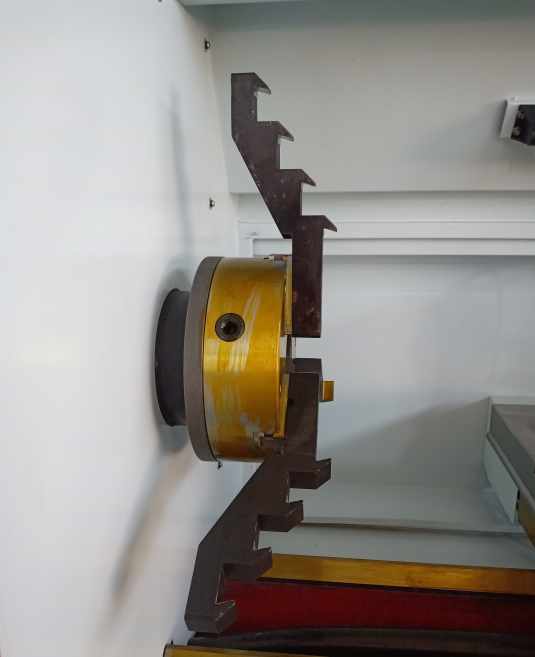

Special curved jaws

Customized special bending claws according to customer requirements can process special ultra-high wheel hubs.

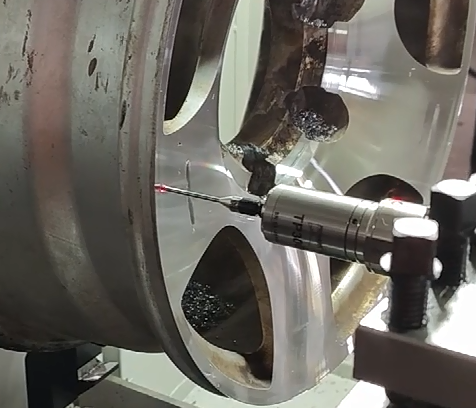

Touch probe

Detect point by point, accurate data, suitable for complex shaped wheel hubs. Automatic generation of machining programs, one click optimization, fast and efficient turning.

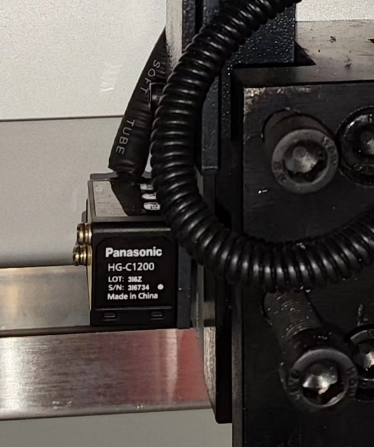

Laser probe

One click quick scanning, automatic generation of turning program, completed within 30 seconds. One click optimization for fast and efficient turning.

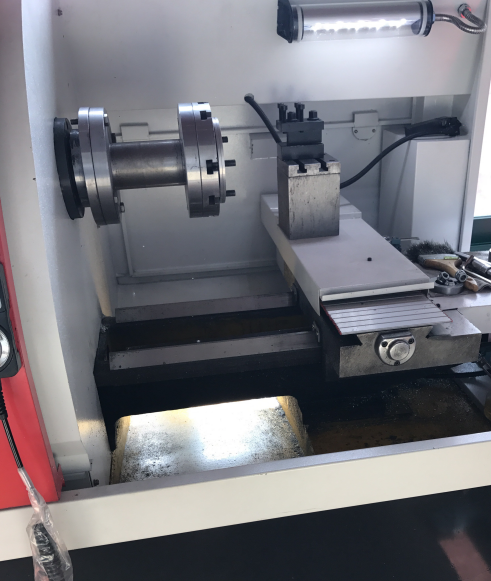

Specially customized fixtures

Customize special fixtures based on customer wheel hubs to ensure optimal machining results.

Main Features

Cheap wheel repair CNC lathe.
Achieve the wheel surface profile measurement and data collection and Program Optimization.

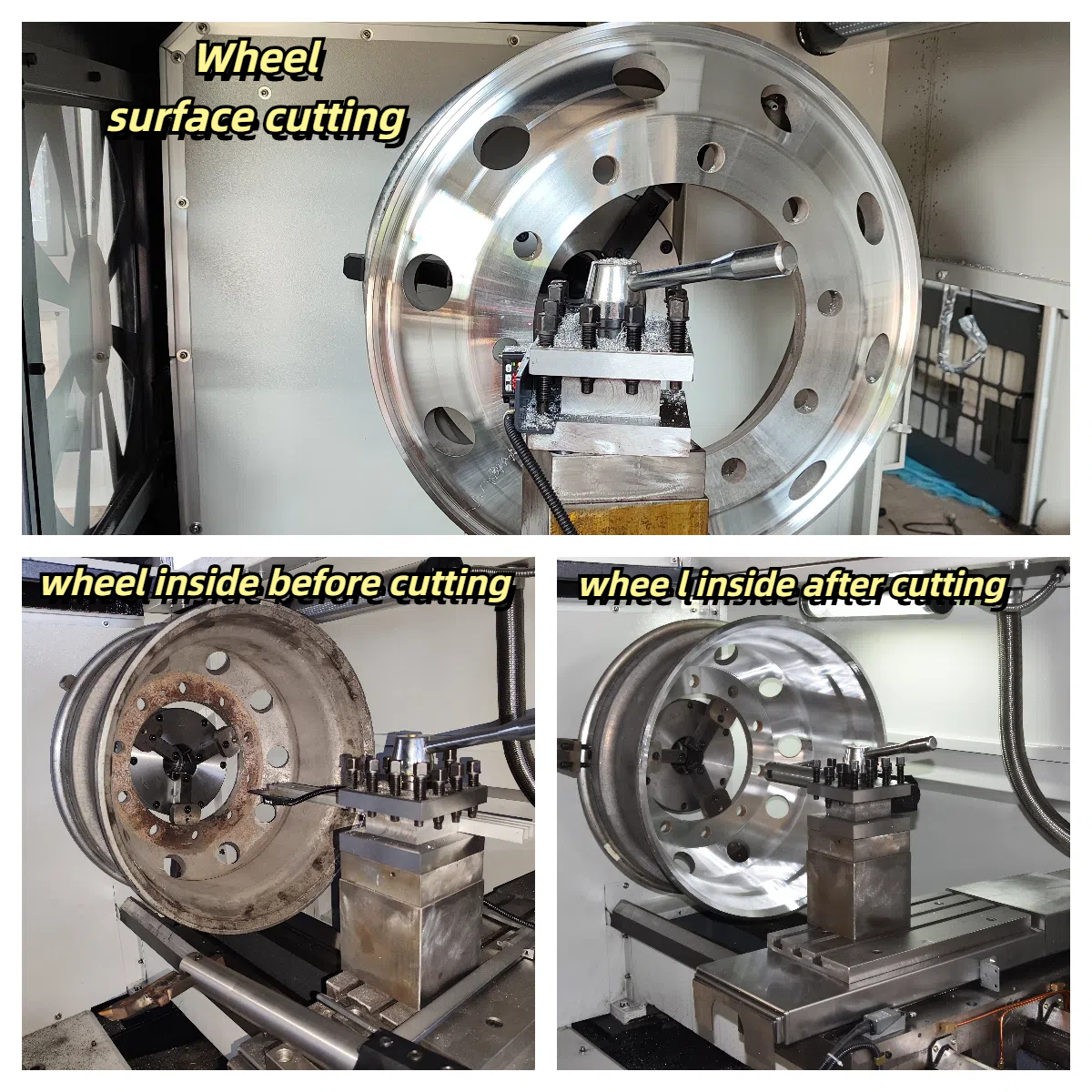

Automatic precision repair and machining in accordance with the curve of the wheel surface.
Self-developed curve optimization software. Multilingual language interface. Installation and operation is simple.
Spindle frequency stepless speed.
X / Z axis servo drive.
With mandrel clamp wheel.
Automatic oil lubrication.

⚡ No need to remove the tire when working

Technical Parameters

Project name	Unit	Technical parameters
Max. wheel machining diameter	mm	24”
Max. workpiece length	mm	430/630
Probe measuring direction	-	X, Z
Probe form	-	Touch probe or laser probe
Main transmission form	-	Independent spindle; frequency conversion stepless
Range of spindle speed	rpm	150~2000
Main motor power	kw	3
Fast-moving feed	mm/min	X - axis: 5000 Z - axis: 5000
Repeat positioning accuracy	mm	X - axis: 0.01 Z - axis: 0.015
Turret form	-	2-position fixed tool holder
Section of turning tool	mm	25×25
The size of the machine (L×W×H)	mm	1900/2100×1400×1750
Net weight of the machine	Kg	900/1200Kg

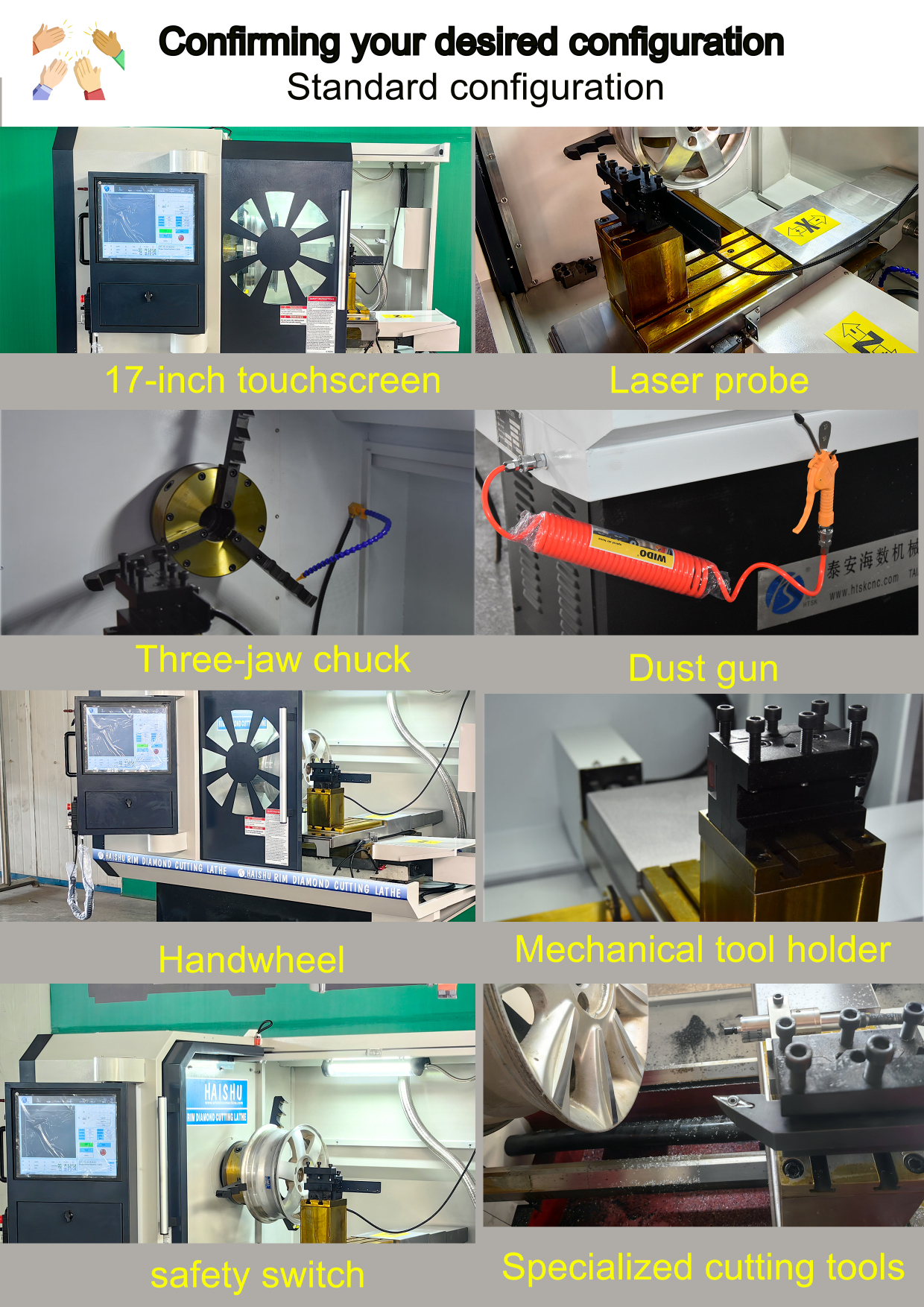

Standard Configurations

CNC system: LCD touch screen CNC system.
Laser probe
Precision screw vice
Software and hardware limit
Rail protection system
Automatic lubrication system
Air cooling system
Air gun
MPG
Warning lights
Full protection outer casing
Chip removal box
Manual door
Long jaw chuck
2 Station row turret
Z safety brake

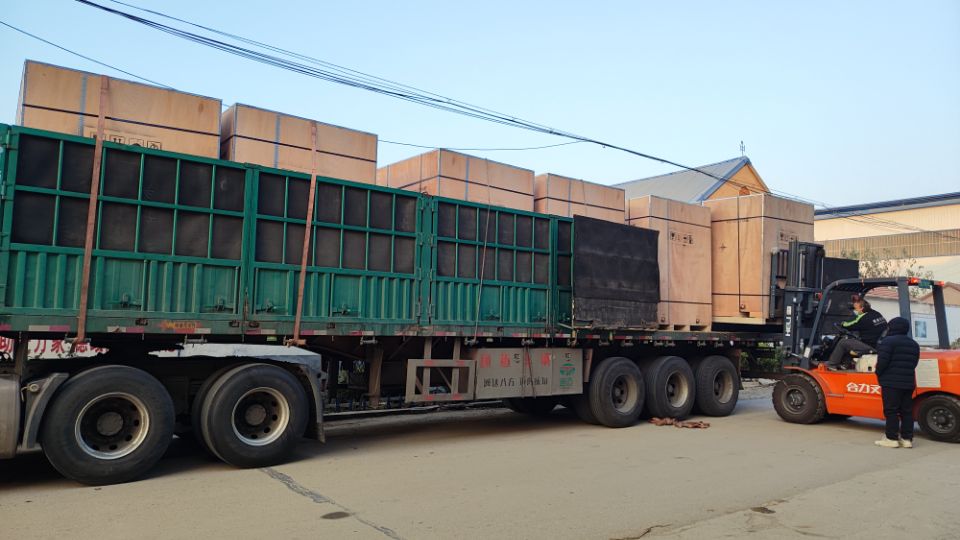

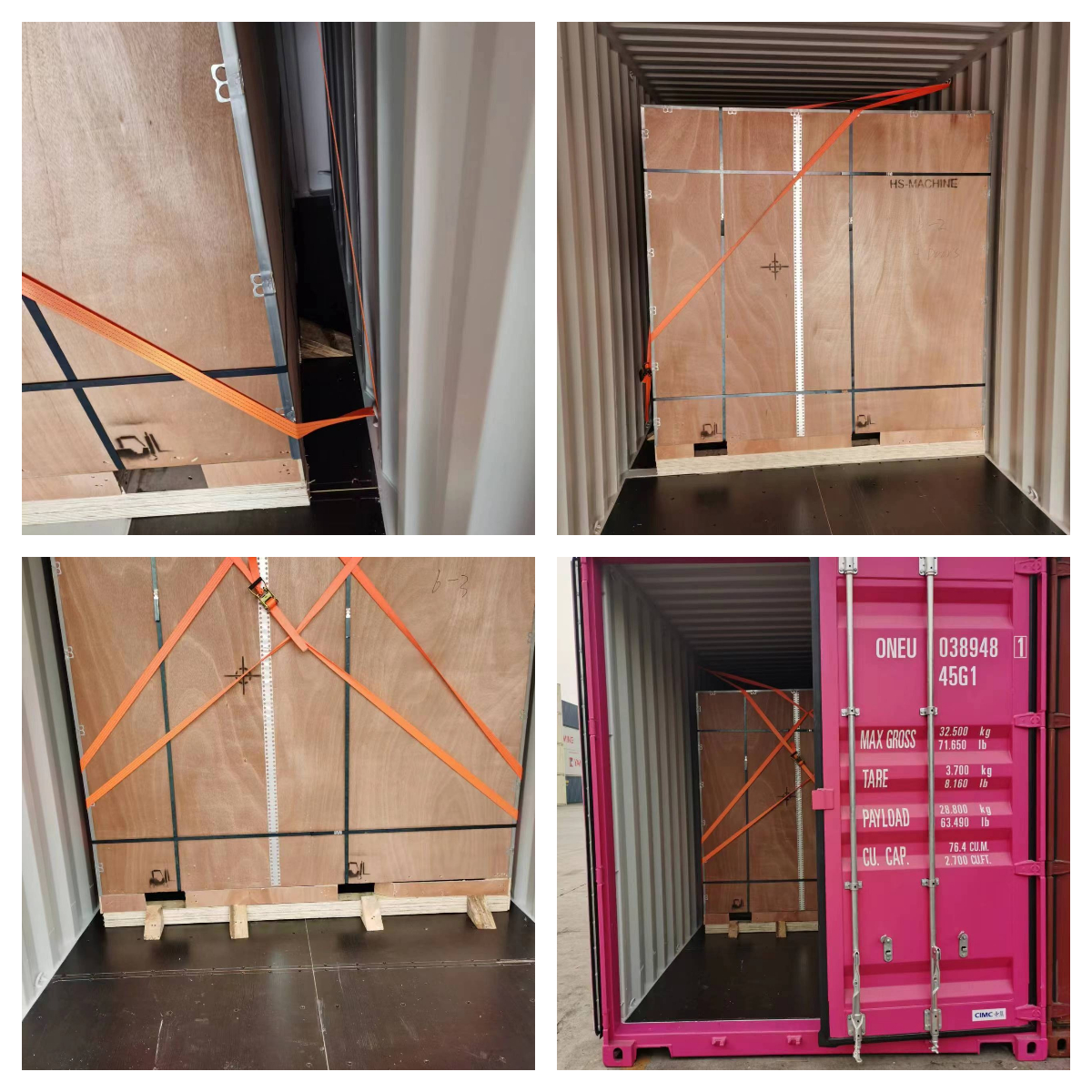

Packing and Shipping

Services

One year guarantee for the whole machine.
24-hour technical support by E-mail or telephone.
User-friendly English software (or Russian/Spanish), user manuals, and detailed videos/CD.
Provide extra accessories for the machine.
Also provide service of generating program according to your drawings.
Customized or special designs are accepted.

Frequently Asked Questions

Q1: What is the maximum wheel diameter that the CK6160Q CNC machine can process?

A1: The machine can process wheel hubs with a maximum diameter of up to 24 inches (24”).

Q2: Do I need to remove the tire when repairing a wheel with this lathe?

A2: No, you do not need to remove the tire. The machine is designed to perform wheel repair directly without tire removal, simplifying the operation.

Q3: What types of probes does the machine support for profile scanning?

A3: The CK6160Q supports both touch probes (which detect points for complex hubs) and laser probes (which allow one-click scanning completed within 30 seconds).

Q4: Which languages does the software interface support?

A4: The software supports multiple languages, including English, Italian, Turkish, French, German, Russian, Vietnamese, Arabic, Spanish, Greek, Korean, and others.

Q5: What kind of after-sales service and technical support is provided?

A5: We provide a one-year guarantee for the entire machine, 24-hour technical support via e-mail or telephone, and easy-to-use manuals and video documentation.

Q6: Can the machine process ultra-high or specially shaped wheel hubs?

A6: Yes, with options like customized special curved jaws and specially designed fixtures, the lathe can securely clamp and process ultra-high or complex-shaped wheel hubs.
