Economical and practical.
Optional probe detection and laser detection, fast measurement.
No programming required, the system automatically generates machining programs after detection.
Wheel data is automatically stored, machining program is arbitrarily called out.
Software independent development, program automatically optimize.
Automatic wheel processing, precise and fast, with good effect.
Touch screen operation, support multiple languages.
Automatic lubrication system.
Diamond cutting.
The machine can be customized according to customer requirements.
| Item | Unit | HRC24 |
|---|---|---|
| Max. wheel diameter | inch | 24 |
| X-axis travel | mm | 320 |
| Max. workpiece length | mm | 500 |
| Width of bed | mm | 260 |
| Main motor power | kw | 4 |
| Spindle speed | rpm | 150-2800 |
| Fast-moving speed | mm/min | X/Z: 5000/8000 |
| CNC system | - | Touch screen |
| Detection tool | - | Laser, probe (optional) |
| Program optimization | - | Automatic |
| Machining accuracy | - | IT6~IT7 |
| Surface roughness | - | Ra0.8~1.6 |
| Repeat positioning accuracy | mm | 0.01 |

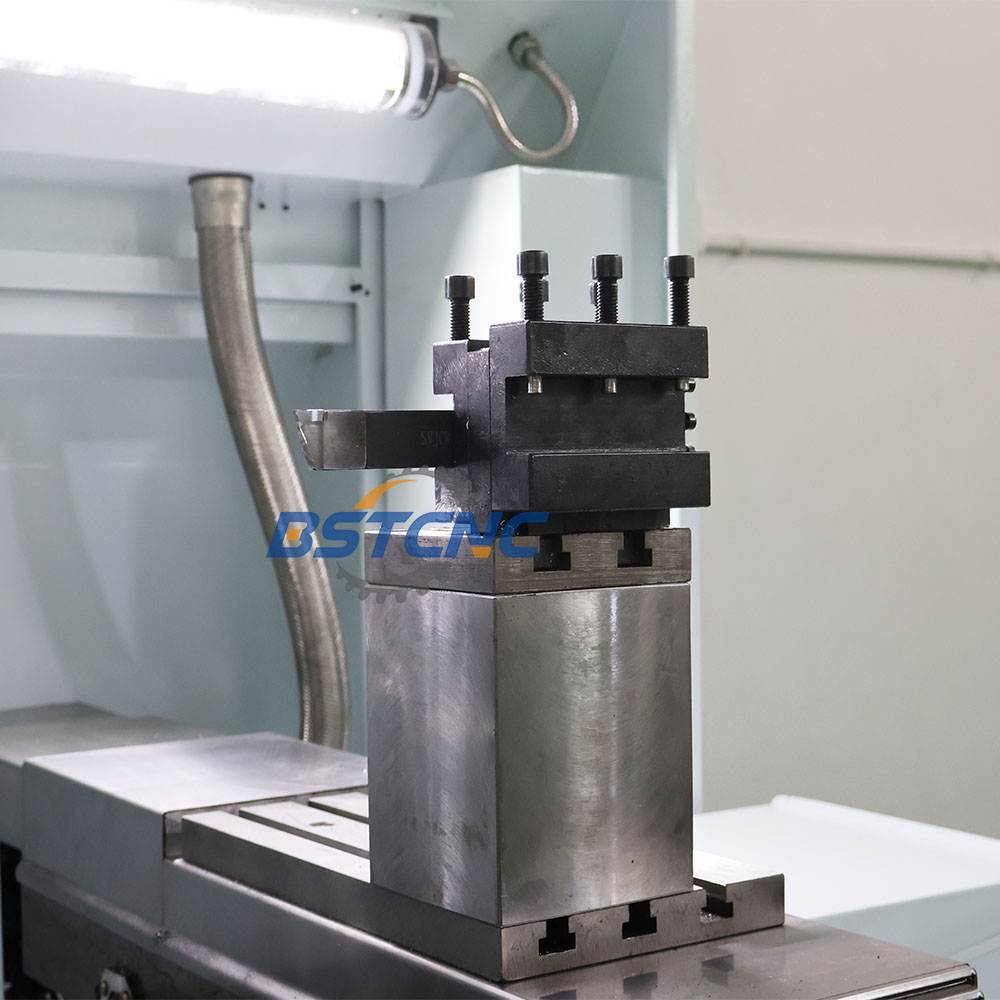

| Tool post | - | Fixed turret, Electric turret (optional) |
| Tool size | mm | 25x25 |
| Machine size | mm | 1900x1400x1750 |
| Packing size | mm | 2000X1500X1900 |
| Net weight | KG | 1000 |
| Gross weight | KG | 1200 |

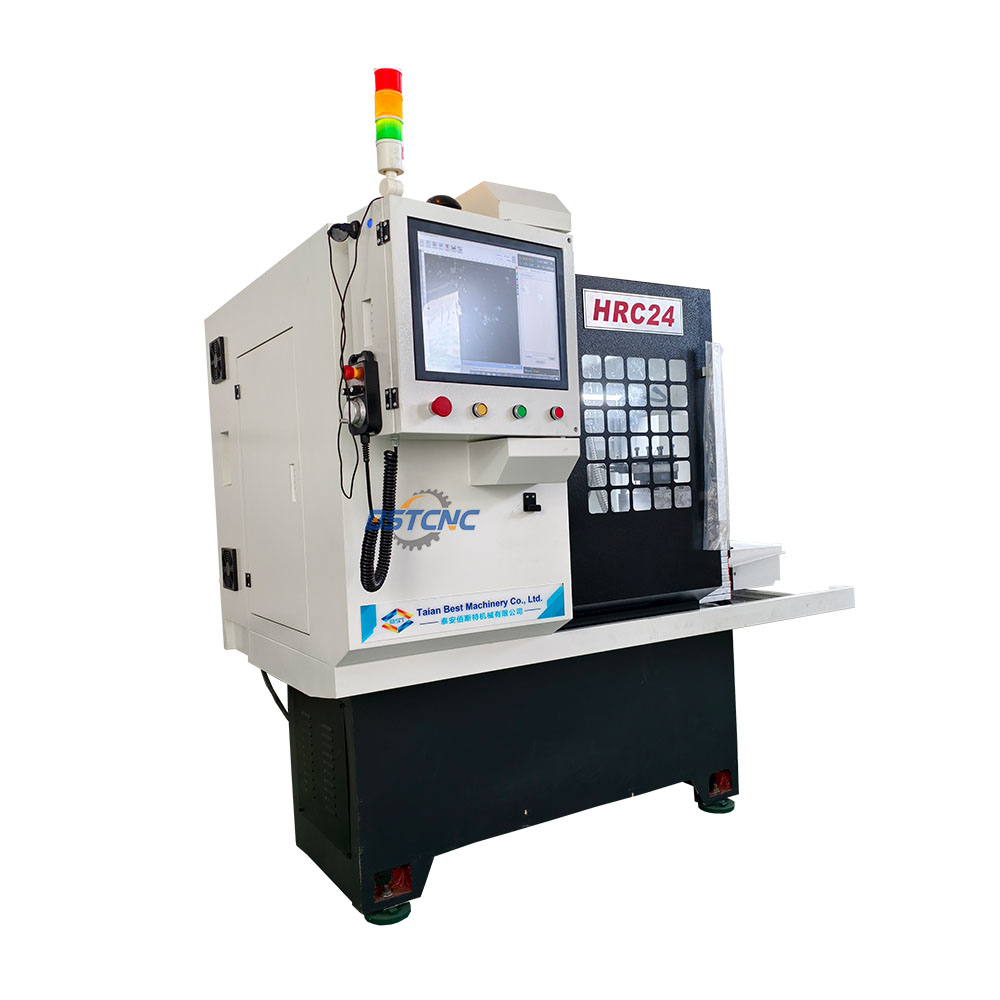

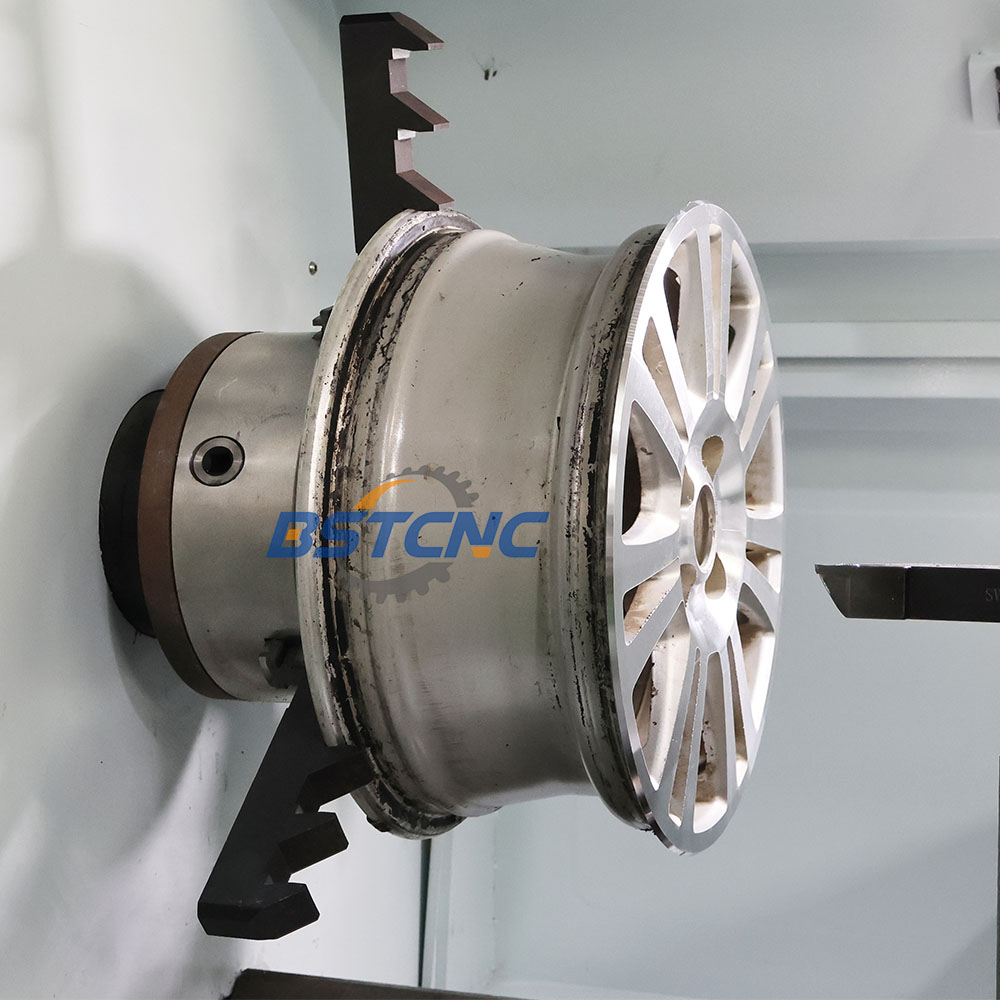

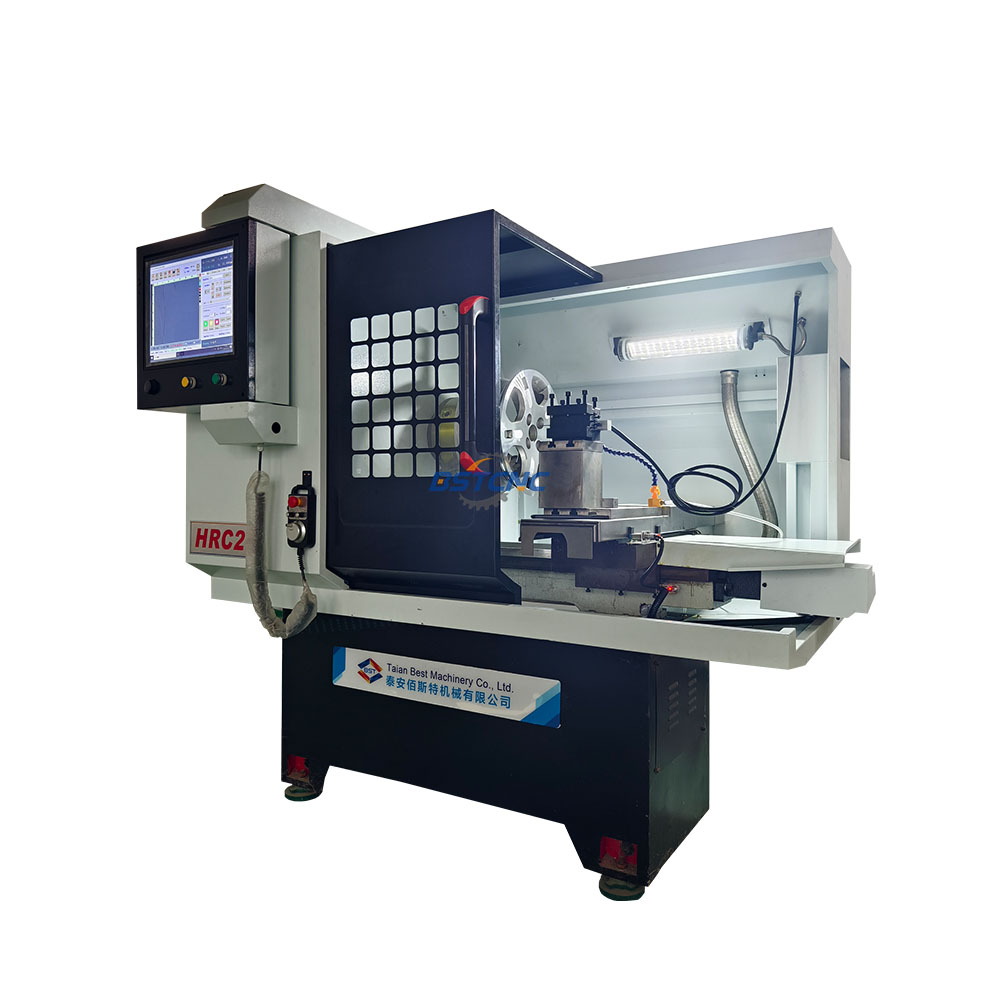

The HRC24 CNC lathe machine is designed to repair alloy wheel rims with a maximum diameter of up to 24 inches.
No prior programming knowledge is required. The system's software automatically generates optimized machining programs after the probe or laser detection process is complete.
The machine features optional configurations for both probe detection and advanced laser detection systems to ensure fast and precise wheel profile measurements.
Yes, wheel profile data is saved automatically by the built-in storage system, allowing you to easily call out and repeat machining programs at any time.
The HRC24 achieves a machining accuracy of IT6 to IT7 with a surface roughness of Ra0.8 to Ra1.6, ensuring a high-quality, mirror-like diamond cut finish.
Yes, the machine design can be customized and modified according to specific workflow requirements and customer preferences.
