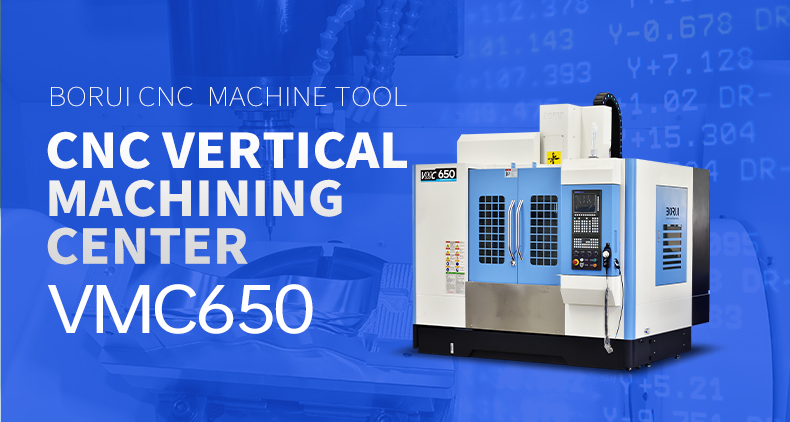

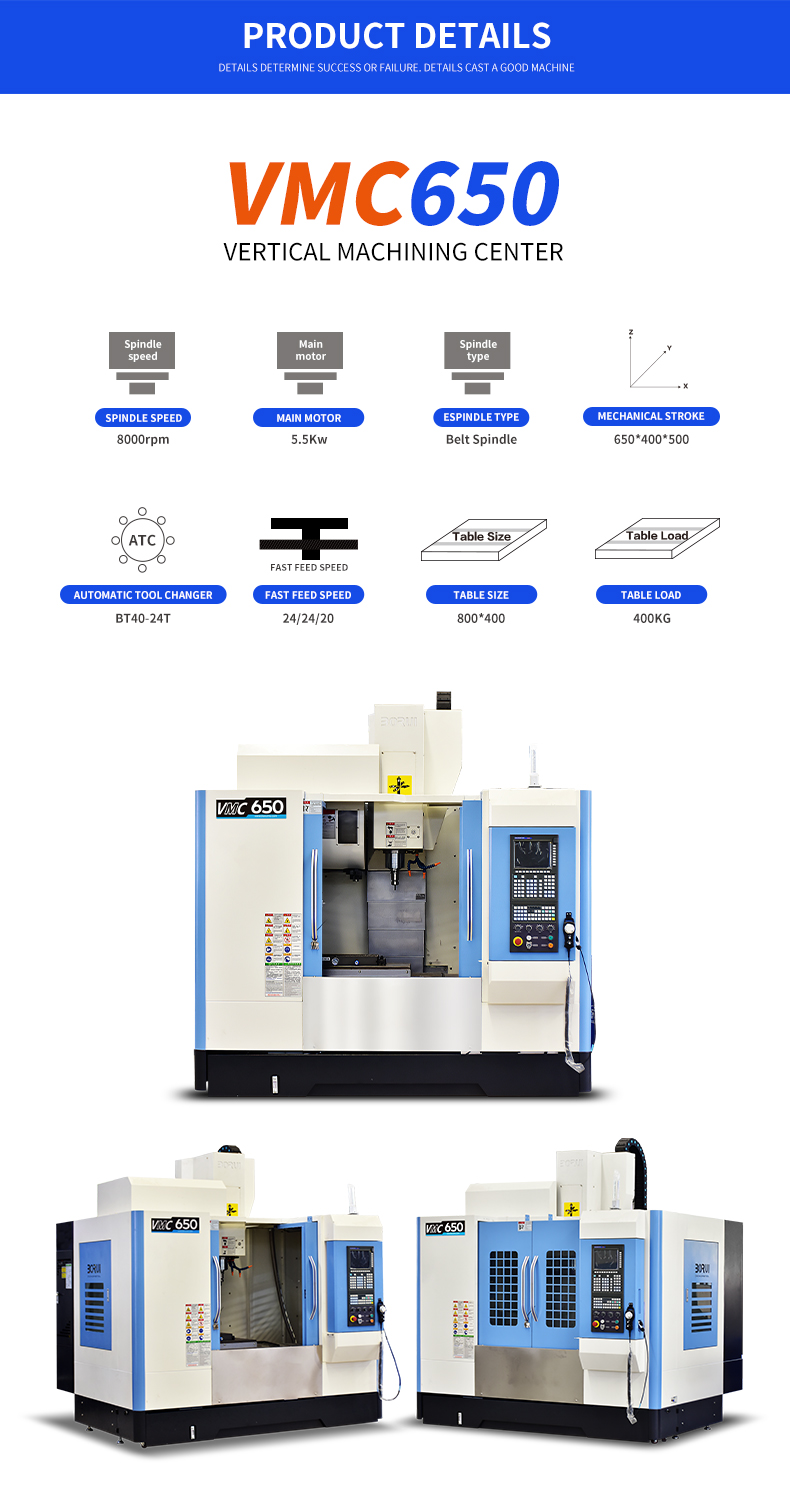

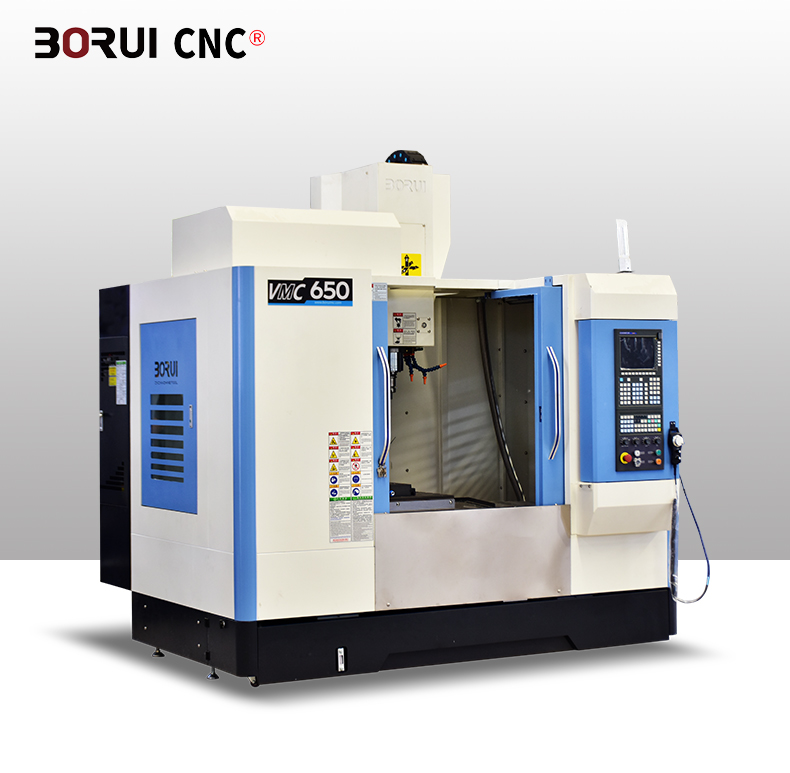

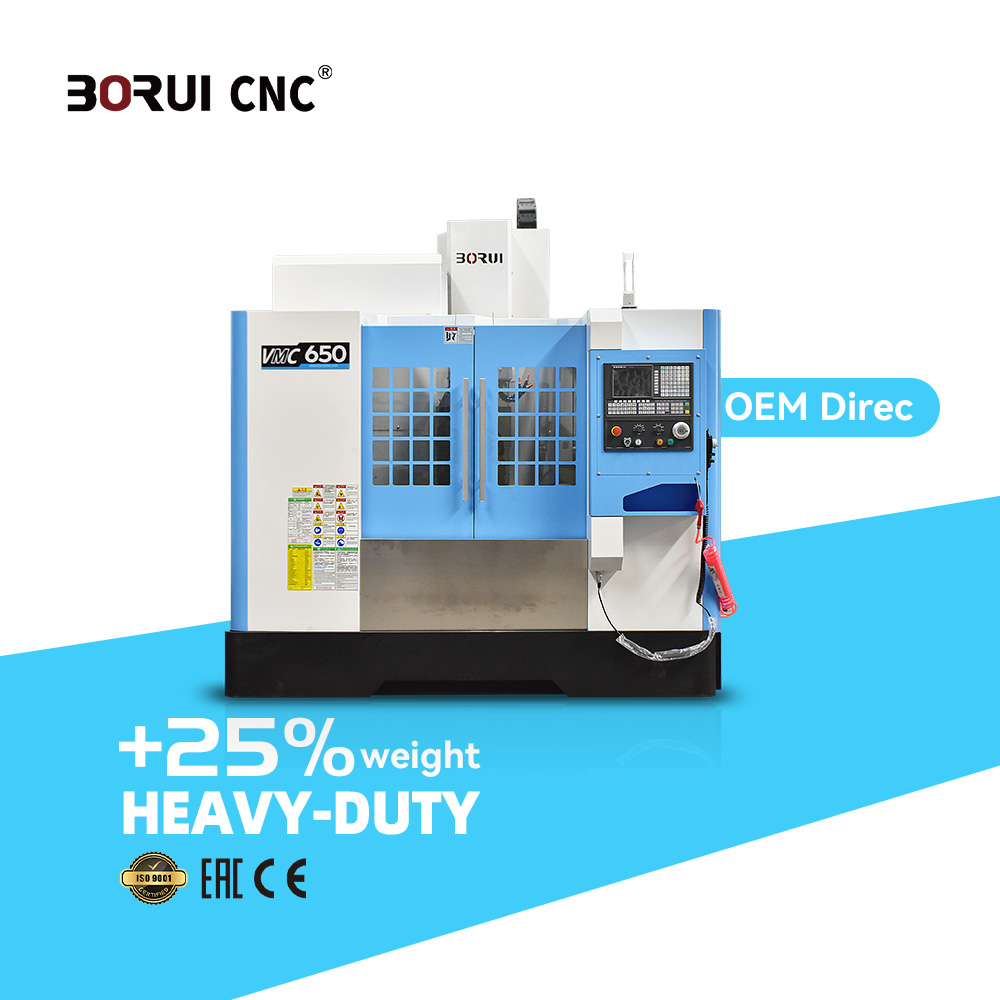

| Specifications | Units | VMC650 |
|---|---|---|

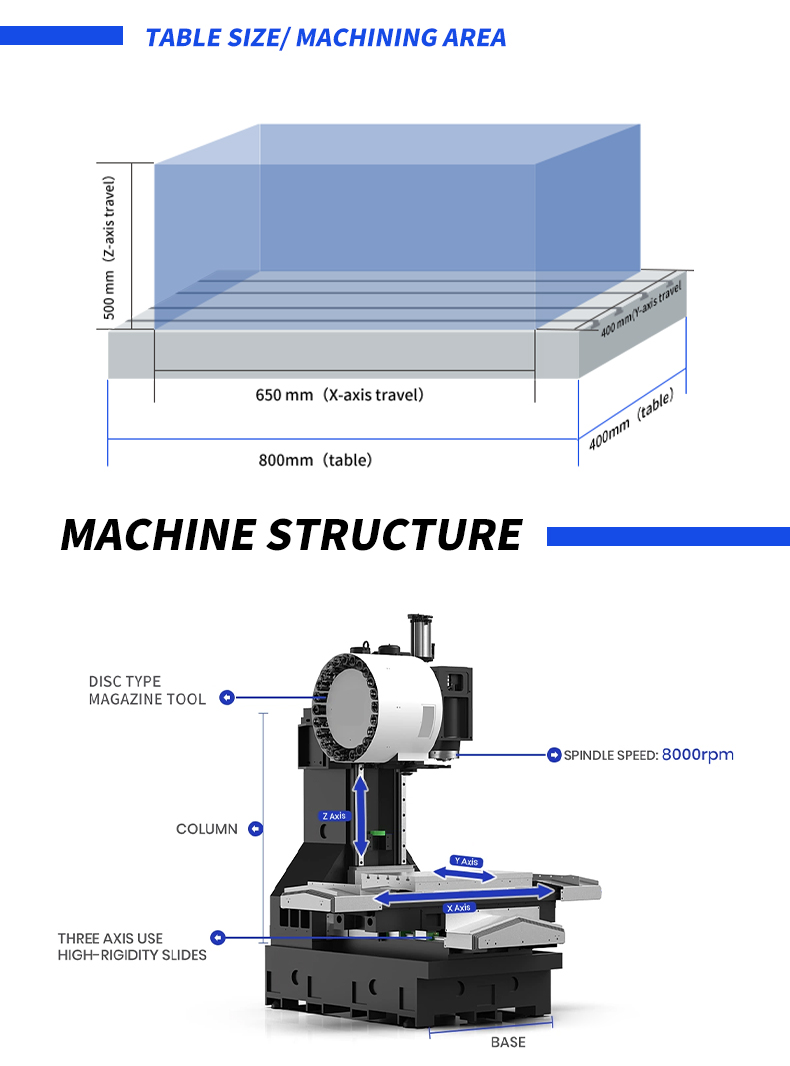

| Table size | mm | 800x400 |
| X axis travel | mm | 650 |
| Y axis travel | mm | 400 |
| Z axis travel | mm | 500 |
| Max. worktable load | kg | 400 |
| T slot(number-width-pitch) | mm | 3-18x125 |
| Max. spindle speed | rpm | 8000 (Optional: 10000) |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 (Optional: 48/48/36) |
| Cutting feed speed | mm/min | 1-10000 |
| Guide rail type | - | Linear rail |
| Distance from spindle axis to column surface | mm | 469 |
| Distance between spindle nose and worktable surface | mm | 100-600 |
| Positioning accuracy | mm | ±0.0075 |
| Repeat positioning accuracy | mm | ±0.005 |
| Tool magazine | - | 16 Armless (Optional: Arm 24) |
| Max. tool diameter | mm | φ90 |
| Max. tool weight | kg | 8 |
| Machine weight | kg | 4000 |
| Overall dimension | mm | 2400x2000x2550 |

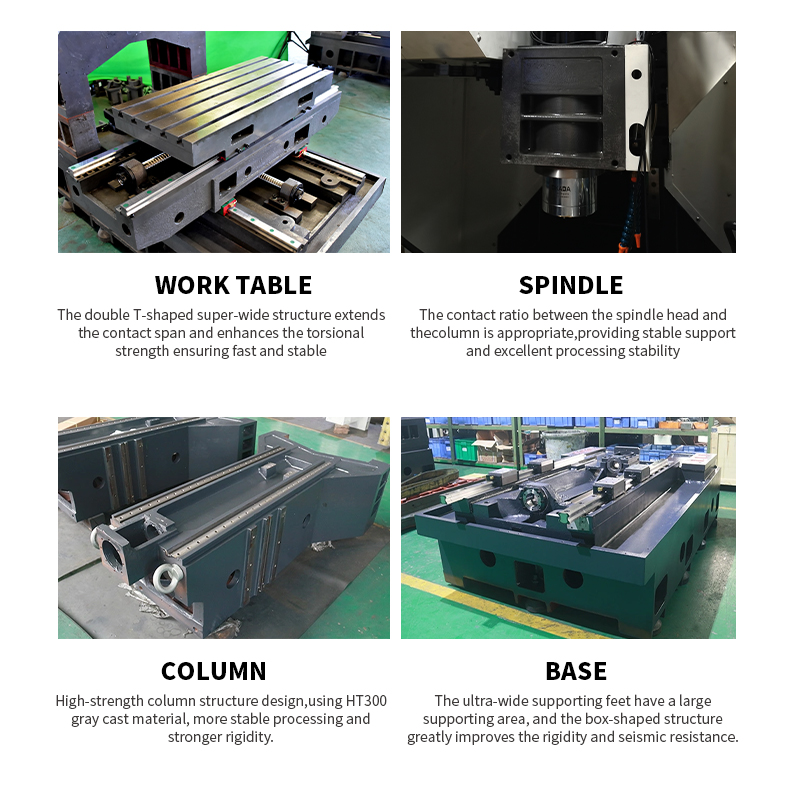

With a positioning accuracy of ± 0.0075mm and a repeatability accuracy of ± 0.005mm. The three-axis adopts high-speed and high-rigidity linear guide rails.

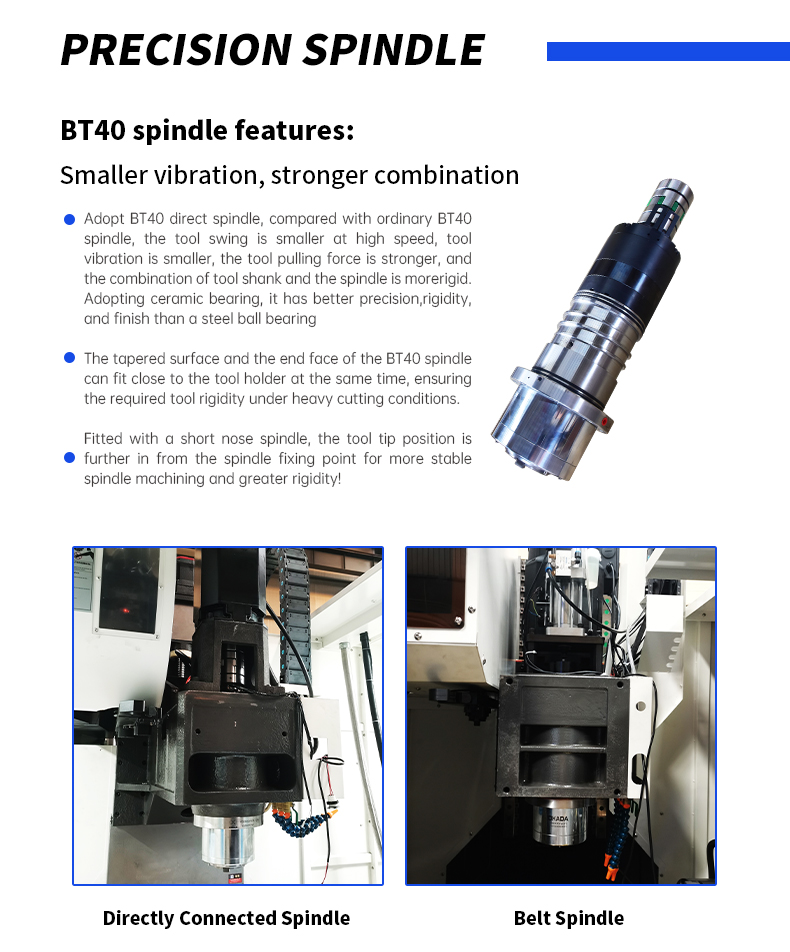

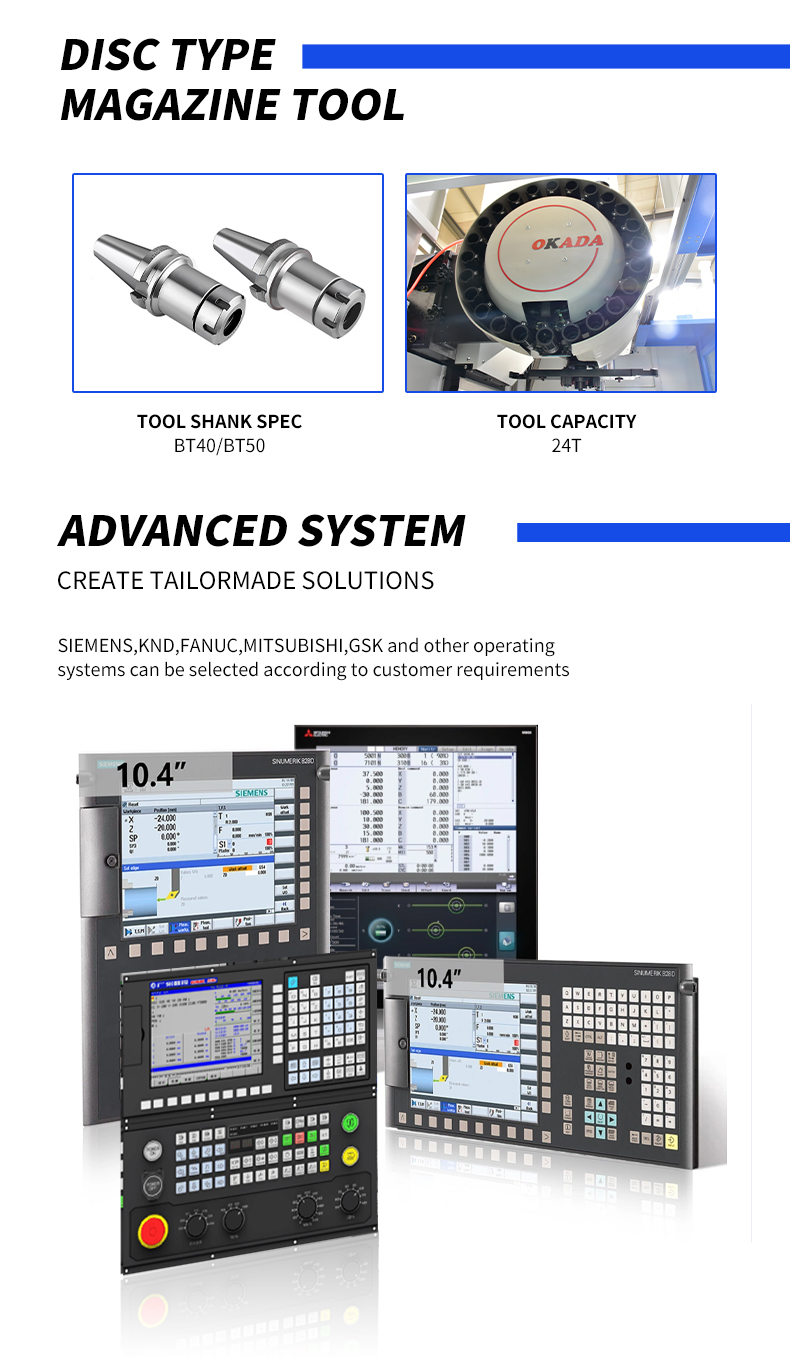

Comes standard with a BT40 high-speed spindle at 8000 rpm (optional 10000 rpm), paired with a 5.5kW high-power main motor. Efficient automatic tool changing system features a standard 16-blade armless tool magazine (optional 24-blade arm magazine).

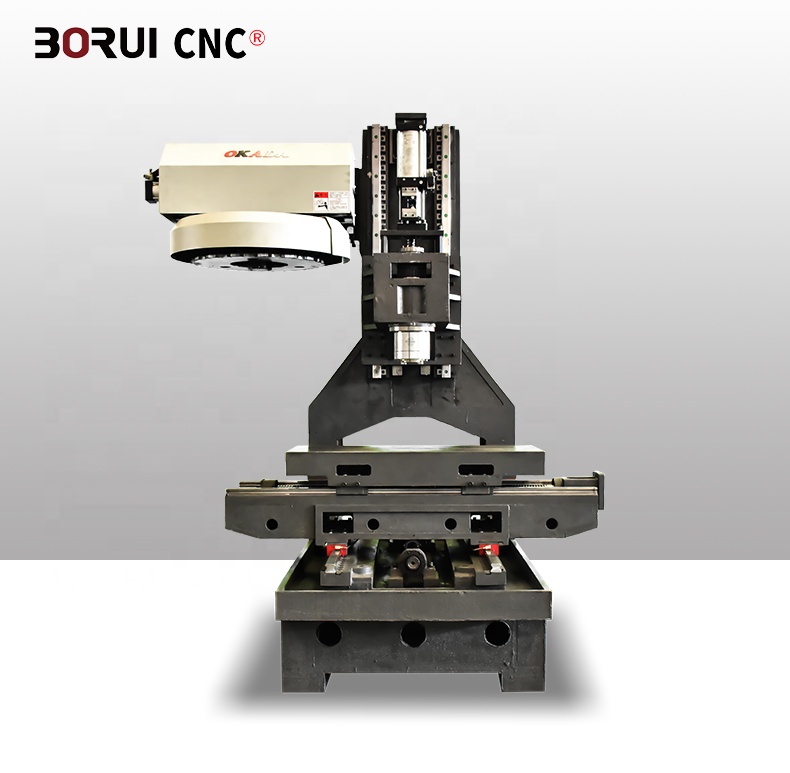

Optimized structural design and heavy-duty bed: The machine weighs up to 4000kg, far exceeding ordinary models in the same industry. The maximum load of the worktable is 400kg, which can stably carry large workpieces or precision fixtures for efficient processing.
Flexible performance options: Whether it's a higher spindle speed of 10000 rpm, faster 48/48/36 m/min moving speed, or a 24-blade chain tool magazine, we provide users with flexible choices for performance upgrades according to their own production development needs, effectively protecting their investment.

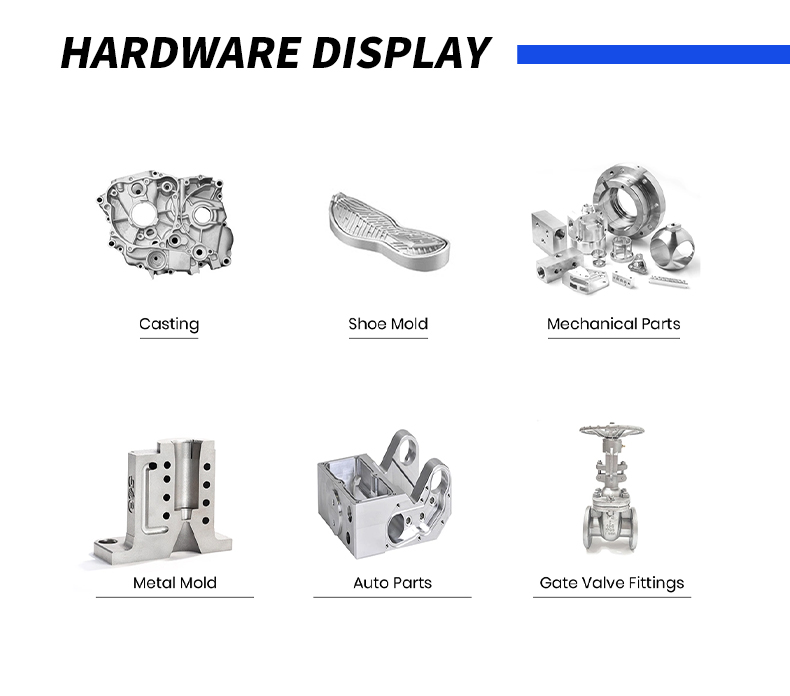

Ideal for precision mold manufacturing, aerospace and automotive parts, general machinery and automation equipment parts, hardware tooling and fixture processing, communication and electronic equipment parts, research institutes, and vocational education.
Please tell us your specifications or send us the product drawings. We will evaluate and choose the best model for you, or you can choose the exact model yourself.

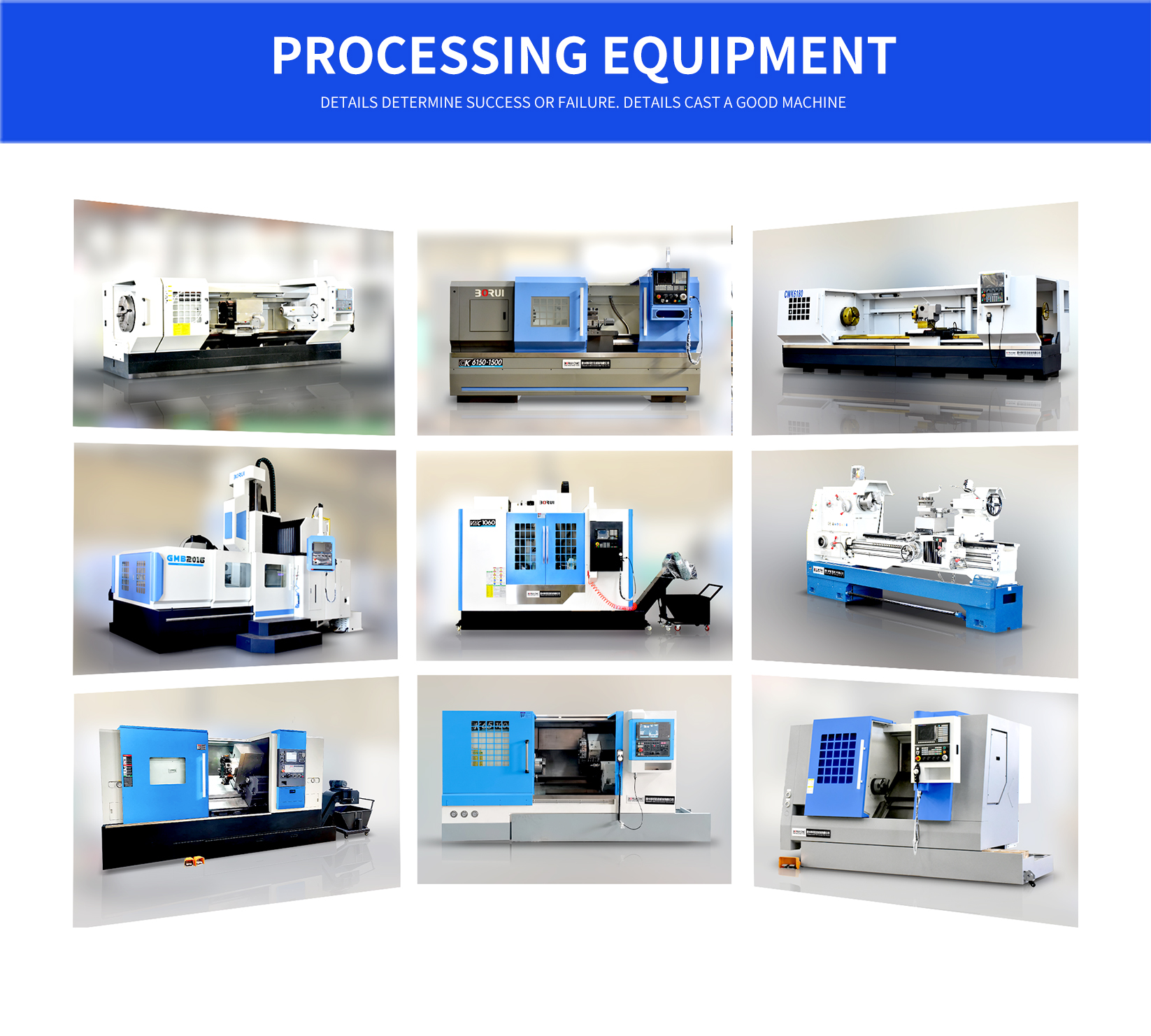

We specialize in all kinds of industrial machine tools, including CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Lathe Machines, Drilling Machines, Radial Drilling Machines, Sawing Machines, Shaper Machines, and Gear Hobbing Machines.
We accept standard international trade terms including FOB, CFR, and CIF.
Our standard payment term is T/T (30% initial payment when ordering, 70% balance payment before shipment) or Irrevocable LC at sight.
The MOQ is 1 set. (Only some specific low-cost auxiliary machines may require more than 1 set).
The standard warranty period is 12 months, providing reliable coverage and quality assurance for your equipment.
