Drilling Hole • Boring Hole • Tapping Hole

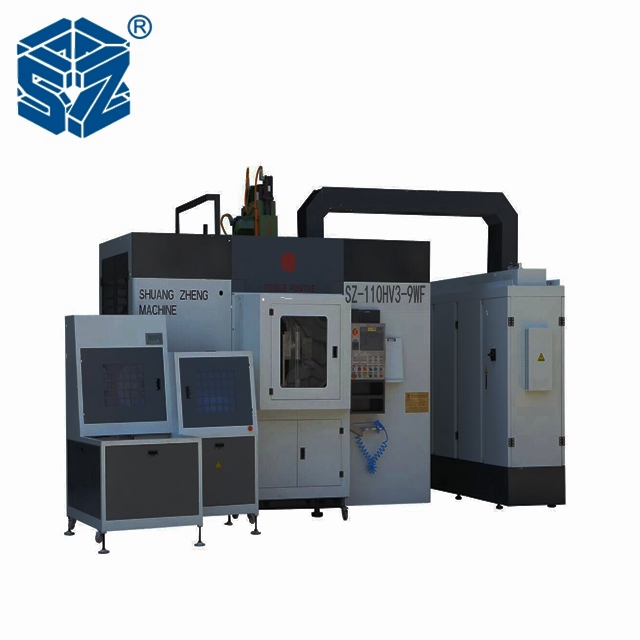

Italian technology transfer vertical rotation 8 station 3 direction 9 axis boring/tapping/milling slot/groove tools transfer G1/2" Filter ball valve processing special machine.
This machine adopts Schneider PLC programmable controller control. The operation control is flexible and convenient. Can connect intelligent manufacturing control system. Ensure the efficiency of machine tools. The device has a wide operating window. Convenient workpiece entry and fixture replacement.

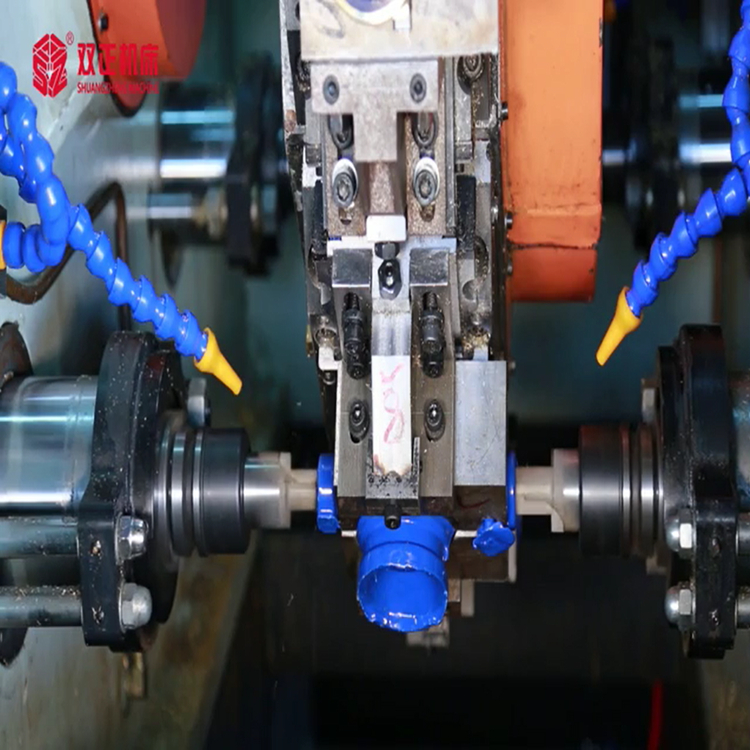

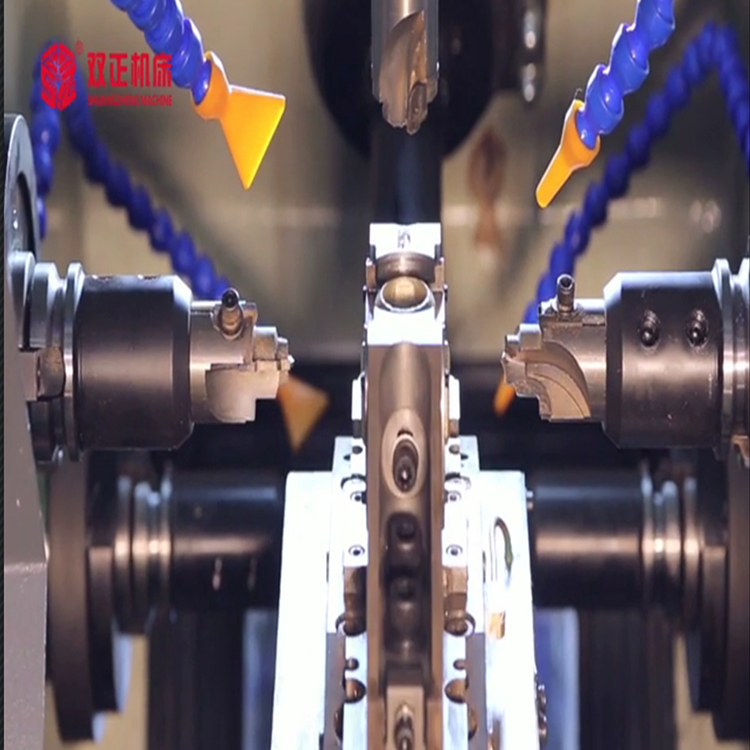

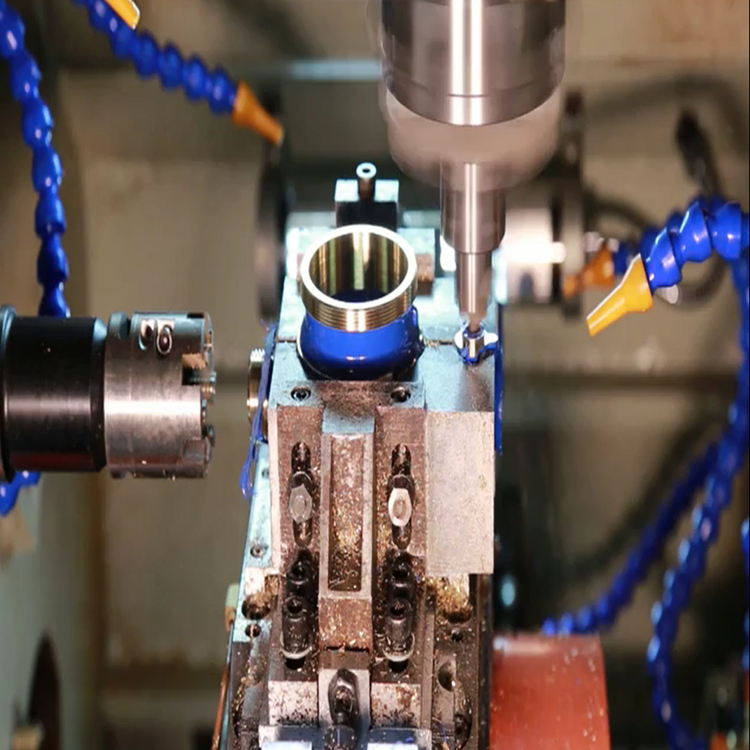

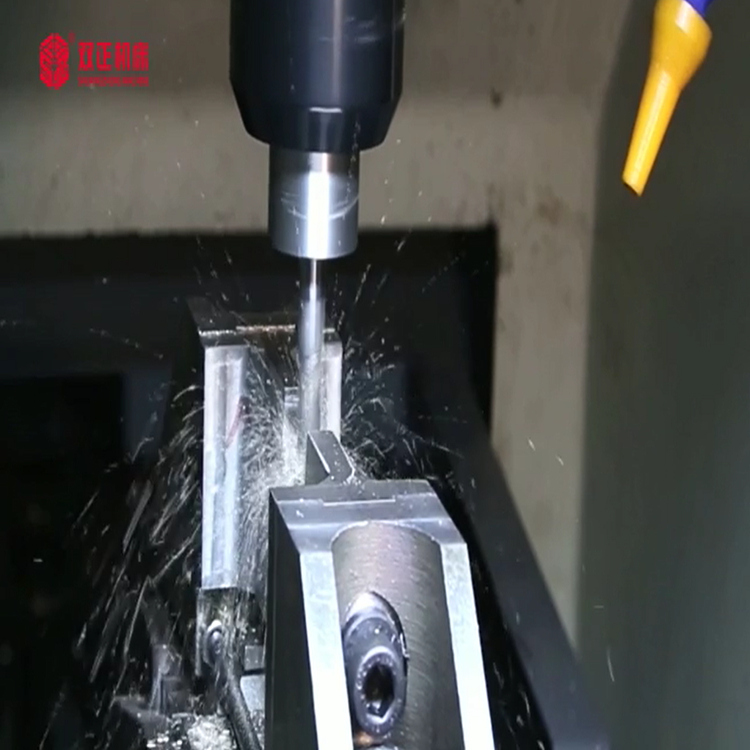

The workpiece is clamped in the machine tool one-time Armor, 8 station Vertical rotation of station rotary table. Synchronous clamp turn 7 close 1 open. Each functional power head, Three directions simultaneously complete boring/tapping/milling slot/groove tools process. According to customer product drawing processing standard requirements. To complete the finished product in one time. Lean production.
The bed structure is made of HT300 as a whole. According to the process, three times of aging treatment. Minimize internal stress. Ensure no deformation. All holes for power heads and datum plane. The five-sided CNC machining center is used for one-time processing. Perfect to ensure mounting accuracy.
| Specification Item | Detail Details |
|---|---|
| Processed product | G1/2" Filter ball valve |
| Power (kw) | 50.45*50% |
| Weight | 8200kg |
| Equipment size (length *width*height) m | 4.5*3.5*3.1 |
| Execution of figures | Boring/tapping/milling slot/groove tools |
| Upper and lower feeding system | Manual loading/unloading |
| Processing efficiency s/pcs | 6 s |
| Chip removal machine | Chain plate chip removal machine |
| Processing method | Water-cooling processing |
We focus on the application technology of machine tool manufacturing in Italy and Taiwan, providing machine tool equipment for high-end intelligent automatic machine processing in the water heating and valve industry.
Specializing in plumbing valves, Wei yu, refrigeration, and auto parts, we design and manufacture high-end intelligent servo multi-axle transfer machine combination processing machines, valve automatic assembly machines, fully automatic CNC machine tools, hydraulic machine tools, automatic machining of pipe fitting joints, robot intelligent upper and lower feeding systems, and flexible production line machines across eight series of more than 100 varieties of production equipment. Customized special machine tools and product automation assembly machine assembly line equipment are available based on user demands.
Our professional technical team recommends the right machine and can also customize special machines as per customer's requirements and special parts.
During machine production, we monitor the machine quality, test the machine, and take pictures or make videos for customer verification.

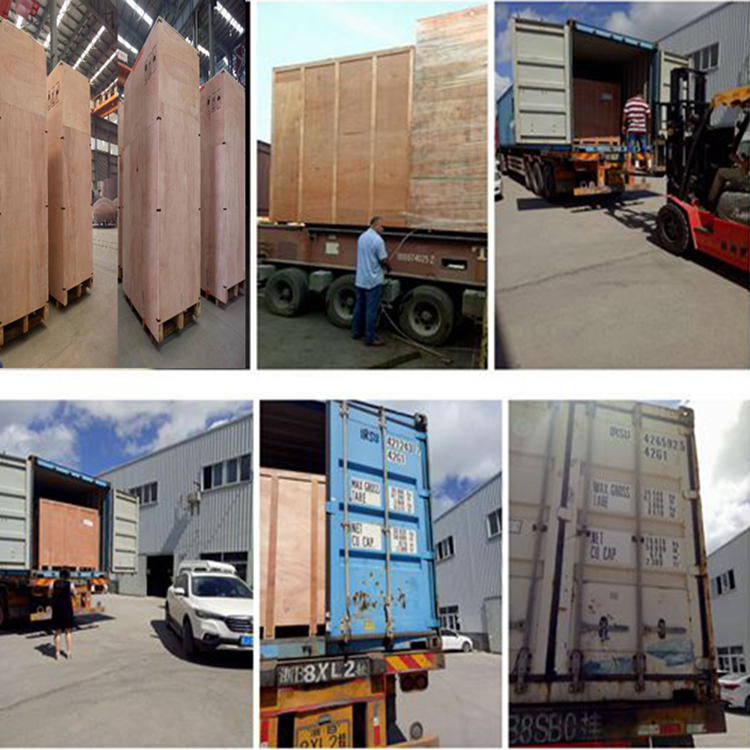

We send technicians to the customer's factory to install and adjust the machine. We provide life-time machine maintenance and repair services.
Specializing in the design and manufacture of high-end precision transfer multi-axis combinations. Providing 4, 6, 8, 10, 12 station body design, power head, and fixture modular design. Provides a highly flexible combination, effectively providing customer product solutions. It is widely used in water heating, valve, weiyu, refrigeration and auto parts.
