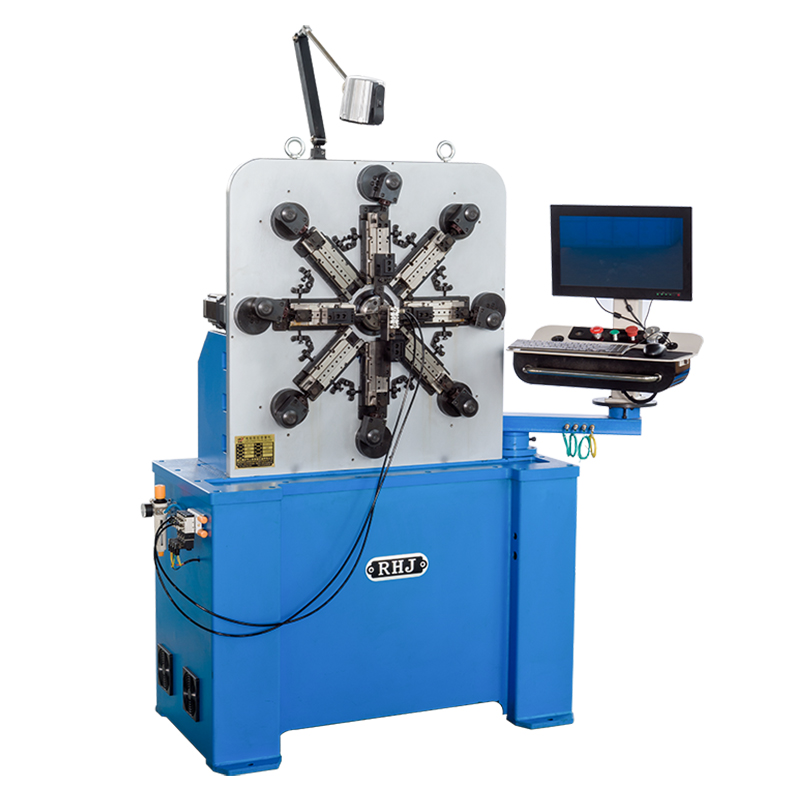

Good Price High Speed Camless Design 360 Rotary Multi Axis CNC Spring Machine With Enough Stable
1 / 1
Good Price High Speed Camless Design 360 Rotary Multi Axis CNC Spring Machine With Enough Stable

Good Price High Speed Camless Design 360 Rotary Multi Axis CNC Spring Machine With Enough Stable

Send Inquiry

Product Description

Product Description

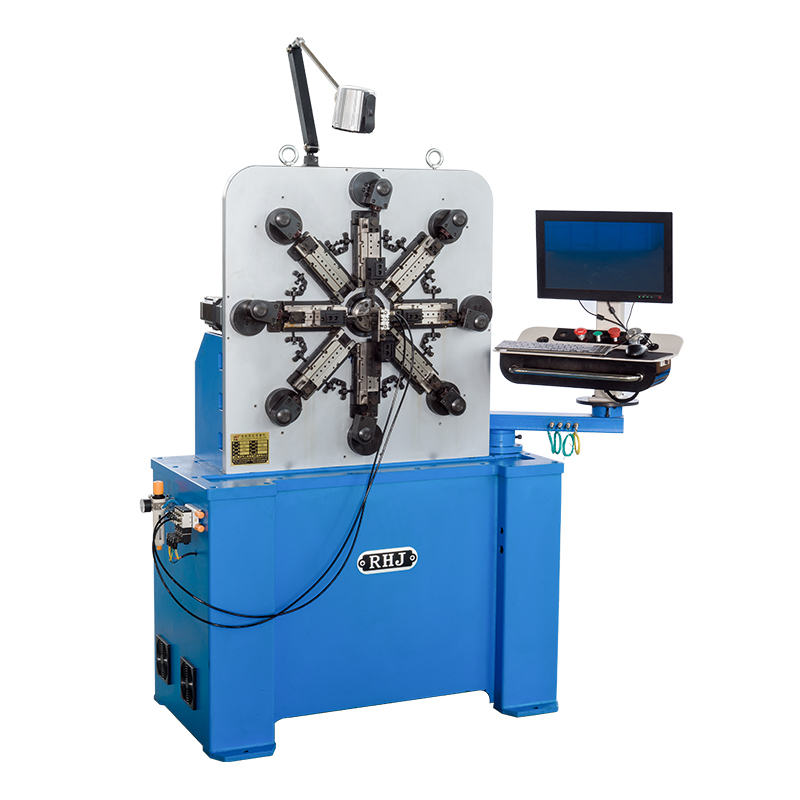

TYPE RH-1225 CNC SPRING COILING MACHINE

TYPE RH-1225 CNC SPRING COILING MACHINE

  • This machine is for camless design,set up spring with high speed and accurcy. And with stable good enough.
  • Adopts Taiwan's computer control system and equipped with servo motor imported from Japan.
  • The guide blocks adopt cross roller guides and have a high precision.
  • Computer interface displayed in Chinese and English which makes the operation easy.
  • It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring etc.

Specification

Type RH1225 RH1235
wire diameter of coiled material(mm) φ0.3~φ2.5 φ2.5~φ5.0
max.outside diameter of coiled spring(mm) φ50 φ100
(mm)max stroke slipper 60 90
instruction value of wire feed(mm) ±0.01~±9999.99
instruction value of cam ±0.1°~±359.9°
savable system 99groups
motor power(kw) Xaxis 1.0×8groups Yaxis2.7 Zaxis1.0 Xaxis2.0×8groups Yaxis5.5 Zaxis1.0
weight(kg) 800 1800
voltage Three phase380±10%V.AC.50HZ

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packaging Box Option 1
Packaging Box Option 2

Company Profile

Company Facility Overview

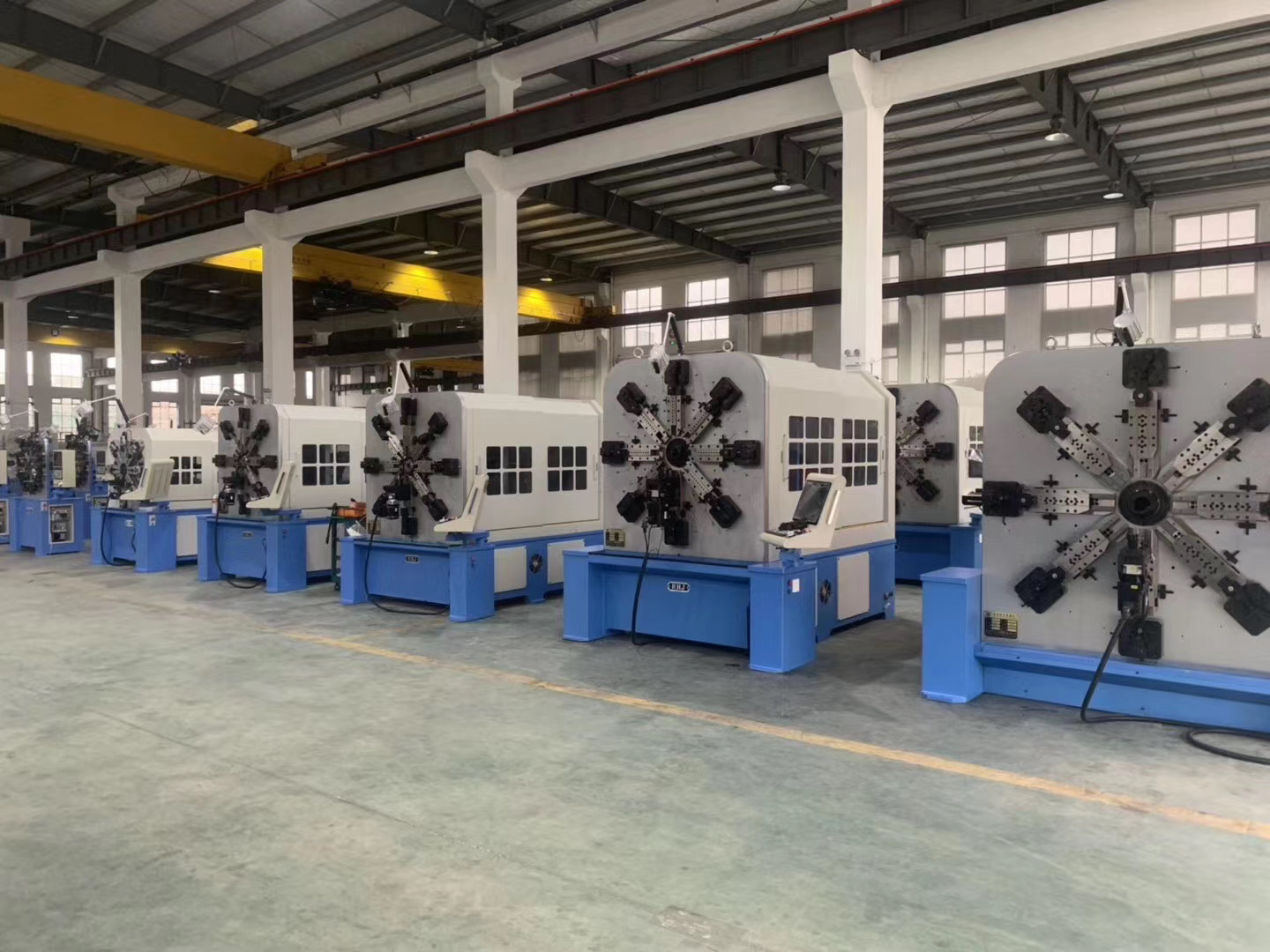

Production Workshop Area 1

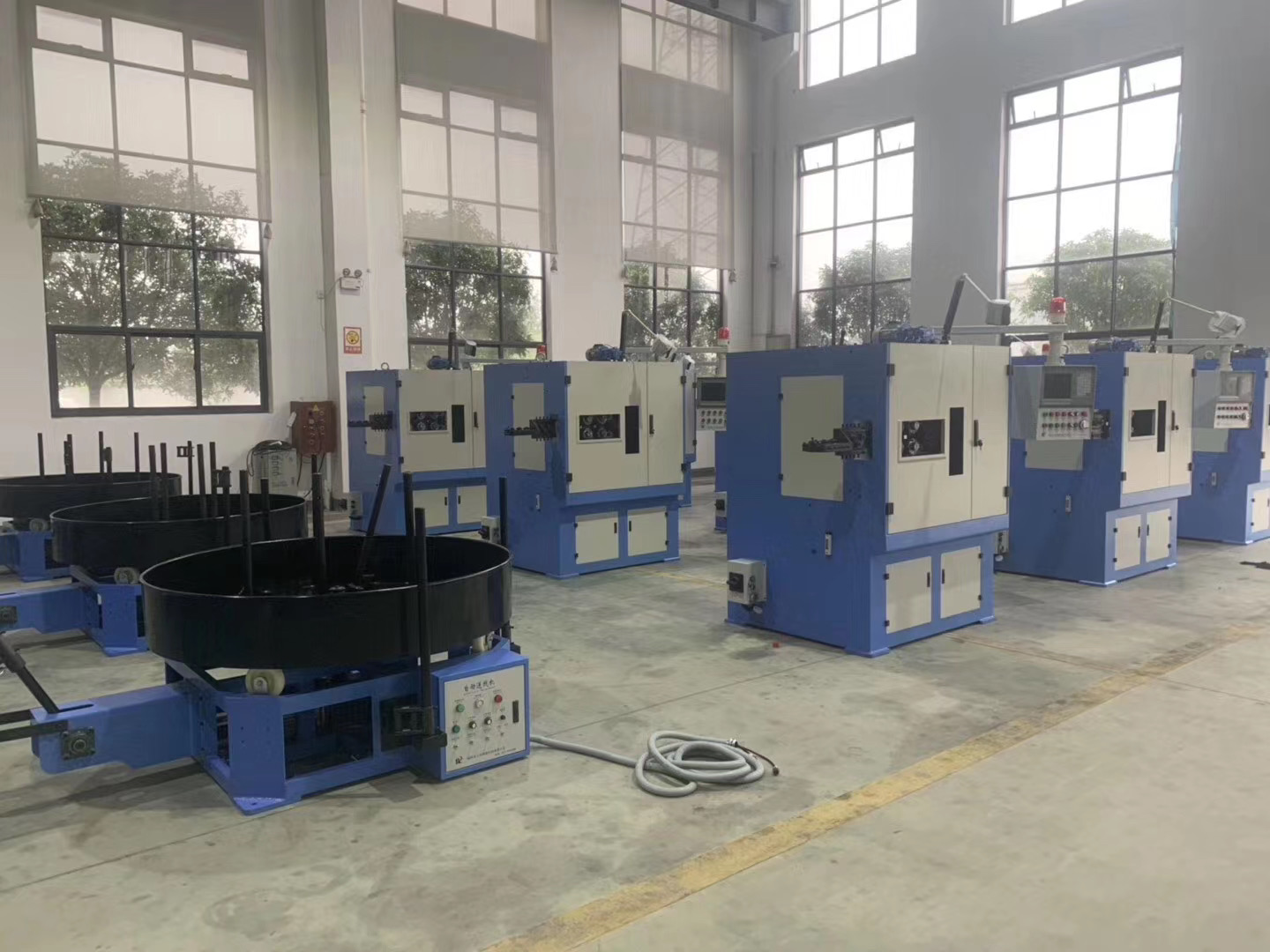

Production Workshop Area 2

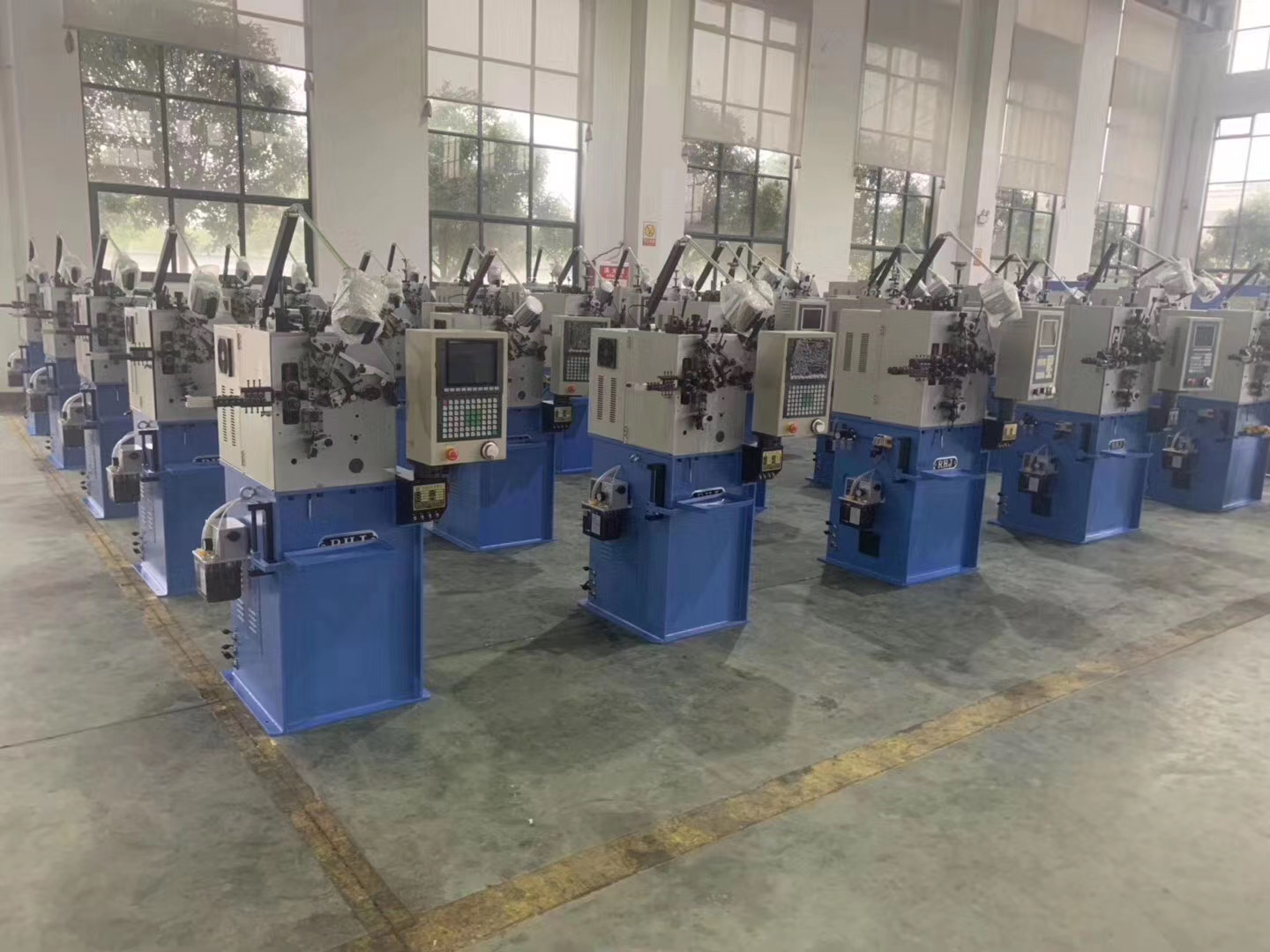

Production Workshop Area 3

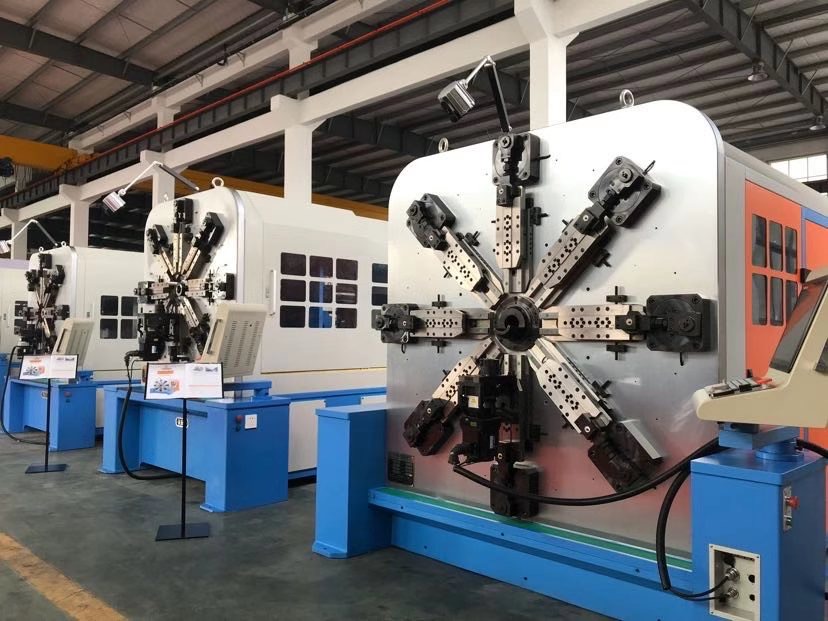

Equipment Testing Area 1

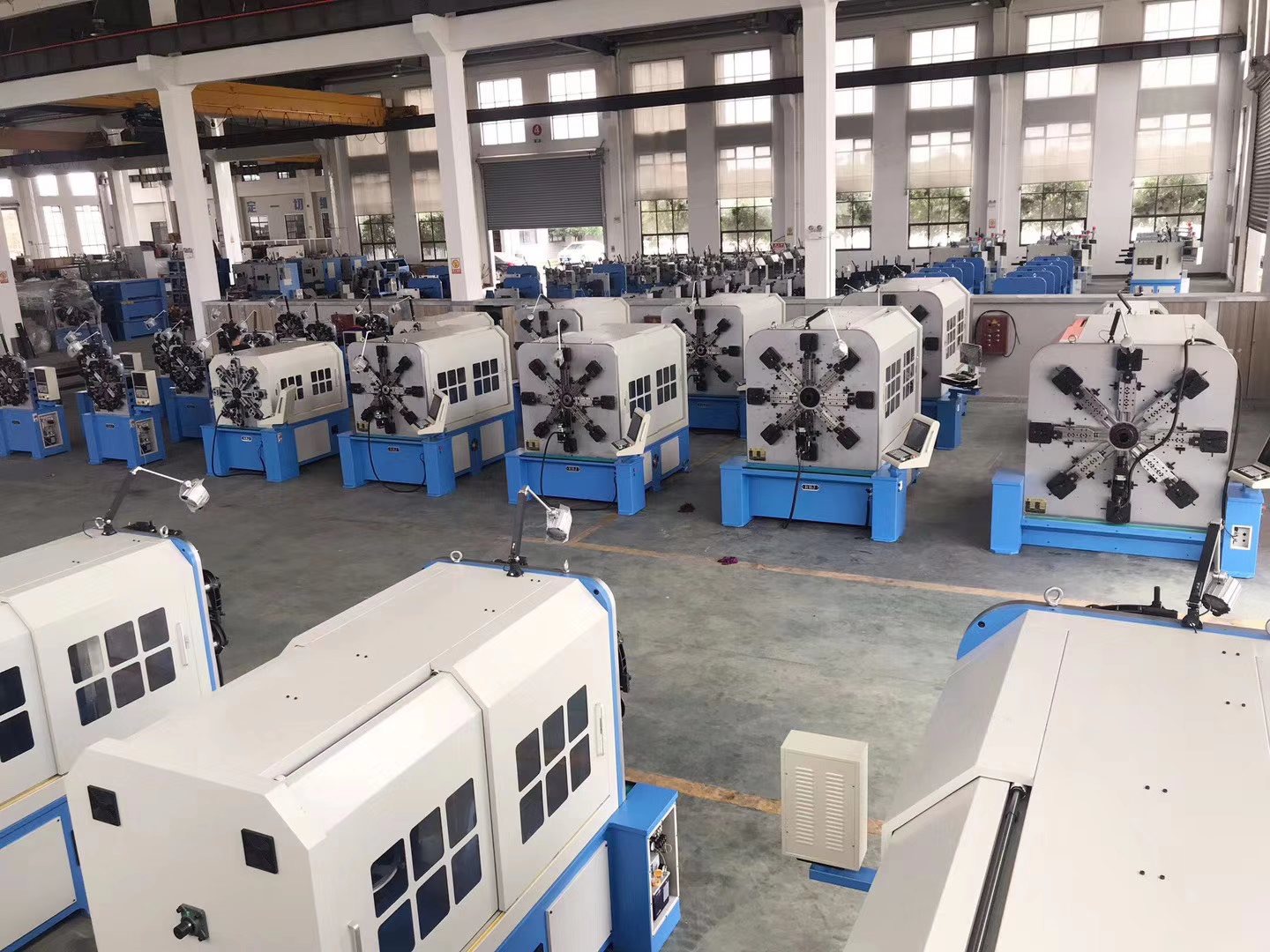

Equipment Testing Area 2

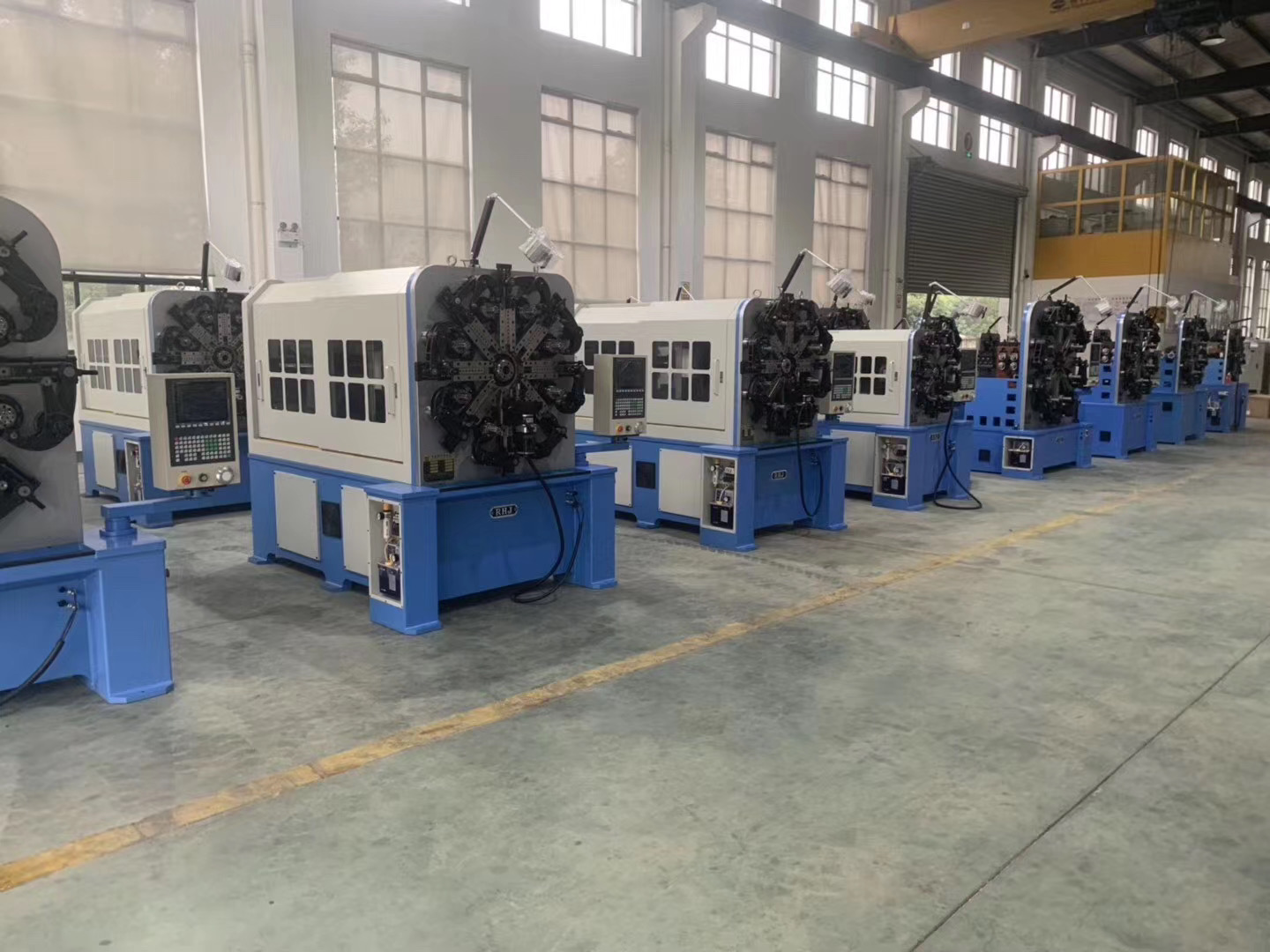

Equipment Testing Area 3

Exhibition

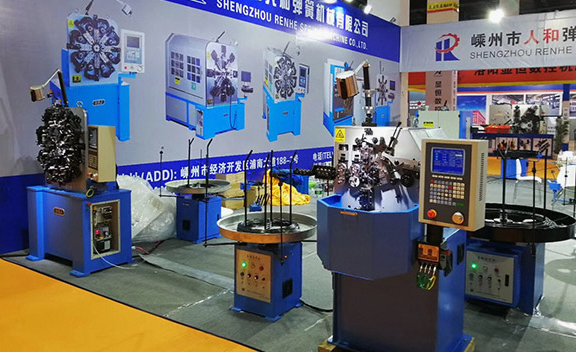

Exhibition Booth Detail 1

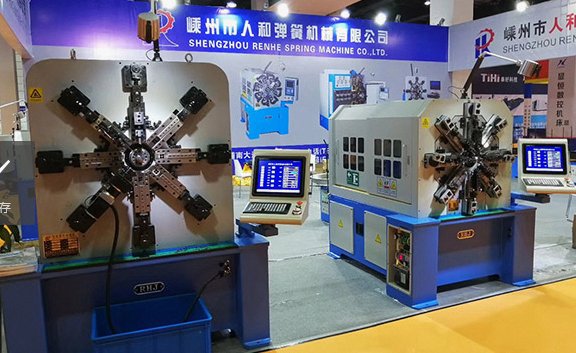

Exhibition Booth Detail 2

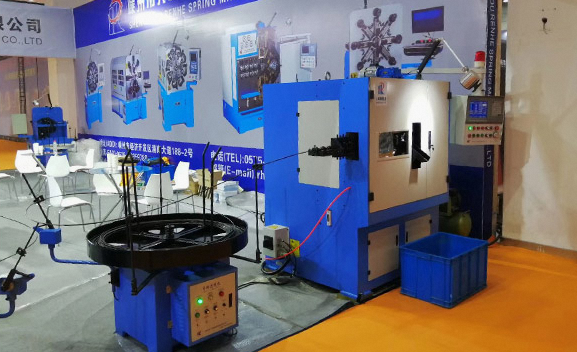

Exhibition Booth Detail 3

FAQ

1. Are you a manufacturer or a trading company?
We are a manufacturer with more than ten years of experience.
2. How long can you provide the warranty?
Our machine has a one-year warranty, and we use all stable components with a long service life.
3. Do you guarantee the safe and reliable delivery of the product?
Yes, we always use high-quality standard export packaging.
4. Do you have after sale service ?
Sure, we provide after sale service. If there are any questions, video, phone, or on-site guide assistance is available.
5. What is your payment term and Incoterm ?
1) We accept the payment term as TT.
2) We accept Incoterms as FOB.
