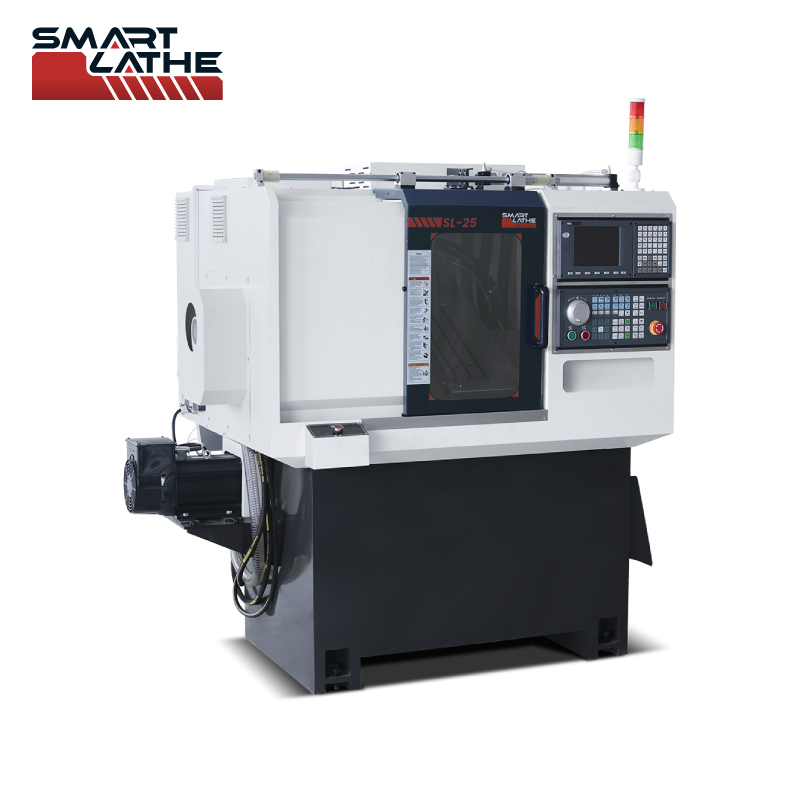

Torno CNC Syntec CNC Lathe Machine With Y Axis For Metal Tube Processing Industrial Valves Fastener Production

Product Description

CNC Lathe banner
Product Categories Overview
Product Description
SmartBrain Controller
Our SmartBrain™ CNC programming language acts as the brain in our CNC turning machines. For the ability to machine simple parts to those that are complex and require multi-tasks like turning-milling operations, SmartBrain™ offers you the versatility and flexibility to program those parts using either G-code/M-code programming (EIA/ISO) or Manual Data Input (MDI). Generally, SmartBrain controller is similar as Syntec, GSK. The G-codes are universal as other controllers while the M-codes are specified, we will provide the M-code list when the machine shipped out. SmartBrain post processors available for Fusion 360, Mastercam and Solidcam.
Features

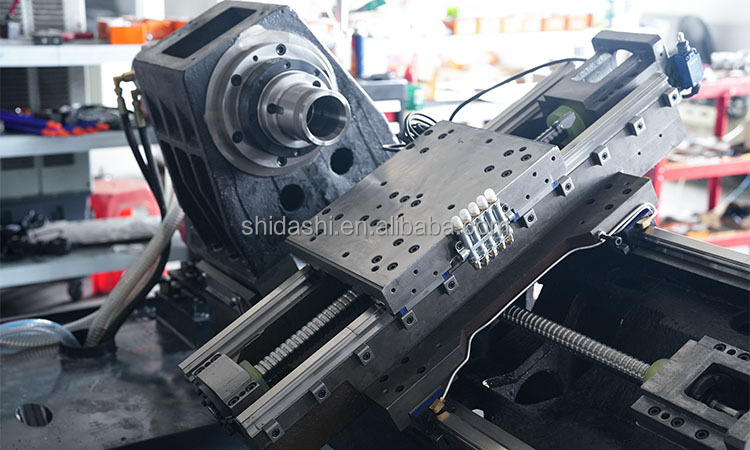

High rigidity body structure
High rigidity body structure, the lathe base is FEM analyzed to ensure the superb rigidity and stability of the lathe.

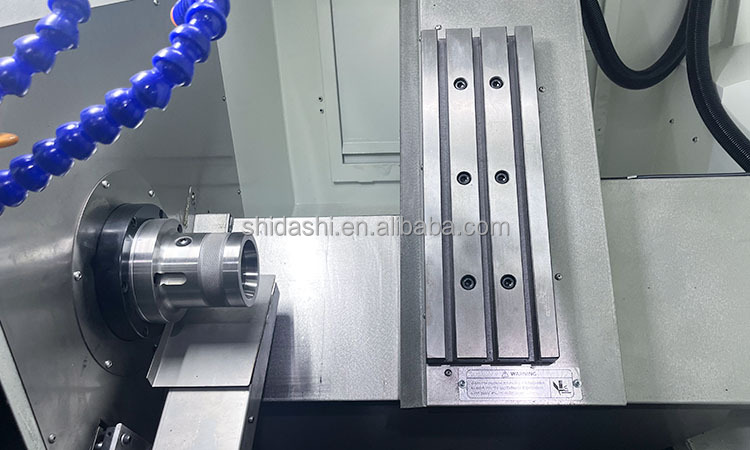

Patented slant bed design
The patented slant bed design increases the X-axis travel to 500mm and Z-axis to 180mm optimizing the lathe size and stability.

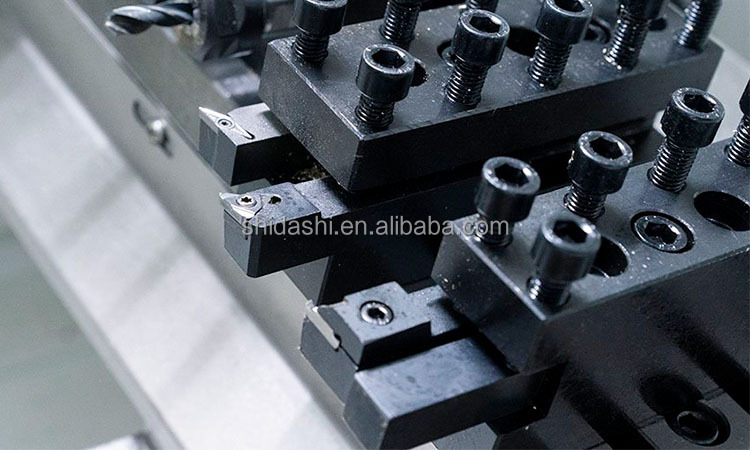

Multi-functions
With turning, drilling, tapping, and contouring functions can reduce cycle processing and improve production efficiency.

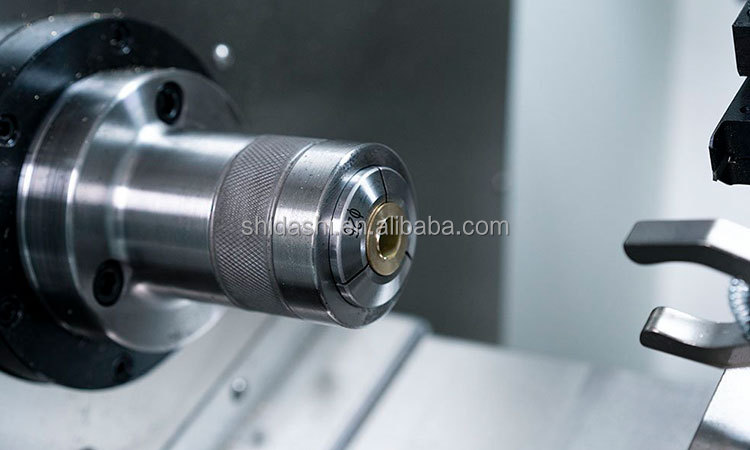

Main spindle assembly
The main spindle is with C-axis function, high speed, high precision, and low vibration which can make the workpiece precisely. Each spindle bearing assembly was tested for dynamic balance before installation to ensure high-speed running stability.

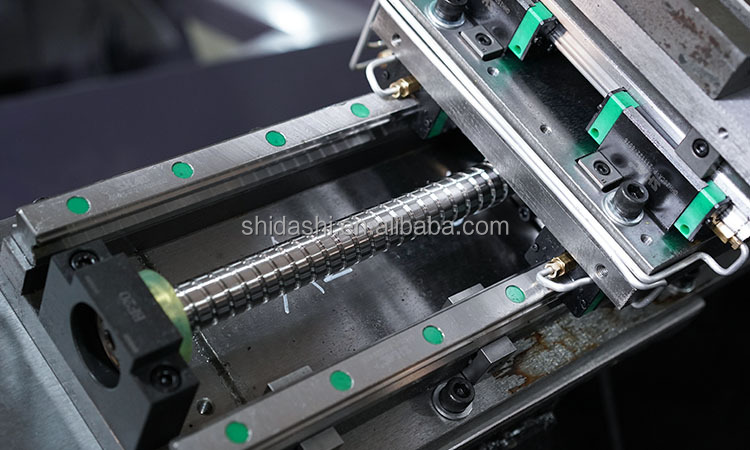

Ball screw rod rail
Equips with Taiwan 25mm ball screw rod rail and 25mm linear guideway to provide precision and low vibration tool carriage movement.

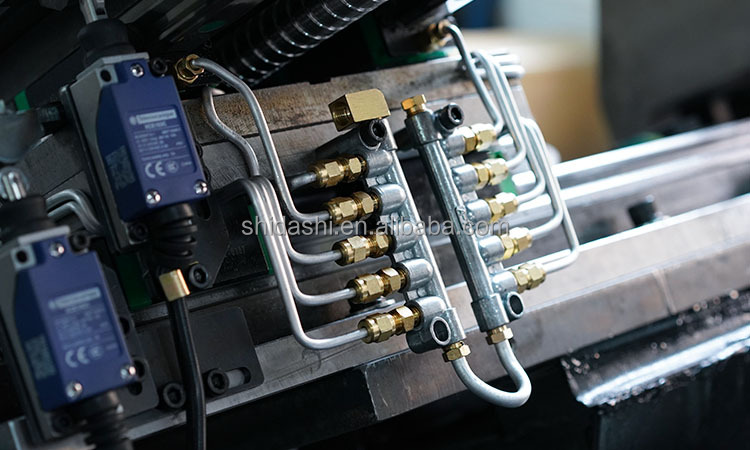

Auto lubrication system
Equips with auto lubrication system to ensure transmission system smoothly and long-lived.

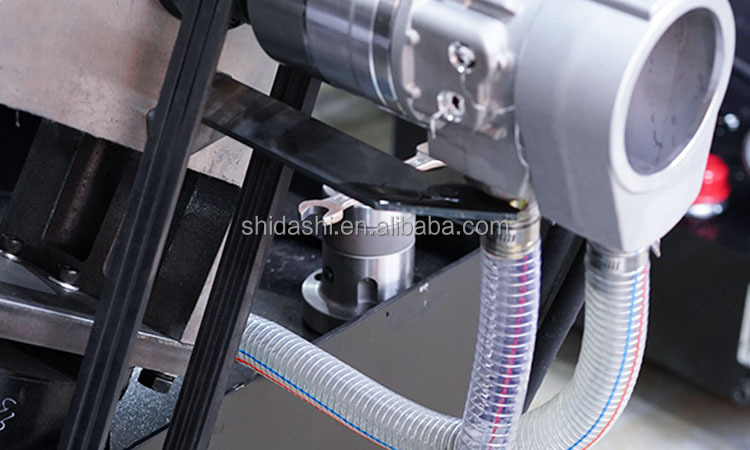

Hydraulic collet chuck
Robust hydraulic collet chuck can hold bars up to φ24mm and single workpiece up to φ180mm.

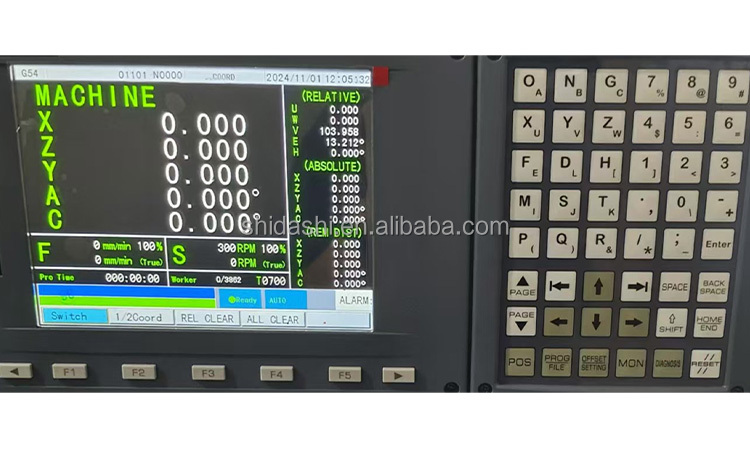

SmartBrain CNC system
SmartBrain CNC system co-work with quality electrical parts provides a rapid-operation and durable use.
Standard Configuration
Fully enclosed splash guard with top roof
3.7KW spindle servo motor
Telescopic guards for X/Z axes
Spindle speed 4000 rpm, A2-4
Automatic lubrication system
Coolant system
CNC Simulation
Hydraulic system
Coolant tank
Oil separator
LED working lamp
Electronic handwheel (MPG)
Coolant gun
Toolbox and user manuals
The tool holder(5 Sets)
Collet (1 Set)
C axis
Optional Accessories

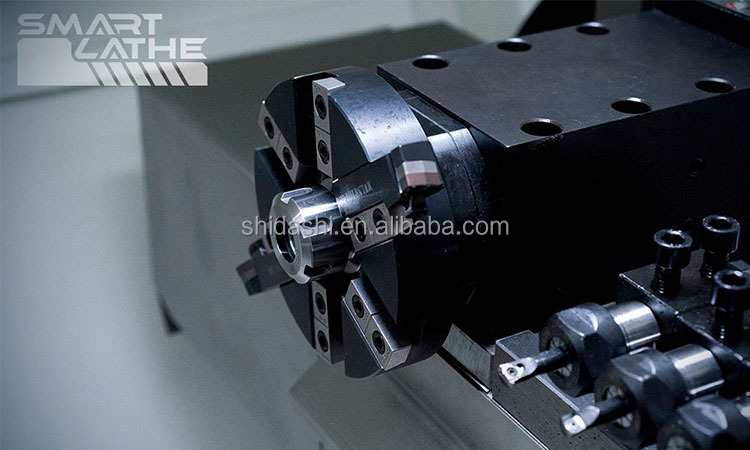

Polygon Turning
Polygon Turning

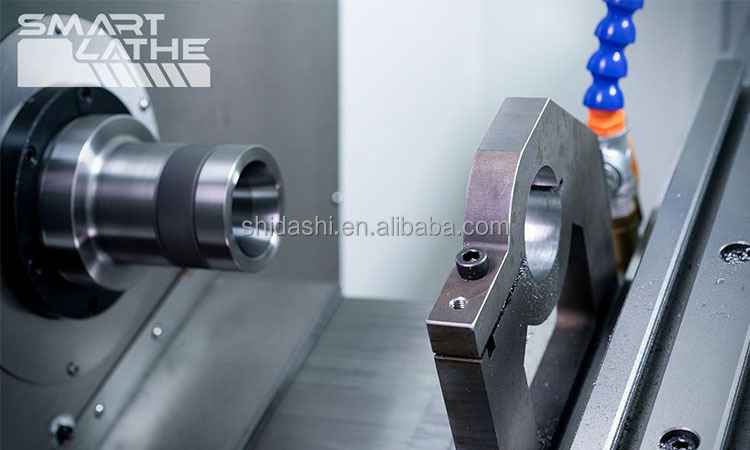

Follow Rest
Follow Rest

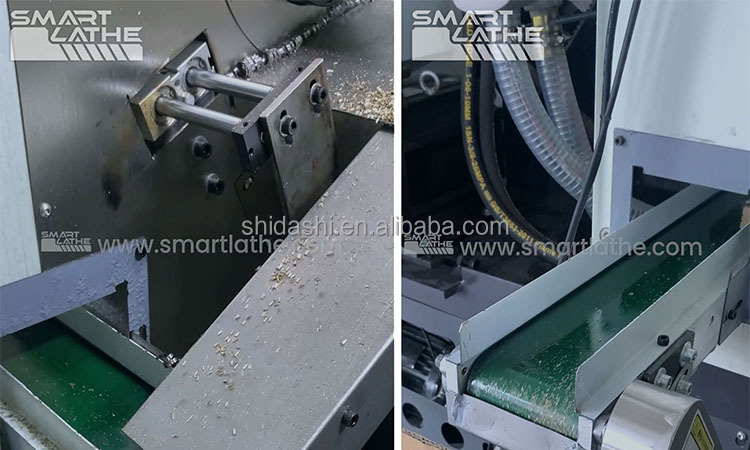

Part Catcher
Part Catcher

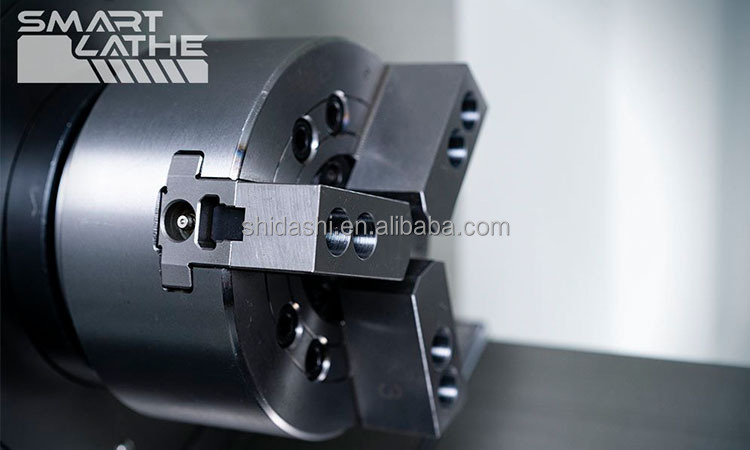

3-Jaw Hydraulic Chuck with Soft Jaws
3-Jaw Hydraulic Chuck with Soft Jaws

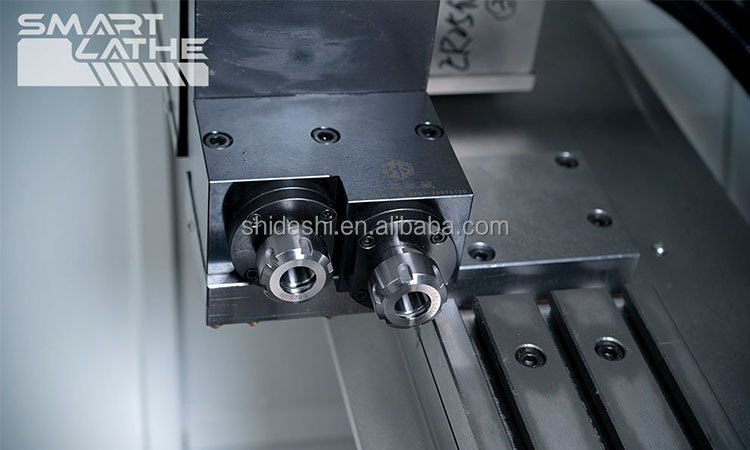

Live Tool Device (Single or Double-Shaft)
Live Tool Device (Single or Double-Shaft)

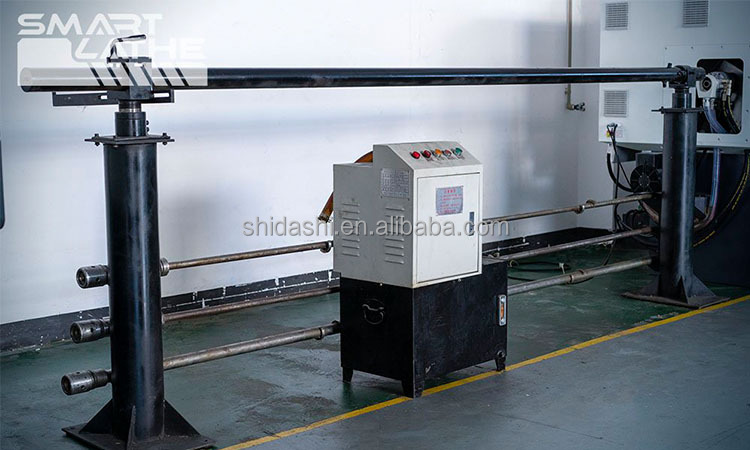

Oil Bar Feeder
Oil Bar Feeder

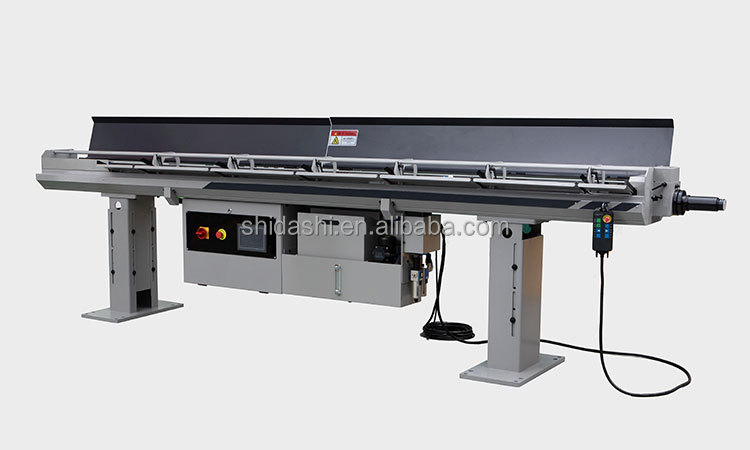

Servo Bar Feeder
Servo Bar Feeder

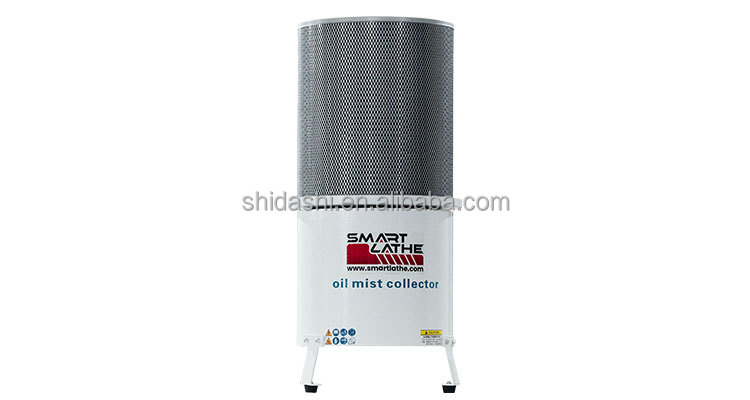

Oil Mist Collector
Oil Mist Collector

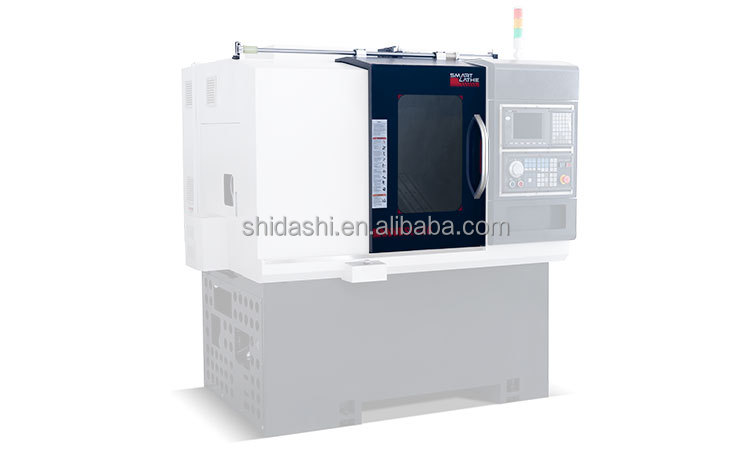

Automatic Door
Automatic Door

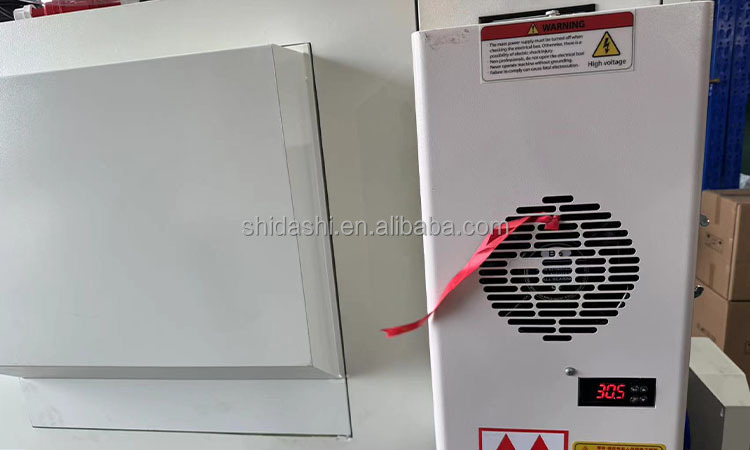

Air Condition
Air Condition

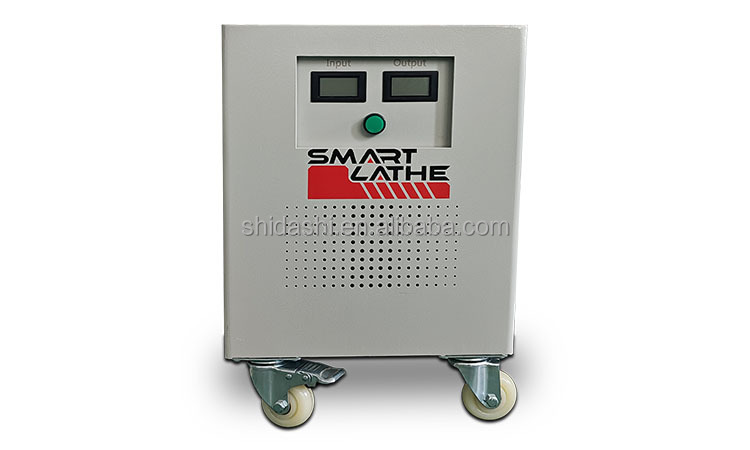

Transformer
Transformer

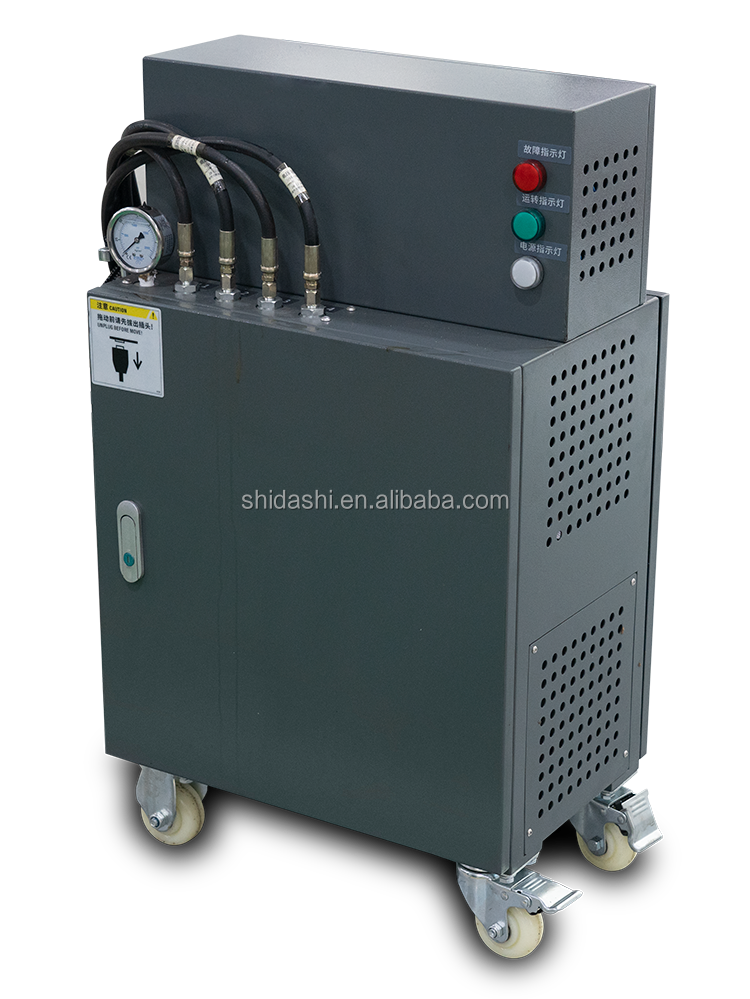

High Pressure Pump
High Pressure Pump

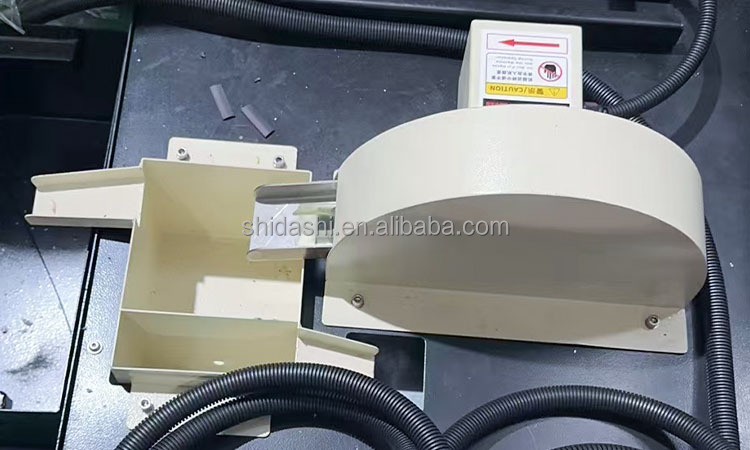

Oil Skimmer
Oil Skimmer

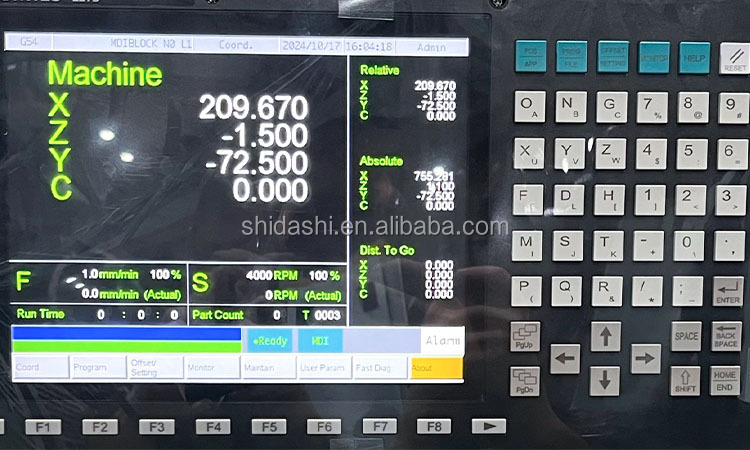

SYNTEC Controller
SYNTEC Controller

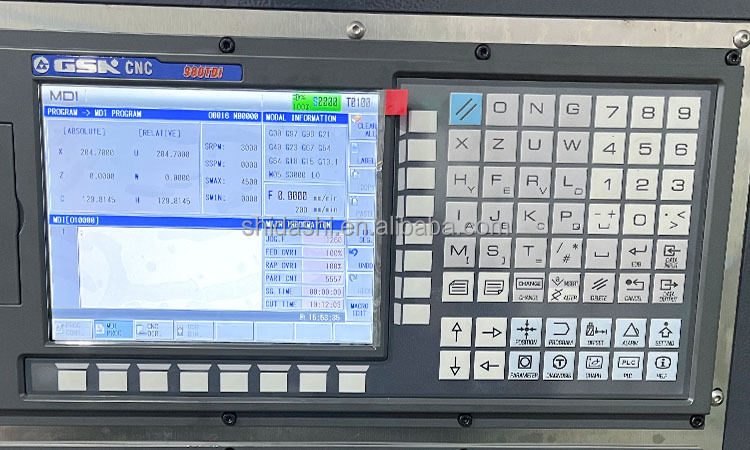

GSK Controller
GSK Controller
Applications
Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to φ24 mm or single workpieces up to φ180 mm.

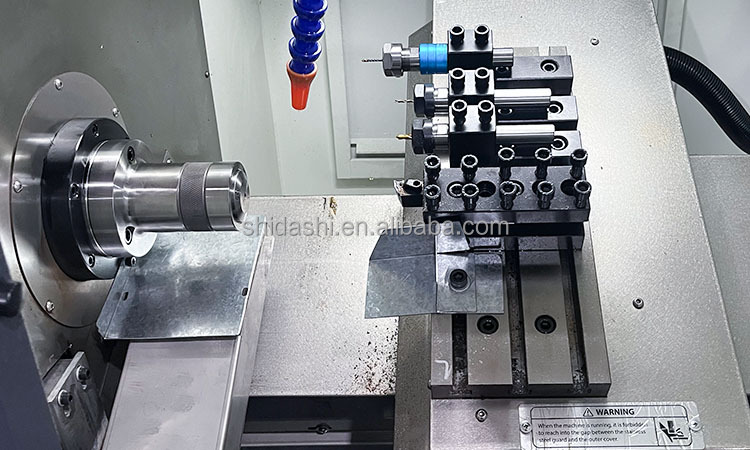

Application sample 1

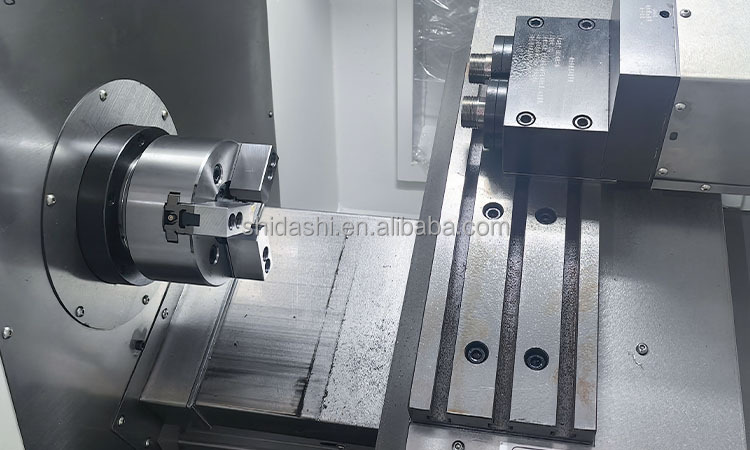

Application sample 2

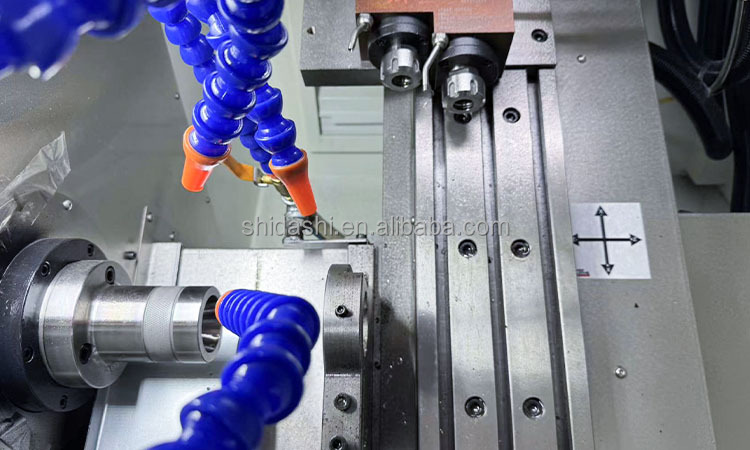

Application sample 3

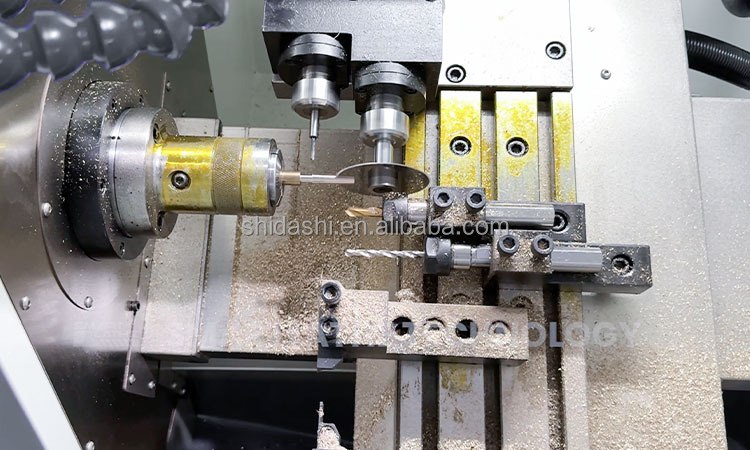

Application sample 4

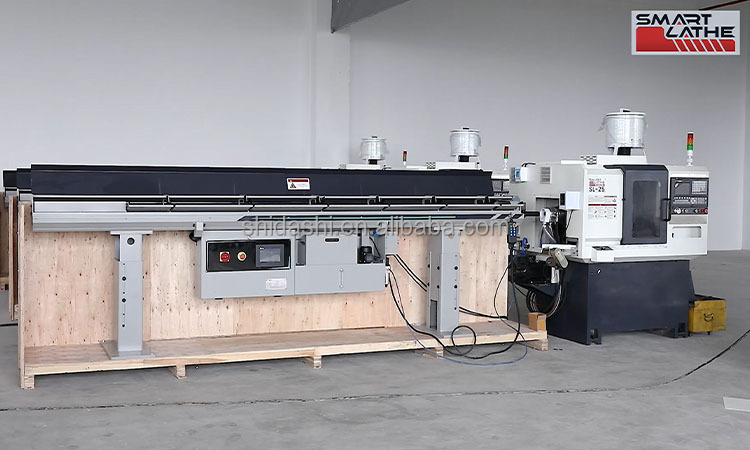

Application sample 5
Demo Services
Demo Services Details
After-sales Services
Support Process
Quality Standard
Global Support network
Package and Delivery
Customer Support Policy
FAQ
Q1 How can I choose machines?
For the model selection, please send us the drawing of the turning part and our engineer will evaluate it and provide the suitable configuration of the CNC lathe fit for your needs.
Q2 What are the main products?
We offer the SL series of the CNC slant bed lathes including the SL-07, SL-25, SL-36, SL-46, and the CNC Turning-Milling machines to help customers in the field of prototyping, entry-level business, and the craftsman with a bootstrap budget.
Q3 What are the Trade & Payment Terms?
FOB, CFR, and CIF are all acceptable. T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight.
Q4 What's the MOQ?
1 set. We will offer a better price if you order more.
Q5 What is the delivery time?
The full series of standard models are in stock. For a customized one, it depends.
Q6 What is the warranty period?
The warranty period is generally 13 months after B/L date.
